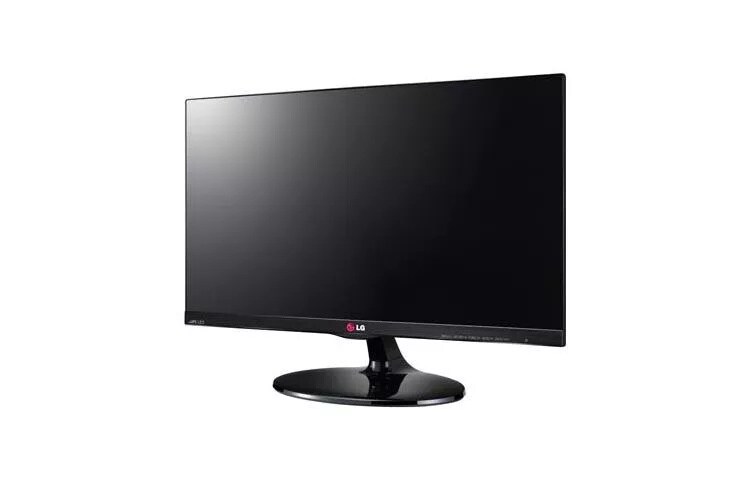

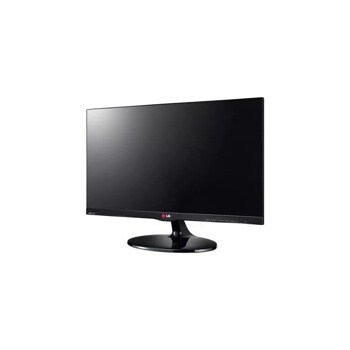

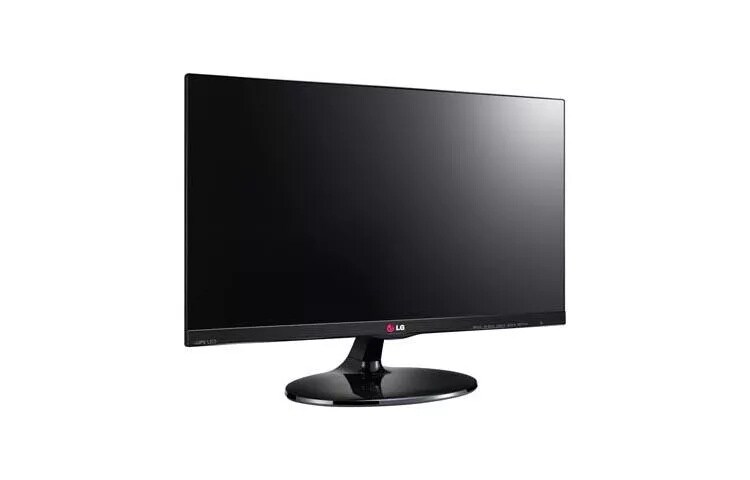

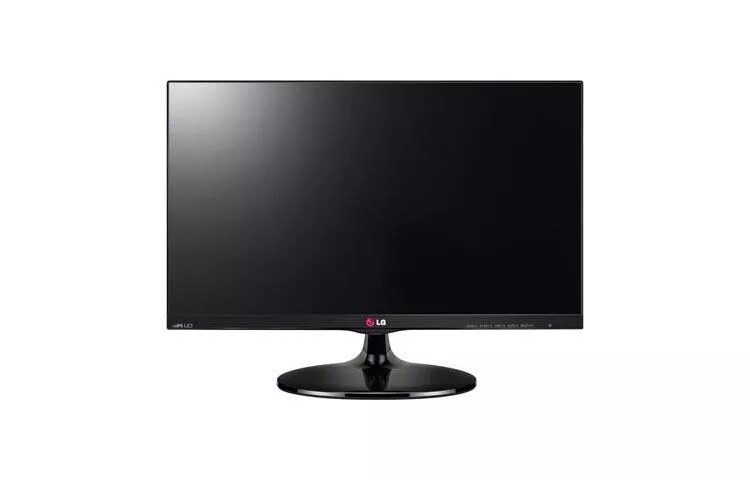

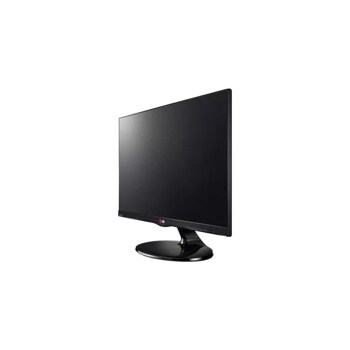

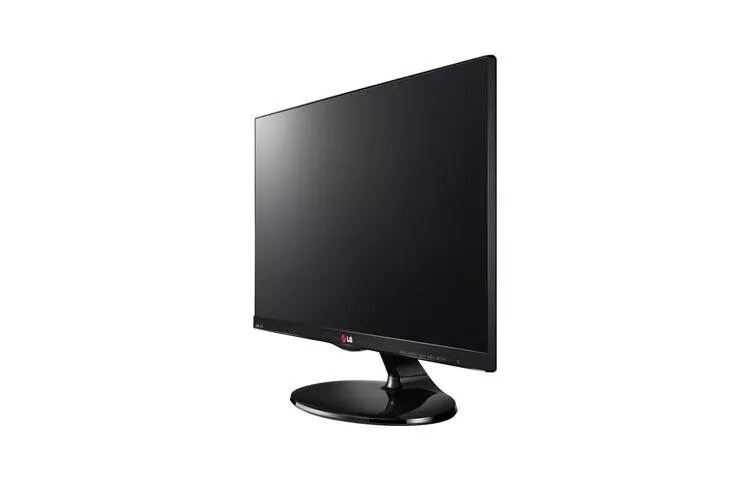

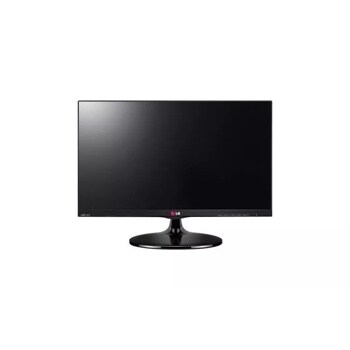

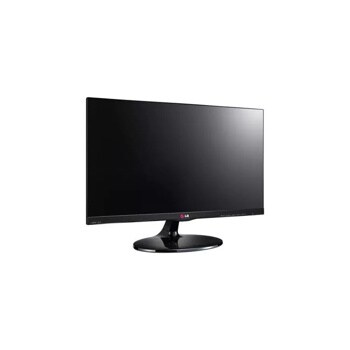

22" Class IPS LED Monitor with Super Resolution (21.5" diagonal)

  • 22EA63T-P

  • Discontinued Product

Key Features

  • LED Backlighting
  • IPS
  • Cinema Screen
  • Super Resolution
PANEL SPECIFICATIONS
Screen Size Class (diagonal) 22" Class (21.5" diagonal)
Panel Type IPS - LED
Aspect Ratio 16:9
Resolution 1920 x 1080
Brightness (cd/m2) 250
Contrast Ratio (DFC) 10,000,000:1
Response Time (GTG) 5ms
Viewing Angle (CR>10) 178º/178º
Panel Surface Anti-Glare, 3H
INPUTS/OUTPUTS
D-Sub 1
DVI-D Yes
POWER
Type Adapter
Input 100~240V
Consumption (On) 23W (Typical)
Consumption (DC Off) <0.3W (Max.)
SPECIAL FEATURES
PC Yes
Super Energy Saving Yes
Factory Calibration Yes
DDC/CI Yes
HDCP Yes
Plug & Play Yes
Super+ Resolution Yes
ez-Zooming Yes
Dual Smart Solution Yes
Dual Package Yes
Picture Mode Yes
Intelligent Auto (Auto Resolution) Yes
STAND
Detachable Base Yes
Tilt (angle) -5º (front) ~ 20º (rear)
DIMENSIONS/WEIGHT
Monitor with Stand (WxHxD) 19.7" x 15.0" x 7.0"
Monitor without Stand (WxHxD) 19.7" x 12.1" x 2.9"
Shipping Dimensions (WxHxD) 22.4" x 14.8" x 4.9"
Wall Mount Pattern 75mm x 75mm
Monitor with Stand Weight 6.0 lbs
Monitor without Stand Weight 5.5 lbs
Shipping Weight 8.6 lbs
STANDARD
UL(cUL) Yes
TUV-GS TUV-Type
FCC-B, CE Yes
EPA Yes
Microsoft Windows 8 Yes
INCLUDED ACCESSORIES
Power Cable 1
D-Sub Cable 1
WARRANTY / UPC
Limited Warranty 1 Year Parts & Labor
UPC 719192191181
