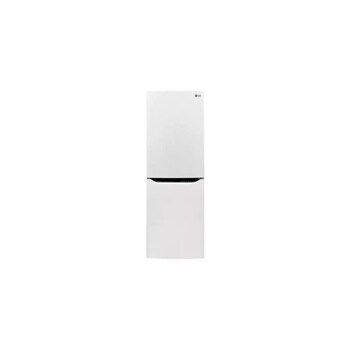

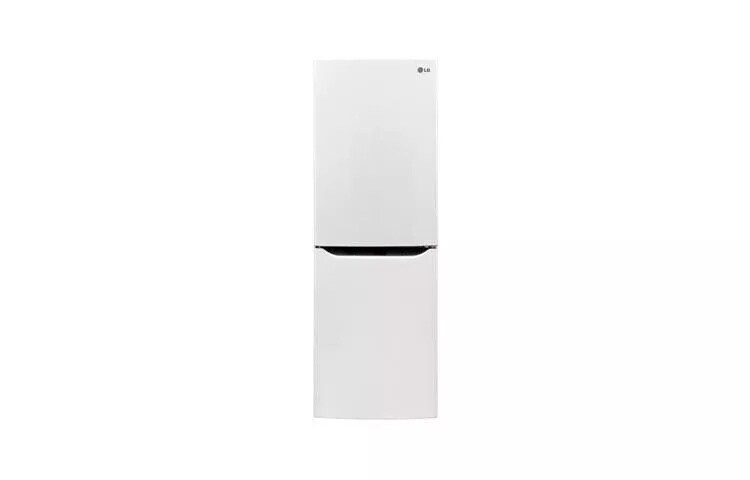

Large Capacity 2 Door Bottom-Mount Refrigerator

  • LBN10551SW

  • Smooth White

Key Features

  • 10 cu.ft
  • Premium LED Interior Lighting
  • 4 Freezer Drawers
  • Multi-Air Flow Cooling
Fits tight spaces.

Fits tight spaces.

Our 24" width slimmed down refrigerator makes the most of every inch of available space. Offering a wide array of features and flexible drawers this small-space solution makes it easy to fit lots of function into studio apartments, lofts, tiny houses and other small spaces.

Fresher is better.

Fresher is better.

Multi-Air Flow Freshness System is designed to maintain superior humidity and temperature levels to help keep your food fresher, longer. Digital sensors constantly monitor conditions within the refrigerator and strategically-placed vents in every section to help surround your food with cool air no matter where you put it.Fresher is better.

Great Light.

Great Light.

LED panels in the refrigerator provide an exceptionally bright interior and saves energy over traditional lighting.

Sophisticated style and Design.

Sophisticated style and Design.

Contoured doors, hidden hinges, and a host of great interior features like LED lighting give your refrigerator a look as sophisticated as it is functional.

Fresher is better.

Fresher is better.

Digital Temperature Controls designed to maintain superior humidity and temperature levels to help keep your food fresher, longer. Digital sensors constantly monitor conditions within the refrigerator to keep things cool.

Door Type Bottom Freezer
Refrigerator 3.6 cu. ft.
Freezer 6.5 cu. ft.
Total 10.1 cu. ft.
Ice System Ice Tray
Smart Cooling System Yes
Multi-Air Flow Cooling Yes
Temperature Sensors 4
Display Type Membrane (Green LED)
Hidden Hinges Yes
Temperature Controls Digital
Door Alarm Yes
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
Auto Closing Door Hinge Yes
No. of Shelves 2 Full
Cantilevered Shelves Yes
Shelf Construction Spill Protector™ Tempered Glass
Crisper Bins 1 Humidity Crisper
Refrigerator Light Premium LED
No. of Shelves/Bin 5 Total (1 Full, 4 Half)
Door Bin Construction Clear
Drawers 4
Handle Pocket
Contour Door Yes
Hidden Hinges Yes
Surface Vinyl Coated Metal
Back Flush & Metal Cover Over Mechanical Parts
Available Colors Stainless VCM (PV), Smooth White (SW)
Handles Pocket Handles
Depth with Handles 25 3/8"
Depth without Handles 25 3/8"
Depth without Door 21 5/8"
Depth (Total with Door Open) 46"
Height to Top of Case 68 1/5"
Height to Top of Door Hinge 68 2/5"
Width 23 3/8"
Width (Door Open 90° with Handle) 24 3/8"
Width (Door Open 90° without Handle) 24 3/8"
Door Edge Clearance with Handle 1 1/8"
Door Edge Clearance without Handle 1 1/8"
Installation Clearance Sides 2", Top 2", Back 2"
Weight (Unit/Carton) 152 lbs./165 lbs.
Carton Dimensions (WxHxD) 25 4/5" x 71 1/2" x 29 1/5"
Limited Warranty 1 Year Parts and Labor, 7 Years on the Sealed System
UPC 048231 786089

What People Are Saying

Rated 4 out of 5 by from Perfect size I love the small footprint of this fridge and it still has generous interior space. The one downside to this item is the lighting. The lights are down the center in the back of the fridge so when it is full it is very dark because the food blocks the light.
Date published: 2015-09-05
Rated 5 out of 5 by from Perfect Solution Our Refrigerator was "slowly dying" and I kept delaying the inevitable. Finally I started shopping around. Was looking for the bottom freezer type, as I have issues with my back & thought since I was in the refrigerator more than the freezer, that would make more sense. I could not have made a BETTER decision. Since space was an issue, this was a perfect fit, has plenty of room inside & a PERFECT SOLUTION to our situation. It is quiet, sleek design and is doing a great job for us. It is a perfect size for a family of 2!!
Date published: 2015-08-29
Rated 5 out of 5 by from Perfect for small space or small household I love the freezer on the bottom and having drawers to separate my frozen items. As a single person, it is just the right amount of space for the food I keep in there. I anticipate a lower electric bill due to the smaller interior and more efficient use of space. I had the Euro version of this (Vesta) at my home in Baltimore and it had a wine rack along the top of the refrigerator interior. I miss that, and it cost y'all a star! ;-) I do like the beep when I forget why I am standing looking into it.
Date published: 2015-05-19
Rated 5 out of 5 by from This refrigerator has great features. I love the freezer on the bottom. I was greatly surprised by the amount of room in the refrigerator and freezer.
Date published: 2015-05-07
Rated 5 out of 5 by from Unique size and footprint makes this a winner. I have a rather small kitchen, so floorspace is critical. I also live alone, and although I cook and entertain, I have no need of a monster "Family-size" refrigerator. This LG model fits flush with the countertops and has the freezer below (where it belongs). It's virtually silent, and the sleek and modern lines don't draw attention to itself. The inside compartments and drawers are brilliantly designed to be flexible. Case in point: I can fit an entire Thanksgiving dinner (25-lb turkey, etc.) inside with space to spare!
Date published: 2015-03-29
Rated 4 out of 5 by from Recommended for Apt. Living or Tight Spaces It's a great appliance so far, it's only been a couple of months. It looks great and works well. It is limited capacity for large bottles. It is made for one or two persons, there is not a lot of room for big items. The freeze is fairly large for the size.
Date published: 2015-03-15
Rated 5 out of 5 by from Overall Design Great Love, Love this refrigerator. Fits perfect in my basement. I love the compartments in the freezer department. Its slim but fits everything I need in a second refrigerator.
Date published: 2015-03-08
Rated 5 out of 5 by from Perfect for a small apartment I got this for my small apartment and it was an excellent choice.
Date published: 2015-02-28
  • 2015-12-01T07:11CST
  • bvseo_cps, prod_bvrr, vn_cps_3.1.6
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_14
  • loc_en_US, sid_MD05109547, PRD, sort_mostRecent
  • clientName_LG
  • bvseo_sdk, java_sdk, bvseo-
  • CLOUD, getReviews, 7ms

We're here to support you with our product.

View LBN10551SW Product Support

Contact us for any purchasing inquiries.


Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

Is the capacity of the freezer really larger than the fridge?  What color are the sides?  What is the large white thing inside the door of the freezer?  Where do the ice cube trays go?

Asked by: Cardarch
No, the capacity for the freezer section on the LG Large Capacity 2 Door Bottom-Mount Refrigerator, Model # LBN10551PV is 3.6 cubic feet versus 6.5 cubic feet for the Refrigerator section. Our apologies for the error on our site where the capacities were erroneously inverted. The sides of this unit are gray. We would need some clarification on what you're referring to as the "large white thing" inside the freezer door. The only thing on the freezer door is the inner insulation to keep the inside of the freezer cold and that is where the Ice Tray will be so that your ice cubes don't melt...^IFV
Answered by: LGJoel
Date published: 2015-10-19

What is the electric use in kWh per year?

Asked by: Mary Ann
The Estimated Yearly Electrical Use for the LG Large Capacity 2 Door Bottom-Mount Refrigerator, Model # LBN10551SW as calculated by the US Department of Energy test procedures is 430 kWh.This estimated annual energy use is for the refrigerator under typical conditions. Your actual energy consumption will vary depending on how you use your refrigerator, such as the frequency of door openings/closings, the surrounding room temperature and how full the unit is kept...^IFV
Answered by: LGJoel
Date published: 2015-09-18

Is Refrigerator LBN10551 auto defrost

I see nowhere on your website or manual that indicates if LBN10551 is frost free / auto defrost. Somebody else asked this question months ago but there is no answer.
Asked by: JackH
auto defrost
Answered by: nancy47
Date published: 2015-08-30

Can you specify the electric needs of this fridge? Watts? Voltage?

Bottom freezer refridgerator model: LBN10551SW looking for electric needs? amps 110? 220? what about watts?
Asked by: DenyseLVNJ
We appreciate your interest in this refrigerator. The estimated energy consumption for this model is rated at 430 kWh annually. It runs at 110 Volts, and is recommended to be on a dedicated circuit fused at 20Amps.
Answered by: NeilE
Date published: 2015-08-19

Are the doors reversible?

Model LBN10551PS 10 CU.FT. Refrigerator
Asked by: Firebird
We appreciate your interest in this refrigerator. Pages 15-16 of the owner’s manual provide steps on reversing the doors for both the refrigerator and the freezer.
Answered by: NeilE
Date published: 2015-10-29

Are your dimensions inverted? Should it be Fridge 6.5? for lbc10551sw

CAPACITY Refrigerator Freezer Total 3.6 cu. ft. 6.5 cu. ft. 10.1 cu. ft.
Asked by: jim7777
The technical data sheet pdf has the more logical division: more refrigerator space than freezer. (I wonder that the web page isn't edited though. The site also doesn't include a model given by the energy star website as registered more than 2 months ago.)
Answered by: rob4
Date published: 2015-10-09

I can only find the freezer temperature control

where is the refrigerator temperature control?
Asked by: craig1111
Hello Craig1111. Thank you for your inquiry. In the LG Large Capacity 2 Door Bottom-Mount Refrigerator, Model # LBN10551PS, the temperature controls for the Fridge section are located in the Refrigerator section and those for the Freezer section can be located in the Freezer section...^IFV
Answered by: LGJoel
Date published: 2015-08-29

follow up on my earlier question: would a container that is 16 ¾" x 12 ¾" by 2" high fit in the freezer section of LBN 10551PS?

None of your answers was helpful. It is not a question of the volume of the 16 ¾" by 12 ¾" by 2" H container vs. the total capacity of the freezer section of the LBN 10551PS. The question is whether, given those dimensions, the container would fit in the freezer section. For example, if the width and the depth of the freezer section are less than 16 ¾, the container will not fit, regardless of its cubic footage. The question can be easily answered by measuring the width and depth of the freezer section. I need to know the answer before buying the appliance.
Asked by: sculptor23
Hello Sculptor23, we regret to read that our previous answers as to whether or not a container with the dimensions you gave will fit in the refrigerator section of the LG LBN10551S. As we explained in the answers, we do not have access to the dimensions for the freezer section for that unit and the only measurements we had was the cubic foot capacity for that section, We do not have a unit that we can measure to give you a direct answer to your question but going on the fact that this unit has an external measurement of 23 3/8" for its width and a depth of 21 5/8", looking at the images of the freezer section combined with the cubic foot capacities, it appears that your container will probably fit, but we do understand that you need a more accurate and definitive answer and suggest that you contact the LG Customer Interactive Center at (800) 243-0000 to inquire from a product specialist on this as they may have access to the mechanical drawings that have those measurements...^IFV
Answered by: LGJoel
Date published: 2015-08-22
