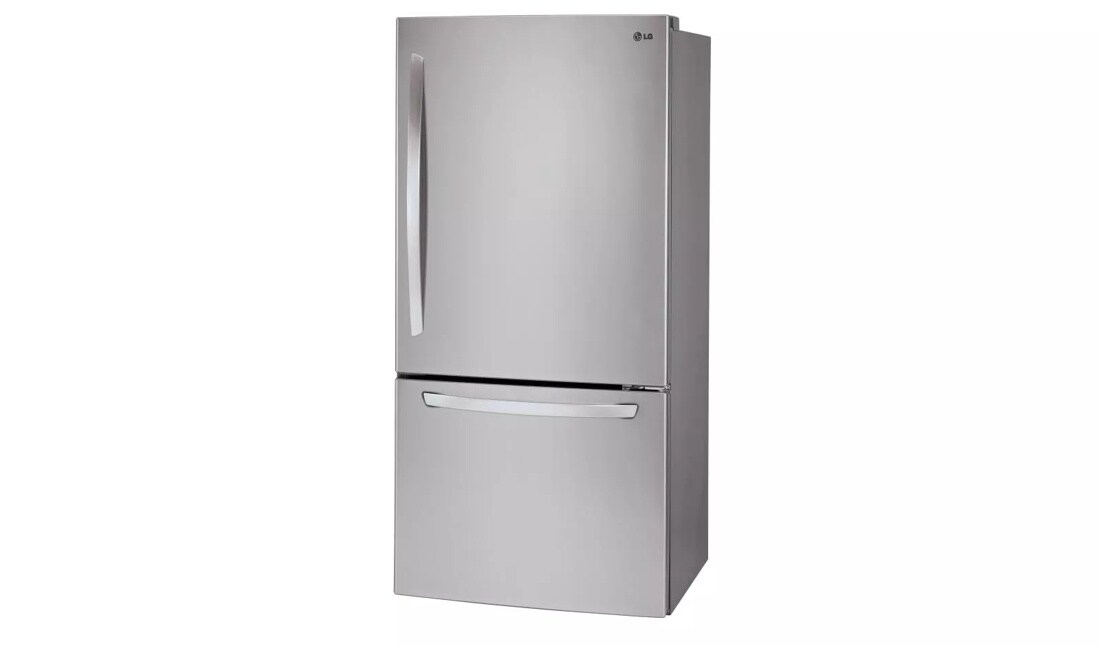

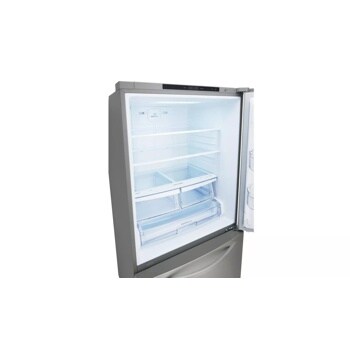

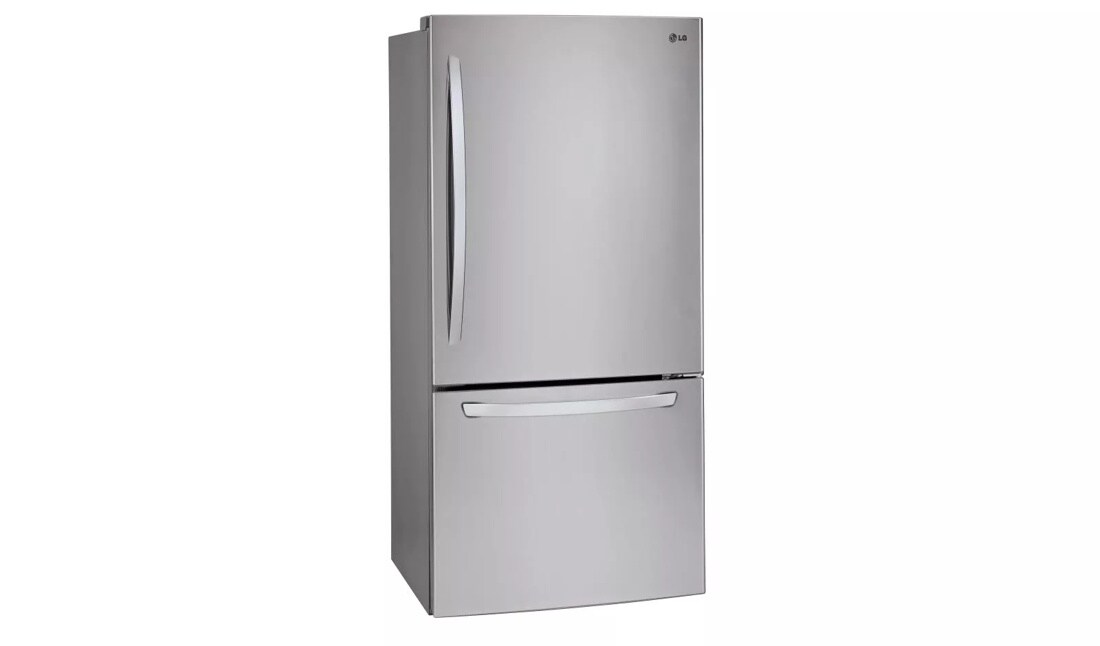

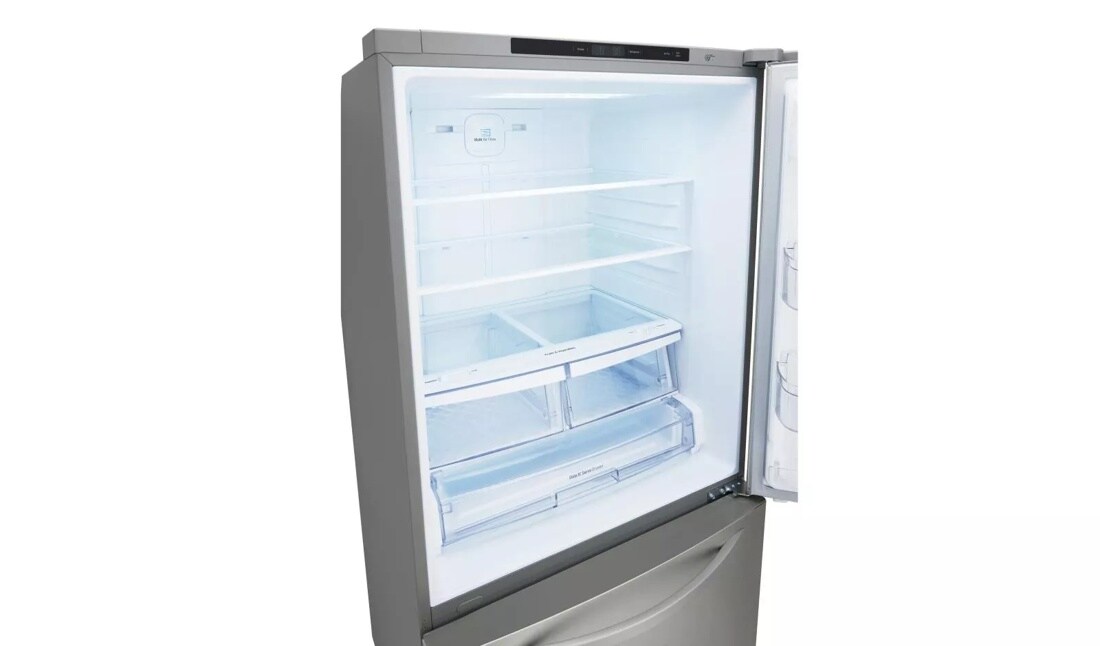

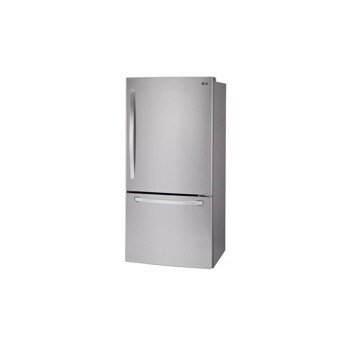

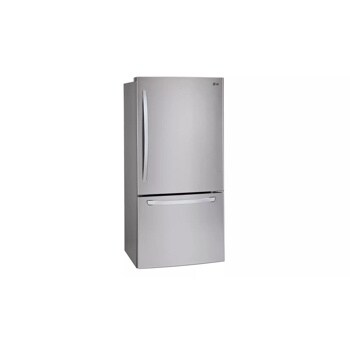

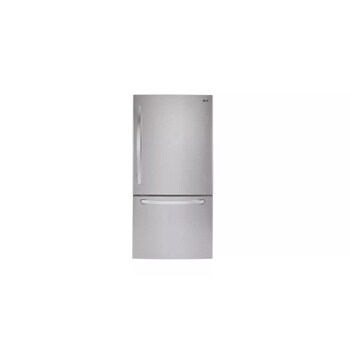

24 cu. ft. Large Capacity 33” Wide Bottom Freezer Refrigerator

  • LDCS24223S

  • Stainless Steel

Key Features

  • 24 cu.ft., Largest Capacity
  • Smart Cooling® System
  • SmartDiagnosis™ System
  • 10-Year Manufacturer’s Limited Warranty on Linear Compressor
  • ENERGY STAR® Qualified

LG has been Evaluated by consumer Reports

*Consumer Reports does not endorse products or services.

LARGEST CAPACITY*

Get the space you need in a refrigerator that's right for your kitchen. With 24 cu. ft. of space, this largest capacity bottom mount refrigerator offers ample room to meet your storage needs.

Fresher is better.

Fresher is better.

Smart Cooling® system is designed to maintain superior conditions within the refrigerator. The Linear Compressor reacts quickly to temperature fluctuations and helps keep your food fresher, longer. Meanwhile, strategically-placed vents in every section surround your food with cool air no matter where you put it.

Sophisticated style and Design.

Sophisticated style and Design.

Contoured doors, hidden hinges, and a host of great interior features like LED lighting give your refrigerator a look as sophisticated as it is functional.

Peace of Mind

Peace of Mind

When you buy a refrigerator, you don't want to worry that it won't last. Because the Linear Compressor uses fewer moving parts and operates more efficiently, LG confidently backs the Linear Compressor with a 10-year limited warranty.

Get wise

Get wise

If you ever experience an issue with your LG refrigerator, you don't have to worry. The SmartDiagnosis™ feature helps the service center diagnose problems over the phone, or with a simple app on your smart phone, helping you minimize costly, inconvenient service calls.

SUMMARY
Door Type Bottom Freezer
CAPACITY
Refrigerator 16.40 cu. ft.
Freezer 7.70 cu. ft.
Total 24.1 cu. ft.
FEATURES
ENERGY STAR® Qualified Yes (608 kWh/Year)
Ice System Factory Installed Ice Maker
Daily Ice Production 2.8 lbs / 3.1 lbs (IcePlus)
Ice Storage Capacity 12.0 lbs
Smart Cooling® System Yes
Linear Compressor Yes
Multi-Air Flow Cooling Yes
Temperature Sensors 6
Display Type Membrane (Green LED)
Hidden Hinges Yes
Temperature Controls Electronic/Digital
Door Alarm Yes
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
REFRIGERATOR
No. of Shelves 2 Full
Shelf Construction SpillProtector™ Tempered Glass
Crisper Bins 2-Humidity Crispers
Glide N’ Serve® Yes
Refrigerator Light Premium LED
REFRIGERATOR DOOR
No. of Shelves/Bin 5 Total (3 Full, 1 Flip-Up + Dairy)
Door Bin Construction Clear
Dairy Corner Yes
FREEZER
Drawers 2-Tier Organization
Handle Vista
Ice Maker Yes
Ice Bin Yes
Freezer Light Premium LED
MATERIALS AND FINISHES
Contour Door Yes
Hidden Hinges Yes
Surface Coated Metal, Stainless Steel
Back Flush & Metal Cover Over Mechanical Parts
Available Colors Stainless Steel (S), Smooth White (W), Smooth Black (B)
Handles Matching Commercial Handles
DIMENSIONS/CLEARANCES/WEIGHTS
Depth with Handles 34 7/8"
Depth without Handles 33"
Depth without Door 29"
Depth (Total with Door Open) 62 3/4"
Height to Top of Case 68 5/8"
Height to Top of Door Hinge 69 7/8"
Width 32 3/4"
Width (Door Open 90˚ with Handle) 36 1/2"
Width (Door Open 90˚ without Handle) 34 1/2"
Door Edge Clearance with Handle 4 1/4"
Door Edge Clearance without Handle 2"
Installation Clearance Sides 1/8", Top 1", Back 1"
Weight (Unit/Carton) 235 lbs./248 lbs.
Carton Dimensions (WxHxD) 34 3/8" x 70 1/2" x 36 6/8"
WARRANTY
Limited Warranty 1 Year Parts and Labor, 7 Years on the Sealed System, 10 Years on Linear Compressor
UPC 048231787444

What People Are Saying

Rated 5 out of 5 by from Spacious & works great! I bought this fridge a couple of months ago and I couldn't be happier! It cools as expected and is super soacious given its actual size. The freezer is convenient and large and the ice maker is perfect! Overall this was an excellent buy for the price and convenience.
Date published: 2017-09-15
Rated 1 out of 5 by from This was delivered 9/1/17 and started on 9/3 to make a very loud grinding noise on occasion....not sure what the problem is but I am not expecting this will last.
Date published: 2017-09-04
Rated 4 out of 5 by from Loving it Purchased a couple weeks ago. So far so good. The drawer in the freezer clunks every time I open it, and drags unnecessarily, could be a tad better designed. Other than that, I love it! Very happy with our purchase.
Date published: 2017-08-30
Rated 5 out of 5 by from Beautiful, Quiet, Spacious I have been an Appliance Sales Rep for 4 years. I carefully select each appliance I personally own and check Consumer Reports, Specifications and read reviews. I can say that this Refrigerator fits under a 69 inch upper cabinet with space to breathe. It's design is flawless and the wheels make it a snap to place in spot. The inside has roomy area for deli and vegetables. No more bending over to find that my fruit has gone bad on the bottom of the refrigerator as it was with my top freezer fridge. I come across many people who struggle with the change from top to bottom freezer. I took this plunge because its a money saver not to throw out food lost in the back of the refrigerator. I can see everything with the LED well lit top and bottom areas. The doors give ample storage for eggs, butter, milk, soda, even Wine bottles. A great seal adds to the fridge and the controls for the temp (pre set by factory) are easily located so that should there ever be a repair the entire refrigerator can be repaired by replacing a simple part, not guts. I say alot here because I also purchased another LG product almost two years ago (Washing Machine) Also a workhorse and not a single complaint. But my new fridge is gorgeous and I hope I will have many years of wonderful Refrigerator from it. The energy Star rating will save me big and the fact that I now own an LG Refrigerator, I can proudly say, LG IS LIVING GOOD
Date published: 2017-08-18
Rated 5 out of 5 by from great organization very happy with my purchase , well desiged,quiet,pleanty room for anything!
Date published: 2017-07-31
Rated 4 out of 5 by from Good amount of space Fridge looks great, has plenty of space, and keeps things cold, so I'm pretty happy with it. It would be nice if it had a couple shelves that only spanned half way to allow for some more height options, and it seems like it wouldn't be too difficult to overload one of the shelves (maybe a few gallons of milk placed in the middle?) and cause it to break. But it runs quietly, makes and stores plenty of ice, and everything is easy to see and accessible. Temperatures inside seem to be a few degrees higher than what it says on the display, so I keep the fridge set at 33F.
Date published: 2017-07-22
Rated 5 out of 5 by from We call it the "Hollywood Frige" This is the second LG of this model we have purchased. We bought one for a house that we sold last year and loved it so much we bought another for our new house.
Date published: 2017-07-19
Rated 4 out of 5 by from Overall great fridge. Love the capacity, layout and features. However the icemaker is the loudest one I have ever heard? Sounds like a water hose when the icemaker tray refills.
Date published: 2017-07-08
  • y_2017, m_9, d_19, h_20
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_36
  • loc_en_US, sid_MD05600344, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 8ms
  • REVIEWS, PRODUCT

We're here to support you with our product.

View LDCS24223S Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

How can I remove the glass that is immediately above the vegetable crisper us? Something spilled on the shelf and has gotten in between the plastic shelf rest and the glass shelf. I cannot find any instructions for this. Will the glass come out?

Asked by: How can I remove the glas
We appreciate your interest in this refrigerator. Regretfully, the glass for the crisper drawer is not able to be removed.
Answered by: NeilE
Date published: 2017-09-08

What is the energy efficiency rating on this refrigerator? (the stars)

Asked by: jackie23
Hi jackie23. For the ENERGY STAR® Qualified LG 24 cu. ft. Large Capacity 33” Wide Bottom Freezer Refrigerator, Model # LDCS24223S or any refrigerator to earn the ENERGY STAR label, it must meet the energy efficiency requirements set forth in ENERGY STAR product specifications. The EPA establishes these specifications based on a set of key guiding principles. Energy Star fridges and freezers must use at least 10 percent less energy than the 2014 federal efficiency standards minimum. This unit has an Estimated Yearly Energy Cost of $73 and an Estimated Yearly Electricity Cost of 608 kWh based on a national average electricity cost of 12 cents per kWh. The U.S. Federal Standard, which is the maximum energy consumption in kWh/year allowed by the U.S. Department of Energy for a refrigerator of this particular configuration and size is 667 kWh/yr...^IFV
Answered by: LGJoel
Date published: 2017-07-31

What type of ice does it make?  Is it cube, round?

Asked by: Crossingcreek
The Factory Installed Ice Maker in the ENERGY STAR® Qualified LG 24 cu. ft. Large Capacity 33” Wide Bottom Freezer Refrigerator, Model # LDCS24223S produces ice that is cuboid in shape...^IFV
Answered by: LGJoel
Date published: 2017-07-27

What is the small shelf at the bottom of the refrigerator door supposed to be used for?

Asked by: KMcDowell
The small shelf at the bottom of the refrigerator door on the ENERGY STAR® Qualified LG 24 cu. ft. Large Capacity 33” Wide Bottom Freezer Refrigerator, Model # LDCS24223S can be used for storing smaller prepackaged items such as juice packs etc.,...^IFV
Answered by: LGJoel
Date published: 2017-06-29

Where is the location for the water line hook up?

Asked by: Ronald67
The water valve for the ENERGY STAR® Qualified LG 24 cu. ft. Large Capacity 33” Wide Bottom Freezer Refrigerator, Model # LDCS24223S is about halfway up in the middle of the back of the refrigerator...^IFV
Answered by: LGJoel
Date published: 2017-06-23

Does the model LDCS24223S bottom freezer refrigerator come with a water line to hook up to the house ice maker water connection or do I have to buy one separately?

Asked by: rick gumz
The water line is not supplied with the ENERGY STAR® Qualified LG 24 cu. ft. Large Capacity 33” Wide Bottom Freezer Refrigerator, Model # LDCS24223S nor is the water line installation covered by the refrigerator warranty...^IFV
Answered by: LGJoel
Date published: 2017-06-21

Does the white, 24 cubic foot, bottom freezer, allow you to place magnets on the front?

Asked by: Ducks55
Magnets will attach to the door on the ENERGY STAR® Qualified LG 24 cu. ft Large Capacity 33” Wide Bottom Freezer Refrigerator, Model # LDCS24223W...^IFV
Answered by: LGJoel
Date published: 2017-06-14

Does the LG LDCS24223S have a water filter? The ice has a bad taste to it.

Asked by: Robert27
The ENERGY STAR® Qualified LG 24 cu. ft. Large Capacity 33” Wide Bottom Freezer Refrigerator, Model # LDCS24223S does not have a built-in water filter...^IFV
Answered by: LGJoel
Date published: 2017-06-13
