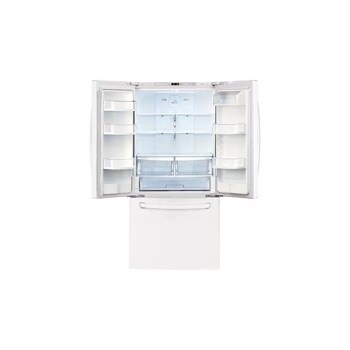

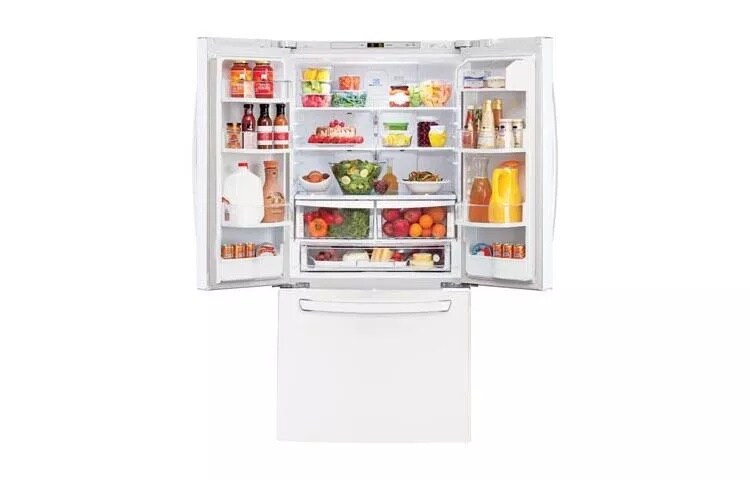

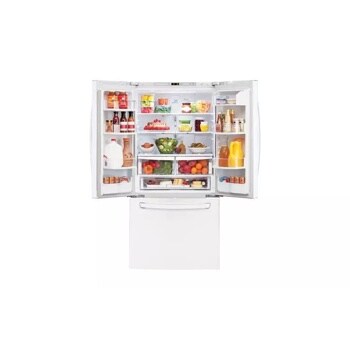

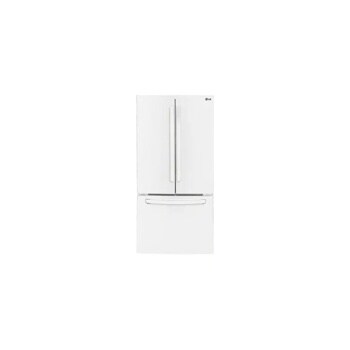

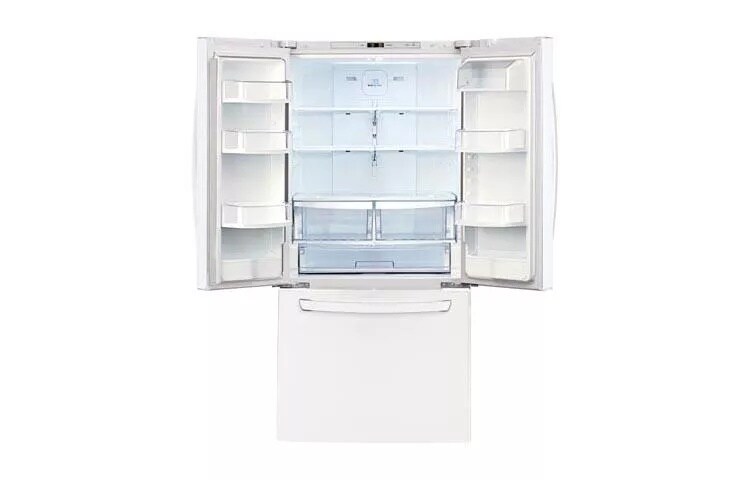

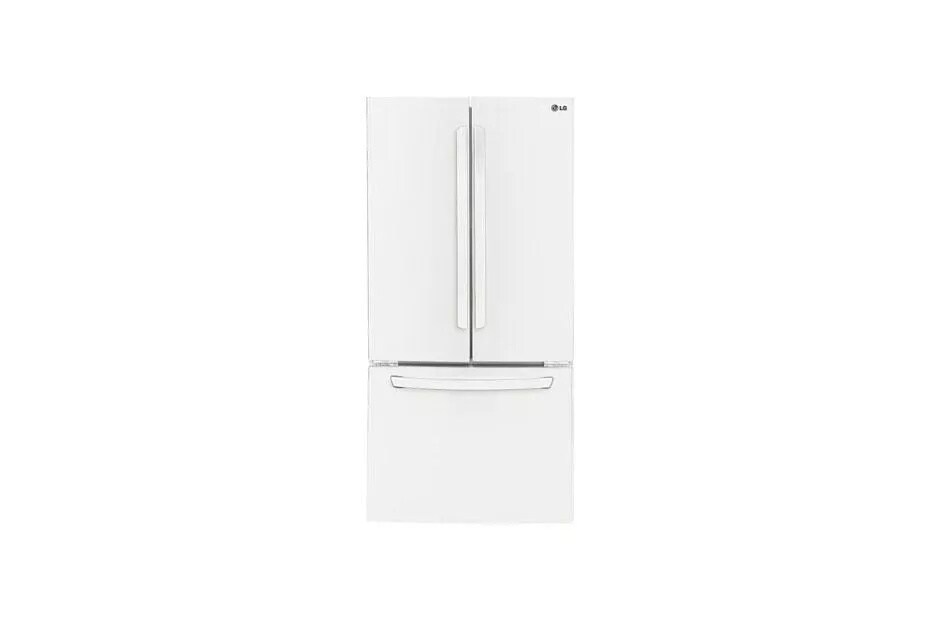

24 cu. ft. Ultra Capacity 3-Door French Door Refrigerator

  • LFC24770SW

  • Smooth White

Key Features

  • 24 cu. ft. Capacity
  • Smart Pull® Handle
  • 4 Spill Protector™ Tempered Glass Shelves
  • Smart Cooling® System

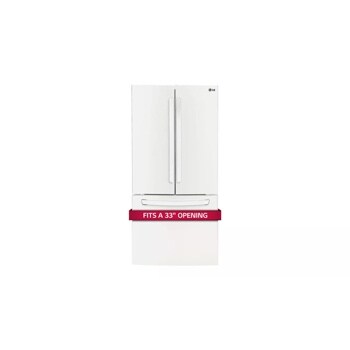

Large Capacity for 33

Large Capacity for 33" Width

If you feel like you never have enough space for your groceries, or find yourself cramming them in, it's time to discover the convenience of having a large capacity refrigerator. With 24 cu. ft. of space in a 33" wide refrigerator, you have plenty of room for plenty more.

FRESHER IS BETTER.

FRESHER IS BETTER.

Smart Cooling® system is designed to maintain superior conditions within the refrigerator. The Linear Compressor reacts quickly to temperature fluctuations and helps keep your food fresher, longer. Meanwhile, strategically-placed vents in every section surround your food with cool air no matter where you put it.

Peace of Mind

Peace of Mind

When you buy a refrigerator, you don't want to worry that it won't last. Because the Linear Compressor uses fewer moving parts and operates more efficiently, LG confidently backs the Linear Compressor with a 10-year limited warranty.

Great Light.

Great Light.

LED panels in the refrigerator provide an exceptionally bright interior and saves energy over traditional lighting.

SUMMARY
Door Type French 3-Door
CAPACITY
Refrigerator 16.20 cu. ft.
Freezer 7.70 cu. ft.
Total 23.9 cu. ft.
FEATURES
ENERGY STAR® Qualified Yes (606 kWh/Year)
Dispenser Type Vertical
Ice System Factory Installed Ice Maker
Daily Ice Production 2.8 lbs / 3.1 lbs (IcePlus)
Ice Storage Capacity 12 lbs
Smart Cooling® System Yes
Multi-Air Flow Cooling Yes
Temperature Sensors 4
Linear Compressor Yes
Display Type Membrane (Green LED)
CONVENIENCE
Temperature Controls Electronic/Digital
Door Alarm Yes
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
Auto Closing Door Hinge Yes
REFRIGERATOR
No. of Shelves 4 Split
Cantilevered Shelves Yes, Hybrid Cantilevered
Shelf Construction SpillProof™ Tempered Glass
Crisper Bins 2-Humidity Crispers
Glide N’ Serve® Yes
Refrigerator Light Premium LED Lighting
REFRIGERATOR DOOR
No. of Shelves/Bin 8 Total (5 Gallon Sized, 1 Dairy, 2 Half)
Door Bin Construction 2 Piece (Clear+Opaque)
Dairy Corner Yes
FREEZER
Drawers 2
Handle Smart Pull® Freezer Handle
Ice Bin Icemaker & Ice bin in the freezer
Freezer Light Premium LED
Door Type Pull Drawer
MATERIALS AND FINISHES
Contour Door Yes
Hidden Hinges Yes
Surface Coated Metal, Stainless Steel
Back Flush & Metal Cover Over Mechanical Parts
Available Colors Stainless Steel (ST), Smooth White (SW) and Smooth Black (SB)
Handles Matching Commercial Handles
SPECIFICATIONS
Depth with Handles 35 1/2"
Depth without Handles 33"
Depth without Door 29"
Depth (Total with Door Open) 46"
Height to Top of Case 68 5/8"
Height to Top of Door Hinge 69 7/8"
Width 32 3/4"
Width (Door Open 90° with Handle) 41 1/4"
Width (Door Open 90° without Handle) 36 1/4"
Door Edge Clearance with Handle 4 1/2"
Door Edge Clearance without Handle 2"
Installation Clearance Sides 1/8", Top 1", Back 1"
Weight (Unit/Carton) 253 lbs / 276 lbs
Carton Dimensions (WxHxD) 34 3/8" x 70 1/2" x 37 3/4"
WARRANTY
Limited Warranty 1 Year Parts and Labor, 7 Years on the Sealed System, 10 Years on Linear Compressor
UPC 048231786065

What People Are Saying

Rated 5 out of 5 by from love my french door frig I've had my French door refrigerator for 2 months & I simply love it. It did take a couple of weeks to get use to both doors opening up on the refrigerator & the freezer at the bottom but I like it now. The ice maker is absolutely the best I've ever seen or used. I can't use all the ice & I make ice tea everyday.
Date published: 2017-08-01
Rated 1 out of 5 by from Ice maker doesn't work We were told to let two ice making cycles go through before using any ice. We had the refrigerator for more than 48 hours and it had produced a tray of very small ice cubes and nothing more. We turned off the ice maker and bought ice trays. Otherwise it works fine.
Date published: 2017-07-08
Rated 5 out of 5 by from I bought this a few days ago and I glad for it. I bought this a few days ago and I glad for it. And I recommended.
Date published: 2017-04-19
Rated 1 out of 5 by from Don't Buy! Replace a very old fridge that worked great with this expensive new one and the compressor goes after 2 years. Regretting this purchase. No more LG purchased for this family.
Date published: 2017-04-17
Rated 4 out of 5 by from Finding parts We are finding that LG does not produce parts for this model. Some options but this is bad for my next buy which will not be LG due to the lack of basic replacement shelves on the door side opposite the butter.
Date published: 2017-04-02
Rated 5 out of 5 by from Love the fridge. The bottom freezer is a nice feature. We like that you can shut the french doors independently of each other.
Date published: 2017-04-02
Rated 5 out of 5 by from Lots of space and easy access to stored items. I was very disappointed to learn LG did not make a slide in range in black (not black stainless). We purchased the refrigerator with the thought of replacing our range in the near future with a LG product. No luck. Purchased another brand.
Date published: 2017-03-14
Rated 5 out of 5 by from Superior Design We've had this unit for just over two months, and I find myself liking it more each day. Both the design and construction of this product is superior to every other fridge we looked at. Some reviewers complained about a high-pitched noise, but honestly I have to put my ear to the side of it just to confirm that it's running! Thank you for another great appliance!
Date published: 2017-03-12
  • y_2017, m_8, d_14, h_1
  • bvseo_bulk, prod_bvrr, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasreviews, tv_3, tr_94
  • loc_en_US, sid_MD05091261, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 4ms
  • REVIEWS, PRODUCT

We're here to support you with our product.

View LFC24770SW Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

What is the part number for the door bins on the inside of the French doors. I am looking for the biggest removable bin that is just above the bottom bin that is permanently fixed. Part # 5005JJ2022A and 5005JJ2022B. Am I correct?

Asked by: SYannias
AAP73051304 would be the part number for the door bins described. Parts and accessories can be obtained through our parts distributor, Encompass Parts. Their contact number, for placing orders and pricing information, is 866-779-7906. You can also use their website, at https://www.encompassparts.com/.
Answered by: NeilE
Date published: 2017-07-17

How can I adjust the refrigerator temperature. The refrigerator setting button when pressed only lowers temperature not raises it.

Asked by: RON 62
We appreciate your interest in this refrigerator. The temperature settings are on loop control. Continue pressing the REFRIGERATOR button until it reaches its lowest setting. Press it again, and the setting should jump to its HIGHEST setting. The same would work for the FREEZER.
Answered by: NeilE
Date published: 2017-06-14

Why does my ice smell & taste funny like it's stale even after I make new ice? Is there a filter on it even if I don't have the water option, just inside the freezer it makes ice.

Asked by: Tanya123
We regret the trouble you have experienced with this refrigerator. This model was not designed with a water filter. It is suggested that a filter be connected to the water line running into the back of the cabinet in order to improve the taste of the water.
Answered by: NeilE
Date published: 2017-04-11

What's the warranty on motor, I thought I read somewhere that it's 10 years

Asked by: Chicolupe
The Inverter Linear Compressor in the ENERGY STAR® Qualified LG 24 cu. ft. Ultra Capacity 3-Door French Door Refrigerator, Model # LFC24770SW has a 10 Year Limited Manufacturer's Warranty. That is the sticker that is shown next to the main image of the refrigerator on the company site that is attached to the unit...^IFV
Answered by: LGJoel
Date published: 2017-04-20

Can I order a new drawer?

Asked by: Michaelfeeney
Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts.
Answered by: NeilE
Date published: 2017-04-20

What color handles are on the white French door refrigerators?

Asked by: Come
The door handles on the ENERGY STAR® Qualified LG 24 cu. ft. Ultra Capacity 3-Door French Door Refrigerator, Model # LFC24770SW are referred to as "Matching Commercial Handles" which means that they will be white like the refrigerator...^IFV
Answered by: LGJoel
Date published: 2017-04-20

Because there's no water filter...we have some Sulphur in our water. Does this mean we'll get that when we make ice?

Asked by: Lastrick
We appreciate your interest in this refrigerator. If no filter is connected to the water line, whether inside or outside the refrigerator, then it is likely that any minerals in the water supply, such as sulfur, can end up in the ice tray.
Answered by: NeilE
Date published: 2017-02-18

How do I use the Smart Diagnosis feature on the refrigerator. Can I use this feature to determine why the icemaker is not making ice?

Asked by: Willie Gee
We regret the trouble you have experienced with this refrigerator. If you experience problems with your refrigerator, call 1-800-243-0000 in USA (1-888-542-2623 in Canada). Only use the Smart Diagnosis feature when instructed to do so by the LG call center agent. The transmission sounds that you will hear are normal and sound similar to a fax machine.
Answered by: NeilE
Date published: 2017-04-20
