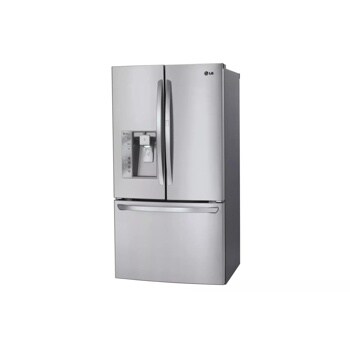

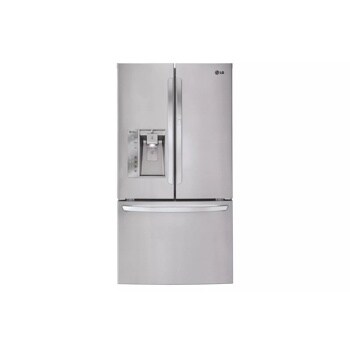

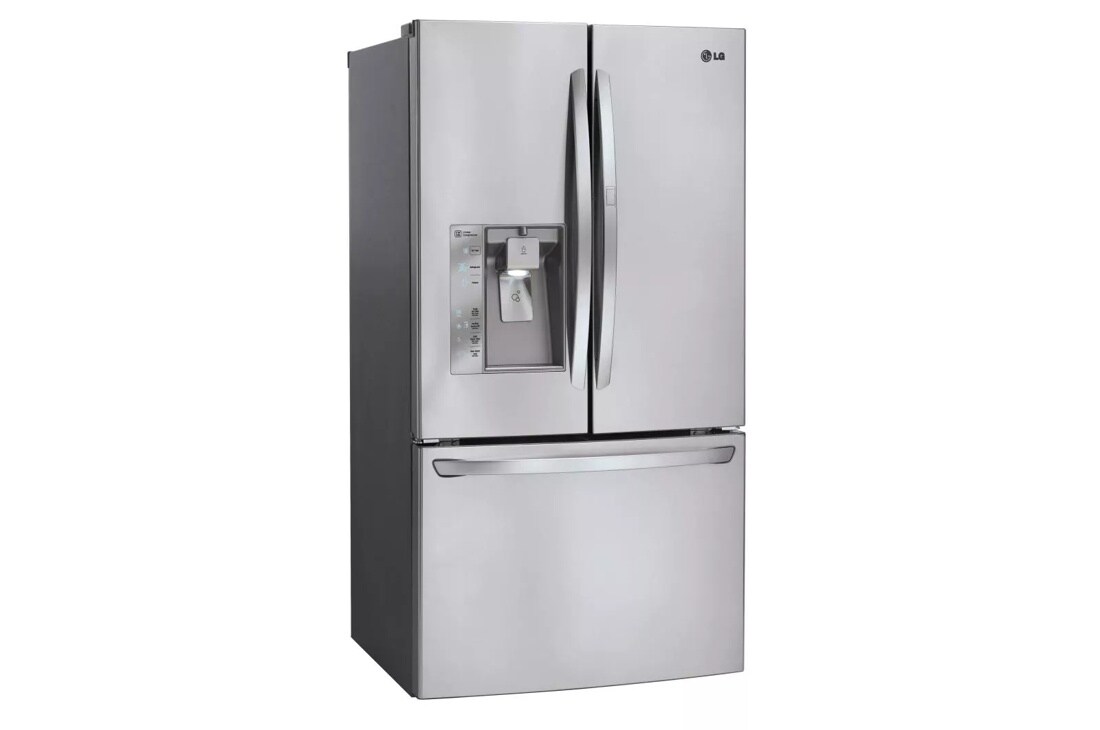

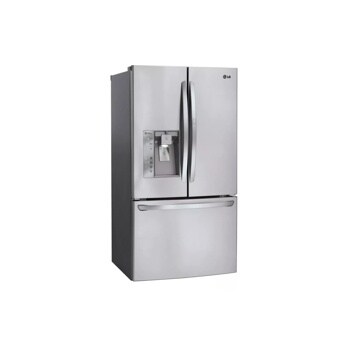

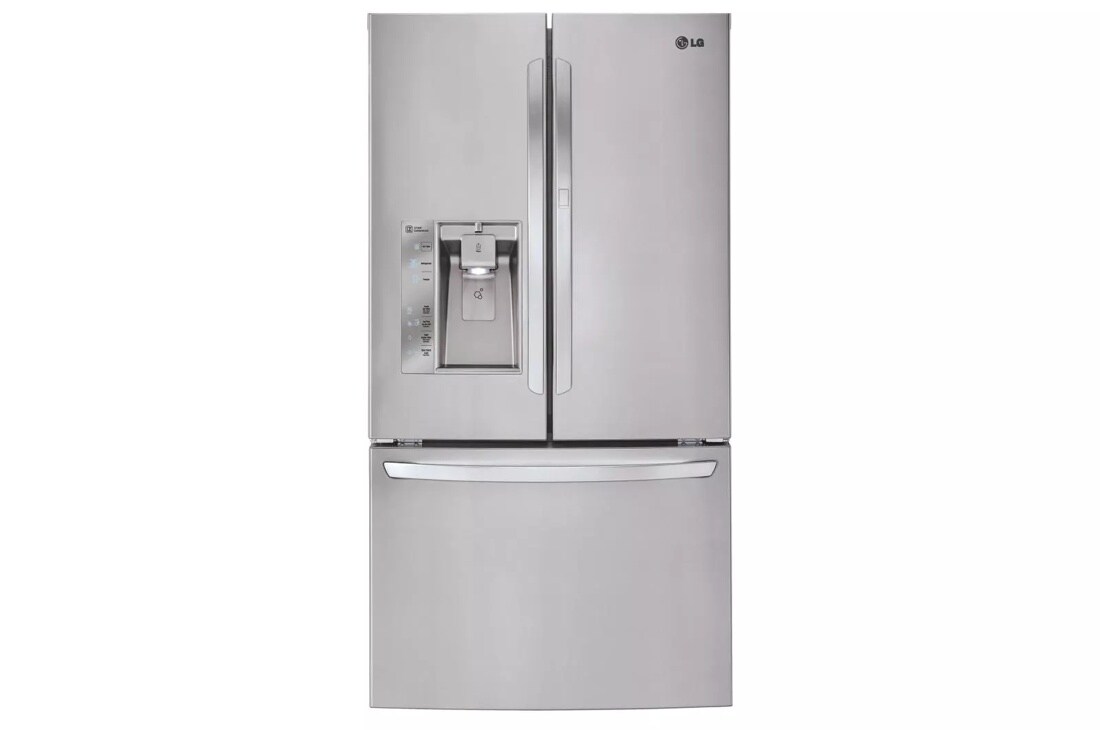

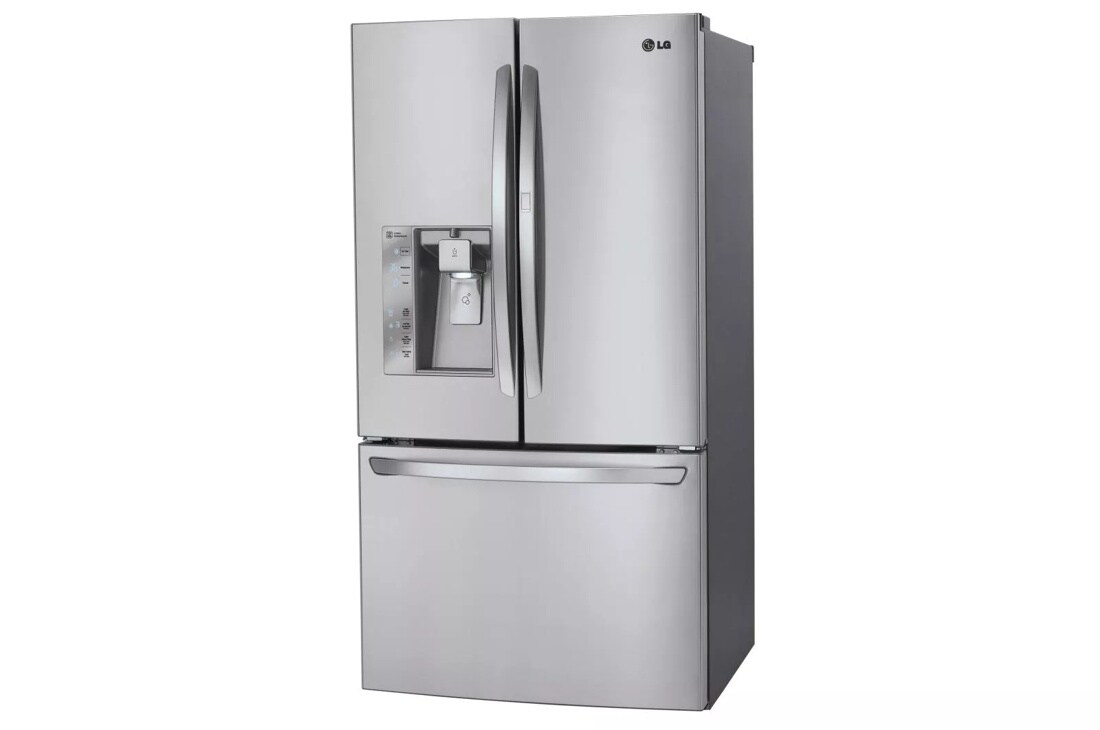

29 cu. ft. Ultra Capacity 3-Door French Door Refrigerator w/Door-in-Door®

  • LFXS29766S

  • Stainless Steel

Key Features

  • 29 cu. ft. Capacity
  • Door-in-Door®
  • 3 SpillProtector™ Tempered Glass Shelves/1 Folding Shelf
  • Smart Cooling®

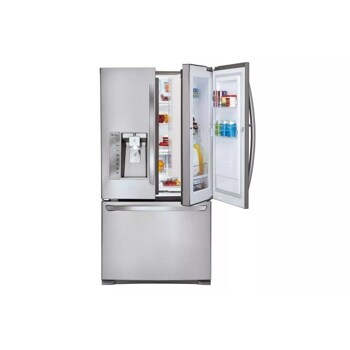

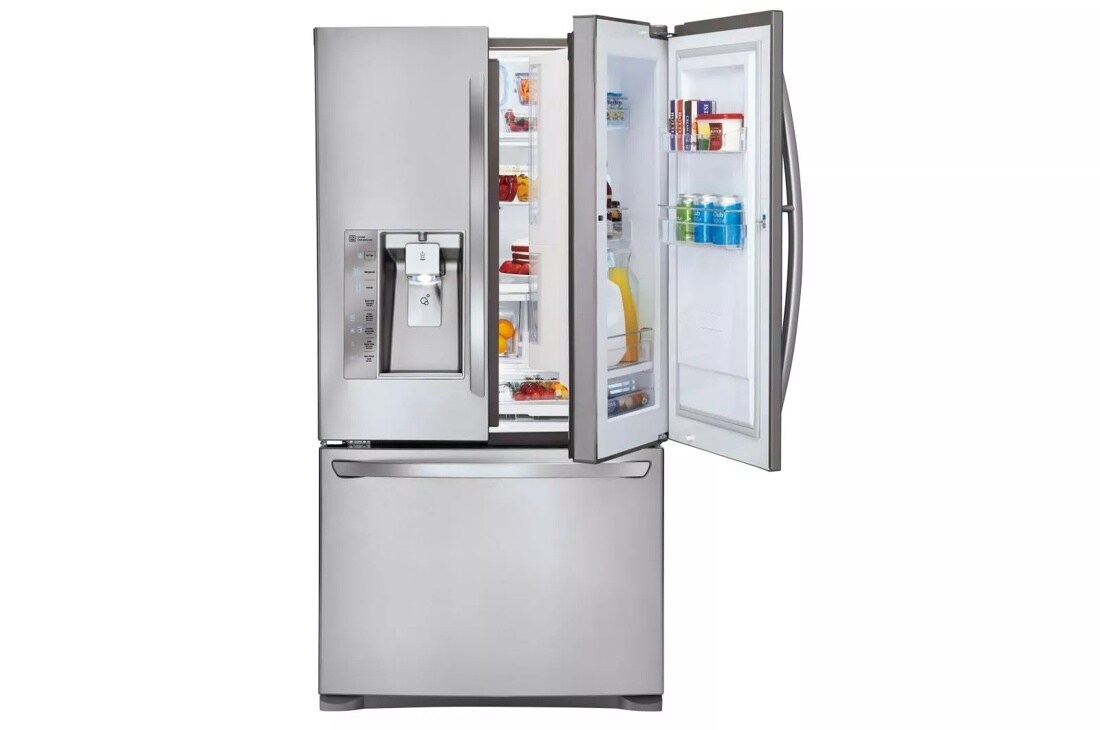

Easy Access to Family Favorites

For those fly-by visits to the refrigerator, the Door-In-Door® feature allows you to get in and get out providing easy access to beverages and snacks. Only LG Door-In-Door® models include bonus door bins for added organization and storage.

Store more.

Store more.

Stock-up and store everything you need. With a cavernous 29 cubic feet of space, this LG French Door refrigerator gives you ample space for all of your family’s favorite foods and keeps them conveniently organized and within reach.

Most shelf space.*

Ice makers are great, but not if it means you can't fit all of your food in the fridge. The Slim SpacePlus® Ice System provides more shelf space and allows even more space for door bins.

*Standard width french door refrigerator, excludes other LG manufactured products

Peace of Mind

Peace of Mind

When you buy a refrigerator, you don't want to worry that it won't last. Because the Linear Compressor uses fewer moving parts and operates more efficiently, LG confidently backs the Linear Compressor with a 10-year limited warranty.


Enjoy fresh water, ice & air with LG filters

Subscribe today and enjoy savings and maximum freshness. We’ll even ship your next refrigerator filter to you when you need it automatically.*

Door Type French 3-Door
Refrigerator 18.60 cu. ft.
Freezer 9.90 cu. ft.
Total 28.5 cu.ft.
Door-in-Door® Yes
Energy Rating ENERGY STAR® Qualified
Energy Consumption 736 kWh/Year
Ice & Water Dispenser Yes
Dispenser Type Tall Ice & Water Dispenser®
Ice System Slim SpacePlus®
Daily Ice Production 6.8 lbs/7.3 IcePlus
Ice Storage Capacity 3.0 lbs + 4.0 lbs
Dual Ice Makers Yes
Water Filtration System Compact Filter LT700P
Multi-Air Flow Cooling Yes
Temperature Sensors 7
Smart Cooling® Yes
Linear Compressor Yes
Fresh Air Filter Yes, Air Filter LT120F
Display Type Smooth Touch Control / White LED
Temperature Controls Electronic/Digital
Door Alarm Yes
Child Lock Yes
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
Auto Closing Door Hinge Yes
No. of Shelves 4 Split (3 Fixed / 1 Folding)
Folding Shelf 1
Cantilevered Shelves Yes
Shelf Construction SpillProof™ Tempered Glass
Crisper Bins 2 Humidity Crispers/1 Bonus Drawer
Glide N’ Serve® Yes
Refrigerator Light Ceiling and Side LED
No. of Shelves/Bin 9 Total (Including Door-in-Door®)
Door Bin Construction 3 Piece (Clear+Opaque+Spray Deco)
Dairy Corner Yes
Door Type Pull Drawer
Drawers 2
Handle Smart Pull®
DuraBase™ Solid Drawer Base Yes
Drawer Divider Yes
Freezer Light Premium LED
Contour Door Yes
Hidden Hinges Yes
Surface Coated Metal, Stainless Steel
Back Flush & Metal Cover Over Mechanical Parts
Available Colors Stainless Steel (S)
Handles Matching Commercial Handles
Depth with Handles 36 1/4"
Depth without Handles 33 3/4"
Depth without Door 29 1/2"
Depth (Total with Door Open) 48 1/8"
Height to Top of Case 68 7/8"
Height to Top of Door Hinge 70 1/4"
Width 35 3/4"
Width (Door Open 90° with Handle) 44 1/4"
Width (Door Open 90° without Handle) 40"
Door Edge Clearance with Handle 4 1/4"
Door Edge Clearance without Handle 2 1/8"
Installation Clearance Sides 1/8", Top 1", Back 1"
Weight (Unit/Carton) 342 lbs./375 lbs.
Carton Dimensions (WxHxD) 38" x 73" x 39"
Limited Warranty 1 Year Parts and Labor, 7 Years on the Sealed System, 10 Years on Linear Compressor
UPC 048231 786423

What People Are Saying

Rated 2 out of 5 by from Water and ice taste metallic even after flushing Water and ice taste metallic even after flushing 10 gallons of water. Filter was installed by delivery personnel on delivery
Date published: 2016-10-21
Rated 5 out of 5 by from Absolutely Love It!! My husband and I looked at all brands and styles of refrigerators before buying this LG. We are so happy with it and it looks awesome in my newly remodeled kitchen.
Date published: 2016-10-18
Rated 5 out of 5 by from Excellent We have owned our new refrigerator for just over 1 month so far and it has been the best refrigerator we have ever owned. So why is it better. These are the main reasons; (a) The ice maker works fast and its quiet. Not to mention the second ice maker also works great. We will never run out of ice. (b) The water dispenser is positioned in such a way that you can put anything up to it and fill it with water. With our old refrigerator we struggled to fill anything lager than a basic glass. I am not sure this is properly marketed. (c) Usable Space. Because the ice maker is truly built into the door and built compactly it provides more actual space in the refrigerator. In Summary – this was one of my better purchases.
Date published: 2016-10-12
Rated 1 out of 5 by from Ice tastes like plastic I bought this refrigerator a few days ago and it's been in my house for two days. I have emptied the icemakers four times with no change in the quality of the ice.
Date published: 2016-10-06
Rated 4 out of 5 by from Nice design and features. Nice fridge, we like the third door, lighting, and the bottom freezer. However, the ice maker auger broke the first time we switched from cubed ice to crushed ice, after only the second week of instillation. The Geek Service Squad came out, but had no replacement parts to fix it. They ordered the parts, but they are on back order. This is now three weeks, and looks like it may be longer. It leaves us concerned about the quality of this product in the future. I think Lg and Best Buy should have some inventory of parts to fix any break downs, as quickly as possible, especially on a recent installs.
Date published: 2016-10-03
Rated 5 out of 5 by from Beautiful I bought this frig 2 months ago and its beautiful and works great.
Date published: 2016-09-30
Rated 4 out of 5 by from Condenser Fan failure I bought this refrigerator in June 2016 and exactly in 3 months the Condenser fan stopped working.
Date published: 2016-09-23
Rated 5 out of 5 by from One week, so far Great! The air purifier is nice, it always smells pleasant, even if we have a can of cat food covered with aluminum foil. on one of the shelves. The door in door feature takes some getting used to, as we are sttill forgetting it;s there until the second try. One thing that could be a con is the ice dispenser and water dispenser locations are switched. So, there is a light for the ice, but if you use a dark glass or pitcher, the light behind it doesn't illuminate the water level. Not a con to us, just wish there was an additional light when getting water. Very user friendly. The ice maker in the door makes for more room in the fridge, and it makes plenty of ice.
Date published: 2016-09-05
  • 2016-10-24T08:27CST
  • bvseo_cps, prod_bvrr, vn_cps_3.4.0
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_80
  • loc_en_US, sid_MD05132520, PRD, sort_mostRecent
  • clientName_LG
  • bvseo_sdk, java_sdk, bvseo-
  • CLOUD, getReviews, 6ms

We're here to support you with our product.

View LFXS29766S Product Support

Contact us for any support inquiries.


Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

How can I release the automatic shut off arm for the ice maker in the bottom freezer of my LFXS29766?

Asked by: Gary H
We regret the trouble you have experienced with this refrigerator. It is recommended to deactivate the ice maker, using the POWER SWITCH on the side of the device. This may release any tension in the operations of the ice tray. For additional information, please contact our Customer Interactive Center at 800-243-0000.
Answered by: NeilE
Date published: 2016-09-21

Where to buy a new crisper cover glass part?

Asked by: Jamieroy512
Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at
Answered by: NeilE
Date published: 2016-09-06

The water from the dispenser is not cold it's actually around 70* when the fridge is set at 35*... How do we sort this problem

Asked by: Vivek
We regret the trouble you have experienced with this refrigerator and its features. The temperature of the dispenser can be affected by the frequency of use. Please contact our Customer Interactive Center at 800-243-0000 for assistance with this matter.
Answered by: NeilE
Date published: 2016-08-09

Just an inquiry, I get about 4 oz of Cold water from my LG is this normal? Everything else works awesome!

Asked by: Armedrano
We regret the trouble you have experienced with this refrigerator and its features. According to our information, this model has a collection tank in the door which should provide more than this small amount of cold water. Please contact our Customer Interactive Center at 800-243-0000 for assistance with this matter.
Answered by: NeilE
Date published: 2016-07-28

I recently purchased this fridge and the marks from the manufacture labels will not come off.  The lines of the labels are leaving a discolored look in the stainless steal.  What should I do?

Asked by: Ammcclu
In the Maintenance section under 'Cleaning' on page 40 of your owner's manual for the this ENERGY STAR certified LG 29 cu.ft. Ultra-Capacity 3 Door French Door Refrigerator w/ Door-in-Door™, Model # LFXS29766S, the recommendation for cleaning products with a Stainless Steel are that you use a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners. Dry thoroughly with a soft cloth. If you are looking to use anything other than that method, you check Home Improvement Stores or retailers such as the Home Depot or LOWES for commercially available cleaners that are safe to use on Stainless Steel that will not darken it. The Sales Associates there will be able to assist you with such products and you will want to read the label carefully to ensure that you can use it for your purposes...^IFV
Answered by: LGJoel
Date published: 2016-05-10

The freezer door is showing 2 errors - F by the refrigerator and dH by the freezer button. What does that mean?

Asked by: Tom84
The -F DH error code showing on the display of your ENERGY STAR® Qualified LG 29 cu.ft. Ultra-Capacity 3 Door French Door Refrigerator w/ Door-in-Door™, Model # LFXS29766S indicates that the unit spent more than 1 hour trying to defrost. During defrost, the refrigerator will increase the temperature at the evaporator to a preset temperature. If this temperature is not reached within 1 hour, the error code will show on the display. If this is the first time that your refrigerator is showing this error code, simply unplug the refrigerator for 2 minutes to reset it and allow the system to try and defrost again. If the error code has shown on your display before, the refrigerator will require a repair service. You can schedule a service online using our repair scheduling system^IFV
Answered by: LGJoel
Date published: 2016-04-27

Can we purchase additional freezer shelves?

Asked by: CatieC
The Freezer section of the ENERGY STAR® Qualified LG 29 cu.ft. Ultra-Capacity 3 Door French Door Refrigerator w/ Door-in-Door™, Model # LFXS29766S does n ot have any shelving in it, it has 2 drawers but there aren't any railings for shelving...^IFV
Answered by: LGJoel
Date published: 2016-04-08

Does the light in the refrigerator door for the water and ice dispenser stay on continually? Or should it go out after use?

Asked by: Daryl04
We appreciate your interest in this refrigerator and its features. The Dispenser Light will deactivate after use, unless the LIGHT button has been pressed and activated.
Answered by: NeilE
Date published: 2016-02-19
