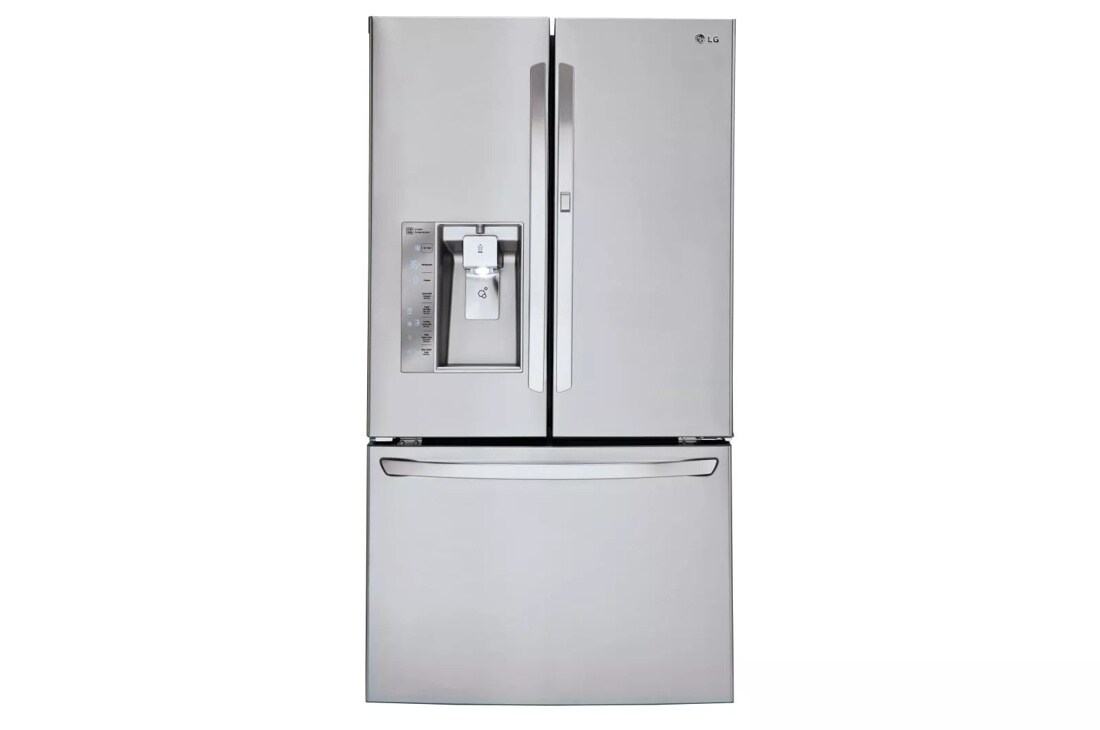

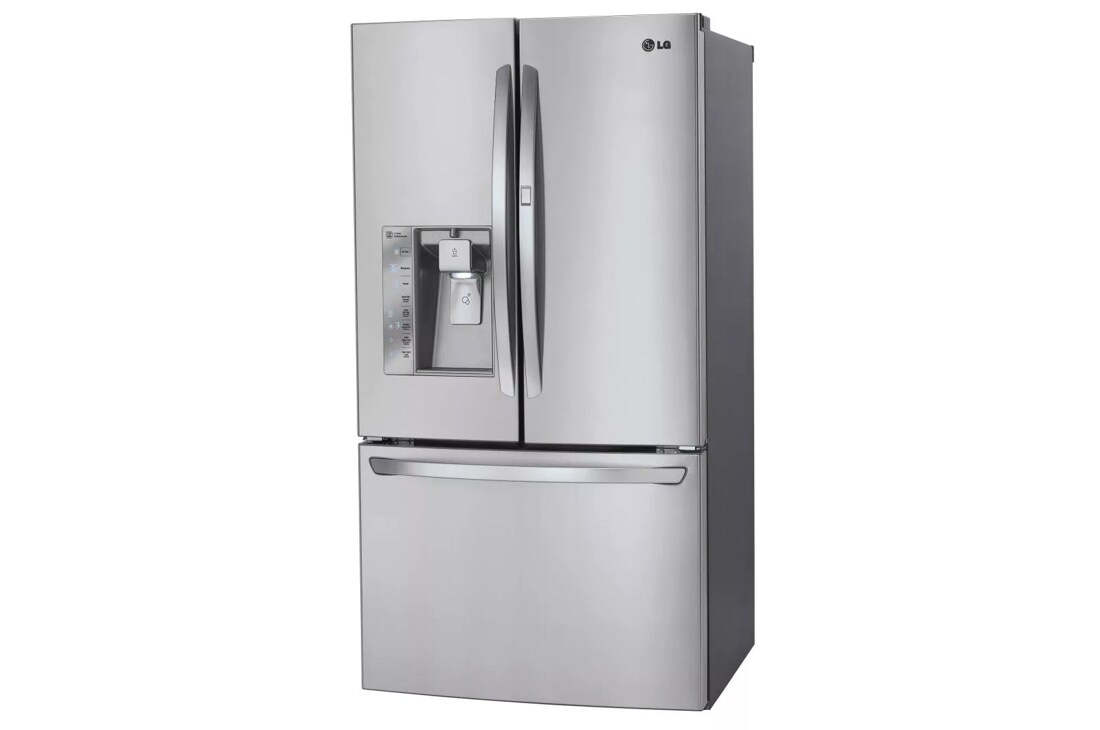

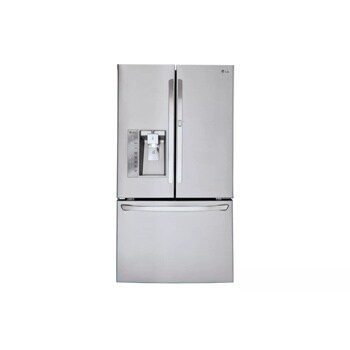

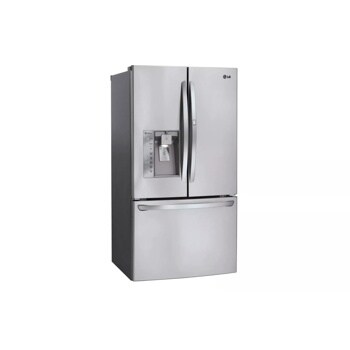

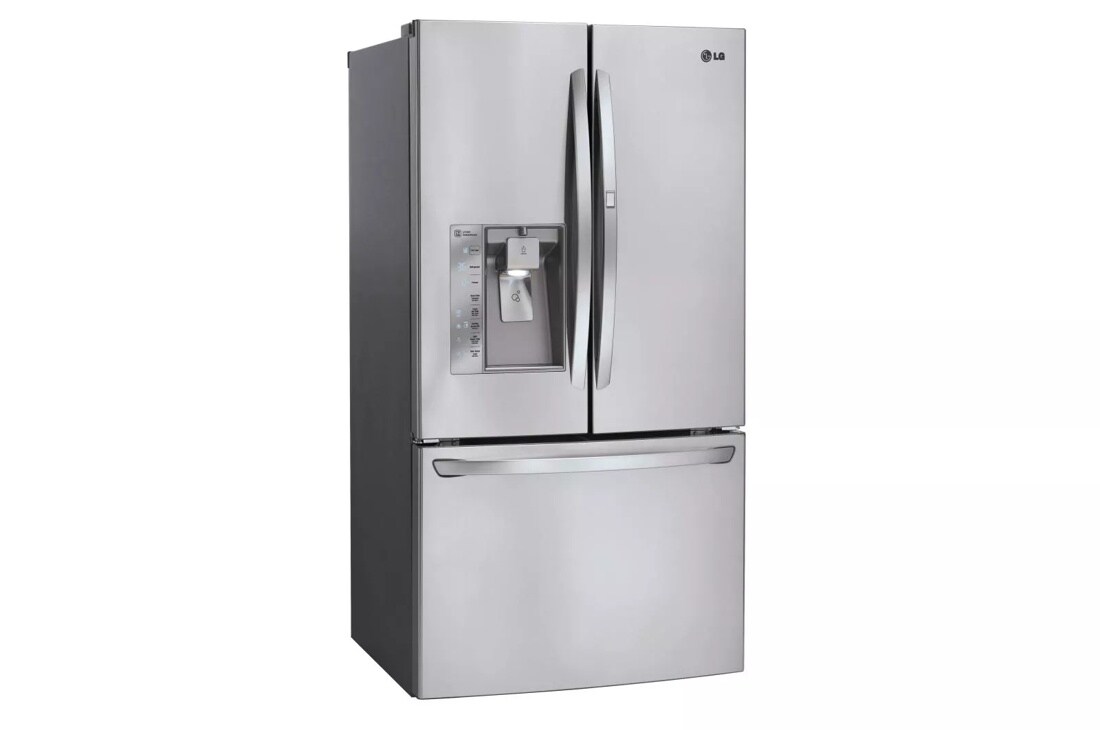

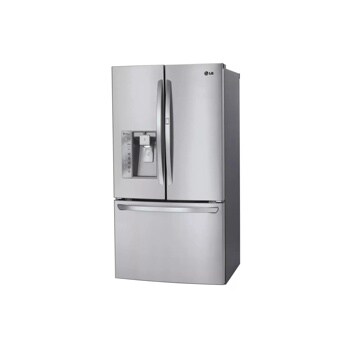

30 cu. ft. Super Capacity 3-Door French Door Refrigerator w/Door-in-Door®

  • LFXS30766S

  • Stainless Steel

Key Features

  • 30 cu. ft. Capacity
  • Door-in-Door®
  • Smart Cooling® Plus

More usable space*

With the super capacity 30 cu. ft., refrigerator, you have more usable space allowing you to store more food than ever before.

*Compared to LG's standard width French door refrigerator.

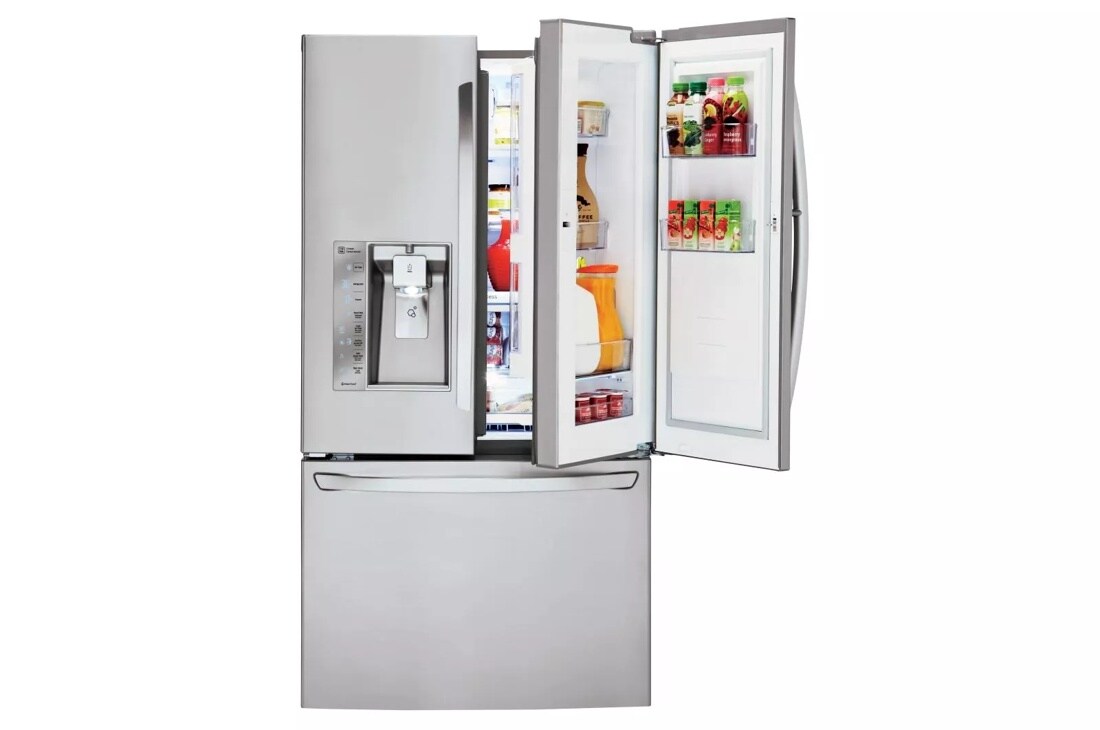

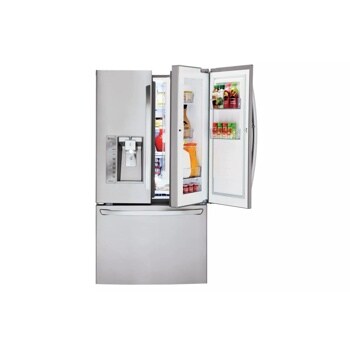

Easy Access to Family Favorites

For those fly-by visits to the refrigerator, the Door-In-Door® feature allows you to get in and get out providing easy access to beverages and snacks. Only LG Door-In-Door® models include bonus door bins for added organization and storage.

Most shelf space.*

Ice makers are great, but not if it means you can't fit all of your food in the fridge. The Slim SpacePlus® Ice System provides more shelf space and allows even more space for door bins.

*Standard width french door refrigerator, excludes other LG manufactured products

Fresher is better.

Smart Cooling® Plus technology is designed to maintain superior conditions within the refrigerator. The Linear Compressor and Dual Evaporators react quickly to humidity and temperature levels and help keep your food fresher, longer. Meanwhile, strategically-placed vents in every section help to surround your food with cool, fresh air.

Peace of Mind

Peace of Mind

When you buy a refrigerator, you don't want to worry that it won't last. Because the Linear Compressor uses fewer moving parts and operates more efficiently, LG confidently backs the Linear Compressor with a 10-year limited warranty.

Measure First

You found the LG refrigerator that fits your lifestyle- now make sure it fits in your kitchen. Certain types of LG refrigerators may be larger than others, measure to ensure your purchase can be successfully delivered and installed.


Enjoy fresh water, ice & air with LG filters

Subscribe today and enjoy savings and maximum freshness. We’ll even ship your next refrigerator filter to you when you need it automatically.*

Door Type French 3-Door
Refrigerator 19.50 cu. ft.
Freezer 10.10 cu. ft.
Total 29.6 cu. ft.
Door-in-Door® Yes
Energy Rating ENERGY STAR® Qualified
Ice & Water Dispenser Yes
Dispenser Type Tall Ice & Water Dispenser®
Ice System Slim SpacePlus®
Daily Ice Production 4.5 lbs/5.0 IcePlus
Ice Storage Capacity 3.0 lbs + 4.0 lbs
Water Filtration System Filter LT700P
Smart Cooling® Plus System Yes
Multi-Air Flow Cooling Yes
Temperature Sensors 8
Linear Compressor Yes
Fresh Air Filter Yes, Air Filter LT120F
Dual Evaporator Yes
Display Type Smooth Touch Control /White LED
Temperature Controls Electronic/Digital
Door Alarm Yes
Child Lock Yes
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
Auto Closing Door Hinge Yes
No. of Shelves 4 Split (3 Fixed/1 Folding)
Folding Shelf Yes
Cantilevered Shelves Yes
Shelf Construction Spill Protector™ Tempered Glass
Crisper Bins 2 Crispers/1 Bonus Drawer
Glide N’ Access® Yes
Glide N’ Serve® Yes
Refrigerator Light Premium LED (Ceiling and Side)
No. of Shelves/Bin 9 Total (Including Door-in-Door®)
Door Bin Construction Clear Bins with Silver Deco
Dairy Corner Yes
Door Type Pull Drawer
Drawers 3-Tier Organization®
Handle Smart Pull®
DuraBase™ Solid Drawer Base Yes
Drawer Divider Yes
Ice Bin 1 Extra Ice Bin
Freezer Light Premium LED
Contour Door Yes
Hidden Hinges Yes
Surface Coated Metal, Stainless Steel
Back Flush & Metal Cover Over Mechanical Parts
Available Colors Stainless Steel (S), Black Stainless Steel (D)
Handles Matching Commercial Handles
Depth with Handles 36 1/4"
Depth without Handles 33 3/4"
Depth without Door 29 1/2"
Depth (Total with Door Open) 48 1/8"
Height to Top of Case 68 3/8"
Height to Top of Door Hinge 70 1/4"
Width 35 3/4"
Width (Door Open 90° with Handle) 44 1/4"
Width (Door Open 90° without Handle) 40"
Door Edge Clearance with Handle 4 1/4"
Door Edge Clearance without Handle 2 1/8"
Installation Clearance Sides 1/8", Top 1", Back 1"
Weight (Unit/Carton) 353 lbs./386 lbs.
Carton Dimensions (WxHxD) 38" x 73" x 39"
Limited Warranty 1 Year Parts and Labor, 7 Years on the Sealed System, 10 Years on Linear Compressor
UPC 048231 786379

What People Are Saying

Rated 5 out of 5 by from Love the space! I bought this model in July and we love it. I like the extra door that opens up for a quick grab of what we use a lot. I love the large drawer that will hold food trays. Also the 2 drawers in the freezer area for small items. I really like the color and it is so easy to clean.
Date published: 2016-10-12
Rated 5 out of 5 by from Love this refrigerator! Great 3rd door for every day items and plenty of space inside for large platters. Ice maker is very quiet and it looks spactacular. Love LG appliances and haven't purchased another brand in years.
Date published: 2016-10-11
Rated 5 out of 5 by from Love my new fridge!!! I have had my fridge for a couple of months now and I Love it!!! It is so big and roomy and the freezer capacity is wonderful!!! Wish I had purchased it sooner!!
Date published: 2016-10-09
Rated 3 out of 5 by from If only it had worked out... I was very excited to purchase this refrigerator, having read the reviews and researching all that I could about it, and I absolutely love the Black Diamond color. We have a custom kitchen that has a 36" space to accommodate this size refrigerator, with wood on the sides that extend out to 28", nicely covering the sides of our previous refrigerators. According to the installation specs online, only 1/8" clearance was required on the sides, so we knew it would just fit, width-wise. When the refrigerator was delivered, it just barely squeezed into the opening even though we had some work done on the width of the cabinet to make sure it was a roomy 36", and raised up the cabinet above it so there was a good two inches clearance above the refrigerator. We loaded the new refrigerator with the still-cold contents of our previous refrigerator, and waited 24 hours for the temperature to stabilize. Unfortunately, the temperature didn't get below 40-42 degrees, and within the Door-in-Door the temperature was 42-45 degrees, all this while the temperature of the refrigerator was set to 36 degrees. I called LG, and they were incredibly prompt to send a repair man out within hours; however, I was not very happy with that repairman's advice of cutting into the back wall and putting in a vent to let the warm air escape into the closet that was behind that wall. He assured us that the refrigerator needs to "breathe", and one needs at least one inch of air space on each side, and three to four inches of clearances in the back, contrary to the installation clearances that were listed for this refrigerator online. After he left, my husband and I decided that before we opened up the wall behind our refrigerator, we would check the temperatures once again with the new setting of 34 degrees, and we pulled out the refrigerator from the opening completely for more than 24 hours. The temperature remained unchanged, even with no obstructions whatsoever. I again called LG, and they were amazing to send someone else out within a very short time. This second repairman, though, was quite condescending, saying that both of the refrigerator thermometers that we were using were faulty (even though they agreed with each other and had registered our old refrigerator temperature perfectly at 35-36 degrees), and that I needed a smaller refrigerator because the 1/8" clearances were WAAAY too small, and the motor would be burning out within months because of the heat build-up in the cabinet, and the cost to replace the motor was very expensive, etcetera. He succeeded in frightening me enough that we decided to exchange this larger refrigerator for the 33" wide, 24 cu. ft. refrigerator that, unfortunately, was a special order and took weeks to arrive, and so we had to live with this refrigerator for about three months. Because we had this refrigerator for a number of months, I can tell you what I thought of it when we used it. I originally wanted the Door-in-Door model, thinking that I could put all of our breakfast items in it and not have to open the main door of the refrigerator at all in the morning. Although it was a good idea, the temperature was always about 3 degrees warmer, and I love to have my milk very cold so I wound up placing the milk in the main part of the refrigerator, and the juice, fruit, and other breakfast items in the Door-in-Door compartment. This defeated my original idea of saving energy to only open the one door in the morning. The three drawers to hold produce were quite small, and many times I wished that LG would have made the refrigerator with only two larger drawers. On the plus side, the through-the-door ice-maker and water were fabulous. Always plenty of ice was available, and the ease of operating it was great. The lighting was outstanding everywhere: top, freezer, dispenser. The freezer was amazing, keeping everything cold, frost-free, and the two sliding drawers worked beautifully. As the months ticked off until we finally got our smaller refrigerator, the temperature of this refrigerator did seem to improve. We always had it set to 33 degrees and, on occasion, we saw as low as 37-38 degrees on our thermometers in the main part of the refrigerator and 39-40 degrees in the Door-in-Door area. I see there is a question after this review about recommending this refrigerator to a friend, and I will say "Yes" to that, but with a caveat here: ONLY if you have a lot of extra space (38" width, especially) around where you plan to put this refrigerator would I suggest buying it. I certainly wish that LG would change their website's installation clearances to reflect what the repairmen both said: that for the refrigerator to operate well one needs at least an inch on both sides and an inch or two above and in the back.
Date published: 2016-10-07
Rated 5 out of 5 by from It's Amazing I bought this fridge when updating the kitchen as part of a matching set of appliances. Love the black stainless steel. This fridge is amazing, the size is perfect for our family of 5 and I don't even need a garage fridge anymore. The water filtration has worked great so far. I was hesitant to pay extra for the door in door feature but it was worth it. The kids waste much less energy when grabbing their milk or just looking for what they want to drink. The freezer is much roomier than I had anticipated and it has been the best buy so far!
Date published: 2016-10-06
Rated 5 out of 5 by from Perfect product with necessary features We are using this for last 3 months, it's a perfect product with necessary features and required size. Best fits into our needs.
Date published: 2016-10-03
Rated 5 out of 5 by from Great Size and features. We have had this for a couple of months now and has been absolutely a nice unit. So far it has had no problems. I like the interior layout and quiet operation. We love the black stainless color and finish.
Date published: 2016-09-24
Rated 5 out of 5 by from Great volume for the value Great space inside, door panel that opens without exposing all other foods to the ambient temperatures, money saver, I love it.
Date published: 2016-09-21
  • 2016-10-27T08:39CST
  • bvseo_cps, prod_bvrr, vn_cps_3.4.0
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_122
  • loc_en_US, sid_MD05130240, PRD, sort_mostRecent
  • clientName_LG
  • bvseo_sdk, java_sdk, bvseo-
  • CLOUD, getReviews, 6ms

We're here to support you with our product.

View LFXS30766S Product Support

Contact us for any support inquiries.


Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

We have a the stainless steel version of this product. We recently got 2 large dings/scratches from closing the dishwasher while the fridge door was open. It's the side without the water and ice maker, is it possible to order a replacement door?

Asked by: Hallie2830
Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at
Answered by: NeilE
Date published: 2016-10-21

can this fridge be used with 220 v?if not what type of power converter i need for 110v-220v?tx

Asked by: benesch
The ENERGY STAR® Qualified LG 30 cu. ft. Super Capacity 3-Door French Door Refrigerator w/Door-in-Door®, Model # LFXS30766S cannot be used with 220 V. It must be plugged into a dedicated, grounded electrical outlet rated for use with this product (115V, 60Hz, AC only). As for what step down voltage converter you will need, you will have to consult with the manufacturers who make them to inquire what is the best one for refrigerators, you also consider the frequency. If the 220 V is at 50 HZ, that could be damaging to the refrigerator's compressor which is designed for 60 Hz...^IFV
Answered by: LGJoel
Date published: 2016-09-29

We just got this wonderful refrigerator and we are wondering if there is a way to cancel the lights so when you open the doors the lights won't turn on ? In other words: does it have a Shabbat mode?

Asked by: Blue sun
I apologize, but no; this refrigerator does not have a Sabbath mode available. The interior lighting is generated by LED lights, so no incandescent or florescent lighting is used. The POWER SAVING mode will allow the external display to remain inactive, except for when the door has been opened, and for about 20 seconds after the door has been closed.
Answered by: NeilE
Date published: 2016-08-31

I can not connect to the WiFi on any smart phone we have. Is there a place that has better directions on how to connect to the frig

Asked by: Tonyskid
We will need some clarification on your inquiry. From what you have mentioned in your inquiry, if you are unable to connect to Wi-Fi on your smart phones, you will need to contact the manufacturers of those smart phones for assistance in connecting them to your Wi-Fi. Page 29 of the owner's manual for this ENERGY STAR® Qualified LG 30 cu. ft. Super Capacity 3-Door French Door Refrigerator w/Door-in-Door®, Model # LFXS30766S has explicit instructions on how to connect once you have downloaded the Smart Refrigerator Smart Phone App to your phone. Depending on whether your phone is an Android, iOS or Windows Operating System, you can download the app from Google Play Store, iTunes Store or from the Microsoft Store. Once you have that app downloaded to your phones, hpress and hold the Connect button on the control panel of the refrigerator for 3 seconds to connect to your network. The Connect icon will blink while the connection is being made then turn on once connection is successfully made. To use the Smart Grid feature, you must also register for the Smart Grid (Demand Response) service with your local electric utility company. The company must provide Demand Response service. Once you have registered for the Smart Grid, you can follow the directions in the manual under "Setting Up the Smart App and Connecting the Refrigerator". You must connect the refrigerator to the internet using a wireless router on your home network. Tethering to a mobile phone, hotspot, or an unsecured network, for example, will cause unstable functionality...^IFV
Answered by: LGJoel
Date published: 2016-08-19

All my meats are frozen with ice on the inside of the packaging.  What is the ideal freezer temperature setting to prevent future problems.

Asked by: cwhite716
It is recommended that, when the unit is first installed, the freezer temperature should be set to 0 degrees Fahrenheit, while the refrigerator should be set to 37 degrees. Once the unit reaches these temperatures, you may change the setting to however you would prefer.
Answered by: NeilE
Date published: 2016-08-17

How do you ajust the temperature on refrigerator and freezer up and down

Asked by: Dce91
We appreciate your interest in this refrigerator. The temperature settings are on loop control. Continue pressing the REFRIGERATOR button until it reaches its lowest setting. Press it again, and the setting should jump to its HIGHEST setting. The same would work for the FREEZER.
Answered by: NeilE
Date published: 2016-08-12

I see LG fridge as a wifi option, is there internet connection.

Asked by: Why fridge showing wifi
When you sync your smartphone with the fridge, there was an app for my iphone.... You can view things like how many times the door was opened,  It sent me messages when the door was left open which my Kids did a lot
Answered by: Chiquitoots
Date published: 2016-08-05

It the surface magnetic

Asked by: KKkid
The sides are, but not the doors.
Answered by: Big Ed
Date published: 2016-07-27
