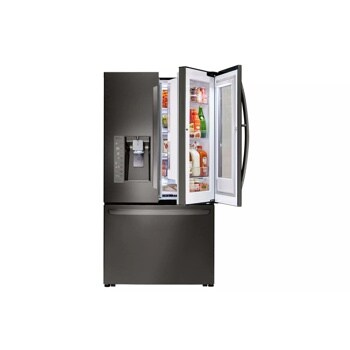

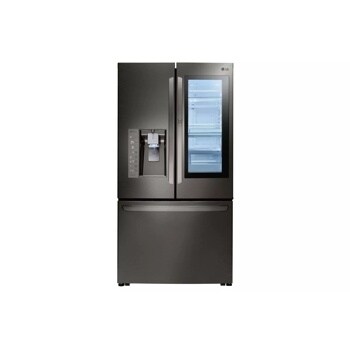

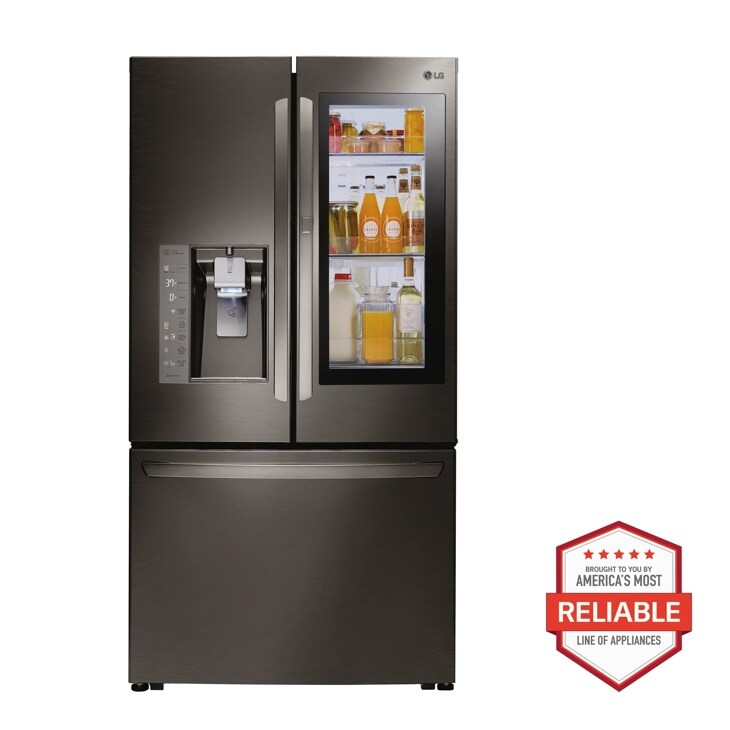

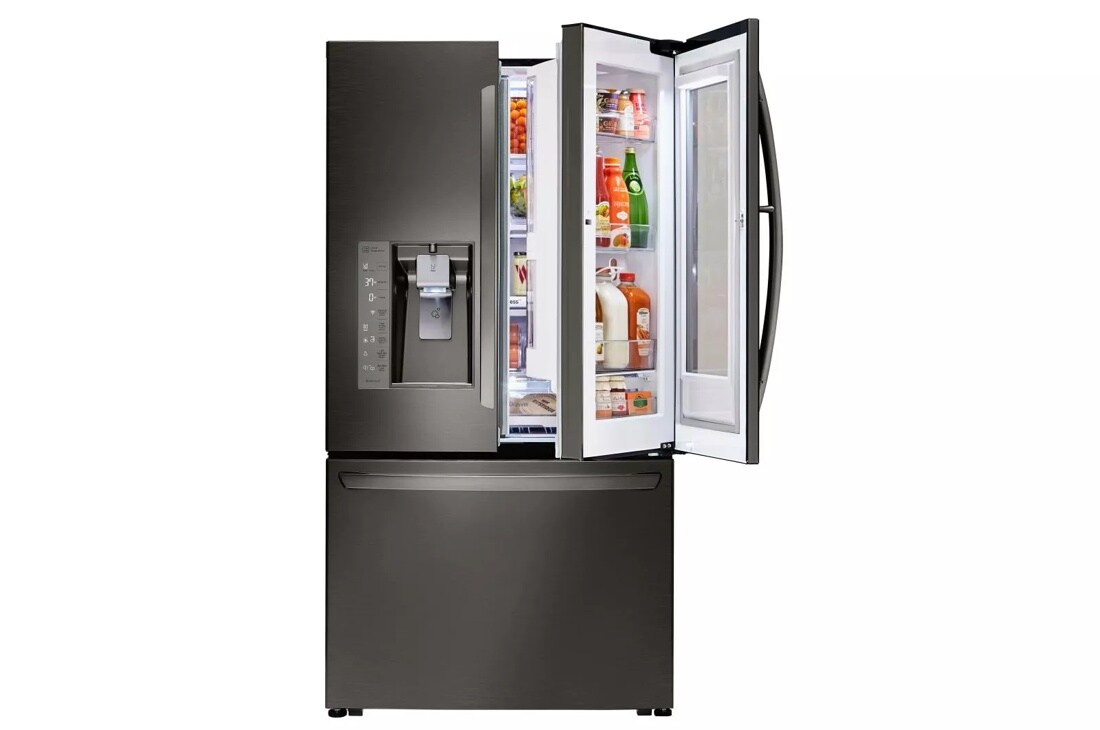

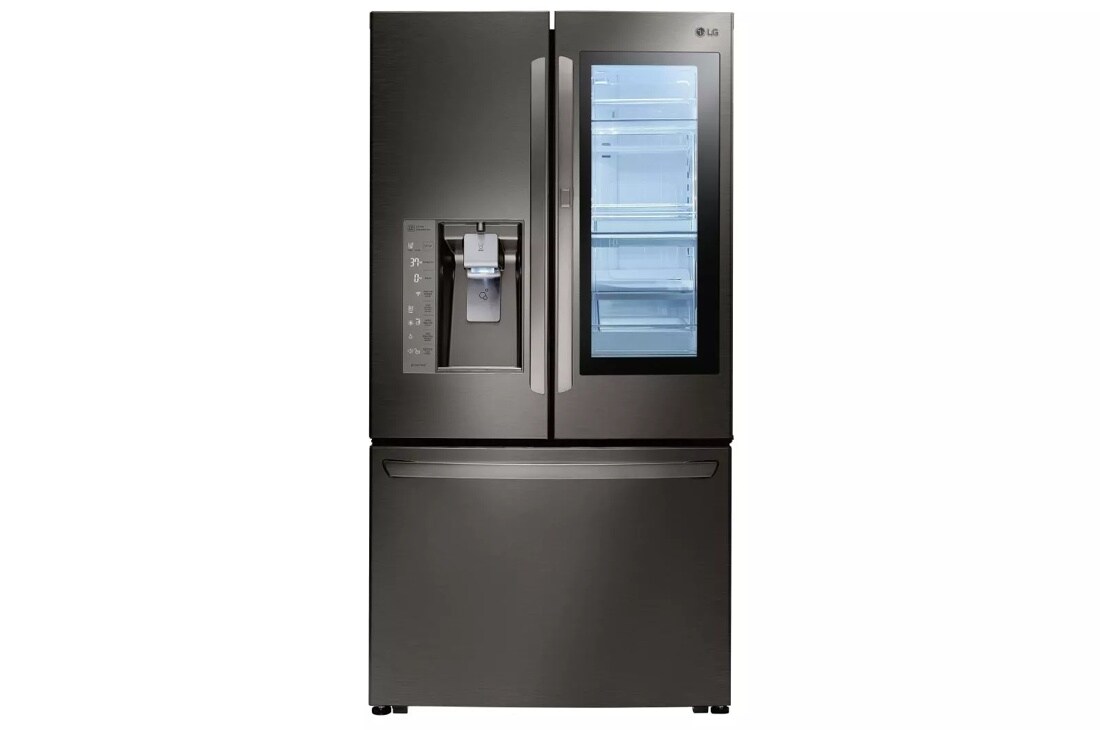

30 cu. ft. InstaView™ Door-in-Door® Refrigerator

  • LFXS30796D

  • Black Stainless Steel

Key Features

  • 30 cu. ft. Capacity
  • InstaView™ Door-in-Door®
  • Fingerprint and Smudge Resistant Finish
  • SmartThinQ® Technology
  • ColdSaver™ Panel
  • Slim SpacePlus® Ice System

J.D. Power Award Winner

“Highest in Customer Satisfaction with French Door Refrigerators”

Reviewed.com Editor’s
Choice Winner

The LG LFXS30796D refrigerator has been awarded the Editor’s Choice Award from Reviewed.com. Check out the article or scroll down to discover all the reasons why.

Raid the Fridge Without Losing Your Cool

InstaView™ Door-in-Door® refrigerators have a sleek glass panel that allows you to see inside the easy access door without letting the cold air out. Simply knock twice on the glass to illuminate the contents within.

Stylish Design You Can’t Wait to Get Your Hands On

Fingerprint and smudge resistant finish easily wipes clean with a soft, dry cloth, so the only lasting impression is your impeccable taste. At last, the kitchen you can’t wait to show off is the kitchen that handles real-life in style.

Think you’ll run out of ice? ThinQ Again.

Think you’ll run out of ice? Think Again.

From making extra ice for tonight’s dinner party to getting smartphone notifications when the door is left open, use the LG SmartThinQ® app to control key features and get important notifications from anywhere. It even works with the Google Assistant, so you can operate smart features with your voice.

SUMMARY
Door Type French 3-Door
Refrigerator Type InstaView™ Door-in-Door®
SmartThinQ™ Yes
CAPACITY
Refrigerator 19.50 cu. ft.
Freezer 10.10 cu. ft.
Total 29.6 cu. ft.
FEATURES
InstaView™ Door-in-Door® w/ ColdSaver™ Panel Yes (w/ Glass Panel)
ENERGY STAR® Qualified Yes (784 kWh/Year)
Ice & Water Dispenser Yes
Dispenser Type Integrated Tall Ice & Water Dispenser®
Ice System Slim SpacePlus®
Daily Ice Production 4.5 lbs/4.9 IcePlus
Ice Storage Capacity 3.0lbs + 4.0lbs
Smart Cooling Plus System Yes
Multi Air Flow Cooling Yes
Temperature Sensors 8
Linear Compressor Yes
Fresh Air Filter Yes, Air Filter LT120F
Dual Evaporator Yes
Display Type Smooth Touch Control (White LED)
CONVENIENCE
Temperature Controls Electronic/Digital
Door Alarm Yes
Child Lock Yes
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
Auto Closing Door Hinge Yes
REFRIGERATOR
No. of Shelves 4 Split (3 Fixed/1 Folding)
Folding Shelf Yes
Cantilevered Shelves Yes
Shelf Construction Spill Protector™ Tempered Glass
Crisper Bins 2 Crispers/1 Bonus Drawer
Glide N’ Serve® Drawer Yes
Glide N' Access® Shelf Yes
Refrigerator Light Premium LED (Ceiling and Side)
REFRIGERATOR DOOR
No. of Shelves/Bin 7 Total (Including Door-in-Door®)
Door Bin Construction Clear , Opaque, Silver Deco
Dairy Corner Yes
FREEZER
Door Type Pull Drawer
Drawers 3-Tier Organization®
Handle SmartPull® Freezer Handle
DuraBase™ Solid Drawer Base Yes
Drawer Divider Yes
Ice Bin Yes (1 Extra Ice Bin)
Freezer Light Premium LED
MATERIALS AND FINISHES
Contour Door Yes
Hidden Hinges Yes
Surface Coated Metal
Back Flush & Metal Cover Over Mechanical Parts
Available Colors Black Stainless Steel (D)
Handles Matching Commercial Handles
DIMENSIONS/CLEARANCES/WEIGHTS
Depth with Handles 36 1/4"
Depth without Handles 33 3/4"
Depth without Door 29 1/2"
Depth (Total with Door Open) 48 1/8"
Height to Top of Case 68 7/8"
Height to Top of Door Hinge 70 1/4"
Width 35 3/4"
Width (Door Open 90˚ with Handle) 44 1/4"
Width (Door Open 90˚ without Handle) 40"
Installation Clearance Sides 1/8", Top 1", Back 2"
Weight (Unit/Carton) 360 lbs / 393 lbs.
Carton Dimensions (WxHxD) 38" x 73" x 39"
WARRANTY
Limited Warranty 1 Year Parts and Labor, 5 Years on the Sealed System (Parts & Labor), 5 Years on the Compressor (Parts & Labor), 6-10 Years on Linear Compressor (Parts Only)
UPC 048231787673

What People Are Saying

Rated 5 out of 5 by from beautiful looks! beautiful functionality! I researched quite a few different brands and functions before I decided to purchase this particular LG model. I’m very pleased with my purchase and LG!
Date published: 2018-02-15
Rated 5 out of 5 by from Well designed refrigerator We bought this refrigerator about 3 weeks ago and we find that it is very well designed with great utilization of the space
Date published: 2018-02-12
Rated 5 out of 5 by from Great features I have had this for about a month and it is great!
Date published: 2018-02-07
Rated 5 out of 5 by from Best fridge ever The amount of space is amazing. Love all of the light in it. The door in door means that little things don’t get lost.
Date published: 2018-02-07
Rated 5 out of 5 by from Love the window! Lots of ice! I waited 6 months after I purchased this refrigerator so that I could give it a thorough tryout before reviewing it. My previous unit was only 5 years old when it was deemed unrepairable. Since I had to replace it unexpectedly I didn't have much time to do research before the purchase. We really didn't want or think we needed the window in the front but it was all that was available at the time. I'm so glad we have it! It really cuts down on opening the big door, letting the cold air out and you can see if you need to pick something up at the store without opening the door at all. Love that. Bonus that you can access the door section from the inside as well. The icemaker on this model is vastly superior to my prior, very similar, LG. It makes ice quickly and we don't run out, even in the really hot weather. We keep extra ice in the freezer bin but rarely need to use it. There is plenty of space inside the refrigerator and I like the separate full length drawer for deli items as well as the 3 smaller drawers for produce/fruit. The 3 separate drawers for the freezer make finding things a breeze and give me a place to lay out things in a single layer for rapid freezing. Overall great design. I'd buy it again, but hope I don't have to!
Date published: 2018-01-19
Rated 5 out of 5 by from Excellent refrigerator in all aspects Except the long time the order takes, it was worth it. Working Quiet, very efficient and roomy. We simply love it.
Date published: 2017-12-09
Rated 1 out of 5 by from disappointed This product did not meet our expectations. very disappointed. The ice maker for one is very small and takes forever to remake ice. for such a large model you would think that it would hold a large amount of ice or remake it faster. The window that lights up when you knock seemed neat at first, but after having for months it is never used. it was pointless to have. The freezer has been a pain and is not easy to work with. The middle shelf is pointless, the first drawer could have been bigger if not for the second one. We were very excited for a new fridge, but this one we could have done without. We tried to return, but were told we only had 30 days.
Date published: 2017-11-27
Rated 5 out of 5 by from Great Refrigerator until you need to change filter Changing the water filter is a real task and can make you very nervous the first time.
Date published: 2017-11-18
  • y_2018, m_2, d_18, h_3
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.7
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_46
  • loc_en_US, sid_MD05763787, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 7ms
  • REVIEWS, PRODUCT

We're here to support you with our product.

View LFXS30796D Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

The freezer is set to 0 degrees and has been working fine, but now the inside is making frost, does anyone know why this happens?

Asked by: Mlt73
There are two main things that can cause frost building up. 1) Door is opened frequently or for long periods of time. To resolve: When the doors are opened often or for long periods of time, warm, humid air enters the compartment. This raises the temperature and moisture level within the compartment. Increased moisture will lead to frost and condensation. To lessen the effect, reduce the frequency and duration of door openings. 2) Door is not closing properly. To resolve: Check for food packages that are blocking the door area. Check to see if the Ice bin, crisper cover, pans, shelves, door bins, or baskets are out of position. The doors were removed during product installation and not properly replaced. Check to see if the refrigerator is leveled properly. ^CP
Answered by: ChrisPSM
Date published: 2017-12-06

What depth is considered "counter depth"? The specs show that the 30796S is considered counter depth ready, this true?

Asked by: RaulJoel
Counter depth is approximately 24" without doors. LFXS30796S would not be considered a counter depth model.
Answered by: Shena
Date published: 2017-12-01

Is this refrigerator have the stainless exterior that doesn't show finger prints? Can't remember if I read somewhere this model has that coating.

Asked by: rgteran
The Stainless Steel on the ENERGY STAR® Qualified LG 30 cu. ft. InstaView™ Door-in-Door® Refrigerator, Model # LFXS30796S does not have a coating on it that makes it fingerprint or smudge resistant. Only the LG BLack Stainless Steel Appliances have a stainless steel formed from stainless steel coated with a darker hue and topped with a protective coating, that makes every appliance fingerprint and smudge resistant...^IFV
Answered by: LGJoel
Date published: 2017-10-10

At what temperature Should the freezer be set at

Asked by: leo1097
We appreciate your interest in this refrigerator. When the unit is first installed, the freezer temperature should be set to 0 degrees Fahrenheit, while the refrigerator should be set to 37 degrees. Once the unit reaches these temperatures, you may change the setting to however you would prefer.
Answered by: NeilE
Date published: 2017-10-10

Whenever i go pass my refrigerator, hot air comes out and The sides are hot and bottom are hot, i was wondering if this is normal?

Asked by: Alyiva min
We appreciate your interest in this refrigerator. The hot air coming from the sides & underneath would be coming from the compressor area. This would be considered normal operation.
Answered by: NeilE
Date published: 2017-08-21

Auto correct changed my previous question!  How do you control the humidity in the crisper drawers?

Asked by: Deeniebeenie
We appreciate your interest in this refrigerator. According to the information listed on page 41 of the owner’s manual, the control of the humidity level in the crisper drawers is done by adjusting the setting on the drawer between VEGETABLE and FRUIT. The VEGETABLE setting keeps more humid air in the drawer.
Answered by: NeilE
Date published: 2017-06-22

How much pork, beef and chicken will the freezer hold? That is to include various size packages please.

Asked by: Lu1891
Precisely as much as you can fit in it!!! Hope that helps...
Answered by: saw1
Date published: 2017-05-11

Hello i like to know do u have a brochure of this item. And may i get a brochure sent to me please.

Asked by: blackknight 56
Your interest in the ENERGY STAR® Qualified LG 30 cu. ft. InstaView™ Door-in-Door® Refrigerator, Model # LFXS30796D is very much appreciated. Product brochures for LG products are usually only available at trade shows or at CES. The Specification sheet for the refrigerator and all the information that is typically given in brochures such as features and technical specifications can be found and printed out from the company site, www.lg.com/us...^IFV
Answered by: LGJoel
Date published: 2017-03-27
