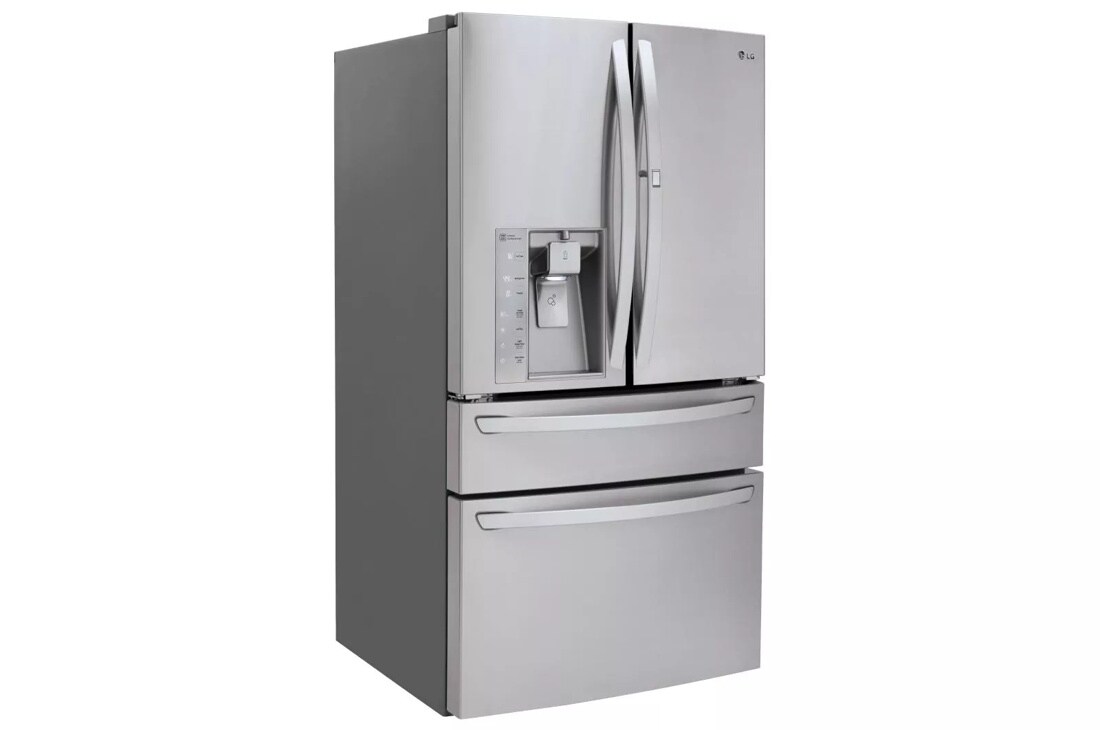

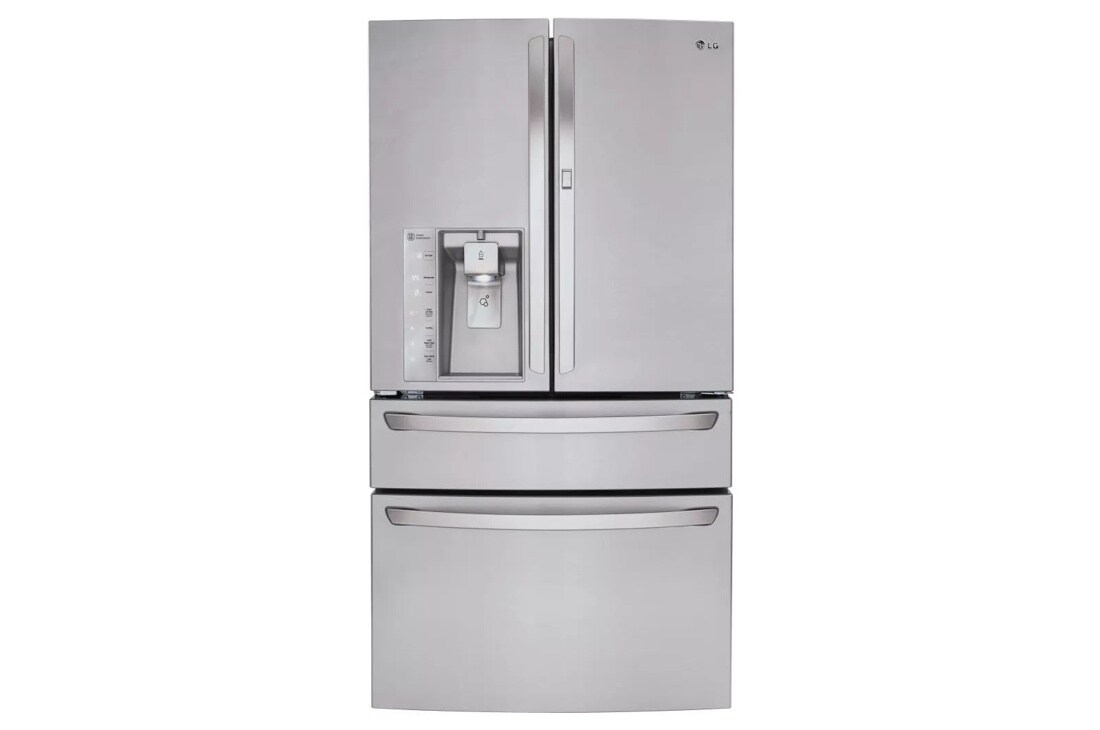

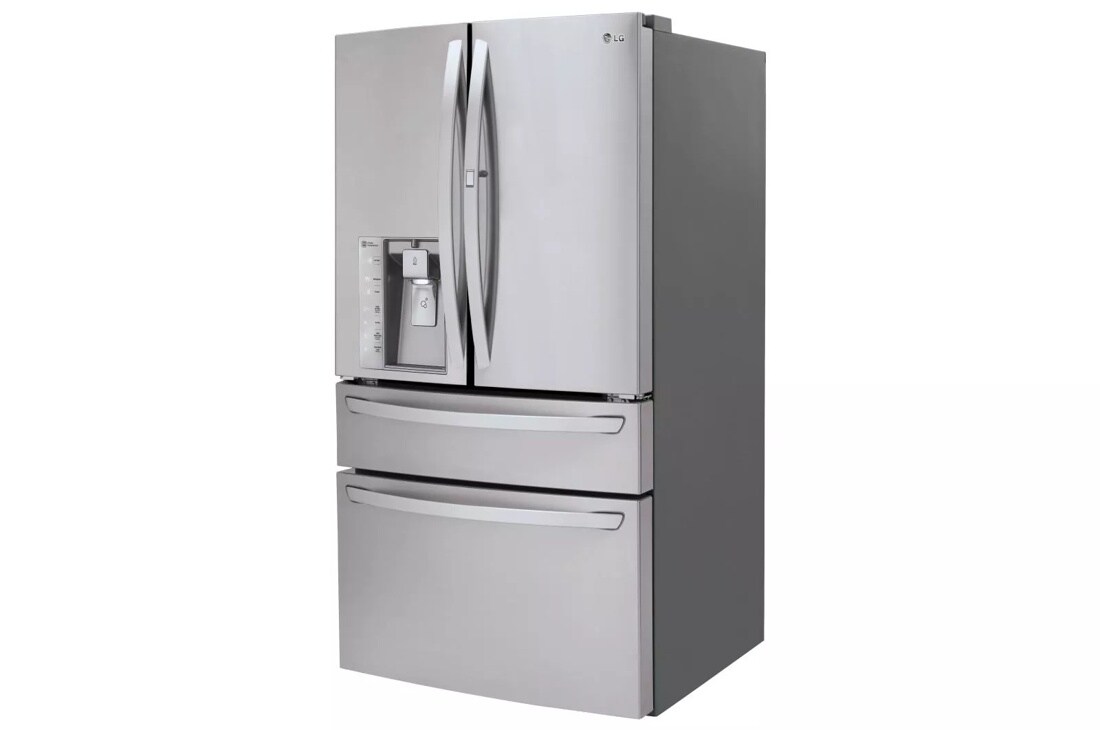

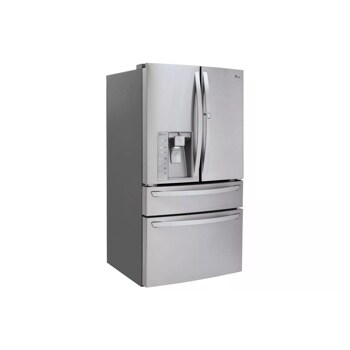

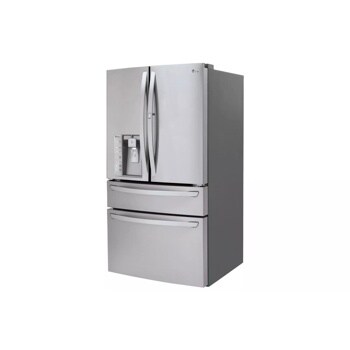

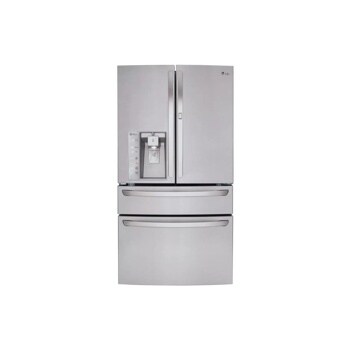

30 Cu.Ft. Super Capacity 4-Door French Door Refrigerator w/ CustomChill™ drawer

  • LMXS30776S

  • Stainless Steel

Key Features

  • More Usable Space
  • Easy-Access Door-in-Door™ Reduces Cold Air Loss by 47 Percent*
  • Customizable Storage Drawer
With the LG LMXS30776S 30 cu.ft. Super Capacity 4-Door French Door Refrigerator w/ CustomChill™ Drawer, the Slim SpacePlus® ice system creates more available space.

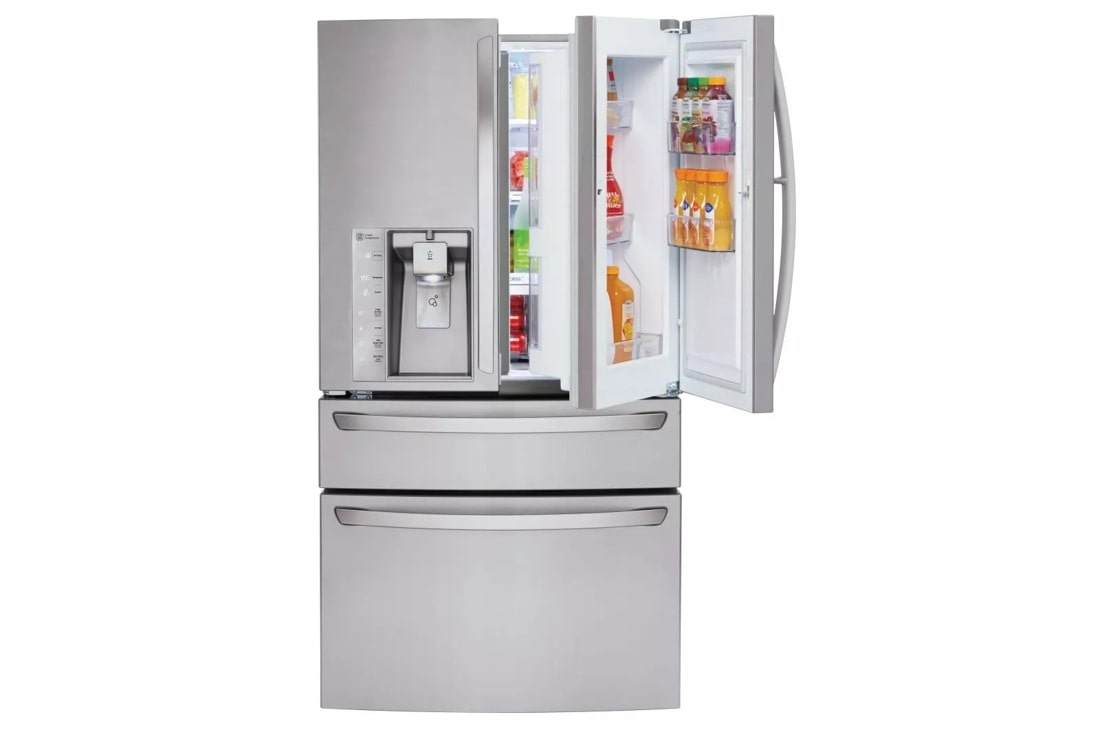

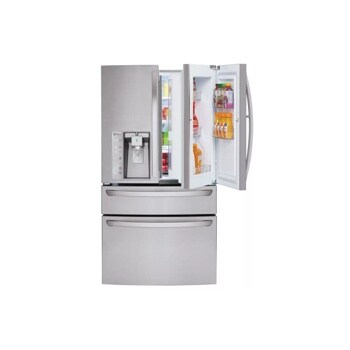

Partial shot of LG LMXS30776S with left, top door-in-door open

A Definitive Answer for “Where’s the…?”

The LG Door-in-Door® puts family favorites front and center. Use it for beverages, snacks, condiments – you name it – for get-in-and-get-out convenience.

Top down shot of LG LMXS30776S with Custom Chill door open, showing food and beverages.

One Drawer,
Four Personalities

The CustomChill® Drawer has four settings. Use it as a soft freezer space or create another place for fresh foods. Whatever you decide, the adjustable dividers make it superbly simple to take usable space up a notch.

Space for Your Entire Shopping List and Then Some

Making a larger refrigerator would’ve been easier, but since it still has to fit in your kitchen, we’ve taken the standard-width space and made it more usable than ever.

    30 CU.FT.
    68” H X 35¾”
    Built-in Disp
Full height hot of LG LMXS30776S with top doors open showing food stored
Drawing of Linear Compressor and simulated evaporation

Stock-Up and Stay Fresh

With LG Smart Cooling Plus technology, digital sensors help the Linear Compressor and Dual Evaporators maintain optimum temperature and humidity levels, while vents in every section work with the Fresh Air Filter to surround your food with the freshest air possible.It all adds up to foods that stay fresher for longer – saving you money.

Inverter Linear Compressor 10 warranty logo

Peace of Mind

With fewer moving parts and better efficiency, LG confidently backs the Linear Compressor with a 10-year limited warranty.

Shot of LG LMXS30776S with both top doors open%2C showing flexible%2C spacious interior storage.

As Sophisticated as it Looks

All this technology should look good in your home, too. From the contoured doors and hidden hinges to a host of stunning interior features like LED lighting and more, it’s a beautiful addition to any kitchen décor.

Shot of LG LMXS30776S with door open Slim SpacePlus® Ice System.

More Usable Space

The Slim SpacePlus® Ice System delivers up to 3.8 pounds of ice per day, yet still provides more shelf space and allows even more room for door bins.


ENERGY STAR® Qualified

On average, over 25 percent more energy efficient than conventional models, saving energy in all usage modes: sleep, idle and off.

Dimensions & Weight
Door Type French 4-Door
Refrigerator 17.5 cu. ft.
CustomChill™ Drawer 3.8 cu. ft.
Freezer 8.8 cu. ft.
Total 29.7 cu. ft.
ENERGY STAR® Qualified Yes
Ice & Water Dispenser Yes
Dispenser Type Integrated Tall Dispenser
Ice System Slim SpacePlus™
Daily Ice Production 3.5 lbs / 3.8 (IcePlus™)
Ice Storage Capacity 3.2 lbs
Water Filtration System Compact Filter LT800P
Smart Cooling Plus System Yes
Multi-Air Flow Cooling Yes
Temperature Sensors 8
Linear Compressor Yes
Fresh Air Filter Yes
Dual Evaporator Yes
Display Type Smooth Touch Control (White LED)
Temperature Controls Digital
Door Alarm Yes
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
Auto Closing Door Hinge Yes
Child Lock Yes
No. of Shelves 4 Split (3 Fixed/1 Folding)
Folding Shelf Yes
Cantilevered Shelves Yes
Shelf Construction Spill Protector™ Tempered Glass
Crisper Bins 2 Humidity Crispers / 1 Bonus Drawer
Glide N’ Serve™ Drawer Yes
Glide N' Access™ Shelf Yes
Refrigerator Light Premium LED (Ceiling and Side)
No. of Shelves/Bin 9 Total (2 Gallon Size, 5 Half, 1 Mini)
Door Bin Construction Clear , Opaque, Silver Deco
Dairy Corner Yes
Dividers 2
Temperature Range 29˚, 33˚, 37˚, 41˚ F
Handle SmartPull™
Door Type Pull Drawer
Drawers/Shelves 3-Tier Organization
Handle SmartPull™ Freezer Handle
DuraBase™ Solid Drawer Base Yes
Drawer Divider Yes
Ice Bin Yes
Freezer Light Premium LED
Contour Door Yes
Hidden Hinges Yes
Surface Coated Metal, Stainless Steel
Back Flush & Metal Cover Over Mechanical Parts
Available Colors Stainless Steel (ST)
Handles Matching Commercial Handles
Depth with Handles 37 6/8"
Depth without Handles 35 2/8"
Depth without Door 31"
Depth (Total with Door Open) 49"
Height to Top of Case 68 7/8"
Height to Top of Door Hinge 70 1/4"
Width 35 3/4"
Width (Door Open 90° with Handle) 45"
Width (Door Open 90° without Handle) 40"
Door Edge Clearance with Handle 4 5/8"
Door Edge Clearance without Handle 2 1/4"
Installation Clearance Sides 1/8", Top 1", Back 1"
Weight (Unit/Carton) 348 lbs / 388 lbs.
Carton Dimensions (WxHxD) 38" x 73" x 40"
Limited Warranty 1 Year Parts and Labor, 7 Years on the Sealed System, 10 Years on Linear Compressor
UPC 048231786201

What People Are Saying

Rated 5 out of 5 by from Surprised I like it so much This is our first French door fridge. Didn't think I would like the freezer being on the bottom, but its so much easier to find things. Also I thought the door that opens just for the milk or orange juice was a silly idea. I love it too.
Date published: 2015-11-10
Rated 5 out of 5 by from Great storage oranization. Love this refrigerator We bought this refrigerator almost 2 months ago. It is by far worth the price. Great features. So easy to organize, and find what you need. Ice maker and filteres water are great. Would highly recommend.
Date published: 2015-10-26
Rated 5 out of 5 by from SUPER SIZED I have had this refrigerator for over a month and totally love it. LOTS of room and great features. Love that I can change the temp on the pull out drawer, and am able to adjust the size in the drawer and in the refrigerator any time I want. The extra door is so handy to put drinks, condiments. Just love this refrigerator.
Date published: 2015-09-25
Rated 4 out of 5 by from The delivery Reviewing this product online and in the store was very nice. However it is 35 3/4 inches wide and 38 inches deep. With standard 36 inch doors the opening is only 35 1/2 inches wide because of the door stop. Which necessitates he removal of the door stop from the house and re-painting or the removal of the doors on the refrigerator by a delivery person who is not trained by LG on the removal and re-attachment of the refrigerator doors which resulted in two broken parts. Now waiting for the repair on my new frog, not what I expected at that price. The LG engineers should have kept it at 35 inches wide.
Date published: 2015-09-23
Rated 5 out of 5 by from Features and adjustments galore. Best Fridge Ever! I shopped for months to find the fridge we wanted and that fit our needs. After deciding on a brand and model I spent a couple more months waiting for that great deal as this baby is a little pricey. But worth every penny. No issues at all (after about 6 months) and the custom chill drawer allows me to keep beverages just above freezing. Perfect. Ample space in both the fridge and freezer for everything ! We kept our old fridge and put it in the basement for overflow but we are not using it. If you are even considering this fridge go ahead and pull the trigger, you will not be dissappointed. I have read reviews about this fridge being noisey. It doesnt run often (efficient) and when it does I rarely hear it ( I have to be right next to it). Quiet, Quiet fridge. We love everything about this thing. Highly recommend.
Date published: 2015-09-08
Rated 5 out of 5 by from Great product with outstanding service We bought the refrigerator at Home Depot. Shortly after installation we found that the ice disperser didn't work. Service technicians were promptly dispatched and made three attempts to repair the refrigerator including replacing the ice maker and other parts without success. The product was classified as non-repairable. A new replacement refrigerator was promptly delivered without any hassle from either Home Depot or LG. We love the new refrigerator. The way this was handled is testimony to not only the quality commitment of LG but also the outstanding service commitment by Home Depot. They both set a standard that we wish others would emulate.
Date published: 2015-08-21
Rated 5 out of 5 by from great frig for counter depth If you have to go with a counter depth refrigerator, this model is great LMXC23746S. It is very quite, good refrigerator space -- only drawback, be prepared to make additional ice in the summer. It has a very small ice storage space which is obvious if you look at the refrigerator up close. The advantage is that you pick up more shelf space for the refrigerator. One bummer is that you will find that to get the options of the counter depth, that you pay quite a bit more than similar model that is actually larger. For us, we could not have a refrigerator that was beyond our 30 inch counter depth, and this was the best unit.
Date published: 2015-08-19
Rated 5 out of 5 by from Beautiful, impressive fridge with lots of extras Where to start? This fridge is definitely a statement piece in my kitchen and I've received many compliments on it already. The drawers, trays and compartments make organization easy. I love the door in door storage for beverages and frequently used items. The entire fridge is so customizable with moving shelves, drawer dividers and variable temperature zones. I really like that there's no ice maker in the actual shelf space; it really makes the whole thing seem more open and allows me to fit extra platters or other large items. It has been very easy to keep clean.
Date published: 2015-08-18
  • 2015-11-27T07:46CST
  • bvseo_cps, prod_bvrr, vn_cps_3.1.6
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_81
  • loc_en_US, sid_MD05110243, PRD, sort_mostRecent
  • clientName_LG
  • bvseo_sdk, java_sdk, bvseo-
  • CLOUD, getReviews, 5ms

We're here to support you with our product.

View LMXS30776S Product Support

Contact us for any purchasing inquiries.


Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

can the custom chill drawer be used as a freezer?

Asked by: geniese
No you can not use as a freezer. On the coldest setting 'soft freeze' the temp cycles around 30F +/- about 4 degrees in my experience. We tested using two different digital thermometers. We use it prolong 'fresh' meat from the market without freezing for 4-5 days. Long term (for us a week or longer) goes into the main freezer compartment. When we first got this refrigerator we stored prepackaged frozen food, wound up tasting funny.  For the record I wish we had not gone for the chill drawer and just gotten a normal French door.
Answered by: JMartin7
Date published: 2015-11-10

The pictures on your website, for the 23 cf lmxc23746s and the 30 cf lmxs30776s appear to be the same. Does this mean all related dimensions are the same, including the middle drawer, except for the 6 5/8 debth difference?

Asked by: Reed1234
The picture of the LG 30 Cu.Ft. Super Capacity 4-Door French Door Refrigerator w/ CustomChill™ drawer, Model # LMXS30776S and that of the LG 23 cu.ft. Large Capacity Counter Depth 4-Door French Door Refrigerator w/ CustomChill™ Drawer, Model # LMXC23746S are similar but not the same. The LMXS30776S shows the refrigerator with its' doors open to show the door-in-door feature that the LMXC23746S does not have. You can see this difference by scrolling through the thumbnail images of the units. The related dimensions are pretty much the same but since the units have different cubic foot capacities, that would indicate that there are some differences. You can do a side-by-side comparison of the units to highlight their similarities or differences and that will reveal that the CustomChill™ Drawers are different (3.8 cu. ft. v 2.8 cu. ft.) Granted a lot of the dimensions are the same, but the comparison also highlights that the refrigerators have different depths and their heights to the top of their cases are different (not by much, but still different)...^IFV
Answered by: LGJoel
Date published: 2015-09-04

custom chill drawer supposed to close by itself

Hi, Is the custom chill drawer supposed to shut most of the way on its' own? Every time I open the drawer, it, it will not stay open unless I hold it, it starts to slide shut. But it doesn't shut the whole way, just a few inches shy. Trying to figure out if the installers may have tilted the fridge backwards too far? Thank you!
Asked by: jdcool
The CustomChill™ Drawer is not a self closing door so it may be that the LG 30 cu.ft. Super Capacity 4-Door French Door Refrigerator w/ CustomChill™ Drawer, Model # LMXS30776S is tilted a little too far backwards...^IFV
Answered by: LGJoel
Date published: 2015-10-07

air filter is stuck can't take it off

I tried to change the airlfilter for the first time since I bought the fridge 7 months ago. I tried to twist the cap off but wasn't able to.
Asked by: Askin
It is possible that frost or ice is what is making it so hard for the air filter cover to twist open in your LG 30 cu.ft. Super Capacity 4-Door French Door Refrigerator w/ CustomChill™ Drawer, Model # LMXS30776S. This is not a recommended method to use, but you can try soaking a cloth in hot water (just don't make so hot it scalds you) and put it over the cover while you turn it to the left and see if that helps...^IFV
Answered by: LGJoel
Date published: 2015-11-02

We bought this refrigerator 8 months ago. Suddenly ice maker and water quit dispensing from outside door and the control panel reads "FF" for freezer

and "E" for refrigerator. Help!
Asked by: Janieknud
We apologize for any inconveniences that this is causing you. The 'ER FF' error code on your LG 30 cu.ft. Super Capacity 4-Door French Door Refrigerator w/ CustomChill™ Drawer, Model # LMXS30776S indicates an abnormality on the freezer fan motor. This often happens when frost accumulates on the freezer fan and prevents it from turning. You will need to unplug the unit or turn the breaker off for 4 hours to allow any frost or ice to melt off the freezer fan. After 4 hours have passed, you can plug the refrigerator back in or turn the breaker on. If you have anything that might spoil during the 4 hours that the unit is turned off, you may want to place it in an ice tub...^IFV
Answered by: LGJoel
Date published: 2015-07-08

The right door does not close unless slightly pushed, is this normal?

There seems to be slight resistance when right door is just about shut.This causes the door not to shut unless pushed slightly. With the auto closing hinge , one would think this is not normal. Has anyone else experienced this?
Asked by: Baretta6
We regret the inconvenience you have experienced with this refrigerator. It is always recommended to ensure that the door is closed manually by pressing the door closed. As long as the door seals securely, it will seem to operate properly.
Answered by: NeilE
Date published: 2015-11-10

How do I turn on/off Power Saving Mode?

Asked by: Pwrsav1
We appreciate your interest in this refrigerator and its features. The only way to adjust whether the display is on or off has to do with the POWER SAVING MODE. To deactivate the Power Saving Mode, press the FREEZER and ICE PLUS buttons simultaneously and hold them for 5 seconds, until the tone sounds.
Answered by: NeilE
Date published: 2015-07-07

Where is water filter located?

I have gone on line and it says the water filter is behind the light above the top shelf. I can not locate it.
Asked by: GOhio
Our installer from Best Buy opened the upper left door panel, and the filter went in near the ice maker. Looked pretty easy to do. Haven't done it myself yet.
Answered by: Sample13
Date published: 2015-09-16
