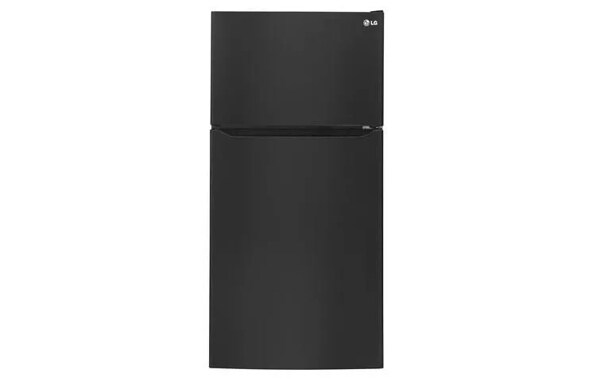

Large Capacity Top Freezer Refrigerator with Ice Maker (Fits a 30" Opening)

  • LTC20380SB

  • Smooth Black

Key Features

  • 20 cu.ft. of Capacity
  • Premium LED Lighting
  • Full-Width Glide N' Serve Pantry Drawer
  • 2 Humidity Controlled Crispers
Great Space in Style

Great Space in Style

Get the space you need in a refrigerator that’s right for your kitchen. With 20 cu. ft. of space, this top mount refrigerator offers one of the largest capacities in its category at 30” wide.

Great Light.

Great Light.

LED panels located on the rear of the refrigerator provide an exceptionally bright interior and saves energy over traditional lighting.

Space to Keep it Fresh

Space to Keep it Fresh

With two humidity-controlled crisper drawers and a full-width Glide N’ Serve Pantry Drawer, keeping all of your food organized and fresh couldn’t be simpler. Store wide items with easier access in the Glide N’ Serve Pantry Drawer, and the two humidity controlled crisper drawers are perfect for fruits, vegetables and beverages.

Fresher is better.

Fresher is better.

Digital Temperature Controls designed to maintain superior humidity and temperature levels to help keep your food fresher, longer. Digital sensors constantly monitor conditions within the refrigerator to keep things cool.

Cold as ice.

Cold as ice.

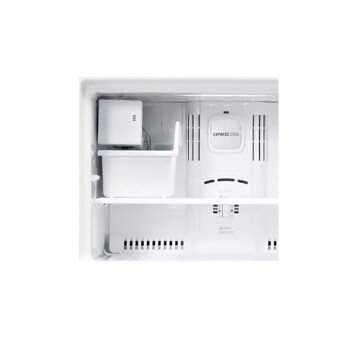

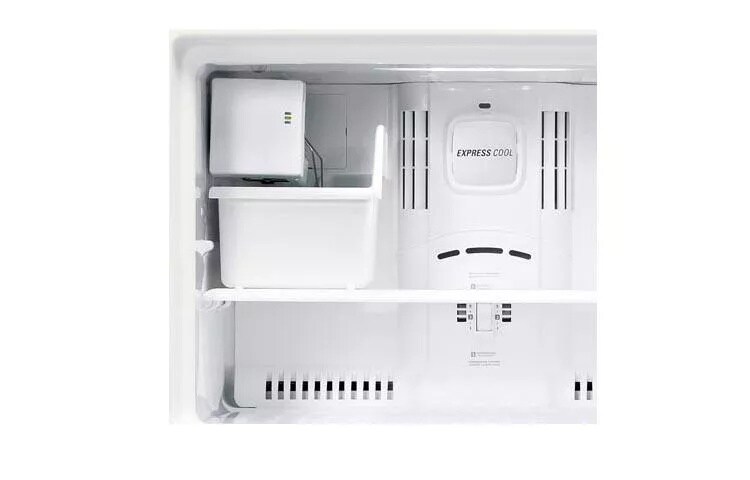

An automatic ice maker means you'll always have ice on hand.

Door Type Top Mount Freezer
Total Capacity 20.21 cu. ft.
Size (W x H x D) 29 3/4" x 66 1/8" x 35 1/4"
Refrigerator 14.73 cu. ft.
Freezer 5.48 cu. ft.
Total 20.21 cu. ft.
Temperature Sensors Yes
Temperature Controls Electronic
LoDecibel™ Quiet Operation Yes
Freezer Door Type Top Swing Door
Factory Installed Ice Maker Yes
No. of Shelves 3 Full
Cantilevered Shelves Yes
Shelf Construction Tempered Glass
Crisper Bins 2 Humidity Crispers
No. of Door Bins 4
Full Width Pantry Drawer Yes
Gallon Storage 2 Gallons
Tall Item Retainer Yes
No. of Shelves/Bin 3
Dairy Bin Yes
No. of Shelves 1
Shelf Construction Tempered Glass
No. of Baskets 2
No. of Door Bins/Shelves 2
Auto Defrost Yes
Contour Door Yes
Reversible Doors Yes
Surface Coated Metal, Stainless Steel
Back Flush & Metal Cover Over Mechanical Parts
Available Colors Stainless Steel (ST), Smooth White (SW) and Smooth Black (SB)
Depth 33 3/8"
Depth without Door 29"
Depth (Total with Door Open) 60"
Height to Top of Case 65 1/2"
Height to Top of Door Hinge 66 1/8"
Width 29 3/4"
Installation Clearance Sides 1/8", Top 1", Back 2"
Weight (Unit/Carton) 217 lbs./222 lbs.
Carton Dimensions (WxHxD) 31 3/4" x 69 13/16" x 38 1/8"
Limited Warranty 1 Year Parts and Labor, 7 Years on the Sealed System, 10 Years on Linear Compressor
UPC 048231784504
Amps 20 Amp
Requirements 120V, 60Hz, 15 Amp
UL Listed Yes
Energy Consumption 406kWh

What People Are Saying

Rated 1 out of 5 by from Sick The increased capacity was achieved by deepening the unit. If you have something on the lower shelf, you almost have to sit down in the floor to reach the back. The doors are hard to open and then when the frig door shuts, the freezer door pops open slightly. Must watch. Had to remove one shelf to allow for tall items to fit. Shelves are full width, no half shelves for the taller items.
Date published: 2015-11-07
Rated 5 out of 5 by from great unit Runs very quiet and the led lights on both sides of the interior is very nice.
Date published: 2015-09-05
Rated 5 out of 5 by from This product is very nice The only thing I wish is that I could see bottom shelf and bottom door shelf better. Overall a good refrigerator.
Date published: 2015-05-20
Rated 5 out of 5 by from Quality work!! Recently brought this item at a reasonable price. Got it home and plugged it up. It purr like a kitty. I've used this type of frig before and last me 9 years. So, it a product.
Date published: 2014-11-30
Rated 5 out of 5 by from Love just about everything about this product I'm very happy with this product. Love the lighting and the fact that large milk containers fit in the door. The only thing I would change is either having the refrigerator door shelves adjustable or having more space between the bottom door shelve and the next one up. The closeness makes it hard to tip out a full gallon of milk, however that is not a big enough issue for me to prevent me from giving it an excellent rating.
Date published: 2014-10-04
Rated 4 out of 5 by from Stainless is hard to keep clean The stainless steel is hard to keep clean. I don't like not having door handles. It makes other touch the stainless part of the door. How many refrigerators do you see without door handles. The ice maker make plenty of ice for four adults. Te shelf's are spaced a little weird. A pitcher of ice tea and a 2 liter bottle just fits on the sides. Nice other than that. I would recommend.
Date published: 2014-07-24
Rated 4 out of 5 by from Sharp looking standard feature fridge This is a great looking fridge with standard features. Good quality too.
Date published: 2014-07-19
Rated 5 out of 5 by from Extremely happy with purchase. This was a very reasonably priced refrigerator, with an excellent ice maker. The freezer space is bigger than what the specs would indicate, as the ice maker doesn't take up much space and the shelves are arranged well. Lighting is excellent in fridge and freezer. I like the functionality of the meat drawer in the middle of the fridge. Highly recommend this Energy Star fridge.
Date published: 2014-07-19
  • 2015-11-27T07:12CST
  • bvseo_cps, prod_bvrr, vn_cps_3.1.6
  • cp_1, bvpage1
  • co_hasreviews, tv_2, tr_36
  • loc_en_US, sid_MD05056480, PRD, sort_mostRecent
  • clientName_LG
  • bvseo_sdk, java_sdk, bvseo-
  • CLOUD, getReviews, 6ms

We're here to support you with our product.

View LTC20380SB Product Support

Contact us for any purchasing inquiries.


Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

ice maker lights

you stated in earlier answer that the lights indicate size setting. Is the size adjustable? if only indicator of valve opening what does that truly mean to me?
Asked by: tedybear
Hi San Gabriel. Please pardon us for not understanding your inquiry. Could you please rephrase the question so we can provide you with an appropriate response...^IFV
Answered by: LGJoel
Date published: 2015-07-18

How to keep the freezer shut?

How do you keep the freezer door shut as it keeps bouncing open when the lower door is closed?
Asked by: maestro141
We regret the inconvenience you have experienced with this refrigerator. The impact of the air pressure inside the refrigerator, when the door closes can rush back into the freezer compartment, can cause the freezer door to open. This has been known to occur with most, if not all refrigerator manufacturers. The pressure in the door seal can be related directly to the difference between the air temperature inside the compartment, and outside it.
Answered by: NeilE
Date published: 2014-12-30

is this refrigerator quiet?

I am looking for a good-quality, but quiet, apartment-sized fridge. LG white, top freezer, LTC20380SW
Asked by: Anonymous
Yes, the fridge is very quiet. I never hear it except when it makes ice and drops the ice in the bucket.
Answered by: DLM32
Date published: 2014-10-20


Asked by: COOLER
I am not sure if the ice maker can be removed but yes there is a LED light on top of the freezer and provides ample lighting.
Answered by: DLM32
Date published: 2014-10-20

what is the light for on the front of the icemaker? this is a top freezer model

Asked by: jsay0104
It tells you if your icemaker is turned on. If light is not lit, then it is turned off
Answered by: DLM32
Date published: 2014-10-20

how do you set the humidity for the two bottom bins

explain please how to set the two humidity bars
Asked by: nanken
It would seem that the humidity controls, for the crisper bins of the refrigerator, are adjusted simply by sliding the adjuster bar. The VEGETABLE setting is narrower, retaining more of the humidity insider the compartment. The FRUIT setting is more open, allowing more of the humidity to escape. The controls can also be set to many variations in between these settings.
Answered by: NeilE
Date published: 2014-10-11

What is the Max coldness in the frig set on 3-5 levels

My unit set on 3 = 38-40 deg, set on highest level @ 5 = 36-40 deg not much deference. Also I do not feel any air blowing out from the vents from freezer or frig, is this normal ? This is the 2nd frig in a month I returned the first frig due to it not cooling at all. I just purchased this model because of the revues this model had. Thanks Robert
Asked by: AzRobert
We regret the trouble you have experienced with this refrigerator and its settings. If both settings are on their MAXIMUM COLDNESS level, and no air flow is experienced, then it is likely that there is some buildup or blockage in the air duct, potentially caused by freezing or icing the the duct. It is recommended to deactivate the refrigerator, and allow it to remain inactive for about 4 hours. Clean up any water/melt from the unit before reactivating the device. Set the controls to their middle settings for about 24 hours to reach the initial operating conditions. If the unit still does not operate properly, then the unit may require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at
Answered by: NeilE
Date published: 2014-07-15

What is the paint part number of the sides of the unit

I want the touch up paint code for the sides of the unit having Grey Color I am not sure which one to buy among these part numbers : TUP-3796TG or TUP3796PG or TUP-3796DG. Kindly help.
Asked by: pillar
We appreciate your interest in this refrigerator. According to our records, the TUP-3796DG is a Dark Green finish. The TUP-3796TG is a Titanium finish, while the TUP-3796PG is Pearl Gray. This last should most closely match the sides on a Stainless Steel refrigerator.
Answered by: NeilE
Date published: 2014-06-17
