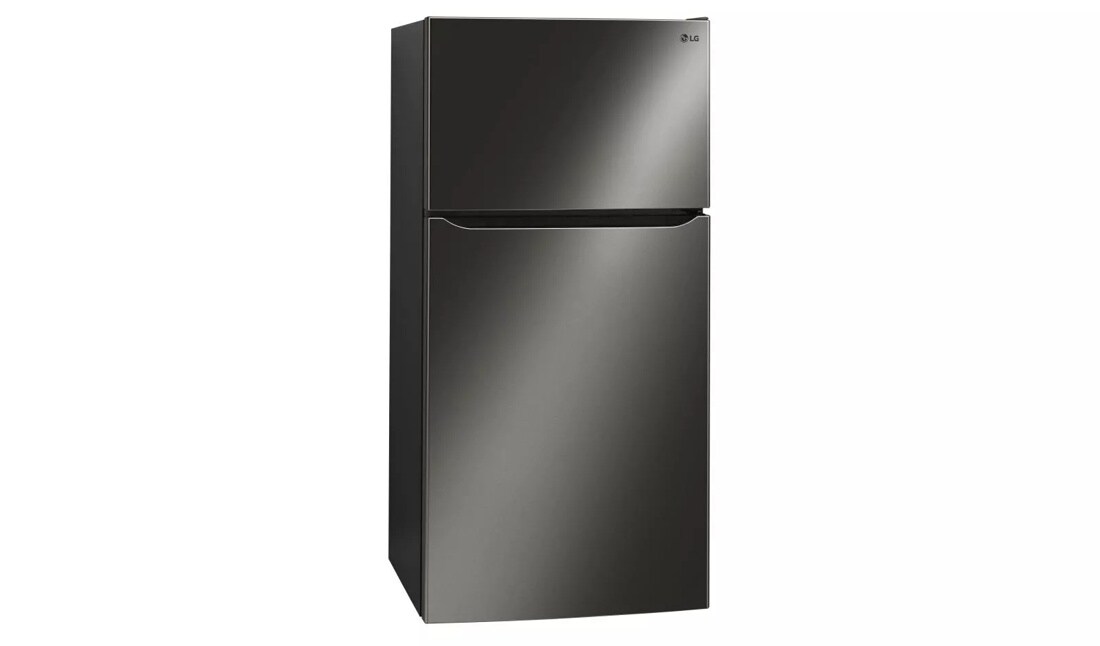

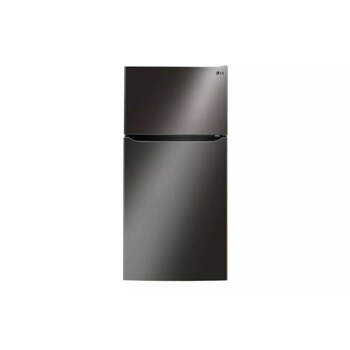

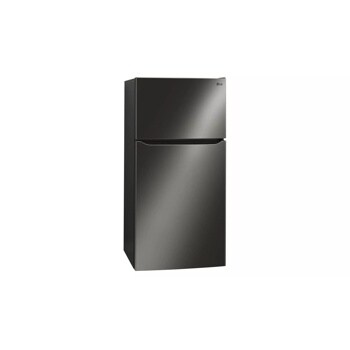

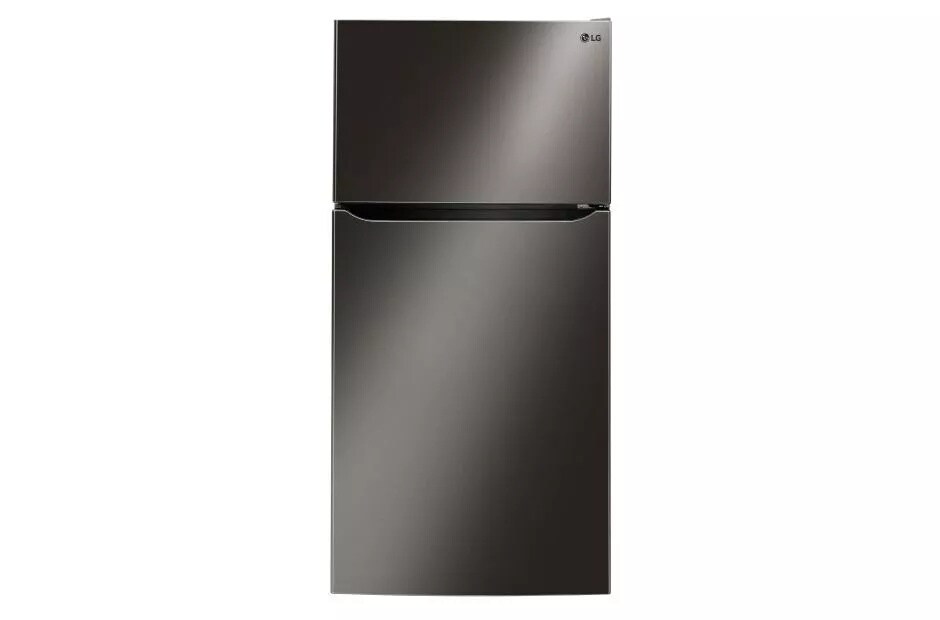

LG Black Stainless Steel 24 cu. ft Large Capacity 33” Wide Top Freezer Refrigerator

  • LTCS24223D

  • Black Stainless Steel

Key Features

  • 24 cu.ft. Capacity
  • Contoured Doors with Pocket Handle®
  • Full Width Pantry Drawer
  • Factory Installed Ice Maker

Design is all in the finish.

Channel your inner designer to create your ideal custom kitchen with the new LG Virtual Designer

Flawless new finish lets your style shine.

Deep yet brilliantly appealing, LG Black Stainless Steel Series brings an undeniable luster to kitchens. It elevates the traditional stainless steel look that's become the standard in today's homes with a satin-smooth, warm and sophisticated finish—a timeless expression that pairs beautifully with any style or color.

Largest Capacity*

Largest Capacity*

This top-mount refrigerator has the largest capacity in the 33” wide category, featuring 24 cu. ft. of total storage space in the refrigerator and freezer.

Keep it crisp.

Keep it crisp.

Humidity-controlled crispers help maintain humidity levels, to help extend the life of your fruits and vegetables. This refrigerator also features a full-width Glide N' Serve® pantry drawer, making it easy to find some space for all that food you want to keep fresh.

Great Light.

Great Light.

LED panels in the refrigerator provide an exceptionally bright interior and saves energy over traditional lighting.

Sophisticated style and Design.

Sophisticated style and Design.

Contoured doors, hidden hinges, and a host of great interior features like LED lighting give your refrigerator a look as sophisticated as it is functional.

Cold as ice.

Cold as ice.

An automatic ice maker means you'll always have ice on hand.

Door Type Top Mount Freezer
Refrigerator 17.60 cu. ft.
Freezer 6.20 cu. ft.
Total 23.8 cu. ft.
ENERGY STAR® Qualified Yes (501 kWh/Year)
Freezer Door Type Top Swing Door
Temperature Controls Electronic/Digital
Temperature Sensors Yes
LoDecibel™ Quiet Operation Yes
Display Internal Membrane / Green LED
No. of Shelves 2 Full
Shelf Construction Tempered Glass
Crisper Bins 2 Humidity Crispers
Full Width Pantry Drawer Yes
Gallon Storage 2 Gallons
Daily Ice Production 3.7 lbs
Ice Storage Capacity 5.5 lbs
Multi-Air Flow Cooling Yes
Temperature Sensors 4
Compressor Type Inverter
Refrigerator Light Premium LED
Full Snack Tray/2 Bottle Guides Yes
No. of Door Bins 3 (2 Gallon Sized)
Dairy Bin 1
Tall Item Retainer Yes
No. of Shelves 1
Shelf Construction Tempered Glass
No. of Door Bins/Shelves 2
Auto Defrost Yes
Freezer Light Premium LED
Ice Maker Yes
Ice Bin Yes
Contour Door Yes
Surface Coated Metal, Stainless Steel
Back Flush & Metal Cover Over Mechanical Parts
Available Colors Black Stainless Steel (D), Stainless Steel (S), Smooth White (W), Smooth Black (B)
Dimension 32 ¾ x 68 ½ x 33 3/8
Depth with Handles 33 3/8
Depth without Door 29"
Depth (Total with Door Open) 63
Height to Top of Case 67 7/8
Width 32 3/4"
Width (Door Open 90˚ with Handle) 34 3/4"
Width (Door Open 90˚ without Handle) 34 3/4"
Height to Top of Door Hinge 68 1/2"
Installation Clearance 2"
Weight (Unit/Carton) 224 lbs./248 lbs.
Carton Dimensions (WxHxD) 34 4/5" x 71 3/7" x 38 1/7"
Limited Warranty 1 Year Parts and Labor, 7 Years on the Sealed System
UPC 048231787345

What People Are Saying

Rated 5 out of 5 by from best fridge for the money I bought this refrigerator about a month ago and love the product. Well built. Great spacious inside layout and very even temperature. love the LED lighting and the "close the door" signal.
Date published: 2017-06-15
Rated 5 out of 5 by from Good features Our French door frig quit working so we decided to try this one. So far so good. I really like the black stainless. I read the reviews many people complained about the lighting, I see no problem at all with the lighting. I can see everything just fine. The veggie bins are nice and shelves can be adjusted to suit anyone's needs. I love the door area to put milk and drinks I was used to that so much space on the door is nice too. The freezer holds just as much as our old frig did. There is plenty of room. I like the back being metal , we all have to clean back there from time to time . Some have cardboard over vent area. All in all we are happy with this frig.
Date published: 2017-06-14
Rated 4 out of 5 by from Ice maker does not work Our new fridge was delivered on 5/30 & our ONLY complaint is that the ice maker has only made about 2 dozen ice cubes in two weeks. We have a service call tomorow so we shall see if they can fix this or install a new ice maker. I am making ice cubes the old way!
Date published: 2017-06-13
Rated 5 out of 5 by from Love We love the fridge so much. We like the fact that we can put 2 jugs on the fridge and a lot of other things we need. I love the lights and think there bright enough for seeing all the stuff we need to get to just fine. It cools everything off right away in the freezer.
Date published: 2017-05-25
Rated 1 out of 5 by from Not a good choice! I bought it in 11/2015. Nice looking and cooled product. I was happy BUT now less than 2 1/2 years later it does not cool to less than 52F, both in freezer and refr. Coils were cleaned and refr was defrosted. Still temperature is 52F+. I live in a rural area, 2 1/2 hrs from any refrigeration repair. So what do I do? I am very dissatisfied that this has only worked for 2 1/2 years.
Date published: 2017-05-12
Rated 5 out of 5 by from Quiet, roomy and well lit So quiet that I had to ask if it was on. Love the LED lighting! And the door shelving is a very nice size...can hold a gallon pitcher in the door. Must have to appreciate.
Date published: 2017-04-28
Rated 3 out of 5 by from Works well, but This fridge works nicely but the lighting is very poor. It is LED and very dim. When we complained about the LED lighting not being as bright as previous incandescent lights, tech support replied with an email suggesting we could have the incandescent light replaced or repaired. A robot response, for sure.
Date published: 2017-04-23
Rated 4 out of 5 by from So Far I Love It! I have only had for a few days, but I am very pleased with a lot of the features. I like the space and the see through compartments. I saw a lot of complaints about the LED lighting, but I personally like it and have no problem seeing the contents of the freezer and lower compartments. I also saw a few comments about the door alarm. My freezer does have a door alarm that sounds when the door is open too long. I absolutely love that feature. It runs so much quieter than my last refrigerator. I will see how the electric bill looks. I also like the smooth black finish. It is very classy.
Date published: 2017-04-19
  • y_2017, m_6, d_23, h_14
  • bvseo_bulk, prod_bvrr, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_158
  • loc_en_US, sid_MD05600443, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-
  • CLOUD, getReviews, 3ms

We're here to support you with our product.

View LTCS24223D Product Support

Contact us for any support inquiries.


Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

I am very interested in purchasing this product in the stainless finish.  I have a stainless now but it is hard to keep as spotless as I like.  Have all the best cleaners.   Is the finish on this model smudge proof?

Asked by: Pady
The Stainless Steel finish on the ENERGY STAR® Qualified LG 24 cu. ft. Large Capacity 33” Wide Top Mount Refrigerator, Model # LTCS24223S is not fingerprint or smudge resistant...^IFV
Answered by: LGJoel
Date published: 2017-06-20

I have model LTCS24223 top freezer with icemaker. ice is building up in back of icemaker. is this a problem? how do I remove?

Asked by: GFRR
We regret the trouble you have experienced with this refrigerator. It is not good for ice to build up in the freezer. Such an occurrence could result in blocked venting, taking cold air from the freezer to the refrigerator compartment. This could be caused by an air leak, the door remaining open, or a leak in the ice maker. It may be possible to resolve this by defrosting the freezer to melt the ice, and then attempting usage again.
Answered by: NeilE
Date published: 2017-05-22

I am currently trying to replace the Styrofoam parts inside of the refrigerator. Left for a few months and the food spoiled and caused the entire refrigerator to stink horribly. We have cleaned the fridge thoroughly but the smell is still there.

Asked by: senoj
We regret the trouble you have experienced with this refrigerator. This machine is not designed to allow access to the foam insulation, nor has it been made to be removed or replaced.
Answered by: NeilE
Date published: 2017-05-09

I have a space max 68 inches. Will this model fit

Asked by: Loncave
The ENERGY STAR® Qualified LG 24 cu. ft. Large Capacity 33” Wide Top Mount Refrigerator, Model # LTCS24223S has a height of 67 7/8" to the top of the case and a height of 68 1/2" to the top of the door hinges. You also need an installation clearance of 2" for the sides, the top and the back of the unit so your 68" is not enough to meet the recommended installation clearance spacing on top. The refrigerator will fit inno the space, but the recommended installation clearance is to ensure that you have enough airflow around the unit so as to not impair the refrigerator's cooling performance...^IFV
Answered by: LGJoel
Date published: 2017-04-21

How do i adjust the temperature settings on my lg refridgerator?

Asked by: Jenibelle
We appreciate your interest in this refrigerator. The temperature settings are on loop control. Continue pressing the REFRIGERATOR button until it reaches its lowest setting. Press it again, and the setting should jump to its HIGHEST setting. The same would work for the FREEZER.
Answered by: NeilE
Date published: 2017-03-29

I have a LG LTCS24223S/04. where can I order a door bin replacment?

Asked by: Jeremy 76
Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at
Answered by: NeilE
Date published: 2017-03-22

Are the hinges reversible, so you can switch which way the door swings?

Asked by: mathom3
The doors on the ENERGY STAR® Qualified LG Black Stainless Steel 24 cu. ft Large Capacity 33” Wide Top Freezer Refrigerator, Model # LTCS24223D can be reversed...^IFV
Answered by: LGJoel
Date published: 2017-03-20

Does the LTCS24223W refrigerator have rollers on the bottom to move it? Do any LG refrigerators have these?

Asked by: patm3333
All LG Refrigerators, including the ENERGY STAR® Qualified LG 24 cu. ft. Large Capacity 33” Wide Top Mount Refrigerator, Model # LTCS24223W has two small wheels in the back to make moving the refrigerator easier...^IFV
Answered by: LGJoel
Date published: 2017-03-10
