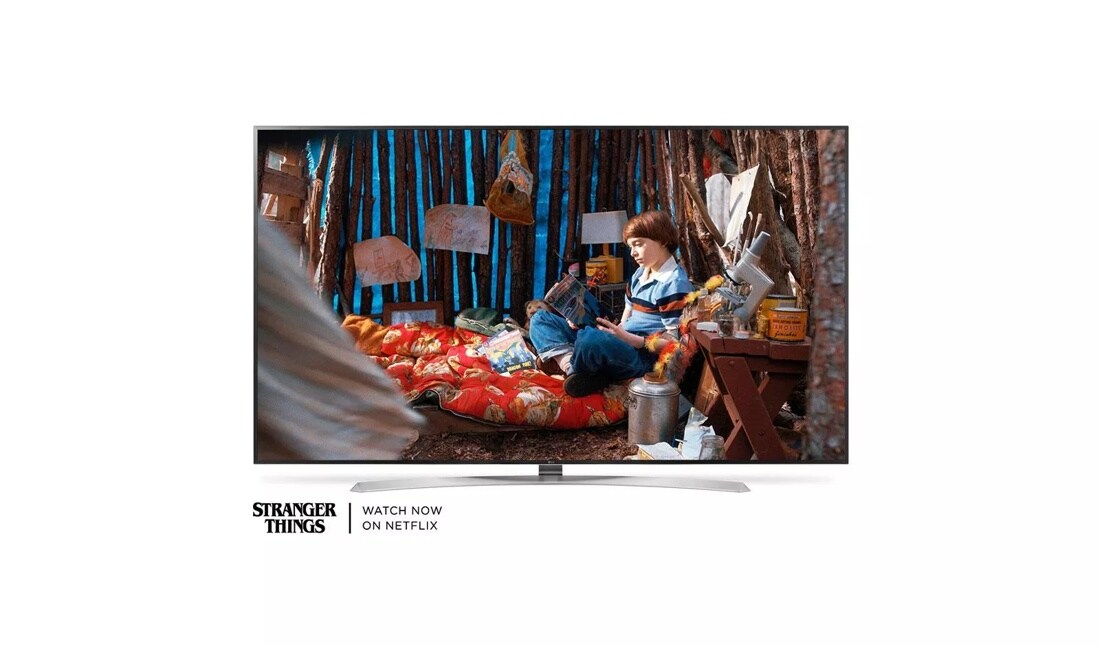

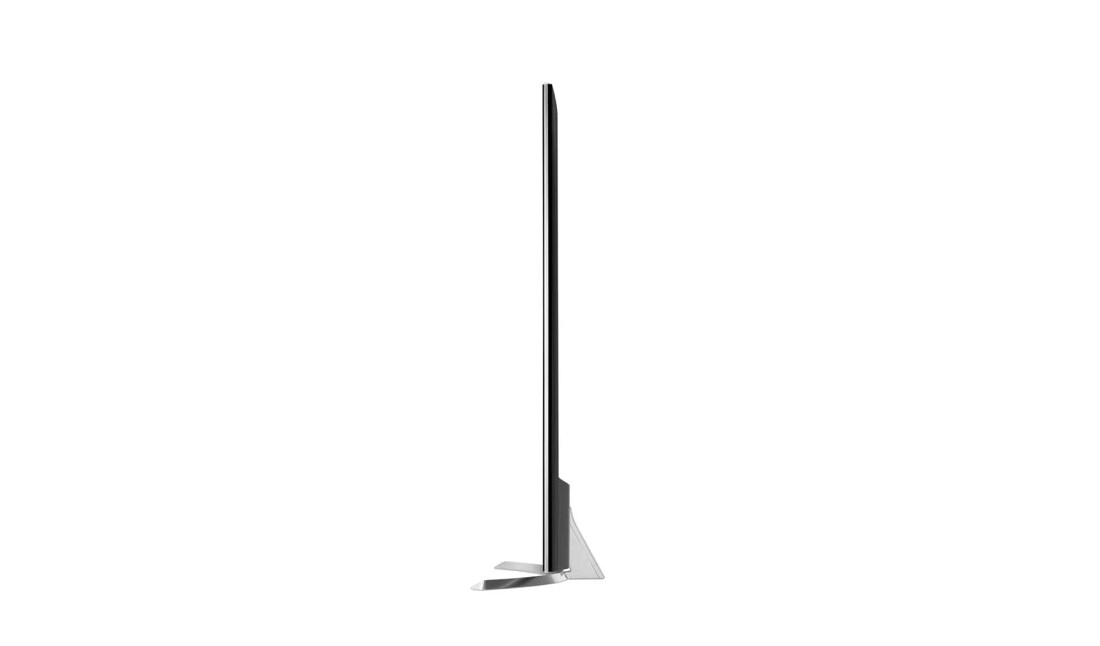

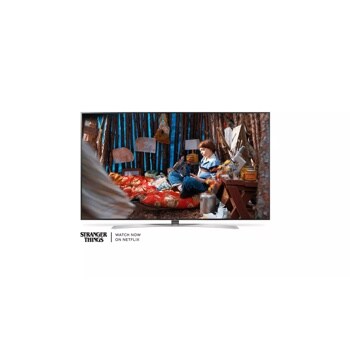

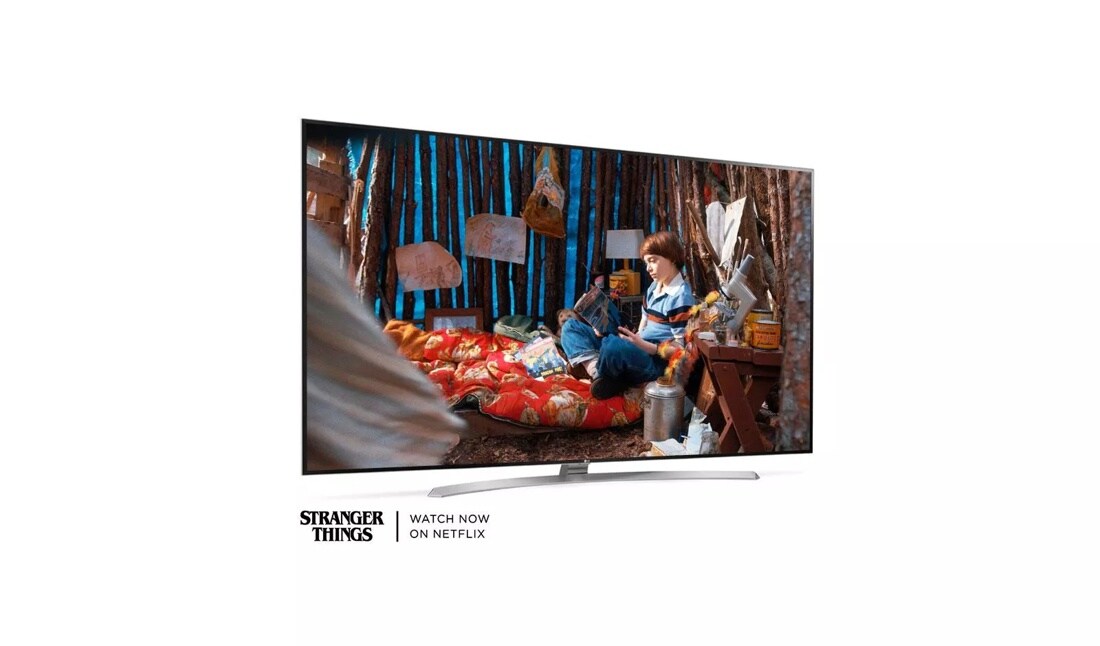

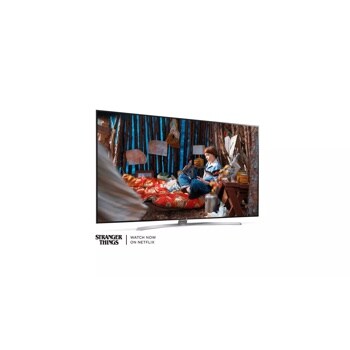

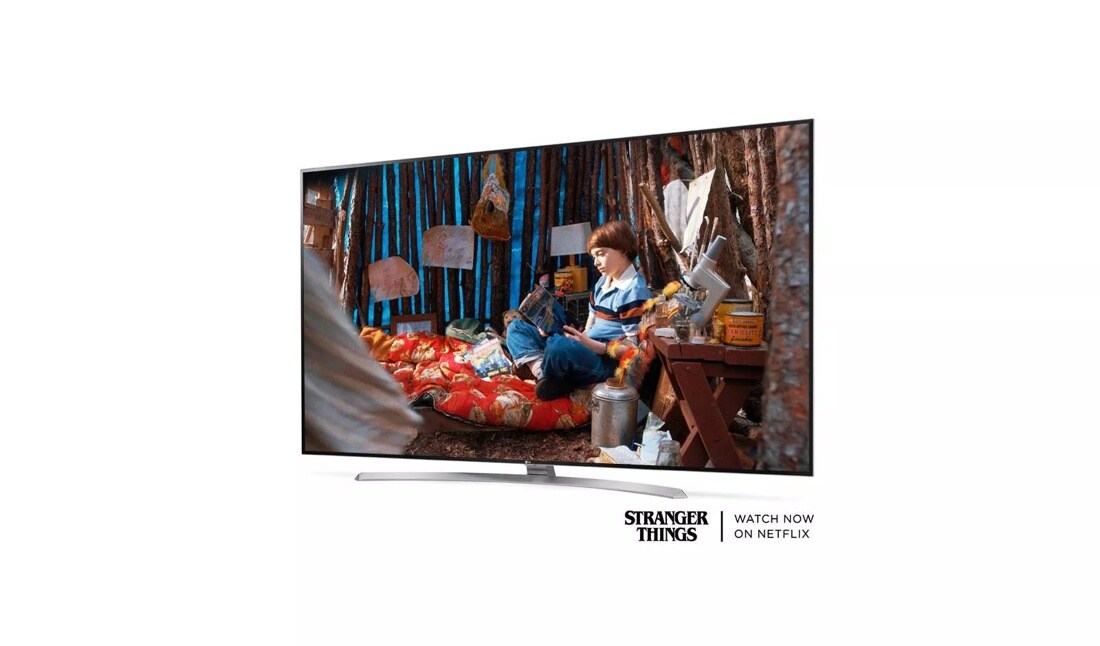

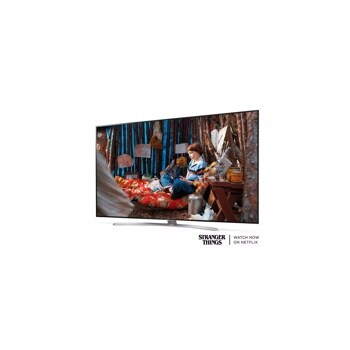

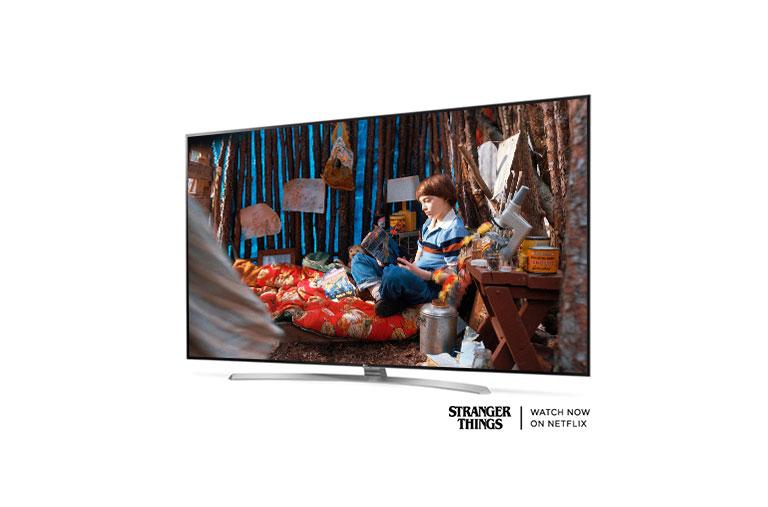

SUPER UHD 4K HDR Smart LED TV - 86" Class (85.6" Diag)

  • 86SJ9570

Key Features

  • Billion Rich Colors
  • Active HDR with Dolby Vision™
  • webOS 3.5 Smart TV
  • Harman Kardon
AVAILABLE SIZES:

Colors like you’ve never seen

With over a billion rich colors, LG SUPER UHD TV delivers lifelike picture quality with smoother, more subtle and more precise gradations.

Learn more about Billion Rich Colors

open

Billion Rich Colors

The availability of a billion rich colors gives the TV a palette 64-times broader than conventional televisions, to reproduce images with far more subtle and precise gradations, for a more lifelike picture.

SUPER UHD Cinematic Experience

LG SUPER UHD TVs deliver an experience that rivals the local theater. webOS streams the finest entertainment in just a few clicks, looking bold and rich thanks to Active HDR with Dolby Vision™. And the premium harman/kardon® audio system fills the room with deep, nuanced sound.

Learn more about the harman/kardon® audio system

open

harman/kardon® Sound

From the masters of home audio, Harman Kardon, comes built-in TV audio that truly performs. The speakers on LG SUPER UHD TVs have been custom-tuned to provide clean, powerful, full-range audio that fills any TV room.

Enjoy The Most HDR Content

From brilliant brights to deepest darks, LG SUPER UHD TV offers the ultimate expression of high dynamic range. Unlike some other 4K televisions, LG SUPER UHD TVs support Dolby Vision™, optimizing the picture scene-by-scene, as well as the new backward-compatible HLG HDR standard so viewers get more options for premium content.

Learn more about Active HDR with Dolby Vision

open

LG SUPER UHD TV supports the premium HDR, Dolby Vision™ favored by renowned filmmakers from all over the world. LG SUPER UHD TV not only delivers Dolby Vision, but also offers compatibility with other HDR formats such as HDR10 and HLG.

LG SUPER UHD TV supporting premium HDR Dolby Vision™, processes Dolby Vision’s dynamic metadata* within each frame, to present the intended vision of the director in your very own living room. HDR10 and HLG are rendered by LG SUPER UHD TV’s exclusive processing. By applying dynamic data produced by LG TV processing on a scene-by-scene basis, all types of content is displayed with improved HDR quality.

Dolby and the double-D symbol are registered trademarks of Dolby Laboratories. Dolby Vision is a trademark of Dolby Laboratories.

webOS 3.5 Smart TV

webOS brings together all of the most popular streaming video apps, including Netflix, brought to life in 4K, HDR or enhanced with HDR Effect. And webOS gives you access to more than 70 free premium Internet channels through the LG Channel Plus app.

Please check with content providers for both required bandwidth to stream videos. Smart service on product is subject to change. Some apps that appear on the screen image may not be preinstalled; internet connection is required for download.

Channel Plus

So Much More Than TV

Get free IP channels including Sports Illustrated, TIME, People and more integrated right into the television. Discover premium new entertainment, sports and lifestyle programming or enjoy old favorites any time.

Gorgeous Picture No Matter How You Look At It

From the front or from the side, every seat in the TV room gets a clear, vibrant picture without washed out tones. Thanks to IPS technology, LG SUPER UHD TVs ensure any view is a great one, not just those front and center.

Why wide viewing angle matters

open
Wide angle





Research shows that about 60% of people watch TV off axis,
defined as any viewing angle that is more than 15° from center at which picture quality begins to degrade in a conventional TV.

SUMMARY
Diagonal Class 86 inches
Diagonal Size 85.6 inches
Resolution 3840 x 2160
Display Type Super UHD TVs
Display Format 4K UHD 2160p
HDMI Port(s) 4 (HDCP 2.2)
Other Input(s) 3 USB, 1 RF In (Antenna/Cable), 1 Composite In, 1 Ethernet, 1 Optical, 1 RS232C (Mini Jack)
Smart TV Operating System webOS 3.5
Speaker System 5.2 Channel
Other Features Active HDR with Dolby Vision™, Wider Color Gamut, Billion Rich Colors, Ultra Luminance, Sound Designed by Harman Kardon™, IPS Technology
PICTURE QUALITY
Ultra HD (3,840 x 2,160) Yes
Refresh Rate TruMotion 240 (Refresh Rate 120Hz)
Active HDR with Dolby Vision™ Yes
HDR Effect Yes
Wider Color Gamut Yes
True Color Accuracy Yes
IPS Technology Yes
Billion Rich Colors Yes
ULTRA Luminance Yes
4K Upscaler Yes
Local Dimming Yes
SMART TV
webOS 3.5 Yes
Magic Remote Control Included
Natural Voice Recognition Yes
Universal Control Capability Yes
LG Content Store (App Store) Yes
Full Web Browser Yes
Channel Plus Yes
SMART SHARE
Screen Share Yes
Content Share Yes
AUDIO
Speaker System 5.2 Channel
Output Power 80W (WF: 30W)
Sound designed by harman/ kardon™ Yes
DTS Decoder DTS-HD
Surround Mode Ultra Surround
Hi-Fi Audio Yes
Wireless Sound Sync Yes
CONNECTIVITY
Wi-Fi® Built In 802.11ac
Wi-Fi Direct Yes
IP Control Yes
Simplink (HDMI CEC) Yes
INPUTS
HDMI 4 (HDCP 2.2)
USB 3
RF in (Antenna/Cable) 1
Composite In 1
Ethernet 1
Optical 1
RS232C (Mini Jack) 1
POWER
Power Supply (Voltage, Hz) 100~240Vac 50-60Hz
Power Consumption TBD
Standby Mode 0.5W
WALL MOUNT
VESA 600 x 400
86SJ9570 (85.6" DIAGONAL) DIMENSIONS/WEIGHTS/UPC
Wall Mount (WxHxD) 76.3" x 43.9" x 2.7"
W Stand (WxHxD) 76.3" x 46.3" x 14.4"
Shipping (WxHxD) 83.0" x 49.7" x 11.2"
TV Without Stand 110.9 lbs
W Stand Weight 120.4 lbs
Shipping Weight 153.2 lbs
UPC 719192609624

What People Are Saying

  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 3ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

We're here to support you with our product.

View 86SJ9570 Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

Why is this TV not Direct TV ready??? all the prior year models have been! My first LG and no Direct TV ready! Thats is disappointing, specially for such an expensive TV.

Asked by: Serge9193
We regret your dissatisfaction with this television and its features. This model is fully capable of connecting and operating with a DirecTV receiver. This model does not appear to have been licensed by DirecTV to support such an application.
Answered by: NeilE
Date published: 2017-05-22

Please confirm if the 86SJ9570 and the 75SJ8570 TVs will feature Nano Cell Displays.  The website description for these models excludes any mention of Nano Cell Display tech while the 65SJ9500, 65SJ8500 and 55SJ8500 models all refer to having Nano Cell

Asked by: Justin77380
LG Electronics' SUPER UHD TVs (Models SJ9500, SJ8500 and SJ8000) all feature Nano Cell technology so both the LG SUPER UHD 4K HDR Smart LED TV - 86" Class (85.6" Diag), Model # 86SJ9570 and the 75SJ8570 feature it...^IFV
Answered by: LGJoel
Date published: 2017-06-07

Does this 86" TV use the new nano cell technology?

Asked by: HowardR
The LG SUPER UHD 4K HDR Smart LED TV - 86" Class (85.6" Diag), Model # 86SJ9570 will feature Nano Cell display technology...^IFV
Answered by: LGJoel
Date published: 2017-06-07

Why don't you have the contrast ratio on your products. That's kind of important!

Asked by: jake20
You are absolutely correct, contrast ratio is one of the most important aspects of picture quality yet its often not even mentioned on TV specifications anymore across the industry. The main reason being that without knowing what type of contrast ratio is being reported, the specification will have little to do with reality making it a meaningless specification. There is no standard testing procedure by which manufacturers must measure and report the ratio and the calculations used to generate wild dynamic contrast ratios in some specifications are anyone's guess. Native contrast ratio by comparison, is a much narrower measurement than dynamic contrast ratio and a better measurement, but again, because this ratio was also highly exaggerated, flawed and unregulated, it didn't mean anything at all...^IFV
Answered by: LGJoel
Date published: 2017-05-09

Can you give us an update on when this TV will be in stores?

Asked by: Ron Clark
Hi Ron. LG has not yet made any announcements on the release date for the LG Super UHD 4K HDR Smart LED TV - 86" Class (85.5" Diag), Model # 86SJ9570. However, since it is showing on the company site, the announcement should be soon. We appreciate your interest in the TV and thank you for your patience and understanding...^IFV
Answered by: LGJoel
Date published: 2017-03-19

Thus it come in 3D I'm a fun of 3D this SUHD 2017 and how about your Oled W is it capable of 3D

Asked by: Fred I
The LG Super UHD 4K HDR Smart LED TV - 65" Class (64.5" Diag), Model # 65SJ9500 is a U.S. product and will not have 3D. None of the LG 2017 SUPER UHD TV lineup featuring Nano Cell display lineup, LG’s 2017 OLED TV lineup or any other 2017 LG TV lineup will feature 3D... The only TVs that will have 3D would be the carryovers from 2016 that have 3D. TVs vary by region so models that are released in Australia may vary from those in the U.S. You will want to contact our subsidiary in Australia for more information on what will be released in Australia. Our offices in the U.S. will not have that information...^IFV
Answered by: LGJoel
Date published: 2017-06-08

I was wondering if this tv will have 3d? I sure do hope so. I'm a big fan of LG because you still support 3d. Looking forward to hearing back from you on this. Thank you.

Asked by: LG is the best
Sadly, NO.  LG has ceased creating 3D TVs (and Curved TVs as well) with the 2017 model year.  This includes OLED and LED display types.  I am saddened as well.  I was going to updgrade my 84 in Ultra LCD LG to one with HDR this year.  But I wont give up my 3D set for a 2D.  Too bad, since LG was a leader with both 3D and IPS technology.  If they aren't going 3D, I am no longer limited to LG since they lack that feature.
Answered by: Aviator
Date published: 2017-06-08

when is is this coming out. Was hoping to get a 4k tv for the superbowl

Asked by: project319
Regrettably, we currently do not have any timetable as to when the LG Super UHD 4K HDR Smart LED TV - 65" Class (64.5" Diag), Model # 65J9500 will be released and LG has not made any public announcements yet on its' release date. Typically, products that are showcased at CES2017 start hitting stores around the end of March or beginning of April. You can stay tuned at www.lgnewsroom.com for any official announcements for the release date for this model...^IFV
Answered by: LGJoel
Date published: 2017-01-09
