LG Soundbar Éclair QP5

Key Features

component-OBScountrySelectDesc

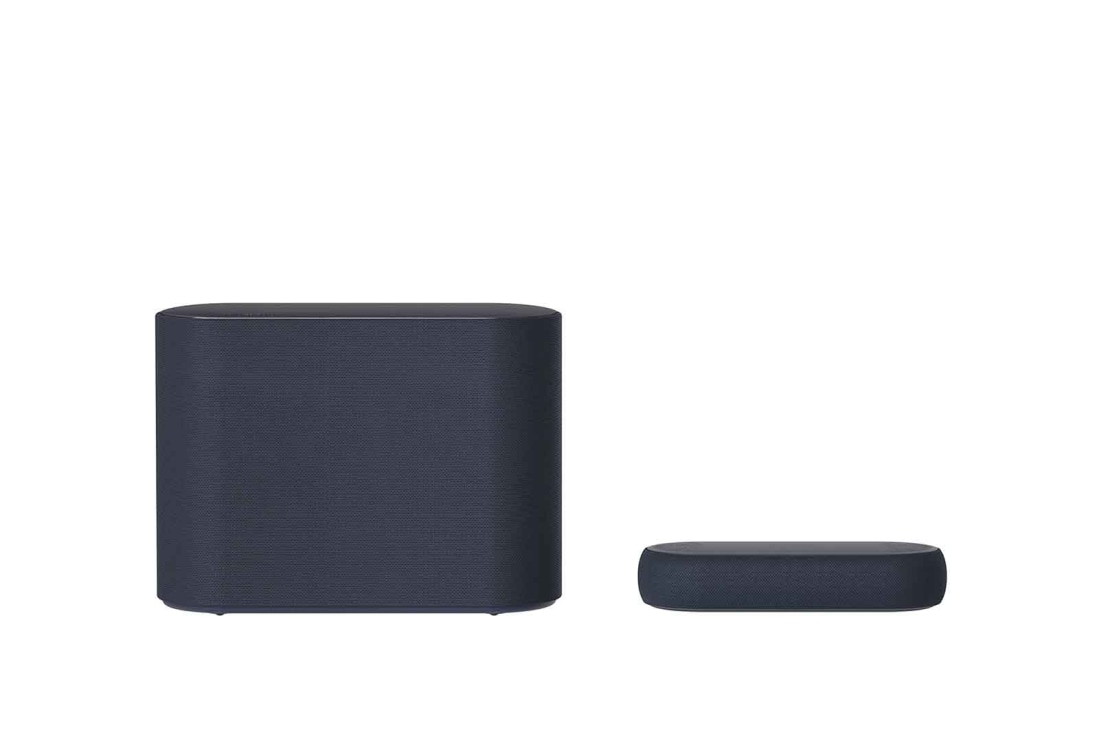

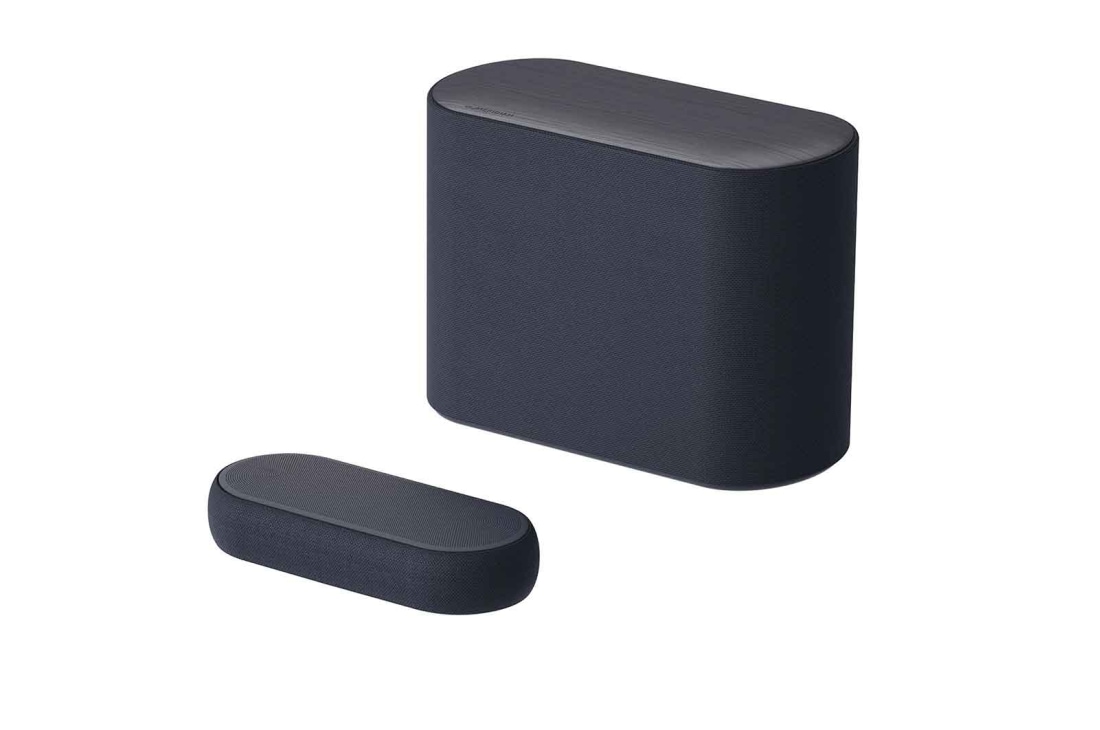

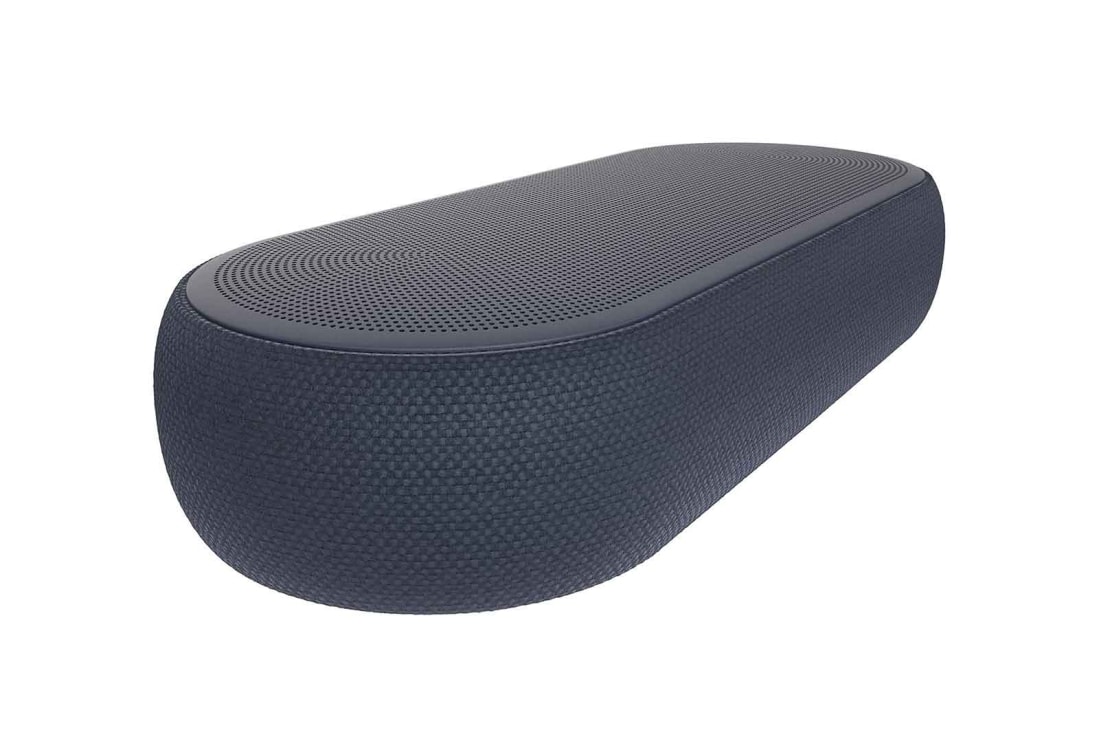

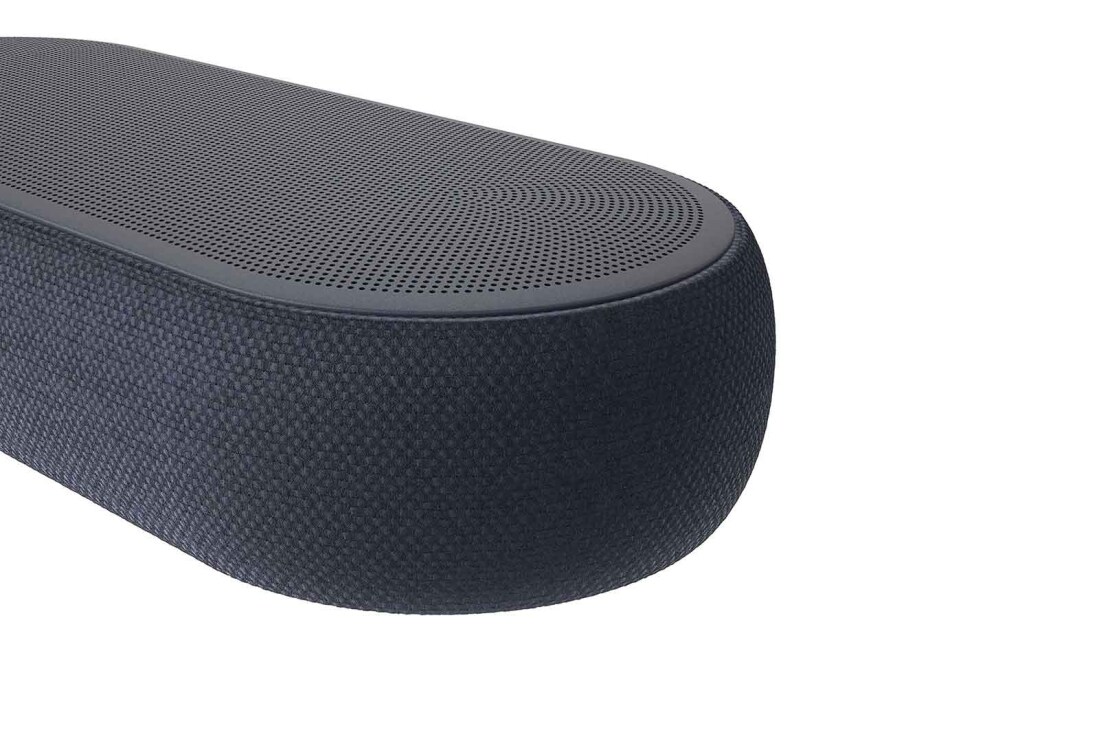

LG Soundbar Éclair QP5
SALES/SUB REGION
  • Sales Region
    EU
    Sub Region
    ES,FS,IS,UK,CZ, HS MK,PL,RO,LA
Model Information
  • Brand Information
    LG Sound Bar
    Model Name
    QP5
  • Subwoofer Model Name
    SPQP5-W
    System (Main Chip)
    MT8531
  • Mainset / Subwoofer Color
    Black / Black
Size(W x H x D, mm)
  • Main (w/ Foot )
    296 x 59.9 x 126
    Matching TV size (`20 New)
    40 inch ↑
  • Subwoofer
    388 x 291 x 185
Material
  • Main - Front / Top / Bottom
    Jersey / Metal / Mold
    Subwoofer - Front / Body
    Jersey/Wood
WEIGHT(KG)
  • Main
    1.55Kg
    Subwoofer
    7.7Kg
  • Gross Weight
    12.0Kg
Carton Box
  • Size (W x H x D) mm
    456 x 435 x 266
    Type
    Flexo
  • Color
    Yellow
Container Q
  • 20ft
    480
    40ft
    960
  • 40ft (HC)
    960
Number of Channels
  • Number of channels
    3.1.2ch
Output Power(THD 10%)
  • Total
    320W
    Front
    20W*2
  • Center
    20W
    Top
    20W*2
  • Subwoofer
    220W(Wireless)
SPEAKER UNIT FRONT(L/R)
  • SPL
    82dB
    System
    Closed
  • Tweeter Unit
    X
    Woofer Unit
    2 Inch
  • Impedance
    4 Ohm
SPEAKER UNIT CENTER
  • SPL
    82dB
    System
    Closed
  • Woofer Unit
    2 Inch
    Impedance
    4 ohm
SPEAKER UNIT TOP(L/R)
  • SPL
    82dB
    System
    Closed
  • Woofer Unit
    2 Inch
    Impedance
    4 ohm

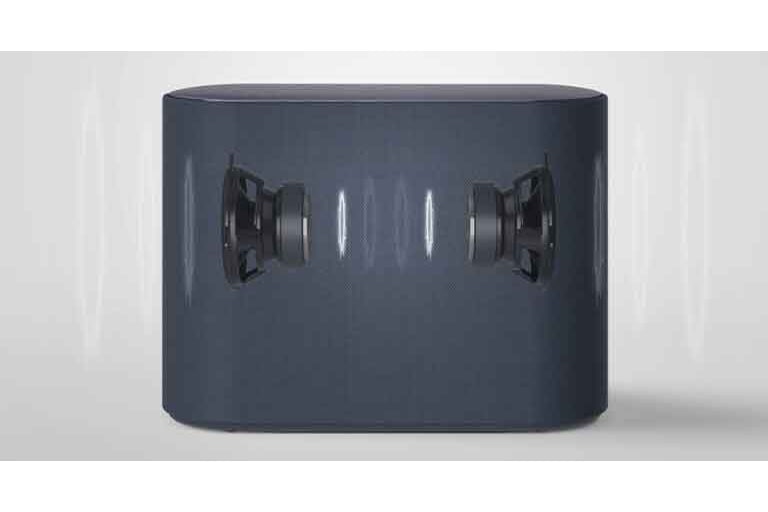

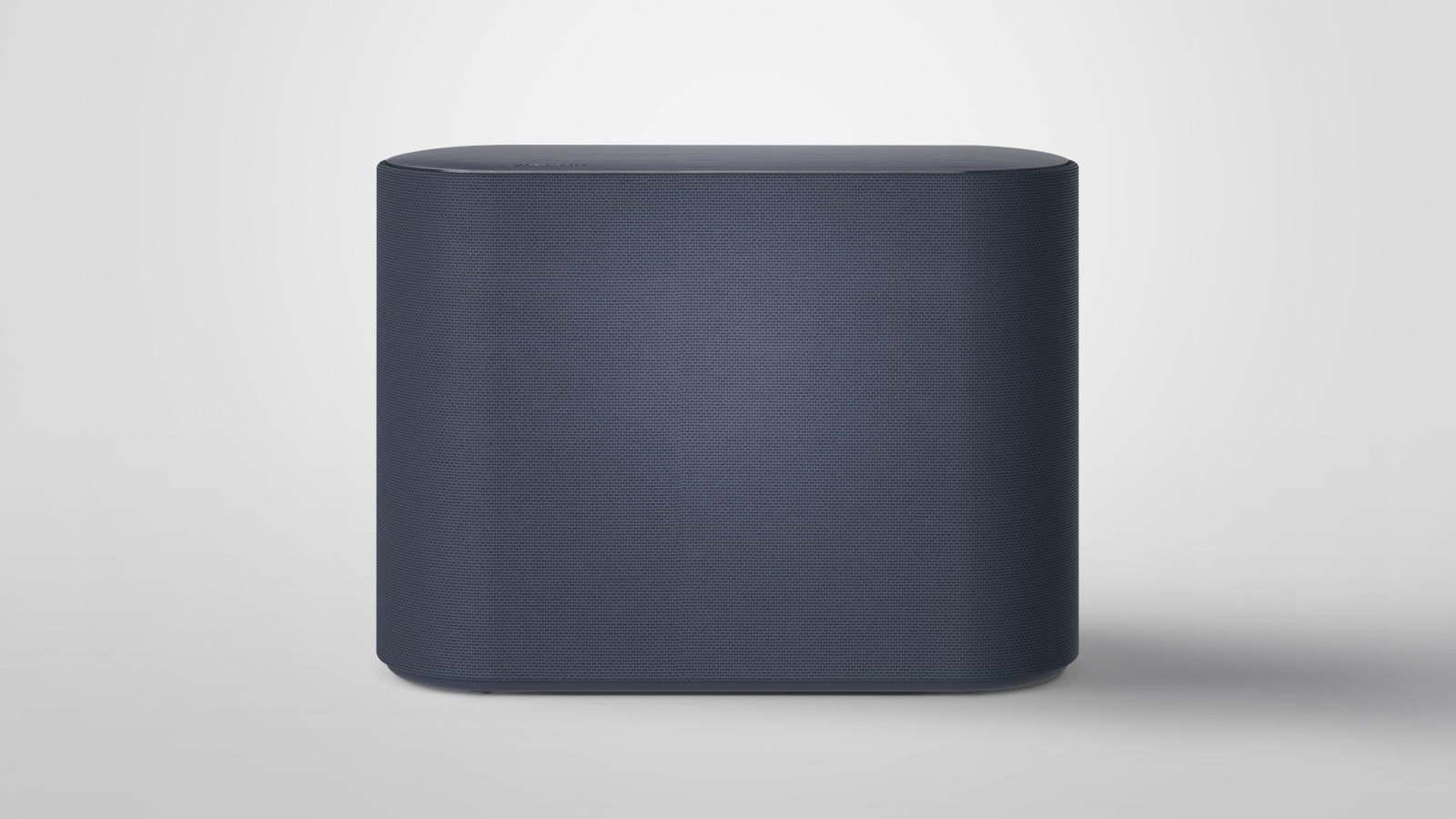

SPEAKER UNIT SUBWOOFER
  • SPL
    85dB
    System
    Closed
  • Woofer Unit
    5.25 inch (2EA)
    Impedance
    3 ohm
No. of Speaker Unit
  • Number of speakers
    7 EA

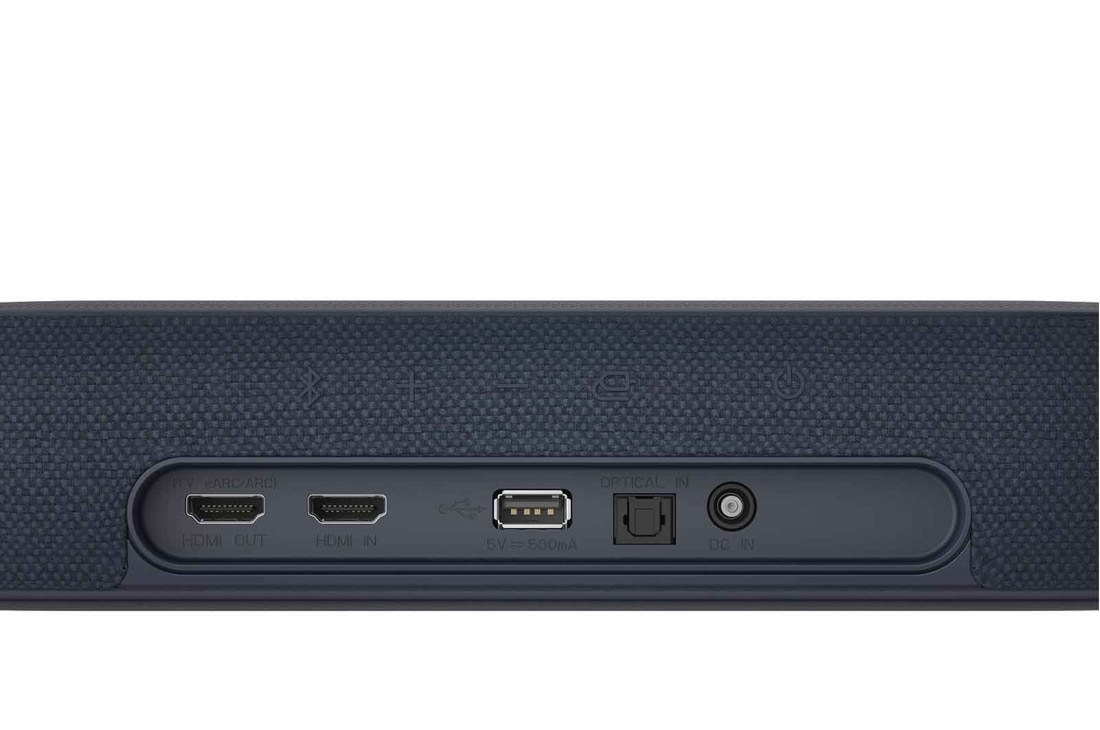

CONNECTIVITY GENERAL
  • Optical
    Yes (1)

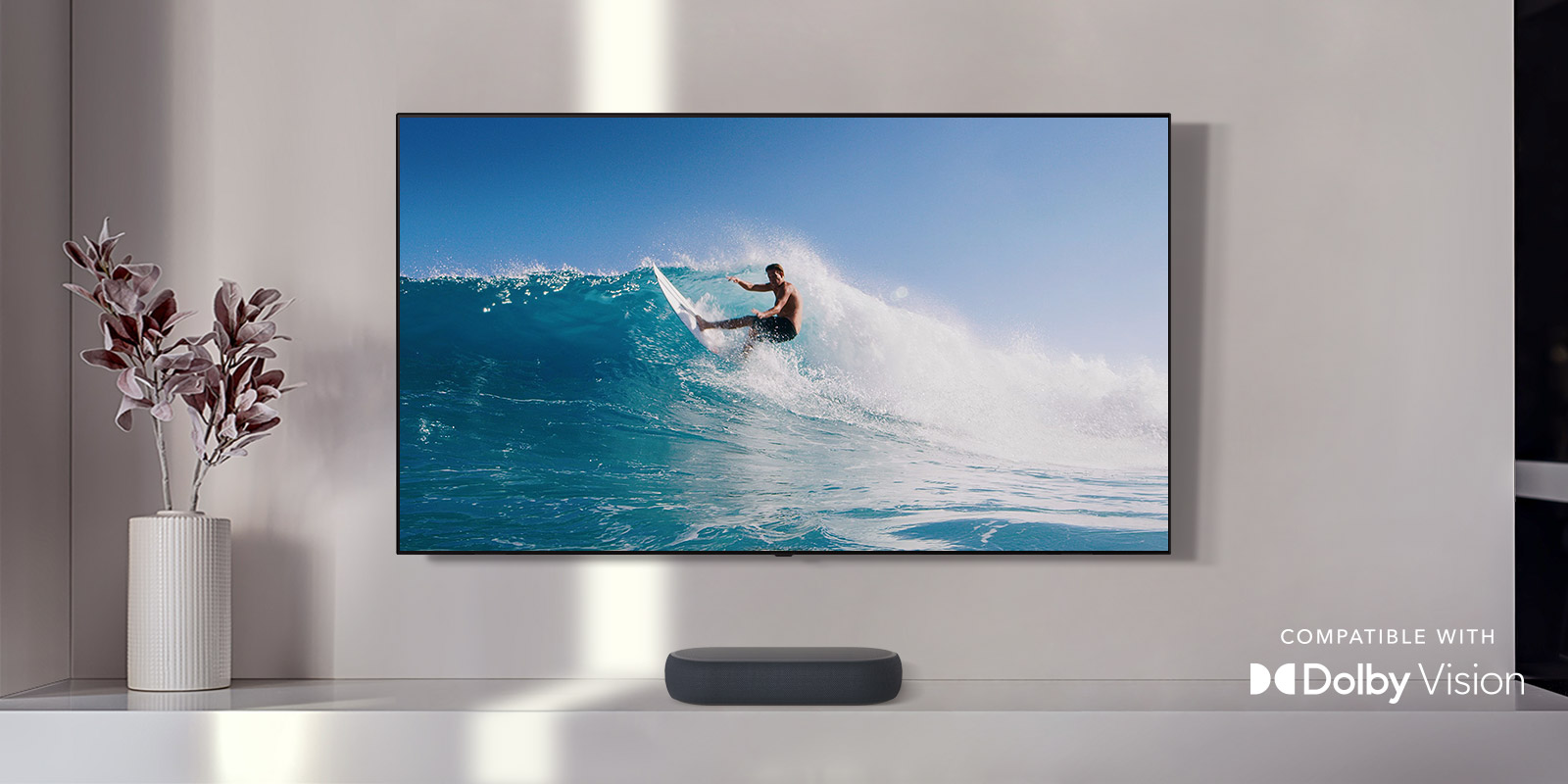

    HDMI 2.1 (HDCP 2.3) - In / Out
    Yes (1) / Yes (1)
  • HDR10 / HDR10+
    Yes / -
    Dolby Vision
    Yes
  • USB
    Yes
CONNECTIVITY WIRELESS
  • Bluetooth Version
    4.0
    Bluetooth Codec - SBC / AAC
    Yes / Yes
Display Information
  • LED Indicator Color
    Yes (3 Color, 3 EA)
Sound Effect

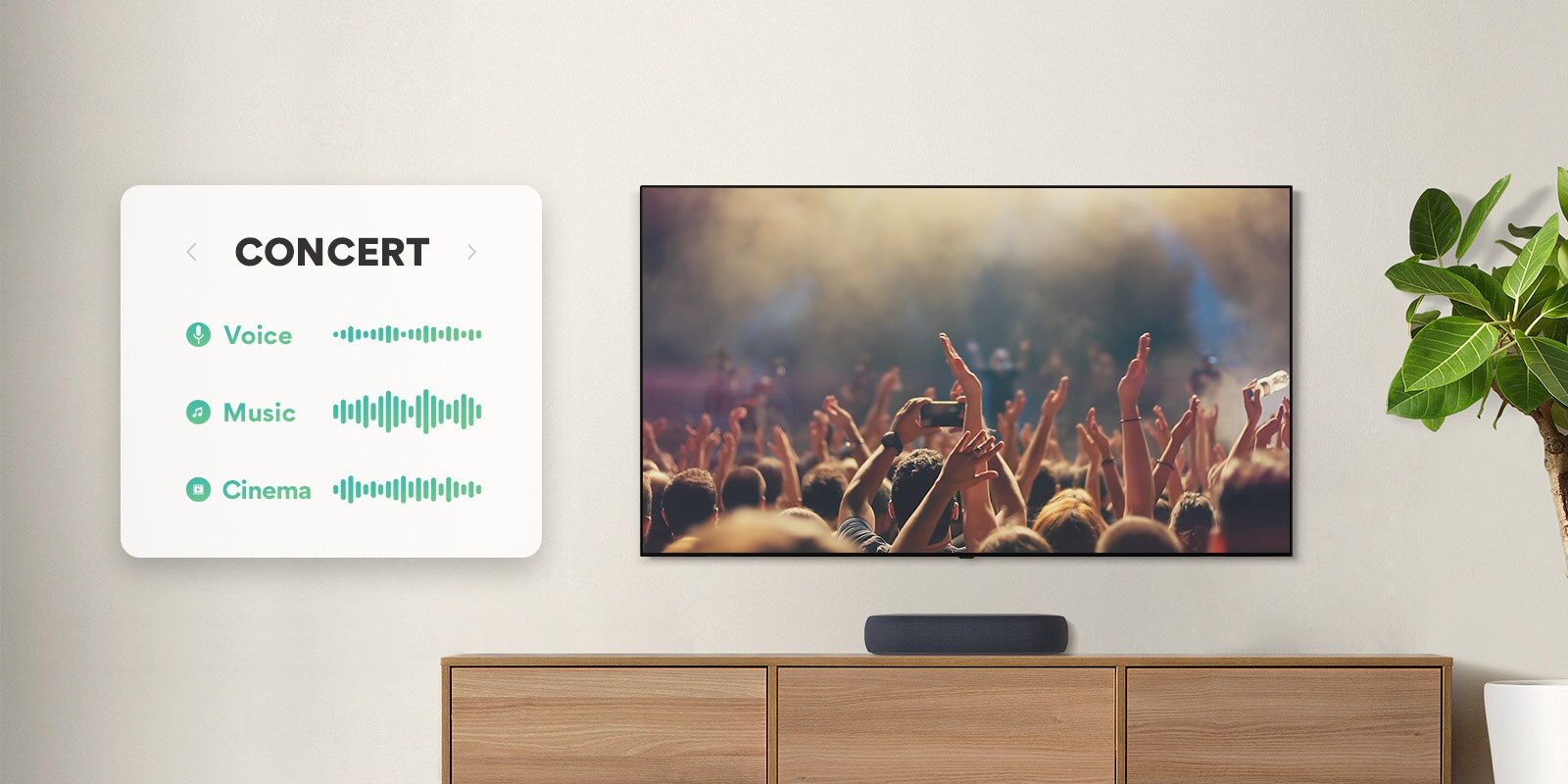

  • AI Sound Pro
    Yes
    Standard

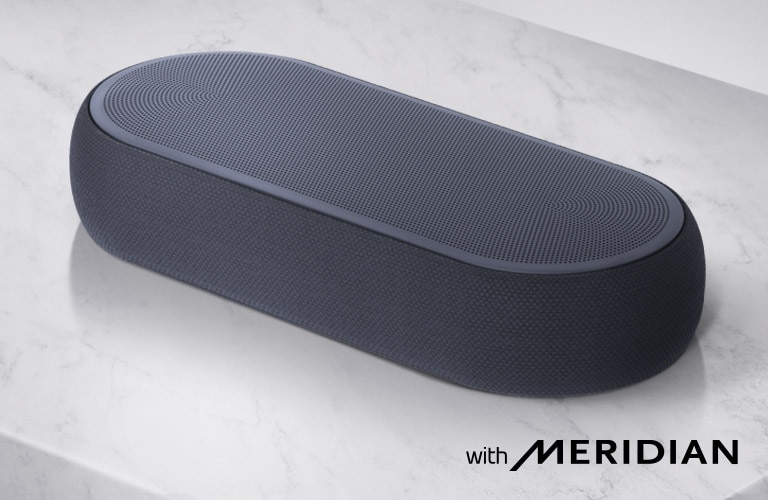

    Yes (w/ Meridian)
  • Cinema
    Yes
    Game
    Yes

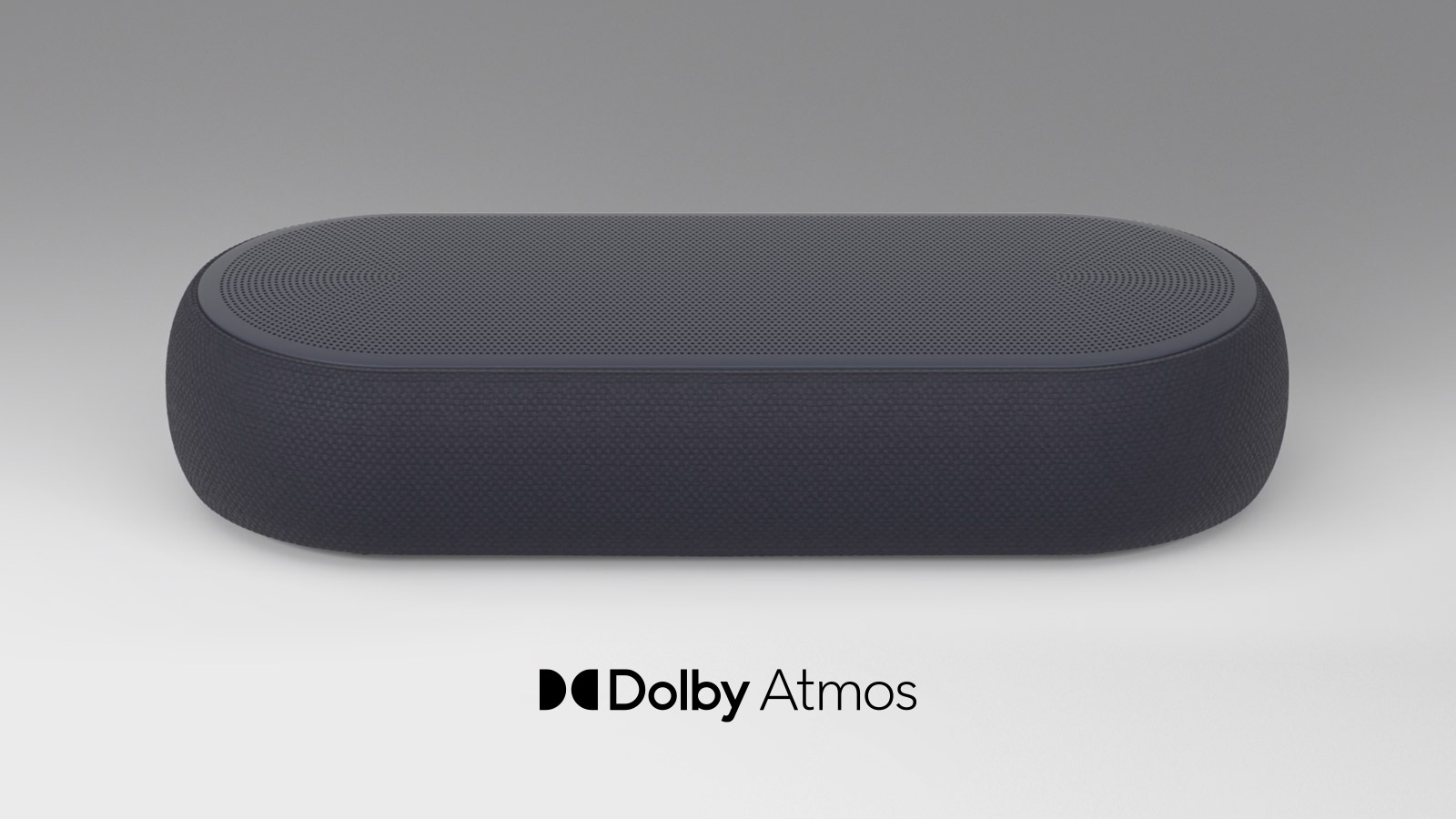

  • Dolby ATMOS
    Yes
    DTS:X
    Yes
Sound Control
  • User EQ - RCU / App
    X / Yes
    Night Time On/Off - RCU / App
    X / Yes
  • Dynamic Rage On/Off - RCU / App
    X / Yes
    Auto Volume Leveler On/Off - RCU / App
    X / Yes
  • SFX (Default)
    Yes
    TV Sound Share - TV "AI Sound Pro"
    Yes
CONVENIENCE
  • Remote App - iOS / Android OS
    Yes / Yes
    Smart Phone File Playback (Bluetooth)
    Yes
  • NSU / FOTA
    X / Yes
    Control with your TV Remote (Vol+/-, Mute)
    Yes / Yes
  • Sound Sync - Bluetooth(LG TV) / Optical
    Yes/Yes
    Auto Power On/Off - Bluetooth (LGTV) / Optical
    Yes / Yes
  • Auto Power On/Off - RCU / APP
    X / Yes
    A/V Sunc (0~300ms) - RCU / APP
    X / Yes
  • HDMI SIMPLINK
    Yes
    HDMI Audio Return Channel (ARC)
    Yes
  • HDMI Audio Return Channel (e-ARC)
    Yes
    Woofer Level (-15 ~ 6dB, 1dB/Step)
    Yes
  • Channel Level (-6 ~ 6dB, 1dB/Step) - Top / Center / Surround / Rear / Rear Top
    Yes / Yes / X / X / X
    Mute
    Yes
  • Auto Dimmer
    Yes
    USB Host / Charge
    Yes / X
  • Built-in Music
    Yes (1 song)
    Bluetooth Stand-By
    Yes
Audio Format(Bitstream)
  • LPCM
    Yes
    Dolby Atmos
    Yes
  • Dolby TrueHD
    Yes
    Dolby Digital Plus
    Yes
  • Dolby Digital
    Yes
    DTS:X
    Yes
  • DTS-HD Master Audio
    Yes
    DTS-HD High Resolution
    Yes
  • DTS Digital Surround
    Yes
    AAC / AAC+
    Yes
File Format
  • FLAC - C4A / USB
    X / Yes
    OGG - C4A / USB
    X / Yes
  • WAV - C4A / USB
    X / Yes
    MP3 - C4A / USB
    X / Yes
  • WMA - C4A / USB
    X / Yes
    AAC - C4A / USB
    X / Yes
POWER MAIN
  • Adapter
    19V, 3.42A
    Power Off Consumption
    0.5W ↓
  • Power Consumption
    36W
POWER SUBWOOFER
  • Type (SMPS)
    100~240V, 50/60Hz
    Power Off Consumption
    0.5W ↓
  • Power Consumption
    38W
    Wireless Frequency
    5GHz
ACCESSORY MANUAL
  • Web Manual (File)
    Yes (Full)
    Built-in Manual (Book) (Simple or Full)
    Yes (Simple)
  • Open Source - Yes (Full or Simple) / X
    Yes (Full)
    Warranty Card
    Yes
ACCESSORY REMOTE CONTROL
  • Model Name
    RAV21
    Battery(Size)
    AA x 2
  • Battery Built-in
    Yes
