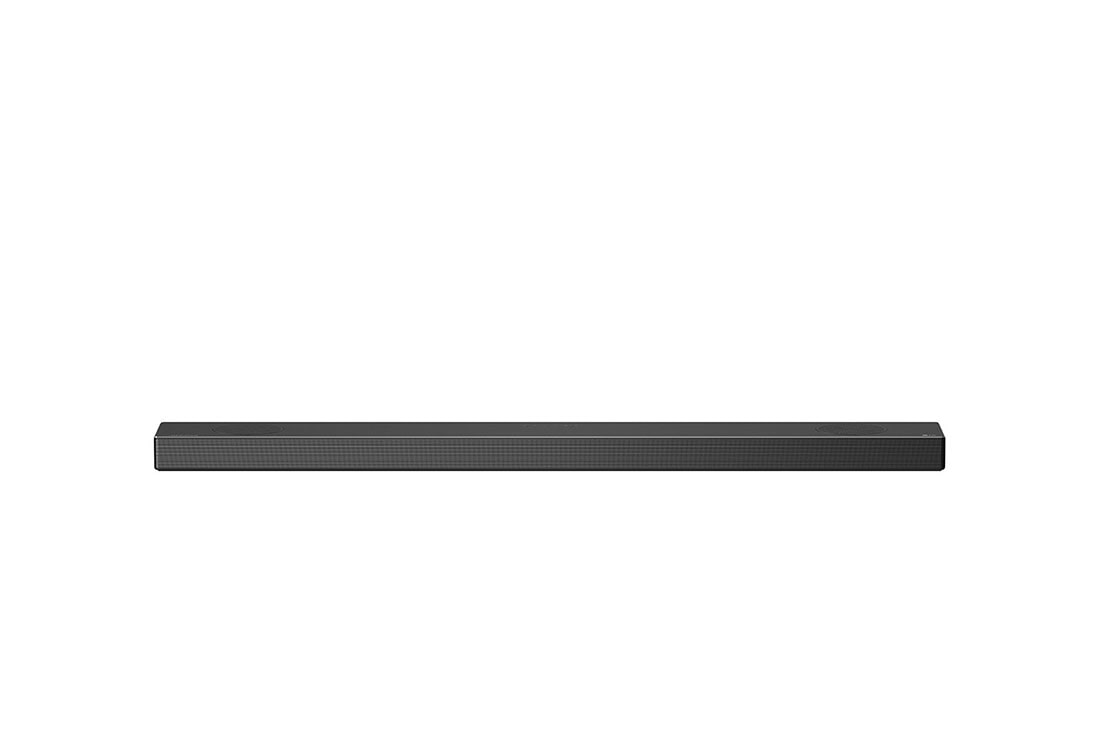

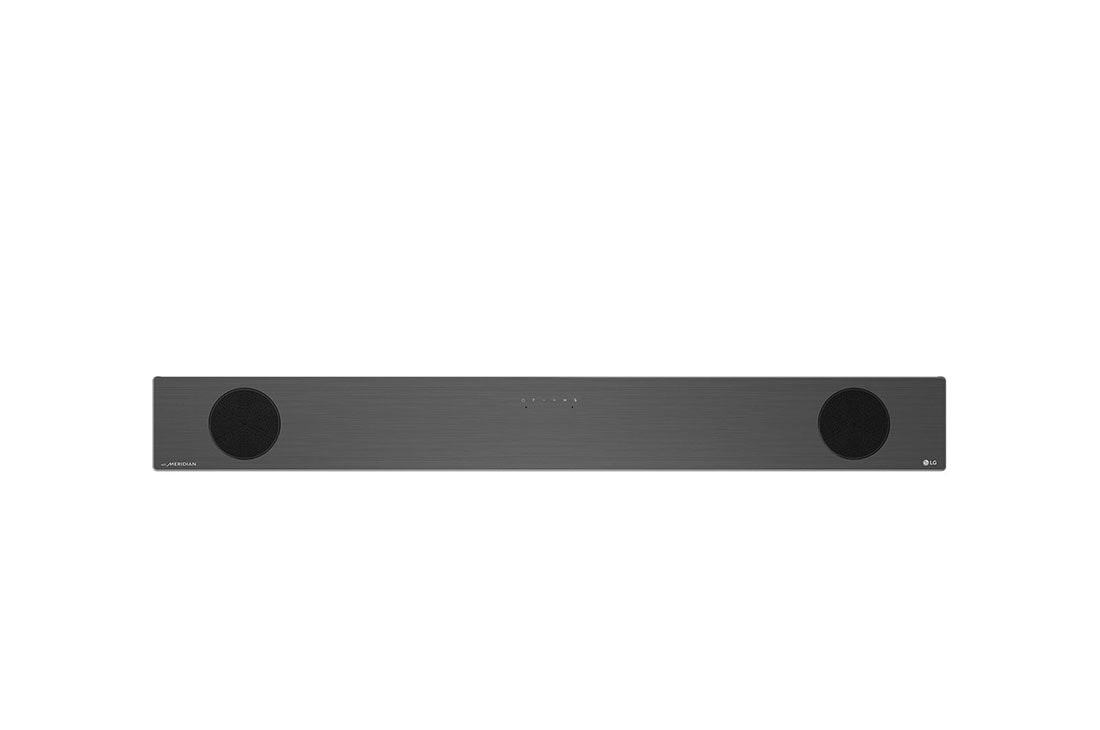

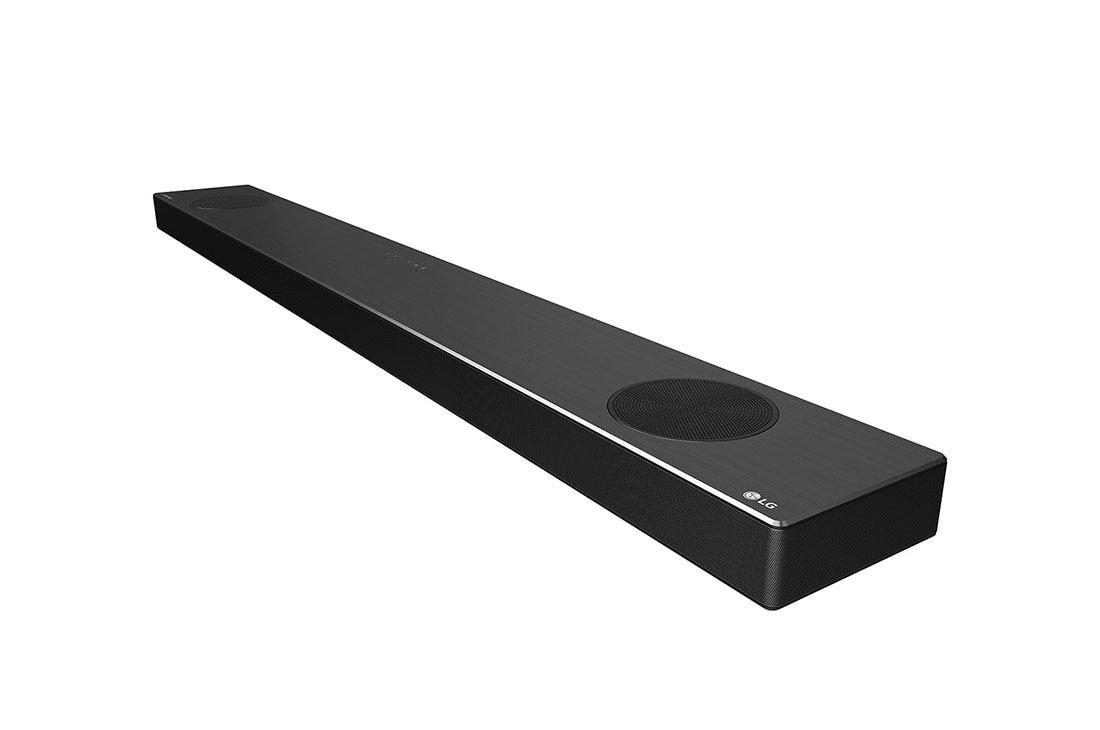

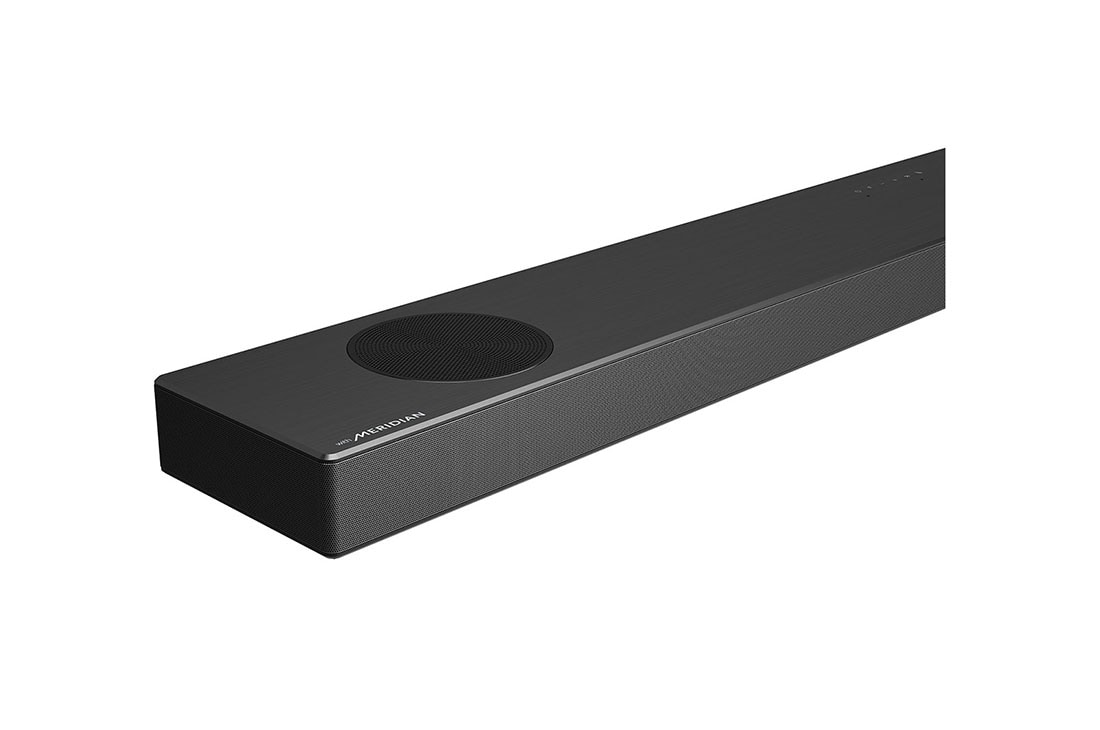

LG Sound Bar SN9Y
  • with MERIDIAN

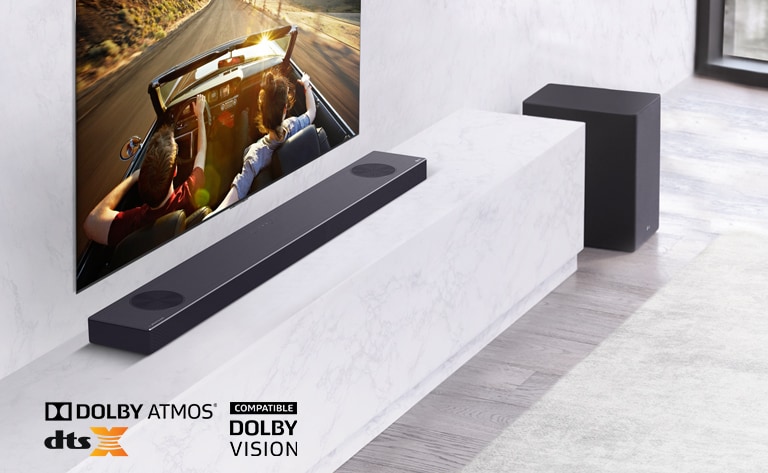

  • Dolby Atmos
  • DTS:X

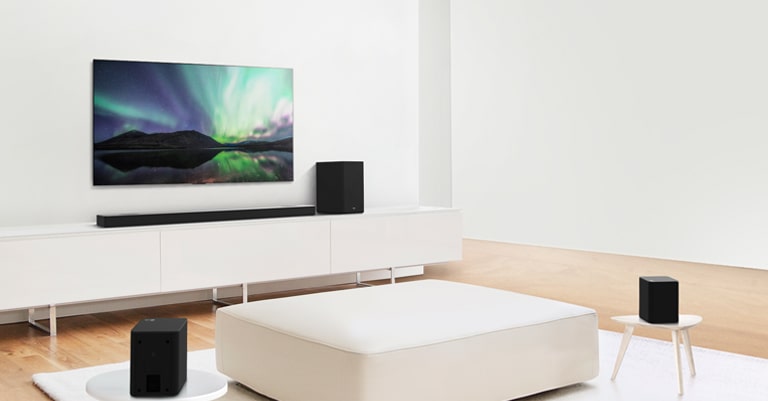

  • 5.1.2 ch

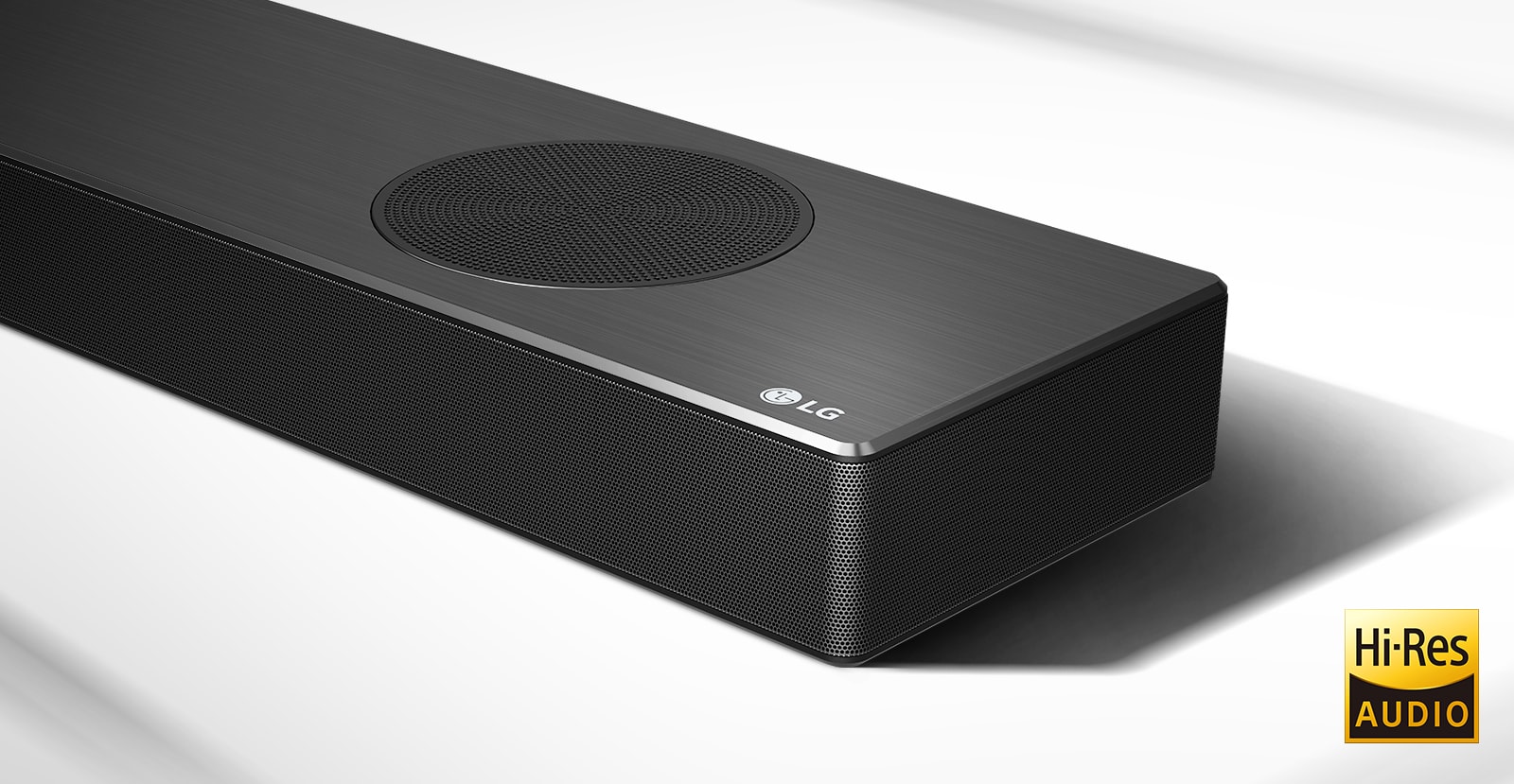

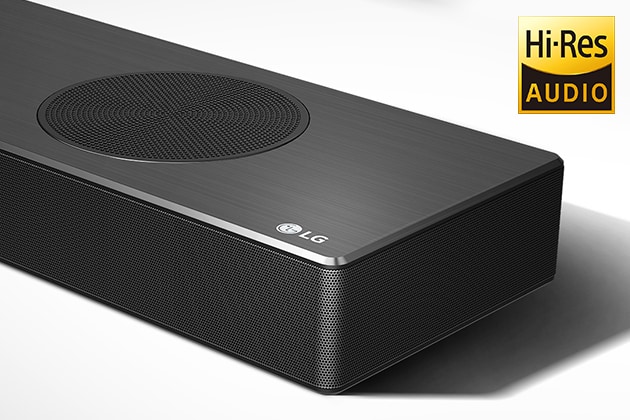

  • High Resolution Audio
  • eARC

component-OBScountrySelectDesc

LG Sound Bar SN9Y
Model Information
  • Brand Information
    Sound Bar AI ThinQ
    Model Name
    SN9Y
  • Subwoofer Model Name
    SPN8-W
    System (Main Chip)
    MT8531
  • Mainset / Subwoofer Color
    Dark Steel Silver
Size(W x H x D, mm)
  • Main (w/ Foot )
    1220 x 57 x 145
    Matching TV size (20 New)
    55 inch↑

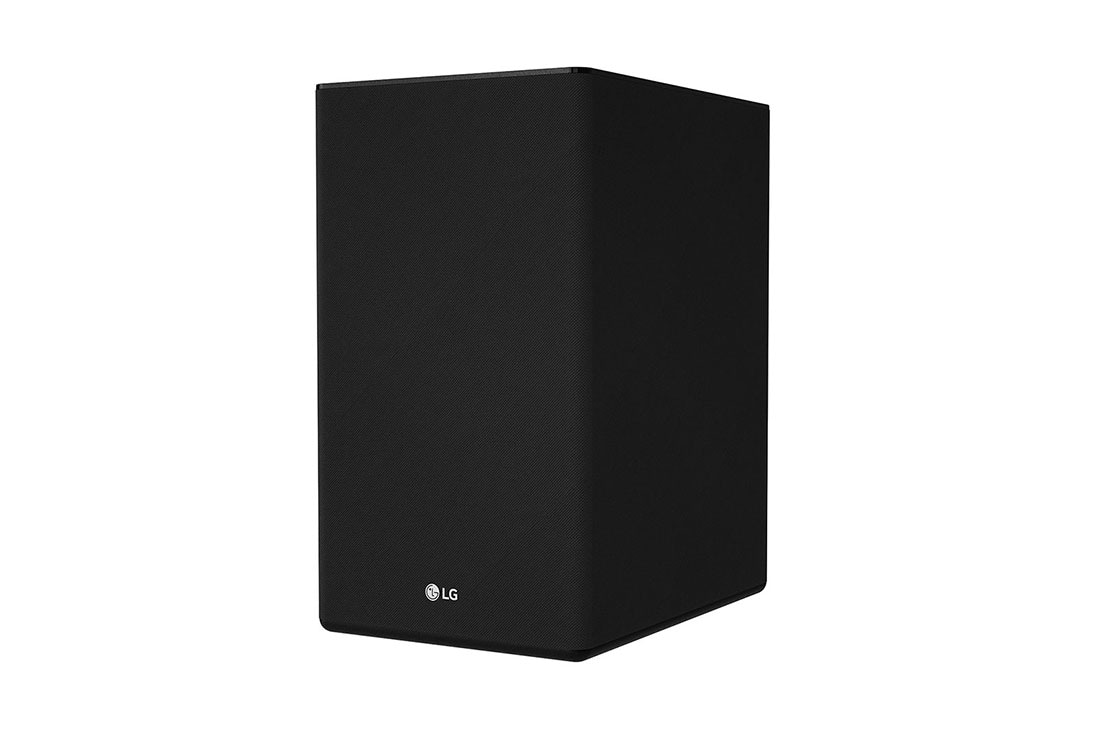

  • Subwoofer
    221.0 x 390.0 x 312.8
Material
  • Main - Front / Top / Bottom
    Metal Grille/Mold/Mold
    Subwoofer - Front / Body
    Jersey/Wood
WEIGHT(KG)
  • Main
    6.3Kg
    Subwoofer
    7.8Kg
  • Gross Weight
    18.3Kg
Carton Box
  • Size (W x H x D) mm
    1286 x 284 x 467
    Type
    TipOn
  • Color
    White(1)+Yellow
Container Q
  • 20ft
    136
    40ft
    292
  • 40ft (HC)
    365
Number of Channels
  • Number of channels
    5.1.2ch
Output Power(THD 10%)
  • Total
    520W
    Front
    40W x 2
  • Center
    40W
    Surround (Side)
    40W x 2
  • Top
    50W x 2
    Subwoofer
    220W(Wireless)
Speaker Unit_Front(L/R)
  • SPL
    82dB
    System
    Closed
  • Tweeter Unit
    20mm Silk Dome
    Woofer Unit
    40x100mm
  • Impedance
    4ohm
Speaker Unit_Center
  • SPL
    82dB
    System
    Closed
  • Tweeter Unit
    20mm Silk Dome
    Woofer Unit
    40x100mm
  • Impedance
    4ohm
Speaker Unit_Surround(Side)(L/R)
  • SPL
    82dB
    System
    Closed
  • Woofer Unit
    40x100mm
    Impedance
    4ohm
Speaker Unit_Top(L/R)
  • SPL
    83dB
    System
    Closed
  • Woofer Unit
    2.5 inch
    Impedance
    4ohm
Speaker Unit_Subwoofer
  • SPL
    85dB
    System
    Bass Reflex
  • Woofer Unit
    7 inch
    Impedance
    3ohm
No. of Speaker Unit
  • Number of speakers
    11EA

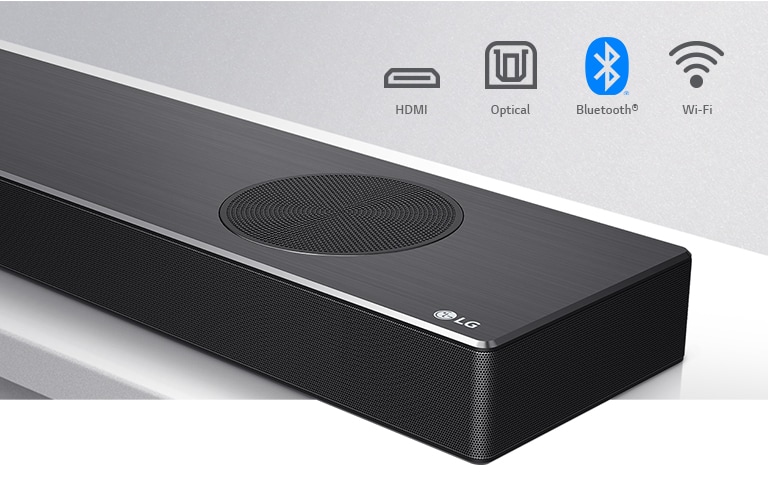

Connectivity_General
  • Optical
    Yes (1)

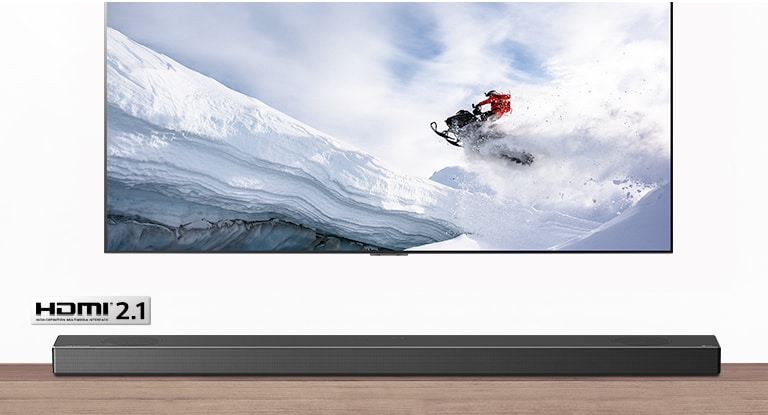

    HDMI 2.1 (HDCP 2.3) - In / Out
    Yes (1)/Yes (1)
  • HDR10
    Yes
    USB
    Yes
Connectivity_Wireless
  • Bluetooth Version
    4
    Bluetooth Codec - SBC
    Yes
  • Wi-Fi (2.4G / 5G)
    Yes

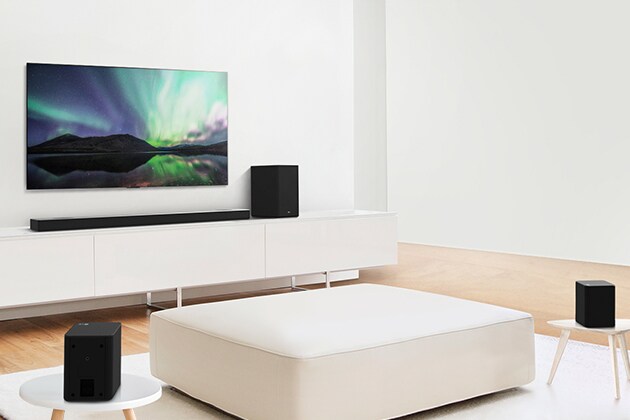

    Wireless Rear ready
    Yes (1:1)
Display Information
  • Display Type
    LCD (5 char.)
Hi-Resolution Audio
  • Sampling - "24bit/192kHz" / "24bit/96kHz"
    Yes/Yes
    Upbit/upsampling - "24bit/192kHz"
    Yes
Sound Effect

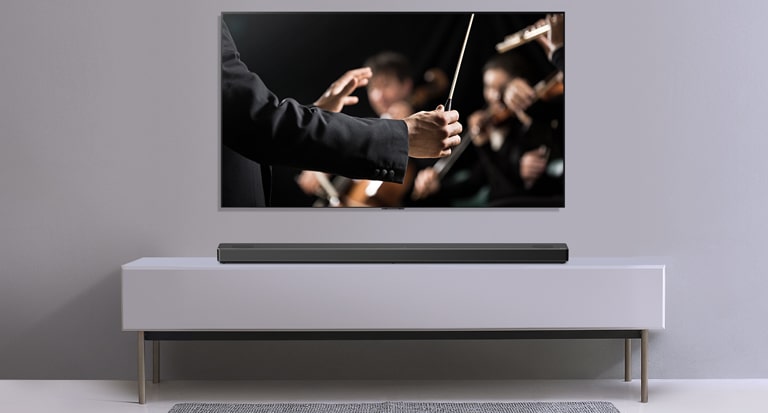

  • AI Sound Pro
    Yes
    Standard
    Yes (w/ Meridian)
  • Music
    Yes
    Bass Blast / Bass Blast +
    Yes
  • Movie (Dolby Surround)
    Yes

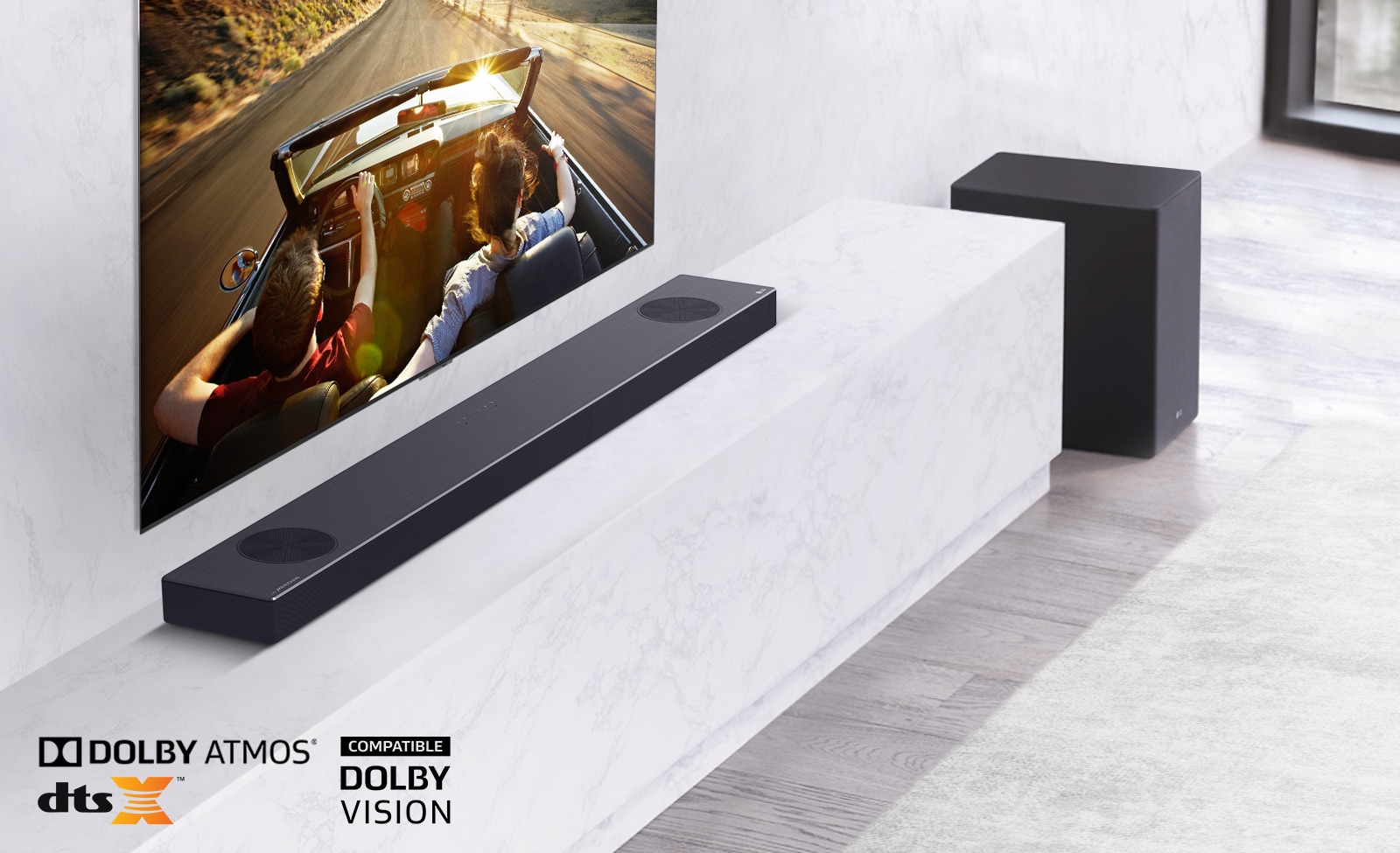

    Dolby ATMOS
    Yes
  • DTS Virtual:X
    Yes
    DTS:X
    Yes
Sound Control
  • User EQ - RCU / App
    Yes/Yes
    Night Time On/Off - App
    Yes
  • Dynamic Rage On/Off - App
    Yes
    Auto Volume Leveler On/Off - App
    Yes

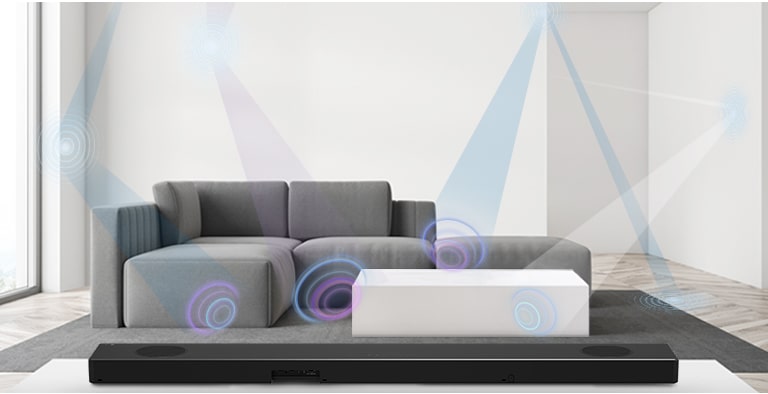

  • AI Room Calibration (2 MIC In) - App
    Yes
Google Supported
  • Works with the Google Assistant (Controllee)
    Yes
    Chromecast
    Yes
  • Google Multi Zone (One Source → Multi Speaker)
    Yes
CONVENIENCE
  • Remote App - Adroid OS
    Yes
    Smart Phone File Playback
    Yes
  • EZ Setup (BLE)
    Yes
    Control with your TV Remote (Vol+/-, Mute)
    Yes
  • Sound Sync - Optical
    Yes
    Auto Power On/Off - Optical
    Yes
  • A/V Sunc (0~300ms) - APP
    Yes
    HDMI SIMPLINK
    Yes
  • HDMI Audio Return Channel (ARC)
    Yes
    HDMI Audio Return Channel (e-ARC)
    Yes
  • Woofer Level (-15 ~ 6dB, 1dB/Step)
    Yes
    Channel Level (-6 ~ 6dB, 1dB/Step) - - Top / Center / Surround / Rear
    Yes/Yes/Yes/Yes
  • Mute
    Yes
    Auto Dimmer
    Yes
  • Sleep Timer - App
    Yes
    USB Host
    Yes
  • Built-in Music
    Yes (2)
Audio Format(Bitstream)
  • LPCM
    Yes
    Dolby Digital
    Yes
  • Dolby Atmos
    Yes
    Dolby TrueHD
    Yes
  • Dolby Digital Plus
    Yes
    DTS-HD Master Audio
    Yes
  • DTS:X
    Yes
    DTS-HD High Resolution
    Yes
  • DTS Digital Surround
    Yes
    AAC / AAC+
    Yes
File Format
  • FLAC - C4A / USB
    Yes/Yes
    OGG - C4A / USB
    Yes/Yes
  • WAV - C4A / USB
    Yes/Yes
    MP3 - C4A / USB
    Yes/Yes
  • WMA - C4A / USB
    Yes/Yes
    AAC - C4A / USB
    Yes/Yes
Power_Main
  • SMPS
    100~240V, 50/60Hz
    Power Off Consumption
    0.5W ↓
  • Power Consumption
    70W
Power_Subwoofer
  • Type (SMPS)
    100~240V, 50/60Hz
    Power Off Consumption
    0.5W ↓
  • Power Consumption
    38W
    Wireless Frequency
    5GHz
Accessory_Manual
  • Web Manual (File)
    Yes (Full)
    Built-in Manual (Book) (Simple or Full)
    Yes (Simple)
  • Wall Mount Guide
    Yes
    Open Source - Yes (Full or Simple)
    Yes (Full)
  • Warranty Card
    Yes
Accessory_Remote Control
  • Model Name
    MA7 (`19)
    Battery(Size)
    AAA x 2
  • Battery Built-in
    Yes
Accessory_Others
  • Optical Cable
    Yes
    Wall Mount Bracket
    Yes
