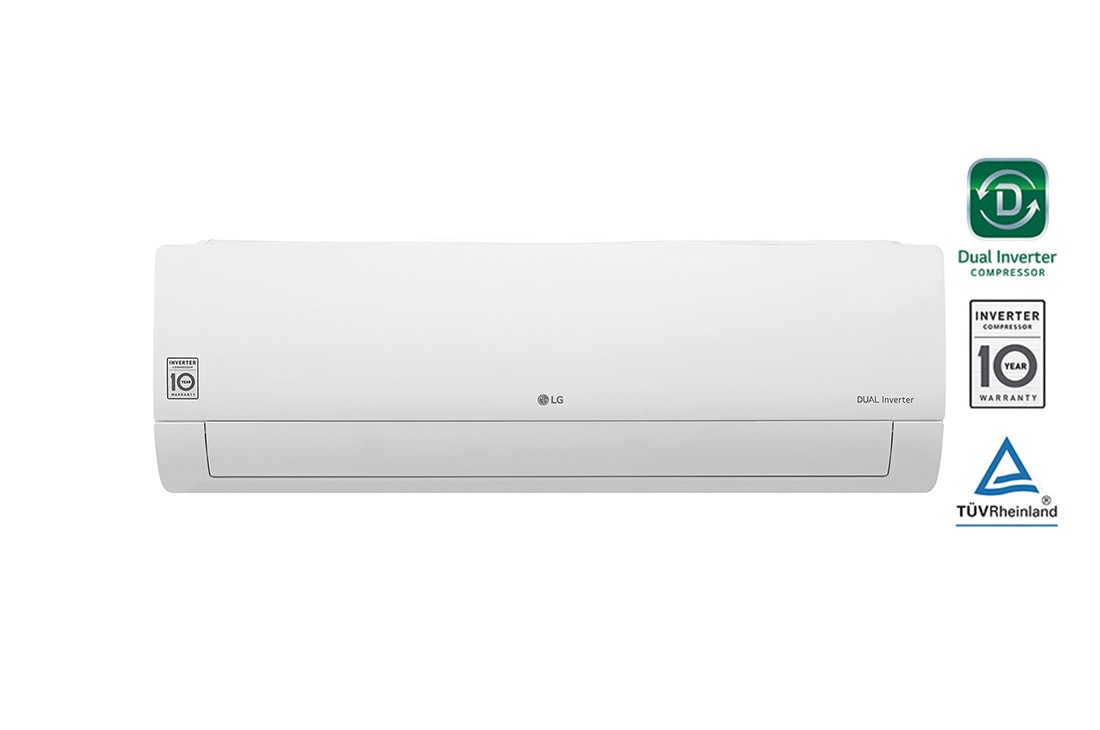

LG ALL NEW GENCOOL(DUALCOOL), BS-Q186K3A1

ALL NEW GENCOOL(DUALCOOL) play 360 degree rotating image, BS-Q186K3A1, thumbnail 1

LG ALL NEW GENCOOL(DUALCOOL), BS-Q186K3A1, thumbnail 0

LG ALL NEW GENCOOL(DUALCOOL), BS-Q186K3A1, thumbnail 1

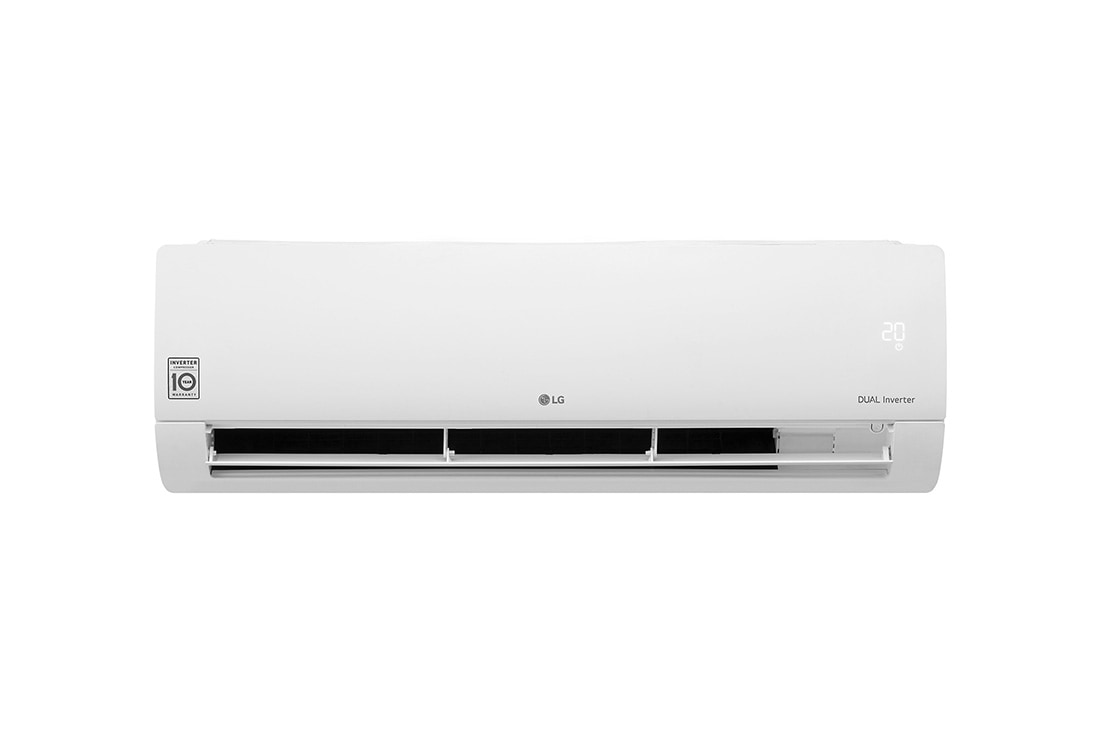

LG ALL NEW GENCOOL(DUALCOOL), BS-Q186K3A1, thumbnail 2

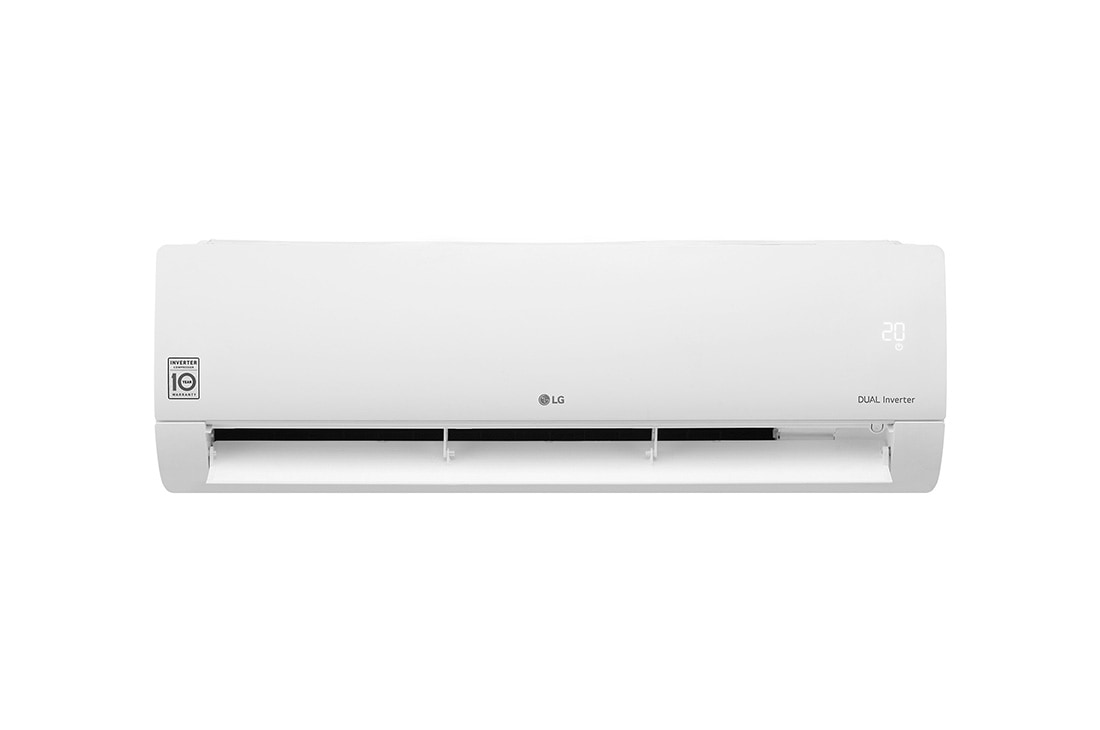

LG ALL NEW GENCOOL(DUALCOOL), BS-Q186K3A1, thumbnail 3

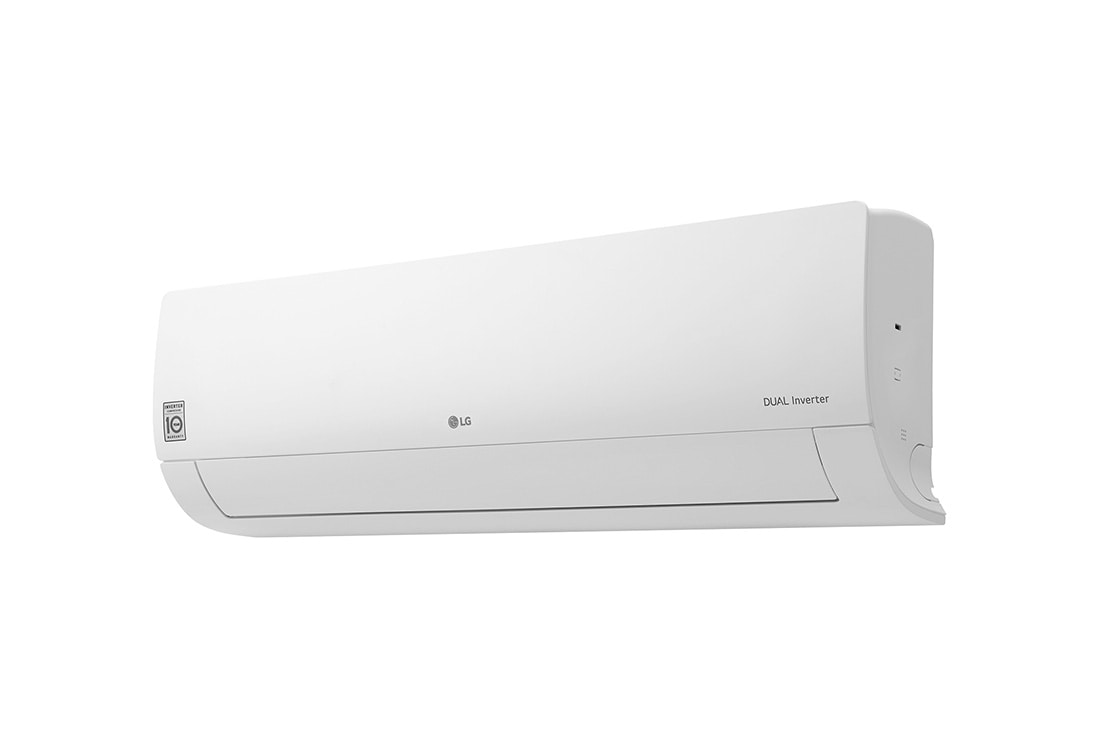

LG ALL NEW GENCOOL(DUALCOOL), BS-Q186K3A1, thumbnail 4

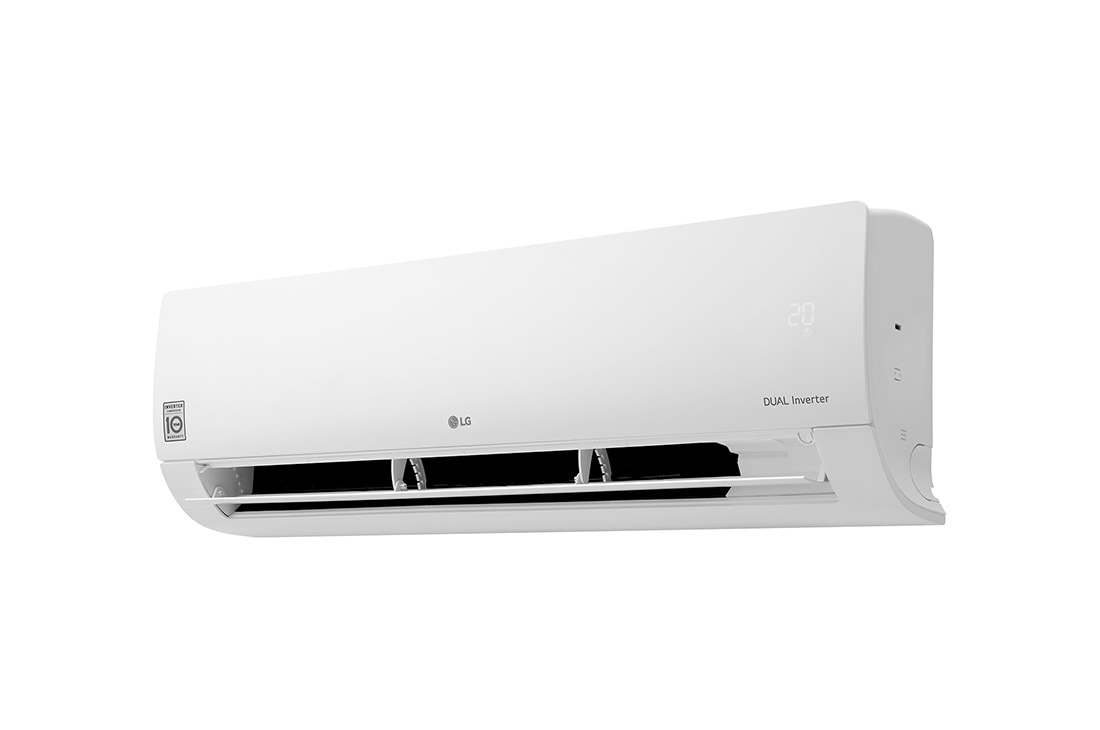

LG ALL NEW GENCOOL(DUALCOOL), BS-Q186K3A1, thumbnail 5

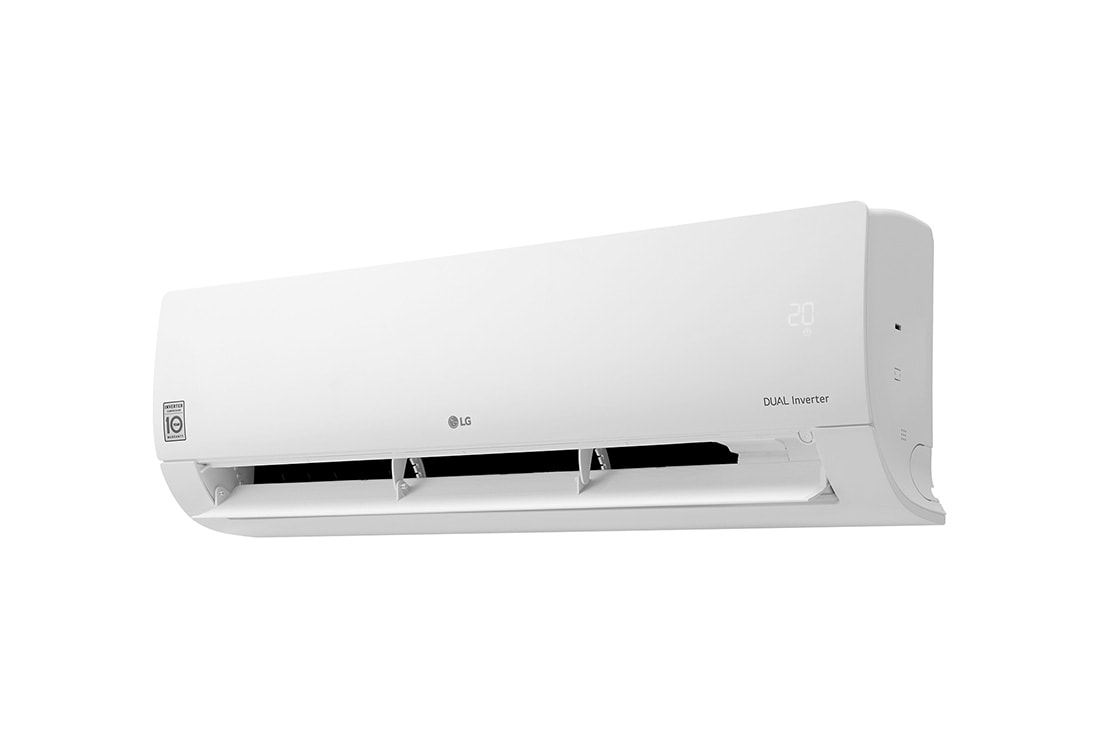

LG ALL NEW GENCOOL(DUALCOOL), BS-Q186K3A1, thumbnail 6

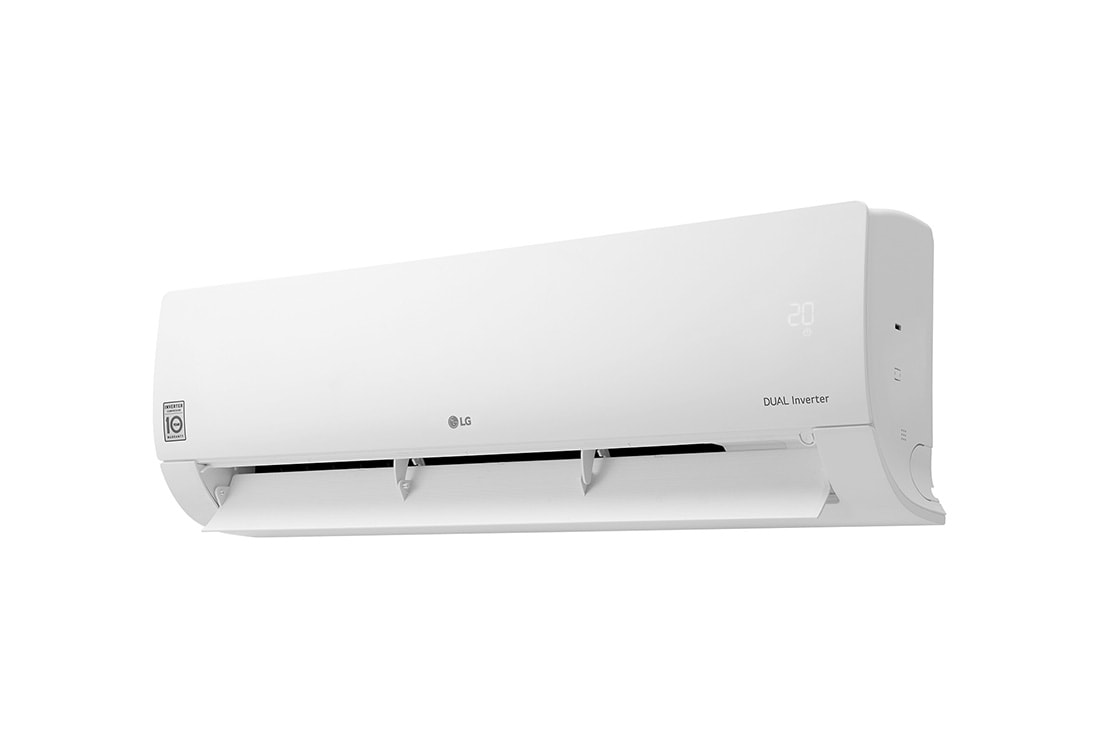

LG ALL NEW GENCOOL(DUALCOOL), BS-Q186K3A1, thumbnail 7

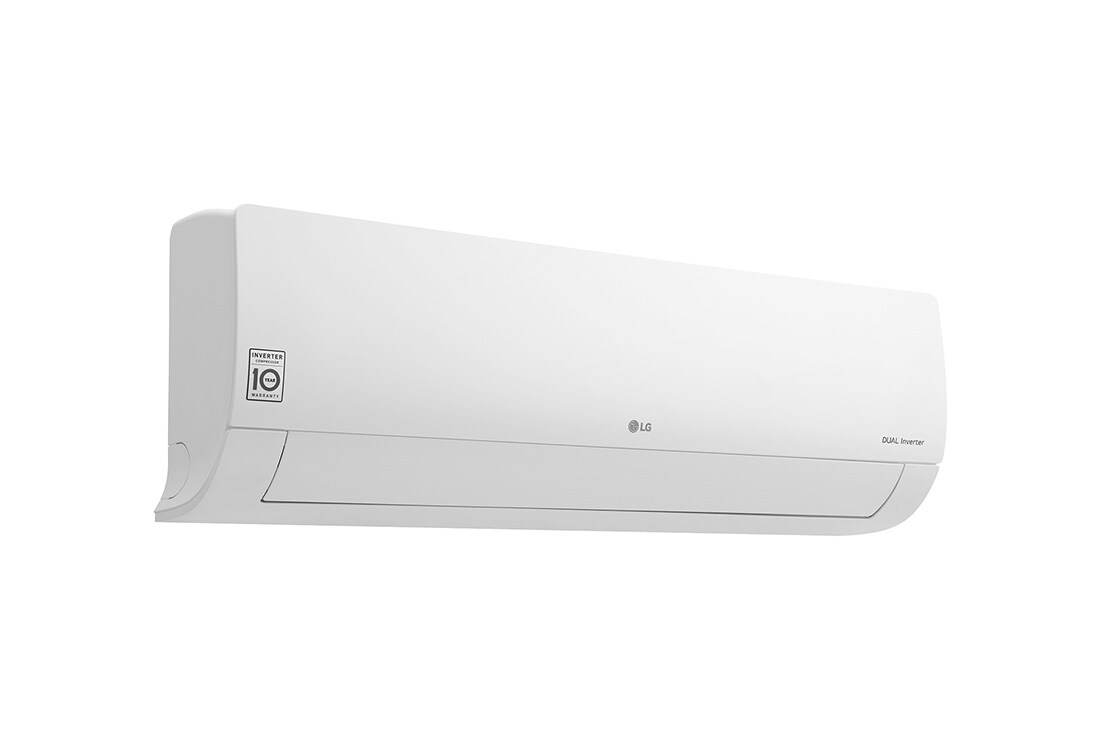

LG ALL NEW GENCOOL(DUALCOOL), BS-Q186K3A1, thumbnail 8

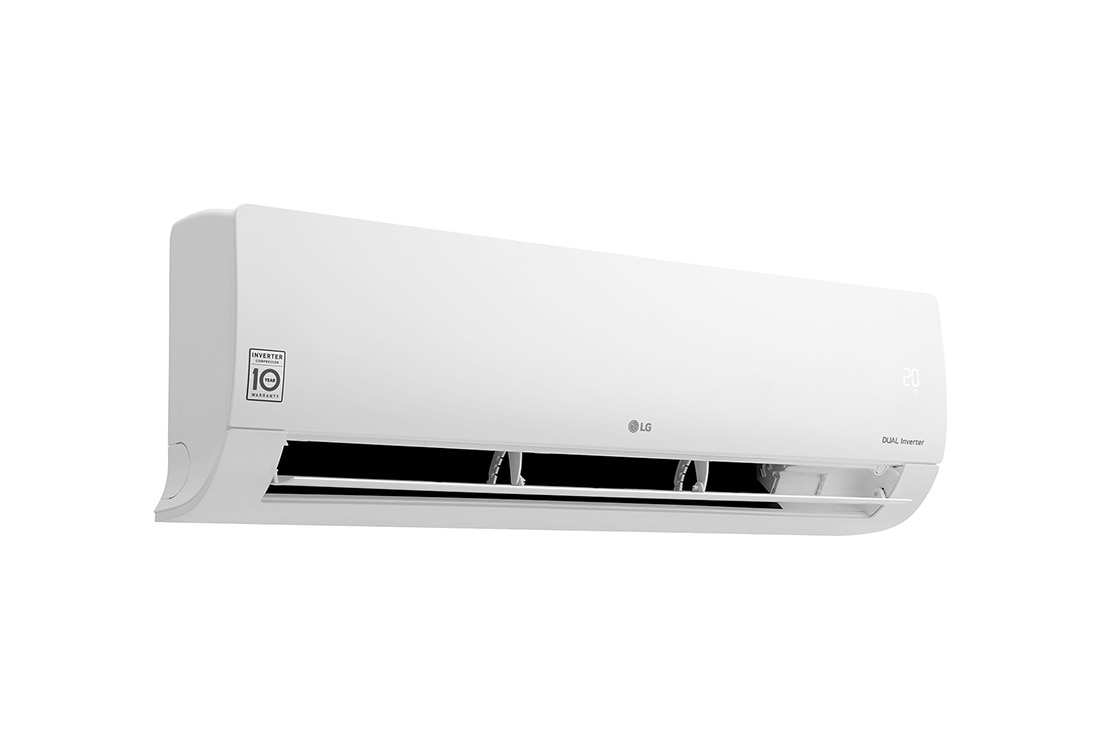

LG ALL NEW GENCOOL(DUALCOOL), BS-Q186K3A1, thumbnail 9

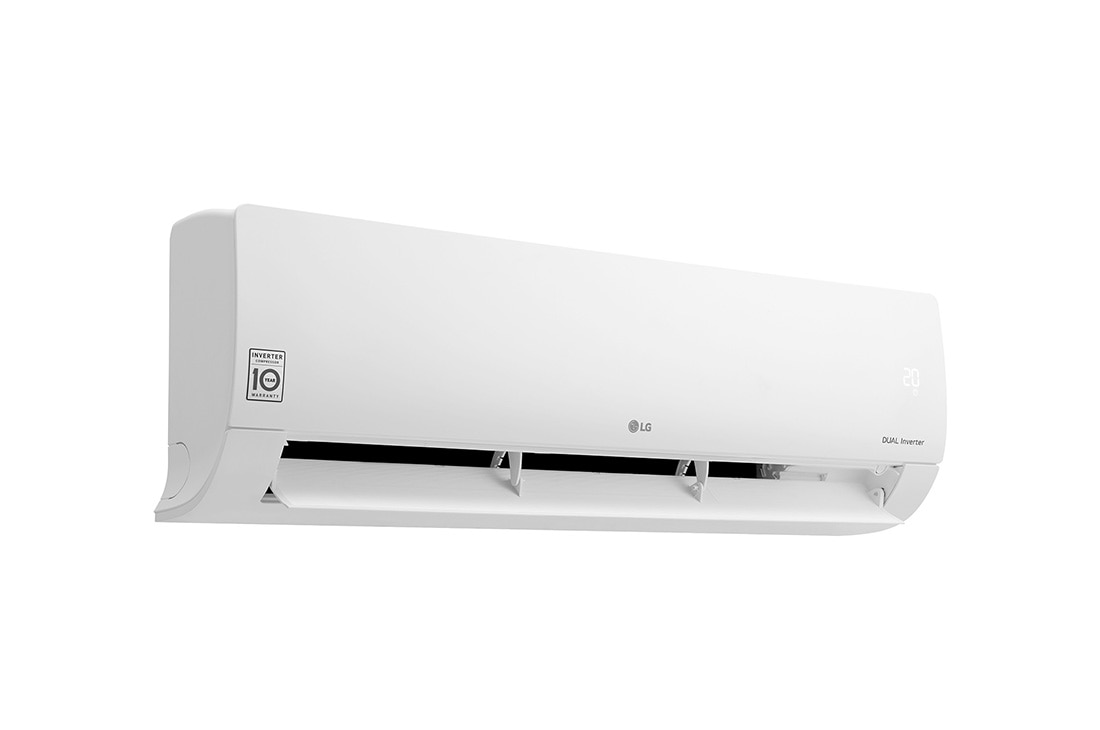

LG ALL NEW GENCOOL(DUALCOOL), BS-Q186K3A1, thumbnail 10

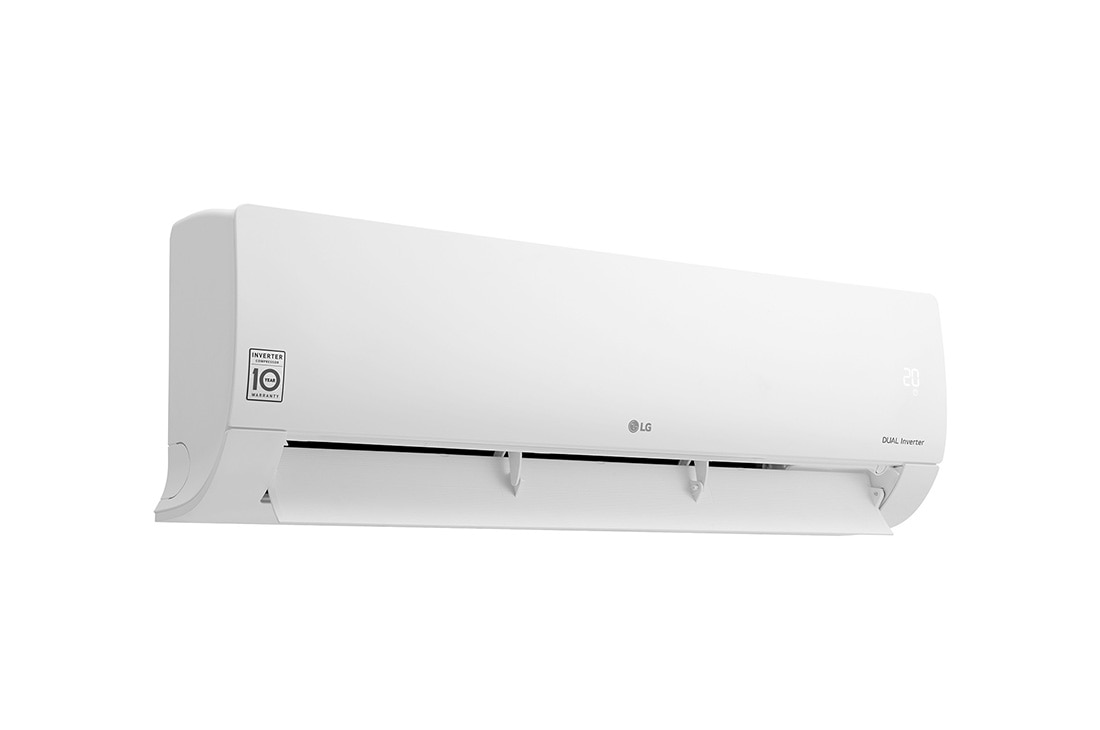

LG ALL NEW GENCOOL(DUALCOOL), BS-Q186K3A1, thumbnail 11

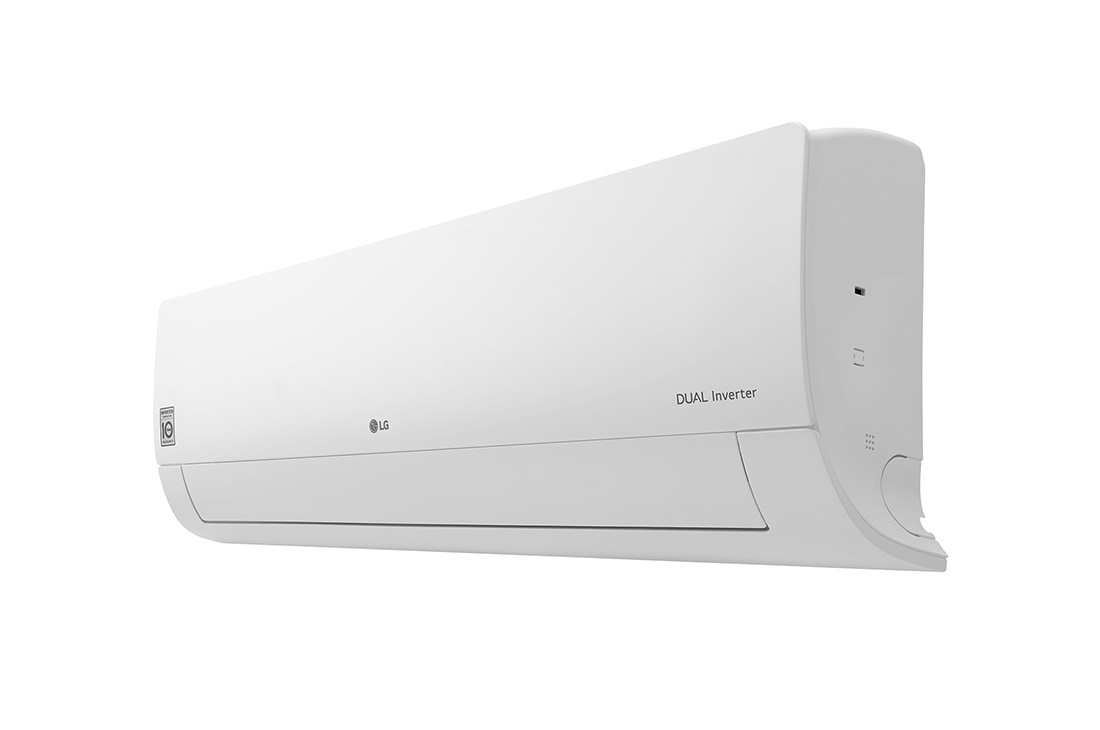

LG ALL NEW GENCOOL(DUALCOOL), BS-Q186K3A1, thumbnail 12

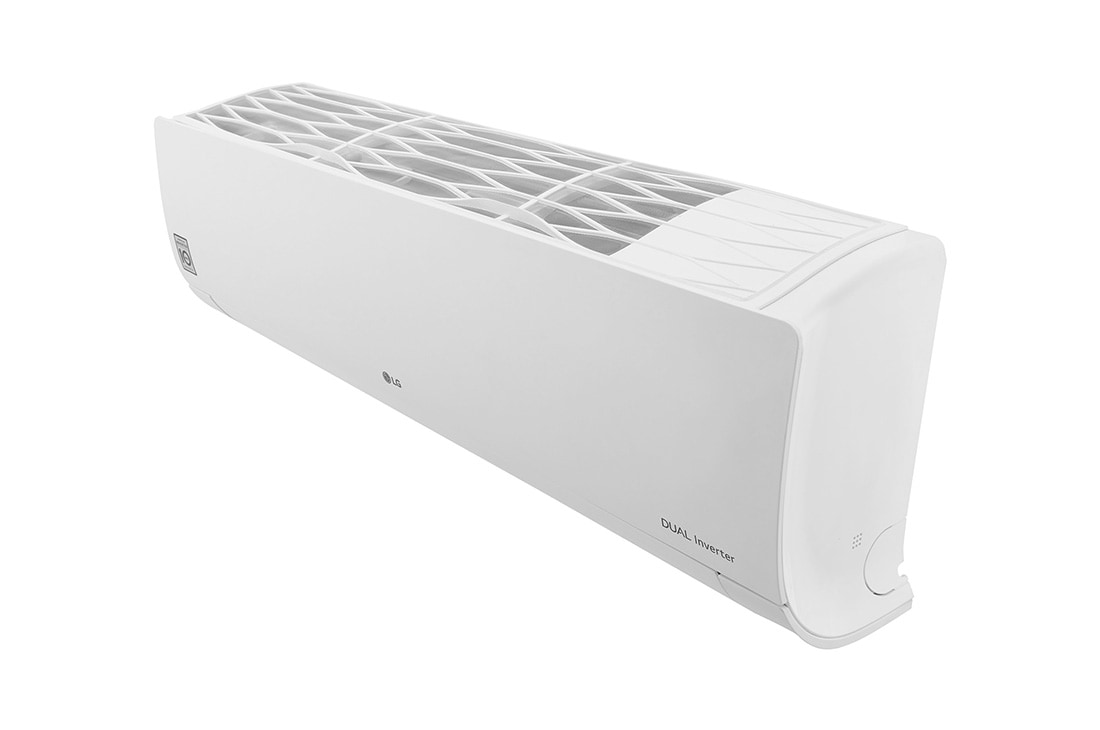

LG ALL NEW GENCOOL(DUALCOOL), BS-Q186K3A1, thumbnail 13

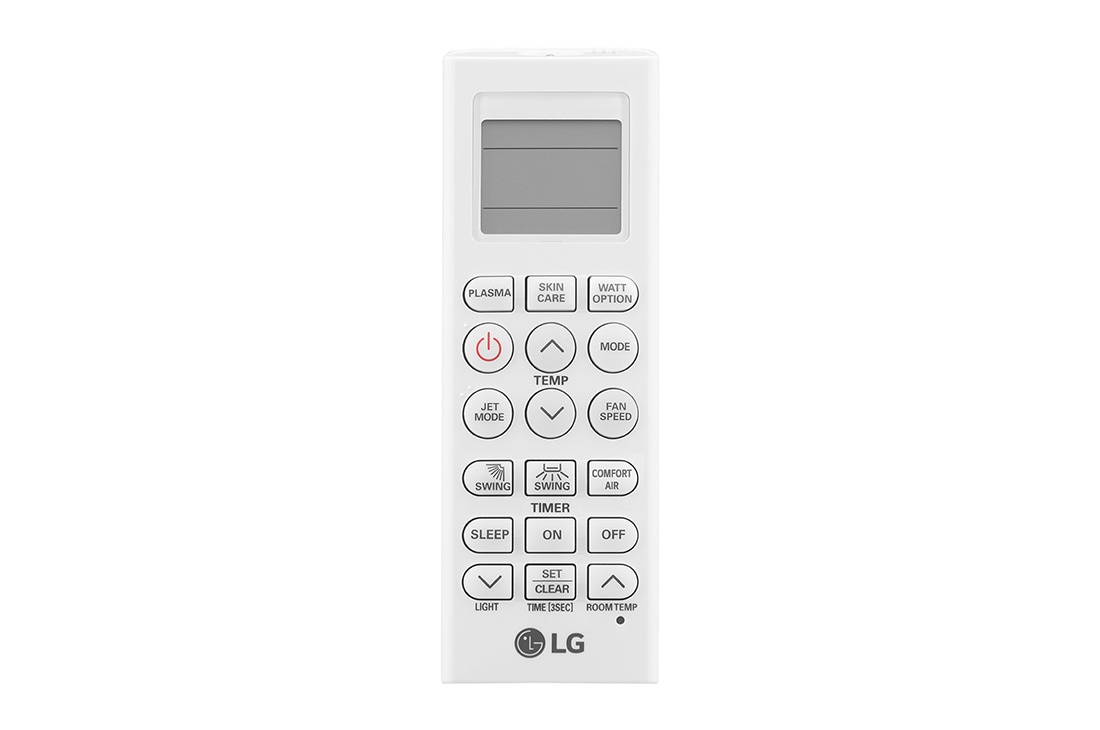

LG ALL NEW GENCOOL(DUALCOOL), BS-Q186K3A1, thumbnail 14

ADD TO WISHLIST

Discontinued

BS-Q186K3A1 component-copyModelName

ALL NEW GENCOOL(DUALCOOL)

Write a review

Key Features

70% Energy Saving
40% Fast Cooling
Dual Inverter Compresser^TM
GEN Mode

Add to Compare

component-OBScountrySelectDesc

Key Features

70% Energy Saving
40% Fast Cooling
Dual Inverter Compresser^TM
GEN Mode

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

ALL NEW GENCOOL(DUALCOOL)

DUAL Inverter Compressor™ With 10 Year Warranty

LG's DUAL Inverter Compressor™ solves improper, ineffective and noisy problems, resulting in an air conditioner that cools faster, lasts longer, and runs quieter. With the 10year warranty on the compressor, users can enjoy the benefits of LG air conditioner for a longer period of time.

10 Year Warranty

Verification obtained from TUV Rheinland for 10-year product life cycle
TUV Rheinland

TUV Rheinland, Verification on Fast Cooling & Power Saving Rate(US-W242Kxy0/TS-H2465DA0)

Fast Cooling & Energy Saving

Inverter Compressor constantly adjusts a compressor's speed to maintain desired temperature levels. Moreover, DUAL Inverter Compressor™ with power saving operation range frequency saves more energy than conventional compressor. Thanks to the DUAL Inverter Compressor™, air is expelled farther and faster.

See Video See Video

DUAL Inverter Compressor™

Compressors on typical air conditioners turn off and on in order to adjust the temperature, consuming a great deal of energy. Inverter Compressor constantly adjusts a compressor's speed to maintain desired temperature levels. This minimal fluctuation saves energy and ensures greater cooling comfort.

GEN Mode

GEN Mode function allows the Air conditioner to operate at lower power levels. Thus, home appliances can be used with air conditioners without disruption.

*Minimum 0.7KVA is based on a 9K BTU air conditioner.

Low Noise

LG air conditioners operate at low sound levels, thanks to LG's unique skew fan and DUAL Inverter Compressor™ which eliminate unnecessary noise and allow for smooth operation.

Volt Care

Volt Care protects an air conditioner from potential damage caused by voltage fluctuations. It is composed of LVS(Low Voltage Starter), AVS(Automatic Voltage Switcher), and HVS(High Voltage Safe) technologies. LVS and HVS protects the unit from low and high power supply and AVS allows for stable operation during voltage fluctuation range.

Simple and Slim Design with Hidden Display

LG air conditioner‘s slim and modern design makes easy installation and convenient cleaning with EZ sliding filter. Moreover large hidden display is perfect for checking your energy display conveniently.

Quick and Easy Installation

LG air conditioners are designed for easier and more efficient installation, regardless of the surroundings and the number of persons involved in the installation process. By reducing the manpower and time required for installation, it is now possible to install more air conditioners at more homes in a shorter period of time.

Watch the Full Movie

Gold Fin™

The Gold Fin™ ensures that the surface is more resistant to corrosion and enhances the durability of heat exchanger for a much longer period.

Vertical 6 Steps Louver Control

Users can choose the vane direction among 6 preset positions to meet the exact wind blow direction you desire.
Auto Cleaning

The comprehensive auto cleaning function prevents the forming of bacteria and mold on the heat exchanger and thus provides a more pleasant and comfortable environment for the user.

Dual Protection Filter

The Dual Protection Filter captures dust size over 10㎛ and bacteria.

Silent Mode

In Silent Mode, the overall sound level of the outdoor unit drops by up to 3dB and the sound level of the indoor unit also decreases.
Comfort Sleep

Comfort Sleep mode ensures the utmost comfort sleep environment by automatically adjusting 3 different functions(Indirect airflow/7hr off time set/Soft wind & sleep time logic), with one click.

Dimensions

PERFORMANCE

Cooling Capacity

5,275 W / 18,000 Btu/h.

Capacity Rate (Min)

3,250 Btu/h.
Capacity Rate (Max)

19,910 Btu/h.

Power Input (Cooling/Heating)

1,690 W
Running Current ( Cooling/Heating)

7.6 A

EER

3.12 W/W 10.65 Btu/h.W
Power Supply

1 / 220-240V / 50Hz (Ø / V / Hz)

Air Flow Rate(Indoor,Max)

18.5 (653) m²/min
Air Flow Rate(Outdoor,Max)

42 (1483) ㎥/min

Moisture Removal

1.04 l/h.
Sound Level(Indoor,H/M/L/SL)

42 / 37 / 35 / 29 dB(A)+3

Sound Level(Outdoor,Max)

51/ 53 dB(A)+3
Refrigerant (Type)

R-410A

Refrigerant (Charge (at 7.5 m))

1,150 g
Additional Refrigerant Charge

20 g/m

Circuit Breaker*

25 A
Power Supply Cable

3*1.5 No.*mm²

Power and Transmission Cable

4*1.5 No.*mm²
Piping Connections(Liquid Side)

6.35 mm

Piping Connections(Gas Side)

12.7 mm
Drain Hose (O.D / I.D * length)

21.5 / 16.0 (0.85 / 0.63) * 350 mm(in) * mm

Piping Length (Standard / Max)

7.5 (24.6) / 20 (66.6) m(ft)
Max. Elevation Difference

7 (23.0) m(ft)

Fan(Indoor) Type

Cross Flow Fan
Fan(Outdoor) Type

Fan,Propeller

Operation Range (Cooling Indoor)

16 ~ 32 (60.8 ~ 89.6) ^oC (^oF)
Operation Range (Cooling Outdoor)

18 ~ 48 (64.4 ~ 118.4) ^oC (^oF)

Dimensions(Indoor (W*H*D))

998*330*210 mm
Dimensions(Outdoor (W*H*D))

870*660*360 mm

Net Weight(Indoor)

11.6 (25.57) kg
Net Weight(Outdoor)

41.2 (90.83) kg

APPEARANCE

Indoor(Tool Code)

SK

Indoor(Remote)

(Common) 2 Way + Gen mode
Indoor(Remote Controller Type)

Wireless LCD (AKB74955619)

Indoor(Grille Front Look)

Sirius-E (White)
Indoor(Display)

88 Seq

Outdoor(Tool Code)

UE
Outdoor(Panel Type)

Steel

Outdoor(Condenser Type)

CU

FEATURE & FUNCTION

Pre-Filter (in Front Grille)Anti bacteria air filter (Stallion Prefilter)

Yes

* Vane Horizontal

Normal
Temperature Control

Thermistor

Auto Clean

Yes
Natural Wind

Yes

Fan Speed (SH/H/MH/M/ML/L/SL)

7
Airflow Direction Control(up & Down)

Auto

Airflow Direction Control(left & right)

Manual
Setting Temperature Range(Cooling)

16-30

Temperature Increment

1 (°C)
Auto Operation (Micom Control)

Yes

Self Diagnosis

Yes
Timer

24hr On/Off

Sleep Operation

Yes
Soft Dry Operation

Yes

Restart Delay(minute)

3
Display Light (On/Off)

Yes

Energy Saving

Yes
Jet Cool

Yes

Indirect Air

Yes
Gen Mode

Yes
