S4-Q18KL2JD

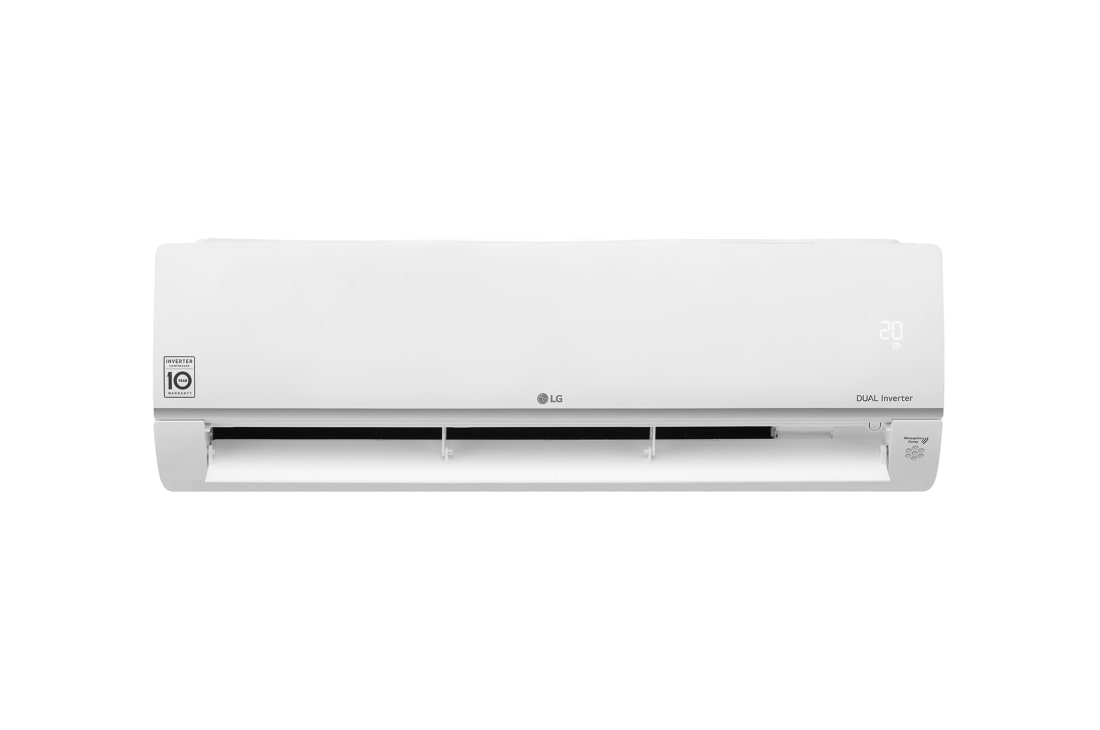

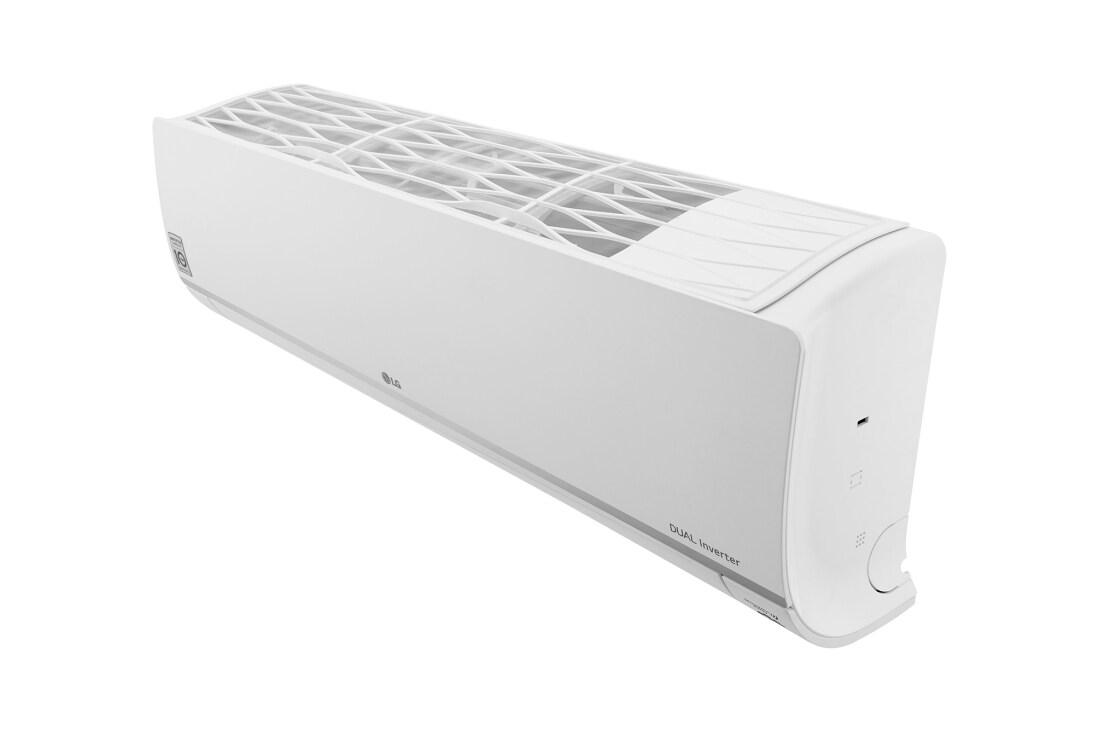

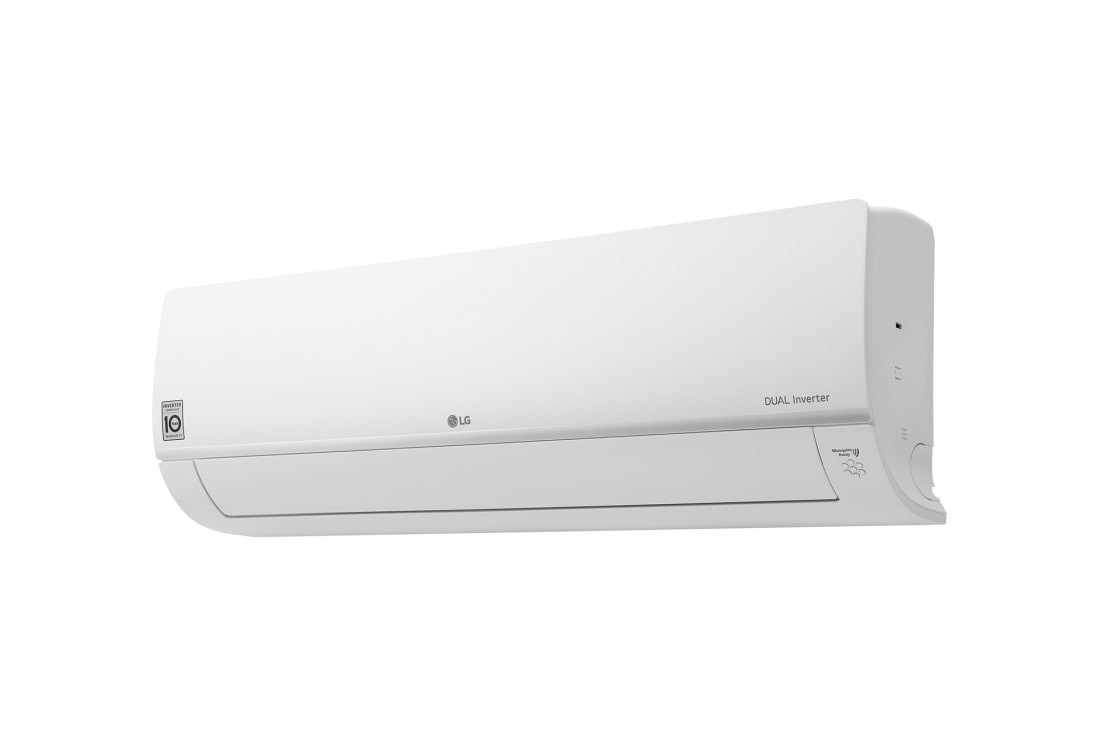

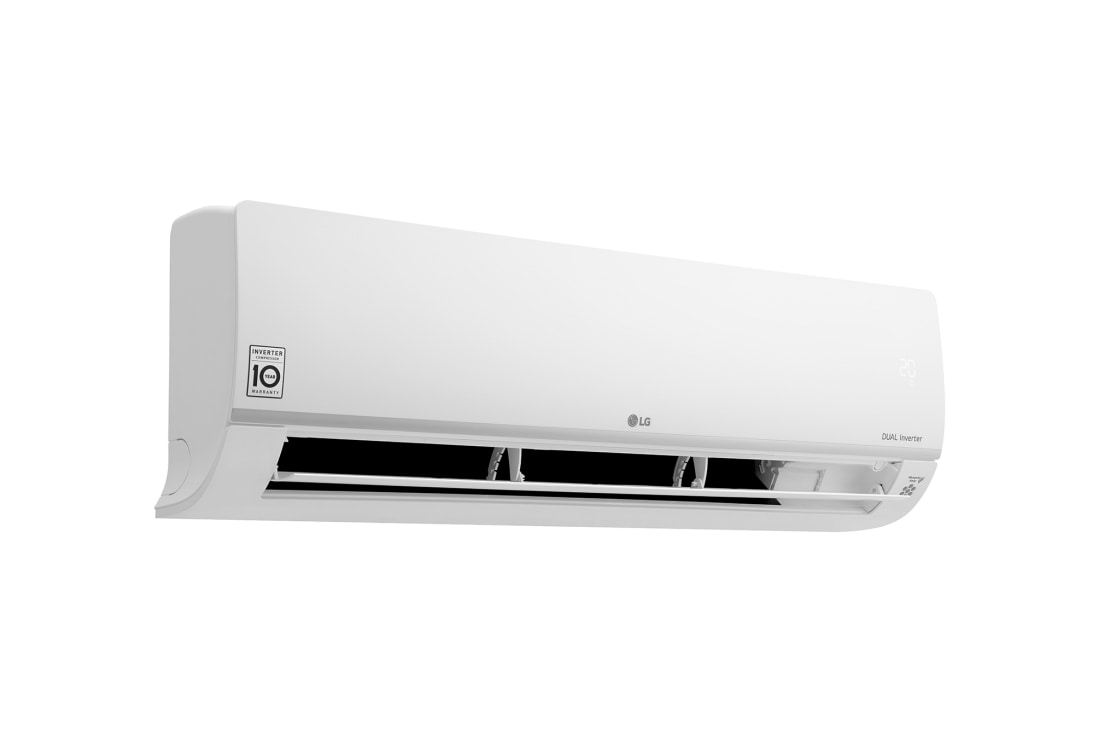

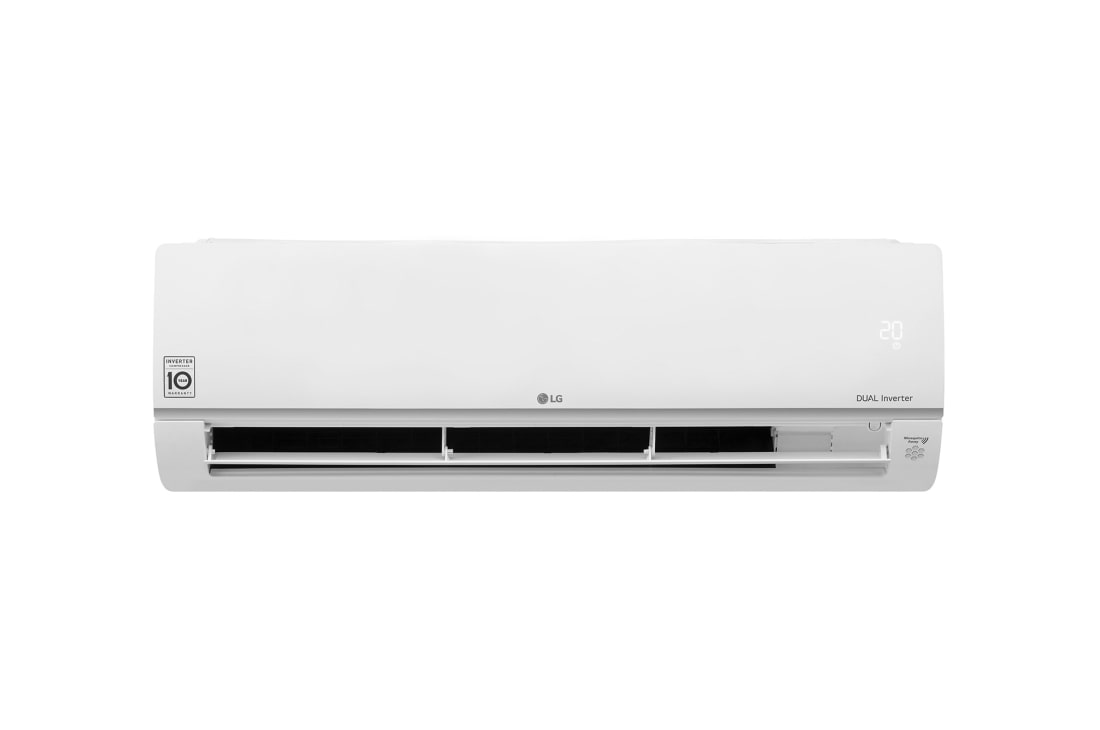

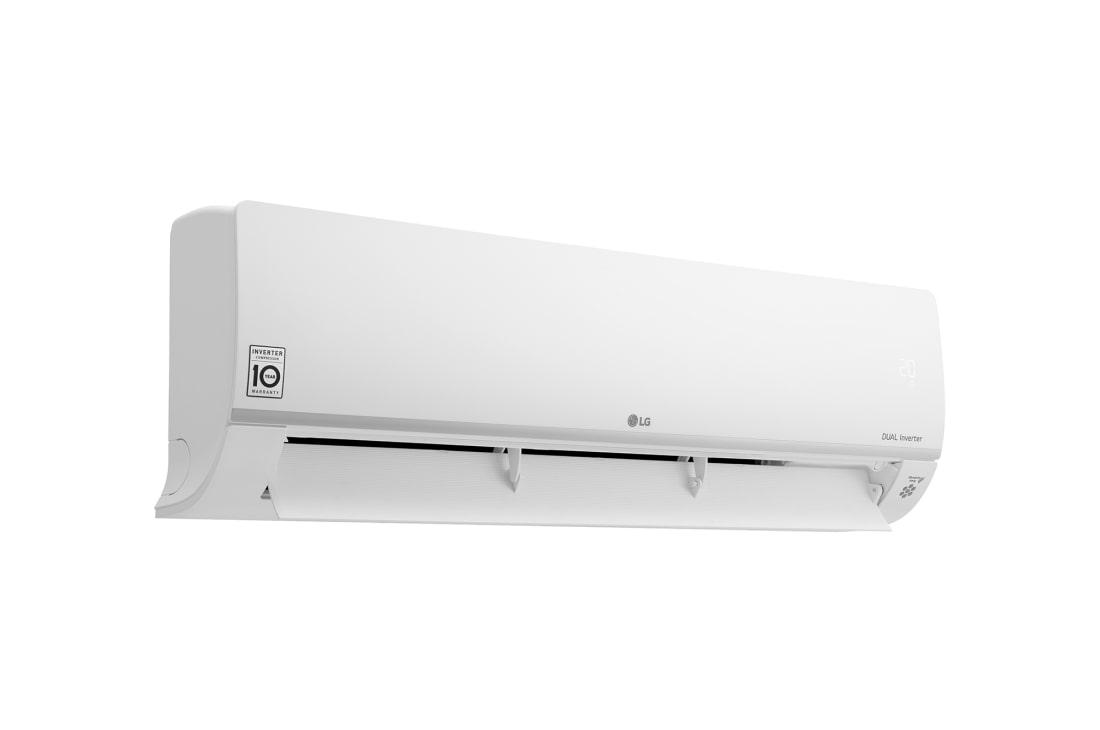

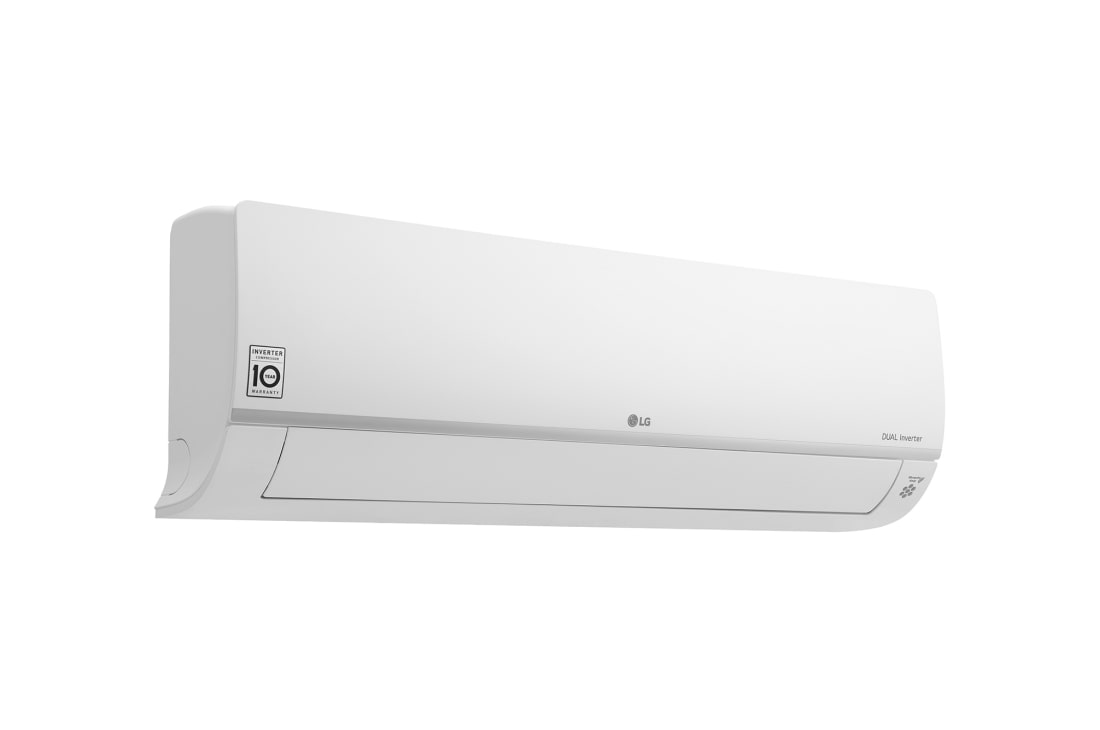

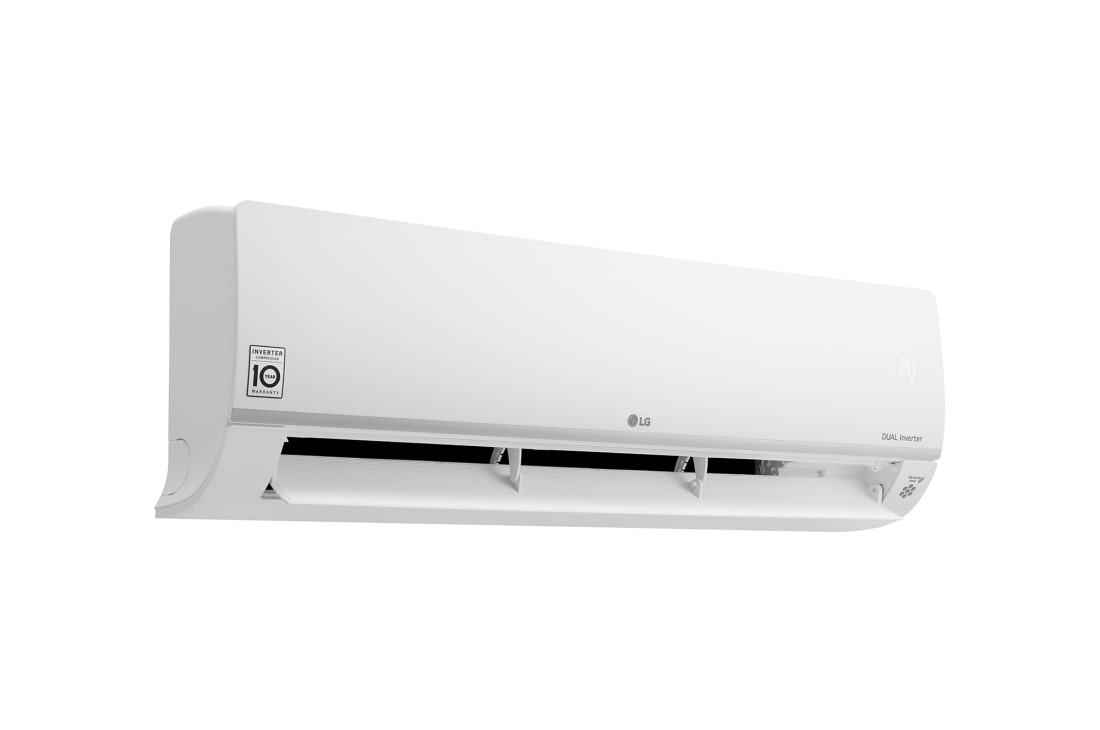

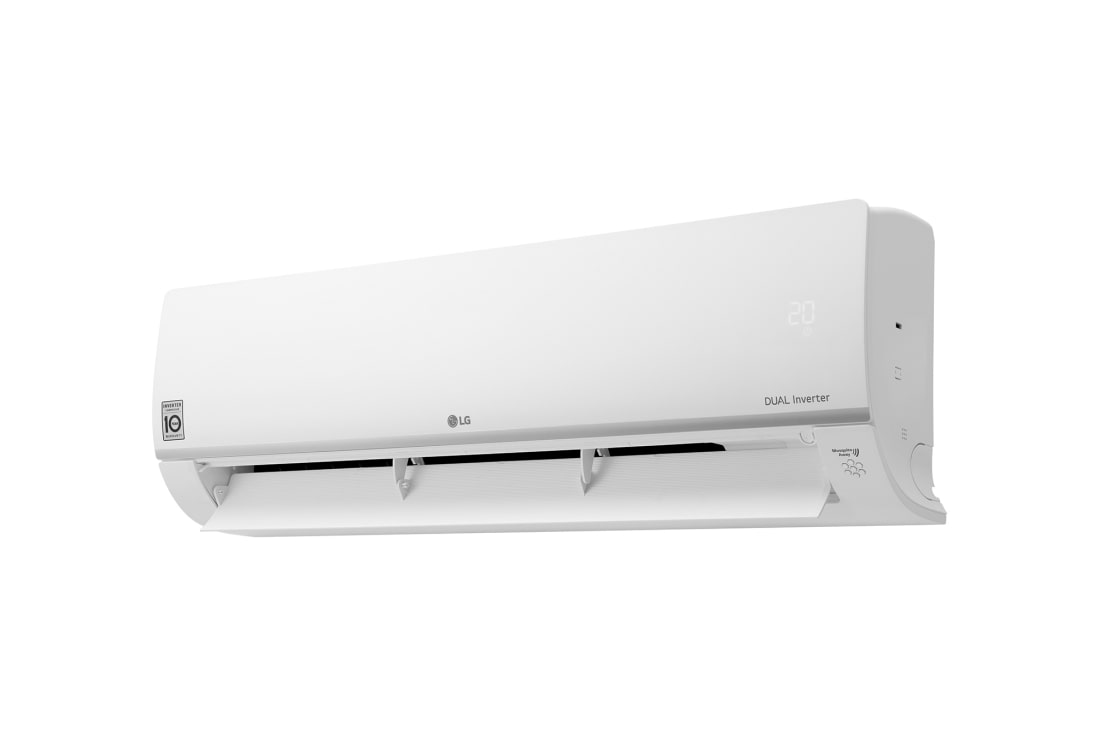

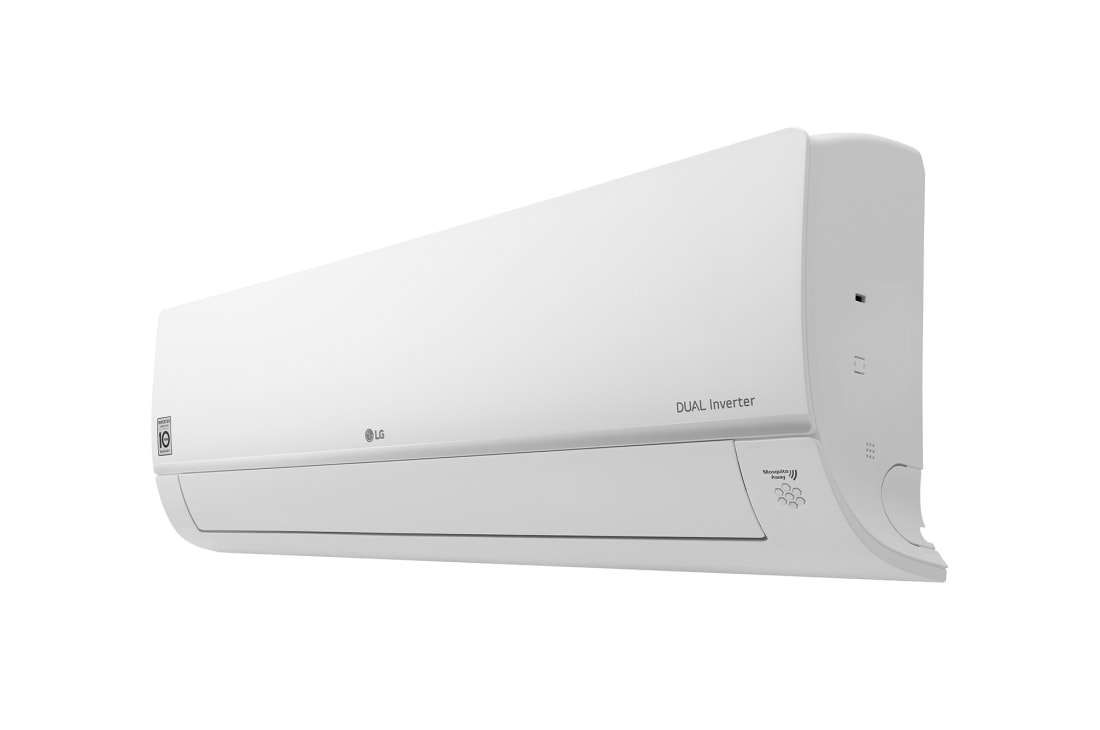

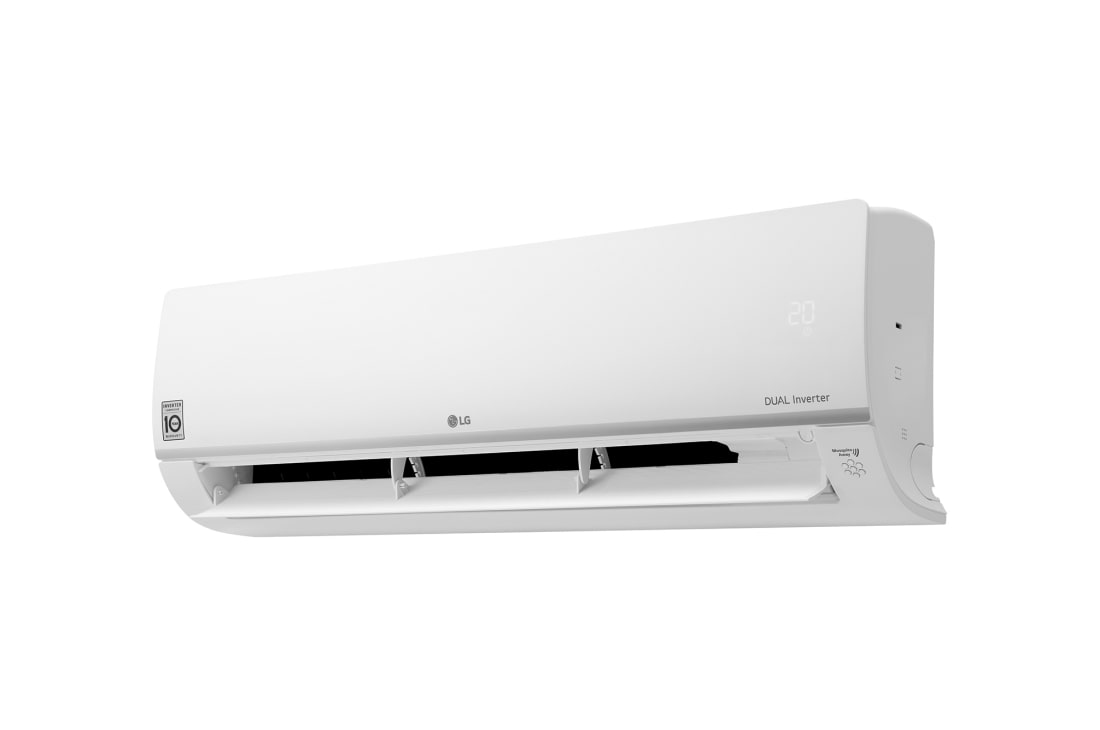

DUALCOOL Inverter AC,2.0HP, 10 Year Warranty,Gen Mode, Mosquito Away

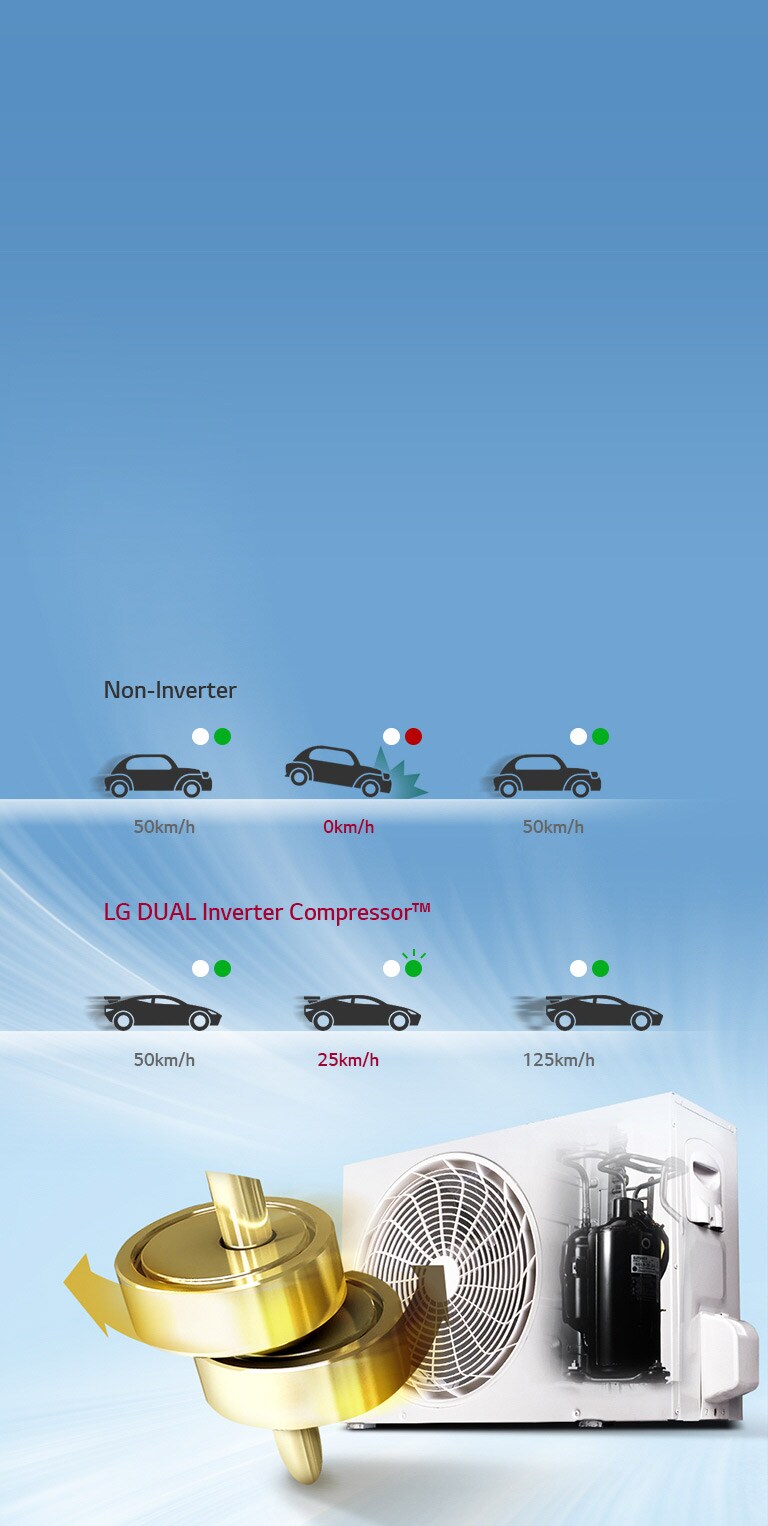

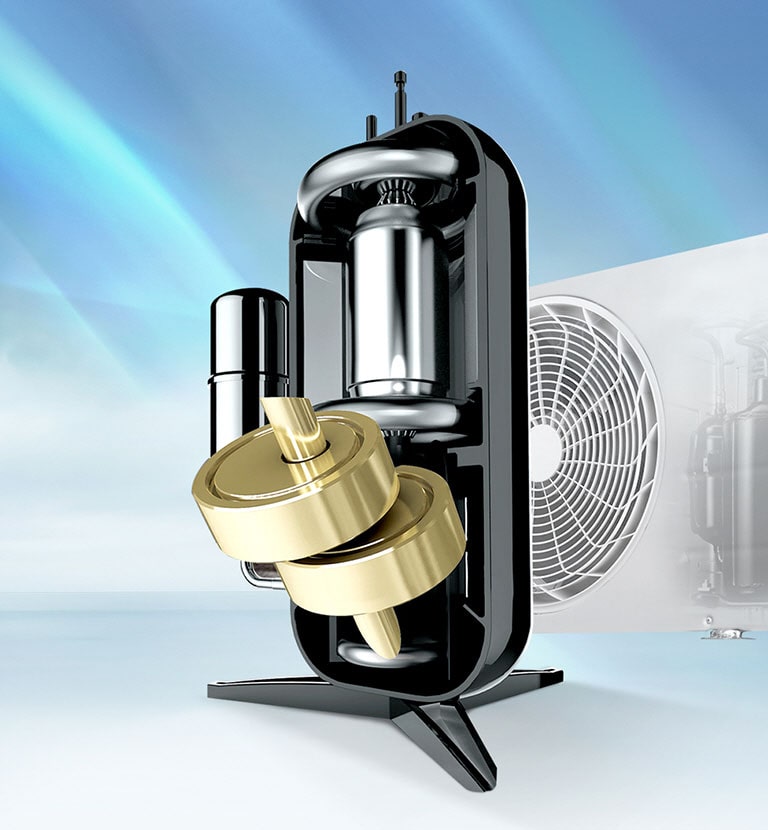

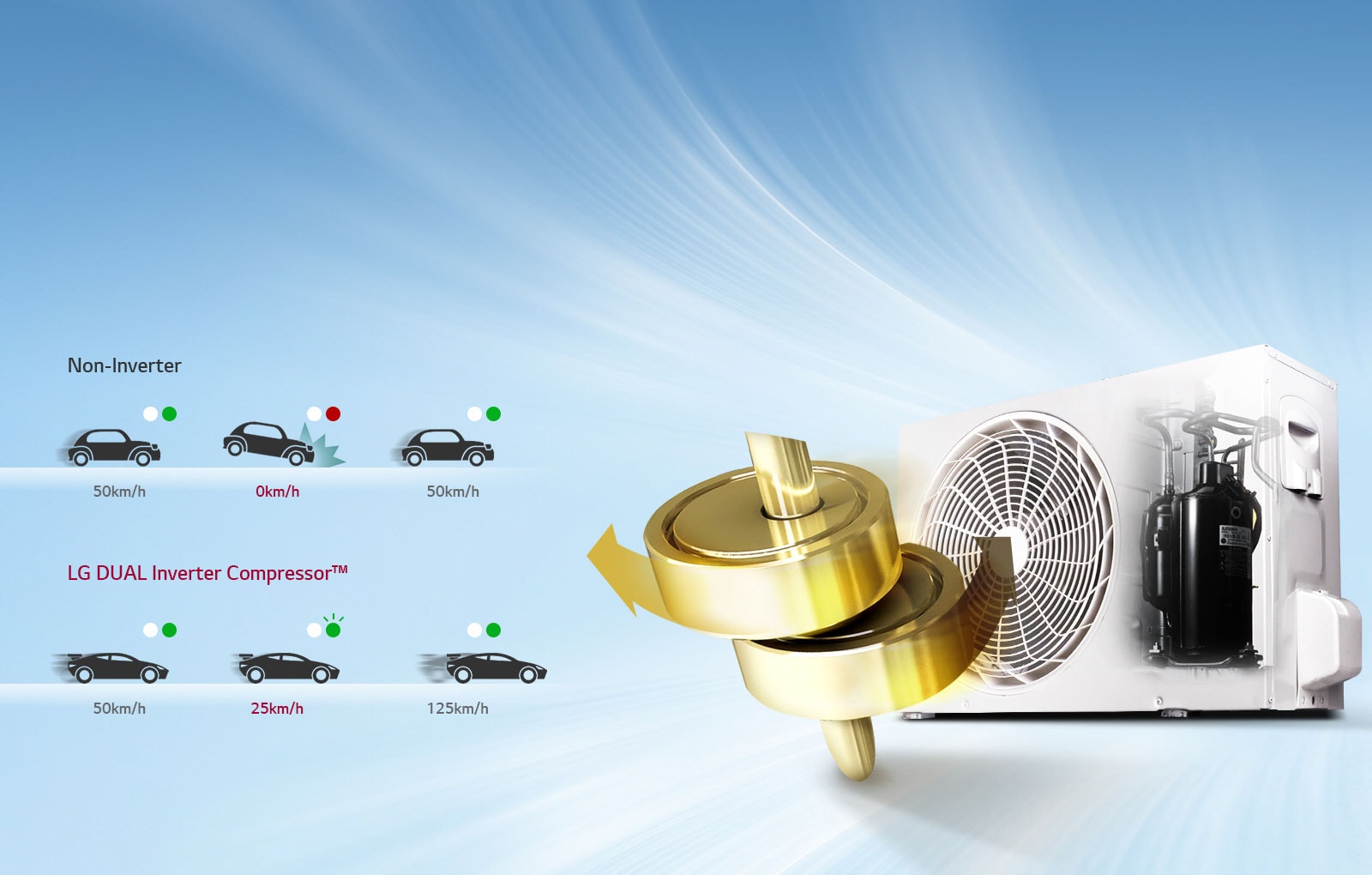

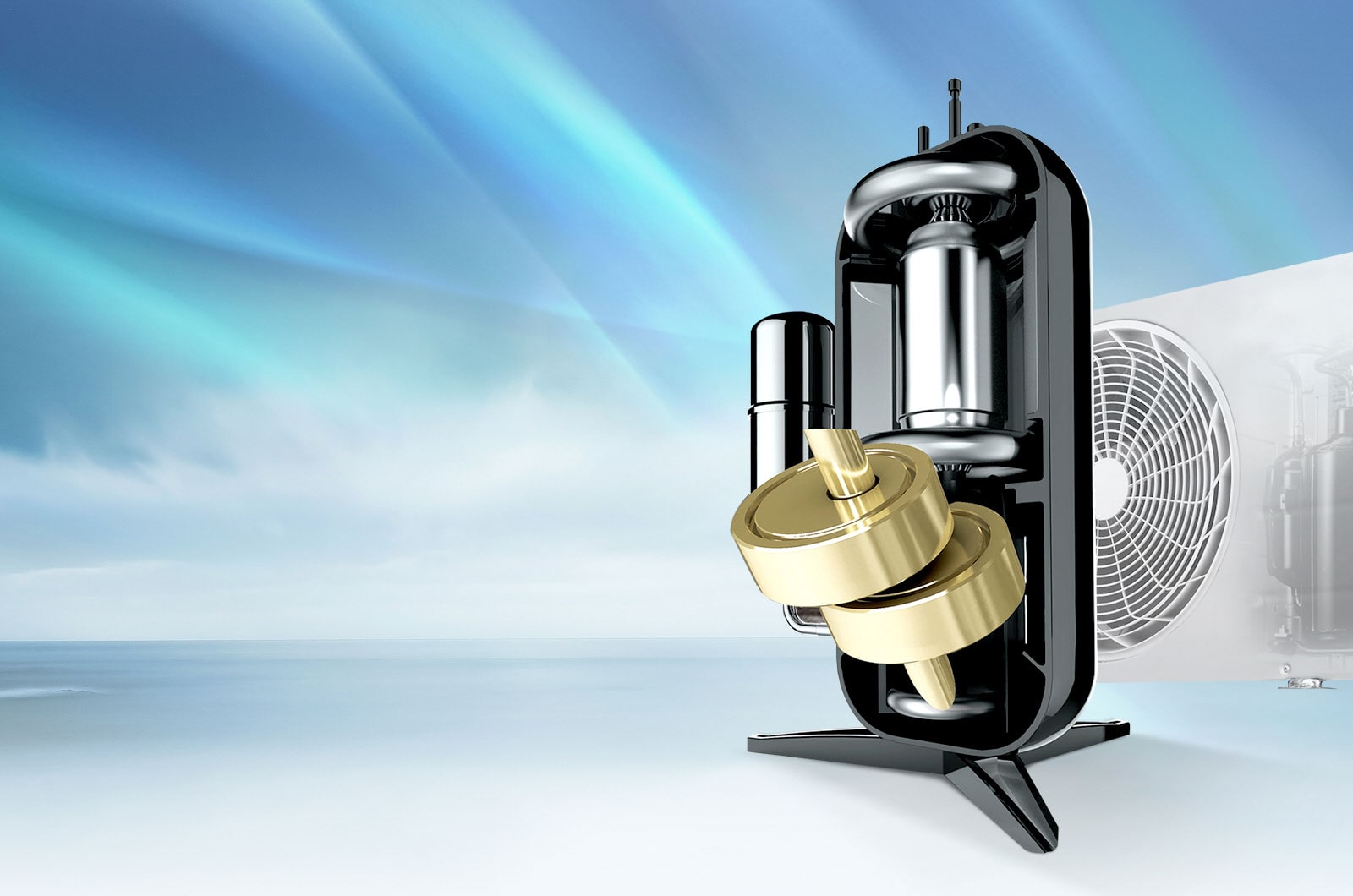

  • DUAL Inverter Compressor™

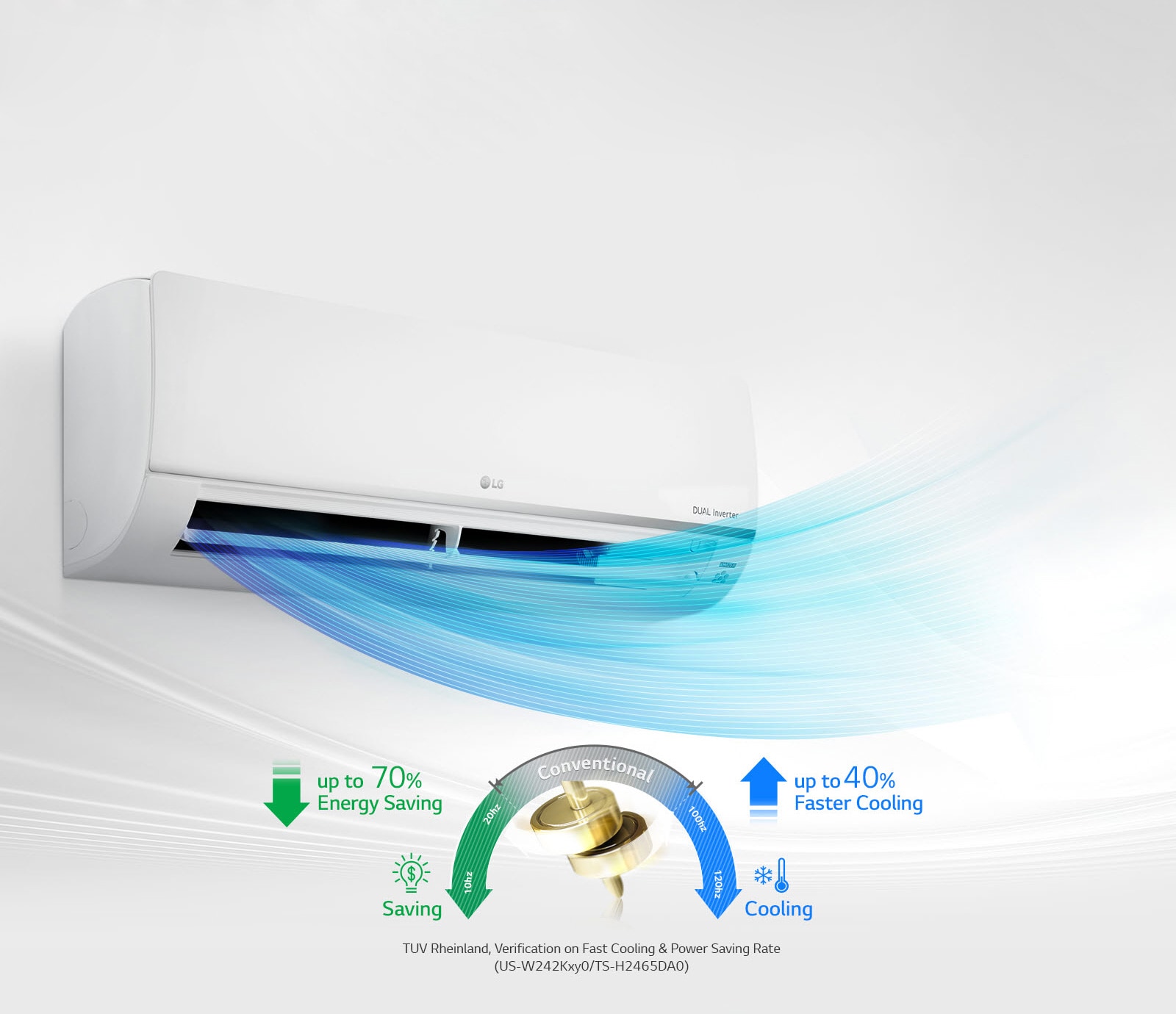

  • 70% Energy Saving
  • 40% Faster Cooling
  • GEN Mode
  • Mosquito Away

component-OBScountrySelectDesc

DUALCOOL Inverter AC,2.0HP, 10 Year Warranty,Gen Mode, Mosquito Away

Dimensions

PERFORMANCE

  • Cooling Capacity
    5,275 W/18,000 Btu/h.
    Capacity Rate (Min)
    3,250 Btu/h.
  • Capacity Rate (Max)
    19,910 Btu/h.
    Power Input (Cooling/Heating)
    1,690 W
  • Running Current ( Cooling/Heating)
    7.6 A
    EER
    3.12 W/W 10.65 Btu/h.W
  • Power Supply
    1/220-240V/50Hz (Ø/V/Hz)
    Air Flow Rate(Indoor,Max)
    18.5 (653) m2/min
  • Air Flow Rate(Outdoor,Max)
    42 (1483) ㎥/min
    Moisture Removal
    1.04 l/h.
  • Sound Level(Indoor,H/M/L/SL)
    42/37/35/29 dB(A)+3
    Sound Level(Outdoor,Max)
    51/53 dB(A)+3
  • Refrigerant (Type)
    R-410A
    Refrigerant (Charge (at 7.5 m))
    1,150 g
  • Additional Refrigerant Charge
    20 g/m
    Circuit Breaker*
    25 A
  • Power Supply Cable
    3*1.5 No.*mm2
    Power and Transmission Cable
    4*1.5 No.*mm2
  • Piping Connections(Liquid Side)
     6.35 mm
    Piping Connections(Gas Side)
    12.7 mm
  • Drain Hose (O.D / I.D * length)
    21.5/16.0 (0.85/0.63) *350 mm(in)*mm
    Piping Length (Standard / Max)
    7.5 (24.6)/20 (66.6) m(ft)
  • Max. Elevation Difference
    7 (23.0) m(ft)
    Fan(Indoor) Type
    Cross Flow Fan
  • Fan(Outdoor) Type
    Fan,Propeller
    Operation Range (Cooling Indoor)
    16 ~ 32 (60.8 ~ 89.6) oC (oF)
  • Operation Range (Cooling Outdoor)
    18 ~ 48 (64.4 ~ 118.4) oC (oF)
    Dimensions(Indoor (W*H*D))
    998 x 330 x 210 mm
  • Dimensions(Outdoor (W*H*D))
    870 x 660 x 360 mm
    Net Weight(Indoor)
     11.6 (25.57) kg
  • Net Weight(Outdoor)
    41.2 (90.83) kg

APPEARANCE

  • Indoor(Tool Code)
    SK
    Indoor(Remote)
    (Common) 2 Way + Gen mode
  • Indoor(Remote Controller Type)
    Wireless LCD (AKB74955619)
    Indoor(Grille Front Look)
    Semi R (Silver)

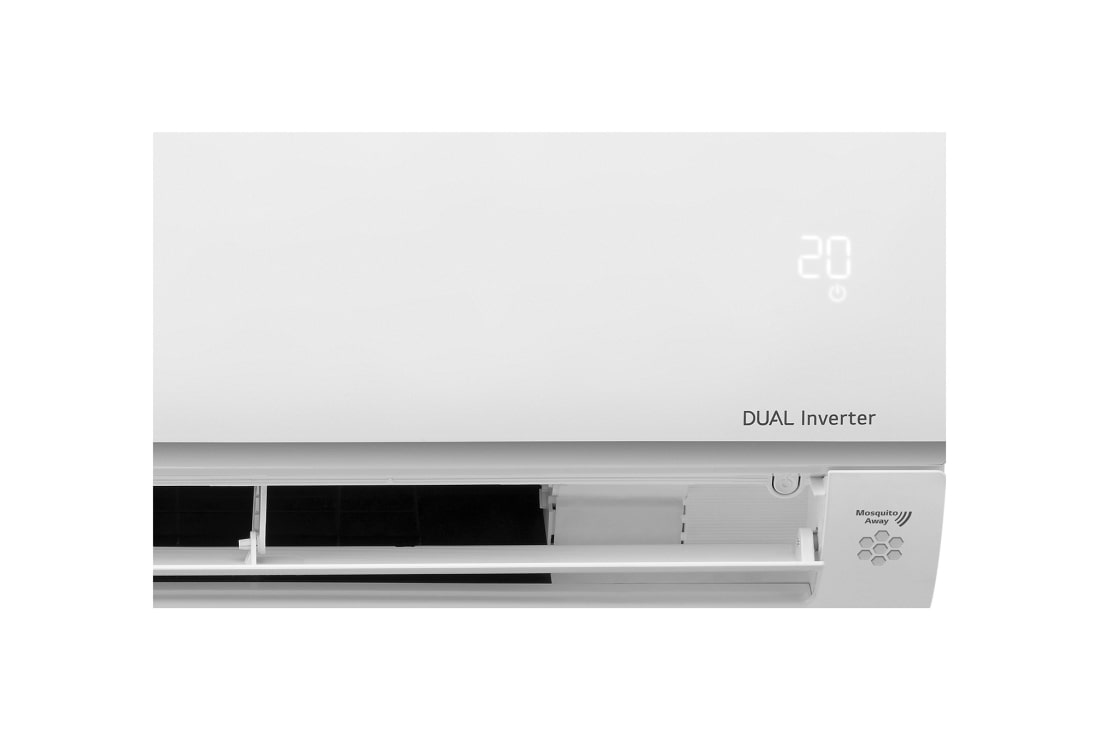

  • Indoor(Display)
    88 Seq
    Outdoor(Tool Code)
    UE
  • Outdoor(Panel Type)
    Steel
    Outdoor(Condenser Type)
    CU

FEATURE & FUNCTION

  • Pre-Filter (in Front Grille)Anti bacteria air filter (Stallion Prefilter)
    Yes
    Special Filter Multi Protection Filter (with case)
    Yes
  • * Vane Horizontal
    Normal
    Temperature Control
    Thermistor
  • Auto Clean
    Yes
    Natural Wind
    Yes
  • Fan Speed (SH/H/MH/M/ML/L/SL)
    7
    Airflow Direction Control(up & Down)
    Auto
  • Airflow Direction Control(left & right)
    Manual
    Setting Temperature Range(Cooling)
    16-30
  • Temperature Increment
    1 (°C)
    Auto Operation (Micom Control)
    Yes
  • Self Diagnosis
    Yes
    Timer
    24hr On/Off
  • Sleep Operation
    Yes
    Soft Dry Operation
    Yes
  • Restart Delay(minute)
    3
    Display Light (On/Off)
    Yes
  • Energy Saving
    Yes
    Jet Cool
    Yes
  • Mosquito Away
    Yes
    Indirect Air
    Yes
  • Gen Mode
    Yes
