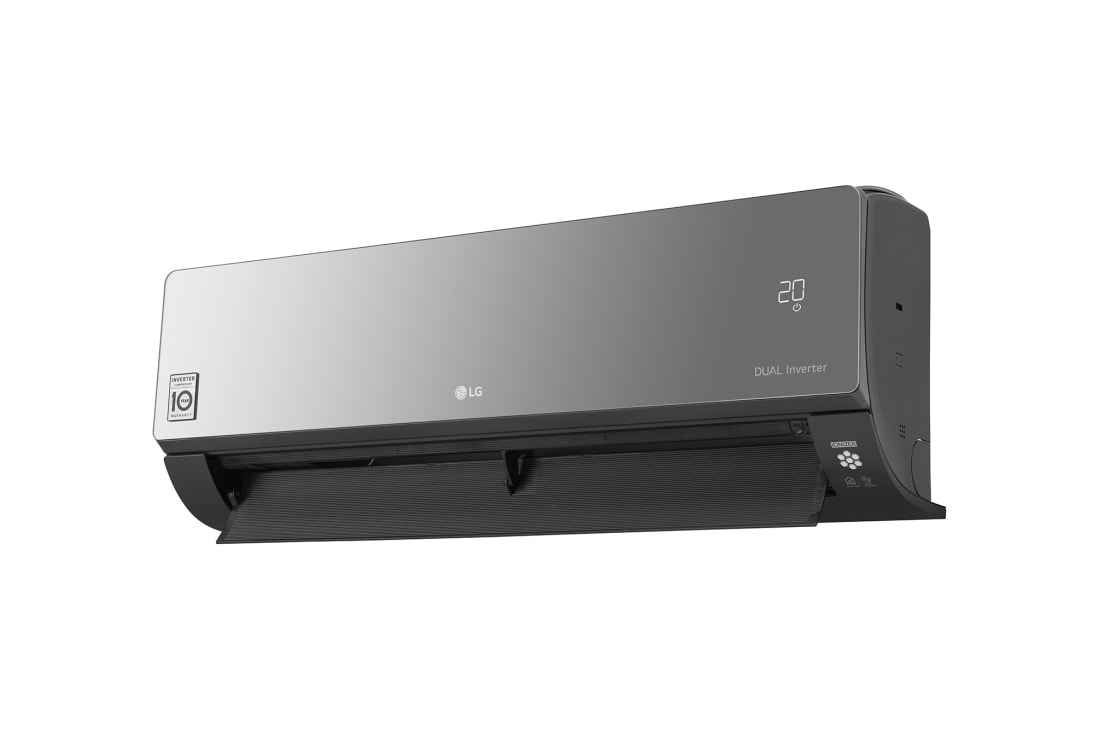

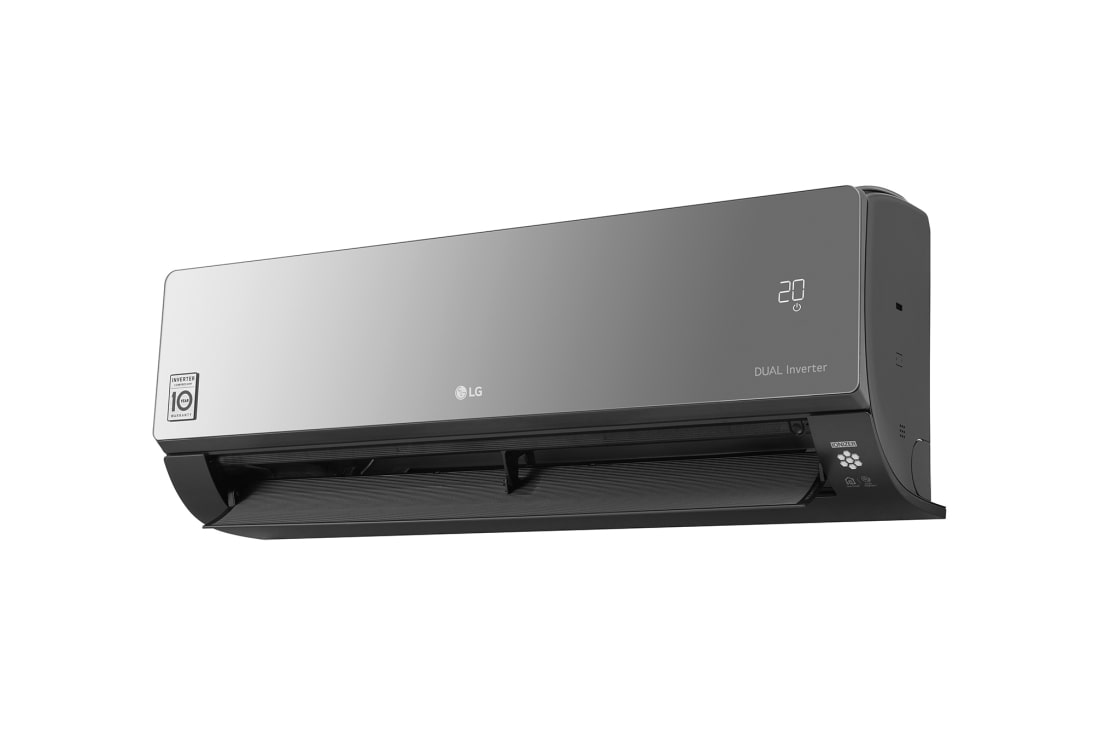

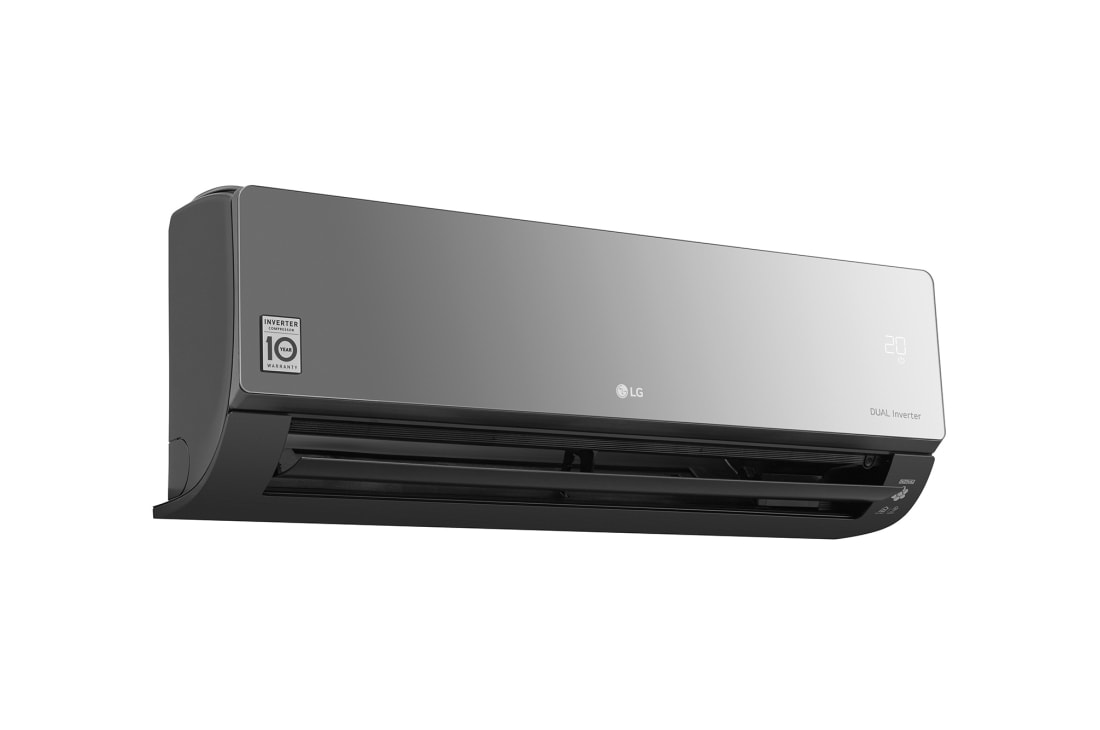

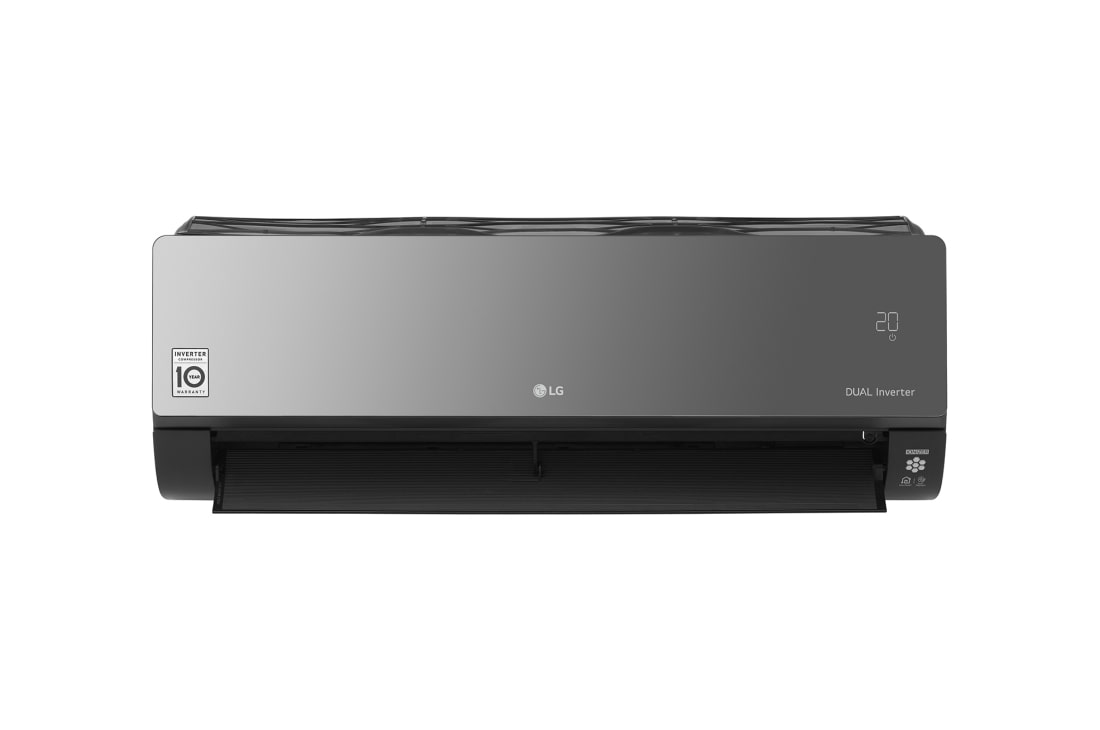

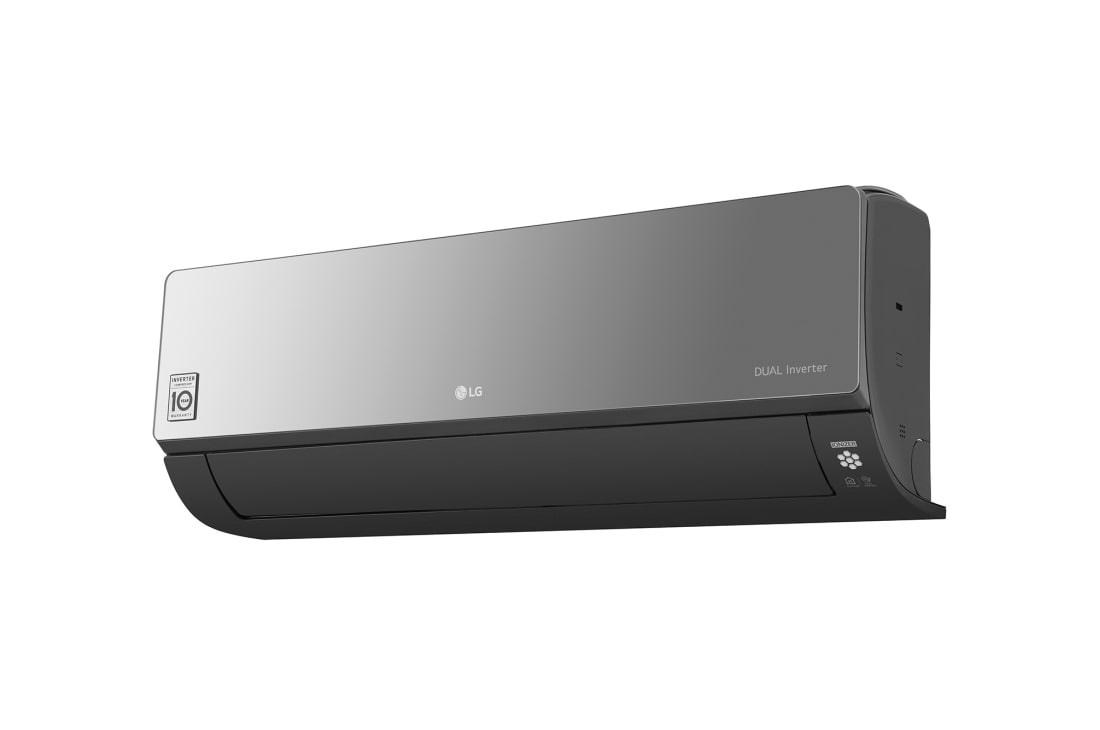

ARTCOOL Inverter AC, 1.5HP, Ioniser, Smart Diagnosis, Dual Inverter Compressor

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (S4-Q12JARTB)
    $
    $
    LG Members Price
Total

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (S4-Q12JARTB)
    $
    $
    LG Members Price
Total

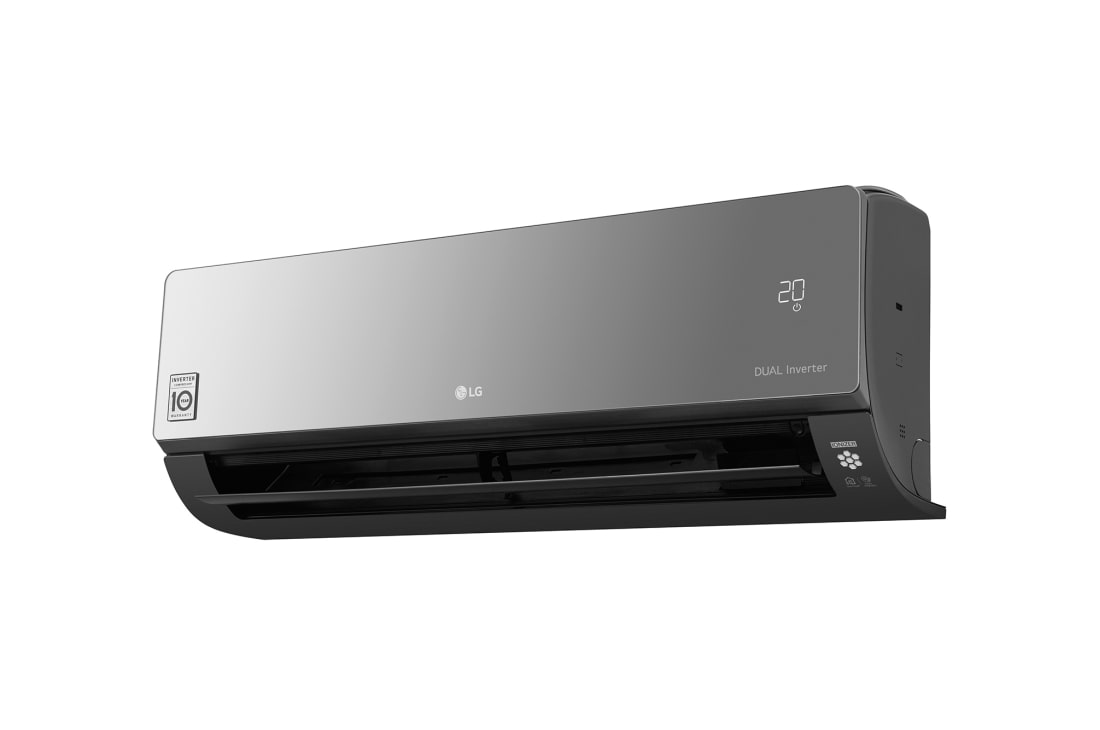

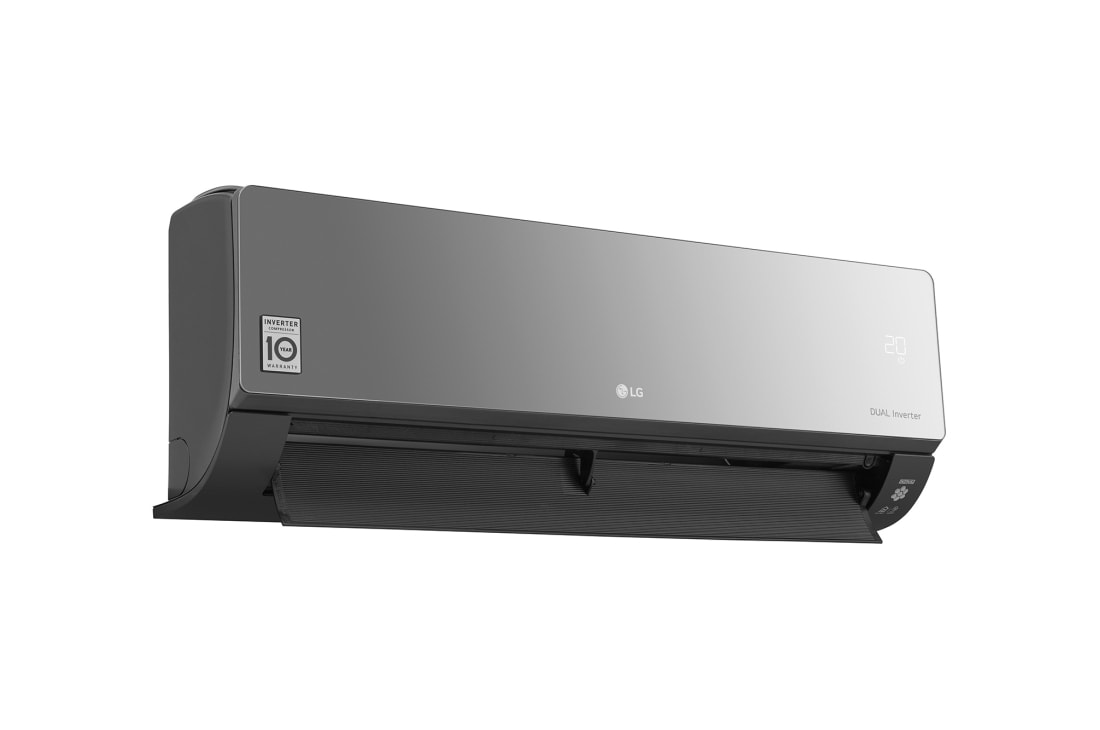

ARTCOOL Inverter AC, 1.5HP, Ioniser, Smart Diagnosis, Dual Inverter Compressor
*The actual product image may differ from the image shown above.

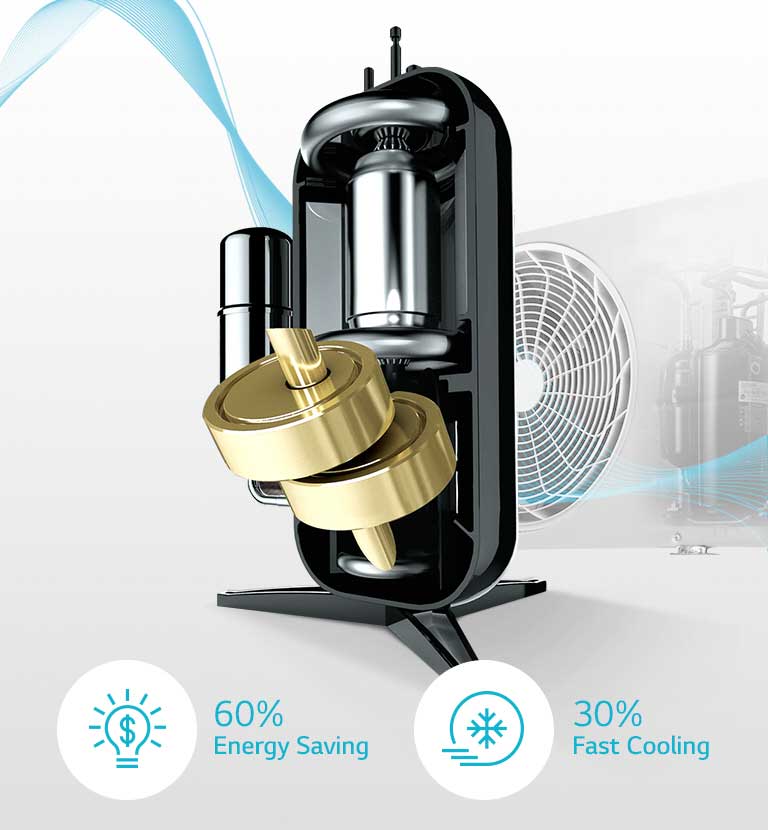

  • 10 Year Warranty1

    10 Year Warranty

    Verification obtained from TUV Rheinland for 10-year product life cycle.

  • TUV Rheinland1

    TUV Rheinland

    TUV Rheinland, Long Term Accelerated-reliability Test & High Marginal Test.

*The test was performed by INTERTEK ETL SEMKO Korea Ltd. (Test report No.: IF13-RE00573).
*Test chamber size : 52m3 volume.
*Test results may differ from results in actual room conditions.
*Test Condition: LG Internal Test.
  • Jet Cool1

    Jet Cool

    The optimized design of the air outlet provides more powerful airflow, which cools the room quickly.

  • Auto Cleaning1

    Auto Cleaning

    The comprehensive auto cleaning function prevents the forming of bacteria and mold on the heat exchanger and thus provides a more pleasant and comfortable environment for the user.

  • Micro Dust Filter1

    Micro Dust Filter

    The Micro Dust Filter captures and eliminates harmful micro-particles, including bacteria and dust, in order to deliver fresh, clean air.

  • Vertical 6 Steps Louver1

    Vertical 6 Steps Louver

    Users can choose the vane direction among 6 preset positions to meet the exact wind blow direction you desire.

  • 4 Way Swing1

    4 Way Swing

    LG air conditioners deliver cool air to every corner of your room. The 4 way swing function blows the air quickly and efficiently in many directions.

  • Gold Fin<sup>TM</sup>1

    Gold FinTM

    The Gold FinTM ensures that the surface is more resistant to corrosion and enhances the durability of heat exchanger for a much longer period.

  • Comfort Sleep1

    Comfort Sleep

    Comfort Sleep mode ensures the utmost comfort sleep environment by automatically adjusting 3 different functions(Indirect airflow/7hr off time set/Soft wind & sleep time logic),with one click.

  • DUAL Protection Filter1

    DUAL Protection Filter

    The DUAL Protection Filter captures dust size over 10?.

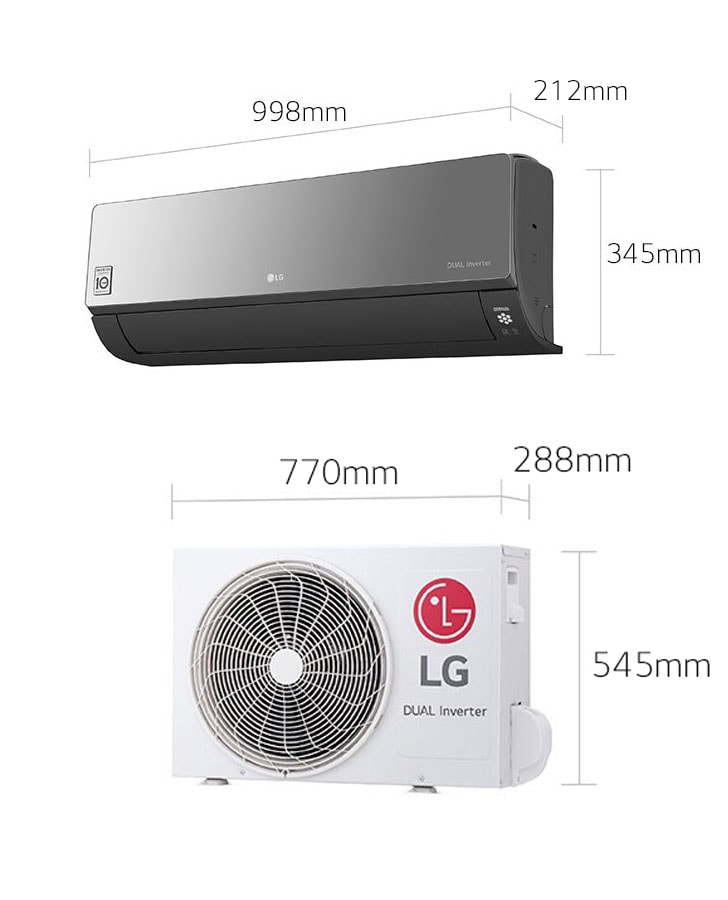

Dimensions
SPEC SUMMARY
  • CAPACITY
    1.5HP
  • DIMENSIONS (W X H X D)
    998 x 345 x 212
  • COMPRESSOR
    Dual Inverter
  • FEATURE
    Ionizer
BASIC SPEC
  • Type
    Wall Mount
    Color
    Black
  • Smart Function
    ThinQ™
CAPACITY
  • Cooling-Min (kW)
    0.95
    Cooling-Rated (kW)
    5.28
  • Cooling-Max (kW)
    5.84
    Cooling-Min (Btu/h)
    3,250
  • Cooling-Rated (Btu/h)
    18,000
    Cooling-Max (Btu/h)
    19,910
POWER INPUT
  • Cooling-Min (W)
    300
    Cooling-Rated (W)
    1,640
  • Cooling-Max (W)
    1,850
RUNNING CURRENT
  • Cooling-Min (A)
    1.90
    Cooling-Rated (A)
    7.60
  • Cooling-Max (A)
    8.90
EER
  • EER(W/W)
    3.22
    EER ((Btu/h)/W)
    10.98
POWER SUPPLY
  • Power Supply (Ø , V , Hz)
    1, 220 ~ 240, 50
AVAILABLE VOLTAGE RANGE
  • Available Voltage Range (V)
    187 ~ 276
POWER FACTOR
  • Cooling (%)
    95.2
MOISTURE REMOVAL
  • Moisture Removal (l/h)
    1.30
INDOOR
  • Air Flow Rate - Cooling, Max / H / M / L (㎥/min)
    18/12.7/10.2/8.4
    Sound Pressure Level - Cooling, Max / H / M / L / SL (dB(A))
    45/40/37/32
  • Dimensions (W × H × D) - Net (mm)
    998 × 345 × 212
    Dimensions (W × H × D) - Shipping (mm)
    1085 × 427 × 286
  • Weight - Net (kg)
    12.6
    Weight - Shipping (kg)
    16.2
  • Exterior Color Code
    Munsell 7.5PB 0.2/20 (RAL 9005)
OUTDOOR
  • Air Flow Rate - Max (㎥/min)
    38.0
    Fan Motor Speed - Cooling, Min ~ Max (rpm)
    650~900
  • Sound Pressure Level - Cooling, Rated (dB(A))
    54
    Dimensions (W × H × D) - Net (mm)
    770 x 545 x 288
  • Dimensions (W × H × D) - Shipping (mm)
    920 x 593 x 388
    Weight - Net (kg)
    32.8
  • Weight - Shipping (kg)
    35.2
    Max. Fuse Size (A)
    15
  • Exterior Color Code
    Munsell 9.54Y 8.34/1.31 (RAL 9001)
    Operation Range - Cooling (℃ DB)
    18 ~ 48
CIRCUIT BREAKER
  • Circuit Breaker (A)
    20
POWER SUPPLY CABLE
  • Power Supply Cable (No. × ㎟)
    3 × 1.5
POWER SUPPLY TO UNIT
  • Power Supply to Unit
    Indoor
POWER AND COMMUNICATION CABLE
  • Power and Communication Cable (No. × ㎟)
    4 x 1.5
PIPING
  • Size - Liquid (mm)
    Ø 6.35
    Size - Gas (mm)
    Ø 12.7
  • Connections Method - Indoor / Outdoor
    Flared/Flared
DRAIN HOSE SIZE
  • Drain Hose Size - O.D, I.D (mm)
    21.5,16.0
BETWEEN INDOOR & OUTDOOR
  • Piping Length - Min / Standard / Max (m)
    3/7.5/20
    Piping Length - No Charge (m)
    7.5
  • Max. Elevation Difference (m)
    15
    Piping Connection Heat Insulation
    Both liquid and gas pipes
REFRIGERANT
  • Type
    R410A
    Pre Charge (g)
    1,150
  • Additional Charge (g/m)
    20
    Control
    Capillary
  • Global Warning Potential
    2087.5
    t-CO₂ eq
    2.401
TOOL CODE(CHASSIS)
  • Indoor / Outdoor
    SK/UL2
COMPRESSOR
  • Type
    Twin Rotary
    Model
    GAT156MAD
  • Motor Type
    BLDC
    Oil Type / Maker
    POE (RB68A)/Sun Oil or Jx Nippon
  • Oil Charge
    400
    Manufacturer / Country of Origin
    LG Electronics/China
FAN(INDOOR)
  • Type
    Cross Flow Fan
    Motor Output- W
    30
FAN(OUTDOOR)
  • Type
    Propeller Fan
    Motor Type
    BLDC
  • Motor Output- W
    43
    Motor Insulation
    Class E
  • Motor Enclosure / Ingress Protection
    TEAO/IPX4
HEAT EXCHANGER
  • Evaporator - Material, Tube / Fin
    Cu/Al
    Evaporator - (Φ x Row x Column x FPI/FPDM x L) x Qty (1)
    (ø7 x 2 x 16 x 20 x 744) x 1
  • Evaporator - Corrosion Protection
    PCM
    Condenser - Material, Tube / Fin
    Cu/Al
  • Condenser - (Φ x Row x Column x FPI/FPDM x L) x Qty (1)
    (ø7 x 2 x 24 x 18 x 823) x 1
    Condenser - Corrosion Protection
    Gold
COUNTRY
  • Country
    Nigeria
    Ghana
    Angola
    Cote D'Ivoire
    Cameroon
    Benin
