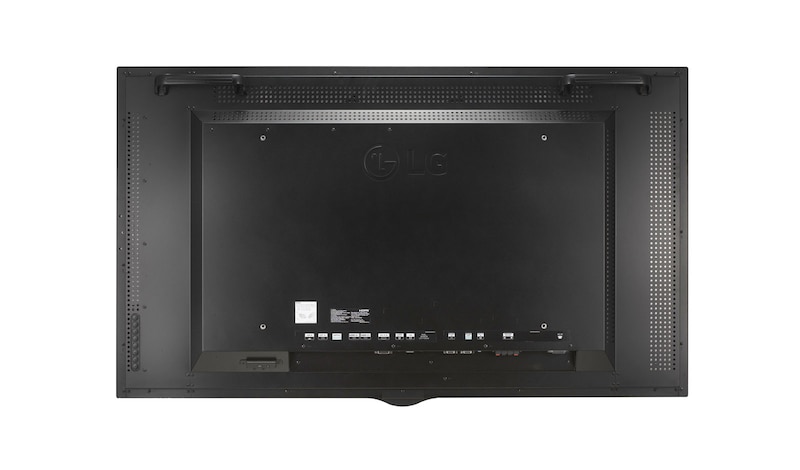

XS2C Series

XS2C Series

所有規格

PANEL

  • Screen Size

    75"

  • Resolution

    3,840 x 2,160 (UHD)

  • Brightness

    2500

CONNECTIVITY

  • Input

    HDMI(2), DP, DVI-D, Audio, USB, IR Receiver, Pixel Sensor

  • Output

    DP, External Speaker Out (L/R)

  • External Control

    RS232C (In/Out), RJ45

PHYSICAL SPECIFICATION

  • Bezel Width

    On bezel 12.8 mm / Off bezel 11.8 mm

  • Monitor Dimension(W x H x D)

    1,675.2 x 953.6 x 116 mm

  • Weight(Head)

    43 kg

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0°C to 40°C (w/o Direct Sunlight) / 0°C to 30°C (Direct Sunlight)

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    100-240V~, 50/60Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • Typ./Max

    650 W / 650 W

STANDARD(CERTIFICATION)

  • Safety

    RU / CB scheme

  • EMC

    FCC Class "A" / CE / KCC

SOFTWARE COMPATIBILITY

  • SuperSign-w lite

    Yes

  • SuperSign-c

    Yes

ACCESSORY

  • Basic

    Remote Controller (2 batteries included), Power Cord, HDMI Cable, Manual (ESG&EIG)

  • Optional

    LSW630 (Wall Mount), KT-SP0, AN-WF500 ** Stand is not available
