EMC
FCC Class A / CE / KC
Environment
RoHS
Video Inputs
HDMI In, DP In, OPS In, USB
Control
RJ45 In, RS232C In/out
Special Features
HDR10, Temperature Sensor, Power Detection, ADA Compliant, PSU Hot Swappable
Controller
LCLG003
Power Consumption (W/Unit, Avg.)
165
Power Consumption (W/Unit, Max.)
330
Power Consumption (W/m², Max.)
1275
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Lifetime (Half Brightness, hrs)
100,000 (It is subject to LED package spec.)
Operating Temperature (°C)
0°C to + 40°C
Operating Humidity
10-80% RH
Min. Brightness (After Calibration)
1,000<sup>1)</sup> cd/m² <sup>1)</sup>Brightness can be reduced (up to 300nit) by the number of PSU modules, thereby decreasing power consumption.
Color Temperature
3,200 ~ 9,300
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
140
Brightness Uniformity
95%
Color Uniformity
±0.015Cx, Cy
Contrast Ratio
6,000
Processing Depth (bit)
16 (HDR10)
Optional Accessory
ACC-LAPPC06(DC PSU Cable 6m), ACC-LAPPC60(DC PSU Cable 60m)

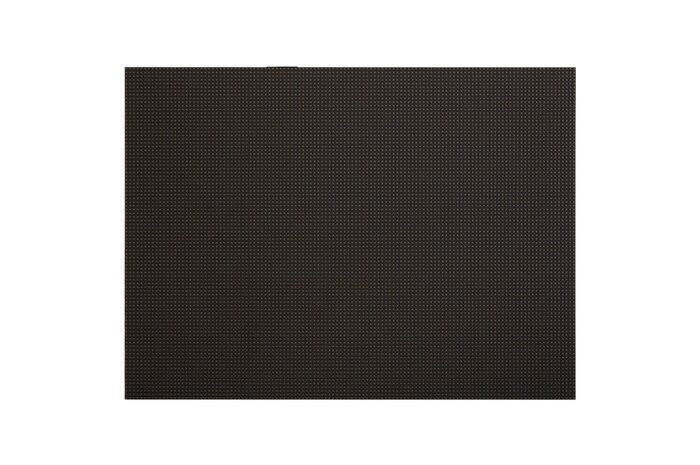

Pitch Name
P1.5
Pixel Configuration
3 in 1 SMD
Pixel Pitch (mm)
1.50
Module Resolution (W x H)
160 x 120

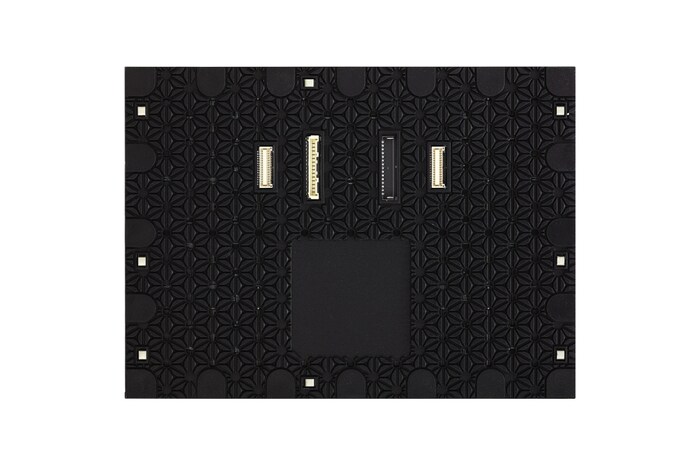

Module Dimensions (W x H, mm)
240 x 180
Weight per Module (kg)
0.36

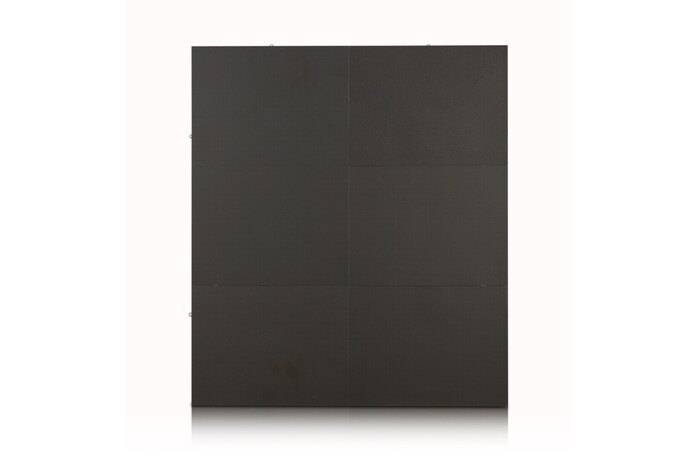

No. of Modules per Unit Case (W x H)
2 x 3
Unit Case Resolution (W x H)
320 x 360

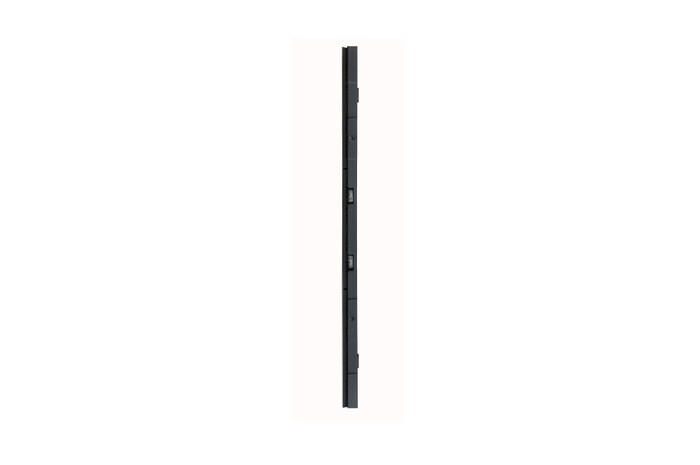

Unit Case Dimensions (W x H x D, mm)
480 x 540 x 53
Unit Case Surface Area (m²)
0.260
Weight per Unit Case (kg/unit)
6.0
Weight per Square Meter (kg/m²)
22.2
Physical Pixel Density (pixels/m²)
444,444
Flatness of Unit Case (mm)
±0.2
Unit Case Material
Die Casting Aluminum

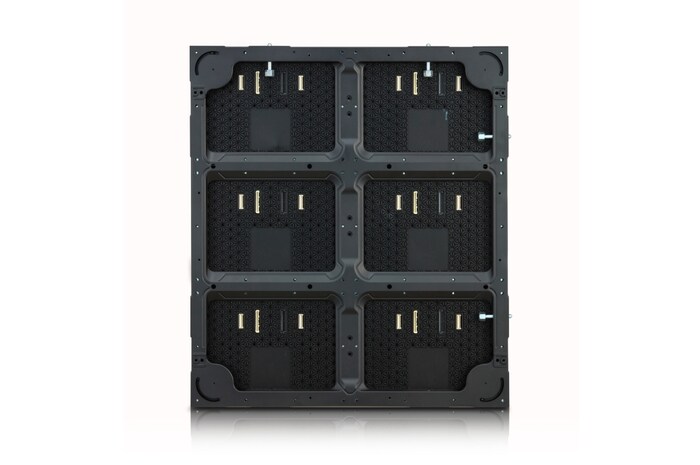

Service Access
Front and Rear
