- 21.3 吋 3MP IPS 顯示屏
- 1200cd/m² 亮度 (Typ.)
- 病理模式、焦點檢視模式
- 下照燈及壁燈
- 人體工學設計
所有規格
DIMENSIONS/WEIGHTS
Dimension with Stand (W x H x D) [mm]
343.1x640x234.6
Dimension without Stand (W x H x D) [mm]
343.1x484x72.4
Dimension in Shiping (W x H x D) [mm]
567x187x652
Weight with Stand [kg]
7
Weight without Stand [kg]
5
Weight in Shipping [kg]
10.5
FEATURES
DICOM Compliant
YES
Hot Key
YES(5keys)
HW Calibration
YES(PerfectLum)
Auto Brightness
YES
Brightness stabilization
YES
Flicker Safe
YES
Presence Sensor
YES
Front Sensor
YES
Reader Mode
YES(Text mode)
Color Temperature
6500K/7500K/9300K/Manual (5000K ~ 10000K)
Pathology Mode
YES
Super Resolution+
YES
Focus View
YES
Light Box Mode
YES
Lighting
YES(Down/ Wall)
Black Stabilizer
YES
Smart Energy Saving
YES
CONNECTIVITY
DisplayPort
YES(In 2ea/Out 1ea)
Daisy Chain
YES(3MP/60Hz)
USB Upstream Port
YES(2ea/ver3.0)
USB Downstream Port
YES(2ea/ver3.0)
POWER
Type
External Power(Adapter)
DC Output
19V, 6.32A
AC Input
100-240Vac, 50/60Hz
Power Consumption (DC Off)
Less than 0.3W
STANDARD
RoHS
YES
REACH
YES
WEEE
YES
MFDS
YES
UL (cUL)
YES
IEC (IEC 60601-1 / IEC 60601-1-2)
YES
EN (EN 60601-1 / EN 60601-1-2)
YES
IEC (IEC 60950-1 / IEC 55032, 55024)
YES
EN (EN 60950-1 / EN 55032, 55024)
YES
CE
MDR
FDA
510(k) (Class II)
ISO13485
YES
GMP
YES
ACCESSORY
Power Cord
YES
Adapter
YES
Calibration Report (Paper)
YES
DVI-D
YES
Display Port
YES
USB A to B
YES
DISPLAY
Size [Inch]
21.3
Resolution
1536x2048
Aspect Ratio
3:4
Pixel Pitch [mm]
0.2115x0.2115
Brightness (Typ.) [cd/m²]
1100
Color Gamut (Typ.)
NTSC 72%
Color Bit
10bit
Contrast Ratio (Typ.)
1800:1
Surface Treatment
Anti-glare, 3H
Response Time
5ms (GtG at Faster)
Viewing Angle (CR≥10)
178°(Right/Left), 178°(Up/Down)
MECHANICAL
Borderless Design
Normal
Machanical Power Switch
YES
OneClick Stand
YES

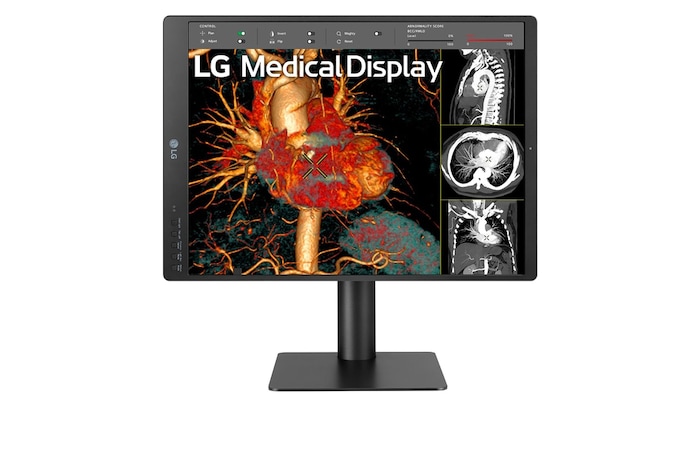

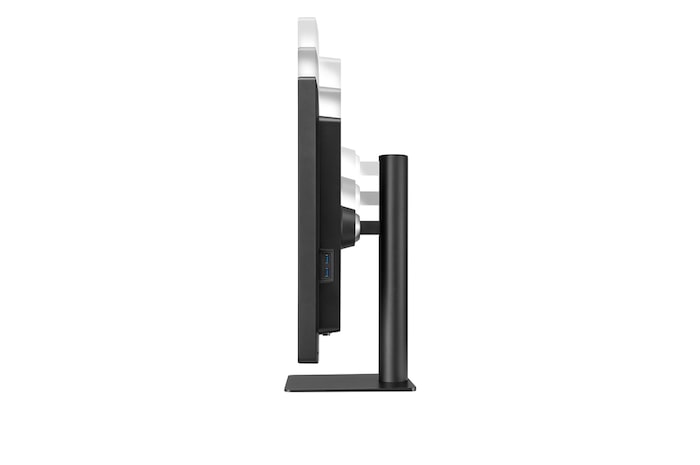

Display Position Adjustments
Tilt/Height/Pivot
Wall Mountable [mm]
100x100
