| Model Name | LBS060DA1D | LBS060DA3D | LBS080DA1D | LBS080DA3D |
|---|---|---|---|---|
| Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
| Pixel Pitch(mm) | 6 | 6 | 8 | 8 |
| Unit Case Resolution(WxH) | 192x128 | 192x128 | 192x192 | 192x192 |
| Unit Case Dimensions(WxHxD, mm) | 1152x768x217 | 1152x768x217 | 1536x1536x222 | 1536x1536x222 |
| Weight per Unit Case/Square Meter (kg) | 42.0/47.5 | 42.0/47.5 | 104.0/44.1 | 104.0/44.1 |
| Service access | Front or Rear | Front or Rear | Front and Rear | Front and Rear |
| Min. Brightness(After Calibration, cd/m²) | 6,000 | 6,000 | 6,000 | 6,000 |
| Color Temperature | 3500-8500 | 3500-8500 | 3500-8500 | 3500-8500 |
| Visual Viewing Angle(Horizontal/Vertical) | 160/135 | 160/135 | 160/135 | 160/135 |
| Brightness Uniformity / Color Uniformity | 97％/±0.05Cx,Cy | 97％/±0.05Cx,Cy | 97％/±0.05Cx,Cy | 97％/±0.05Cx,Cy |
| Contrast Ratio | 3,000 | 3,000 | 3,000 | 3,000 |

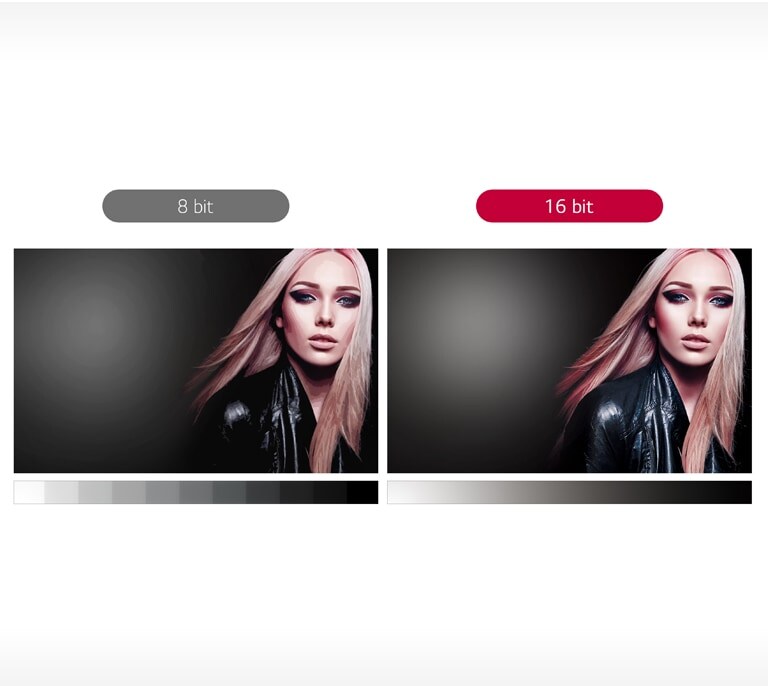

| Processing Depth (bit) | 16 | 16 | 16 | 16 |
| Power Consumption(W/Unit, Avg./Max.) | 240/600 | 232/580 | 584/1460 | 552/1380 |
| Power Consumption(W/m², Max.) | 678 | 656 | 619 | 585 |
| Power Supply (V) | 100 to 240 | 100 to 240 | 100 to 240 | 100 to 240 |
| Refresh Rate (Hz) | 4,000 | 4,000 | 4,000 | 4,000 |
| Lifetime(Half brightness, hrs)* | 100,000 | 100,000 | 100,000 | 100,000 |
| Operating Temperature(°C) / Humidity | -20° to 50°/< 90％RH | -20° to 50°/< 90％RH | -20° to 50°/< 90％RH | -20° to 50°/< 90％RH |
| IP rating Front / Rear | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
*The Lifetime spec is subject to LED package spec.**All the models apply SMD package with goldwire.***Models may vary by region. Check with local salesteam.
| Model Name | LBS100DA1D | LBS100DA3D | LBS120DA1D | LBS120DA3D |
|---|---|---|---|---|
| Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
| Pixel Pitch(mm) | 10.667 | 10.667 | 12 | 12 |
| Unit Case Resolution(WxH) | 144x144 | 144x144 | 128x128 | 128x128 |
| Unit Case Dimensions(WxHxD, mm) | 1536x1536x222 | 1536x1536x222 | 1536x1536x223 | 1536x1536x223 |
| Weight per Unit Case/Square Meter (kg) | 104.0/44.1 | 104.0/44.1 | 104.0/44.1 | 104.0/44.1 |
| Service access | Front and Rear | Front and Rear | Front and Rear | Front and Rear |
| Min. Brightness(After Calibration, cd/m²) | 6,000 | 6,000 | 6,000 | 6,000 |
| Color Temperature | 3500-8500 | 3500-8500 | 3500-8500 | 3500-8500 |
| Visual Viewing Angle(Horizontal/Vertical) | 160/145 | 160/145 | 160/125 | 160/125 |
| Brightness Uniformity / Color Uniformity | 97％/±0.05Cx,Cy | 97％/±0.05Cx,Cy | 97％/±0.05Cx,Cy | 97％/±0.05Cx,Cy |
| Contrast Ratio | 3,000 | 3,000 | 3,000 | 3,000 |
| Processing Depth (bit) | 16 | 16 | 16 | 16 |
| Power Consumption(W/Unit, Avg./Max.) | 616/1540 | 580/1450 | 580/1450 | 544/1360 |
| Power Consumption(W/m², Max.) | 653 | 615 | 615 | 576 |
| Power Supply (V) | 100 to 240 | 100 to 240 | 100 to 240 | 100 to 240 |
| Refresh Rate (Hz) | 4,000 | 4,000 | 4,000 | 4,000 |
| Lifetime(Half brightness, hrs)* | 100,000 | 100,000 | 100,000 | 100,000 |
| Operating Temperature(°C) / Humidity | -20° to 50°/< 90％RH | -20° to 50°/< 90％RH | -20° to 50°/< 90％RH | -20° to 50°/< 90％RH |
| IP rating Front / Rear | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
*The Lifetime spec is subject to LED package spec.**All the models apply SMD package with goldwire.***Models may vary by region. Check with local salesteam.
| Model Name | LBS160DA1D | LBS160DA3D | LBF160DA1D | LBB160DA1D2 |
|---|---|---|---|---|
| Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
| Pixel Pitch(mm) | 16 | 16 | 16 | 16 |
| Unit Case Resolution(WxH) | 96x96 | 96x96 | 48x60 | 96x60 |
| Unit Case Dimensions(WxHxD, mm) | 1536x1536x227 | 1536x1536x227 | 768x960x254 | 1536x960x215 |
| Weight per Unit Case/Square Meter (kg) | 104.0/44.1 | 104.0/44.1 | 40.0/54.3 | 71.0/48.1 |
| Service access | Front and Rear | Front and Rear | TOP | Front and Rear |
| Min. Brightness(After Calibration, cd/m²) | 6,000 | 6,000 | 6,000 | 6,000 |
| Color Temperature | 3500-8500 | 3500-8500 | 3500-8500 | 3500-8500 |
| Visual Viewing Angle(Horizontal/Vertical) | 160/105 | 160/105 | 160/105 | 160/105 |
| Brightness Uniformity / Color Uniformity | 97％/±0.05Cx,Cy | 97％/±0.05Cx,Cy | 97％/±0.05Cx,Cy | 97％/±0.05Cx,Cy |
| Contrast Ratio | 3,000 | 3,000 | 3,000 | 3,000 |
| Processing Depth (bit) | 16 | 16 | 16 | 16 |
| Power Consumption(W/Unit, Avg./Max.) | 620/1550 | 584/1460 | 184/460 | 372/930 |
| Power Consumption(W/m², Max.) | 657 | 619 | 624 | 631 |
| Power Supply (V) | 100 to 240 | 100 to 240 | 100 to 240 | 100 to 240 |
| Refresh Rate (Hz) | 4,000 | 4,000 | 4,000 | 4,000 |
| Lifetime(Half brightness, hrs)* | 100,000 | 100,000 | 100,000 | 100,000 |
| Operating Temperature(°C) / Humidity | -20° to 50°/< 90％RH | -20° to 50°/< 90％RH | -20° to 50°/< 90％RH | -20° to 50°/< 90％RH |
| IP rating Front / Rear | IP65/IP54 | IP65/IP54 | IP65/IP43 | IP65/IP54 |
*The Lifetime spec is subject to LED package spec.**All the models apply SMD package with goldwire.***Models may vary by region. Check with local salesteam.
