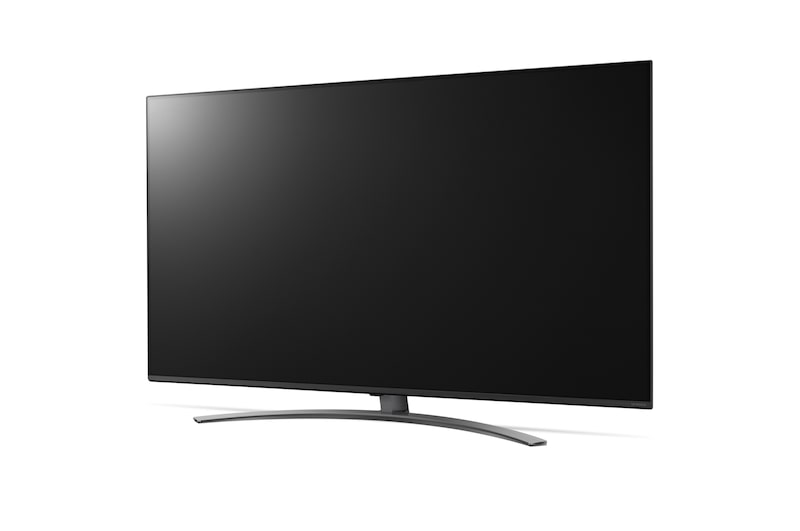

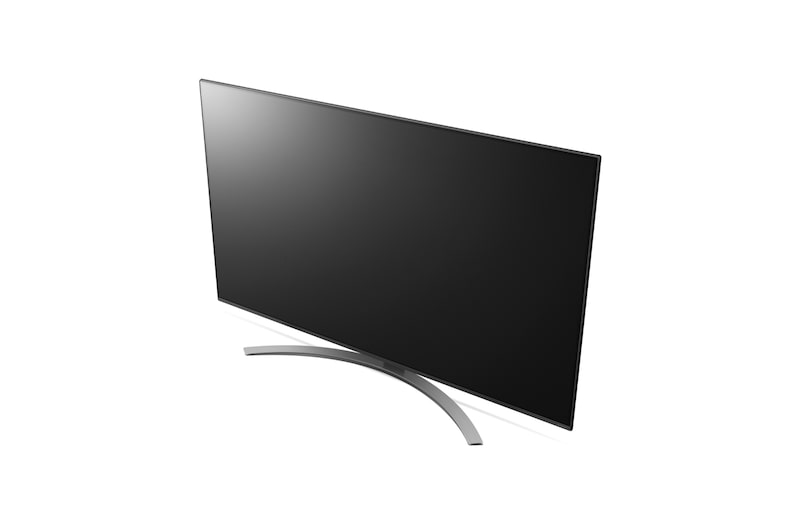

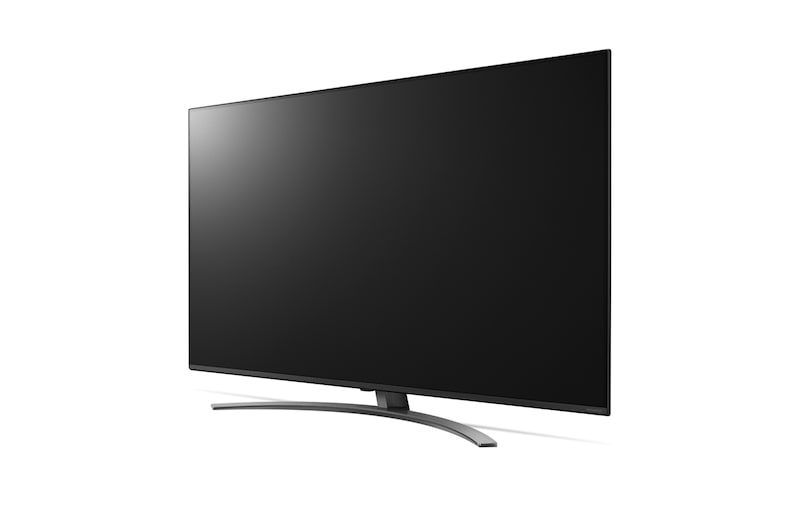

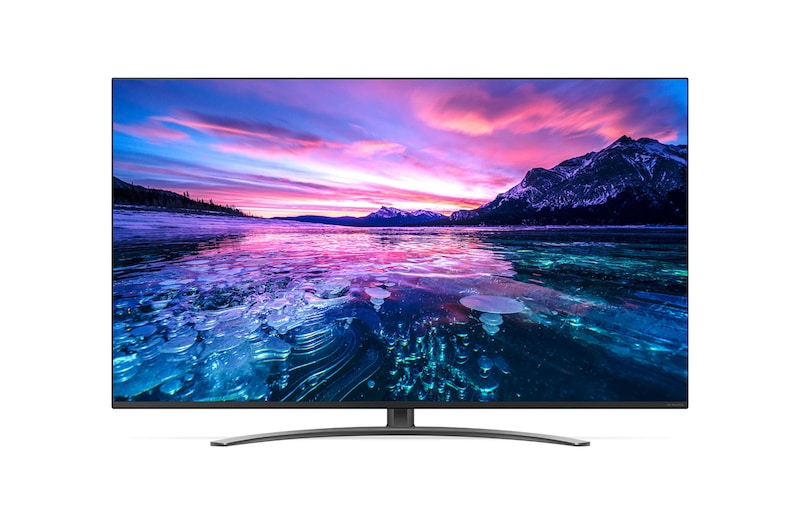

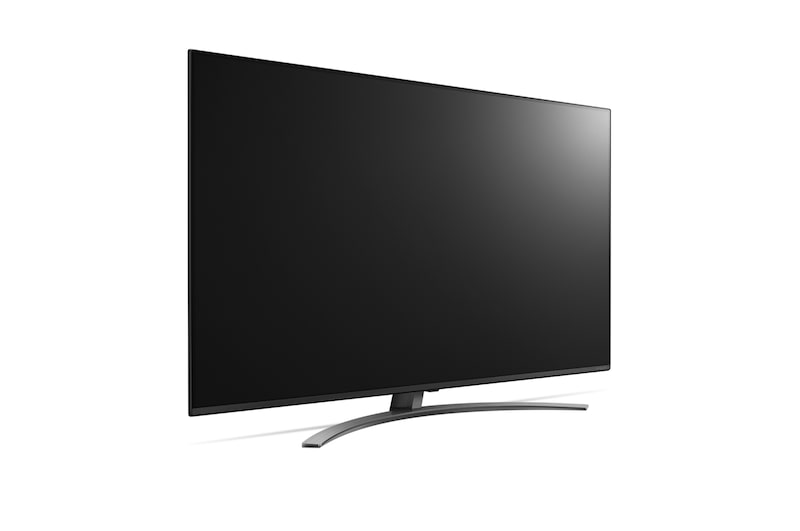

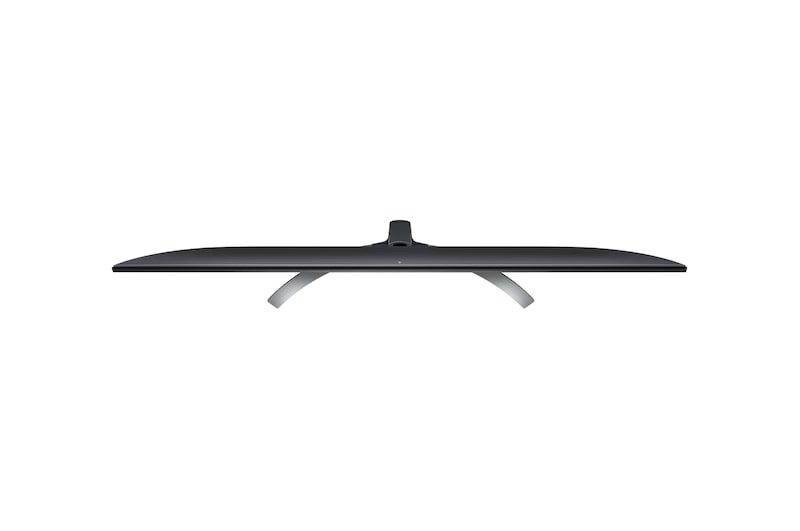

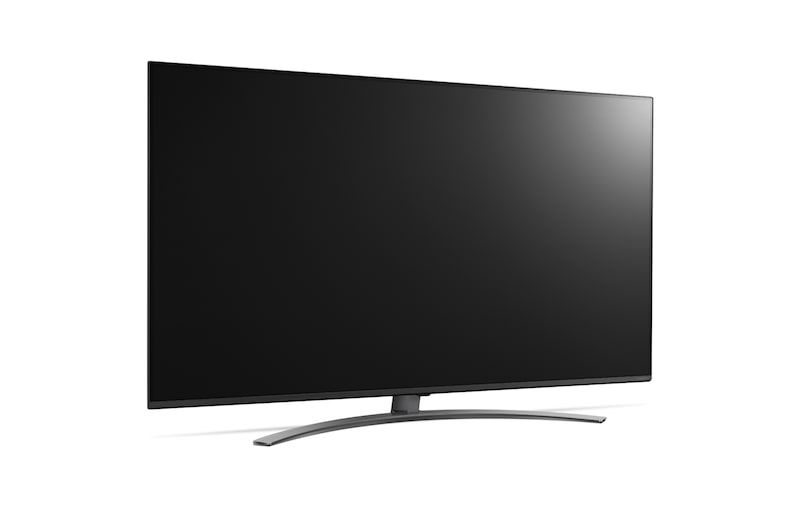

US761H Series - 65” Commercial Hotel TV

65US761H0CD

US761H Series - 65” Commercial Hotel TV

4K UHD Hospitality TV with
NanoCell Display and
Pro:Centric Direct

US761H with NanoCell Display features UHD resolution that creates vivid details and a virtually flawless picture. And it features Pro:Centric technologies for easy management, configuration and updates on guest room TVs via a centralized management system.

4K UHD Hospitality TV with NanoCell Display and Pro:Centric Direct

Real 4K Made by Pure Colors

NanoCell TV delivers a broad spectrum of color and lifelike accuracy with advanced NanoCell technology, which makes LG Hotel TV the best ever. Discover the more brilliant and clear visual experience with Real 4K that NanoCell TV delivers.

Real 4K Made by Pure Colors

* The above image is for illustrative purposes only.

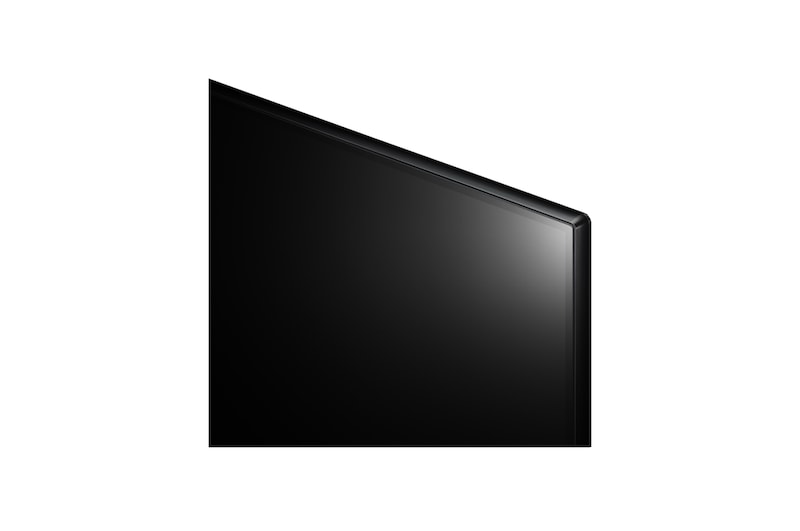

Nano Bezel Adds Sophisticated Ambiance

With its minimal Nano Bezel, NanoCell is designed to blend into any interior and delivers immersive viewing experience without any interruption.

Nano Bezel Adds Sophisticated Ambiance

* The above image is for illustrative purposes only.

Pro:Centric Direct

The hotel content management solution Pro:Centric Direct offers easy and simple editing tools, making it easy to perform service and IP network-based remote management with a single click. The Pro:Centric Direct solution enables users to edit their interface easily by providing customized interface and efficiently manages all TVs in the room.

Pro:Centric Direct

* Some features may not be supported based on PCD versions.

More Innovative LG webOS 5.0

Explore the latest LG Smart TV features. Newly added Mood Display & Gallery Mode enable you to utilize the TV as a customized clock and an artwork which perfectly harmonizes with your space and life.

More Innovative LG webOS 5.0

Soft AP

Software-enabled Access Point (Soft AP) is a "virtual" Wi-Fi feature that uses TV as a wireless hotspot, enabling guests to connect their own devices to the Soft AP. It supports Bridge Mode, allowing administrators to manage in-room Soft AP information such as signal level, Soft AP passwords, etc.

Soft AP

* Soft AP should be set in the installation menu after the TV is turned on.
* Smart Mirroring may not be operated at the same time.

Welcome Video / Screen

With the capability to display several images, LG Commercial TV allows for a greater variation of greeting messages in hotel rooms which make customers feel more welcome and cared for.

welcome_video_/ Screen

Hotel Mode
(Public Display Mode)

From channel selection to volume level, you can control the TV settings in business areas. Public Display Mode also enables you to restore default settings, as required, on the TVs.

Hotel Mode (Public Display Mode)

USB Cloning

USB data cloning makes managing multiple displays more efficient for optimal operation. Instead of setting up each display one by one, data can be copied to a USB for one display and can be sent to the other displays through a USB plug-in.

USB Cloning

IR Out

Using the interactive set-top box, all LG TVs can be controlled with a single remote control.

IR Out

All Spec

INFO

Category

Pro:Centric Smart

DESIGN

Tool Name

SM85

Stand Type

1 Pole (Fixed)

Front Color

Ceramic BK

DISPLAY

Size (Inch)

65

Resolution

4K Ultra HD (3,840 x 2,160)

Brightness (Typ.)

400 nit

VIDEO

AI Picture Pro

-

HDR_HDR 10 Pro

YES

HDR_HLG (Hybrid Log Gamma)

YES

Game Optimizer

-

AUDIO (SOUND)

Speaker (Audio Output)

20W

AI Sound

YES

AI Acoustic Tuning

YES (Ready, MMR Required)

LG Sound Sync

YES

BROADCASTING SYSTEM

Digital

DTMB

Analog (NTSC / SECAM / PAL)

PAL-I, PAL BG/DK, NTSC-M

Teletext (Auto Teletext)

-

HOSPITALITY SOLUTION

Pro:Centric Smart

YES

webRTC (Real Time Communication)

YES

Pro:Centric Cloud

-

Pro:Centric Direct

YES

Pro:Centric V

YES

Pro:Centric Server

YES

Quick Menu (Customizable Portal)

YES

Pro:Idiom (DRM)

YES

Pro:Idiom Media (DRM)

YES

Other DRM

-

SMART FUNCTION

webOS version

webOS 5.0

Web Browser

YES

Magic Remote Compatibility

YES (Ready)

Multi-View

-

AOD

-

Mood Display

YES

Gallery Mode

YES

Home Office

-

Wi-Fi

YES

Bluetooth

YES

Soft AP

YES

Screen Share

YES

DIAL

YES

Bluetooth Audio Playback

YES

HDMI-ARC

YES (HDMI2)

Voice Recognition (Standalone/Solution)

YES

IoT

YES

HOSPITALITY FEATURE

EzManager

YES

USB Cloning

YES

Enterprise Mode

-

Wake on RF

YES

WOL

YES

SNMP

YES

Diagnostics

YES (IP Remote)

HTNG-CEC (Version)

YES (1.4)

Simplink(HDMI-CEC) (Version)

YES (1.4)

IR Out

YES (RS-232C, HDMI)

Multi IR Code

YES

Hotel Mode / PDM / Installer Menu

YES

Welcome Video

YES

Welcome Screen (Splash Image)

YES

Insert Image

YES

One Channel Map

YES

External Speaker Out / Line Out

YES (Ext. Speaker Out)

USB Auto playback / playback+

-

Instant ON

YES

V-Lan Tag

YES

Mobile Remote

-

Port Block

YES

Lock mode

YES (Limited)

RJP (Remote Jack Pack) Compatibility

YES

External Power Out

YES

Full Touch Screen

-

b-LAN

-

Conformal Coating

-

Energy Saving mode

-

VERTICAL FUNCTION (HOSPITAL)

Pillow Speaker

-

Healthcare Headphone Mode

YES

Protection Cover (Glass)

-

VERTICAL FUNCTION (CORPORATE/RETAIL)

Vertical Setup

-

Fail Over

-

Play Via URL

-

NTP Server Setting

-

CISCO Certi. Compatibility

-

Crestron Certi. Compatibility

-

DPM (Digital Power Management)

-

Time scheduler

-

RTC (Real Time Clock)

YES

NTP sync timer

YES

BEACON

YES

Video Tag

YES (2 Video)

Embedded CM (Contents Manager)

-

Embedded GM (Group Manager)

-

Promota / Mobile CMS

-

SUPERSIGN SW COMPATIBILITY

Control / Control Plus

-

CMS(Premium)

-

Simple Editor

-

LG Connected Care

-

CONNECTIVITIES

HDMI In

YES (3ea)

USB (Ver.)

YES (2ea / 2.0)

RF In

YES (1ea)

AV In

-

Component in (Y,Pb,Pr-Video)

-

RGB In (D-sub 15pin) - PC

-

Digital Audio Out (Optical)

YES

PC Audio Input

-

External Speaker Out(3.5mm Phone jack)

YES

Audio Line Out(3.5mm Phone jack)

-

Headphone Out

YES

CI Slot

-

RJ45 (Usage Purpose)

2 (Ethernet, Aux)

RS-232C (D-Sub 9pin / Phone jack)

YES (D-Sub 9pin)

TV link Configuration (Phone jack type)

-

LG SVC only (Phone jack type)

-

MPI Port (RJ12 jack)

-

ECI (RJ12 jack)

-

Pillow Speaker interface (6pin)

-

Expansion slot (60pin)

-

DC Adapter In

-

PoC (Power over Coax)

-

EXT. IR In

-

MECHANICAL

VESA Compatible

300 x 300 mm

Kensington Lock

YES

Credenza/Security Screw Hole

YES (Need Stand) (Except 65"")

Lock Down Plate (for easy installing)

YES (Need Stand) (Except 65"")

DIMENSIONS/WEIGHT

Dimension with Stand (W x H x D)

1451 x 910 x 324 mm

Dimension without Stand (W x H x D)

1451 x 840 x 64 mm

Dimension in Shipping (W x H x D)

1600 x 1035 x 207 mm

Bezel Width (L/R/U/B, On Bezel)

11.3/11.3/11.3/19.8 mm

Bezel Width (L/R/U/B, Off Bezel)

5.0/5.0/5.0/16.6 mm

Weight with Stand

25.8 kg

Weight without Stand

24.1 kg

Weight in Shipping

33.3 kg

POWER SPEC.

Power Supply (Voltage, Hz)

AC 100~240V 50/60Hz

Power Consumption(Max)

179W

Power Consumption(Typ)

160W

Standby Power Consumption

Under 0.5W

STANDARD

Safety

CB

EMC

CE

Others

-

STANDARD (EU_OLD LABEL(~`21.3))

ErP Class

-

On Power Consumption

-

Luminance Ratio (%)

-

Average Annual Consumption(kWh)

-

STANDARD (EU_NEW LABEL(`21.3~))

SDR Grade

-

SDR On mode

-

HDR Grade

-

HDR On mode

-

ACCESSORIES

Remote type

S-Con / MMR (Option)

Power Cable

YES (1.5M / Angle Type)
