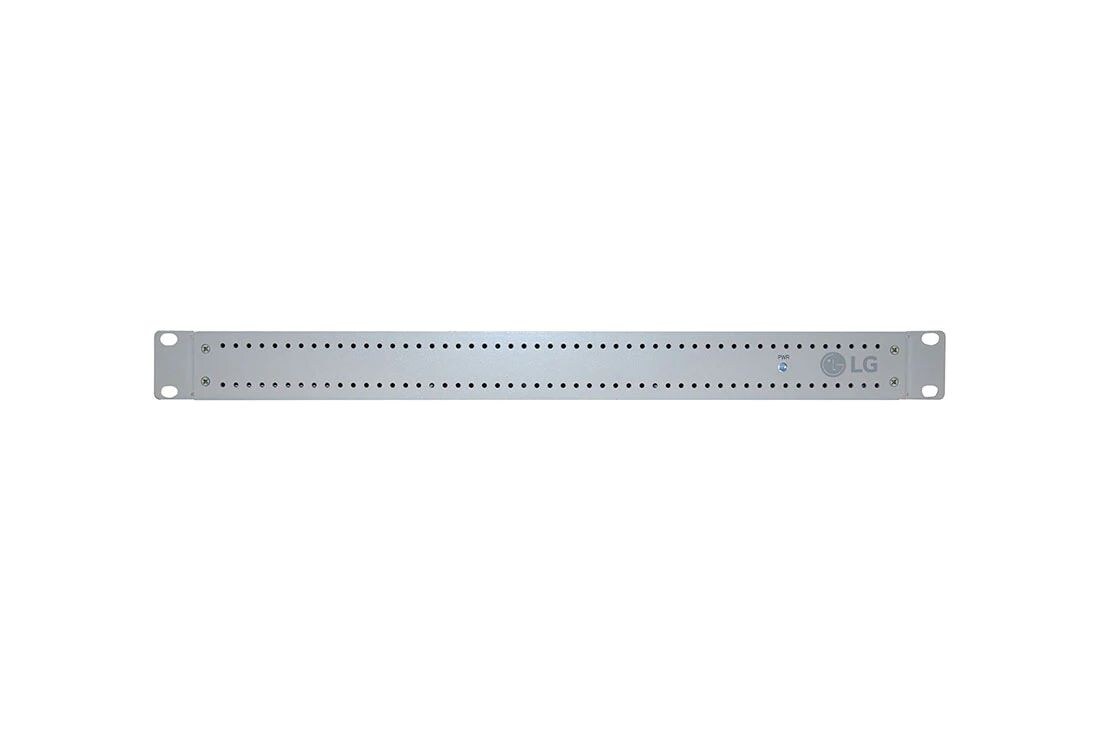

Pro:Centric® Server with HTML5 Content Management, UI Editor, and Server Admin Client
PCS500R
(1) Site inspection is required on selected products,. (2) Extra cost involved on installation service at Discovery Bay. Please refer to FAQ section for details.
Shipping delays may occur due to the delivery company's circumstance., weather and traffic.
Software
Linux OS kernel 3.10, PCA (Java) and PCD (HTML) server applications
Data Output
RF, 100/1000T Ethernet
Rear Port
RF/RF Tap/TTL serial, Ethernet 2 Port
DC Input
+19V DC @ 2.2Amps Adaptor
RF Output Connectors (2)
75Ohm, Type 'F'
RF Output Span
Up to 8 Channels (Typically 48-64MHz) (non-contiguous)
RF Output Frequency Range
54MHz to 865MHz
Active Output Level
-1dBm (+47.75dBmV) Typical
Test Output Level
-47.75dBm (+1dBmV) Typical
Frequency Accuracy
+/- 5 ppm
Ethernet Connector (Control Port)
10/100/1000 BaseT, RJ-45
Ethernet Connector (Feature Port)
100/1000 BaseT, Full Duplex RJ-45
TTL-UART
Command Line Interface port (5V TTL)
CPU/Memory/Storage
64-bit Intel i3-6100U (4 threads at 2.3GHz), 16GB memory, 128GB SSD/Expandable storage with M.2 NGFF or 2.5" SSD
Standard
ITU-T J.83 Annex B (QAM-B)
Constellations
64-QAM, 256-QAM
Symbol Rate
64-QAM, 5.056941 MBaud/256-QAM, 5.360537 MBaud
Interleaving
Fixed I=128, J=1
Parameters
64-QAM, 7/8 Convolutional Code, 1/32 Guard Interval Ratio, 2K FFT, 13 Segments
Sample Rate
8.126984 Ms/s
Temperature
32° to 104° Fahrenheit
Humidity
95% Non-condensing
Storage Temperature
-4° to 158° Fahrenheit (-20° to 70° Celsius)
Humidity
95% Non-condensing
Regulatory Compliance
FCC, UL, RoHS
Unit Dimensions (W × H × D)
19.0” x 1.7” x 8.5”
Unit Weight (Rack-only)
5.65 Ibs.
Warranty
1 Year
UPC
719192641662
