21.5" 1,500nits IP-rated FHD Outdoor Display

Features

Gallery

Specs

Support

21.5" 1,500nits IP-rated FHD Outdoor Display

21.5" 1,500nits IP-rated FHD Outdoor Display

22XE1J-B
  • Front view of 22XE1J-B with infill image
  • Front view of 22XE1J-B
  • -45 degree side view of 22XE1J-B
  • -90 degree side view of 22XE1J-B
  • +45 degree side view of 22XE1J-B
  • +90 degree side view of 22XE1J-B
  • Rear view of 22XE1J-B
  • Rear view 2 of 22XE1J-B
  • Top view of 22XE1J-B
  • Portrait front view of 22XE1J-B
  • Portrait -45 degree side view of 22XE1J-B

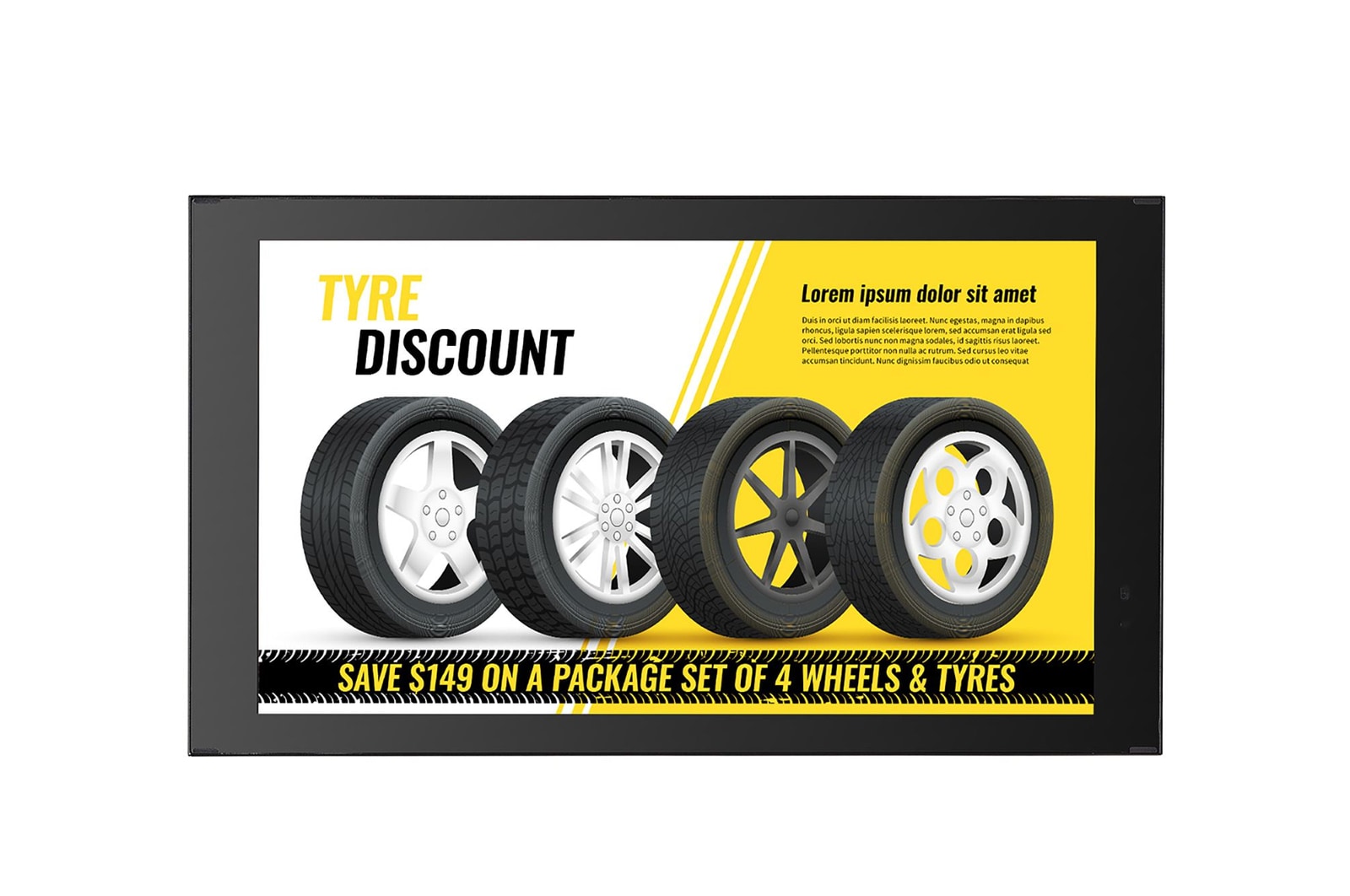

Front view of 22XE1J-B with infill image

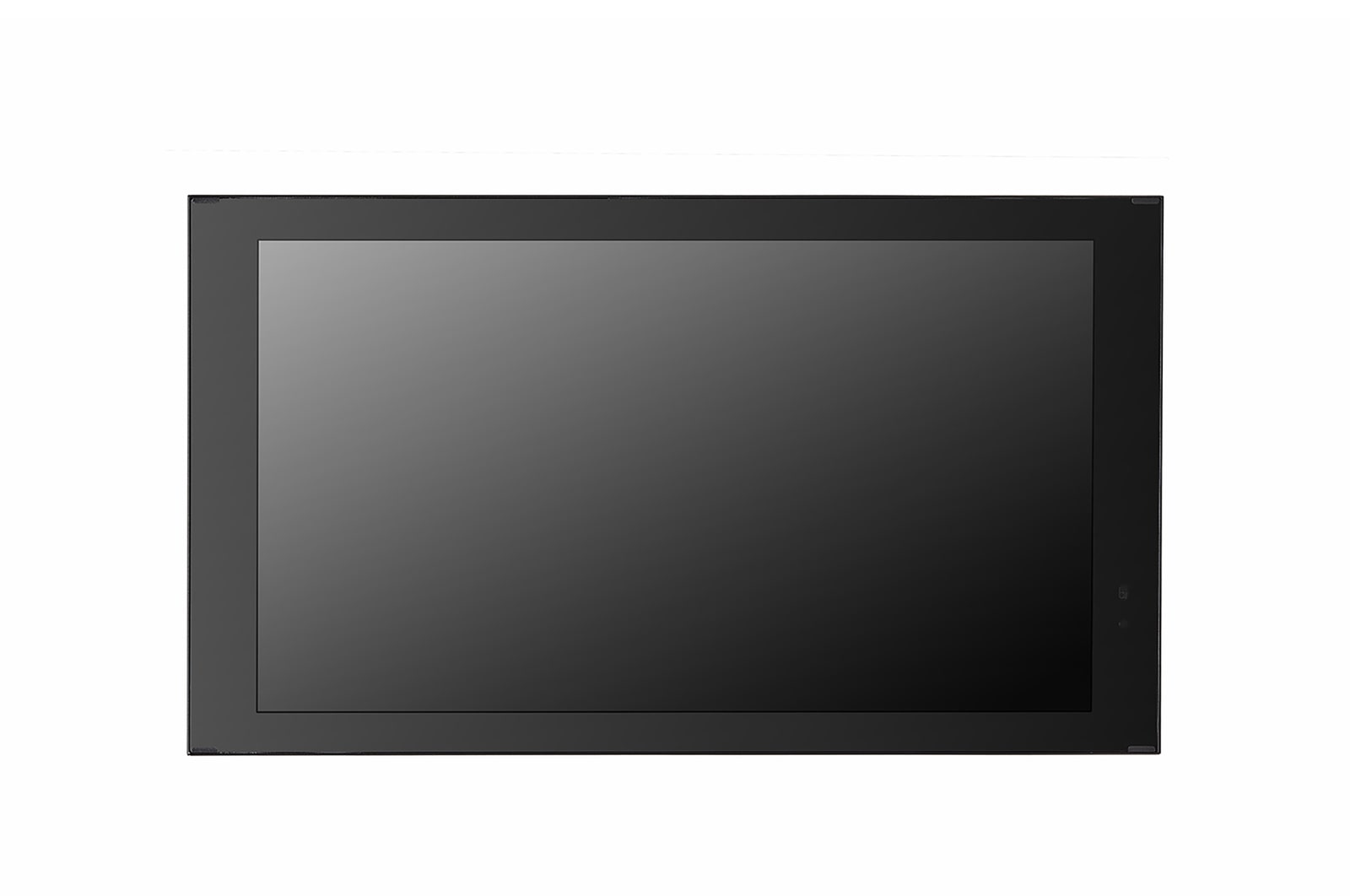

Front view of 22XE1J-B

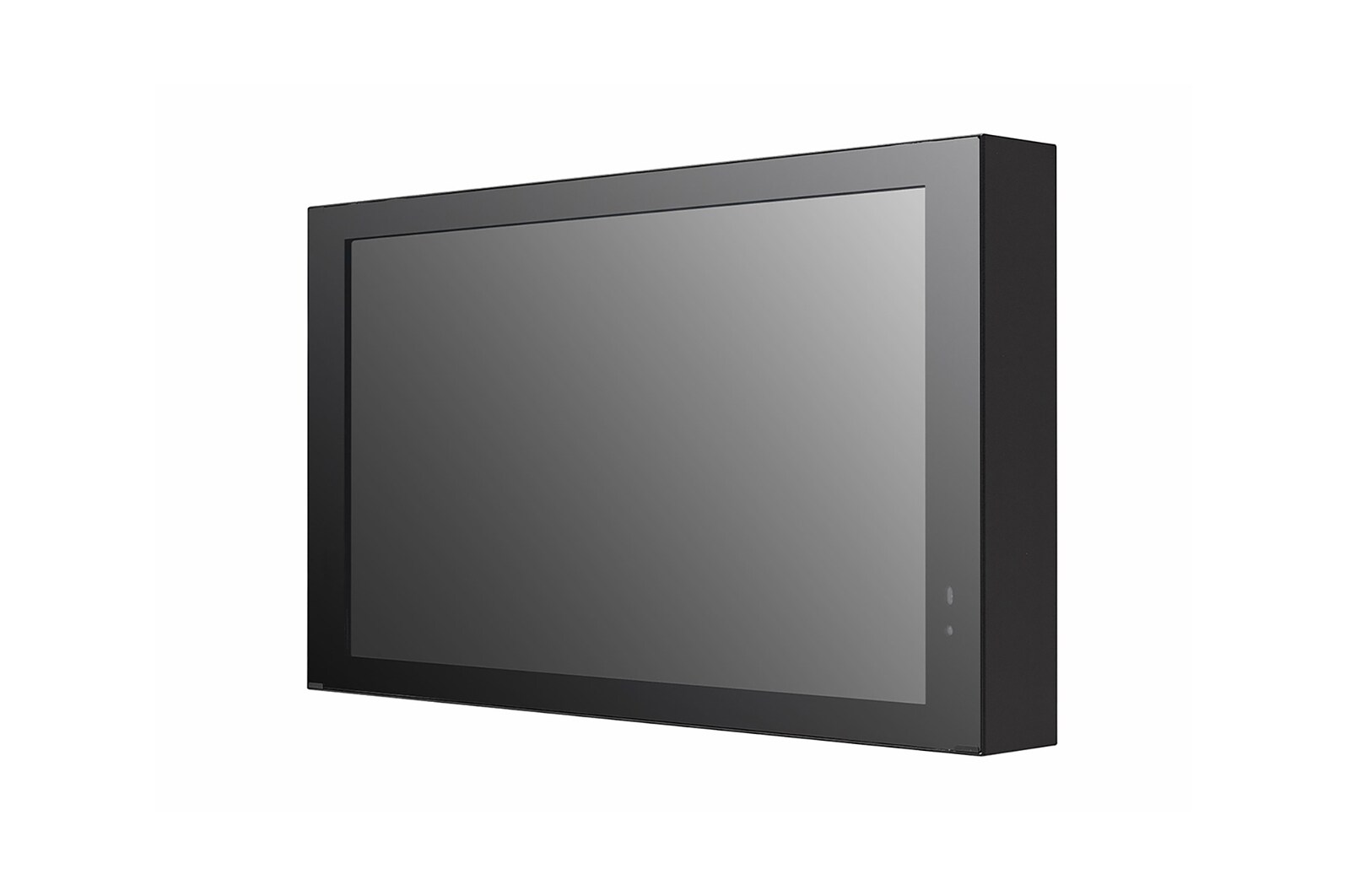

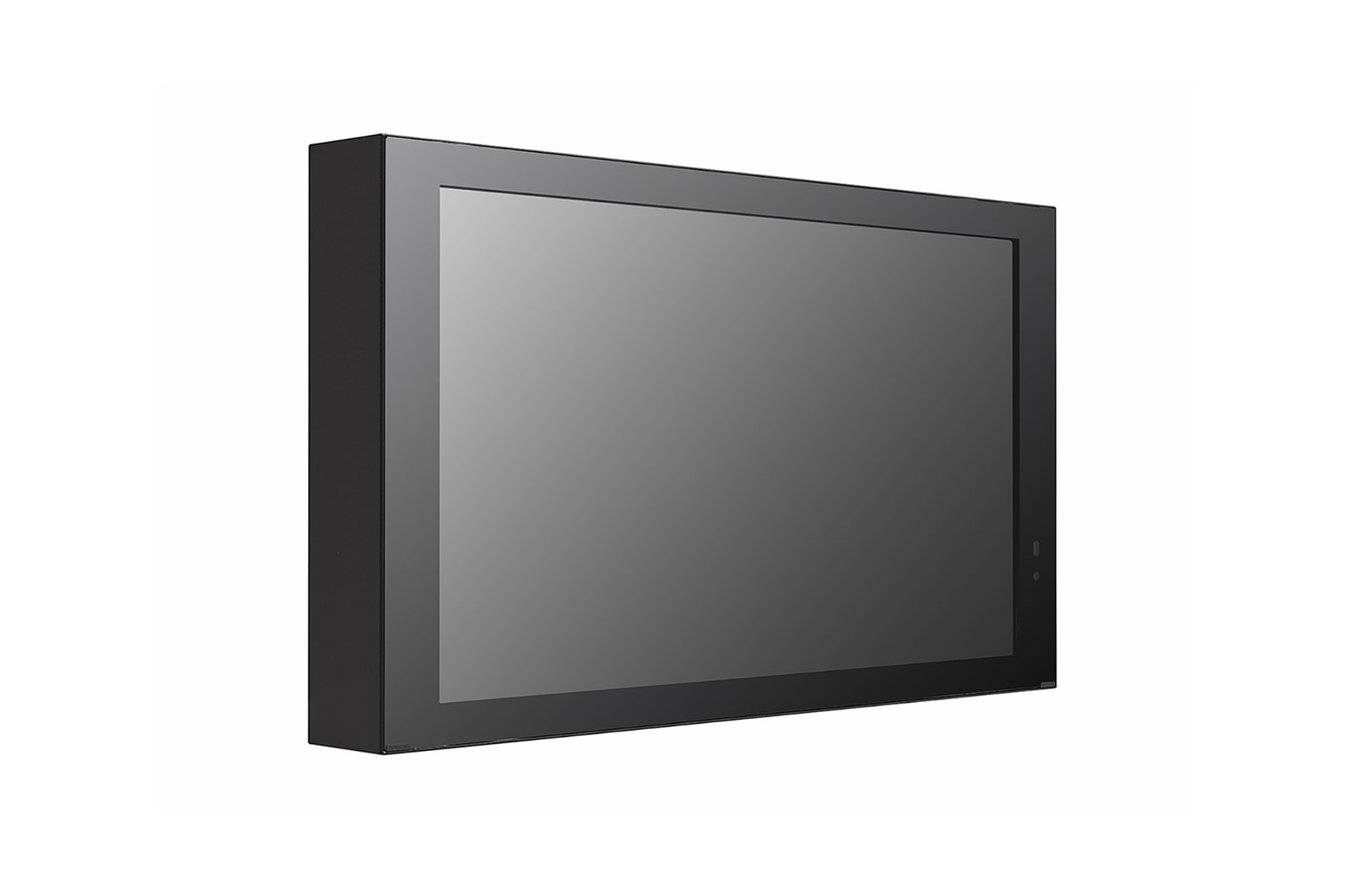

-45 degree side view of 22XE1J-B

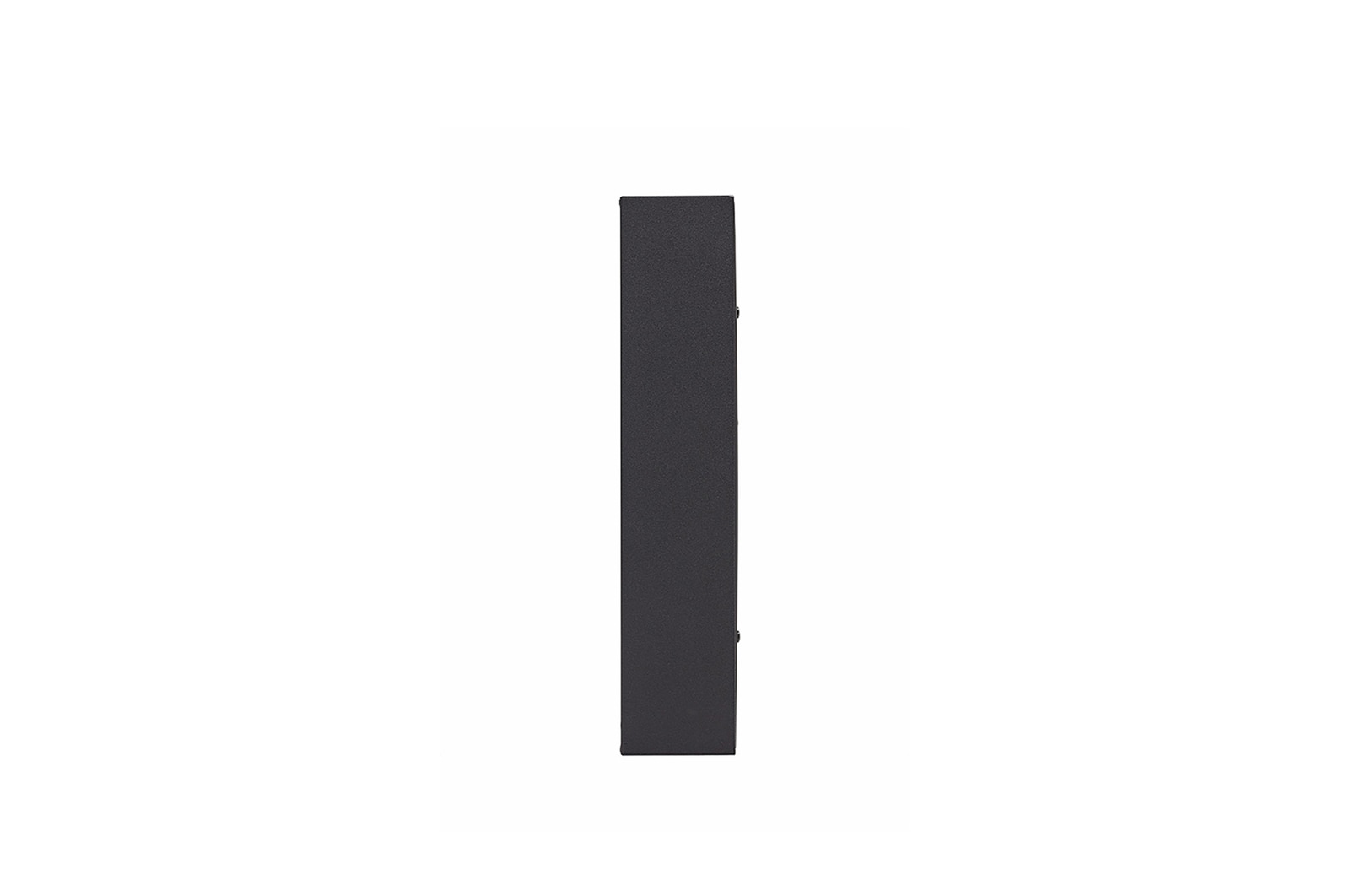

-90 degree side view of 22XE1J-B
+45 degree side view of 22XE1J-B

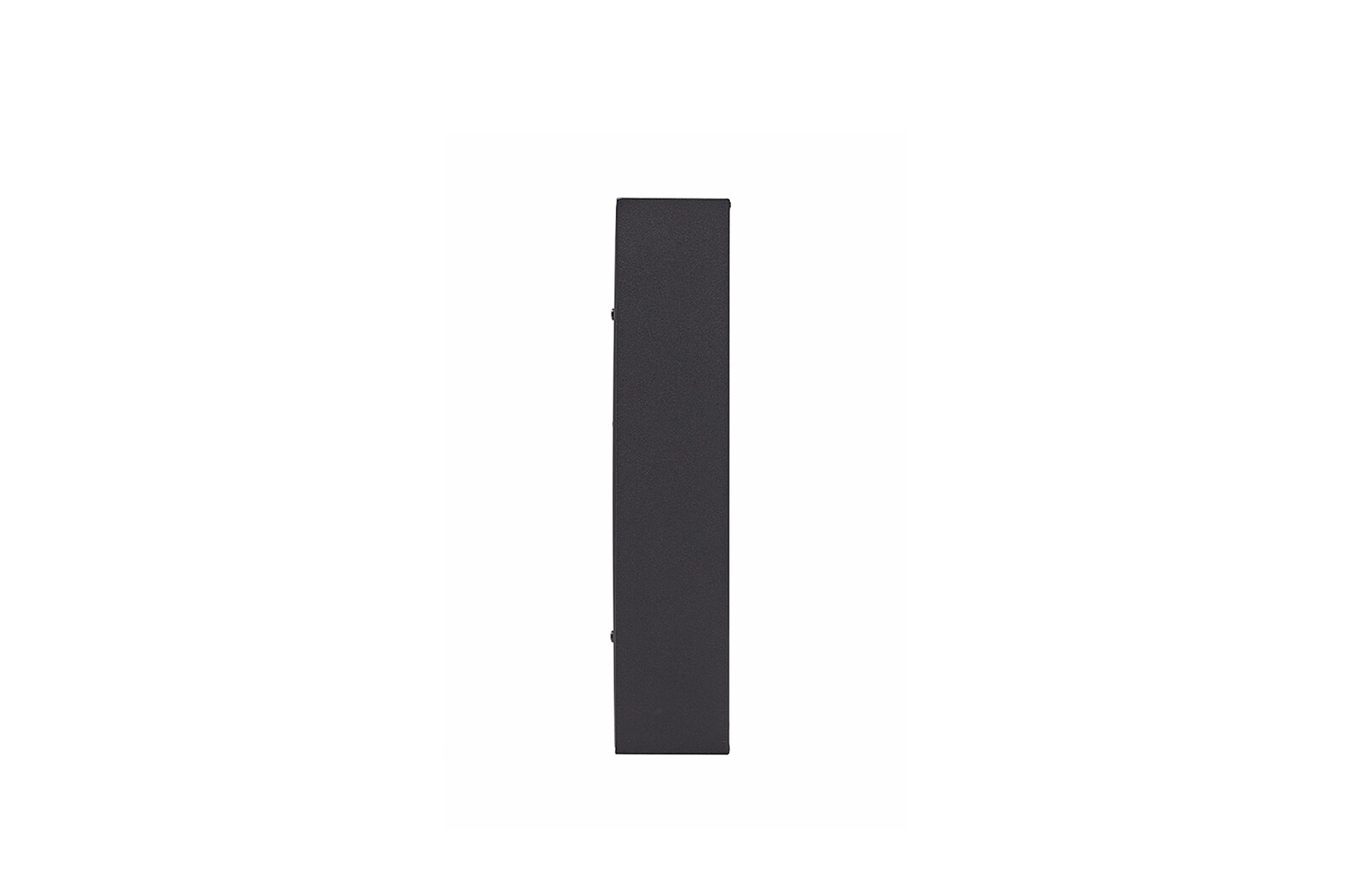

+90 degree side view of 22XE1J-B

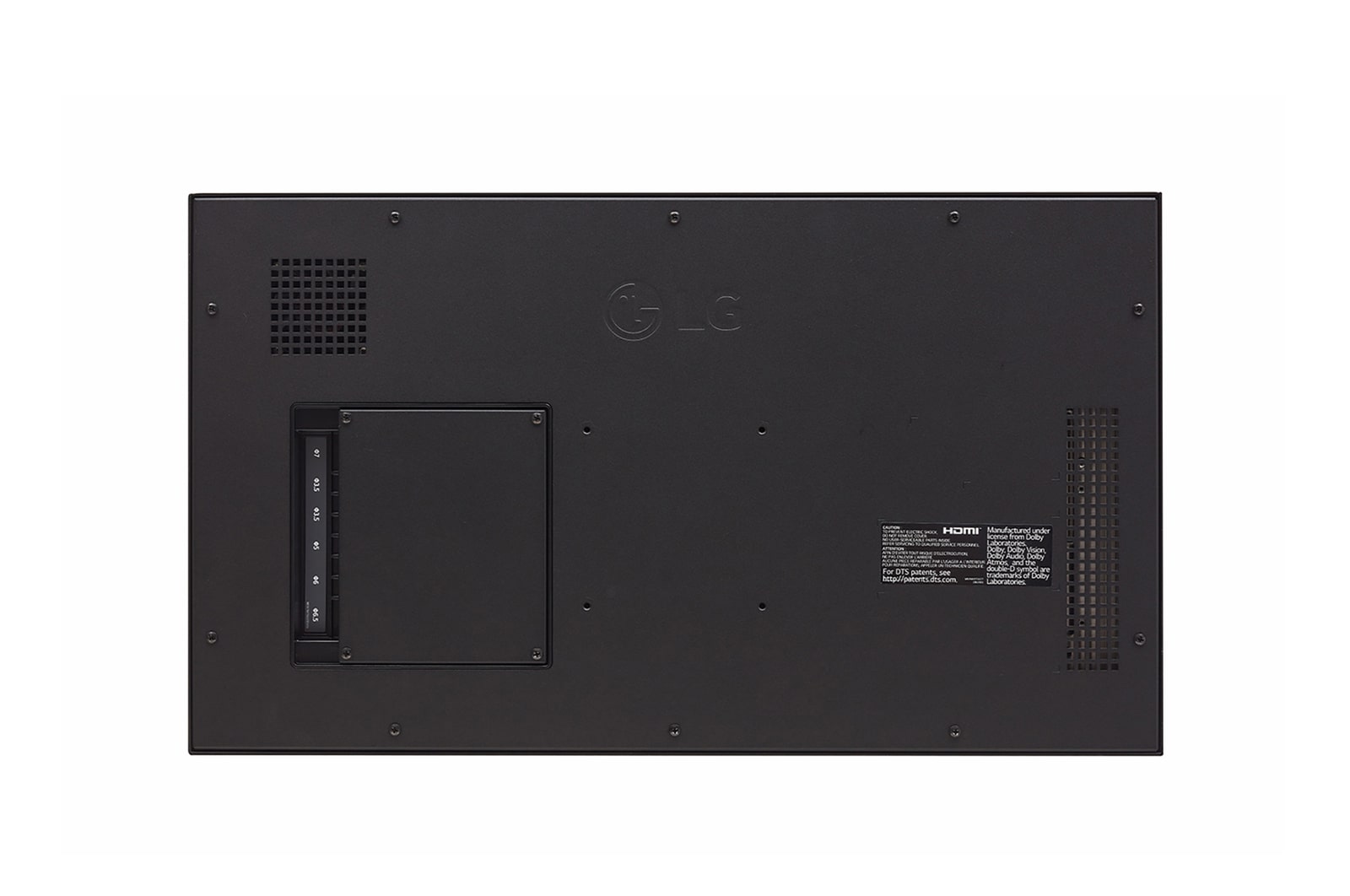

Rear view of 22XE1J-B

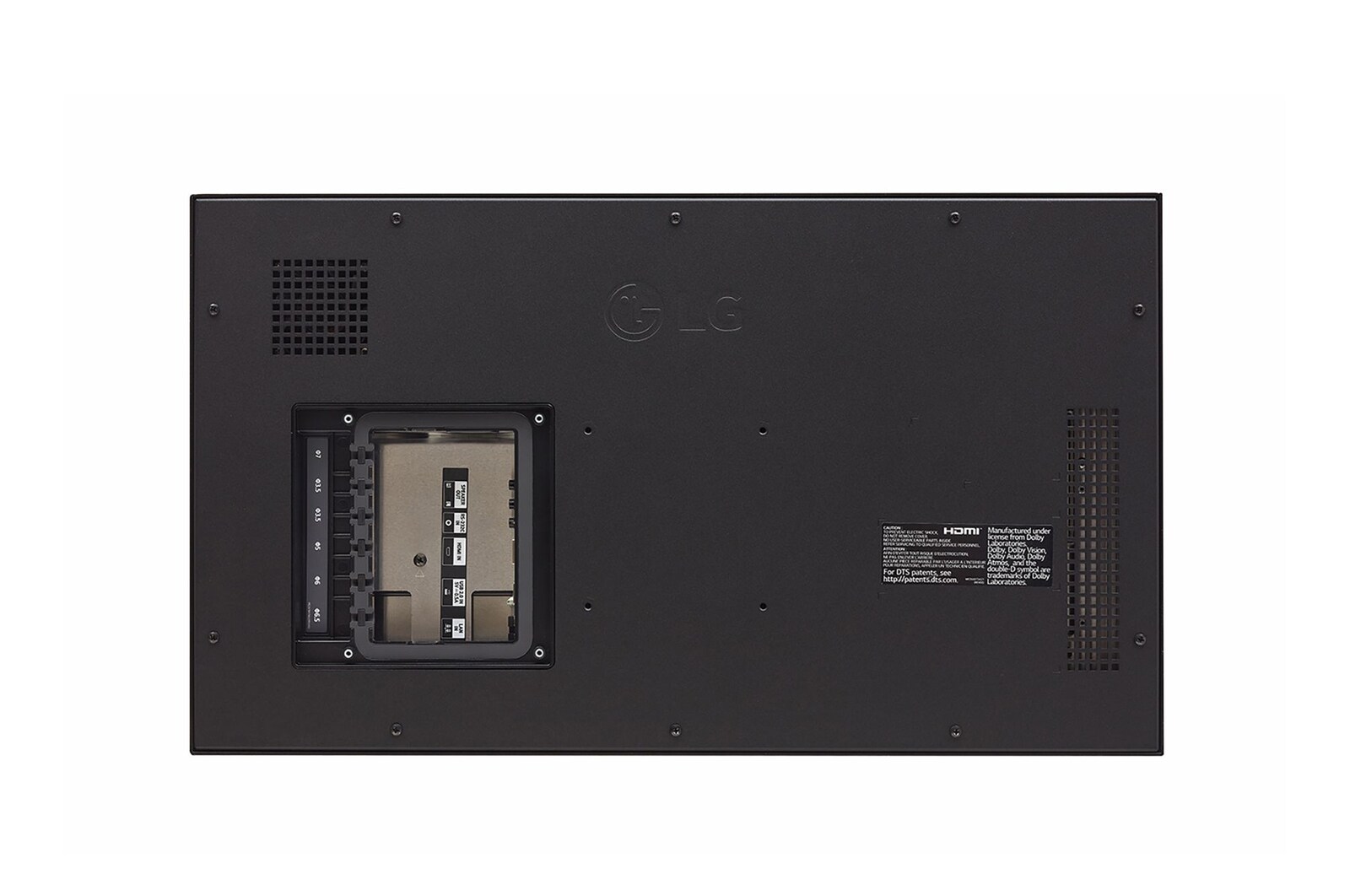

Rear view 2 of 22XE1J-B

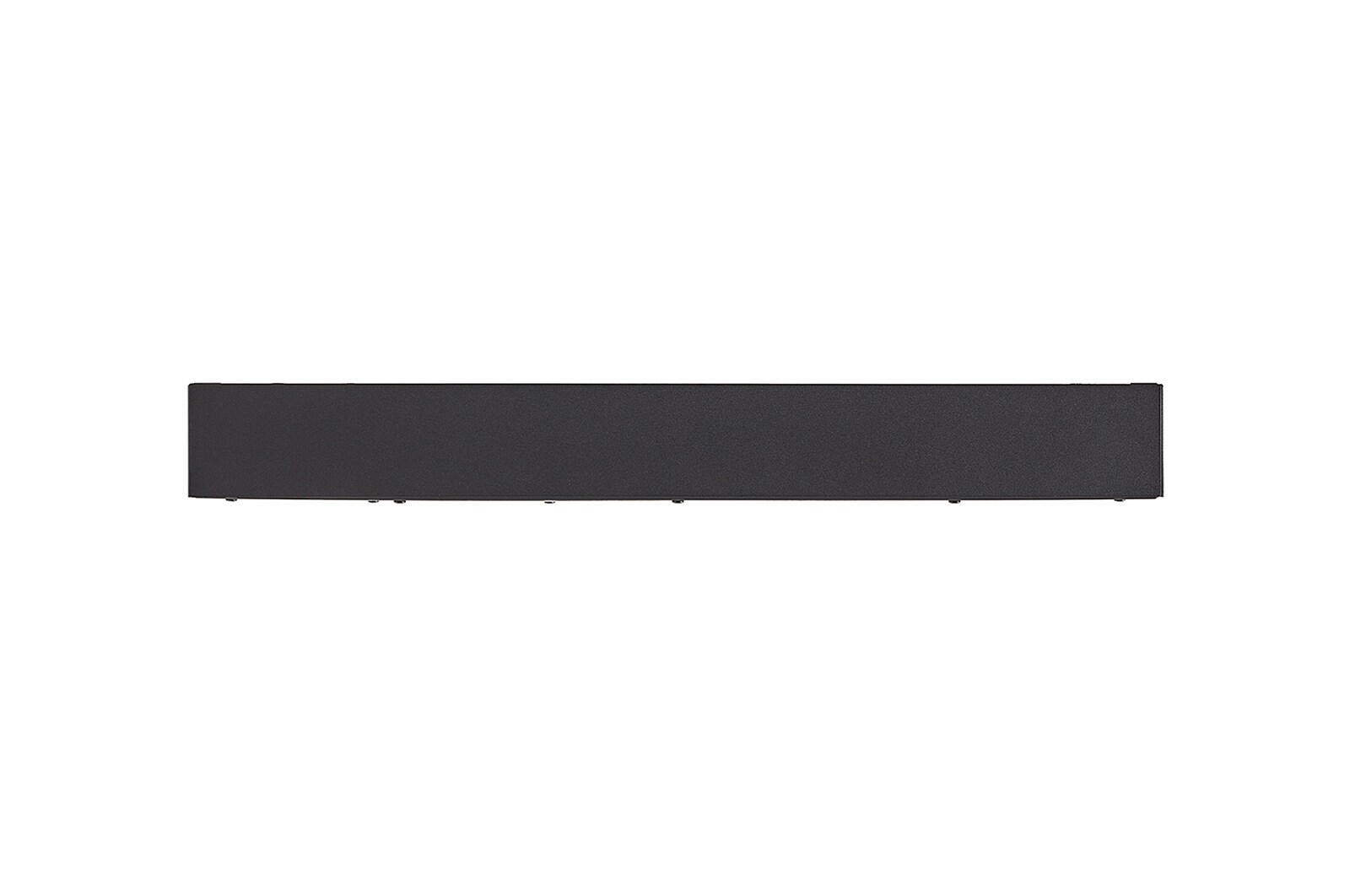

Top view of 22XE1J-B

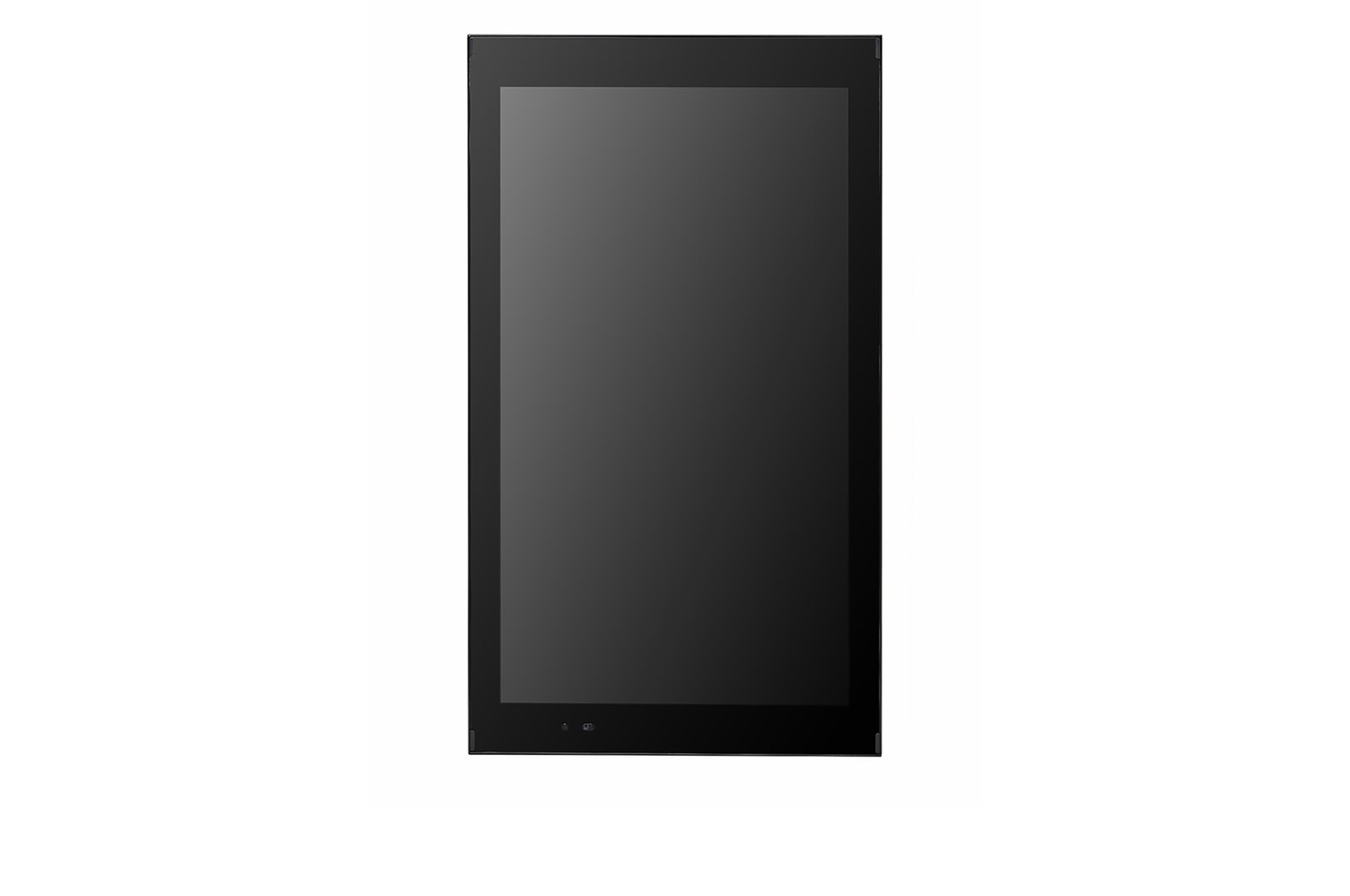

Portrait front view of 22XE1J-B
Portrait -45 degree side view of 22XE1J-B

Key Features

  • Brightness (Typ, w/ Glass) : 1,500 nits
  • IP56 Rated Dust / Water Proof
  • 21.5" of Versatile Display Size
  • Wide Operating Temperature Range
  • webOS Smart Platform
  • Web-based Monitoring Solution
More

Versatile Outdoor Display Fit for Your Business

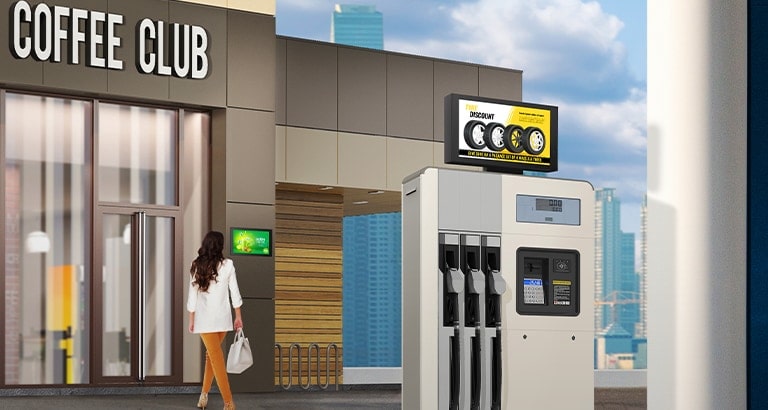

Ads for tires are displayed on a 22XE1J installed on the upper part of the gas lubricator. A lady entering a café looks at the advertisement on the 22XE1J which is installed on the wall of the building.

*All images in this web page are for illustrative purposes only.

A 22XE1J is installed on the wall at the entrance of the building with another 22XE1J stand below for reservation purposes. The lady with sunglasses is using the 22XE1J screen with a touch overlay to make a reservation. The screen remains visible even when under direct sunlight.

High Visibility Under Bright Environments

With a brightness of 1,500 nits, 22XE1J boasts high visibility in bright environments.

In addition, its clear visibility can deliver a variety of information even to those wearing polarized sunglasses.

The left one shows a 22XE1J installed on the wall showing its 21.5" in size. On the right, there are various screen types: A hanging type, kiosk type, and stand-alone installation type.

21.5 inches of Versatile Screen Size

The small and light size of 21.5 inches allows for flexible use in various spaces. In particular, you can install the display in various way allowing for high utilization for small-medium businesses (SMB) to large businesses.

The 22XE1J is protected against dust, direct sunlight, rain, and snow.

Secured Protection with IP56 Design

The display is sealed with IP56 design for reliable operation. It’s designed to be not only waterproof but also weatherproof against the damaging effects of the sun, rain, snow, dust and wind, which is an essential feature for outdoor application.

A display is working well in an environment of -30~50°C.

Wide Operating Temperature Range

22XE1J can be used under a wide range of operating temperatures which results in fewer constraints for outdoor installation.

The 22XE1J has a conformal coating making it resistant to dust and salinity in moisture.

Conformal Coating

Conformal Coating* improves reliability of the circuit board, power board by protecting it against dust, iron powder, humidity, etc.

*Conformal Coating : Thin protective films/breathing membranes that filter water vapor and solid debris

The 22XE1J screen can adjust its brightness automatically according to the ambient light.

Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.

High Performance with webOS

Quad Core SoC* can execute several tasks at the same time without a separate media player. In addition, webOS 4.1 platform enhances user convenience with intuitive UI and simple app development tools.

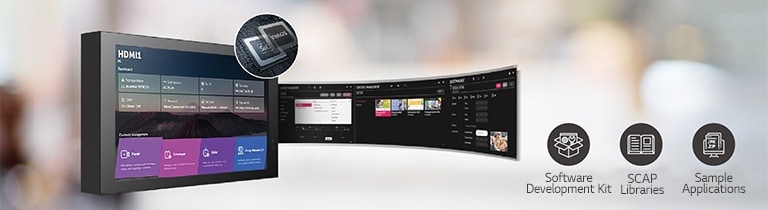

A number of tasks that can be done simultaneously are easily arranged through the web OS platform.

*System-on-Chip

Easy Content Distribution
& SW Update

22XE1J features embedded Wi-Fi*, Bluetooth, Beacon making it easy to distribute content wirelessly and update Firmware. In particular, using Beacon and BLE (Bluetooth Low Energy), shop manager can do various promotional activities, such as providing promotional coupons or product information to visitor in real time.

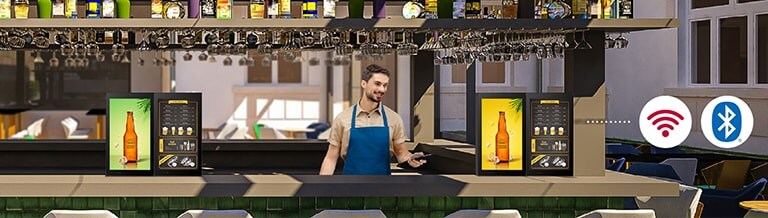

The store owner can easily distribute content and update firmware using a wireless connection such as Wi-Fi or Bluetooth.

*Wi-Fi performance may vary depending on your router and circumstance.

Web Monitoring
(Control Manager)

This is a web-based monitoring solution, which provides a ease of control for the user. It enables users to have full access anywhere, anytime from their mobile phone & PC as long as they’re connected to a network while having access to both current and past data. It allows users to monitor the unit, make any adjustments and control it remotely in real-time.

User can monitor and control their displays through mobile phone and laptop.

Real-time LG ConnectedCare Service

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

The LG employee is remotely monitoring the 22XE1J series installed in a different place by using cloud-based LG monitoring solution.

*The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.

Print

All Spec

PANEL

  • Screen Size (Inch)

    21.5"

  • Panel Technology

    AHVA (IPS)

  • Back Light Type

    Edge

  • Aspect Ratio

    16:9

  • Native Resolution

    1920x1080 (FHD)

  • Refresh Rate

    60Hz

  • Brightness

    1500nit (Typ, w/ Glass)

  • Contrast Ratio

    1000:1 (Typ)

  • Dynamic CR

    800,000:1

  • Color Gamut

    NTSC 72%

  • Viewing Angle (H x V)

    178 x 178

  • Color Depth (Number of Colors)

    8bit, 16.7Million colors

  • Response Time

    25ms (G to G)

  • Surface Treatment (Haze)

    Anti glare, 3H (Haze 25%)

  • Life time

    50,000Hrs (Min.)

  • Operation Hours (Hours/Day)

    24/7

  • Portait / Landscape

    Yes / Yes

  • QWP (Quarter Wave Plate)

    Yes (Apply on glass)

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    38.3mm (R/L), 24.0mm (T/B)

  • Weight (Head)

    8.7 kg

  • Packed Weight

    10 kg

  • Monitor Dimensions (W x H x D)

    557.3 x 319.8 x 66 mm

  • VESA Standard Mount Interface

    100x100

  • Carton Dimensions (W x H x D)

    632 x 394 x 187 mm

ENVIRONMENT CONDITIONS

  • Operation Temperature

    -30°C to 50 °C

  • Operation Humidity

    5 % to 100 %

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • BTU (British Thermal Unit)

    290 (Typ), 393 (Max)

  • DPM

    0.5W↓

  • Power off

    0.5W↓

  • Max.

    115W

  • Typ.

    85W (Full White)
    36W (IEC 62087)

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE / KC / VCCI

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    Yes

  • SuperSign Control+

    Yes

  • Connected Care

    Yes

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arab, Türkiye

ACCESSORY

  • Basic

    Remote Controller (including battery 2ea), Power Cord, Manual (EIG, IG), RS-232C Gender

SPECIAL FEATURE

  • Tilt (Face down)

    Yes (Max -15º degree, Face Down) PP

  • IP Rating

    IP56

  • Direct Sunlight

    Yes
