The Ultimate Visibility Enhancement

The Ultimate Visibility Enhancement

All Spec

PANEL

  • Screen Size

    72" Class (72.07" measured diagonal)

  • Panel Technology

    IPS

  • Aspect Ratio

    16 : 9

  • Native Resolution

    1920 x 1080 (FHD)

  • Pixels (H x V x 3)

    3840*2160*3

  • Brightness

    2000cd/m2

  • Contrast Ratio

    1,200:1

  • Dynamic CR

    500,000:1

  • Color gamut

    72%

  • Tni

    110℃

  • Viewing Angle (H x V)

    178 x 178

  • Color Depth

    16.7 Million

  • Response Time

    12 ms

  • Surface Treatment

    AGP + FPR

  • Life time

    50,000 Hrs

  • Orientation

    Portrait & Landscape

CONNECTIVITY

  • Input (Rear)

    ------------------------------------

  • Digital

    HDMI(1), DVI(1), Display Port(1) with HDCP for all input

  • Analog

    Component(1), Composite(1), RGB(1) (Shared with D-Sub)

  • Audio

    RGB/DVI-D/AV/Component(3.5Φ 1)

  • External Control

    RS232C(1), RJ45(1), External IR(1)

  • USB

    Yes(1)

  • HDTV Formats

    Component : 720p, 1080i , 1080p HDMI : 720p, 1080i, 1080p

  • Output (Rear)

    ------------------------------------

  • Digital

    DVI-D(1)

  • Audio

    External Speaker Out (1)

  • External Control

    RS232C

  • Audio

    ------------------------------------

  • Balance

    Yes

  • Audio Power

    20W(10W x 2)

  • Speaker On/Off

    Yes

  • Clear Voice II

    Yes

  • Sound Mode

    Standard, Music, Cinema, Sport, Game

VIDEO

  • Max Input Resolution

    1920 x 1080@60Hz(RGB, HDMI, DVI-D, Display Port)

  • Recommended Resolution

    1920 x 1080@60Hz(RGB, HDMI, DVI-D, Display Port)

  • H-Scanning Frequency

    30 ~ 83kHz(RGB, HDMI, DVI-D, Display Port)

  • V-Scanning Frequency

    56 ~ 75Hz(RGB), 60Hz(HDMI, DVI-D, Display Port)

  • Pixel Frequency

    148.5MHz(RGB, HDMI, DVI-D, Display Port)

  • Sync Compatability

    Separate, Composite, Digital

  • Video Input

    RGB, HDMI, DVI, Display Port

  • Picture mode

    Vivid, Standard, Cinema, Sports, Game

  • Color temperature

    Warm, Medium , Cool

PHYSICAL SPECIFICATION

  • Color

    Black

  • Bezel Width

    29.7mm

  • Monitor Dimension (W x H x D)

    1654.5mm*956.5mm*139.5mm

  • Weight (head)

    54.5Kg

SPECIAL FEATURES

  • Temperature Sensor

    Yes

  • Auto Brightness sensor

    Yes

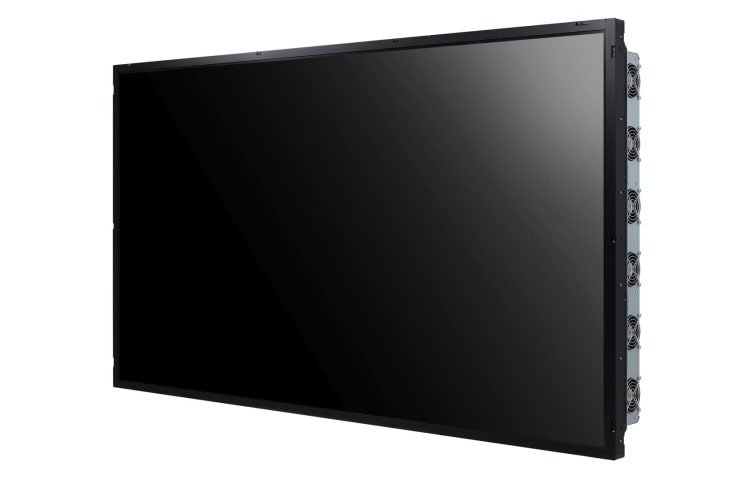

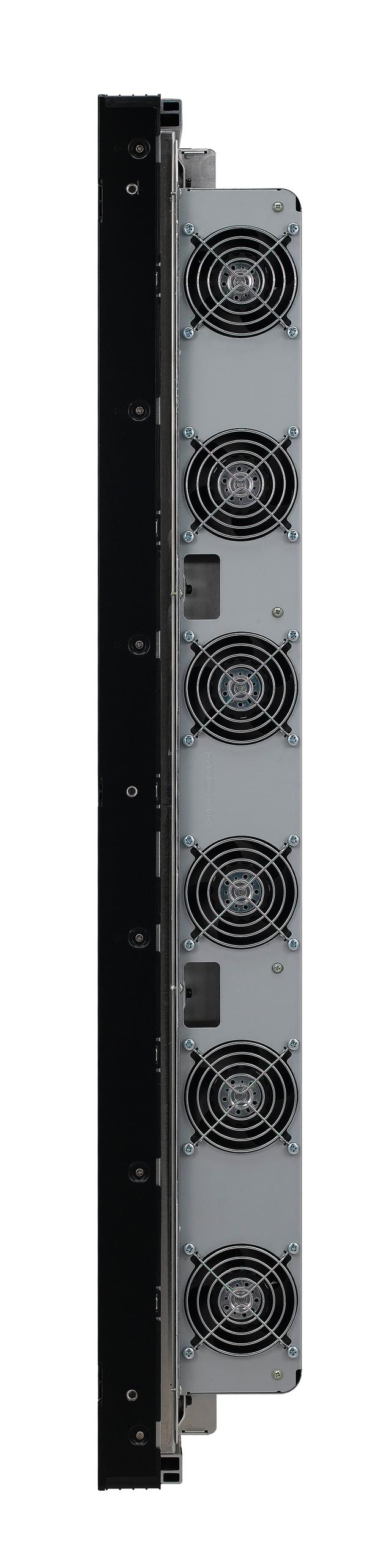

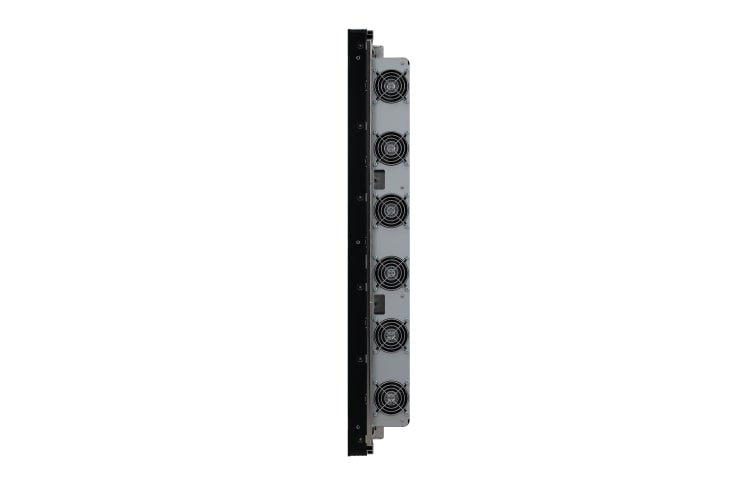

  • Cooling FAN

    Yes

  • Tile Mode

    Yes, Up to 15 x 15

  • Natural Mode@Tile Mode

    Yes

  • Source Selection

    AV, Component, RGB, Display Port, DVI-D, HDMI, USB

  • Brightness/Contrast/Backlight

    Yes

  • Position/Size

    Yes

  • Auto Config/Phase

    Yes

  • Language (OSD)

    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek

  • Language (USB Playback)

    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek

  • Language (Manual)

    English, French, German, Spanish, Italian, Korean, Portugues, Hungarian, Greek, Russian, Dutch, Kazakh, Ukrainian, Polish, Arabic, Indonesian, Japanese, Turkish, Czech, Taiwanese, Slovak

  • Language (ESG)

    English, French, Italian, German, Spanish, Portugues, Greek, Polish, Czech, Slovak, Korean, Japanese

  • ISM Method

    Normal, White Wash, Orbiter, Inversion

  • Advanced

    Dynamic Contrast, Dynamic Color, Clear White, Skin Color, Noise Reduction, Digital Noise Reduction, Gamma, Black Level

  • Time

    Clock, On/Off Time, Sleep Timer, Power on Delay, Auto Off, Automatic Standby

  • Information

    Software Version, Serial Number, IP Address, MAC Address,

  • Input Label

    Yes(PC/DTV)

  • Auto Power/Source Memory

    Yes

  • DPM Select

    Yes

  • Energy Saving

    Yes, Auto / Off/ /Minimum / Medium / Maxium / Screen Off

  • Smart Energy Saving

    Yes

  • BLU Maintenance

    Yes

  • Power Indicatior On/Off

    Yes

  • File Play with USB

    Yes

  • PIP/PBP

    Yes

POWER

  • Power Supply

    100-240V~, 50/60Hz

  • Power Type (Adapter or LIPS)

    Built-in Power

  • Power Consumption (Typ.)

    1000W

  • Power Consumption (Smart Energy Saving)

    400W

  • Power Consumption (DPM)

    2.0W

  • Power Consumption (Power off)

    1.0W

STANDARD(CERTIFICATION)

  • Safety

    UR / cUR / CB scheme / TUV-Type

  • EMC

    FCC Class "A", CE, KCC

SOFTWARE COMPATIBILITY

  • SuperSign elite -c

    Yes

  • Supersign Elite-w lite

    Yes (Editing, Scheduling, Distribution & Play, Control)

ACCESSORY

  • Accessory

    Remote Controller, Power Cable, RGB Cable, Manual, ESG, IR extension cable/PCB, Enclosure installation guide
