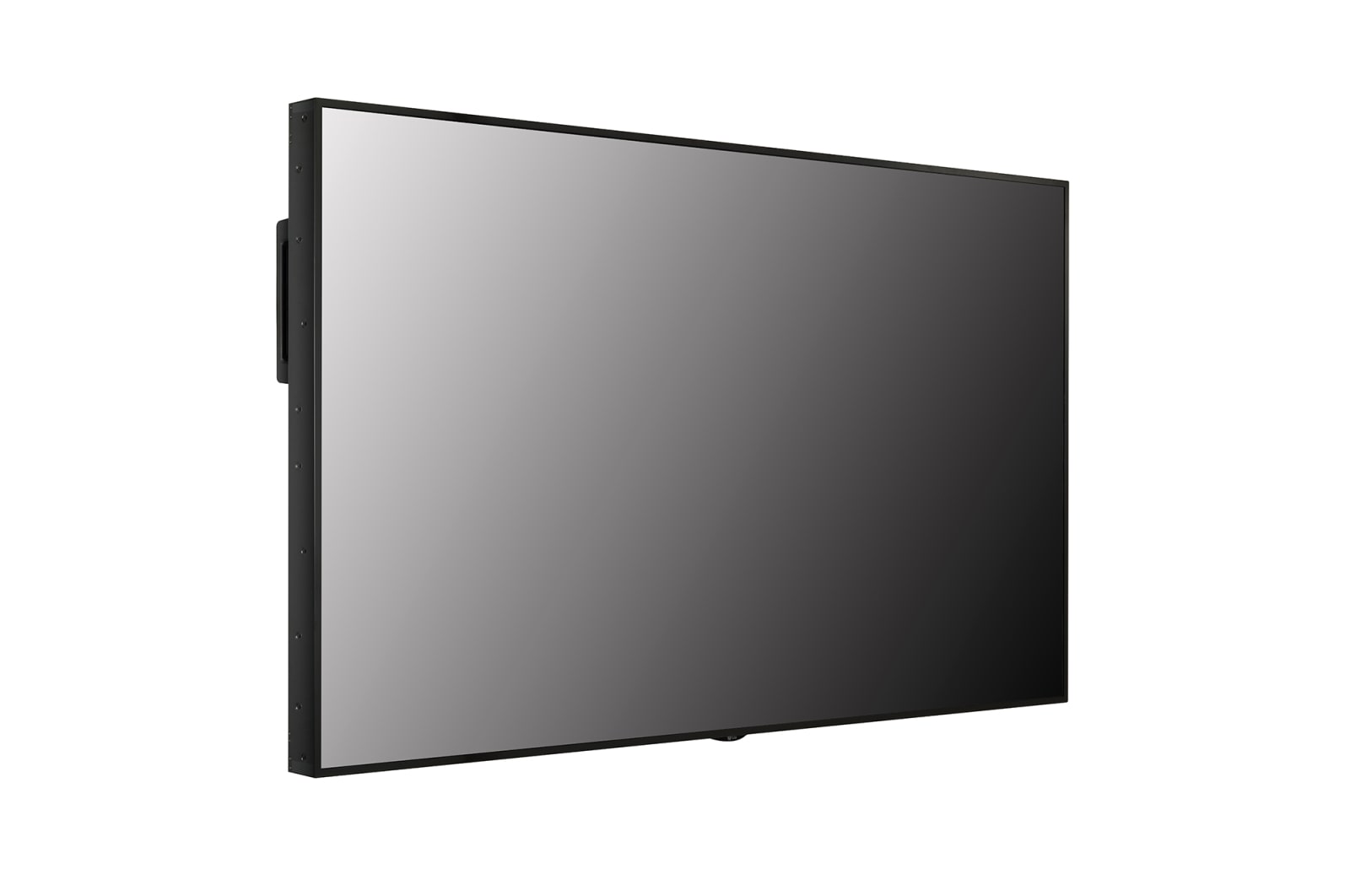

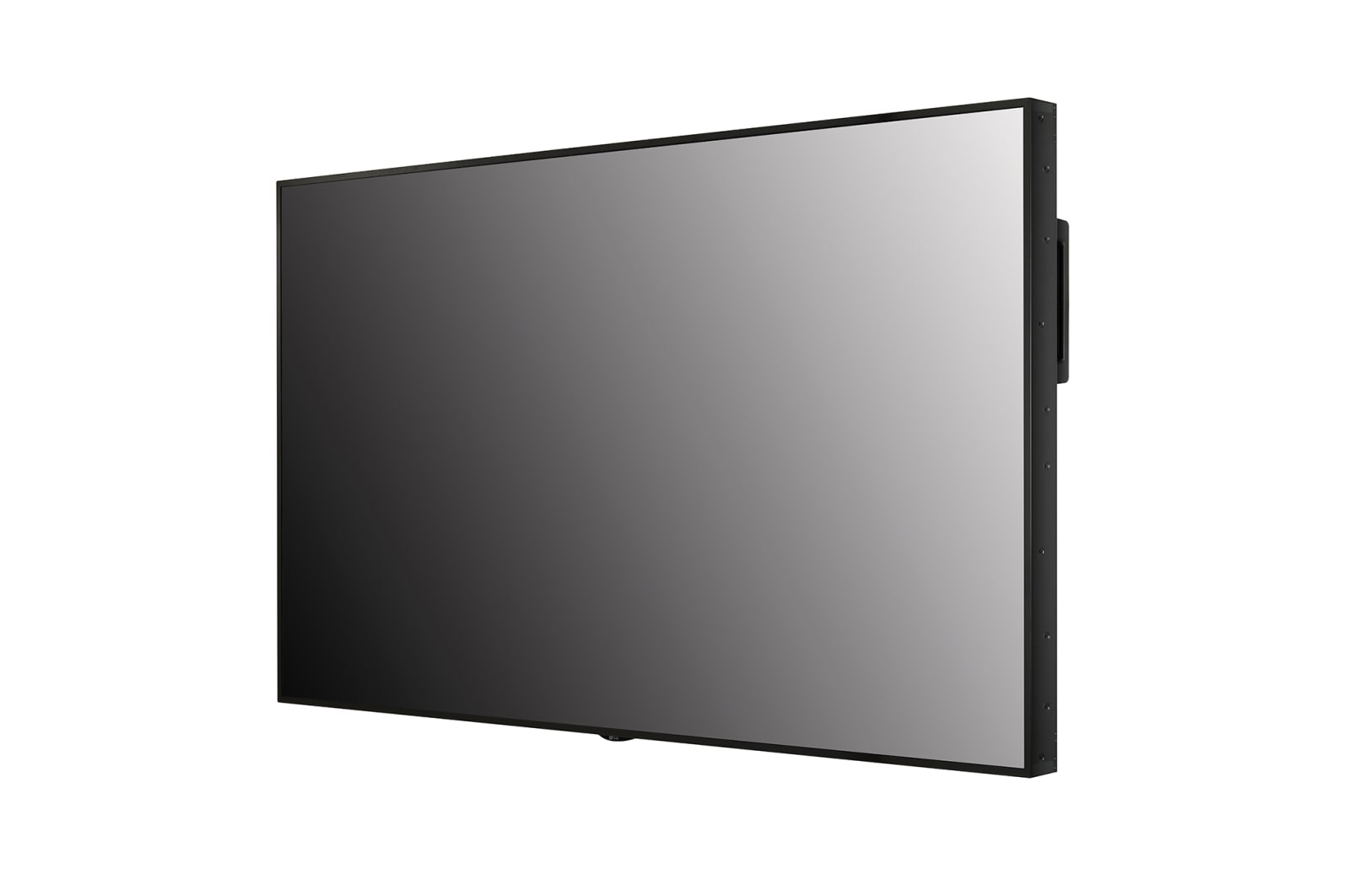

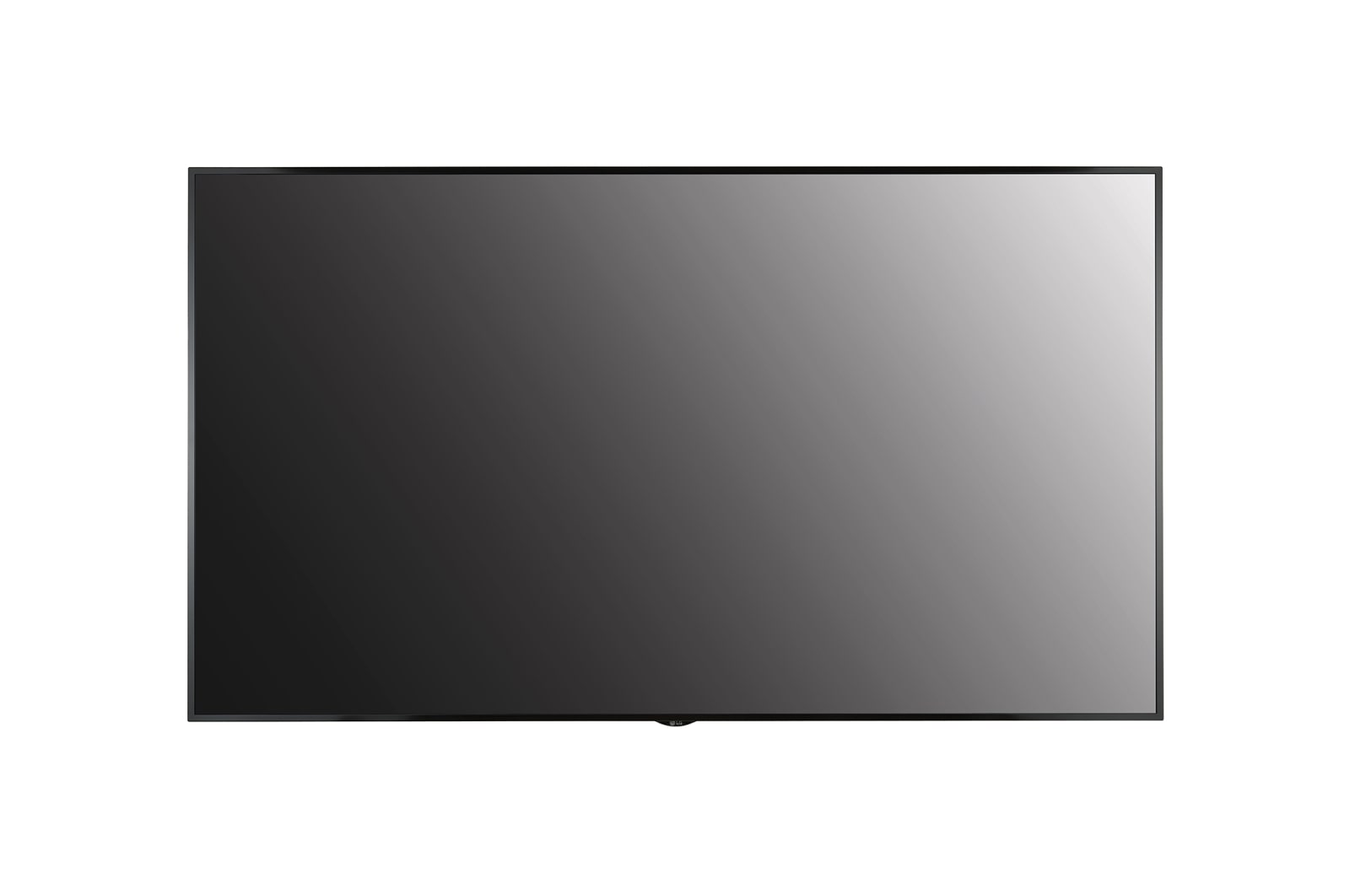

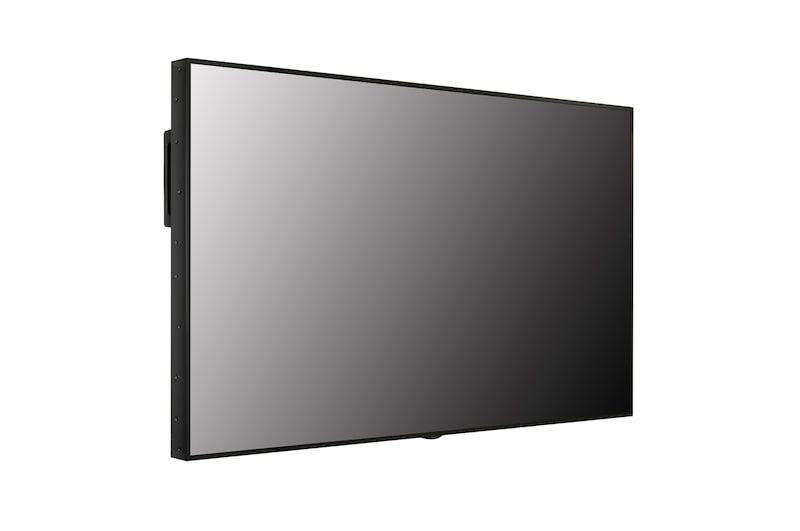

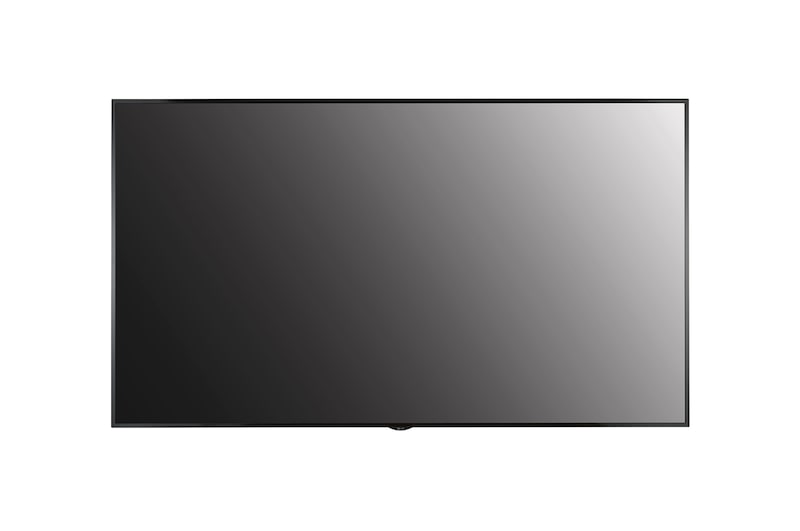

XS2E Series - 75" High Brightness Signage

75XS2E-B

XS2E Series - 75" High Brightness Signage

Outstanding Visiblity with Quiet Operation1

Outstanding Visiblity with Quiet Operation

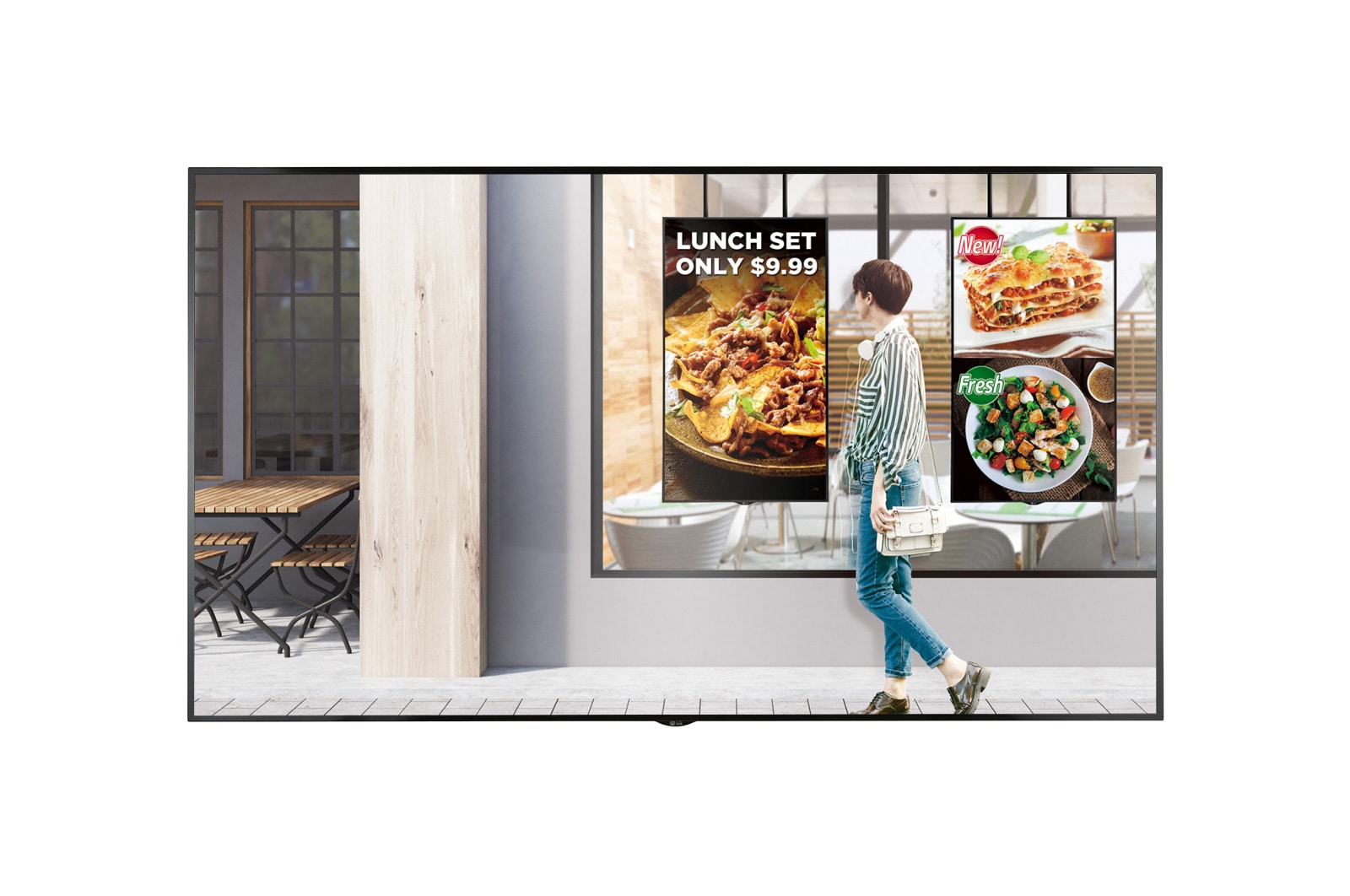

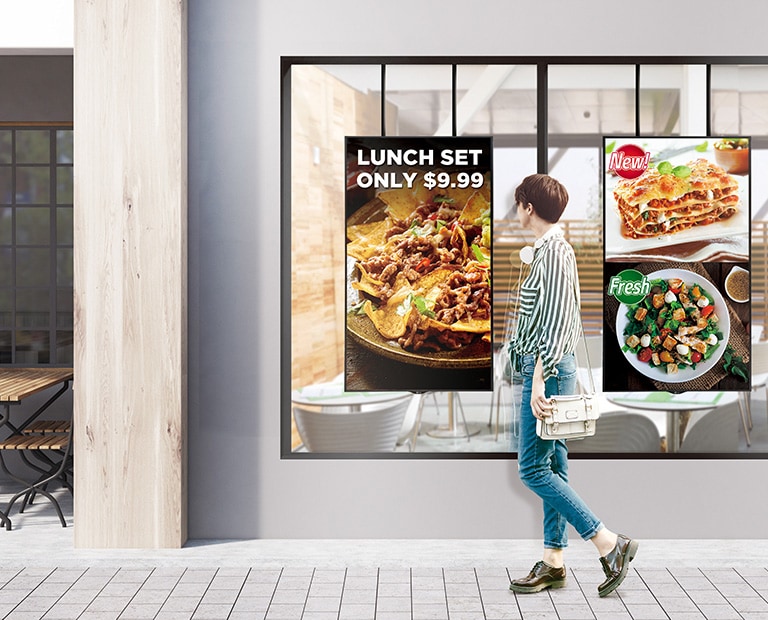

Easily installed in store windows, LG's XS series of window
facing digital signage captivates customers with its vivid
image quality and quiet operation. The XS series helps
businesses enhance their store's brand image while enriching the
customers' shopping experience.

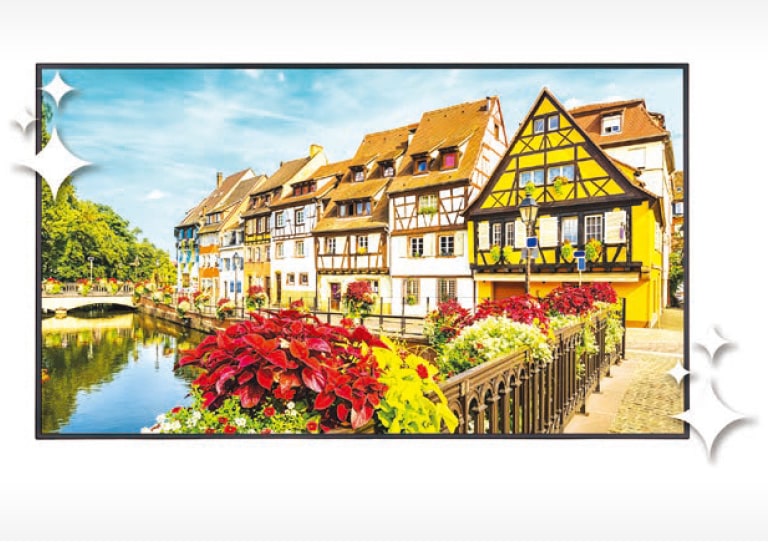

High Brightness1
Outstanding Visibility

High Brightness

With a great brightness of 2,500 cd/㎡ , XS series clearly delivers contents and attracts public attention, which is the ultimate display for outdoor visibility.
Visible with Polarized Sunglasses1
Outstanding Visibility

Visible with Polarized Sunglasses

QWP(Quarter Wave Plate) enables clear visibility even when the viewer is wearing polarized sunglasses.
Fan-less Design2
Quiet Operation

Fan-less Design

By eliminating the need for a cooling fan, we have made the XS series an ideal choice for the in-window environment. Its operating noise level is under 25dB, which is quieter than that of daily conversation.
Space Efficiency

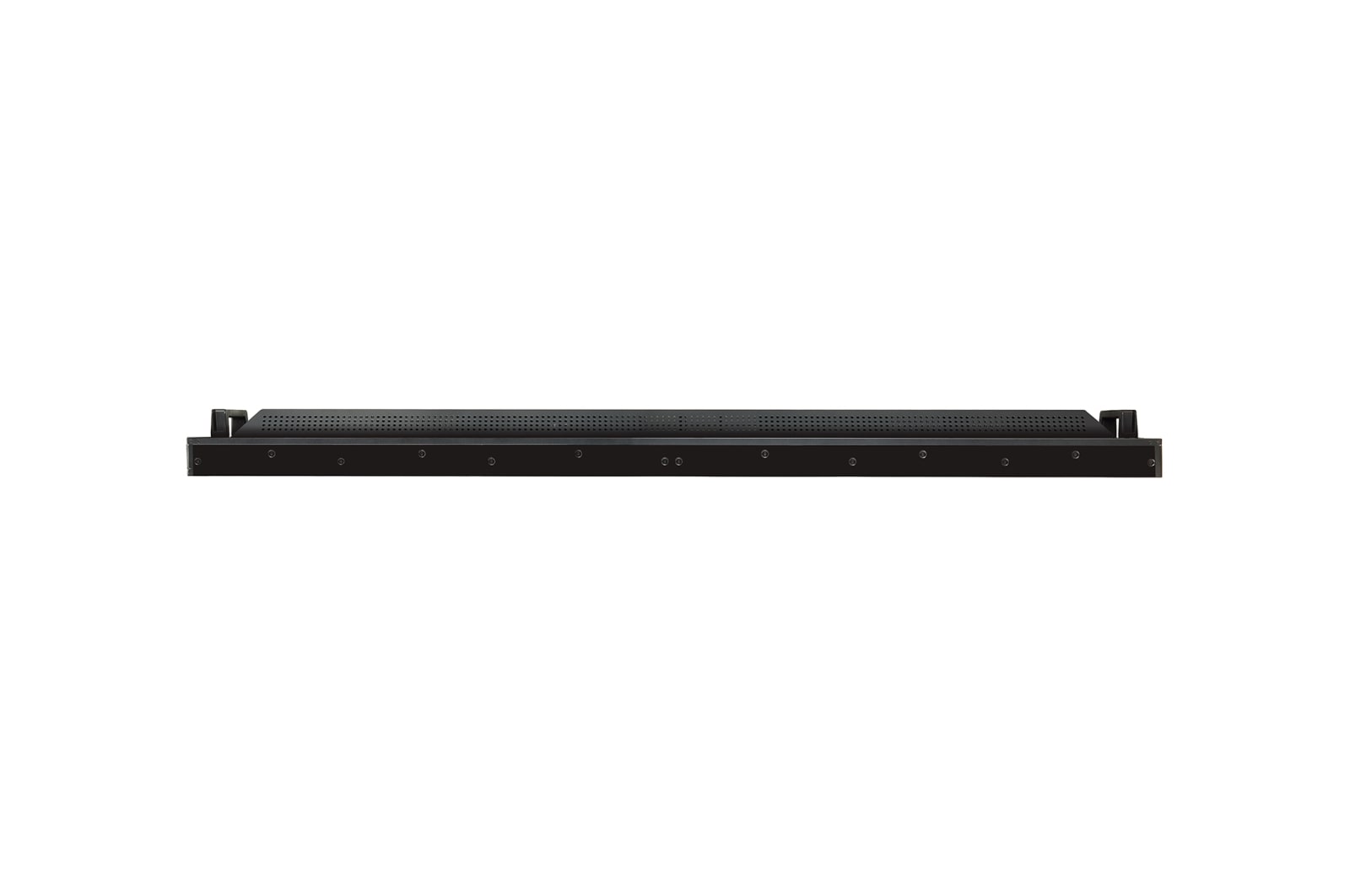

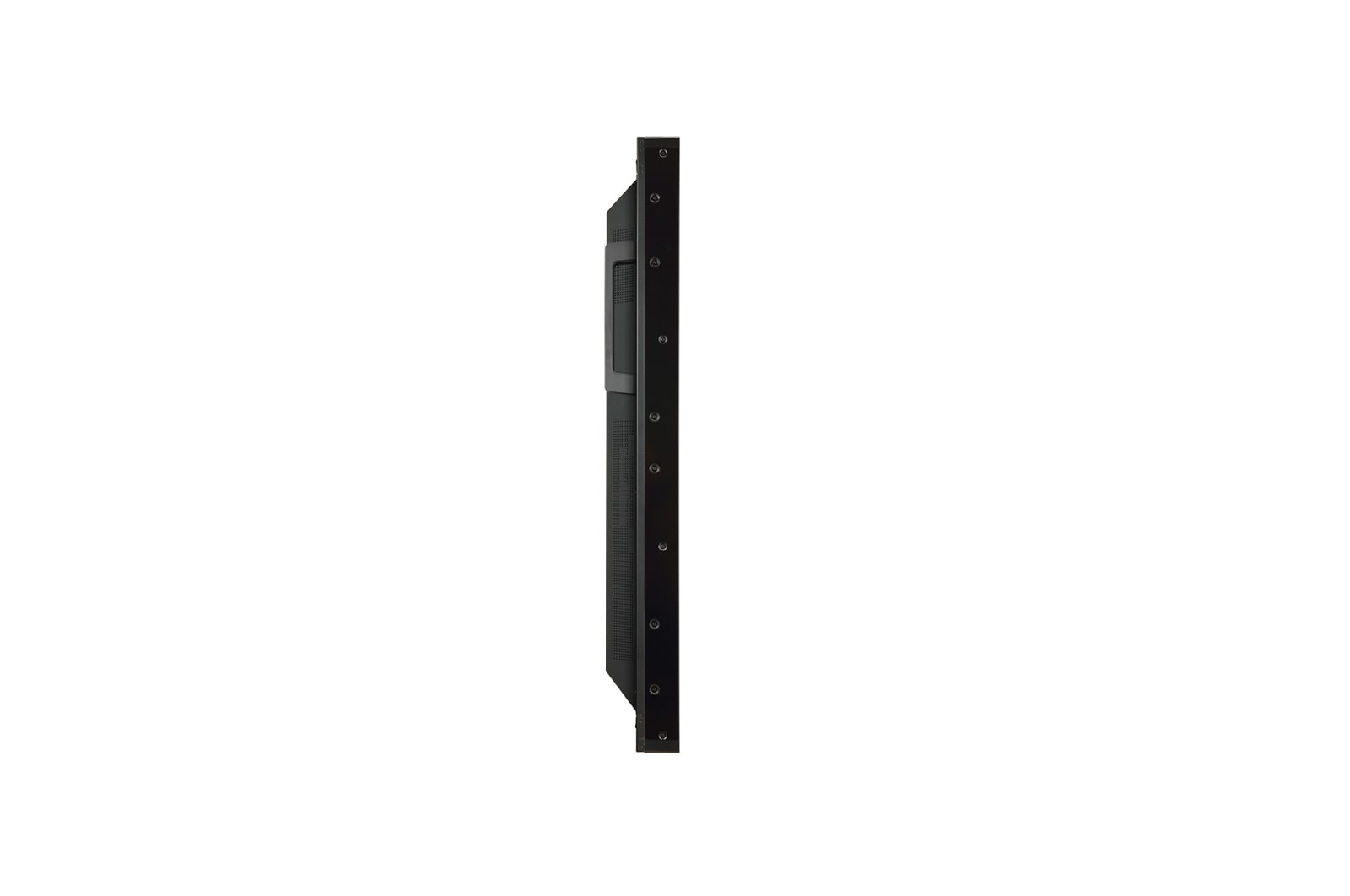

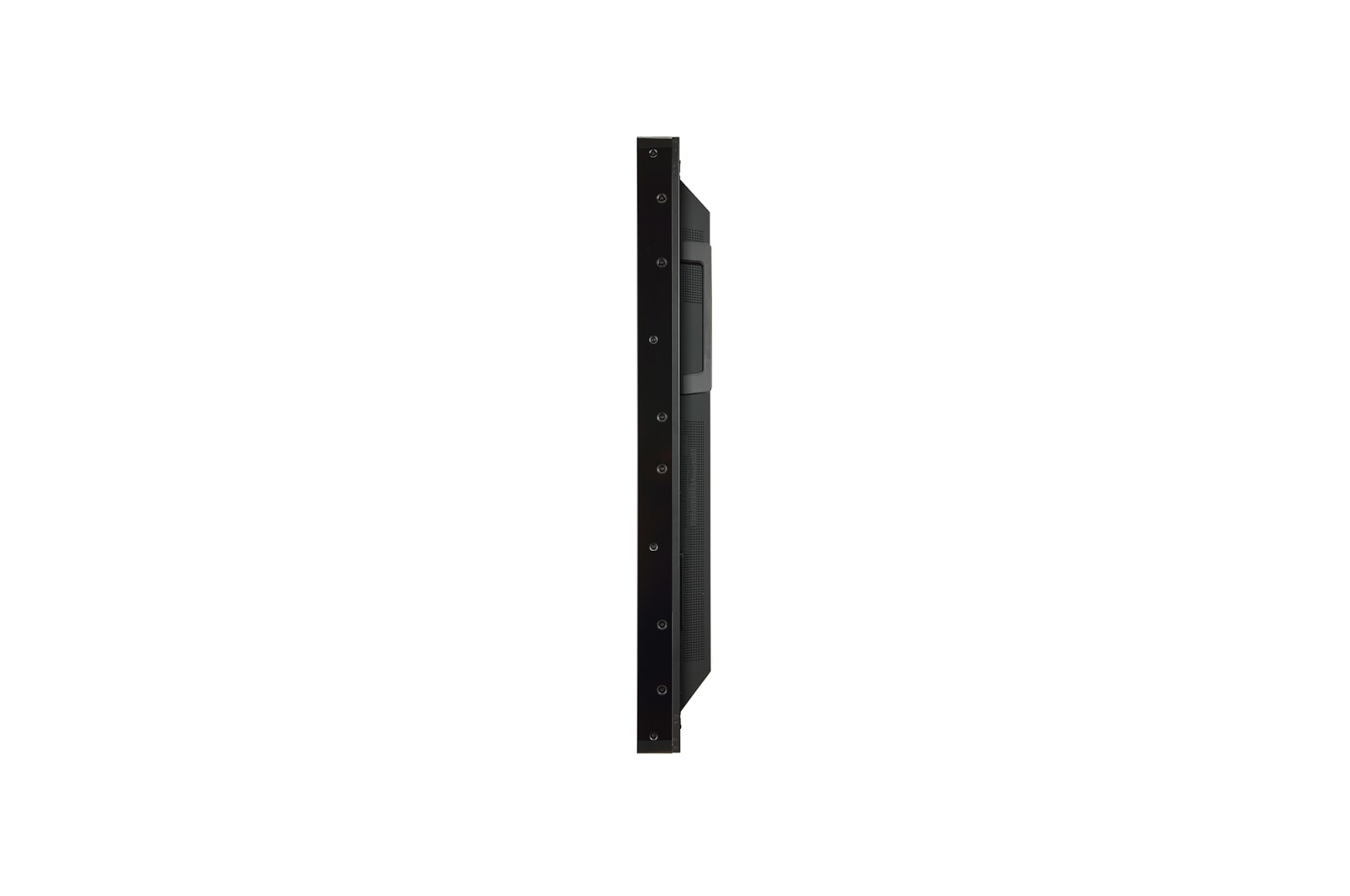

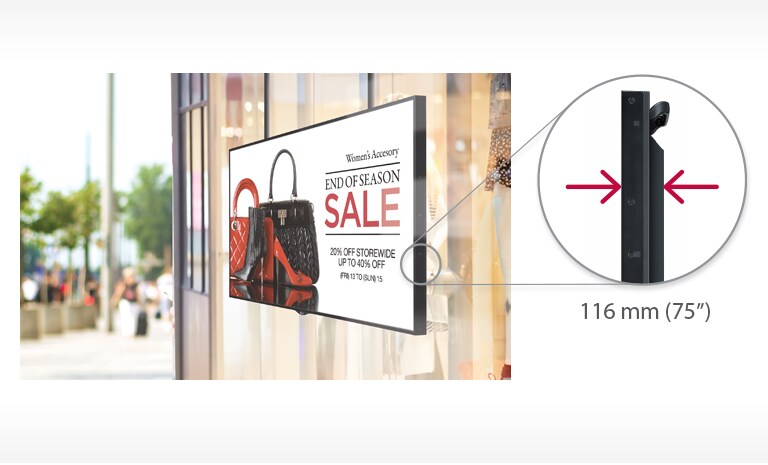

Slim Design

Thanks to its thin depth, the XS series takes up less space,
which leads to space efficiency in an in-window environment.
User Convenience

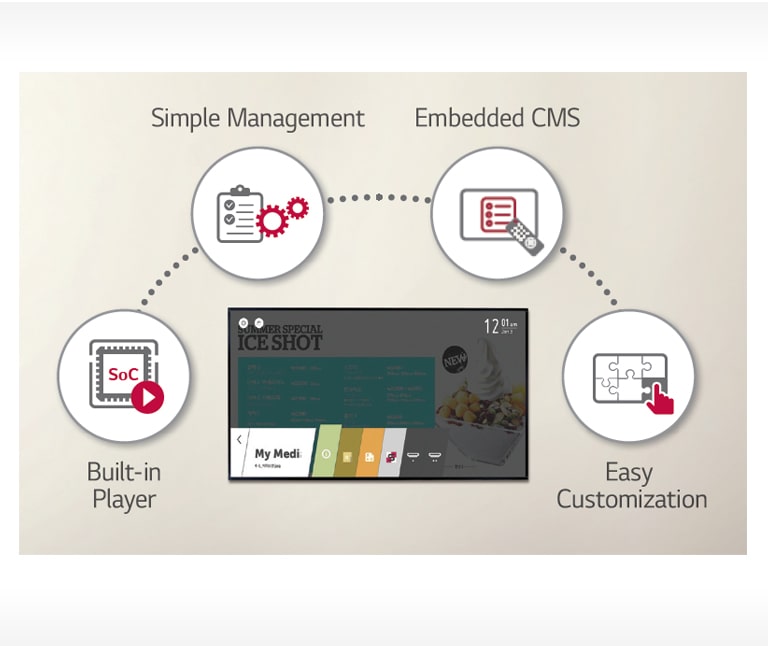

webOS Smart Platform

Quad Core SoC(System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app develoment tools.
User Convenience

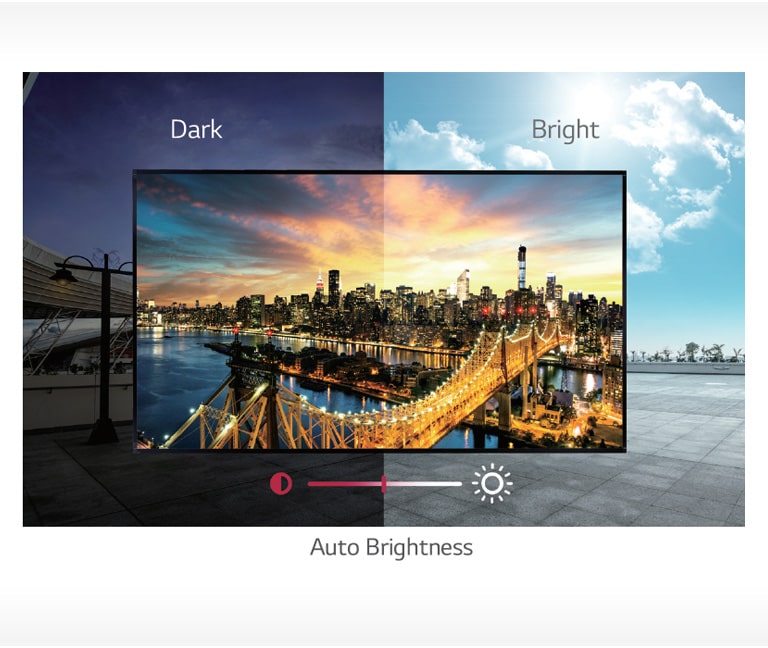

Smart Brightness Control

The screen brightness is automatically adjusted depending on
the ambient light. The brightness is increased in light for
better visibility, while it is decreased in darkness for efficient
power management.

All Spec

PANEL

Screen Size (Inch)

75

Panel Technology

IPS / M+

Back Light Type

Direct

Aspect Ratio

16:9

Native Resolution

3840 x 2160 (UHD)

Refresh Rate

60Hz

Brightness

2,500nit (Typ.), 2,250nit (Min.)

Contrast Ratio

1,200:1 (Typ.)

Dynamic CR

500,000:1

Color Gamut

NTSC 72%

Viewing Angle (H x V)

178º x 178º

Color Depth (Number of Colors)

1.07 Billion colors

Response Time

8ms (G to G)

Surface Treatment (Haze)

Haze 3%

Life time

50,000Hrs (Typ.)

Operation Hours (Hours/Day)

24/7

Portait / Landscape

YES / YES

Transparency

N/A

QWP (Quarter Wave Plate)

YES

CONNECTIVITY

HDMI In

YES (2ea)

HDMI In (HDCP Ver.)

2.2

DP In

YES (HDCP 1.3)

DVI-D In

YES

RGB In

NO

Audio In

YES

RS232C In

YES

RJ45(LAN) In

YES (1ea)

IR In

YES

USB In

USB2.0 Type A (1ea)

HDMI Out

NO

DP Out

YES

Audio Out

NO

Touch USB

NO

External Speaker Out

YES

RS232C Out

YES

RJ45(LAN) Out

NO

IR Out

NO

Daisy Chain

NO

MECHANICAL SPECIFICATION

Bezel Color

Black

Bezel Width

Even bezel : 11.8mm

Weight (Head)

43Kg

Packed Weight

52.2Kg

Monitor Dimensions (W x H x D)

1675.2 x 953.6 x 116mm

Monitor Dimension with Stand (W x H x D)

N/A

Handle

YES

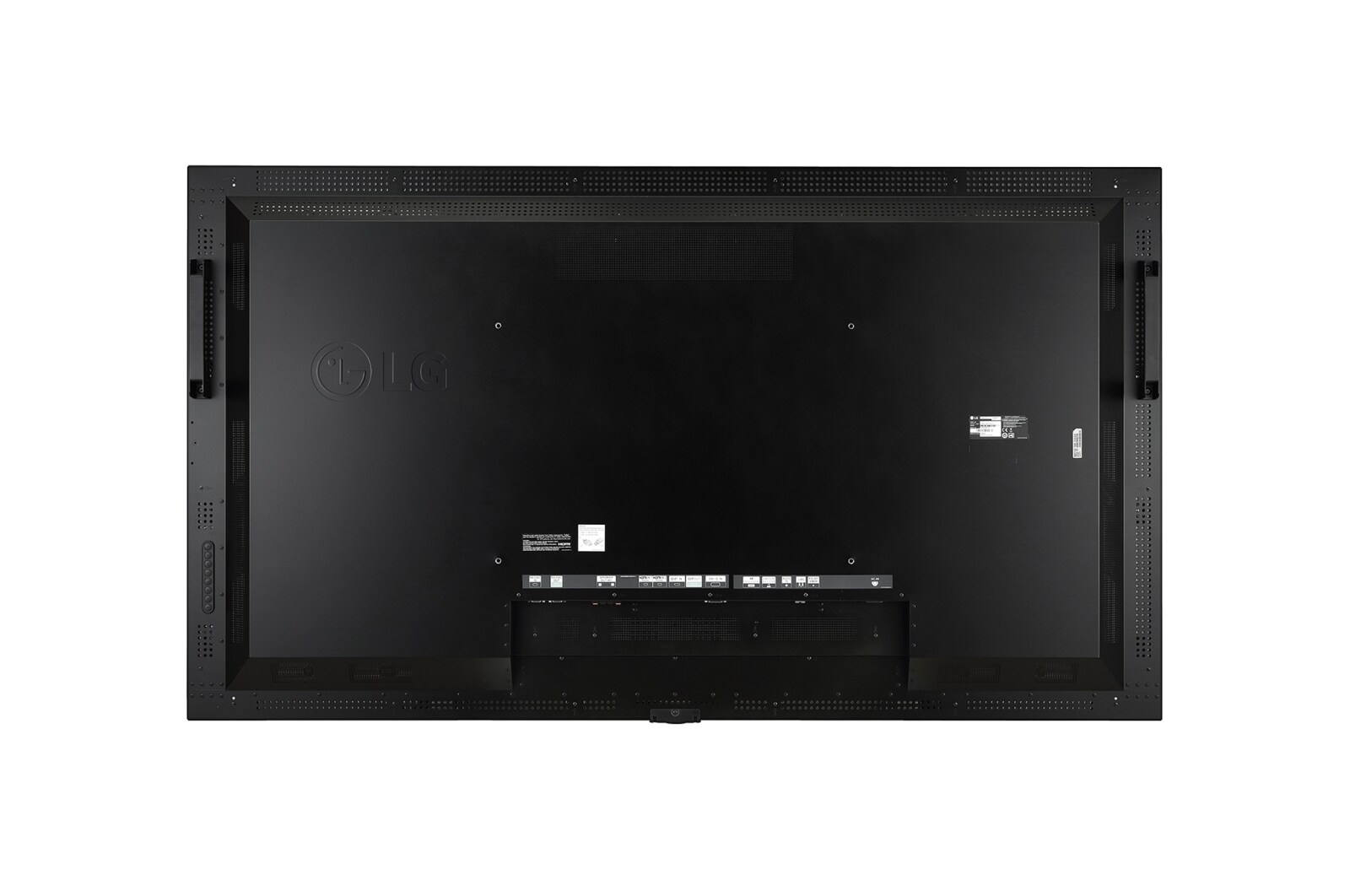

VESA Standard Mount Interface

600 x 400 mm

Carton Dimensions (W x H x D)

1816 x 1106 x 285mm

Weight (Head+Stand)

N/A

PROTECTION GLASS

Thickness

N/A

Degree of Protection

N/A

Tempered / Chemical strengthening

N/A

Anti-Reflective

N/A

Infrared - Resistance (IR)

N/A

Shatter-Proof

N/A

FEATURE - HARDWARE

Internal Memory (eMMC)

8GB

Wi-Fi/BT (Built-in)

NO

Temperature Sensor

YES

Auto Brightness Sensor

YES

Pixel Sensor

NO

Proximity Sensor

NO

Current Sensor

NO

BLU Sensor

NO

Humidity Sensor

NO

Acceleration(Gyro) Sensor

NO

Power Indicator

NO

Local Key Operation

YES

FAN (Built-in)

NO

FEATURE - SOFTWARE

OS Ver. (webOS)

webOS 3.0

Local Contents Scheduling

YES

Group Manager

YES

USB Plug & Play

YES

Fail over

YES

Booting Logo Image

YES

No Signal Image

NO

RS232C Sync

YES

Local Network Sync

YES

Backlight Sync

NO

PIP

NO

PBP

NO

Screen Share

NO

Video Tag

YES (2 Video Tag)

Play via URL

NO

Screen Rotation

YES

External Input Rotation

YES

Gapless Playback

YES

Tile Mode Setting

YES

Setting Data Cloning

YES

SNMP

YES

ISM Method

YES

Auto Set ID

YES

Status Mailing

YES

Control Manager

YES

Cisco Certification

NO

Crestron Connected

NO

Smart Energy Saving

YES

PM mode

YES

Wake on LAN

YES

Network Ready

YES

Beacon

YES

HDMI-CEC

YES

SI Server Setting

YES

webRTC

NO

Pro:Idiom

NO

Brightness Compensation

NO

W/B Setting by Grey scale

NO

Scan Inversion

NO

ENVIRONMENT CONDITIONS

Operation Temperature

0 °C to 40 °C (w/o Direct Sunlight, Direct Sunlight in Cooling System) 0 °C to 30 °C (Direct Sunlight)

Operation Humidity

10 % to 80 %

POWER

Power Supply

AC 100-240V~, 50/60Hz

Power Type

Built-in Power

POWER CONSUMPTION

Typ.

585W (Full White) 400W (IEC 62087)

Max.

600W

BTU (British Thermal Unit)

1996 BTU/Hr(Typ.), 2047 BTU/Hr(Max.)

DPM

0.5W

Power off

0.5W

SOUND

Speaker (Built-in)

NO

CERTIFICATION

Safety

CB / NRTL

EMC

FCC Class "A" / CE / KC / VCCI

ERP / Energy Star

YES / NO

ePEAT(US only)

NO

OPS COMPATIBILITY

OPS Type compatible

NO

OPS Power Built-in

NO

SOFTWARE COMPATIBILITY

SuperSign CMS

YES

SuperSign Control+

YES

SuperSign WB

NO

SuperSign Cloud

NO

Promota

NO

Mobile CMS

NO

Connected Care

YES

LANGUAGE

OSD

English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Arabic

ACCESSORY

Basic

Remote Controller(including battery 2ea), Power Cord, HDMI Cable, Manual (ESG&EIG), IR Receiver(w/Ambient Light Sensor)

Optional

LSW630(wall mount), AN-WF500 (Stand is not available)

SPECIAL FEATURE

Overlay Touch Compatibility

N/A

Smart Calibration

N/A

Tilt (Face up)

N/A

Tilt (Face down)

N/A

IP Rating

N/A

Conformal Coating (Power Board)

YES

Power Protection

N/A

Direct Sunlight

N/A

DEDICATED FEATURE - TOUCH

Available Object Size for Touch

N/A

Response Time ('Paint' app on Windows 10 PC)

N/A

Accuracy (Typ.)

N/A

Interface

N/A

Protection Glass Thickness

N/A

Protection Glass Transmission

N/A

Operating System Support

N/A

Multi Touch Point

N/A
