XS4G Series - 75'' High Brightness Signage

Features

Gallery

Specs

Support

XS4G Series - 75'' High Brightness Signage

XS4G Series - 75'' High Brightness Signage

75XS4G-B

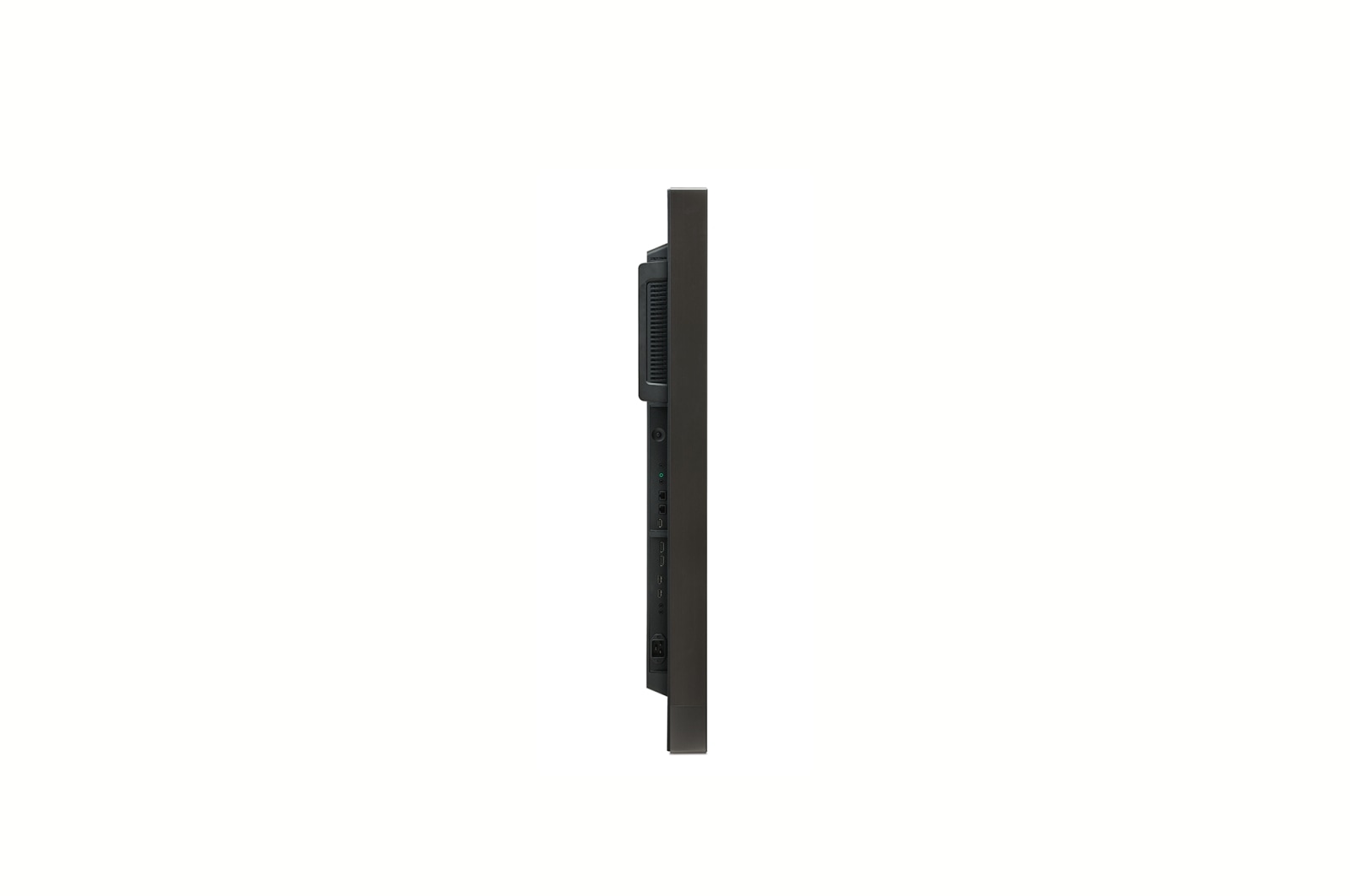

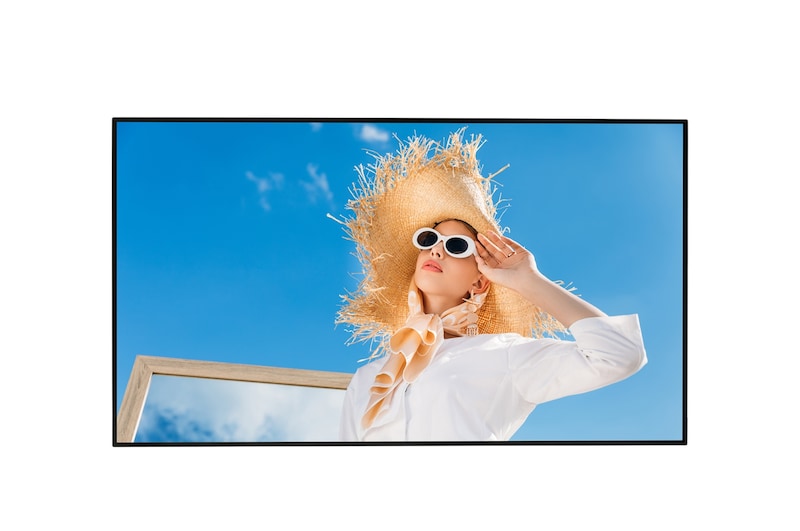

  • Front view of 75XS4G-B

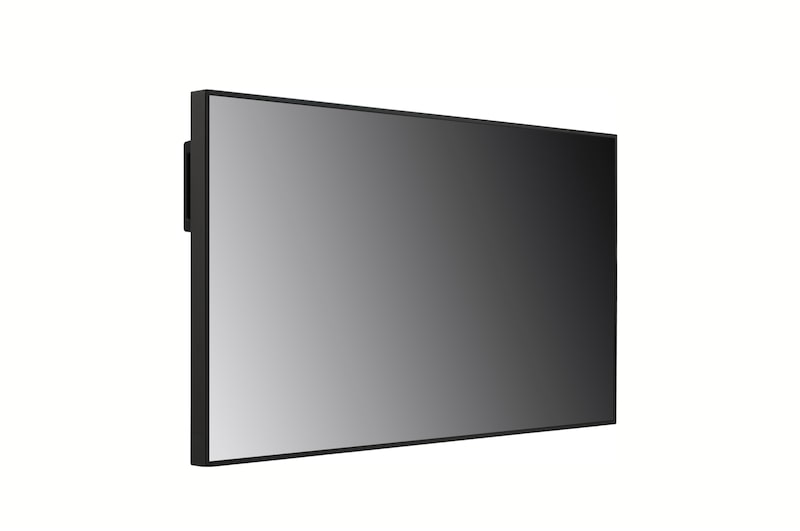

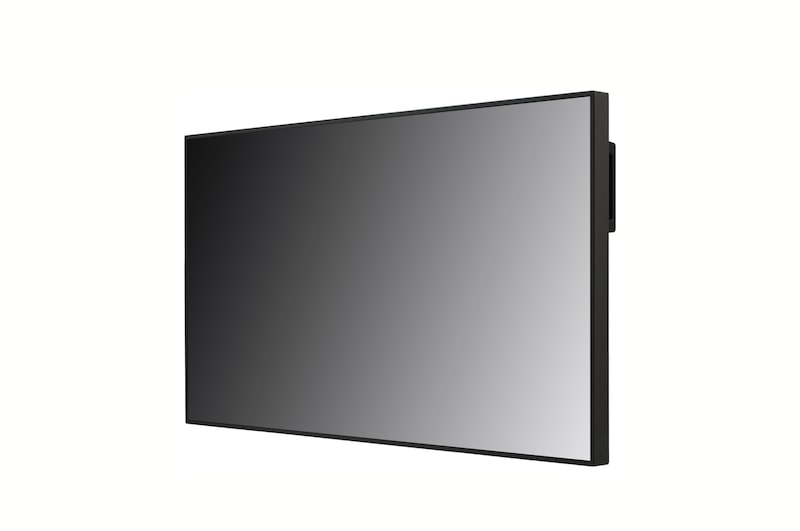

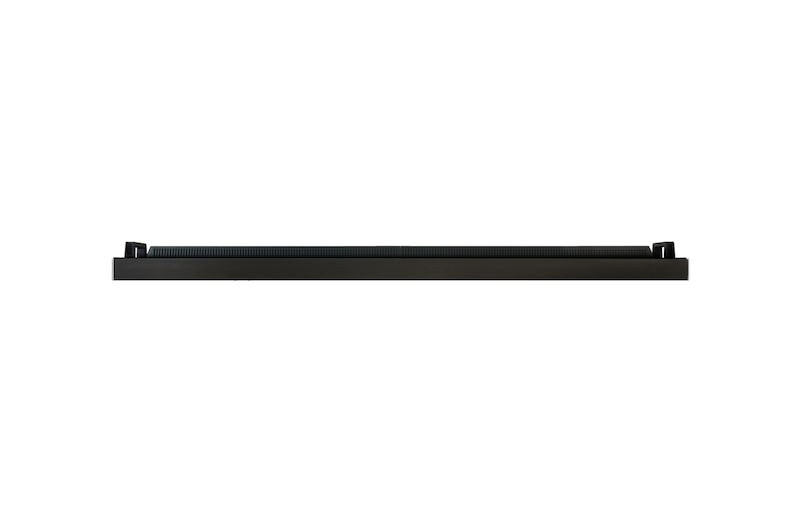

  • LG XS4G Series - 75'' High Brightness Signage, 75XS4G-B
  • LG XS4G Series - 75'' High Brightness Signage, 75XS4G-B
  • LG XS4G Series - 75'' High Brightness Signage, 75XS4G-B
  • LG XS4G Series - 75'' High Brightness Signage, 75XS4G-B
  • LG XS4G Series - 75'' High Brightness Signage, 75XS4G-B
  • LG XS4G Series - 75'' High Brightness Signage, 75XS4G-B
  • LG XS4G Series - 75'' High Brightness Signage, 75XS4G-B
  • LG XS4G Series - 75'' High Brightness Signage, 75XS4G-B

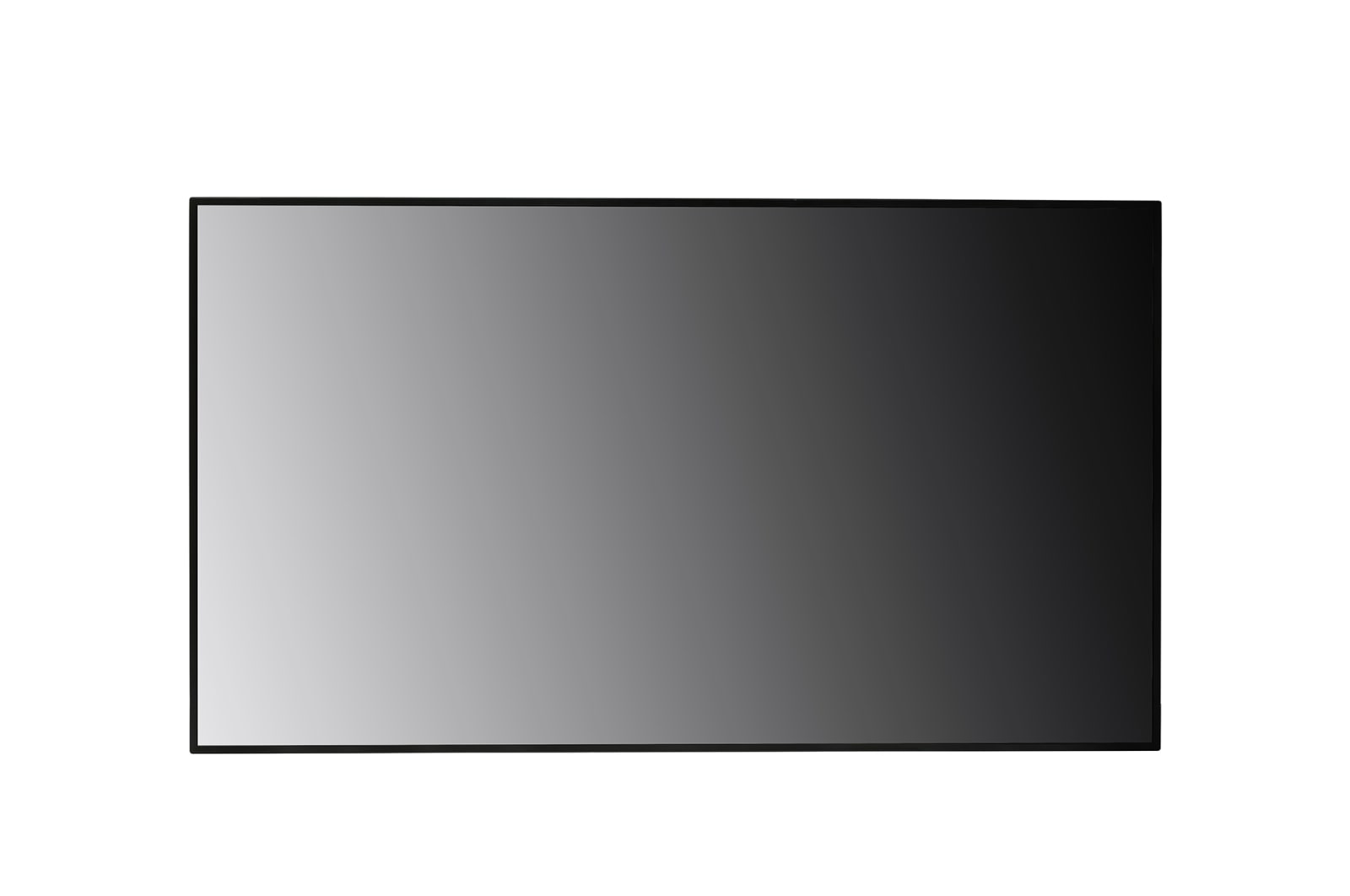

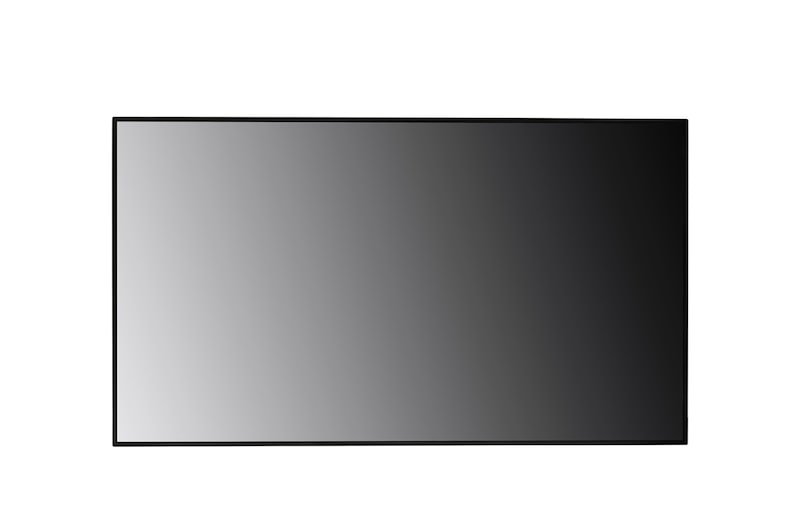

Front view of 75XS4G-B

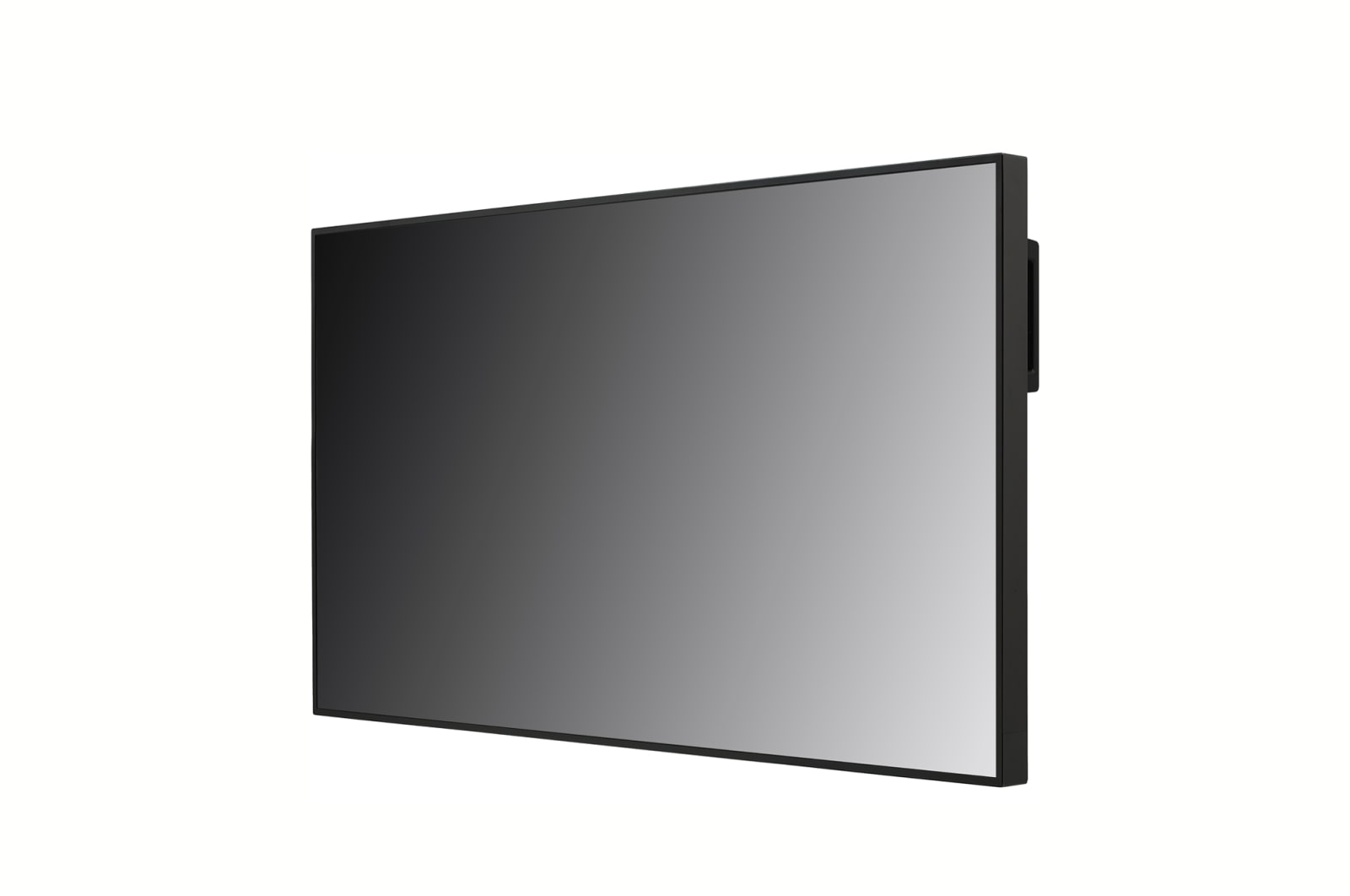

LG XS4G Series - 75'' High Brightness Signage, 75XS4G-B
LG XS4G Series - 75'' High Brightness Signage, 75XS4G-B
LG XS4G Series - 75'' High Brightness Signage, 75XS4G-B
LG XS4G Series - 75'' High Brightness Signage, 75XS4G-B
LG XS4G Series - 75'' High Brightness Signage, 75XS4G-B
LG XS4G Series - 75'' High Brightness Signage, 75XS4G-B
LG XS4G Series - 75'' High Brightness Signage, 75XS4G-B
LG XS4G Series - 75'' High Brightness Signage, 75XS4G-B

Key Features

  • Brightness : 4,000 nits (Typ.) / 3,200 nits (Min.)
  • Resolution : ULTRA HD (3,840 x 2,160)
  • Bezel : 13.8 mm (Even Bezel)
  • Double-sided Usage with Dedicated Bracket
  • Built-in Wi-Fi & Bluetooth
  • Web-based Monitoring Solution
More

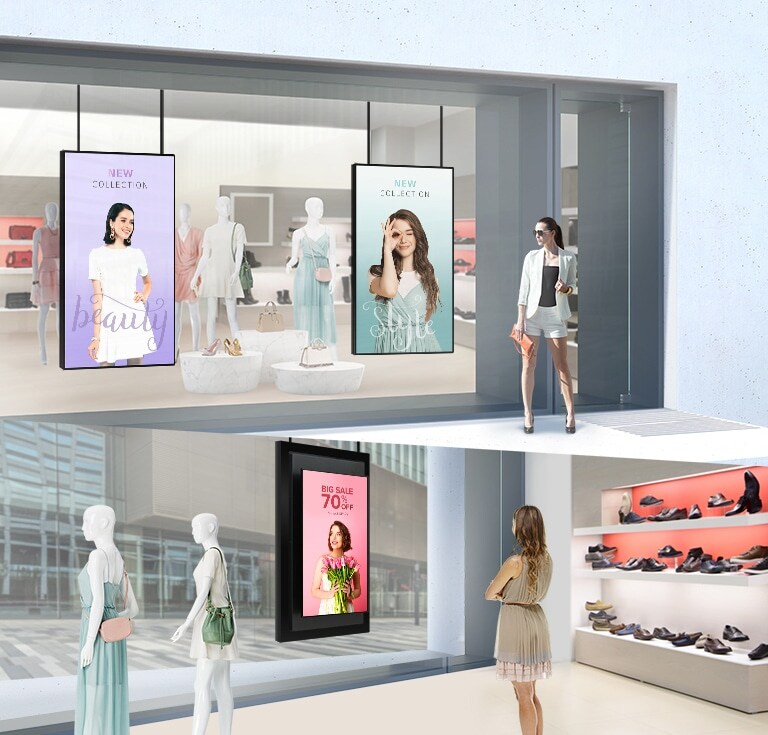

Make Your Content Stand Out beyond Window with the Outstanding Visibility

Double-sided display is attached to the store, allowing customers to get information about the promotion both inside and outside.

* All images of this page are for illustrative purposes only.

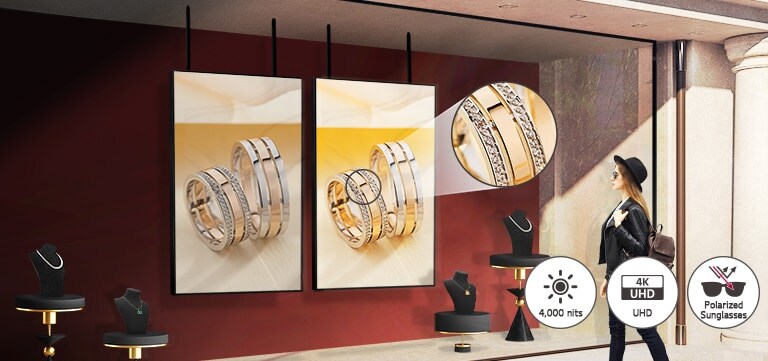

Deliver Your Message
with High Visibility
Even Under the Strong Sunlight

With a great brightness of 4,000 nits** and UHD picture quality,
75XS4G clearly deliver contents and attract public attention,
which is the ultimate display for outdoor visibility.
QWP*** enables clear visibility even when the viewer is wearing polarized sunglasses.

Unlike other products, 75XS4G's display is clearly visible under the sunlight or in environment with sunglasses on.

* ‘LG Conventional’ refers to LG 75XS2E.
** Brightness of 75XS4G : Max. 4,000 nits, Typ. 3,200 nits
*** Quarter Wave Plate

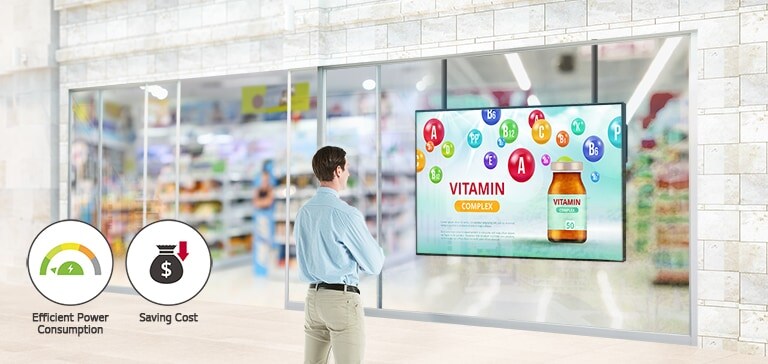

High Energy Efficiency

The 75XS4G is *energy efficient, allowing for an efficient total cost management
while showing content in UHD resolution even with 4,000 nits of high brightness.

75XS4G has high energy efficiency, so it shows a high quality display and saves cost at the same time.

* Maximum power consumption of 75XS4G is 790 W at ‘On Mode’. The figure may differ depending on the actual environment.

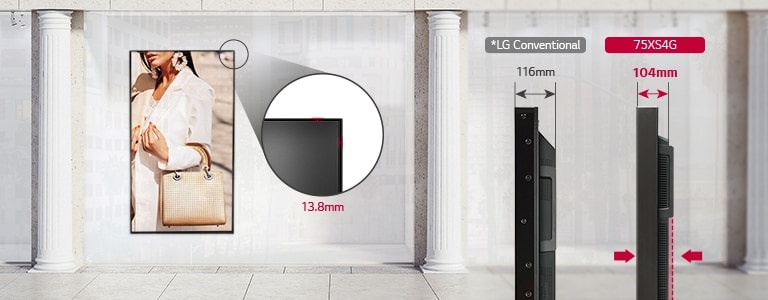

Space Blending Slim Design

Given that window-facing displays are usually installed indoors close to the window,
75XS4G's slim design is useful as it can blend naturally inside the store.

75XS4G is installed close to the window and has a high level of immersion in the display due to its thin bezel and width.

* ‘LG Conventional’ refers to LG 75XS2E

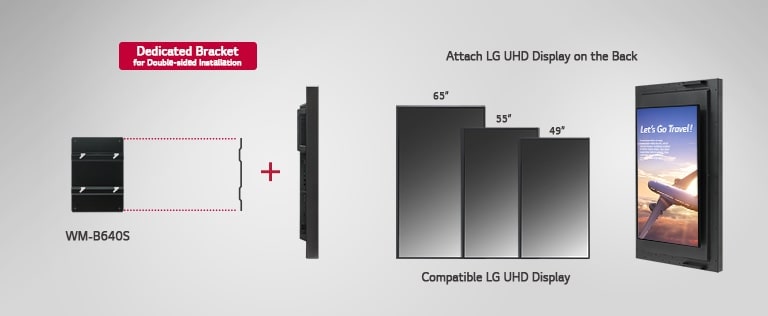

Double-sided Usage with Dedicated Bracket

Due to the 75XS4G flat-back design and dedicated bracket*,
store owner can attach LG’s UHD display** to the back for the purpose of
displaying a variety of content for both external and internal customers.

Using an dedicated bracket, LG UHD display compatible with 75XS4G can be attached on the back.

* Bracket is optional.
** Attachable Displays : LG 65/55/49 inches UH7 Series, 65/55/49 inches UH5/UM3 Series

Wide Operating
Temperature Range

75XS4G can operate at various temperatures of 0-40°C.

A display is working well in an environment of 0-40°C.

Conformal Coating

*Conformal Coating improves reliability of the circuit board, power board
by protecting it against dust, iron powder, humidity, etc.

75XS4G applies conformal coated circuit board and powerboard for protection against dust, iron powder, humidity etc.

* Conformal Coating : Thin protective films/breathing membranes that filter water vapor and solid debris

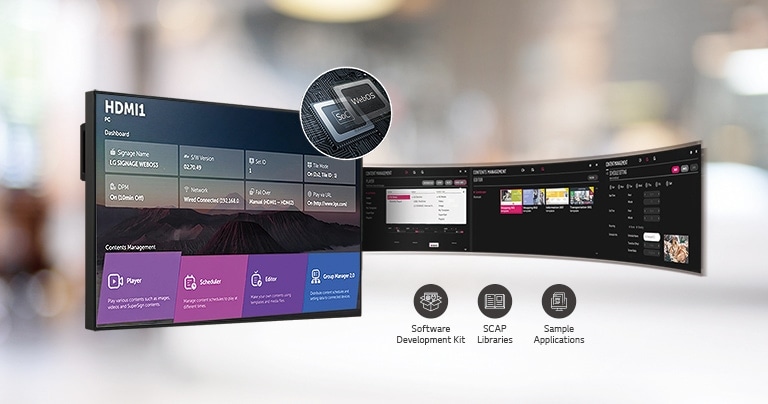

High Performance with webOS

Quad Core SoC* can execute several tasks at the same time without a separate media player.
In addition, webOS 4.1 platform enhances user convenience with intuitive UI and simple app development tools.

A number of tasks that can be done at the same time are arranged easily through webOS platform.

* System-on-Chip

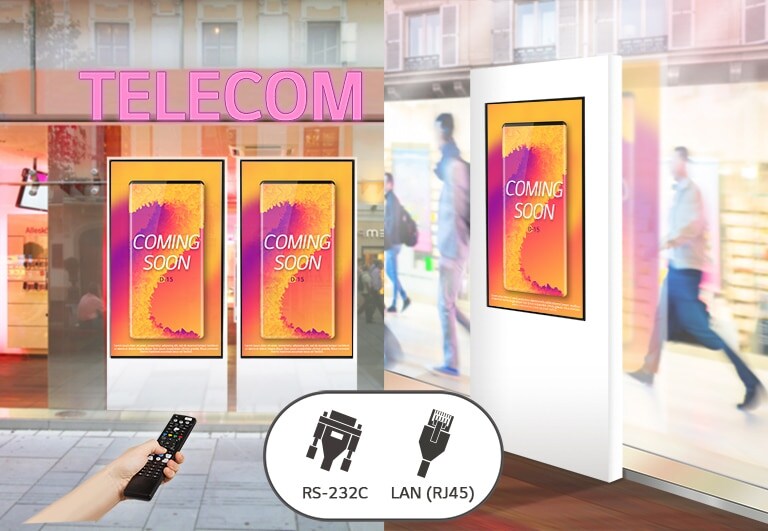

Multiple Display Control with a Remote Control

Multiple device controls are available through the RJ45 & RS-232C ports.
It means that even double-sided displays can be easily controlled simultaneously
with a remote control.

It operates double-sided displays simultaneously with one remote control.

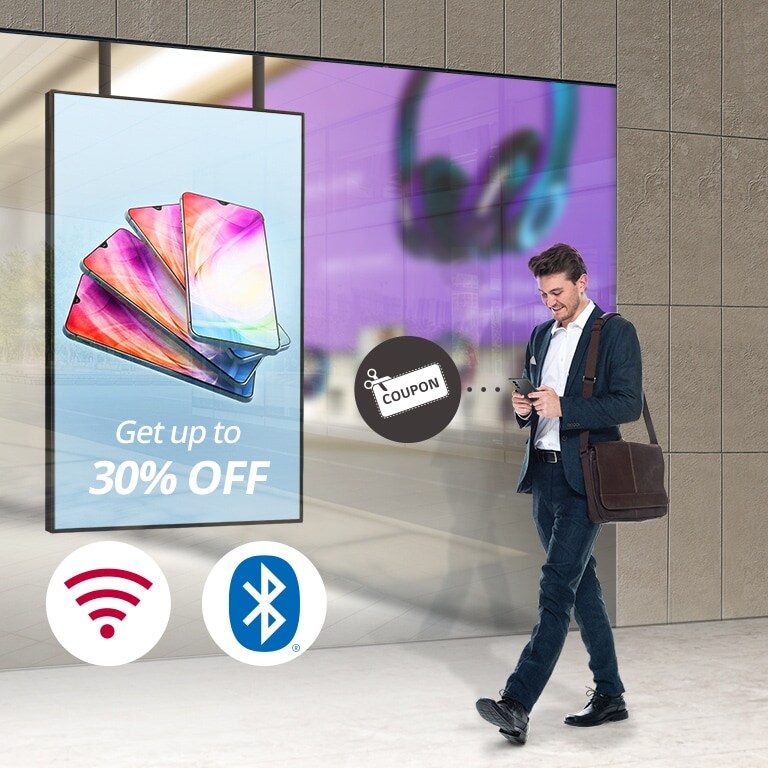

Easy Content Distribution
& SW Update

75XS4G features embedded Wi-Fi, Bluetooth, Beacon making it easy to distribute content wirelessly and update Firmware. In particular, using Beacon and BLE (Bluetooth Low Energy),
Shop manager can do various promotional activities, such as providing promotional coupons or product information to visitor in real time.

A visitor is receiving promotional coupon in real time through Wi-Fi, Bluetooth, and Beacon built into the display.

Web Monitoring
(Control Manager)

This web-based monitoring solution is user-friendly and allows the user to be at ease.
It enables the user to have full access anywhere at anytime
from their mobile phone while having access to both current and past data.
It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.

User can monitor and control their displays through mobile phone and laptop.

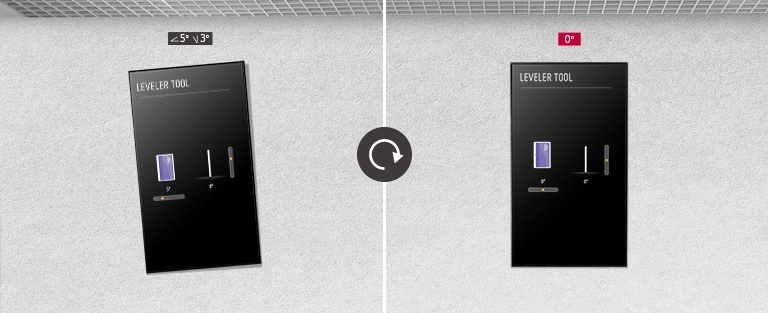

Precise Installation Using Leveler Tool

The 75XS4G is equipped with a "Leveler Tool" which shows users how the device is tilt,
so the display can be precisely installed.

A display is installed without tilting using the leveler tool.

Alert for Right Direction

The 75XS4G is equipped with a "horizontal sensor", so the display can be installed accurately.

Through equipped horizontal sensor, the display can be reinstalled in the correct direction if it is incorrectly installed.

Explore more showroom at<br>LG Digital Connect1

Explore more showroom at
LG Digital Connect

Explore more showroom at<br>LG Digital Connect Explore
Print

All Spec

SOUND

  • Speaker (Built-in)

    NO

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE / KC / VCCI

  • ePEAT(US only)

    NO

  • ERP / Energy Star

    YES / NO

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic

POWER

  • Power Type

    Built-in Power

  • Power Supply

    AC 100-240V~, 50/60Hz

ACCESSORY

  • Optional

    Double sided Bracket (Landscape&Portrait : WM-B640S)

  • Basic

    Remote Controller(including battery 2ea), Power Cord, HDMI Cable, Manual (EIG, IG), IR Receiver(w/Ambient Light Sensor), RS-232C Gender, IR Sheet

DEDICATED FEATURE - TOUCH

  • Response Time ('Paint' app on Windows 10 PC)

    N/A

  • Accuracy (Typ.)

    N/A

  • Available Object Size for Touch

    N/A

  • Interface

    N/A

  • Multi Touch Point

    N/A

  • Operating System Support

    N/A

  • Protection Glass Thickness

    N/A

  • Protection Glass Transmission

    N/A

ENVIRONMENT CONDITIONS

  • Operation Humidity

    10 % to 80 %

  • Operation Temperature

    0 °C to 40 °C (w/o Direct Sunlight, Direct Sunlight in Cooling System) 0 °C to 30 °C (Direct Sunlight)

MECHANICAL SPECIFICATION

  • Bezel Width

    Even bezel : 13.8mm

  • Bezel Color

    Black

  • Carton Dimensions (W x H x D)

    1816 x 1106 x 285mm

  • Handle

    YES

  • Monitor Dimensions (W x H x D)

    1679.2 x 957.6 x 104mm

  • Monitor Dimension with Stand (W x H x D)

    N/A

  • Packed Weight

    50Kg

  • VESA Standard Mount Interface

    600 x 400 mm

  • Weight (Head)

    39.6Kg

  • Weight (Head+Stand)

    N/A

OPS COMPATIBILITY

  • OPS Power Built-in

    NO

  • OPS Type compatible

    NO

PROTECTION GLASS

  • Anti-Reflective

    N/A

  • Degree of Protection

    N/A

  • Infrared - Resistance (IR)

    N/A

  • Shatter-Proof

    N/A

  • Tempered / Chemical strengthening

    N/A

  • Thickness

    N/A

SPECIAL FEATURE

  • Power Protection

    N/A

  • Conformal Coating (Power Board)

    YES

  • Direct Sunlight

    N/A

  • IP Rating

    N/A

  • Overlay Touch Compatibility

    N/A

  • Smart Calibration

    N/A

  • Tilt (Face down)

    N/A

  • Tilt (Face up)

    N/A

SOFTWARE COMPATIBILITY

  • Connected Care

    YES

  • Mobile CMS

    NO

  • Promota

    NO

  • SuperSign Cloud

    NO

  • SuperSign CMS

    YES

  • SuperSign Control+

    YES

  • SuperSign WB

    NO

PANEL

  • Contrast Ratio

    1,200:1 (Typ.)

  • Aspect Ratio

    16:9

  • Back Light Type

    Direct

  • Brightness

    4,000nit (Typ.), 3,200nit (Min.)

  • Color Depth (Number of Colors)

    1.07 Billion colors

  • Color Gamut

    NTSC 68%

  • Dynamic CR

    500,000:1

  • Life time

    50,000Hrs (Typ.)

  • Native Resolution

    3840 x 2160 (UHD)

  • Operation Hours (Hours/Day)

    24/7

  • Panel Technology

    IPS / M+

  • Portait / Landscape

    YES / YES

  • QWP (Quarter Wave Plate)

    YES

  • Refresh Rate

    60Hz

  • Response Time

    8ms (G to G)

  • Screen Size (Inch)

    75

  • Surface Treatment (Haze)

    Haze 3%

  • Transparency

    N/A

  • Viewing Angle (H x V)

    178º x 178º

FEATURE - HARDWARE

  • Local Key Operation

    YES

  • Acceleration(Gyro) Sensor

    YES

  • Auto Brightness Sensor

    YES

  • BLU Sensor

    NO

  • Current Sensor

    NO

  • FAN (Built-in)

    YES

  • Humidity Sensor

    NO

  • Internal Memory (eMMC)

    16GB

  • Pixel Sensor

    NO

  • Power Indicator

    NO

  • Proximity Sensor

    NO

  • Temperature Sensor

    YES

  • Wi-Fi/BT (Built-in)

    YES

CONNECTIVITY

  • Daisy Chain

    NO

  • Audio In

    NO

  • Audio Out

    NO

  • DP In

    YES (HDCP 2.2/1.3)

  • DP Out

    YES

  • DVI-D In

    NO

  • External Speaker Out

    YES

  • HDMI In

    YES (2ea)

  • HDMI In (HDCP Ver.)

    2.2/1.4

  • HDMI Out

    YES

  • IR In

    YES

  • IR Out

    YES (Sharing RS232C Out)

  • RGB In

    NO

  • RJ45(LAN) In

    YES (1ea)

  • RJ45(LAN) Out

    YES

  • RS232C In

    YES

  • RS232C Out

    YES

  • Touch USB

    NO

  • USB In

    USB2.0 Type A (1ea)

FEATURE - SOFTWARE

  • Pro:Idiom

    YES

  • Auto Set ID

    YES

  • Backlight Sync

    YES

  • Beacon

    YES

  • Booting Logo Image

    YES

  • Brightness Compensation

    NO

  • Cisco Certification

    NO

  • Control Manager

    YES

  • Crestron Connected

    NO

  • External Input Rotation

    YES

  • Fail over

    YES

  • Gapless Playback

    YES

  • Group Manager

    YES

  • HDMI-CEC

    YES

  • ISM Method

    YES

  • Local Contents Scheduling

    YES

  • Local Network Sync

    YES

  • Network Ready

    YES

  • No Signal Image

    YES

  • OS Ver. (webOS)

    webOS 4.1

  • PBP

    YES (2PBP)

  • PIP

    YES

  • Play via URL

    YES

  • PM mode

    YES

  • RS232C Sync

    YES

  • Scan Inversion

    NO

  • Screen Rotation

    YES

  • Screen Share

    NO

  • Setting Data Cloning

    YES

  • SI Server Setting

    YES

  • Smart Energy Saving

    YES

  • SNMP

    YES

  • Status Mailing

    YES

  • Tile Mode Setting

    YES

  • USB Plug & Play

    YES

  • Video Tag

    YES (4 Video Tag)

  • Wake on LAN

    YES

  • webRTC

    YES

  • W/B Setting by Grey scale

    NO

POWER CONSUMPTION

  • BTU (British Thermal Unit)

    2559 BTU/Hr(Typ.), 2696 BTU/Hr(Max.)

  • DPM

    0.5W

  • Power off

    0.5W

  • Max.

    790W

  • Typ.

    750W (Full White) 405W (IEC 62087)
