27" Touch Open Frame Signage

Features

Gallery

Specs

Support

27" Touch Open Frame Signage

27" Touch Open Frame Signage

27TNF3K-S
  • Front view of 27TNF3K with infill image

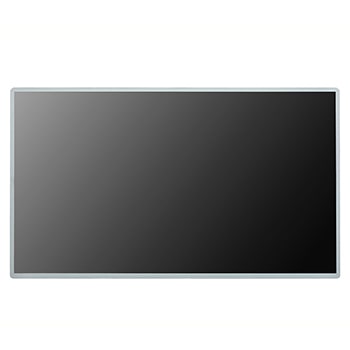

  • Front view of 27TNF3K
  • -45 degree side view of 27TNF3K
  • -90 degree side view of 27TNF3K

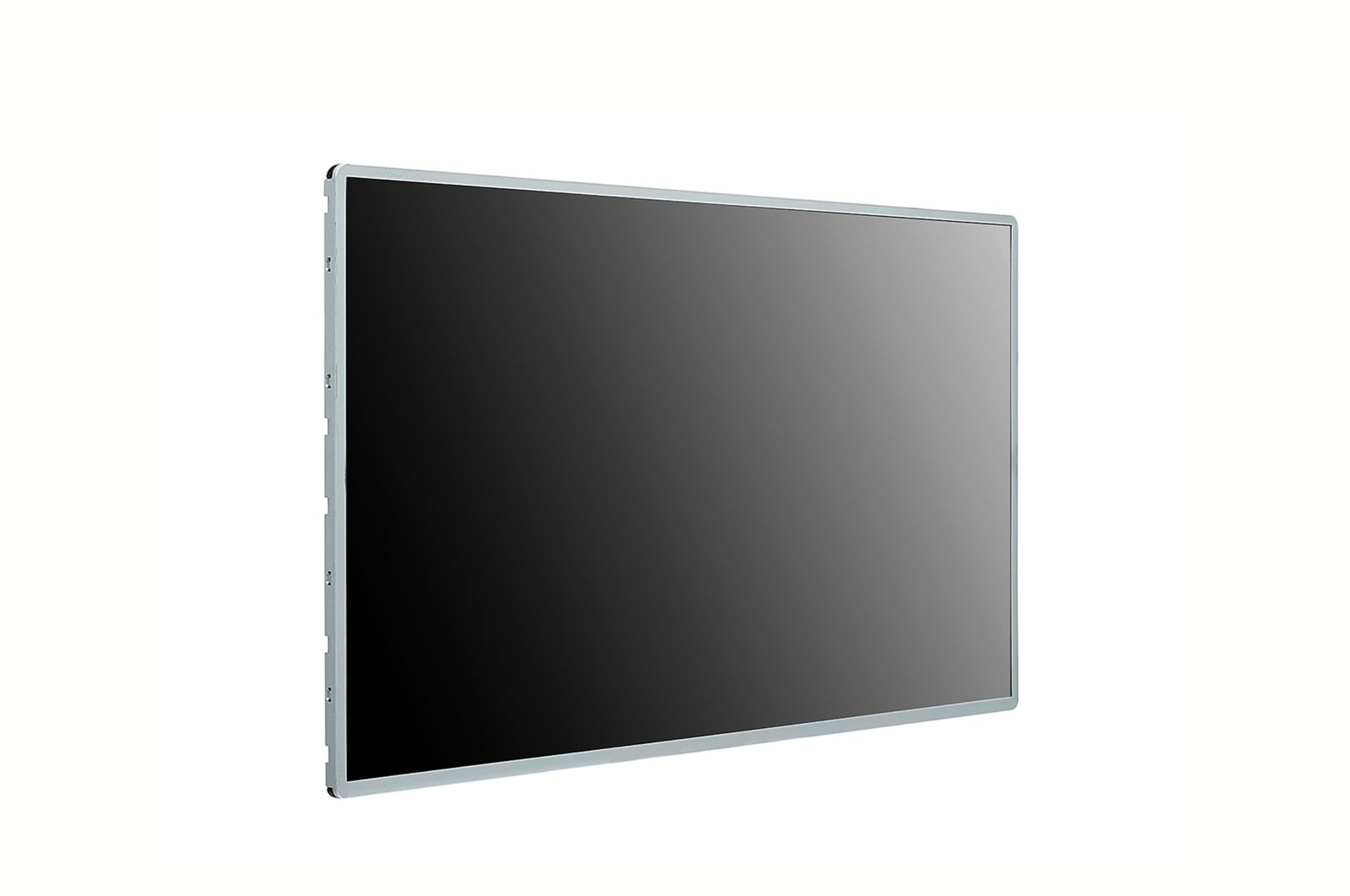

  • +45 degree side view of 27TNF3K
  • +90 degree side view of 27TNF3K

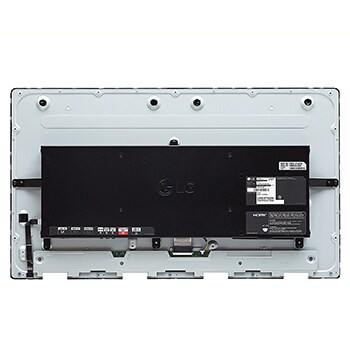

  • Rear view of 27TNF3K

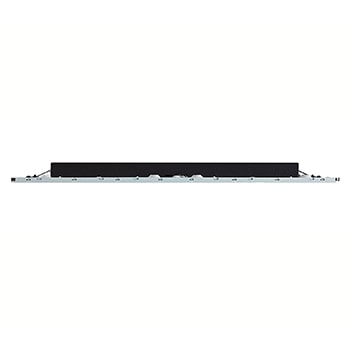

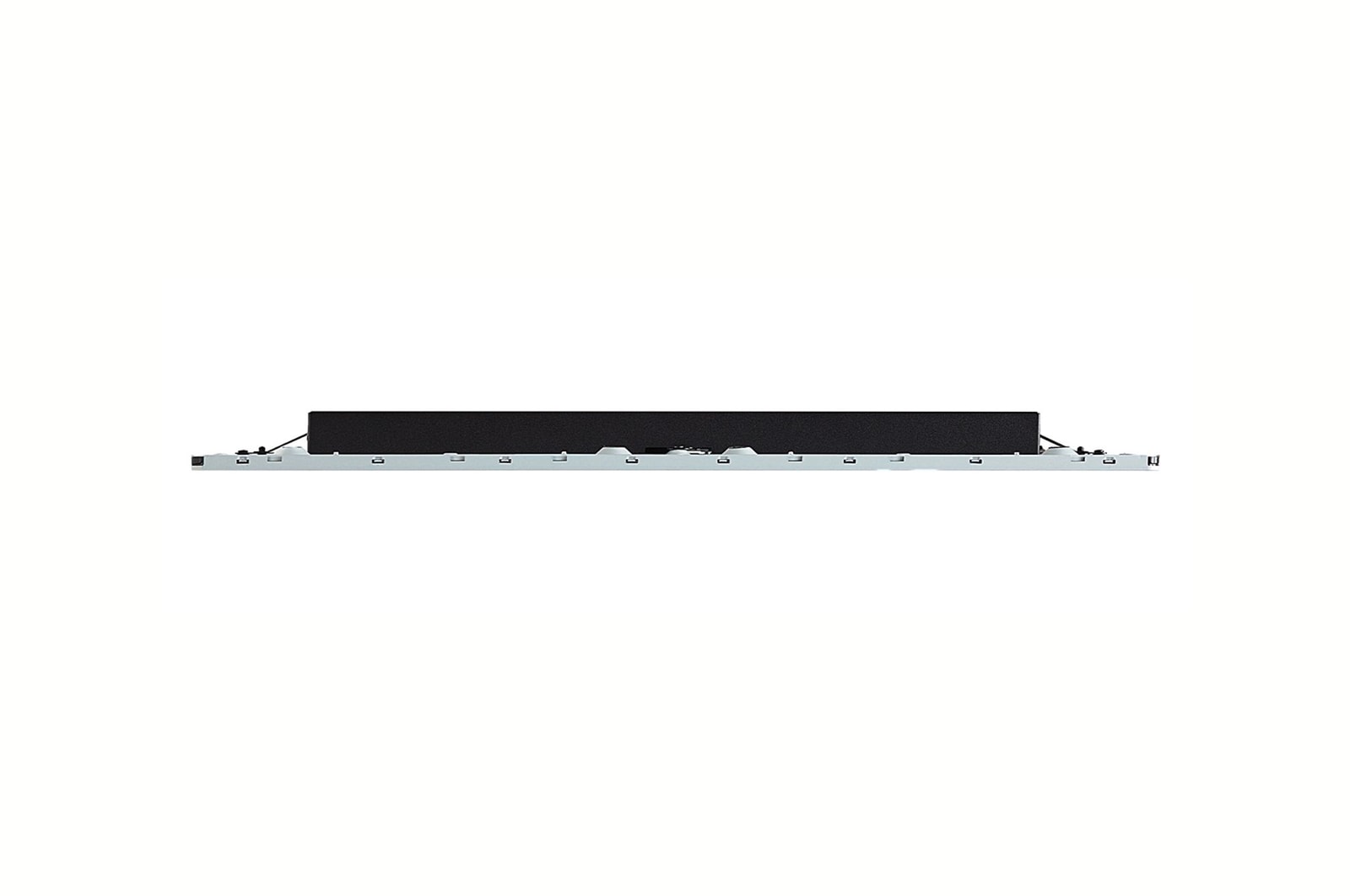

  • Top view of 27TNF3K

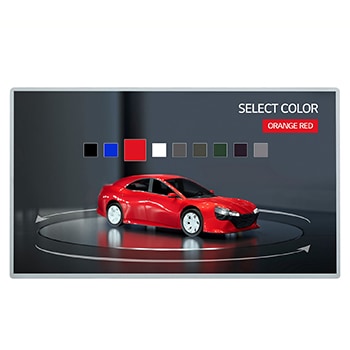

Front view of 27TNF3K with infill image
Front view of 27TNF3K

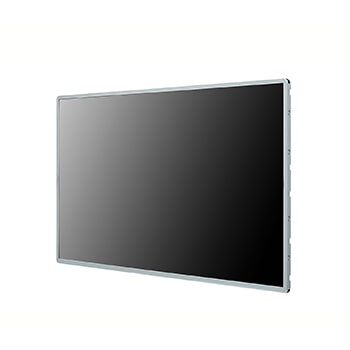

-45 degree side view of 27TNF3K

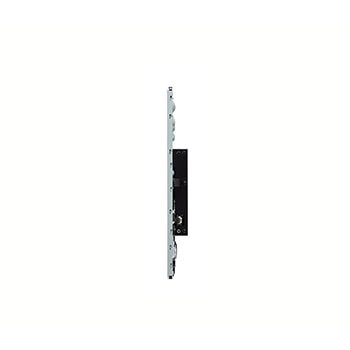

-90 degree side view of 27TNF3K

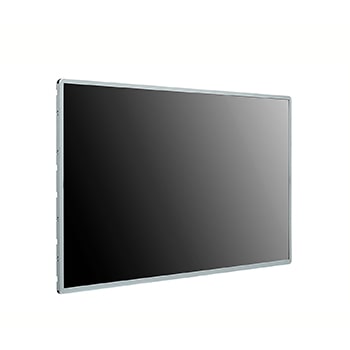

+45 degree side view of 27TNF3K

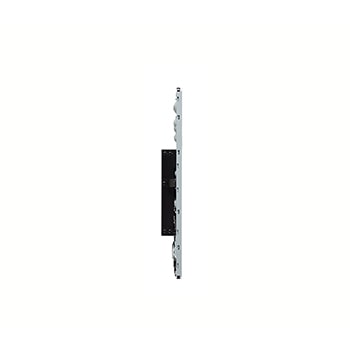

+90 degree side view of 27TNF3K
Rear view of 27TNF3K
Top view of 27TNF3K

Key Features

  • 27" Full HD Touch Display
  • Brightness : 300 nit
  • Multi-Touch Point : Max. 10 Points
  • Interface : HDMI (2) / RS-232C / RJ45 / IR / USB 2.0 Type A / Audio / Touch USB (USB 2.0 Type B)
More

New In-Cell Touch Open Frame for Optimal Customization

In a car dealership, a man is touching TNF3K to change the color of a car on the display.

* All images in this page are for illustrative purposes only.

Slim & Light

The In-Cell Touch Open Frame has a touch function built into the display, allowing for the implementation of a slim design and a narrow bezel compared to general touch products that require additional touch parts (Film).

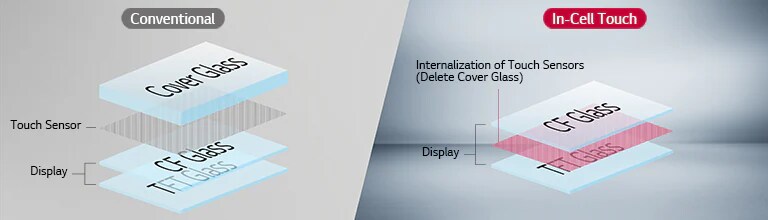

The conventional display has a touch sensor between the cover glass layer and the CF glass and TFT glass layers, whereas In-cell Touch has a touch sensor between the CF glass layer and the TFT glass layer without a cover glass layer.

Clear Picture Quality

Compared to general touch products, 27TNF3K implements clear picture quality without milk effects caused by additional touch sensor film parts.

While scenery on the conventional display looks blurry, the image on the In-cell Touch is clear.

Design Flexibility

By providing integrated parts such as touchscreen, display, and webOS, users can realize free design for their own needs.

Various types of displays using TNF3K such as kiosk displays and publicity displays are placed.

Wide Viewing Angle

IPS panel technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.

With a 178-degree wide viewing angle, the display content is visible from any angle.

A woman is touching a lower installed TNF3K. The TNF3K is installed tilted toward the woman so she can see the display content well.

45-degree Tilt (Face up) Installation Possible

When a display is installed at low places, it is usually tilted for the user’s viewing comfort. Considering this, the installation with a max tilt of 45 degrees is supported.

The user places all ten fingers on the display to touch it.

10 Points of Multi-Touch

The 27TNF3K provides a more realistic touch sensation since it can recognize up to 10 points of multi-touch at once, and various touchbased user services can be provided through the screen.

High-Performance with webOS 6.0

webOS 6.0, upgraded in SoC* and web engine, is available on 27TNF3K for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI** and provides to SI or/and developers simple app development tools such as SDK (Software Development Kit), SCAP, sample applications.

A number of tasks that can be done simultaneously are easily arranged through the webOS platform.

* SoC : System On Chip

** GUI : Graphical User Interface

Print

All Spec

PANEL

  • Screen Size (Inch)

    27"

  • Panel Technology

    IPS

  • Back Light Type

    Edge

  • Aspect Ratio

    16:9

  • Native Resolution

    1920x1080 (FHD)

  • Refresh Rate

    60Hz

  • Brightness

    300nit

  • Contrast Ratio

    1,000:1

  • Color Gamut

    NTSC 72%

  • Viewing Angle (H x V)

    178 X 178

  • Color Depth (Number of Colors)

    8bit, 16.7 Million colors

  • Response Time

    9ms (G to G)

  • Surface Treatment (Haze)

    Anti glare, 3H(Haze 25%)

  • Life time

    31,000 Hrs (min)

  • Operation Hours (Hours/Day)

    16/7

  • Portait / Landscape

    Yes / Yes

MECHANICAL SPECIFICATION

  • Bezel Color

    Silver

  • Bezel Width

    7.7/7.7/7.7/9.7mm

  • Weight (Head)

    4.2Kg

  • Packed Weight

    6.2Kg

  • Monitor Dimensions (W x H x D)

    614.9 x 355.3 x 15.1mm

  • VESA Standard Mount Interface

    200x100

  • Carton Dimensions (W x H x D)

    707 x 451 x 171 mm

FEATURE - HARDWARE

  • Internal Memory (eMMC)

    8GB(System 5GB + Available 2.48GB)

  • Temperature Sensor

    Yes

  • Acceleration(Gyro) Sensor

    Yes

FEATURE - SOFTWARE

  • OS Ver. (webOS)

    webOS 6.0

  • USB Plug & Play

    Yes

  • Fail over

    Yes

  • Video Tag

    Yes

  • Play via URL

    Yes

  • Gapless Playback

    Yes

  • Setting Data Cloning

    Yes

  • SNMP

    Yes

  • ISM Method

    Yes

  • Status Mailing

    Yes

  • Control Manager

    Yes

  • HDMI-CEC

    Yes

  • SI Server Setting

    Yes

  • webRTC

    Yes

  • Pro:Idiom

    Yes

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 °C to 40 °C

  • Operation Humidity

    10% to 80%

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • DPM

    0.5W↓

  • Power off

    0.5W↓

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A"/ CE / KC

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    Yes

  • SuperSign Control+

    Yes

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic, Turkish, Polski

ACCESSORY

  • Basic

    Power Cord 1.55 M*1, USB Cable (Type A-Type B) 1.8 M*1, User Manual, QSG, Remote Controller(include battery 2ea), RS232C Gender, IR Receiver

DEDICATED FEATURE - TOUCH

  • Available Object Size for Touch

    Ø6 mm ↑

  • Response Time ('Paint' app on Windows 10 PC)

    90ms ↓

  • Accuracy (Typ.)

    3.5mm±0.5mm

  • Interface

    USB2.0

  • Operating System Support

    Win 10

  • Multi Touch Point

    Max 10 Points
