One:Quick Flex

43HT3WN-M

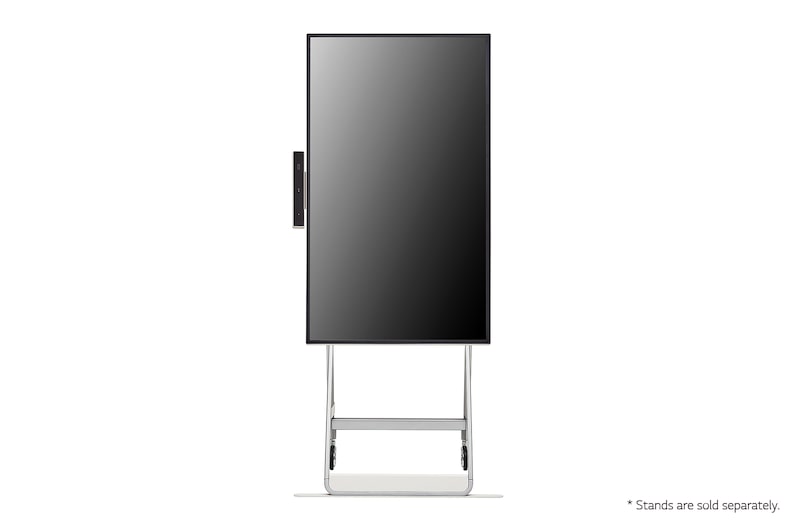

Front view of 43HT3WN-M, portrait mode (* Stands are sold separately)

＋90 degree side view of 43HT3WN-M (* Stands are sold separately)

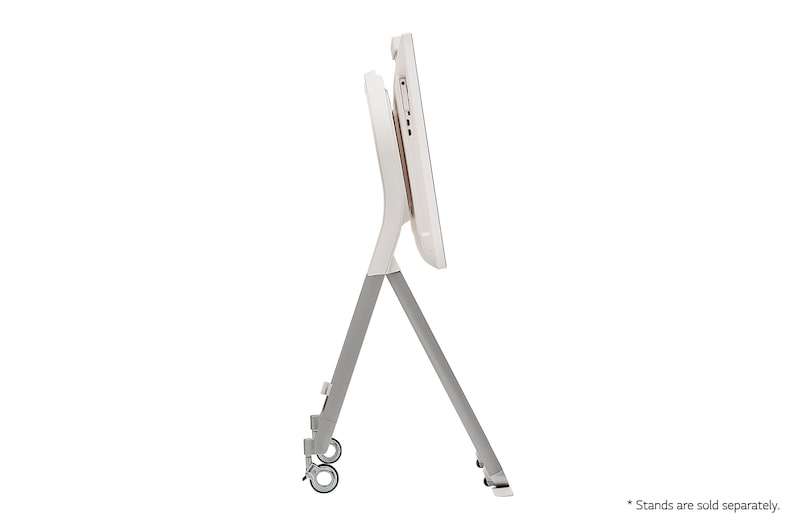

＋45 degree side view of 43HT3WN-M (* Stands are sold separately)

Image taken from the top right of 43HT3WN-M (* Stands are sold separately)

Close-up image of top of 43HT3WN-M (* Stands are sold separately)

Key Features

Resolution : 4K Ultra HD (3,840 × 2,160)
Brightness : 350 nit
Camera : Full HD (1,920 × 1,080), 88º FoV
Sound : 2.0 Channel (10W + 10W)
Microphone : 3m Pickup Range
Windows 10 IoT Enterprise (Basic)

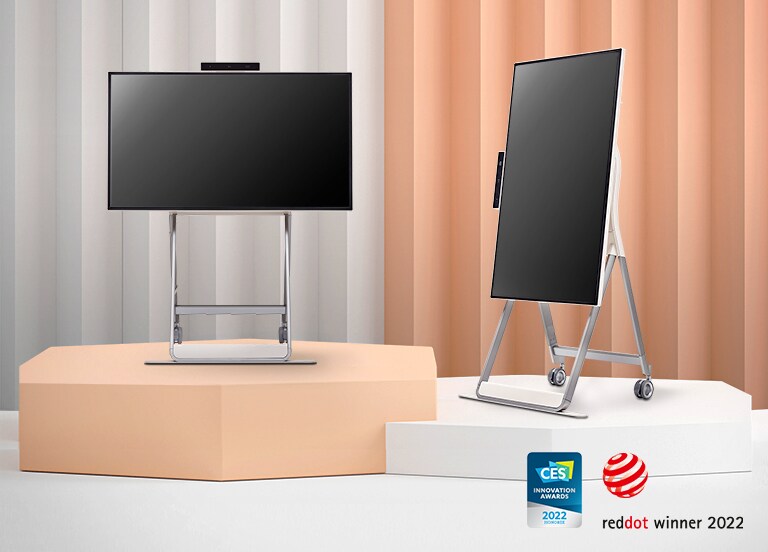

The award-winning LG One:Quick Flex

LG One:Quick Flex has won the CES Innovation Awards Honoree and the Red Dot Award consecutively, and it has received worldwide recognition for its technology and design.

One:Quick Flex
for Effective Collaboration

Two people are having a video conference using One:Quick Flex in a space with an informal atmosphere. The other two people at another table behind them are having a conference while flipping One:Quick Flex vertically and marking or writing on it with a dedicated touch pen on the screen.

* Camera mirror mode is only available for certain apps.
* All images in this page are for illustrative purposes only.

The close-up images of the built-in microphones, camera, and speaker describing their key features.

One:Quick Flex for Simple and Quick Video Call

The 43-inch One:Quick Flex complete with built-in camera, microphones and speakers there's no need to stress over online meetings and calls and no more inconvenience of connecting to and setting up video conferencing.

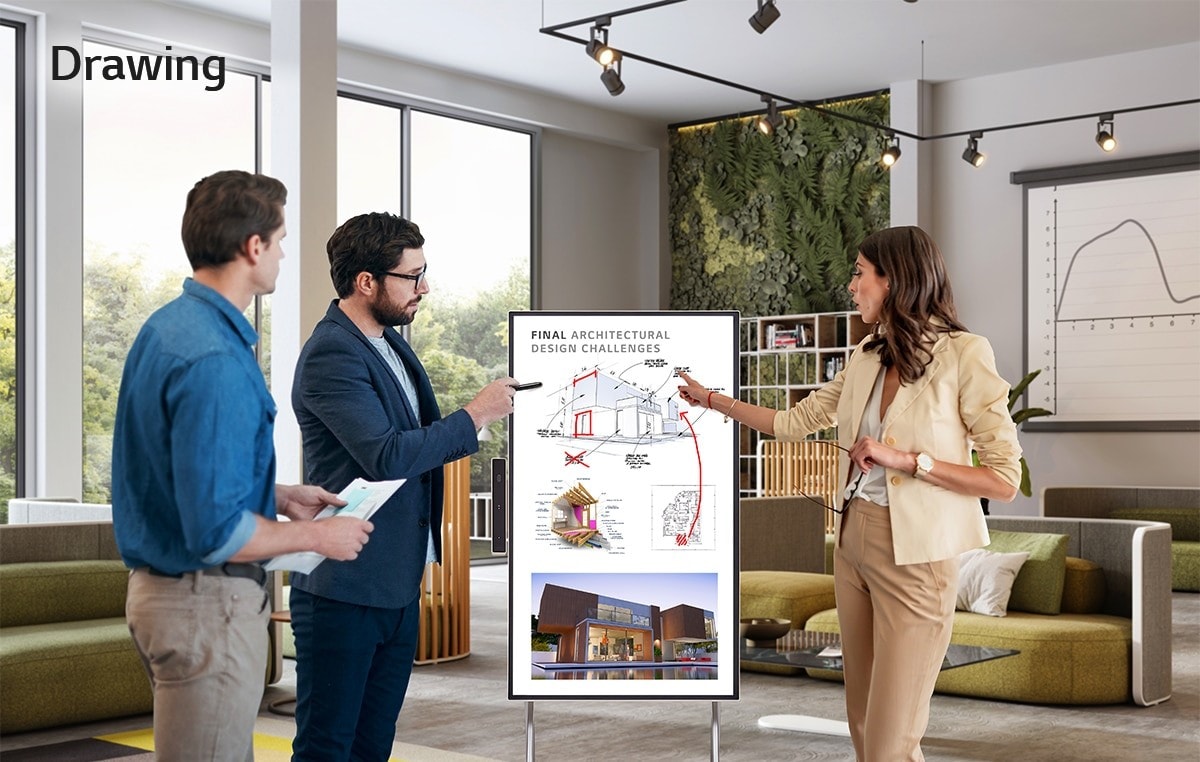

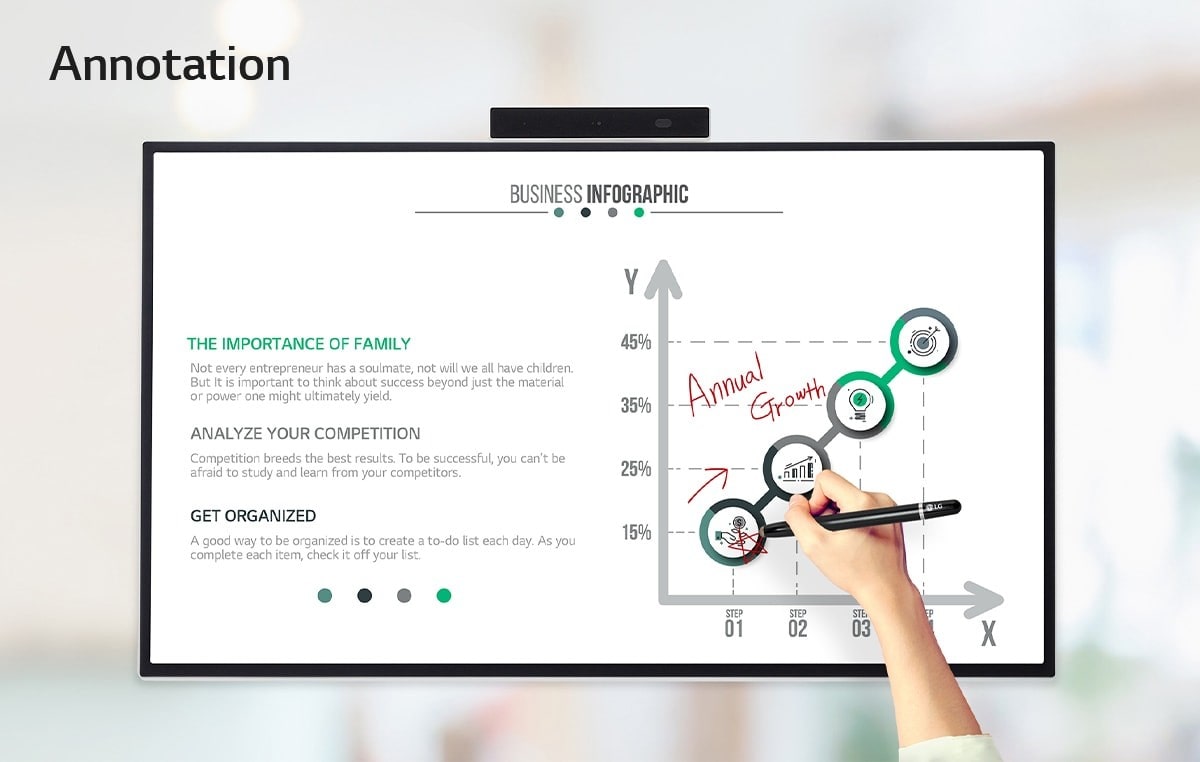

Effective Collaboration with Touch and Drawing

Equipped with In-Cell touch technology, the One:Quick Flex turns ideas into reality. With a dedicated touch pen, taking notes and drawing are done easily. Also, their works can be saved as files, and easily shared via mobile phone.

Several people are discussing and sharing their ideas using the LG One:Quick Flex. A person is taking notes on the data displayed on the One:Quick Flex screen with a dedicated touch pen. The image sent from the LG One:Quick Flex is shown on a woman's cell phone.

* One touch pen provided.
* Dedicated apps required for annotation and drawing (MS Whiteboard ready)

The LG One:Quick Flex is placed between the office and lounge, showing its wheel.

Easy Transport with a Movable Stand

The One:Quick Flex can be used anywhere indoors where it can be moved by wheels. From a private office to public lounge, it plays various roles according to each need such as video conferencing, design demo, collaboration, etc.

* Stands are sold separately.
* The product needs to be plugged into the appropriate power source to operate.

The image shows the LG One:Quick Flex can be rotated vertically (counterclockwise) and horizontally (clockwise).

Screen Rotation

The One:Quick Flex supports screen rotation when using the dedicated stand, which can be widely used by being turned vertically or horizontally according to the content ratio.

* Stands are sold separately. Screen is rotated manually.
* To use it vertically, users can rotate counter clockwise, and vice versa to switch back to landscape mode.
* Some apps may not support vertical view mode.

The height of the stand can be lifted up to 9.5cm high regardless of whether it is in landscape mode or portrait mode.

Adjustable Height

The height of the stand can be adjusted to meet the posture or height of the user. (up to 9.5 cm)

*The height is adjusted manually.

The image shows the main screen of the LG One:Quick Flex which is similar to that of a mobile touch UX.

Intuitive UX and Excellent Expandability

The touch-based UX of One:Quick Flex is designed to be similar to the mobile touch UX, making it easy to use. Also, the operating system based on Windows makes it easy for the user to install and run programs they want through a huge library of applications and tools.

* Screen image simulated for illustrative purposes.

A woman is using voice commands to control the One:Quick Flex while cooking.

Voice Ordering

The user can also perform key functions through voice commands without the need to touch the screen.

* Voice ordering is limited to some specific functions: Power, volume, built-in apps, camera, reader mode.

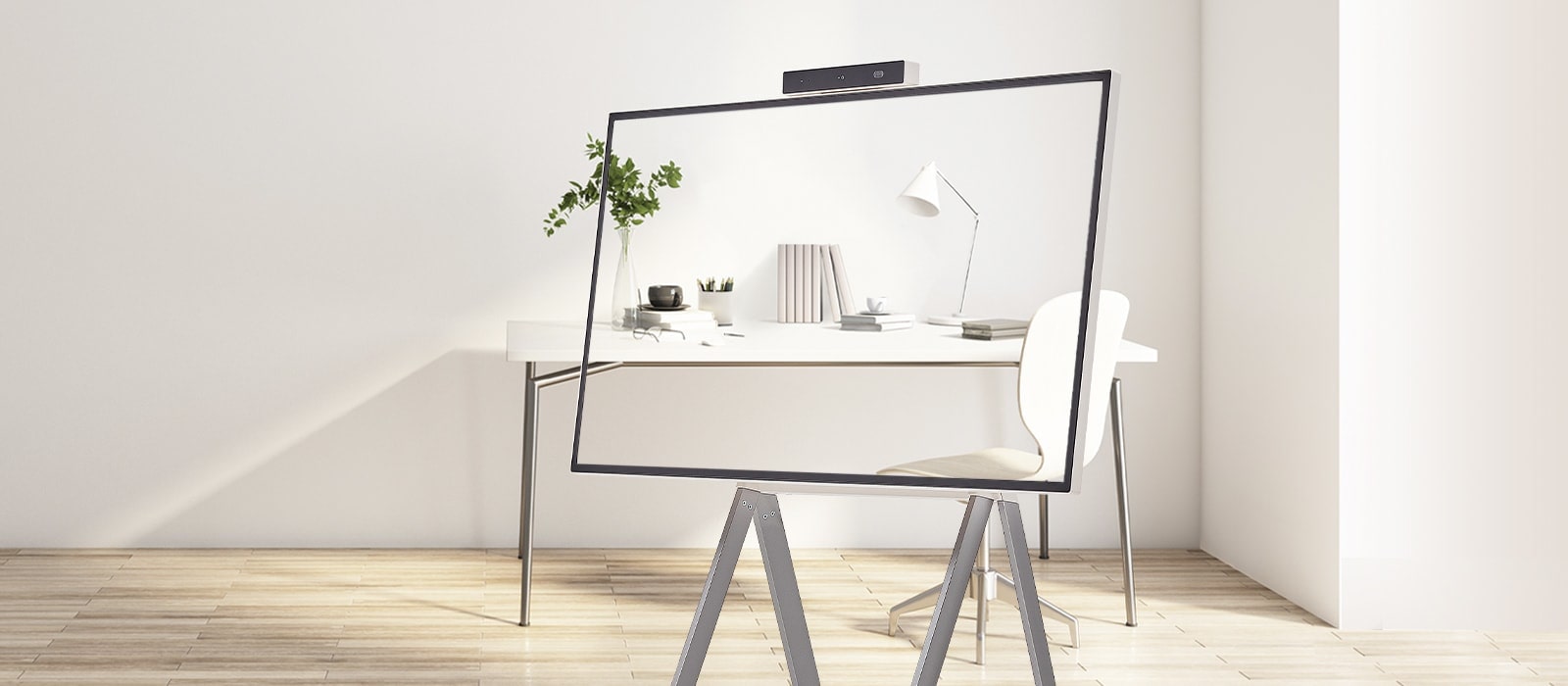

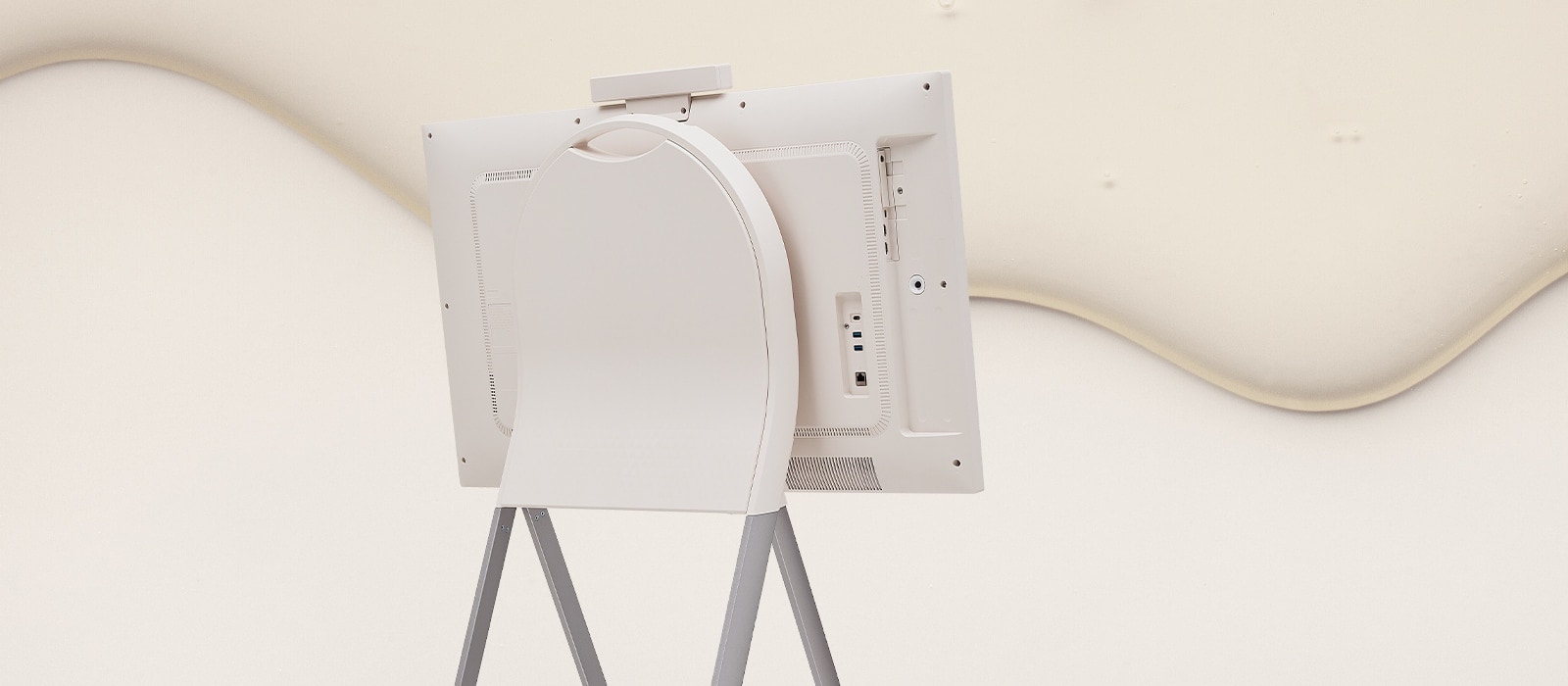

A Sleek Design that Blends
with the Space

Moving beyond the conventional black color, it is available in stylish beige with a smooth finish and blends effortlessly with the surrounding interior.

One:Quick Flex is placed in harmony with the beige background and the beige-toned interior.

LG One Quick Flex, Doctor's Office, Telemedicine, Collaborative Workspace, Design Office, Wards in a Hospital

LG One: Quick Flex
A 43-inch 4K UHD touchscreen designed with a movable stand to accommodate diverse usage scenarios.

Doctor's Office
Perform simple consultations or medical examinations remotely without meeting with the patient.

Telemedicine
Conveniently consult with your doctor at home regardless of time and space constraints.

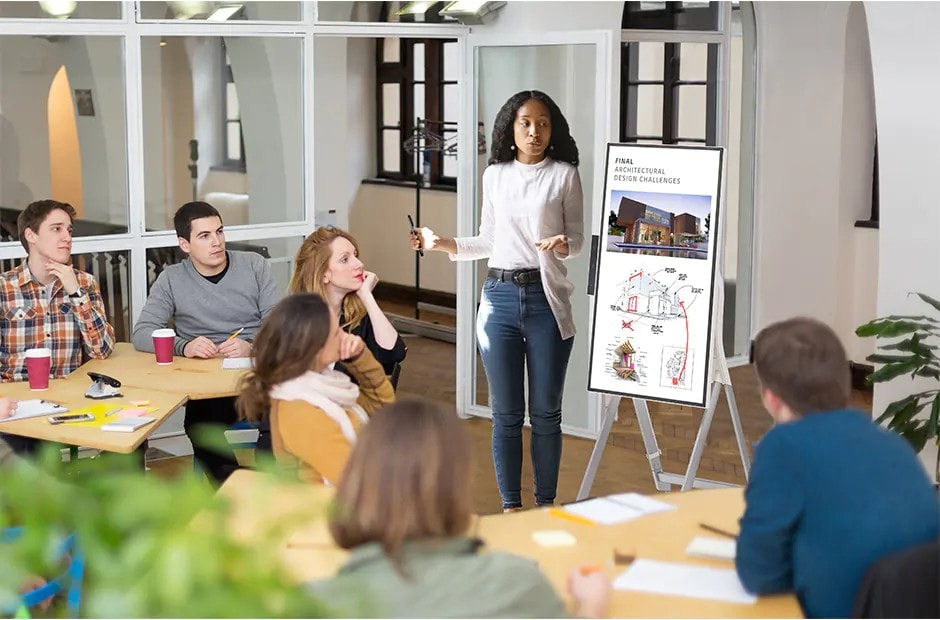

Collaborative Workspace
Employees can freely describe their creative ideas with drawing and writing.

Design Office
Have meetings and demonstrations with clients and contract in one place.

Wards in a Hospital & Nursing Home
Connect with your family and relatives as if you were there.

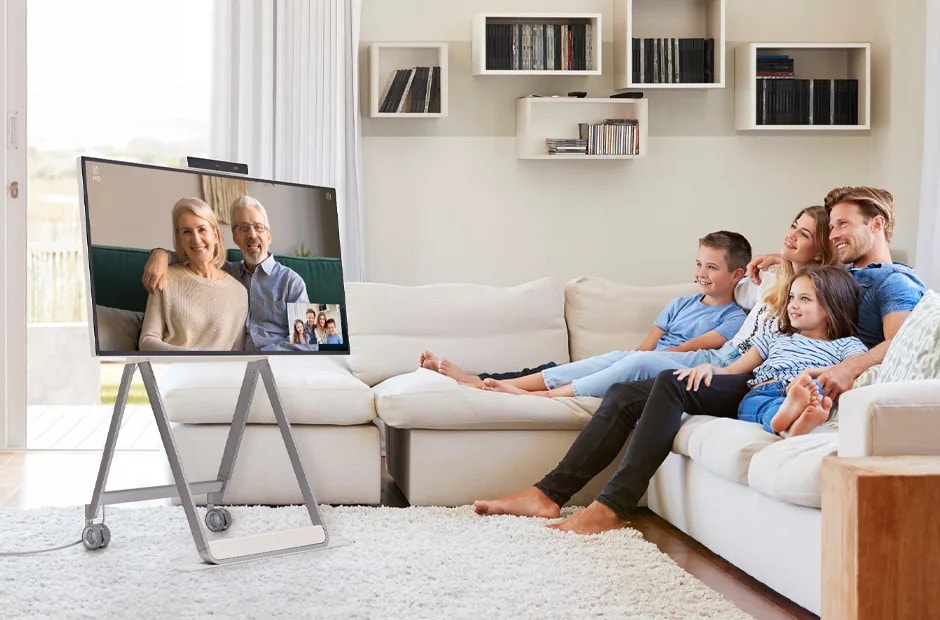

Video Call
Easy and vivid video calling with family members and friends you miss.

Working from Home
Efficiently and easily handle office work and video conferences at home.

Kindergarten
An interactive educational tool for the child,
with which their drawings and writings from during class can be saved as image files.

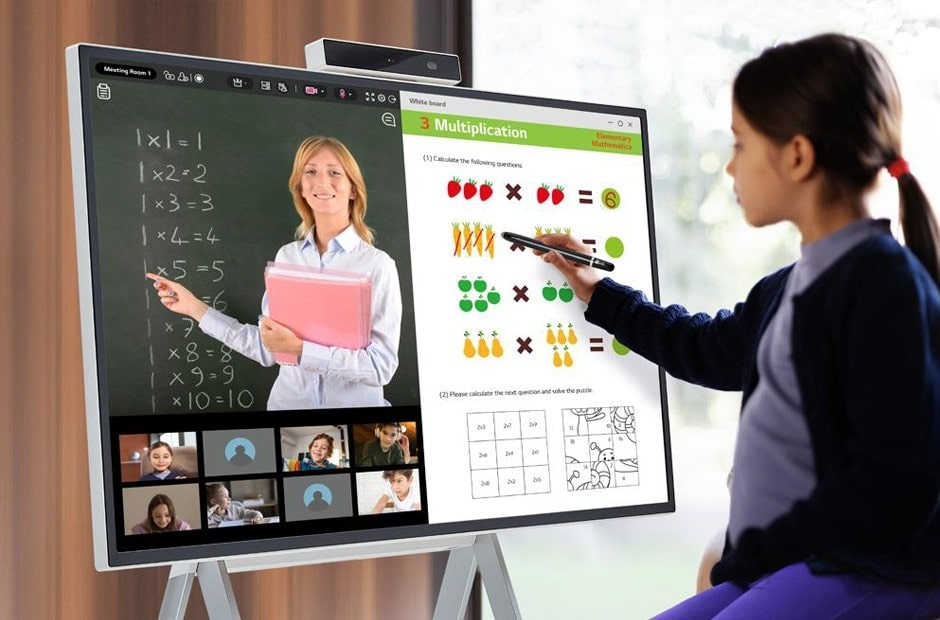

Distance Learning
Participate in online education in real-time and take notes on lesson material.

* The example is provided for information purposes only; LG does not offer separate solutions or services.
* Screen configuration and function support may vary depending on the app used.

All Spec

PANEL

Screen Size (Inch)

43"
Panel Technology

IPS
Back Light Type

Edge
Aspect Ratio

16:9
Native Resolution

3840x2160 (UHD)
Refresh Rate

60Hz
Brightness

350nit (Typ.)
Contrast Ratio

1000:1
Color Gamut

NTSC 72%
Viewing Angle (H x V)

178x178
Color Depth (Number of Colors)

10-bit(D),1.07 Billion colors
Response Time

9ms
Surface Treatment (Haze)

Haze (12%, in-TOUCH Pol.)
Life time

50,000Hrs (min.)
Operation Hours (Hours/Day)

24/7
Portait / Landscape

YES / YES

CONNECTIVITY

HDMI In

YES(2)
DP In

YES(1, USB Type C)
RJ45(LAN) In

YES(1)
USB In

USB3.1 Type A(2), USB Type C(1)
DP Out

YES(1, USB Type C(DP ALT MODE))

MECHANICAL SPECIFICATION

Bezel Color

Black
Bezel Width

13.9 / 13.9 / 13.9 / 16.5 mm
Weight (Head)

12.7kg
Packed Weight

15.1kg
Monitor Dimensions (W x H x D)

973.2 x 605.8 x 49.4mm
Monitor Dimension with Stand (W x H x D)

Floor stand : 973.2(H) x 1198.1(V) x 610.0(D)mm (Landscape)
Floor stand : 662.0(H) x 1360.9(V) x 610.0(D)mm (Portrait)
Desktop stand : 973.2(H) x 641.2(V) x 242.3(D)mm
VESA Standard Mount Interface

200x200
Carton Dimensions (W x H x D)

1056 x 690 x 152mm (W/O Stand)
Weight (Head+Stand)

(Head + Stand) 15.4kg
(Head + Floor Stand) 29.3kg

FEATURE - HARDWARE

Wi-Fi/BT (Built-in)

802.11ac 2x2
Temperature Sensor

YES
Auto Brightness Sensor

YES
Local Key Operation

YES

FEATURE - SOFTWARE

OS Ver. (webOS)

Windows 10 IOT Enterprise (Basic)
Booting Logo Image

YES
No Signal Image

YES
Screen Rotation

YES
Smart Energy Saving

YES
PM mode

YES
Wake on LAN

YES
HDMI-CEC

YES

ENVIRONMENT CONDITIONS

Operation Temperature

0 °C to 40 °C
Operation Humidity

10% to 80%

POWER

Power Supply

AC 100-240V~, 50/60Hz
Power Type

Built-In Power

POWER CONSUMPTION

BTU (British Thermal Unit)

55.68349
Smart Energy Saving (70%)

30±10% (for HDMI1/2)
DPM

0.5W↓
Power off

0.5W↓
Max.

190W
Typ.

75W

SOUND

Speaker (Built-in)

YES(10W x 2)

CERTIFICATION

Safety

CB / NRTL
EMC

FCC Class "B" / CE
ERP / Energy Star

YES / NO

LANGUAGE

OSD

English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic, Türkçe

ACCESSORY

Basic

HDMI Cable, Remote Controller(include battery 2ea), Touch Pen, Pen tip, Manual, Warranty Card, IG
Optional

1 pole Desktop Stand(ST-43HT), Floor Stand(ST-43HF)

DEDICATED FEATURE - TOUCH

Available Object Size for Touch

Ø8 mm
Response Time ('Paint' app on Windows 10 PC)

35mm ↓
Accuracy (Typ.)

3.5mm
Interface

USB1.1
Operating System Support

Windows 10 or higher
Multi Touch Point

MAX 10 Points

DEDICATED FEATURE - ONE:QUICK

CPU

AMD Ryzen R1505G
Memory(RAM)

8GB
Storage

SSD 256GB
Graphic

AMD Radeon Vega
Wi-Fi

802.11ac 2x2
Bluetooth

Bluetooth 5.0
Launcher Bar

YES
Home Dashboard

YES
SplitView_Full / Half

YES
Screen Capture

YES
Meeting(Voice) Record

YES
File Sharing

YES
Compatibility One:Quick Share

YES
One:Quick Remote Meeting

YES
Reader Mode (Bluelight)

YES
Built-in Apps

Chrome, Skype (Preloaded) Netflix, MS Whiteboard (Download link)
Camera_Resolution

1920x1080 (FHD)
Camera_Field of View (FoV)

88°
MIC_Array

2EA
MIC_Pickup Range

3m
Warranty

3 Years (Panel)
1 Year (PC Board)
