55CT5WJ-B

One:Quick Works

(0)

All Spec

PANEL

  • Screen Size (Inch)

    55

  • Panel Technology

    IPS

  • Back Light Type

    Edge

  • Aspect Ratio

    16:9

  • Native Resolution

    3840 x 2160 (UHD)

  • Refresh Rate

    60Hz

  • Brightness

    450nit (Typ.)

  • Contrast Ratio

    1,000:1

  • Dynamic CR

    NO

  • Color Gamut

    NTSC 72%

  • Viewing Angle (H x V)

    178º x 178º

  • Color Depth (Number of Colors)

    1.07 Billion colors

  • Response Time

    9ms (G to G)

  • Surface Treatment (Haze)

    Haze 12%

  • Life time

    50,000Hrs (Min.)

  • Operation Hours (Hours/Day)

    24/7

  • Portait / Landscape

    NO / YES

CONNECTIVITY

  • HDMI In

    YES (2ea)

  • HDMI In (HDCP Ver.)

    2.2/1.4

  • DP In

    YES (USB Type C)

  • DVI-D In

    NO

  • RGB In

    NO

  • Audio In

    NO

  • RS232C In

    NO

  • RJ45(LAN) In

    YES (1ea)

  • IR In

    NO

  • USB In

    USB3.1 Type A (2ea), USB Type C (1ea)

  • HDMI Out

    NO

  • DP Out

    YES (USB Type C)

  • Audio Out

    NO

  • Touch USB

    NO

  • External Speaker Out

    NO

  • RS232C Out

    NO

  • RJ45(LAN) Out

    NO

MECHANICAL SPECIFICATION

  • Bezel Color

    Silver

  • Bezel Width

    T/R/L/B : 57.2/26.2/26.2/28.9mm

  • Weight (Head)

    26Kg

  • Packed Weight

    31Kg

  • Monitor Dimensions (W x H x D)

    1265 x 769.5 x 61.8mm

  • Monitor Dimension with Stand (W x H x D)

    1265 x 815 x 290mm

  • Handle

    NO

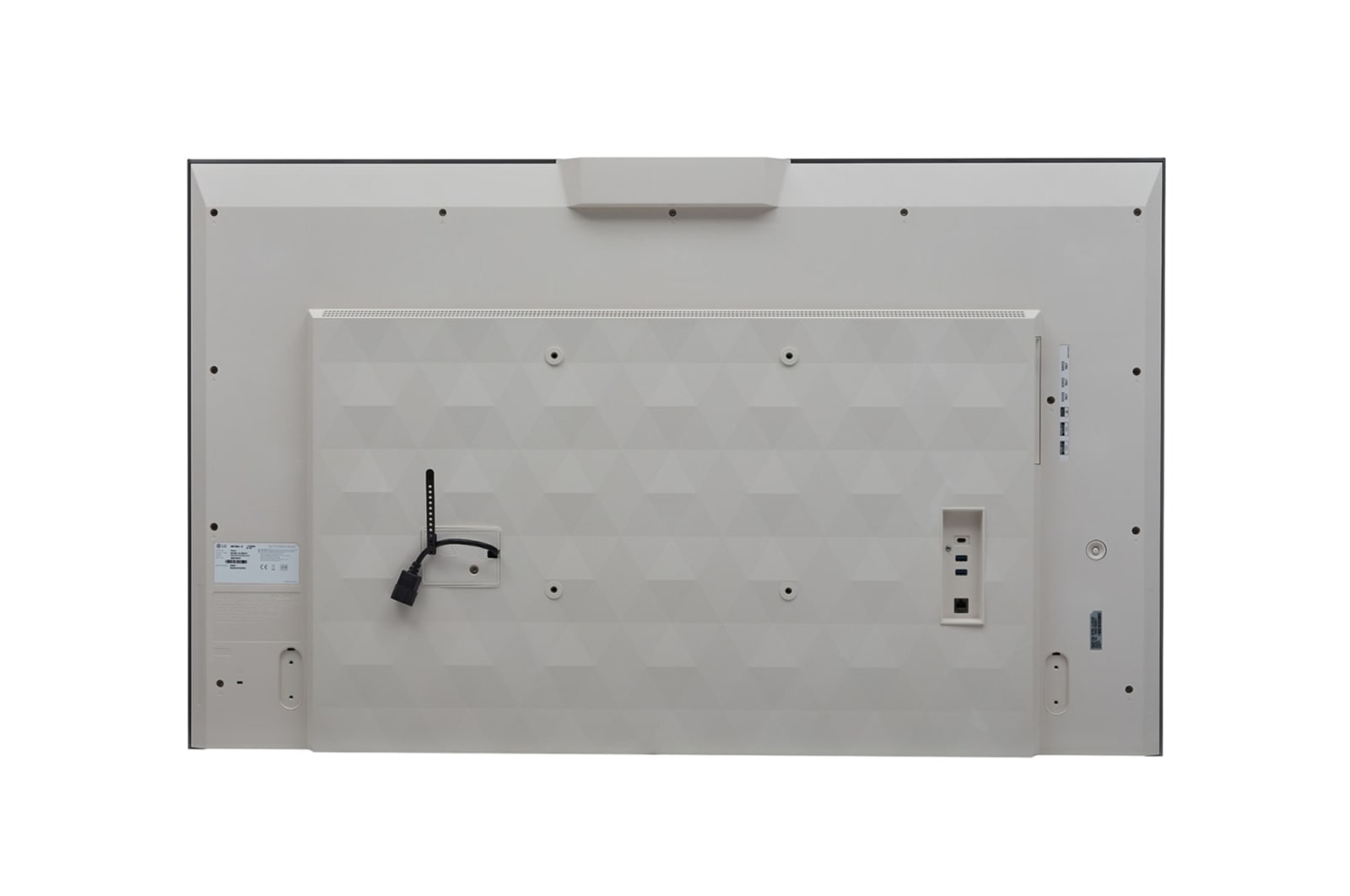

  • VESA Standard Mount Interface

    300 x 300 mm

  • Carton Dimensions (W x H x D)

    1372 x 903 x 168mm (without Stand)

  • Weight (Head+Stand)

    26.6Kg

FEATURE - HARDWARE

  • Temperature Sensor

    YES

  • Auto Brightness Sensor

    YES

  • Pixel Sensor

    NO

  • Proximity Sensor

    NO

  • Current Sensor

    NO

  • BLU Sensor

    NO

  • Humidity Sensor

    NO

  • Acceleration(Gyro) Sensor

    NO

  • Power Indicator

    NO

  • Local Key Operation

    YES

FEATURE - SOFTWARE

  • Smart Energy Saving

    YES

  • Wake on LAN

    YES

  • HDMI-CEC

    YES

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 °C to 40 °C

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-in Power

POWER CONSUMPTION

  • Smart Energy Saving (70%)

    30±10% (for HDMI1/2)

  • DPM

    0.5W

  • Power off

    0.5W

  • Max.

    245W

  • Typ.

    127W

SOUND

  • Speaker (Built-in)

    YES (10W x 2)

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "B" / CE

  • ERP / Energy Star

    YES / Energy Star 8.0

  • ePEAT(US only)

    NO

OPS COMPATIBILITY

  • OPS Type compatible

    NO

  • OPS Power Built-in

    NO

SOFTWARE COMPATIBILITY

  • Connected Care

    NO

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic

ACCESSORY

  • Basic

    HDMI Cable, Remote Controller(include battery 2ea), Touch Pen, Pen tip, Manual, Regulation Book, Warranty Card, IG

  • Optional

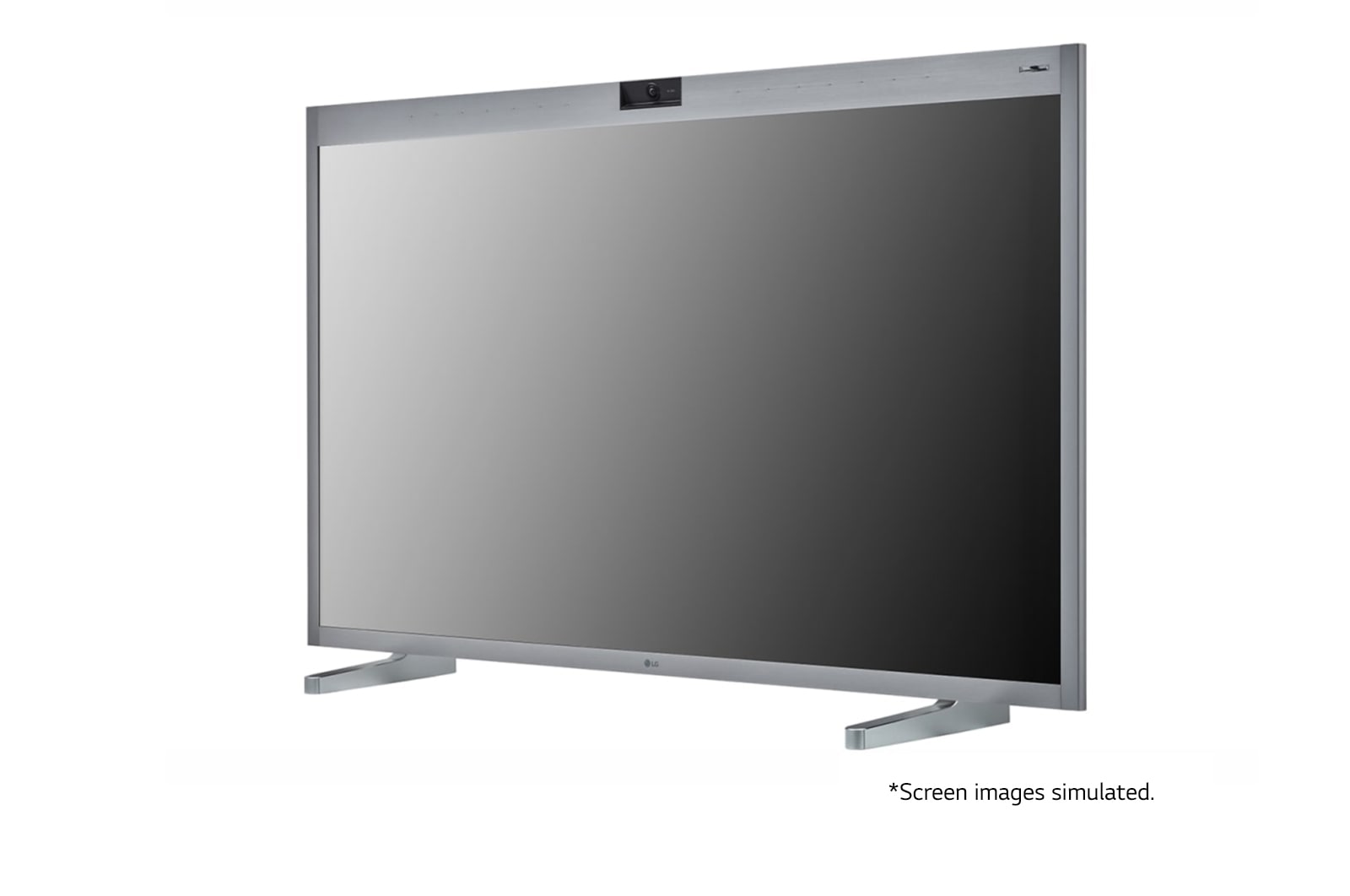

    2 pole Stand(ST-653TW)

SPECIAL FEATURE

  • Overlay Touch Compatibility

    N/A

  • Smart Calibration

    N/A

  • Tilt (Face up)

    N/A

  • Tilt (Face down)

    N/A

  • IP Rating

    N/A

  • Conformal Coating (Power Board)

    N/A

  • Power Protection

    N/A

  • Direct Sunlight

    N/A

DEDICATED FEATURE - TOUCH

  • Available Object Size for Touch

    Ø8 mm

  • Response Time ('Paint' app on Windows 10 PC)

    35ms ↓

  • Accuracy (Typ.)

    3.5mm

  • Interface

    USB1.1

  • Protection Glass Thickness

    N/A

  • Protection Glass Transmission

    N/A

  • Operating System Support

    Windows 10 or higher

  • Multi Touch Point

    Max. 10 Points

DEDICATED FEATURE - ONE:QUICK

  • CPU

    AMD Ryzen Embedded V1605B

  • Memory(RAM)

    8GB

  • Storage

    128GB

  • Graphic

    AMD Radeon Vega

  • Wi-Fi

    802.11ac

  • Bluetooth

    Bluetooth 5.0

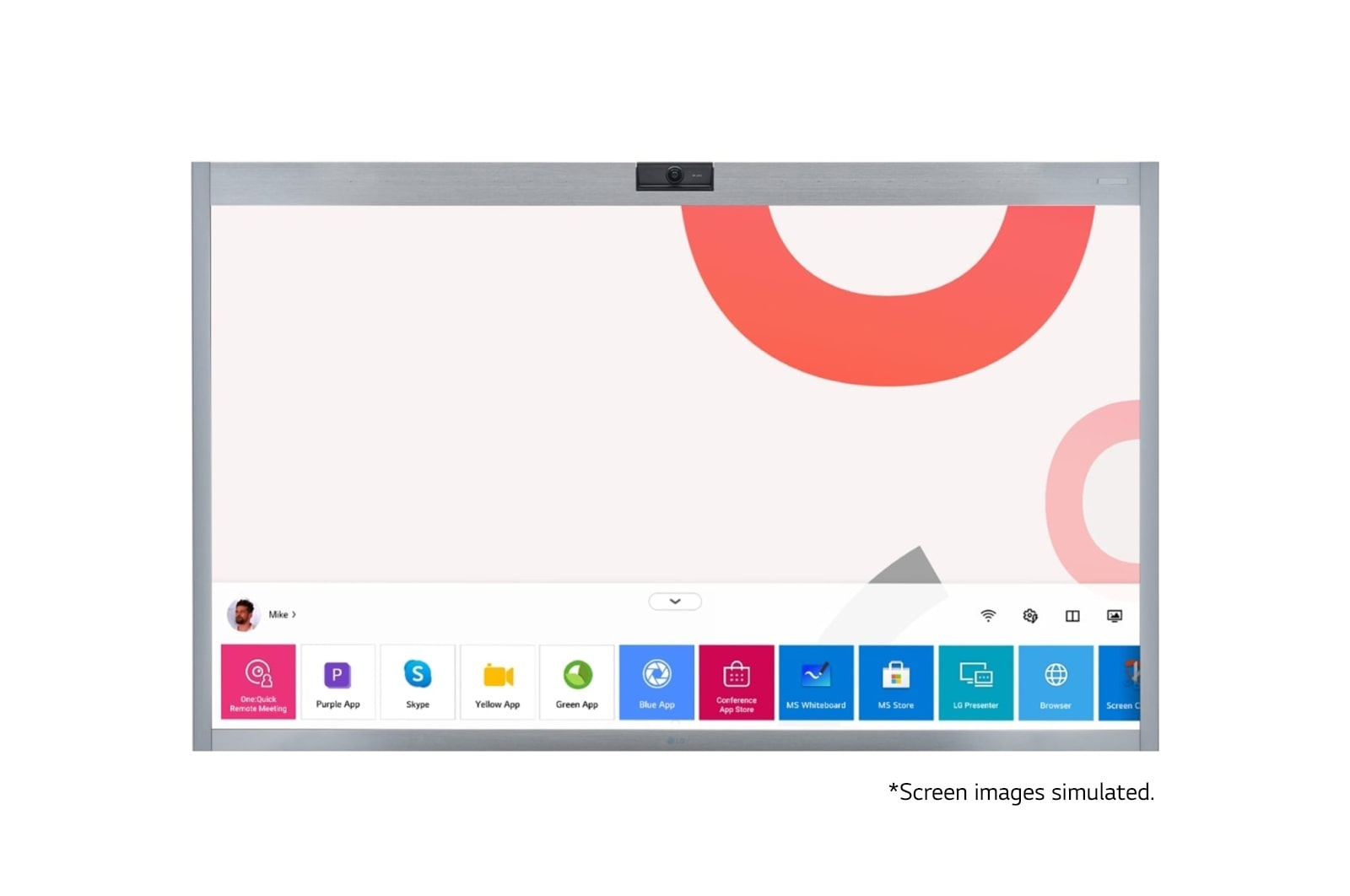

  • Launcher Bar

    YES

  • Home Dashboard

    NO

  • SplitView_Full / Half

    YES

  • SplitView_Customized Template

    NO

  • Cloning

    NO

  • Screen Capture

    YES

  • Meeting(Voice) Record

    YES

  • File Sharing

    YES

  • Compatibility One:Quick Share

    YES

  • One:Quick Remote Meeting

    YES

  • Reader Mode (Bluelight)

    YES

  • Built-in Apps

    Chrome, Skype (Preloaded) MS Whiteboard (Download link)

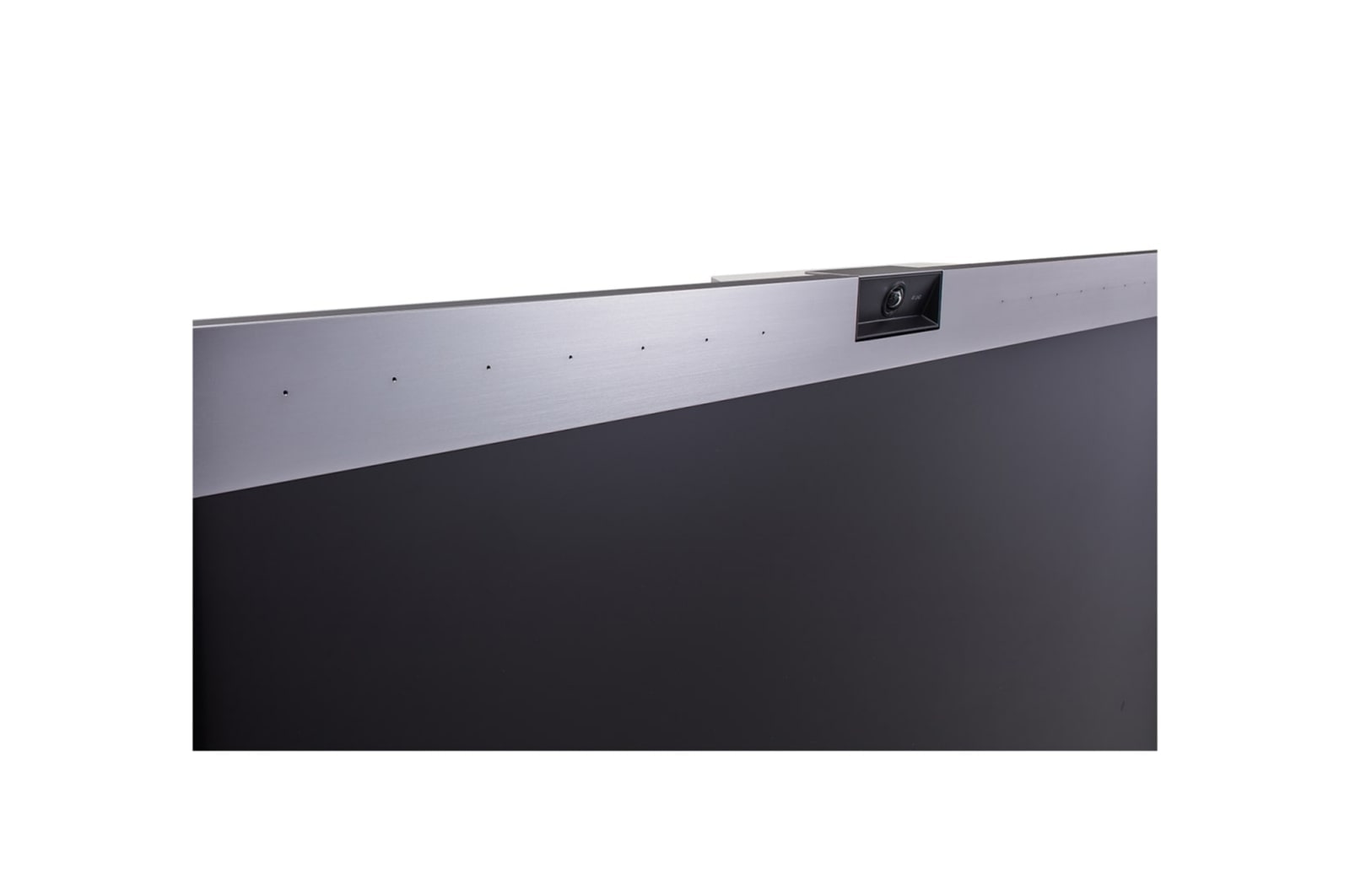

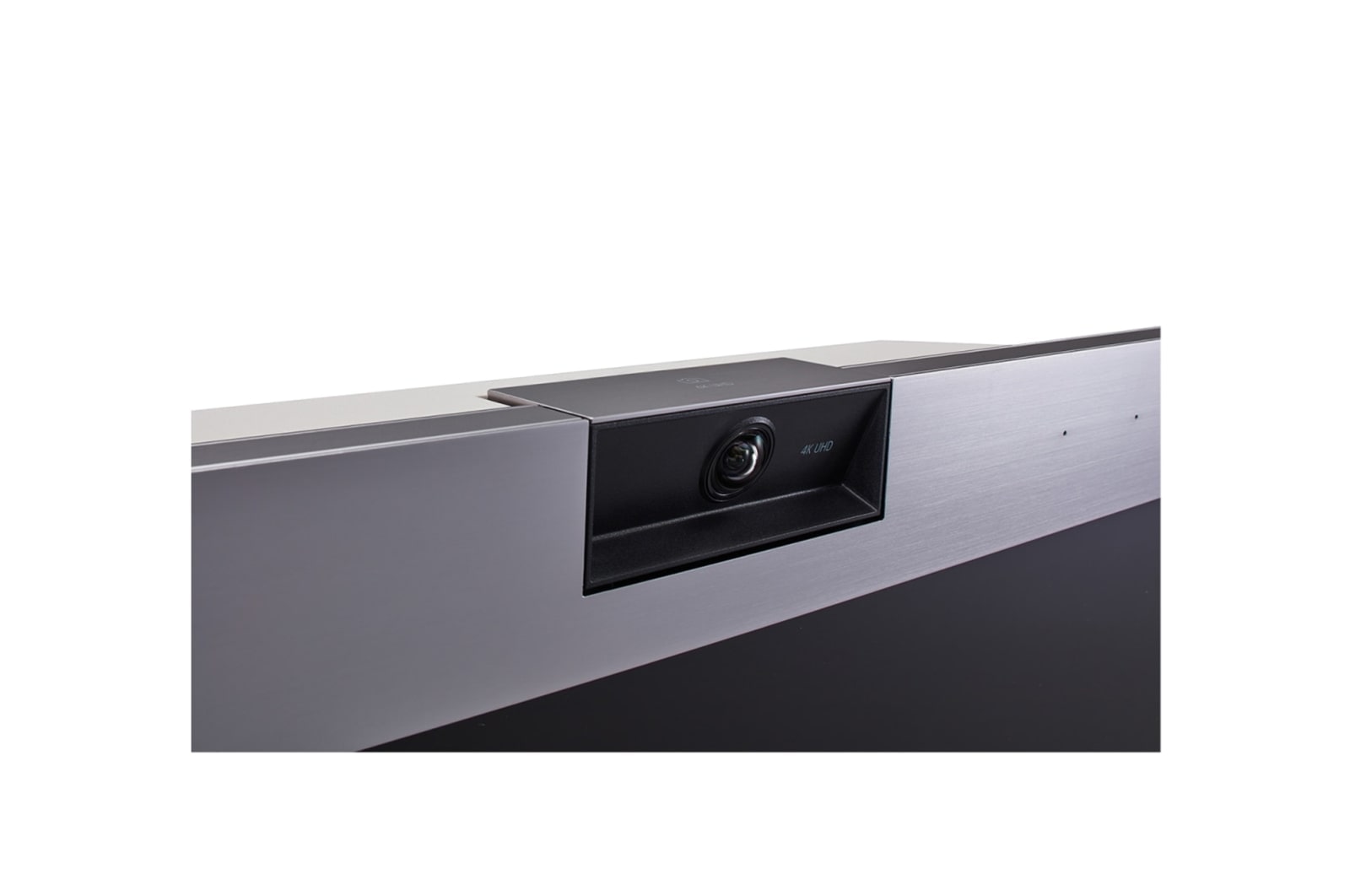

  • Camera_Resolution

    3840 x 2160 (UHD)

  • Camera_Field of View (FoV)

    120°

  • Camera_Zoom (ePTZ)

    4x Zoom

  • Camera_Video Framing

    YES

  • MIC_Array

    10ea

  • MIC_Beamforming

    YES

  • MIC_Pickup Range

    6m

  • Warranty

    3 Years (Panel) 1 Year (PC Board)

  • OS ver.

    Windows 10 IOT Enterprise (Value)
