UH7F-H Series - 49'' Non-Glare Digital Signage

UH7F-H Series - 49'' Non-Glare Digital Signage

49UH7F-H

UH7F-H Series - 49'' Non-Glare Digital Signage

(1)

LG Non-Glare UHD Signage

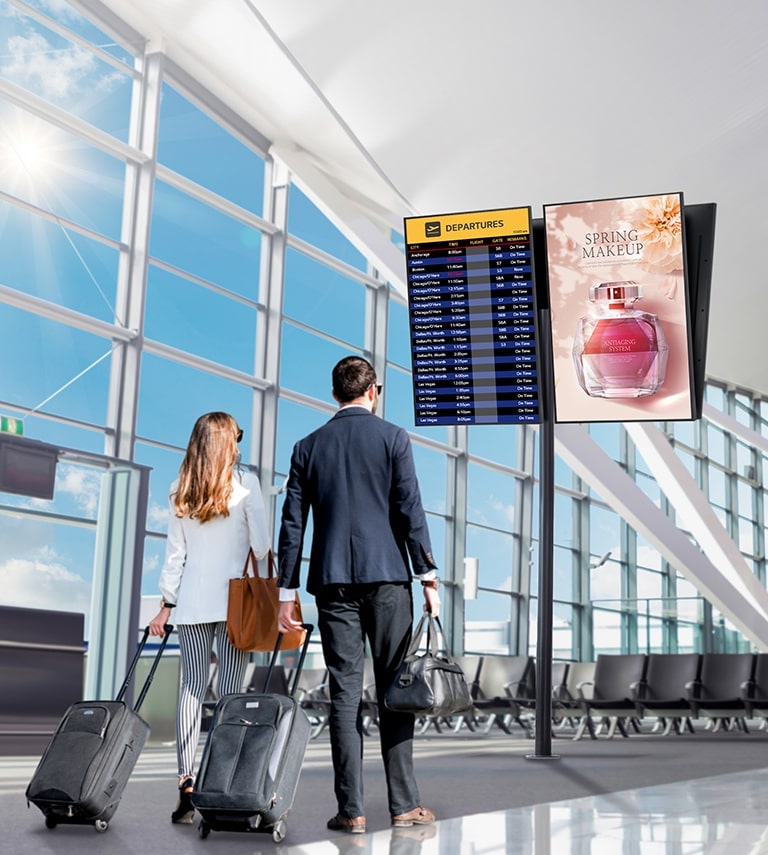

A man and a woman are checking the departure time of the flight through the signage installed at the airport. And the screen with anti-glare coating has small reflection of the light from the sun.


* All images in this web page are for illustrative purposes only and may differ from the actual product.
A Screen with Non-glare coating can be seen clearly under the light compared to the screen that do not.

SUPERB PICTURE QUALITY

Clear View with Non-glare Coating


Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The UH7F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.

* The images listed are for reference only and the actual reflection can be different.

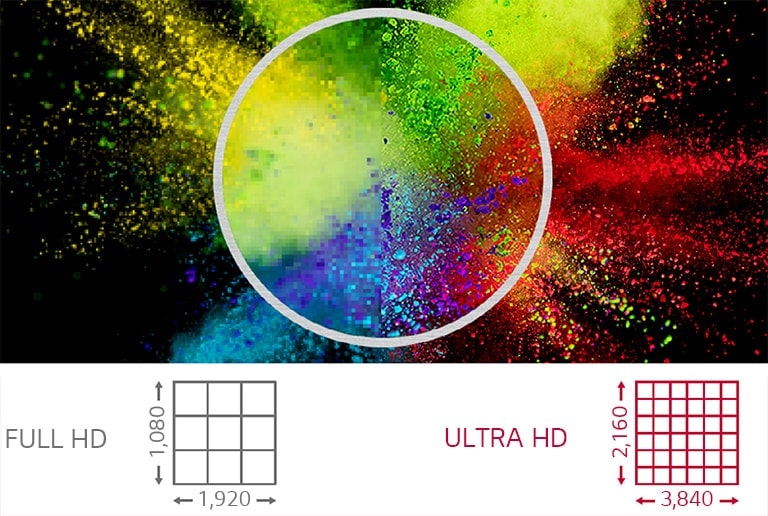

With a resolution 4 times higher than FHD, ULTRA HD displays content more clear and realistic.

SUPERB PICTURE QUALITY

ULTRA HD Resolution


With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents.

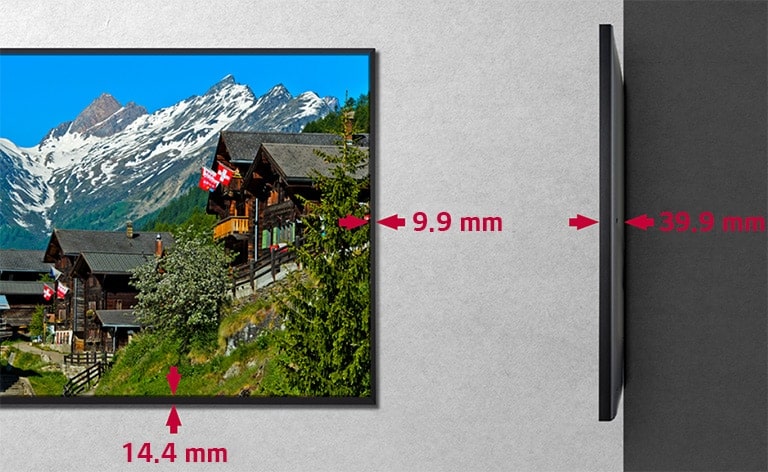

UH7F-H has a narrow bezel of 14.4mm width and 9.9mm length, and a slim depth of 39.9mm which increases screen immersion.

SLEEK AND PRACTICAL DESIGN

Narrow Bezel & Slim Depth


This series is thin in bezel size and thickness, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.

Logo is detachable when installing signage, and the built-in speaker is making the sound rich.

SLEEK AND PRACTICAL DESIGN

Detachable Logo and Built-in Speaker


This series is equipped with a new transparent logo which is well organized with surroundings. Also, its removable feature gives users flexibility for installation. Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

UH7F-H is IP5x certified, so it is protected from dust and has less risk of performance degradation.

PRODUCT RELIABILITY

IP5x Certified Design


The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.

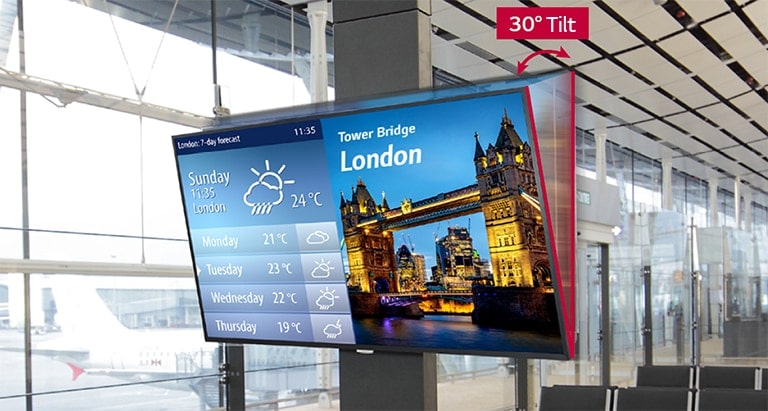

UH7F-H can be installed flexibly up to a 30 degree angle, making it comfortable for users to see when a signage is installed at a high place.

PRODUCT RELIABILITY

30° Tilting Installation


For the user's comfort viewing, UH7F-H supports the installation with 30 degrees of tilt* when it is installed at high places.

* Tilt installation of up to 30 degrees facedown is supported. (In conditions within 30ºC temperature, 50% humidity)

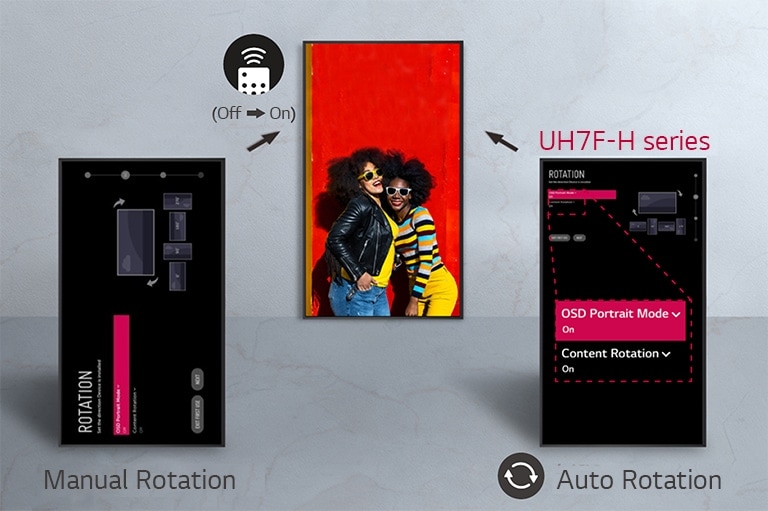

The UH7F-H series automatically adjusts the orientation of the screen, so users do not have to change the setting themselves.

EASY INSTALLATION

Auto Screen Rotation


This series automatically detects its orientation (landscape or portrait mode) in the initial installation step, so manual rotation set-up process isn't required. The direction of OSD and background contents will be already set when you turn on a display at first.

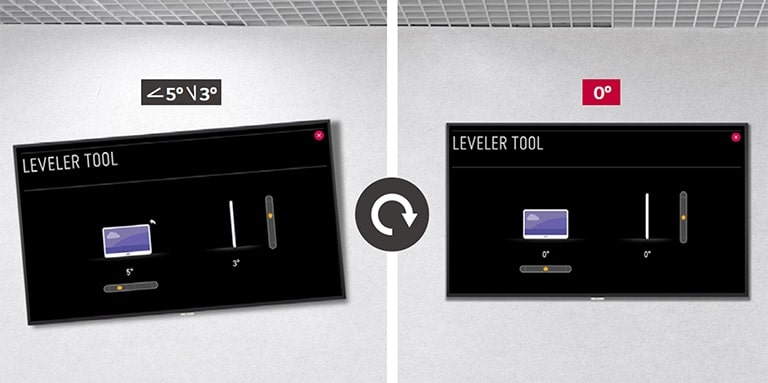

Signage can be installed more precisely through the horizontal sensor.

EASY INSTALLATION

Fine Adjustment


This series is equipped with a "horizontal sensor" which shows users how the device is tilt, so that it can be precisely installed.

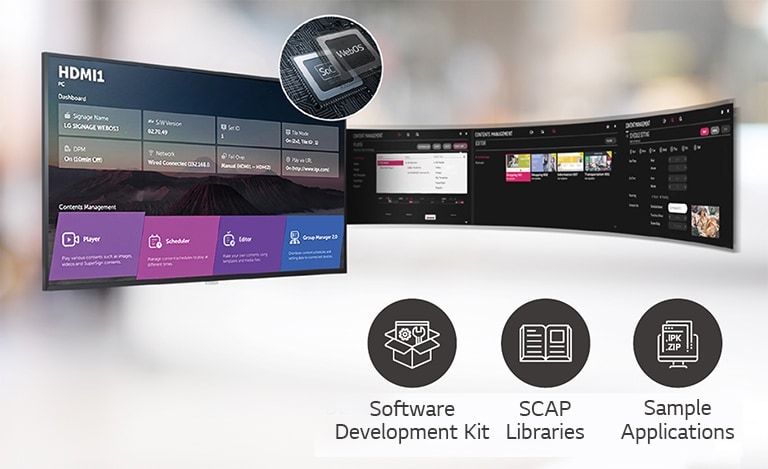

A number of tasks can be done at the same time with the intuitive GUI.

webOS SMART SIGNAGE PLATFORM

High-Performance with webOS


Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback. Also, LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

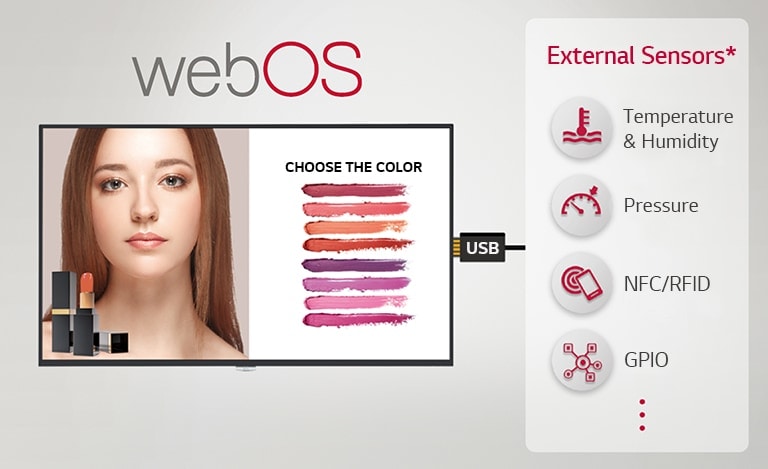

The image shows that various external sensors and signage can be connected through USB plug-in, providing easy value-added solutions.

webOS SMART SIGNAGE PLATFORM

Various Sensor Connection


LG webOS smart signage platform helps to easily provide value-added solutions by supporting simple connections with external sensors* such as GPIO, NFC/RFID, temperature sensors, etc. via USB plug-in. Also, the cost for additional software or media players can be saved by reducing the needs for purchasing them.

* LG does not provide any external sensors but webOS platform. External sensors needs to be purchased separately and tested for compatibility with webOS platform.

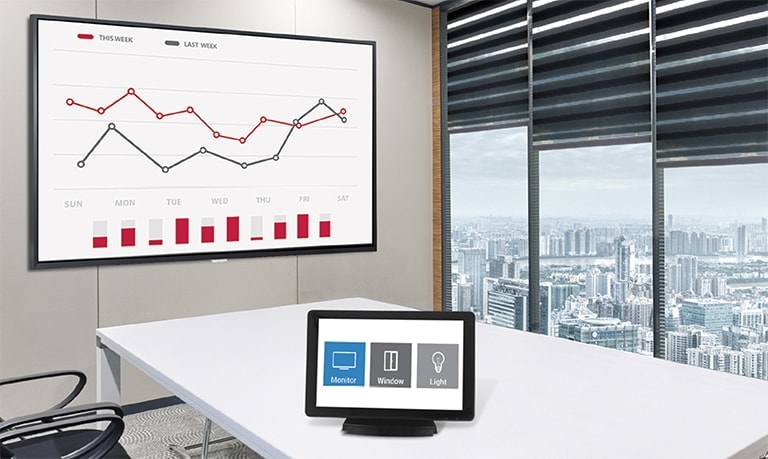

The AV control system helps users control the UH7F-H.

MEETING ROOM SOLUTION COMPATIBILITY

Compatible with AV Control System


The UH7F-H series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

* Network based control

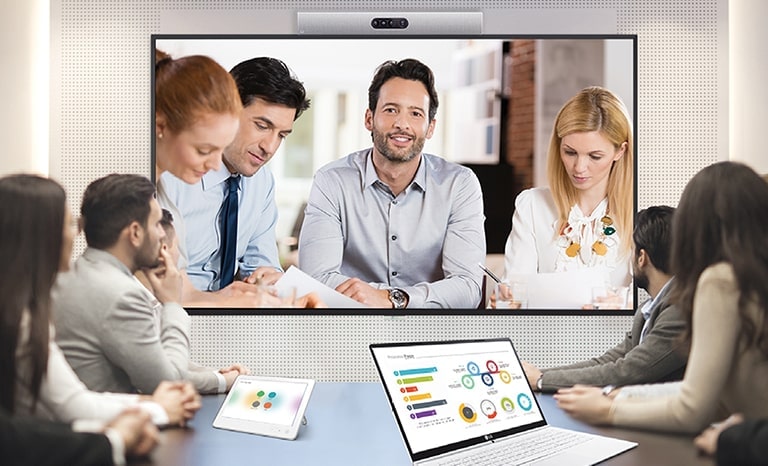

A video conference is being held as people are  screened on signage installed on the wall.

MEETING ROOM SOLUTION COMPATIBILITY

Compatible with Video Conference System


For the optimum visual meeting, the UH7F-H series has supported its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.

* Using an HDMI cable connection

All Spec

PANEL

  • Screen Size (Inch)

    49

  • Panel Technology

    IPS

  • Back Light Type

    Edge

  • Aspect Ratio

    16:9

  • Native Resolution

    3840 x 2160 (UHD)

  • Refresh Rate

    60Hz

  • Brightness

    700nit (Typ.)

  • Contrast Ratio

    1,000:1

  • Dynamic CR

    500,000:1

  • Color Gamut

    BT709 95%

  • Viewing Angle (H x V)

    178º x 178º

  • Color Depth (Number of Colors)

    1.07 Billion colors

  • Response Time

    8ms (G to G)

  • Surface Treatment (Haze)

    Haze 28%

  • Life time

    50,000Hrs (Min.)

  • Operation Hours (Hours/Day)

    24/7

  • Portait / Landscape

    YES / YES

  • Transparency

    N/A

  • QWP (Quarter Wave Plate)

    N/A

CONNECTIVITY

  • HDMI In

    YES (3ea)

  • HDMI In (HDCP Ver.)

    2.2/1.4

  • DP In

    YES (HDCP 2.2/1.3)

  • DVI-D In

    YES (HDCP 1.4)

  • RGB In

    NO

  • Audio In

    YES

  • RS232C In

    YES

  • RJ45(LAN) In

    YES (1ea)

  • IR In

    YES

  • USB In

    USB2.0 Type A (1ea)

  • HDMI Out

    NO

  • DP Out

    YES

  • Audio Out

    YES

  • Touch USB

    NO

  • External Speaker Out

    NO

  • RS232C Out

    YES

  • RJ45(LAN) Out

    NO

  • IR Out

    NO

  • Daisy Chain

    NO

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    T/R/L: 9.9mm, B: 14.4mm

  • Weight (Head)

    15.4Kg

  • Packed Weight

    18.8Kg

  • Monitor Dimensions (W x H x D)

    1098.6 x 644.5 x 39.9mm (with LG Logo)

  • Monitor Dimension with Stand (W x H x D)

    1098.6 x 694.3 x 290.0mm

  • Handle

    NO

  • VESA Standard Mount Interface

    300 x 300 mm

  • Carton Dimensions (W x H x D)

    1197.0 x 775.0 x 162.0mm

  • Weight (Head+Stand)

    16.0Kg

FEATURE - HARDWARE

  • Internal Memory (eMMC)

    8GB

  • Wi-Fi/BT (Built-in)

    YES

  • Temperature Sensor

    YES

  • Auto Brightness Sensor

    YES

  • Pixel Sensor

    NO

  • Proximity Sensor

    NO

  • Current Sensor

    NO

  • BLU Sensor

    NO

  • Humidity Sensor

    NO

  • Acceleration(Gyro) Sensor

    YES

  • Power Indicator

    NO

  • Local Key Operation

    YES

  • FAN (Built-in)

    NO

FEATURE - SOFTWARE

  • OS Ver. (webOS)

    webOS 4.1

  • Local Contents Scheduling

    YES

  • Group Manager

    YES

  • USB Plug & Play

    YES

  • Fail over

    YES

  • Booting Logo Image

    YES

  • No Signal Image

    YES

  • RS232C Sync

    YES

  • Local Network Sync

    YES

  • Backlight Sync

    NO

  • PIP

    YES

  • PBP

    YES (4PBP)

  • Screen Share

    YES

  • Video Tag

    YES (4 Video Tag)

  • Play via URL

    YES

  • Screen Rotation

    YES

  • External Input Rotation

    YES

  • Gapless Playback

    YES

  • Tile Mode Setting

    YES

  • Setting Data Cloning

    YES

  • SNMP

    YES

  • ISM Method

    YES

  • Auto Set ID

    YES

  • Status Mailing

    YES

  • Control Manager

    YES

  • Cisco Certification

    YES

  • Crestron Connected

    YES

  • Smart Energy Saving

    YES

  • PM mode

    YES

  • Wake on LAN

    YES

  • Network Ready

    YES

  • Beacon

    YES

  • HDMI-CEC

    YES

  • SI Server Setting

    YES

  • webRTC

    YES

  • Pro:Idiom

    YES

  • Brightness Compensation

    NO

  • W/B Setting by Grey scale

    NO

  • Scan Inversion

    NO

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 °C to 40 °C

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-in Power

POWER CONSUMPTION

  • Typ.

    100W

  • Max.

    145W

  • BTU (British Thermal Unit)

    341.21 BTU/Hr(Typ.), 494.76 BTU/Hr(Max.)

  • Smart Energy Saving (70%)

    75W

  • DPM

    0.5W

  • Power off

    0.5W

SOUND

  • Speaker (Built-in)

    YES (10W x 2)

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE / KC

  • ERP / Energy Star

    YES(NewErP) / YES

  • ePEAT(US only)

    NO

OPS COMPATIBILITY

  • OPS Type compatible

    YES (Piggyback)

  • OPS Power Built-in

    NO

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    YES

  • SuperSign Control+

    YES

  • SuperSign WB

    YES

  • SuperSign Cloud

    NO

  • Promota

    YES

  • Mobile CMS

    YES

  • Connected Care

    YES

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender

  • Optional

    Stand(ST-653T), OPS Kit(KT-OPSF)

SPECIAL FEATURE

  • Overlay Touch Compatibility

    N/A

  • Smart Calibration

    N/A

  • Tilt (Face up)

    N/A

  • Tilt (Face down)

    Max. 30 degree

  • IP Rating

    IP5X

  • Conformal Coating (Power Board)

    YES

  • Power Protection

    N/A

  • Direct Sunlight

    N/A
