84WS70

Specs

Support

84WS70

84WS70

84WS70
()
  • Front view of 84WS70 84WS70

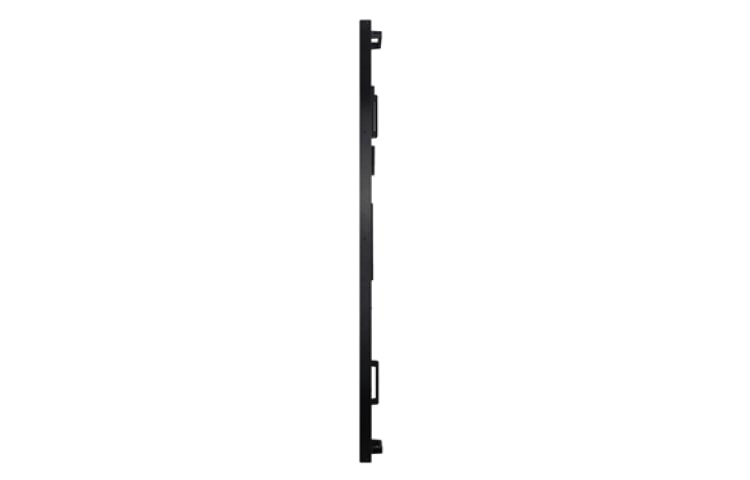

  • LG 84WS70, 84WS70
  • LG 84WS70, 84WS70
  • LG 84WS70, 84WS70
  • LG 84WS70, 84WS70
  • LG 84WS70, 84WS70
  • LG 84WS70, 84WS70
  • LG 84WS70, 84WS70
  • LG 84WS70, 84WS70

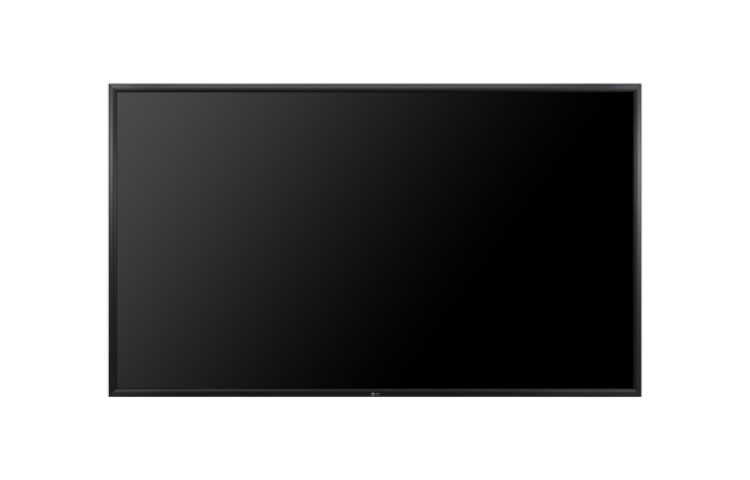

Front view of 84WS70 84WS70

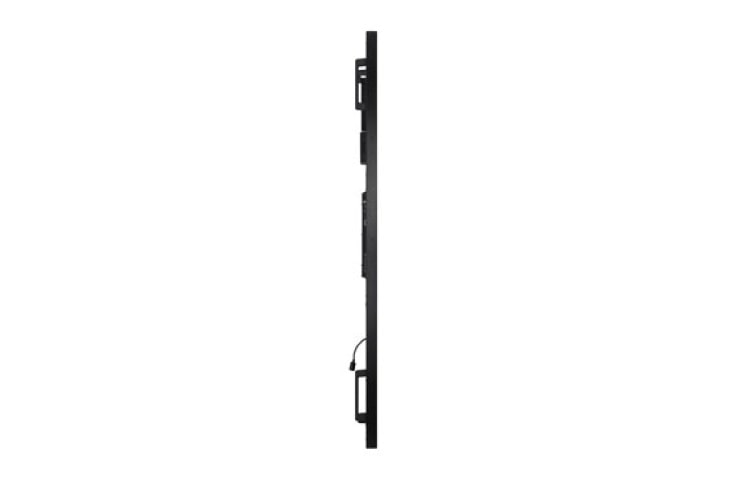

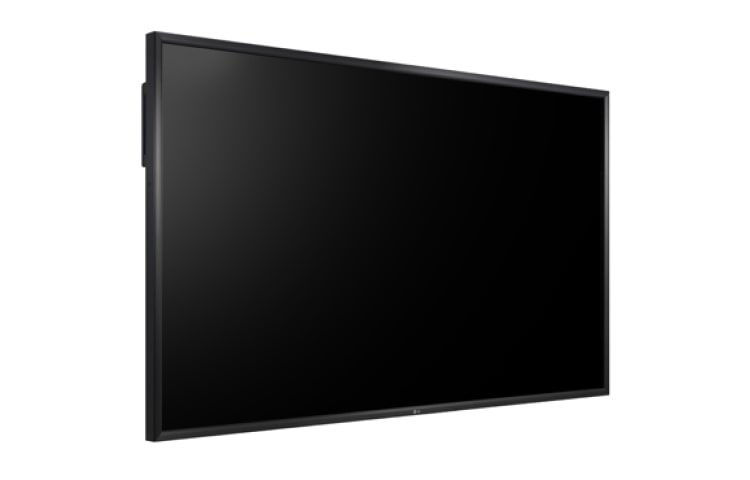

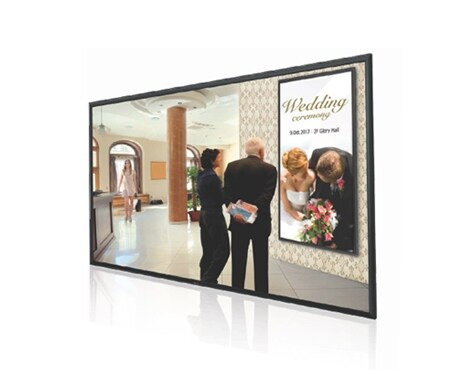

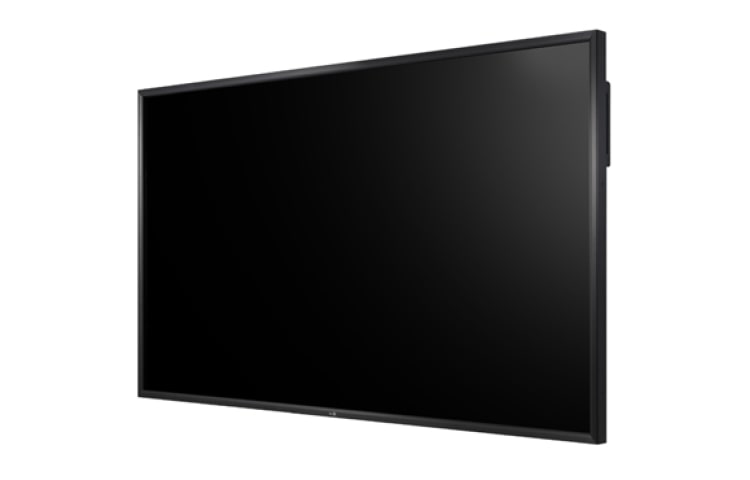

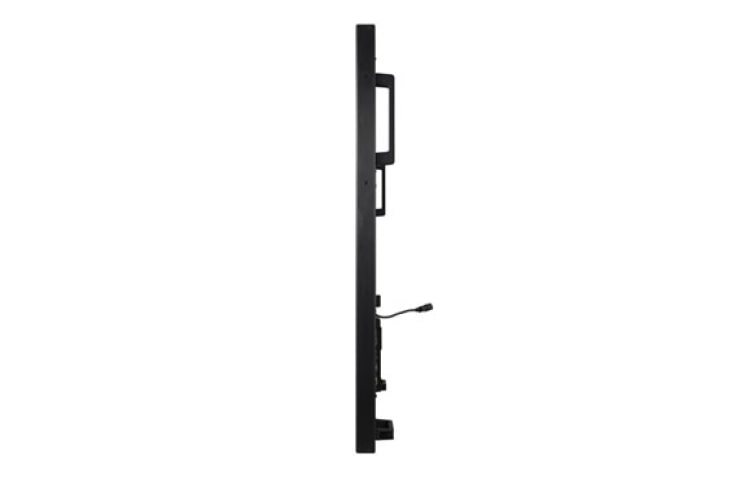

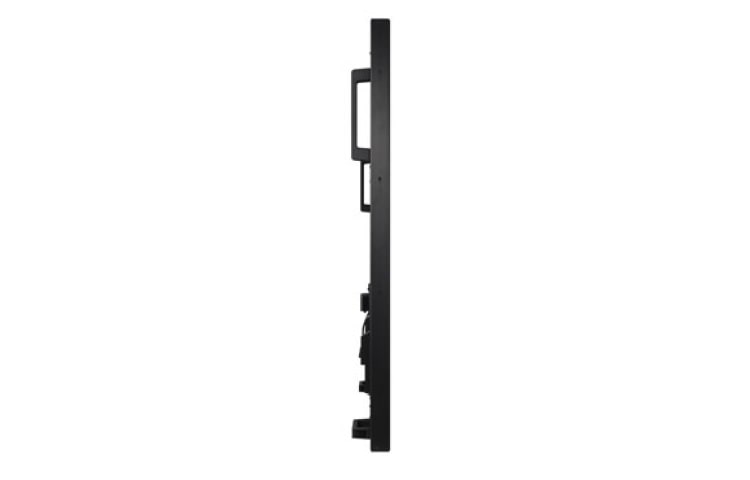

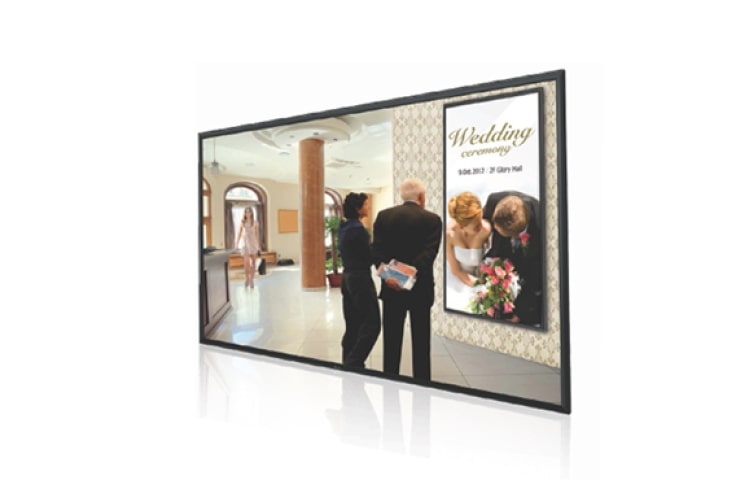

LG 84WS70, 84WS70
LG 84WS70, 84WS70
LG 84WS70, 84WS70
LG 84WS70, 84WS70
LG 84WS70, 84WS70
LG 84WS70, 84WS70
LG 84WS70, 84WS70
LG 84WS70, 84WS70
Print

All Spec

PANEL

  • Screen Size

    84"

  • Panel Technology

    IPS

  • Aspect Ratio

    16 : 9

  • Native Resolution

    3840 x 2160 (UHD)

  • Pixels (H x V x 3)

    3840*2160*3

  • Brightness

    500cd/m2

  • Contrast Ratio

    1,400:1

  • Dynamic CR

    500,000:1

  • Color gamut

    72%

  • Tni

    110℃

  • Viewing Angle (H x V)

    178 x 178

  • Color Depth

    1.06 Billion

  • Response Time

    12 ms

  • Surface Treatment

    Anti-glare Haze 10%

  • Life time

    50,000 Hrs (Typ.)

  • Orientation

    Portrait & Landscape

CONNECTIVITY

  • Input (Rear)

    ------------------------------------

  • Digital

    HDMI(2), DVI-D(1), Display Port(1) with HDCP for all input

  • Analog

    RGB(1), Composite(1)

  • Audio

    RGB/DVI-D/AV

  • External Control

    RS232C(1), RJ45(1), IR (1, Internal)

  • USB

    USB 2.0 x 2

  • HDTV Formats

    Composite : 576i HDMI : 720p, 1080i, 1080p, 2160p

  • Output (Rear)

    ------------------------------------

  • Digital

    DVI-D(1)

  • Analog

    RGB(1)

  • Audio

    Yes(1), Line out(1)

  • External Control

    RS232C(1), IR(1, Internal)

  • Audio

    ------------------------------------

  • Balance

    Yes

  • Audio Power

    20W(10W x 2)

  • Speaker On/Off

    Yes

  • Clear Voice II

    Yes

  • Sound Mode

    Standard, Music, Cinema, Sport, Game, Vivid, User Setting

VIDEO

  • Max Input Resolution

    3840 x 2160@30Hz(HDMI, Display Port) 1920 x 1080@60Hz(RGB, DVI-D)

  • Recommended Resolution

    3840 x 2160@30Hz(HDMI, Display Port)

  • H-Scanning Frequency

    30 ~ 80kHz (RGB, HDMI/DVI-D/DP)

  • V-Scanning Frequency

    56 ~ 75Hz (RGB), 56Hz~60Hz (HDMI/DVI-D/DP)

  • Pixel Frequency

    300MHz(HDMI, Display Port) 148.5MHz(RGB, DVI-D)

  • Sync Compatability

    Separate, Composite, Digital

  • Video Input

    RGB, HDMI, DVI-D, Display Port, Composite

  • Picture mode

    Intelligent Sensor, Vivid, Standard, Cinema, Game, Expert1, Expert2

PHYSICAL SPECIFICATION

  • Color

    Black

  • Bezel Width

    27.9mm

  • Monitor Dimension (W x H x D)

    192.3cm x 110.9cm x 5.1cm (Including Handle: 10.1cm)

  • Weight (head)

    72.9Kg

  • VESA Standard Mount Interface

    600mm x 400mm

SPECIAL FEATURES

  • Temperature Sensor

    Yes

  • Auto Brightness sensor

    Yes

  • Source Selection

    AV, Composite, RGB, Display Port, DVI-D, HDMI, SuperSign(Option)

  • Brightness/Contrast/Backlight

    Yes

  • Position/Size

    Yes

  • Auto Config/Phase

    Yes

  • Language (OSD)

    English, French, Spanish, Portugues(Europe), Portugues(Brazil), Italian, German, Swedish, Finnish, Norwegian, Danish, Russian, Dutch, Czech, Greek, Korean , Chinese(Simplified), Chinese(Original), Japanese

  • Language (USB Playback)

    English, French, Spanish, Portugues(Europe), Portugues(Brazil), Italian, German, Swedish, Finnish, Norwegian, Danish, Russian, , Dutch, Czech, Greek, Korean , Chinese(Simplified), Chinese(Original), Japanese

  • Language (Manual)

    English, French, German, Spanish, Italian, Korean, Portugues, Hungarian, Greek, Russian, Dutch, Kazakh, Ukrainian, Polish, Arabic, Indonesian, Japanese, Turkish, Czech, Taiwanese, Slovak

  • Language (ESG)

    English, French, German, Spanish, Italian, Portugues, Greek, Polish, Czech, Slovak

  • ISM Method

    Normal, Color Wash

  • Advanced

    Dynamic Contrast, Dynamic Color, Clear White, Preferred color (Skin color, Grass color Sky color), Super Resolution, Gamma, Color Gamut, Noise

  • Time

    Clock, On/Off Time, Sleep Timer, Power on Delay, Auto Off, Automatic Standby

  • Information

    Model/Type, Software Version, Serial Number, MAC Address, Homepage

  • Input Label

    Yes (PC/DTV/etc.)

  • Auto Power/Source Memory

    Yes

  • Key Lock

    Yes

  • DPM Select

    Yes

  • Energy Saving

    Yes (Minimum, Medium, Maxium)

  • Smart Energy Saving

    Yes

  • Power Indicatior On/Off

    Yes

  • File Play with USB

    Yes

POWER

  • Power Supply

    100-240V~, 50/60Hz

  • Power Type (Adapter or LIPS)

    Built-in Power

  • Power Consumption (Typ.)

    350W

  • Power Consumption (Smart Energy Saving)

    200W

  • Power Consumption (DPM)

    1.5W

  • Power Consumption (Power off)

    0.5W

STANDARD(CERTIFICATION)

  • Safety

    UL / cUL / CB scheme / TUV

  • EMC

    FCC Class "A" / VCCI / C-tick / CE / KCC

  • ErP / Energy Star

    Yes / No

MEDIA PLAYER COMPATIBILITY

  • Slot PC compatible (optional)

    Yes (MP500, MP700)

SOFTWARE COMPATIBILITY

  • SuperSign elite -c

    Yes

ACCESSORY

  • Accessory

    D-Sub Cable, Power Cord, Remote Controller(include battery 2ea ), CD(Manual/Elite-C/ESG), Eye Bolt(2EA)

  • Optional Accessory

    Media Player: MP700/MP500 SP-2000, LSW630
