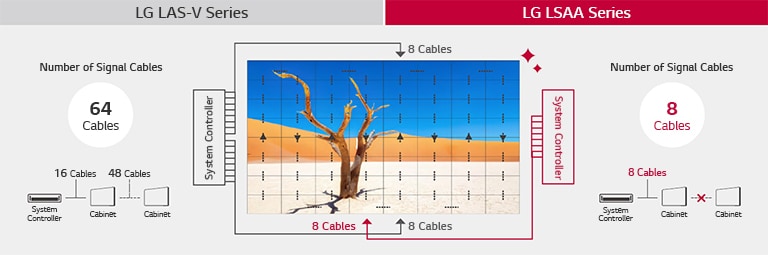

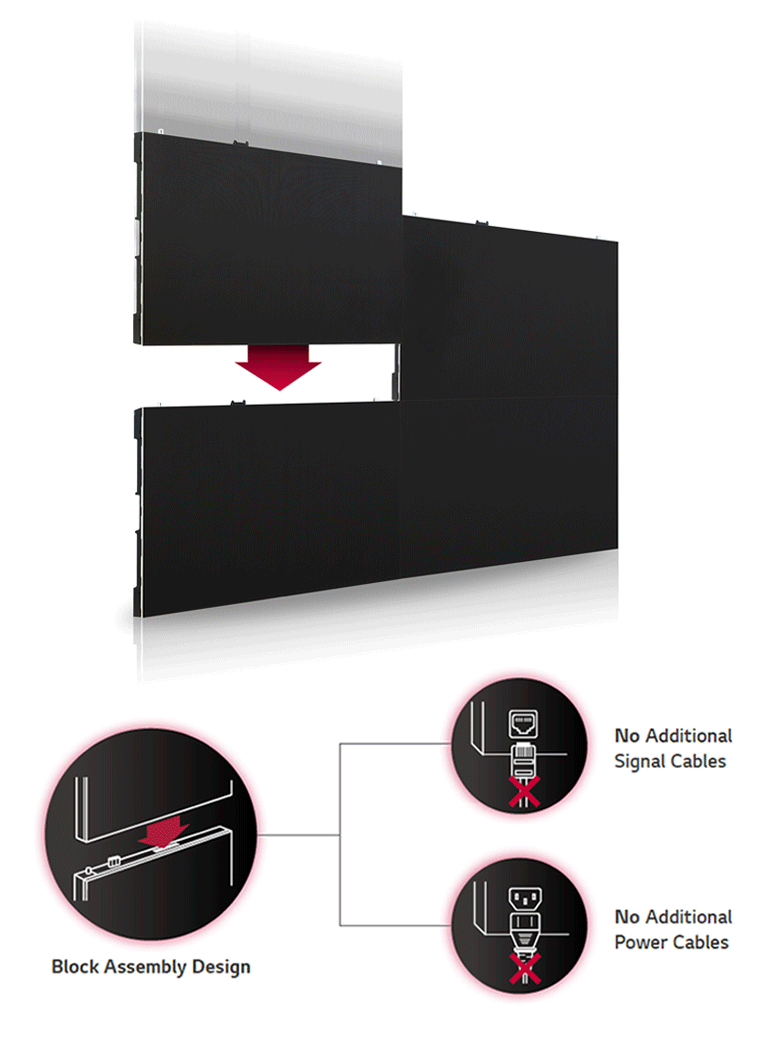

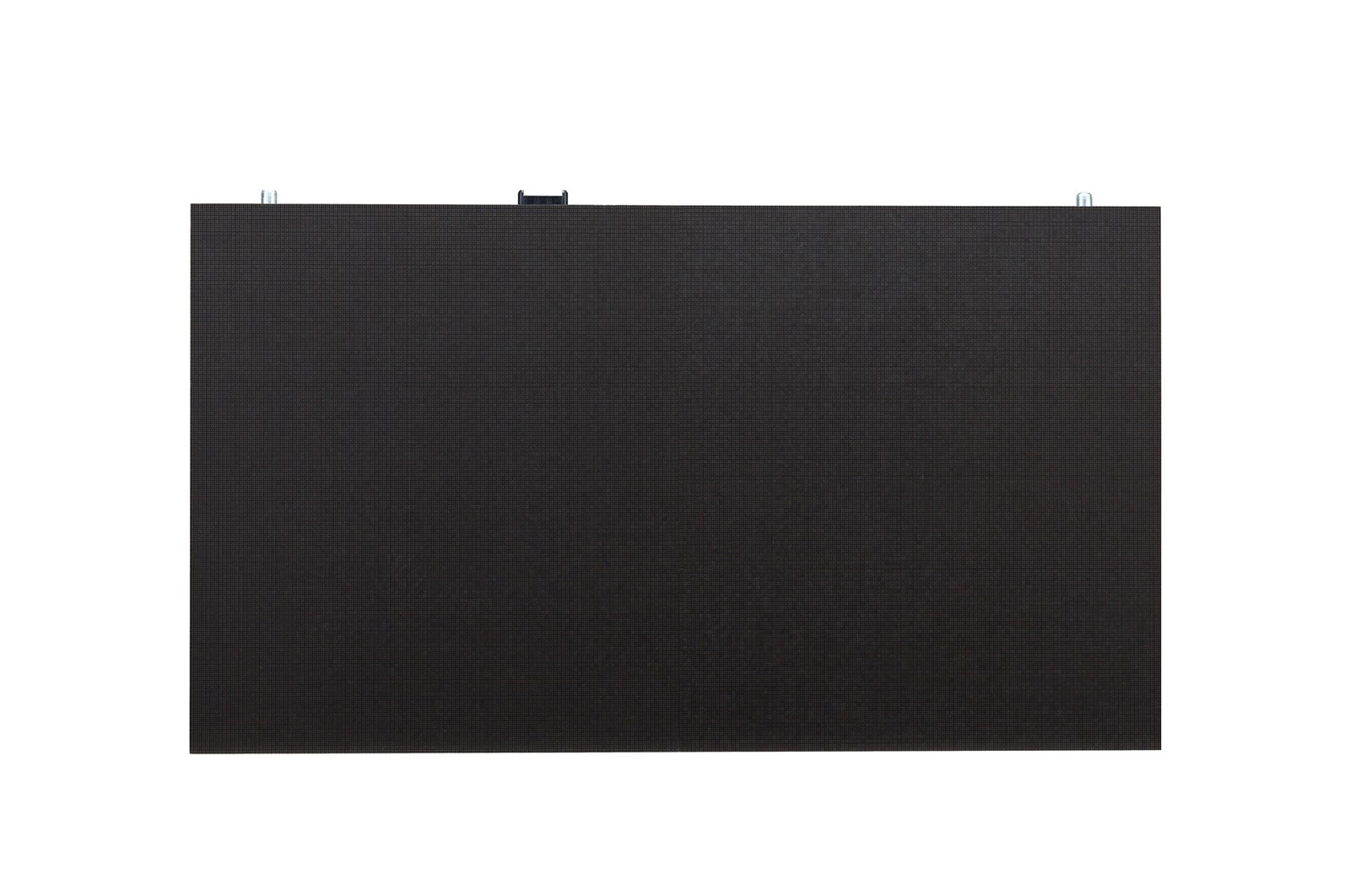

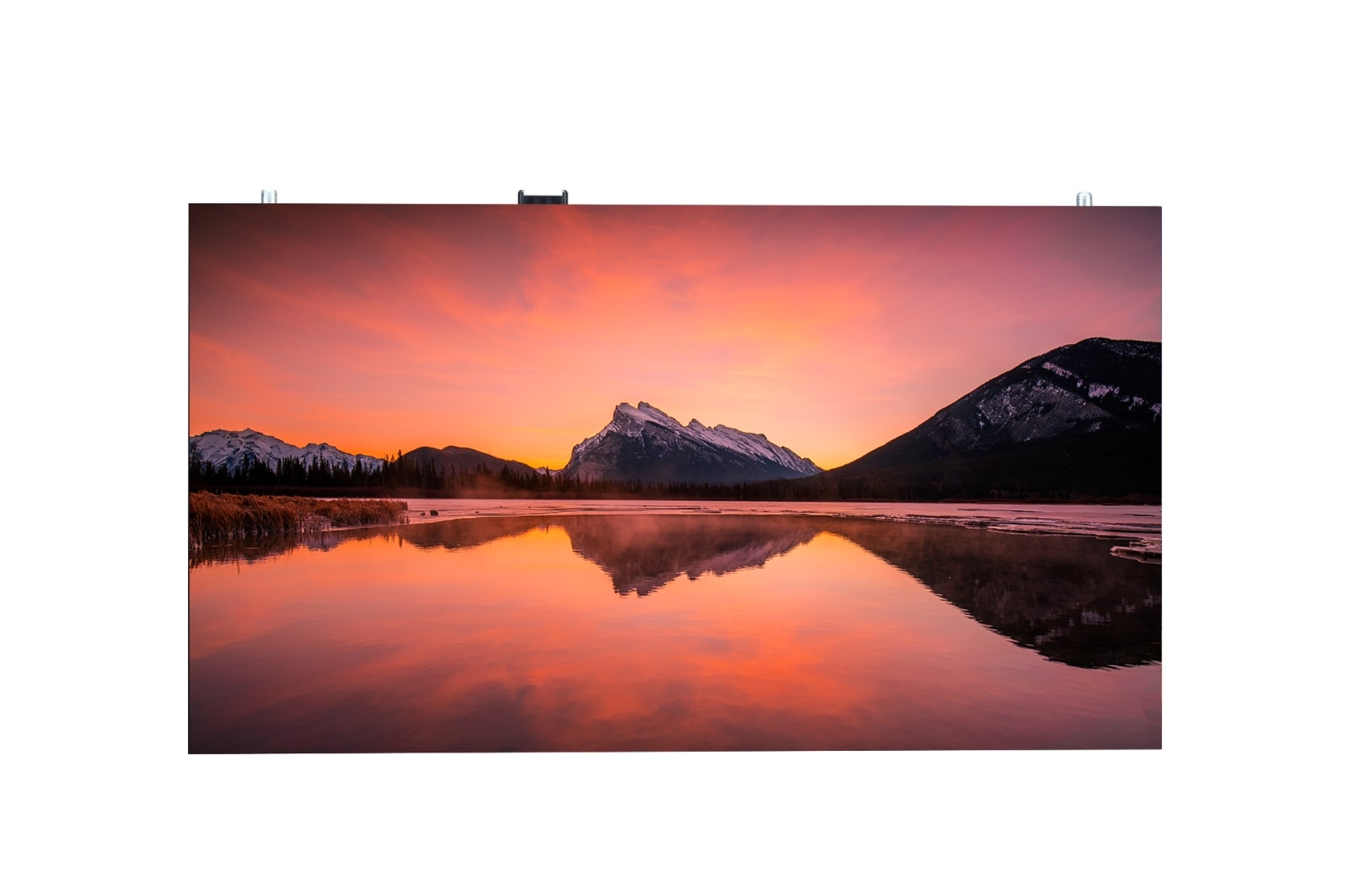

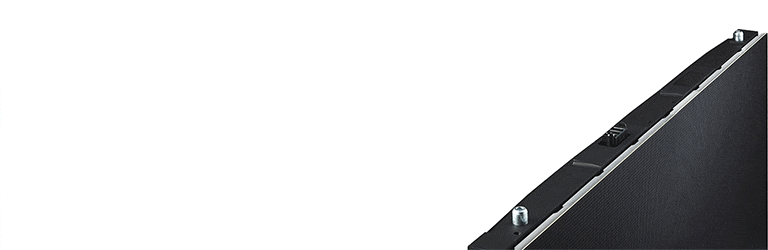

LSAA Optimum Cable-less LED Series
Optional
Wall Mount Kit (WM-L1080)Frame Kit (KT-BZ1080)
Certification

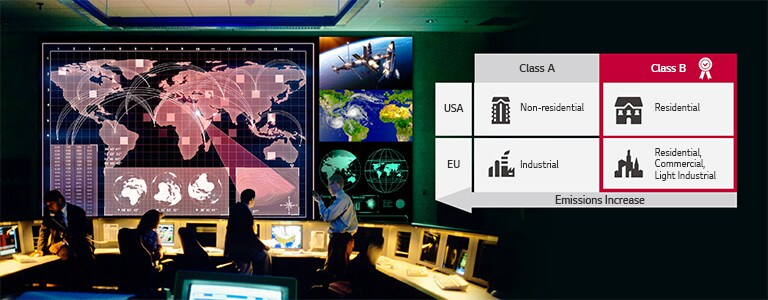

Safety 60950-1, EMC Class B

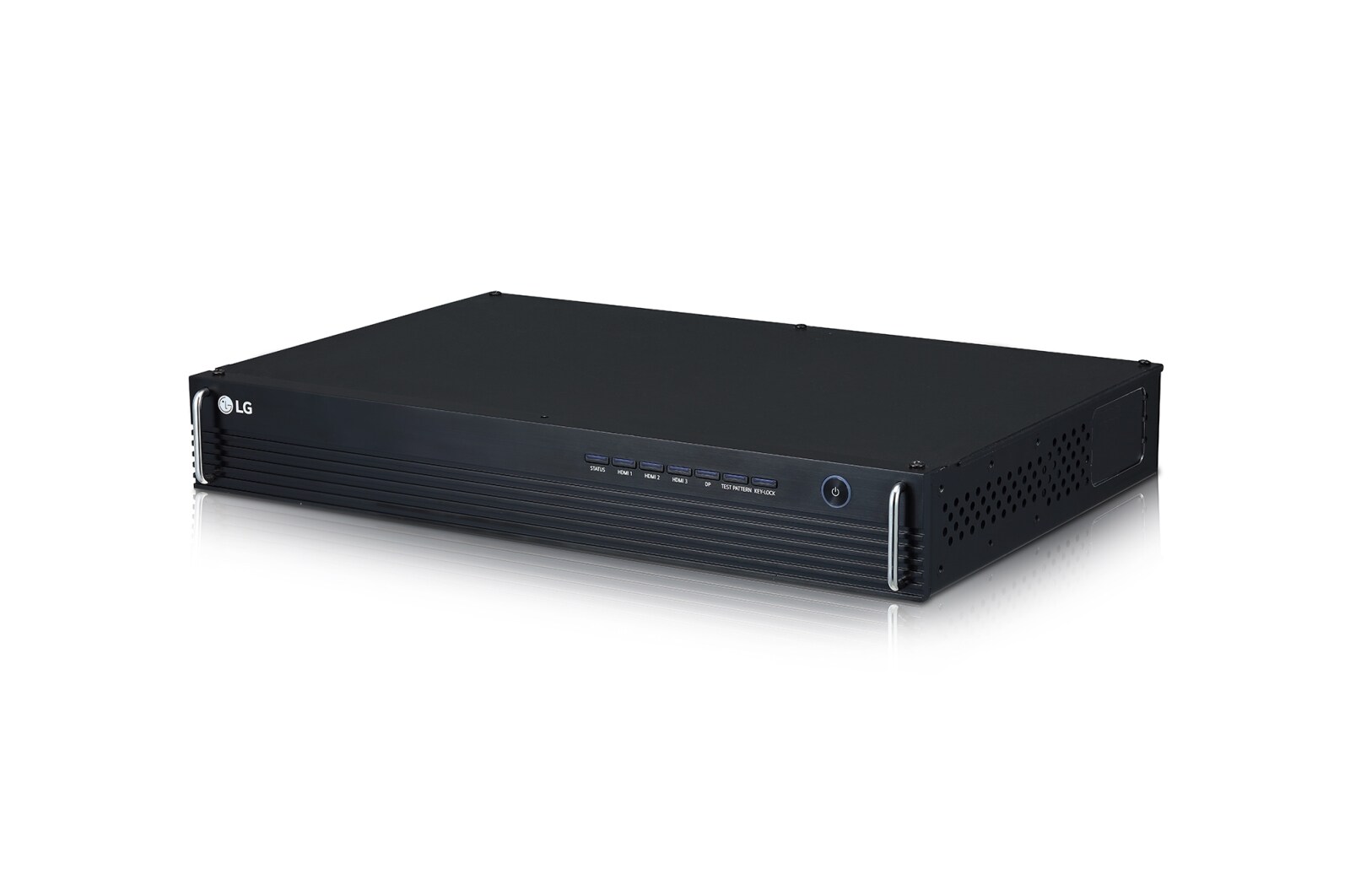

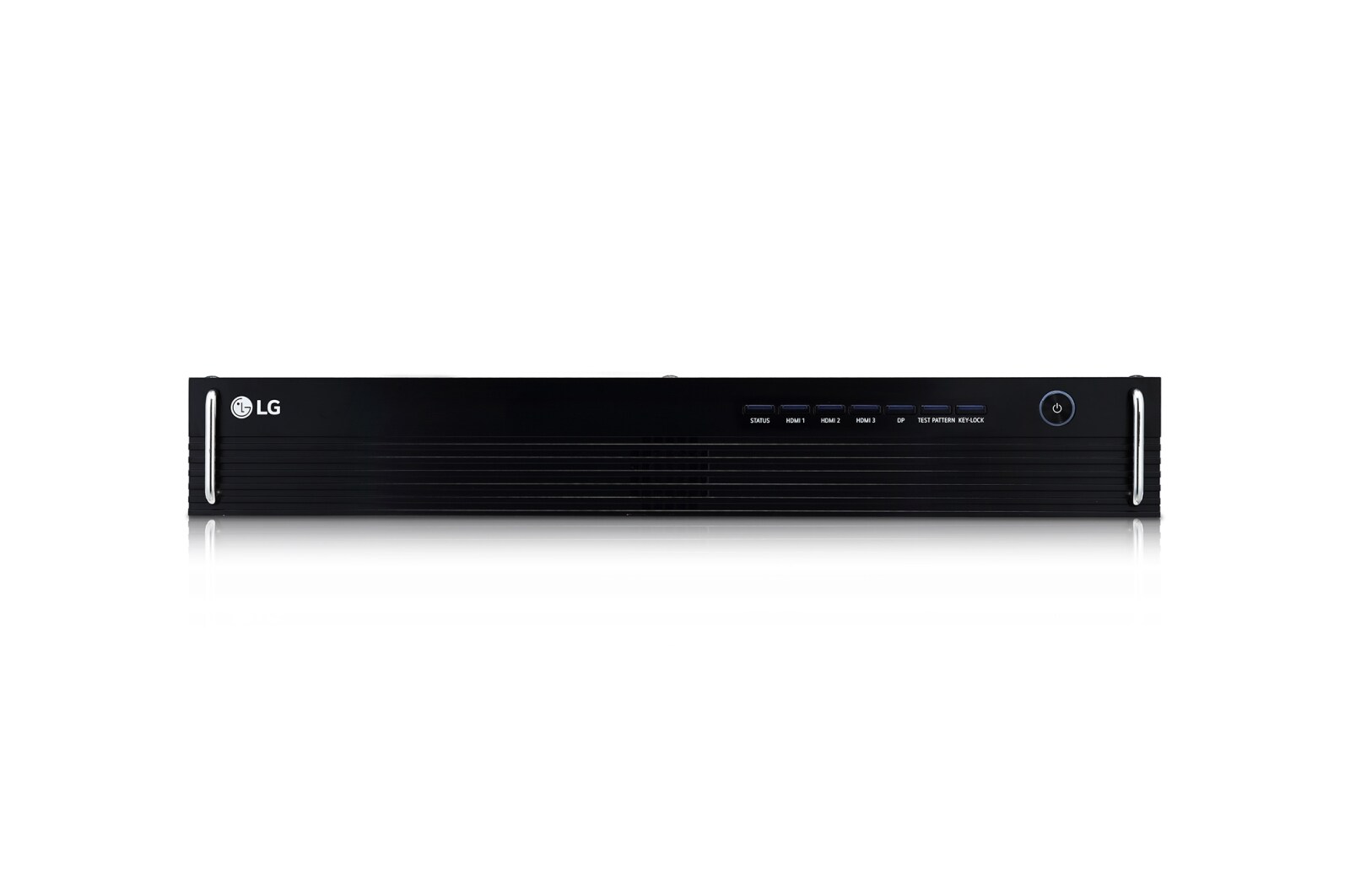

Controller
CSAA-012X
Power Consumption (W/cabinet, Max.)
107
Power Consumption (W/cabinet, Avg.)
64
Power Consumption (W/m², Max.)
534
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Lifetime (Half Brightness)
100,000
Operating Temperature (°C)
0℃ to +40℃
Operating Humidity
10-80% RH
IP rating Front / Rear
IP20 / IP20
Brightness
600nit (Typ.) 1,200nit (Peak)
Color Temperature (Default/Adjustable)
6,500K / 2,800~10,000K* Adjustable via LED Assistant on PC
Visual Viewing Angle (Horizontal/Vertical)
160 / 160
Brightness Uniformity
97%
Color Uniformity
±0.015Cx,Cy
Contrast Ratio
Peak. 9,000:1<Br>Typ. 5,000:1
Processing Depth (bit)
20
HDR Compatibility
HDR10, HDR10 Pro* LG's own HDR solution to process HDR signal by using enhanced dynamic tone mapping

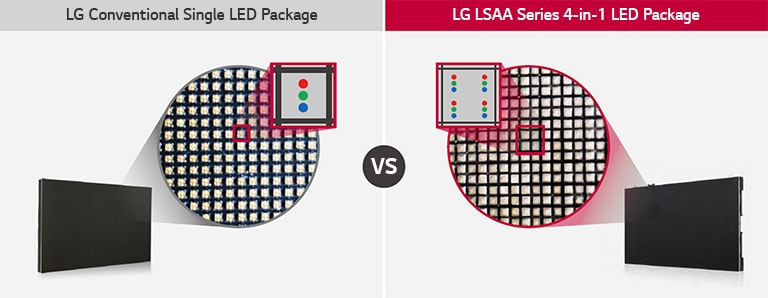

Pixel Configuration
SMD, 4 Pixels in 1 PKG
Pixel Pitch (mm)
1.25
Module Resolution (W x H)
240 × 90
Module Dimensions (W x H, mm)
300 ×112.5
Weight per Module (kg)
0.20
No. of Modules per Cabinet (W × H)
2 × 3
Cabinet Resolution (W × H)
480 × 270

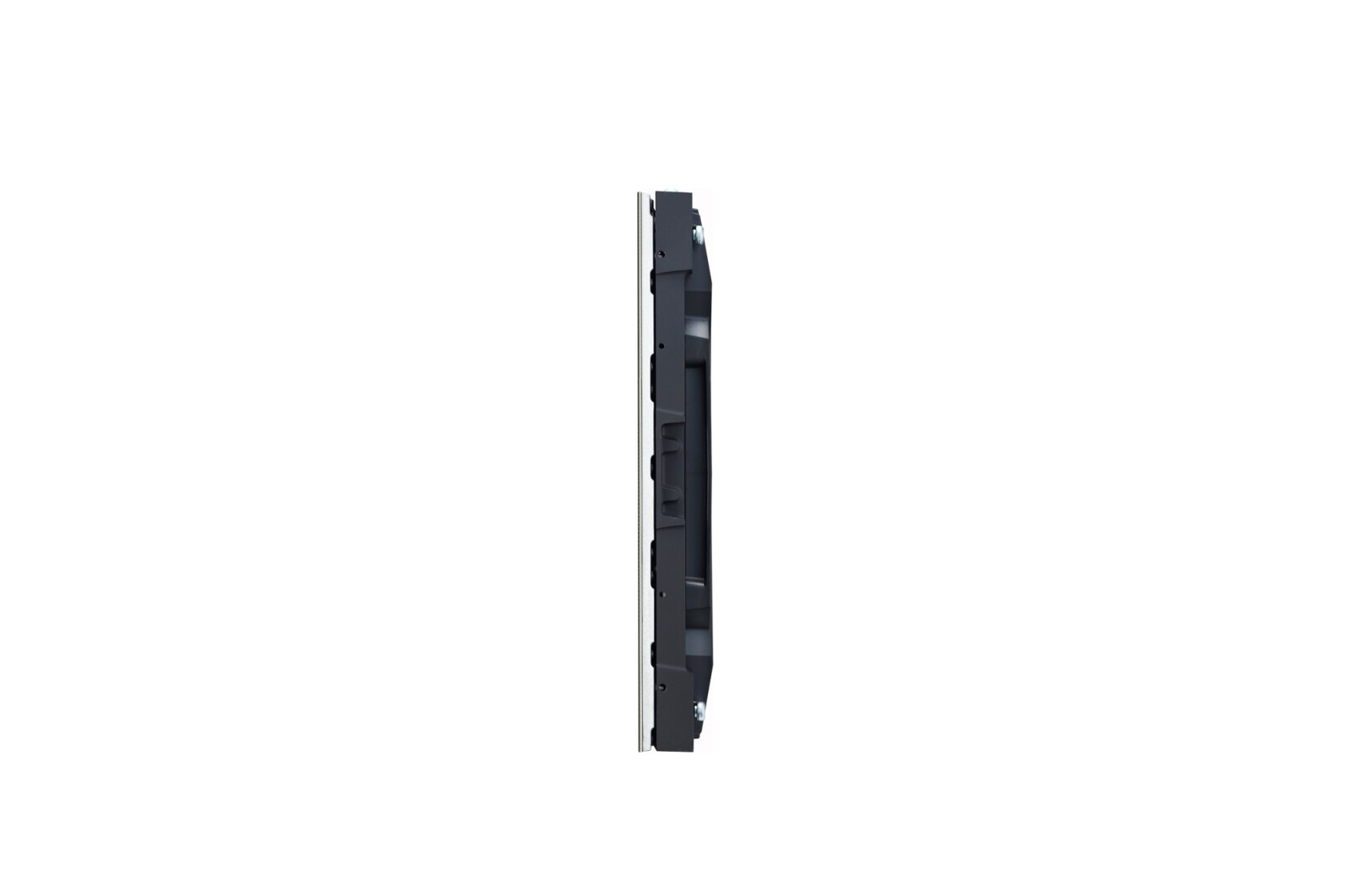

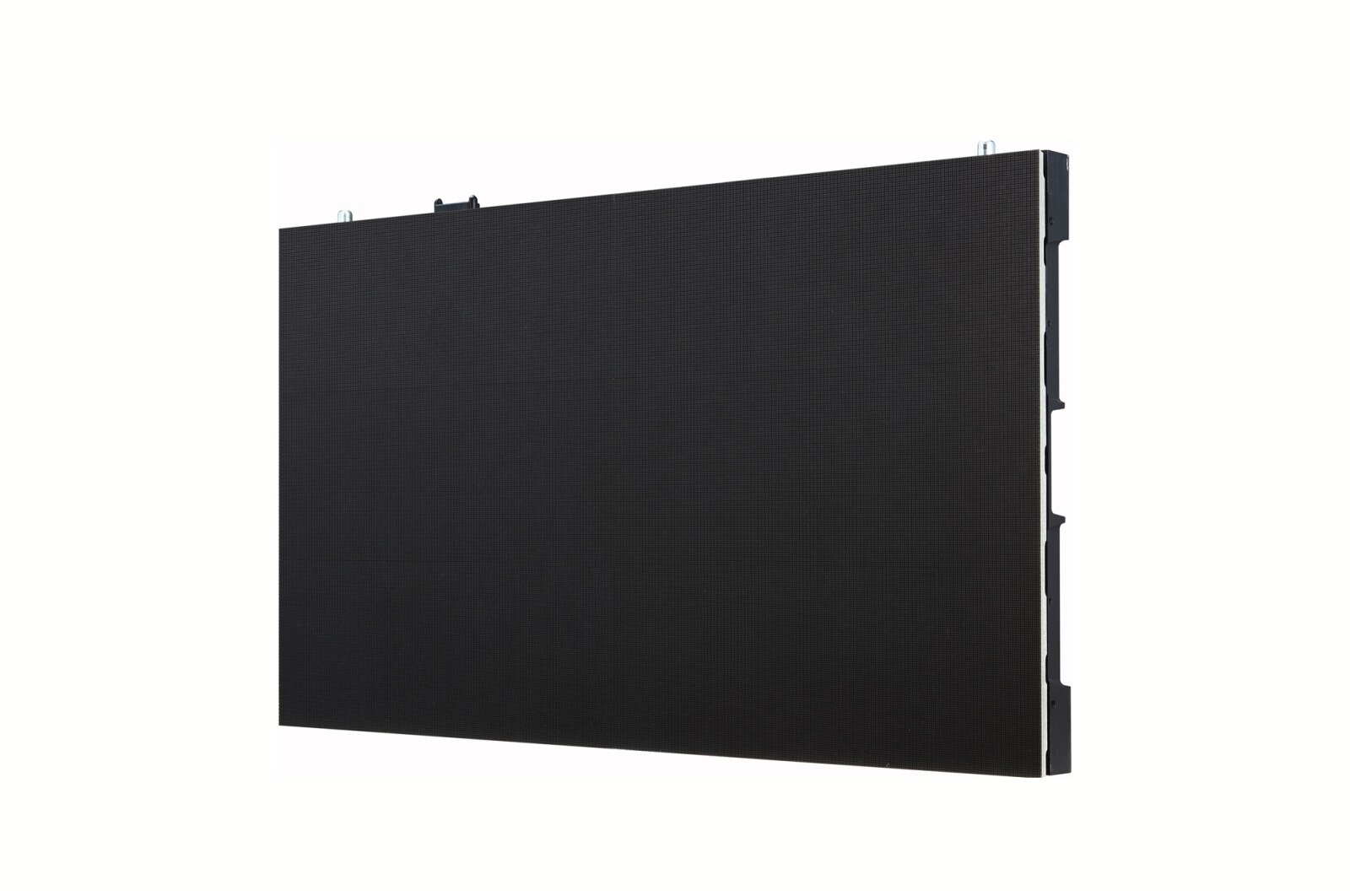

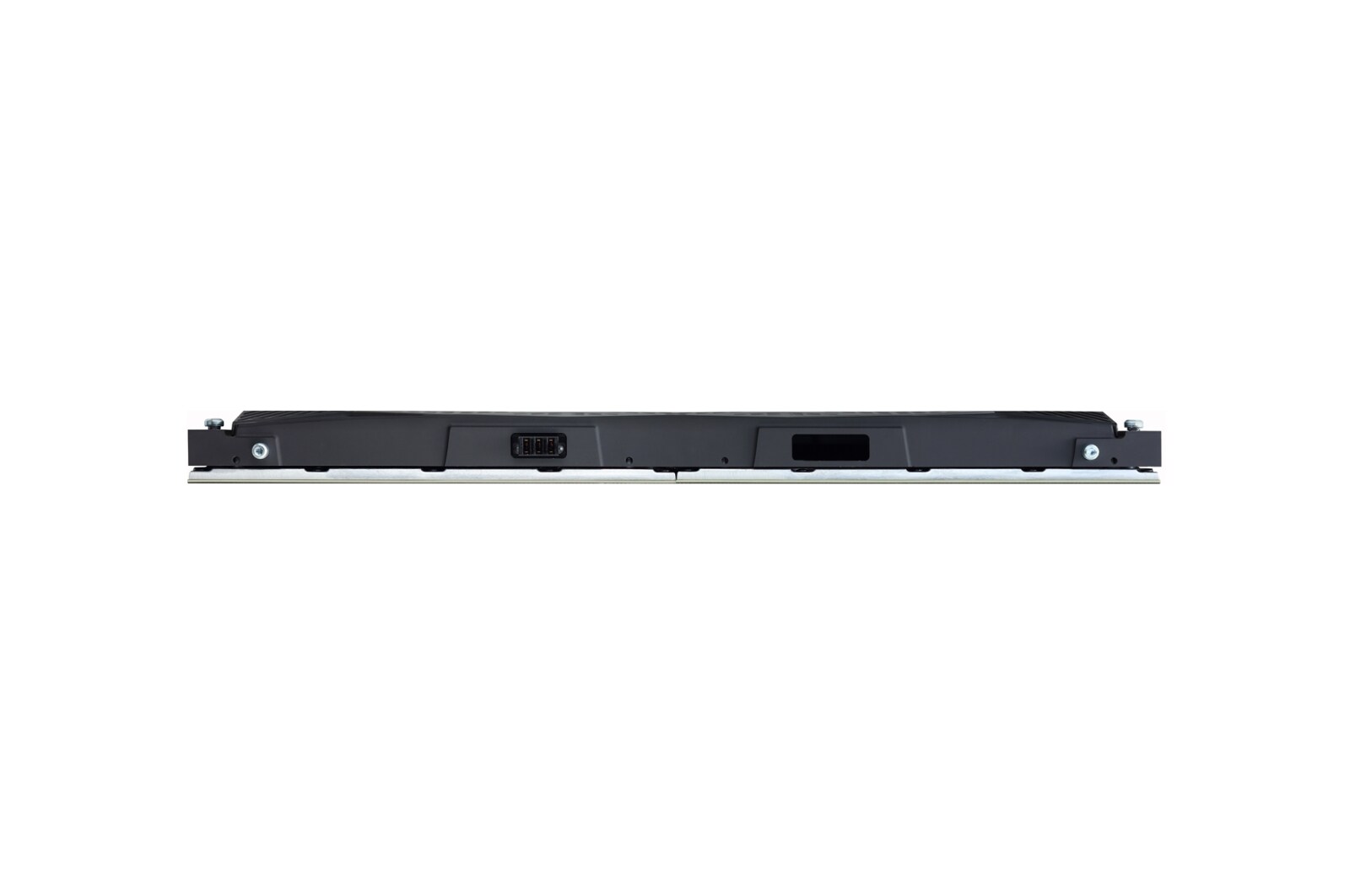

Cabinet Dimensions (W × H × D)
600 × 337.5 × 44.9
Cabinet Surface Area (m²)
0.259
Weight per Cabinet (kg/cabinet)
6.9
Weight per Square Meter (kg/m²)
34.1
Physical Pixel Density (pixels/m²)
640,000
Flatness of Cabinet
±0.5 mm

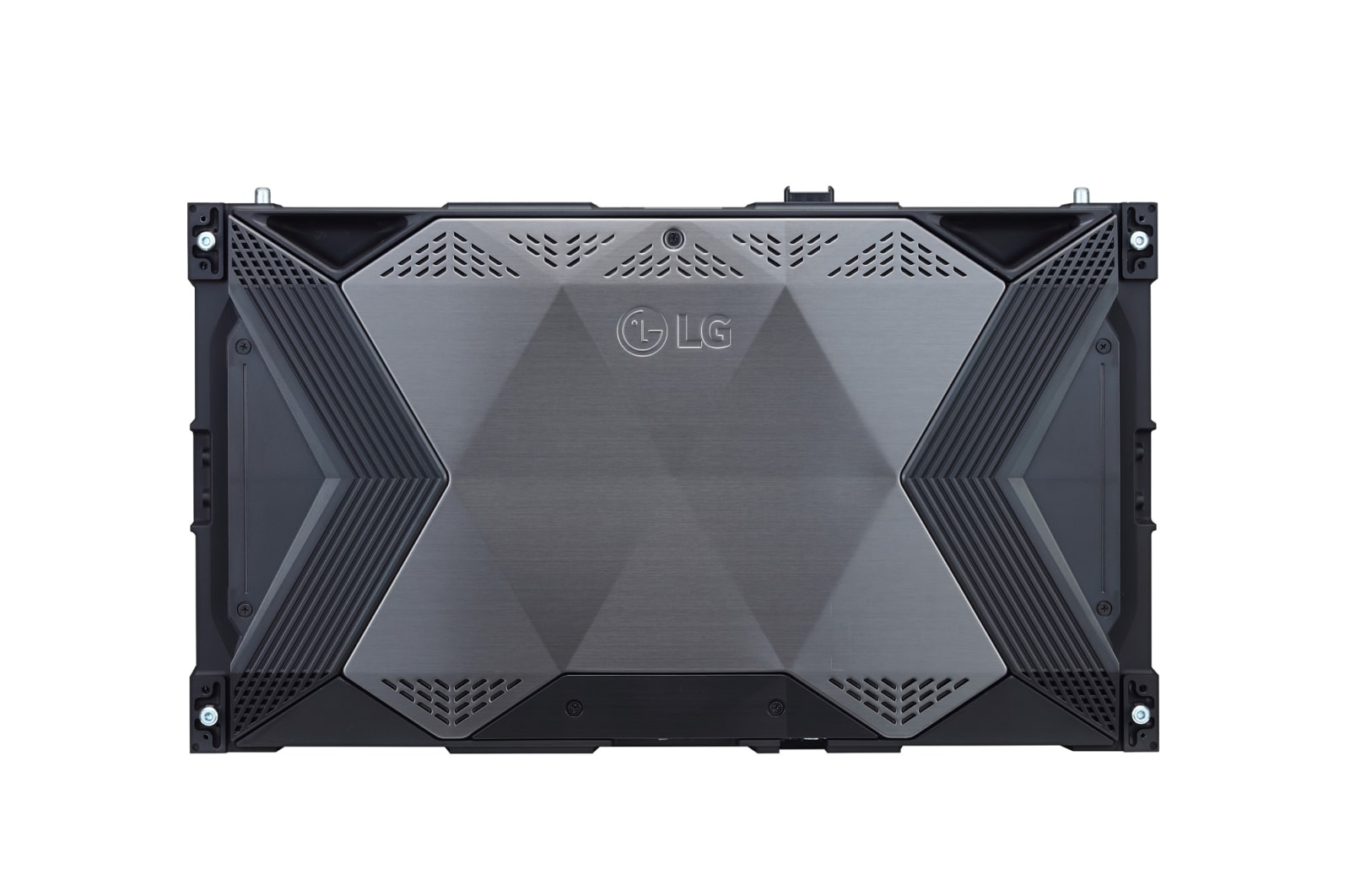

Cabinet Material
Die-cast Aluminum
Service Access
Front and Rear* Module can be accessed only from the front.
Environment
RoHS
