LEDs are installed on the entire surface of the square pillars in a shopping mall, displaying advertisements. The screens show a seamless and clear image even at the corners of the pillars.
* All images in this page are for illustrative purposes only.
With a great brightness of 600 nits, it clearly delivers content and attracts public attention, making it ideal for achieving bright indoor visibility.
LSBE has a brightness of 600 nits, so it is clearly visible, even under strong light.

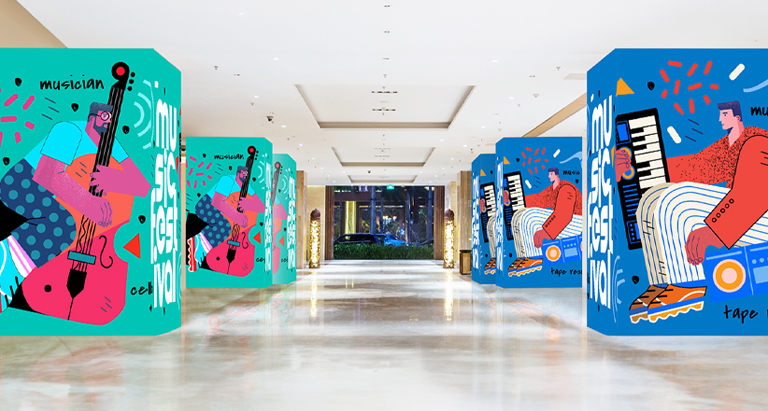

If you add 90° corner option, the LSBE series fits naturally into the space and delivers smooth content to customers.
The content with the 90° corner option is shown without any interruptions even when installed on a corner.

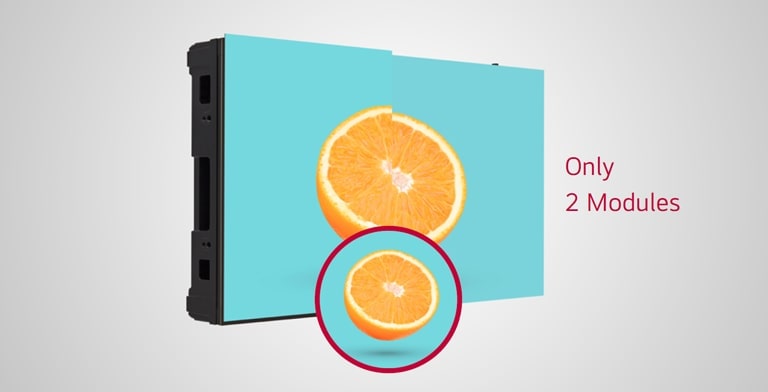

LSBE utilizes two modules to form a single cabinet, which helps minimize the gaps between modules compared to cabinets composed of multiple modules resulting in a smoother screen with fewer visible gaps. Moreover thanks to its structural advantage, LSBE allows for easy maintenance.
LSBE uses only two modules to create one cabinet.

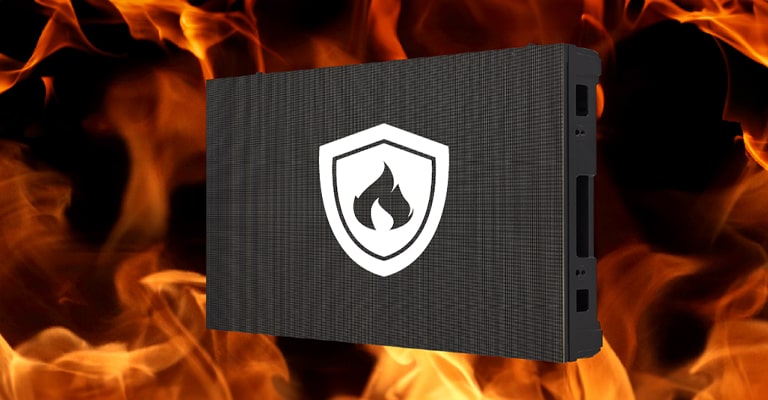

LSBE is compliant with the standard for assessing flame spread, receiving a Class C rating according to the EN 13501-1:2018 test. With its fire resistance, LSBE contributes to the safety of your space.
The LSBE series is designed to be resistant to fire.
* The test was conducted by SGS-CSTC Standards Technical Services (Shanghai) Co., LTD on Aug. 21 to 24, 2023, in accordance with the EN 13501-1:2018 standard. The LED module with product number (LSBE XX-XXX) was used as the test subject. The test results confirmed its compliance with the EN 13501-1:2018 Class C-s2, d0 rating.
When connected with LG's CVBA system controller, the LSBE series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.
The LG employee is remotely monitoring the LSBE series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables LSBE series to be compatible with LG software solutions.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Actual GUI may vary in different webOS versions.
* LG Software solutions needs to be purchased separately.
Certification
CE, FCC, cTUVus, CB, KC, CCC
90 degree corner cut
Yes
Controller
CVBA
Frame Rate (Hz)
50 / 60
Heat Dissipation (BTU/h/Cabinet, Avg.)
153
Heat Dissipation (BTU/h/Cabinet, Max.)
365
Heat Dissipation (BTU/h/㎡, Max.)
1,808
Power Consumption (W/Cabinet, Avg.)
45
Power Consumption (W/Cabinet, Max.)
107
Power Consumption (W/㎡, Max.)
530
Power Supply (V)
100 to 240
Refresh Rate (Hz)
3,840
Environment
RoHS, REACH
IP rating Front
IP50
IP rating Rear
IP50
LED Lifetime (Half brightness)
100,000
Operating Humidity
10~80%RH
Operating Temperature(℃)
-20℃ to +40℃
Brightness Uniformity(%)
97%
Color Temperature (K)
3,200~9,300
Color Uniformity
±0.003Cx,Cy
Contrast Ratio
5,000:1
Max Brightness (After Calibration, nit)
600
Processing Depth (bit)
14
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
150
Cabinet material
Die-casting Aluminum
Cabinet Dimensions (W x H x D, mm)
600x337.5x72
Cabinet Resolution (WxH)
384x216
Cabinet Surface Area (㎡)
0.203
Flatness of Cabinet (mm)
±0.3
Module Dimensions(WxH,mm)
300x337.5x13
Module Resolution (WxH)
192x216
No. of Modules per Cabinet (WxH)
2x1
Physical Pixel Density (pixels/㎡)
409,600
Pixel Configuration
Single SMD
Pixel Pitch (mm)
1.56
Service access
Front
Weight per Cabinet (kg/unit)
6.5
Weight per Module (kg)
0.95
Weight per Square Meter (kg/㎡)
32.0
