EF5K Series - OLED Signage with Flexible Curved Open Frame

Features

Gallery

Specs

Support

EF5K Series - OLED Signage with Flexible Curved Open Frame

EF5K Series - OLED Signage with Flexible Curved Open Frame

55EF5K-L
  • Front view of 55EF5K-L with infill image
  • Front view of 55EF5K-L
  • -45 degree side view of 55EF5K-L
  • -90 degree side view of 55EF5K-L
  • +45 degree side view of 55EF5K-L
  • +90 degree side view of 55EF5K-L

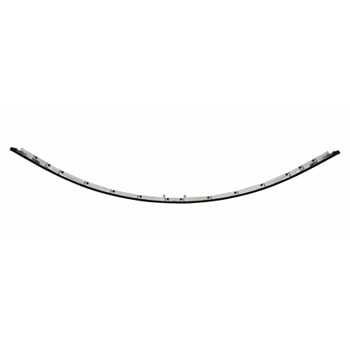

  • Top view of 55EF5K-L
  • Rear view of 55EF5K-L

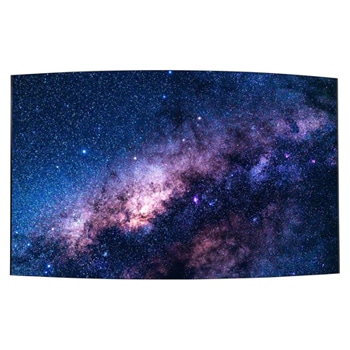

Front view of 55EF5K-L with infill image
Front view of 55EF5K-L

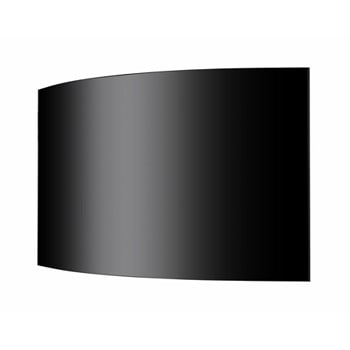

-45 degree side view of 55EF5K-L

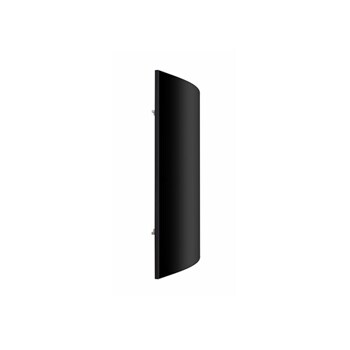

-90 degree side view of 55EF5K-L

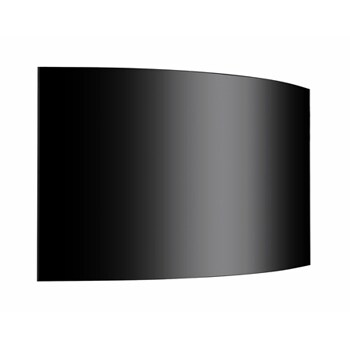

+45 degree side view of 55EF5K-L

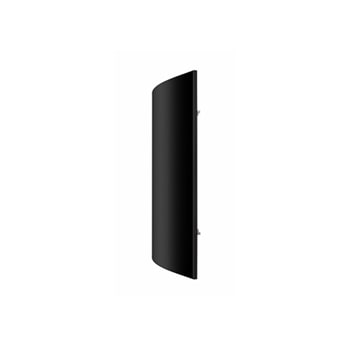

+90 degree side view of 55EF5K-L
Top view of 55EF5K-L

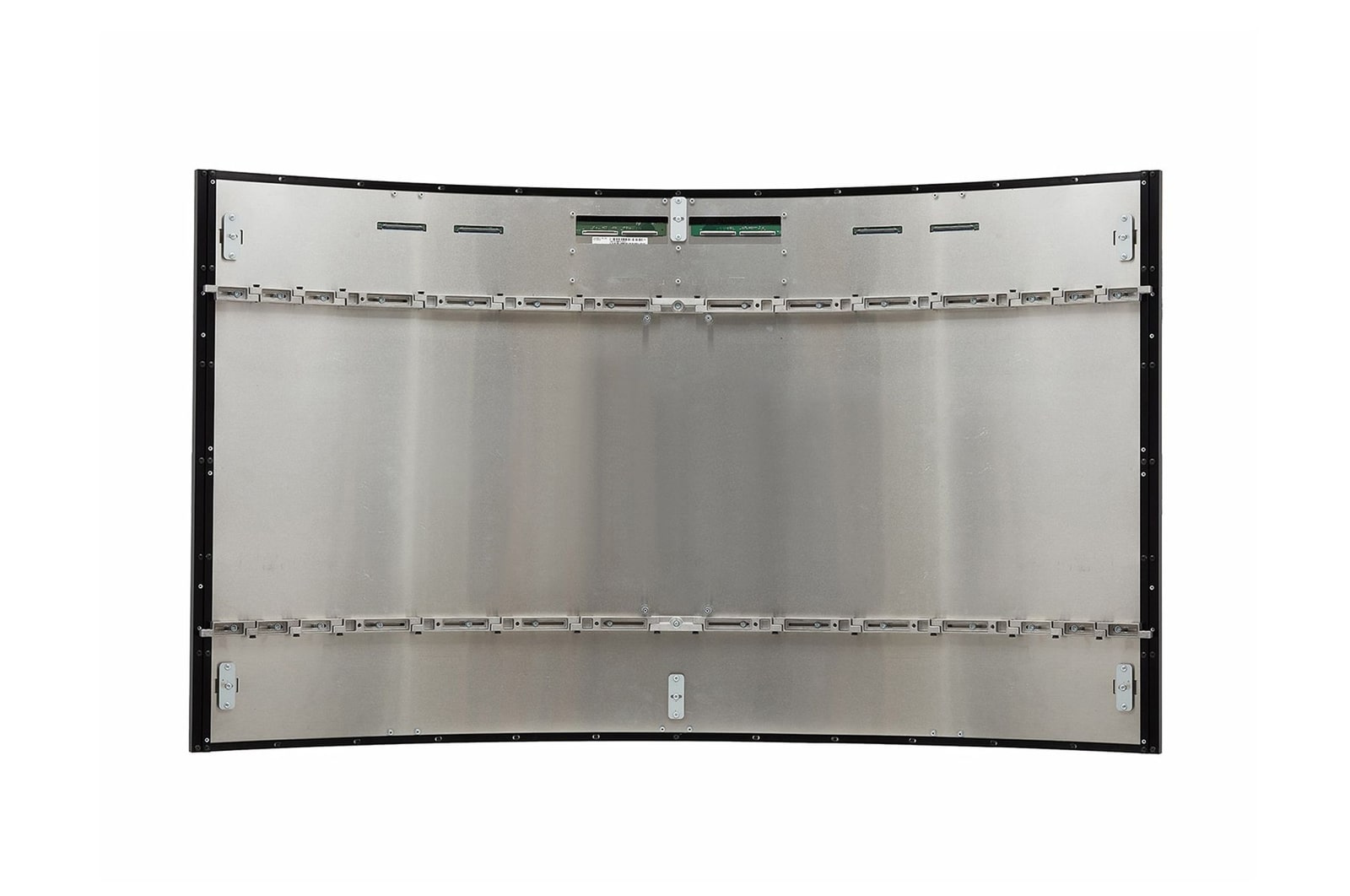

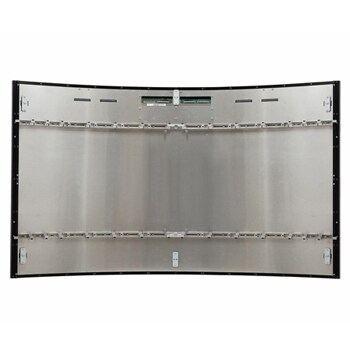

Rear view of 55EF5K-L

Key Features

  • Brightness: 150/400nit (APL 100%/25%)
  • Depth: 12.4 mm (Head Only)
  • Curvature: ~1,000R(Concave/Convex)
  • Interface: HDMI, DP, USB(2), Audio, RS232C, RJ45, IR
More

A woman and a child are going up a tunnel made of flexible Curved Open Frame OLED Signage through an escalator.

* All images in this web page are for illustrative purposes only.

Artistic Space beyond Display LG OLED Signage

Blending in with the space while captivating everyone’s mind. LG OLED signage offers flexible design. Beyond its informative features, LG OLED signage delivers unsurpassed advertising effectiveness, redesigning space as a prestige-enhancing landmark with perfect colors and innovative forms.

The woman is looking at the weather and time information displayed on the curved screen.

Expandable Screen Size

The screen size can be as large as users want by tiling up displays horizontally and vertically. This provides viewers with an incredibly immersive viewing experience.

Several screens can be arranged like tiles to embody the desired size.

Splendid Design

LG OLED technology doesn’t require a backlight unit nor a liquid crystal layer so it offers a flexible design with unbelievably lightweight and slim features.

A screen of LG OLED Signage is slim, light, and flexible.

LG OLED Signage shows better contrast between black and white than ordinary LCD.

Absolute Black

Equipped with over 8 million self-lighting pixels operating individually, LG OLED Signage reproduces absolute blacks with no light bleed and offers infinite contrast.

LG OLED Signage has a variety of colors rather than LCD to express the object more vividly.

Rich Color

LG OLED Signage provides richness in all colors, bringing colors to life with great accuracy and vividness.

Variety of Curvature for Landmarks

The EF5K series supports various concave and convex curvature in both portrait and landscape orientations. You can differentiate your space in a variety of ways with beautifully curved displays to keep passengers captivated and immersed.

Children are looking at the screen that curved in a wave-shaped interestingly in which the universe is expressed.

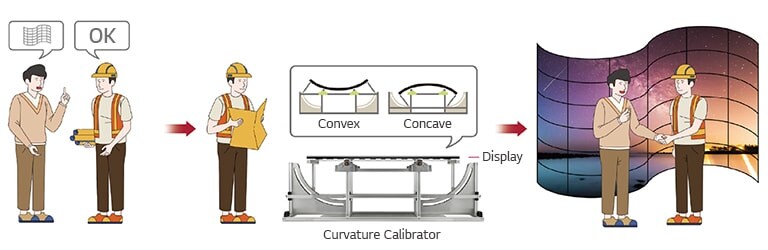

On-site Customization

The EF5K series enables a completely new approach for innovative and flexible designs. Its optional "Curvature Calibrator(CC)*" supports the coordination of displays with various convex and concave curvature, depending on the requirements. This makes it possible to rapidly respond to changes on-site, making it easier to successfully build an eye-catching landmark.

The EF5K series is designed to bend the screen convex or concave, allowing flexibility in adjusting even when sudden requests are received on-site.

*A Curvature Calibrator needs to be purchased separately. Please contact your regional LG sales representatives for details.

Displays are easily managed wirelessly through LAN daisy chain function.

LAN Daisy Chain Management

The LAN daisy chain allows users to control and monitor displays, transmit data and even update firmware all at once, reducing management burden.

Each of screen contents are synchronized and played without delay.

Videowall Playlist & Sync Playback

Through its built-in high performance SoC, each display plays its video tile for synchronized content playback.

Print

All Spec

PANEL

  • Screen Size (Inch)

    55"

  • Panel Technology

    OLED

  • Back Light Type

    OLED

  • Aspect Ratio

    16:9

  • Native Resolution

    1920x1080 (FHD)

  • Refresh Rate

    120Hz

  • Brightness

    150/400nit (APL 100%/25%)

  • Contrast Ratio

    150,000 : 1

  • Color Gamut

    BT709 120%

  • Viewing Angle (H x V)

    178 X 178

  • Color Depth (Number of Colors)

    10bit(R), 1.07Bilion colors

  • Response Time

    1ms (G to G), 8ms (MPRT)

  • Surface Treatment (Haze)

    Hard coating (2H)
    Reflectance Typ. 1.2%

  • Life time

    30,000 Hrs (Typ.)

  • Operation Hours (Hours/Day)

    18/7 (Moving Content Only)

  • Portait / Landscape

    Yes

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    T/R/L/B : 0.6/6.7/6.7/0.6mm (LandScape, Off Bezel)
    T/R/L/B : 0.6/6.7/6.7/0.6mm (Portrait, Off Bezel)

    T/R/L/B : 5.0/7.6/7.6/10.6mm (LandScape, On Bezel)
    T/R/L/B : 5.0/13.2/7.8/5.0mm (Portrait, On Bezel)

  • Weight (Head)

    5.8Kg (LandScape, Head)
    7.0Kg (Portrait, Head)
    3.5Kg (Signage Box)

  • Packed Weight

    17.0Kg (LandScape)
    17.6Kg (Portrait)

  • Monitor Dimensions (W x H x D)

    1224.9 x 696.2 x 38.0mm (LandScape, Head, w/Pemnut)
    701.4 x 1219.7 x 38.0mm (Portrait, Head, w/Pemnut)

    1224.9 x 696.2 x 12.4mm (Landscape, Head, w/o Pemnut)
    701.4 x 1219.7 x 12.4mm (Portrait, Head, w/o Pemnut)

    413 x 353 x 57.3mm (Signage Box)

  • Carton Dimensions (W x H x D)

    1360 x 842 x 252mm

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 °C to 40 °C

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • BTU (British Thermal Unit)

    1054 BTU/Hr(Typ.), 1085 BTU/Hr(Max)

  • DPM

    0.5W

  • Power off

    0.5W

  • Max.

    318W

  • Typ.

    116W (IEC 62087)

CERTIFICATION

  • Safety

    IEC 60950-1 / EN 60950-1 / UL 60950-1

  • EMC

    FCC Class "A" / CE / KC

  • ERP / Energy Star

    Yes / No

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    Yes (v3.0)

  • SuperSign Control+

    Yes (v1.9)

  • SuperSign WB

    Yes (v3.7.15)

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, QSG,
    IR receiver, Regulation Book, Phone to RS232C Gender, FFC Cables(220mmx4ea for connection between panel and Sinage box), DP Cable(2M), LAN Cable(1.5M), RS232 Cable(4P-4P,1.5M), LC Cable(VLC,3M), Tape(4EA for Cabling), Screw(M3xL4.5,30EA / M3xL5.5,50EA / M3x3.5, 10EA), Shield Cover Assy', Tiling Set Fixer 6EA, Flex Bar 2EA

SPECIAL FEATURE

  • Tilt (Face down)

    Yes
