EW5TP Series - 30" Transparent OLED Touch Signage

Features

Gallery

Specs

Support

EW5TP Series - 30" Transparent OLED Touch Signage

EW5TP Series - 30" Transparent OLED Touch Signage

30EW5TP-A
()
  • Front view of 30EW5TP-A with infill image
  • -45 degree side view of 30EW5TP-A with infill image
  • front view of 30EW5TP-A
  • -45 degree side view of 30EW5TP-A
  • -90 degree side view of 30EW5TP-A
  • +45 degree side view of 30EW5TP-A
  • +90 degree side view of 30EW5TP-A
  • Rear view of 30EW5TP-A

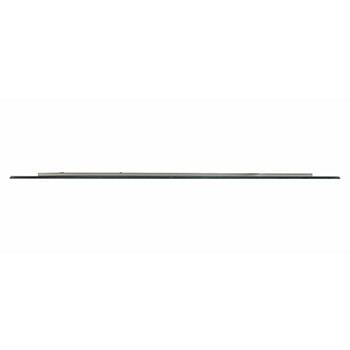

  • Top view of 30EW5TP-A

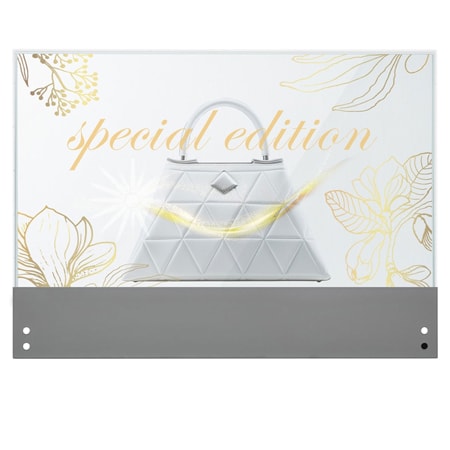

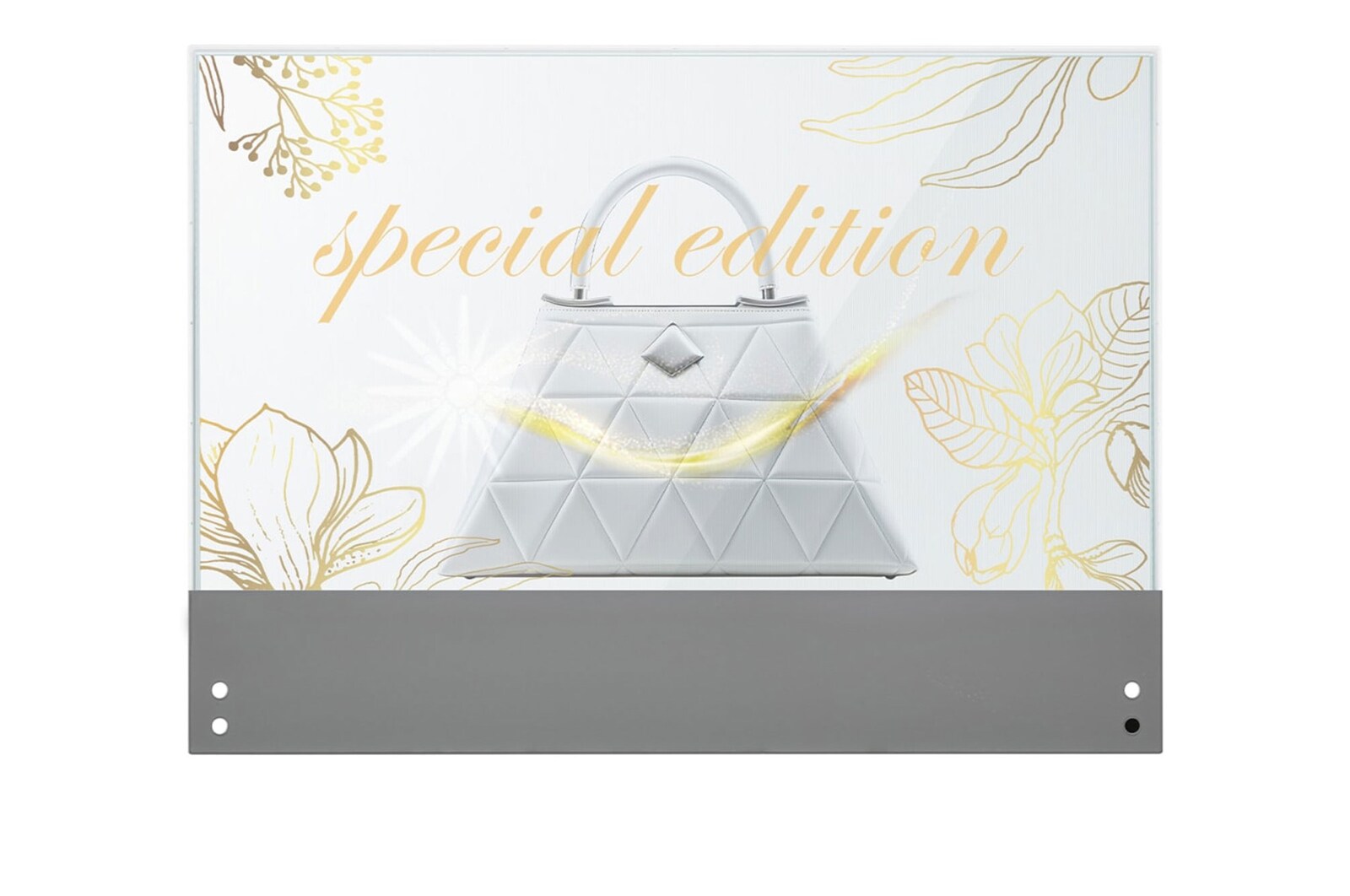

Front view of 30EW5TP-A with infill image

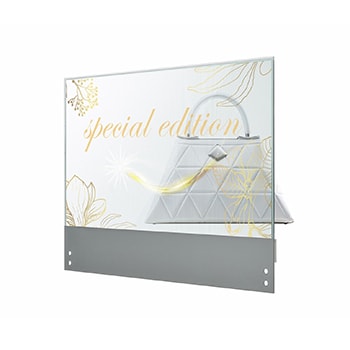

-45 degree side view of 30EW5TP-A with infill image

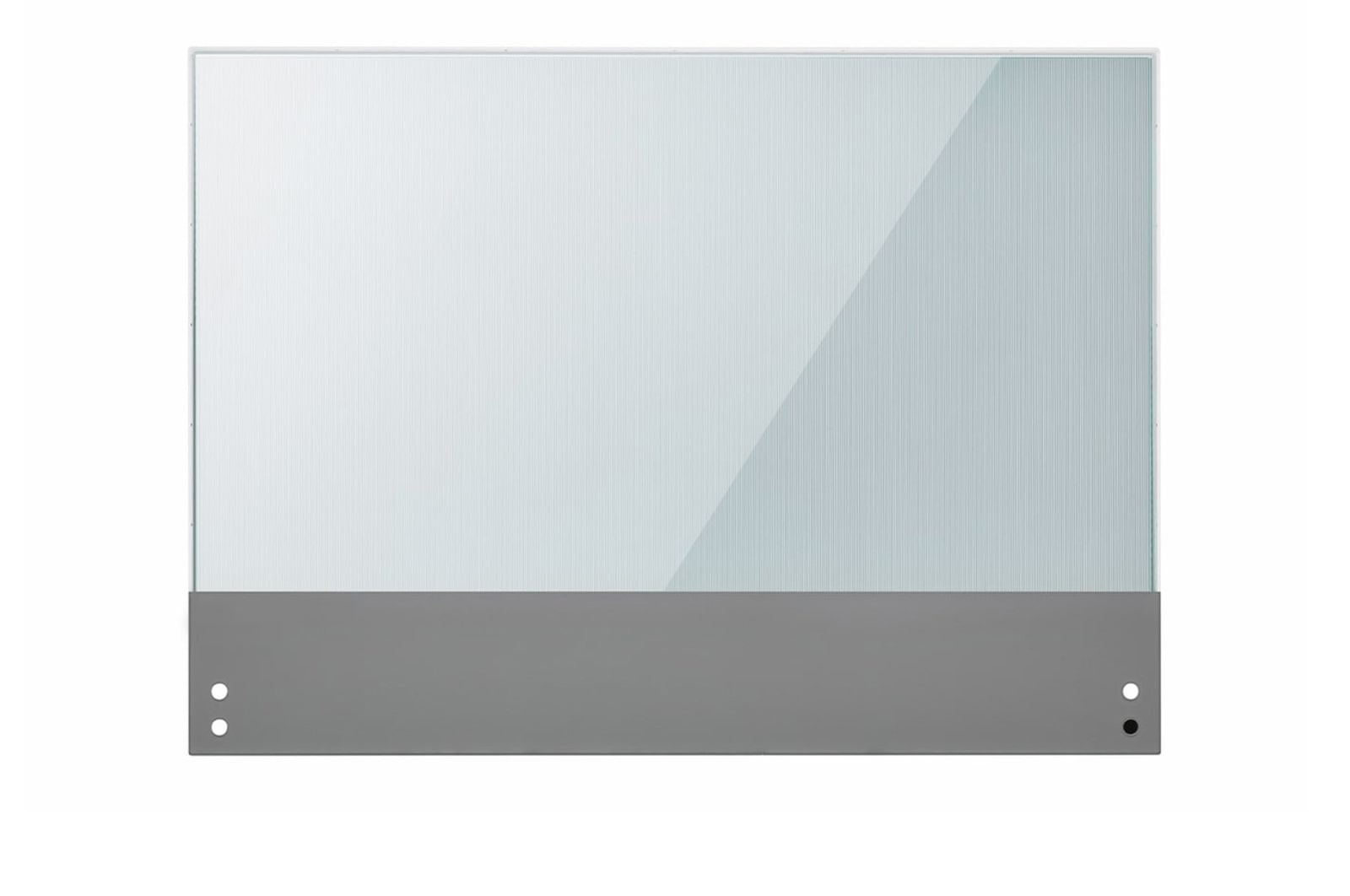

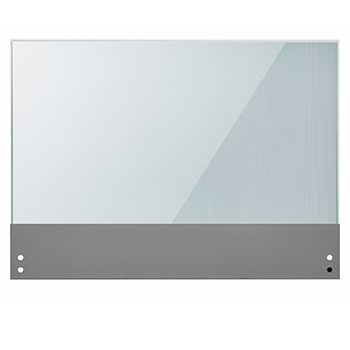

front view of 30EW5TP-A

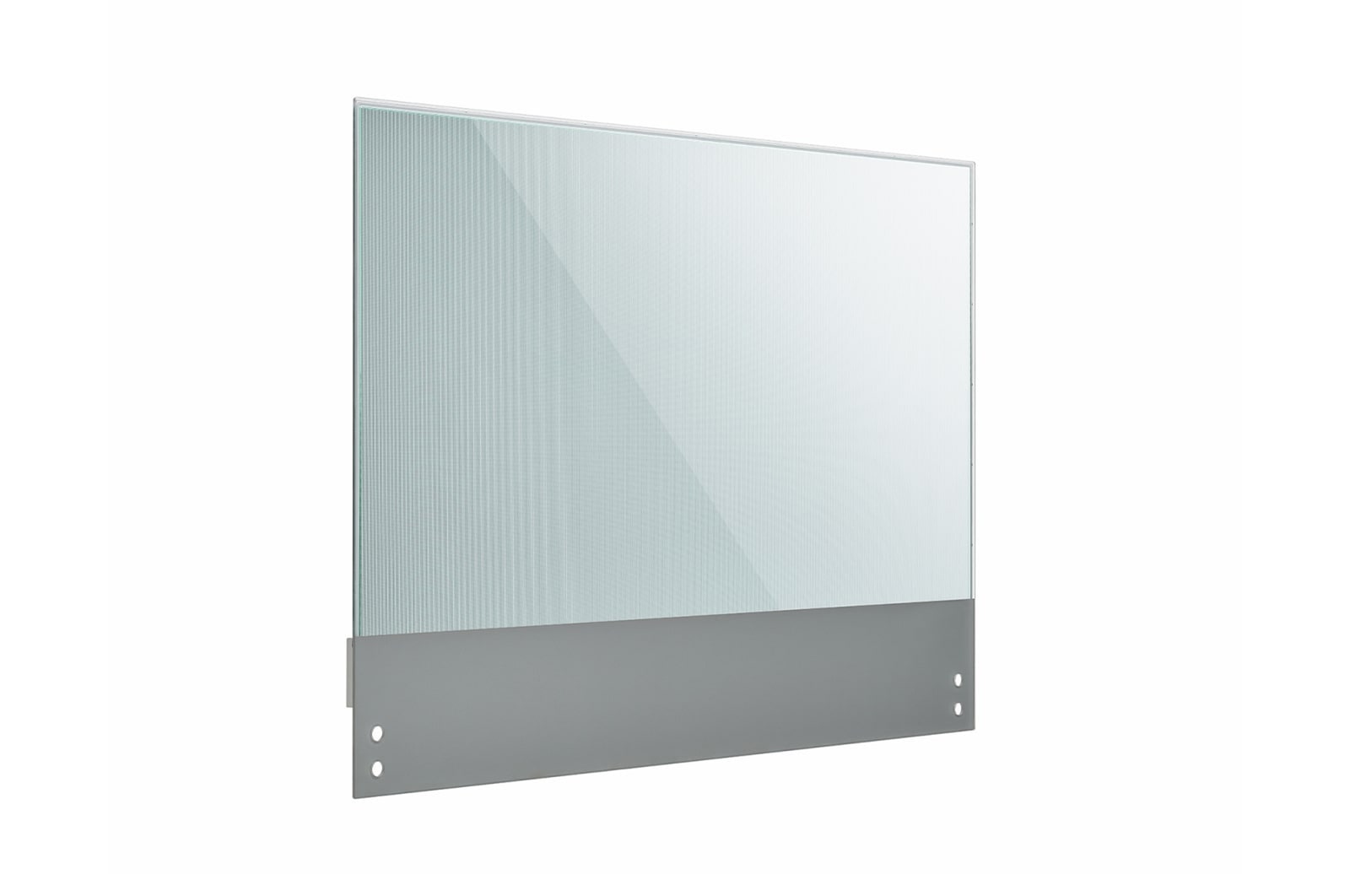

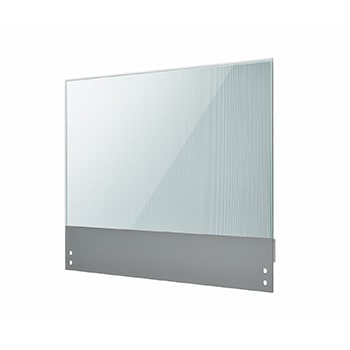

-45 degree side view of 30EW5TP-A

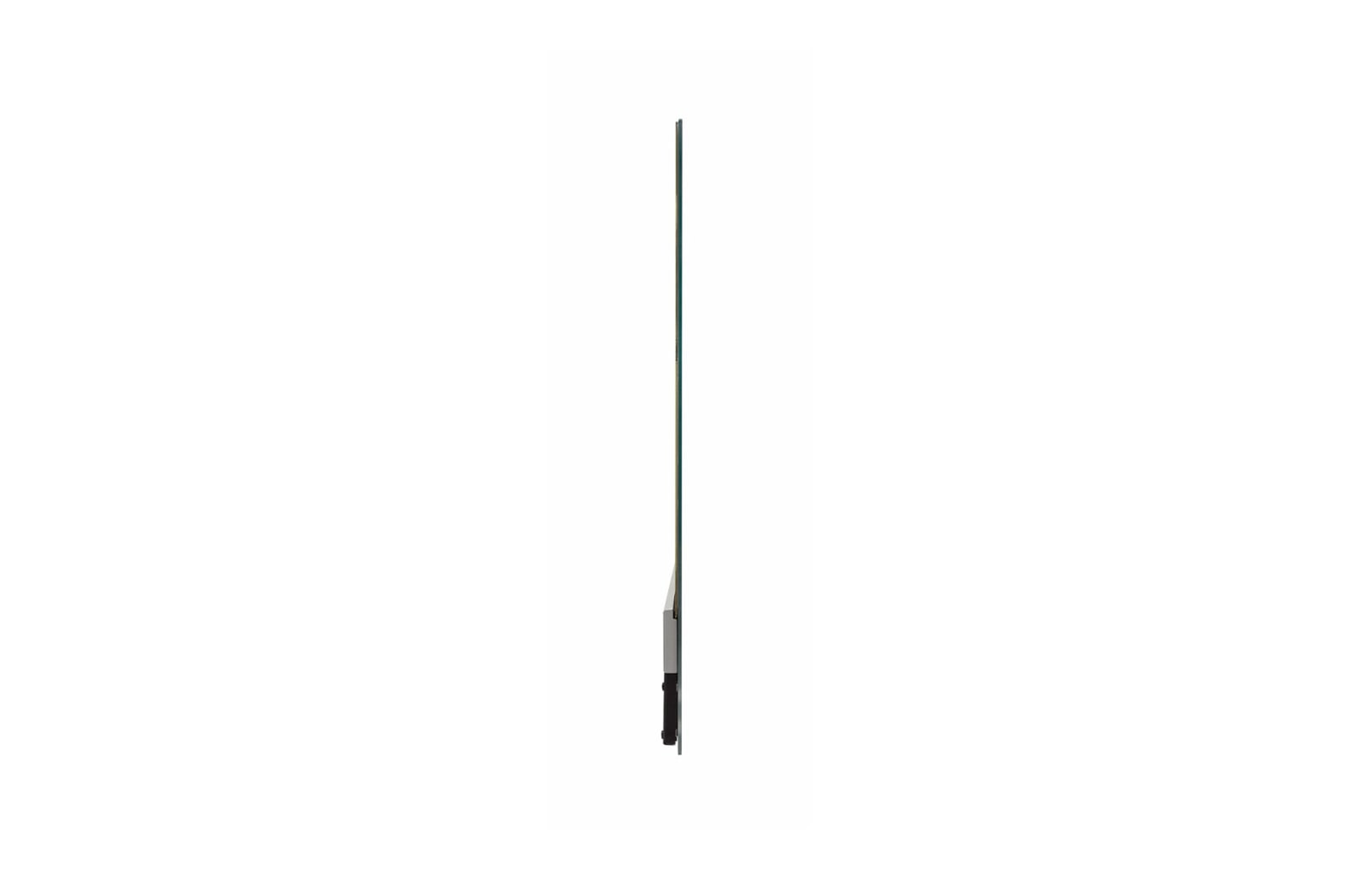

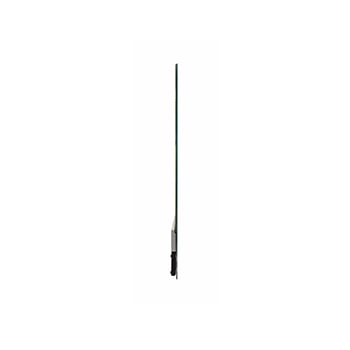

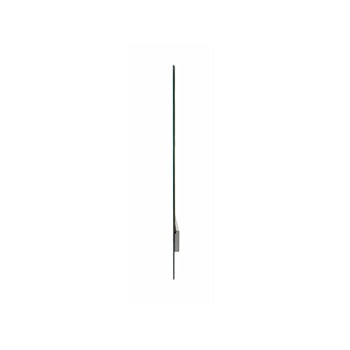

-90 degree side view of 30EW5TP-A

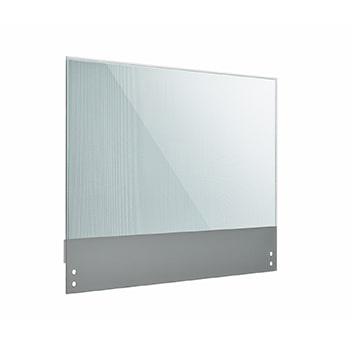

+45 degree side view of 30EW5TP-A
+90 degree side view of 30EW5TP-A

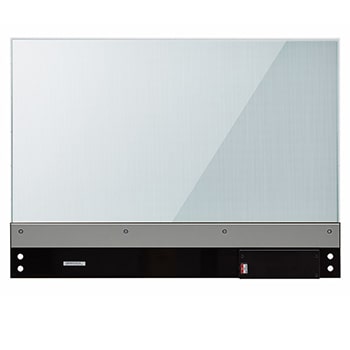

Rear view of 30EW5TP-A
Top view of 30EW5TP-A

Key Features

  • Brightness (Typ.) : 200 / 600 nit (APL 100% / 25%, Without Glass)
  • Transparency : 37% (Set)
  • Bezel : 7.9 mm (T/R/L), 114.7 mm (B)
  • Interface : HDMI / DP / USB 2.0 / Touch USB / RS232C / RJ45 / IR / Audio
  • P-Cap Touch, Tempered Front Glass (3T)
More

See the Unseen,
LG Transparent OLED Signage

At an upscale store display, Transparent OLED Signage is installed as a woman interacts with the transparent screen, revealing patterns that seamlessly blend with the bags displayed behind the screen on the shelf.

* All images in this page are for illustrative purposes only.

Accurate and Vivid Colors

Featuring self-lighting pixels, the display maintains vivid colors and high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.

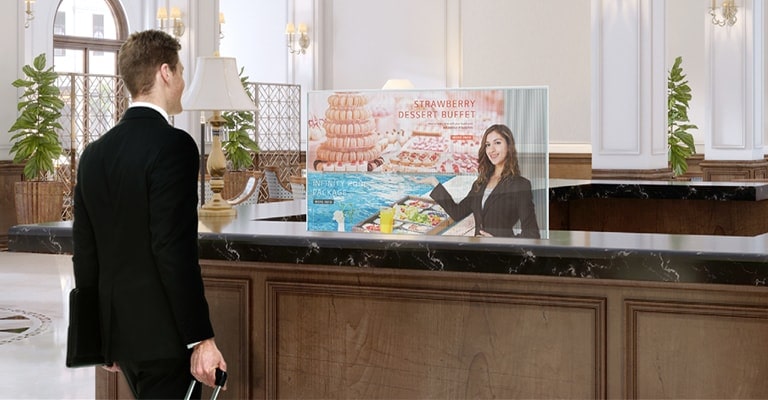

A man is getting information through the Transparent OLED Signage screen showing photos of the dessert menu.

Intuitive P-Cap Touch

By adding P-Cap touch sensor film to the display, the utilization possibilities expand to various industries where customer interaction services are demanding. Users could enjoy its fascinating content using their fingertips.

At a café, a woman is selecting from the menu by touching the Transparent OLED Signage screen.

At the museum, a father and two children are touching the Transparent OLED Signage screen, learning about polar bears. Beyond the displaying explanation, miniature polar bear models are exhibited and visible through the screen.

High Transparency

LG’s OLED technology makes the Transparent OLED Touch Signage have slimmer structure without backlight unit nor a liquid crystal layer, achieving high transparency even with P-Cap touch film. While clearly showing objects behind the screen, it overlays the relevant information right before them.

Attach thin and transparent tempered glass to the screen to maximize product protection and user safety.

Protective Tempered Glass

Touching a display directly can cause damage or scratches. The tempered front glass protects product from such external impacts and its anti-shatter glass is designed to minimize customers’ injuries.

Enhanced Spatial Versatility

Experience the extraordinary with the state-of-the-art LG Transparent OLED Signage, which breaks down the barriers between the screen and surrounding environment, seamlessly connecting different spaces and people.

A man and a woman are selecting a room by touching the Transparent OLED Signage installed on the hotel lobby's front table. There are two Transparent OLED Signage displays installed at the bank counter, showing advertisements for bank products on the screens. Transparent OLED Signage is installed in front of a table upon which cell phones are displayed in a cell phone store, and the Transparent OLED Signage screen is showing a cell phone’s functions. A café has Transparent OLED Signage installed, and a woman is checking the menu by touching the Transparent OLED Signage screen.

* Installation accessories are not supplied by LG.

Print

All Spec

PANEL

  • Screen Size (Inch)

    30

  • Panel Technology

    OLED

  • Back Light Type

    OLED

  • Aspect Ratio

    16:9

  • Native Resolution

    1366 x 768 (HD)

  • Refresh Rate

    120Hz

  • Brightness

    200/600nit (APL 100%/25%, without Glass)

  • Contrast Ratio

    200,000:1

  • Dynamic CR

    NO

  • Color Gamut

    BT709 110%

  • Viewing Angle (H x V)

    178º x 178º

  • Color Depth (Number of Colors)

    1.07 Billion colors

  • Response Time

    0.1ms (G to G), 8ms (MPRT)

  • Surface Treatment (Haze)

    Haze 3% (SET)

  • Life time

    30,000Hrs (Typ.)

  • Operation Hours (Hours/Day)

    18/7 (Moving Content Only)

  • Portait / Landscape

    YES / YES

  • Transparency

    37% (SET)

  • QWP (Quarter Wave Plate)

    N/A

CONNECTIVITY

  • HDMI In

    YES (1ea)

  • HDMI In (HDCP Ver.)

    2.2/1.4

  • DP In

    YES (HDCP 1.3)

  • DVI-D In

    NO

  • RGB In

    NO

  • Audio In

    NO

  • RS232C In

    YES

  • RJ45(LAN) In

    YES (1ea)

  • IR In

    YES

  • USB In

    USB2.0 Type A (2ea)

  • HDMI Out

    NO

  • DP Out

    YES

  • Audio Out

    YES

  • Touch USB

    USB2.0 Type B (1ea)

  • External Speaker Out

    NO

  • RS232C Out

    YES

  • RJ45(LAN) Out

    YES

  • IR Out

    YES (Sharing RS232C Out)

  • Daisy Chain

    NO

MECHANICAL SPECIFICATION

  • Bezel Color

    Transparent

  • Bezel Width

    T/R/L/B : 7.9/7.9/7.9/114.7mm

  • Weight (Head)

    4.2Kg (Head), 2.4Kg (Signage Box)

  • Packed Weight

    10.1Kg

  • Monitor Dimensions (W x H x D)

    680.2 x 496.2 x 15.3mm (Head), 449.2 x 288.6 x 42.8mm (Signage Box)

  • Monitor Dimension with Stand (W x H x D)

    N/A

  • Handle

    NO

  • VESA Standard Mount Interface

    N/A

  • Carton Dimensions (W x H x D)

    826 x 593 x 195mm

  • Weight (Head+Stand)

    N/A

PROTECTION GLASS

  • Thickness

    3mm

  • Degree of Protection

    N/A

  • Tempered / Chemical strengthening

    Chemical strengthening

  • Anti-Reflective

    YES

  • Infrared - Resistance (IR)

    N/A

  • Shatter-Proof

    YES

FEATURE - HARDWARE

  • Internal Memory (eMMC)

    16GB

  • Wi-Fi/BT (Built-in)

    NO

  • Temperature Sensor

    YES

  • Auto Brightness Sensor

    NO

  • Pixel Sensor

    NO

  • Proximity Sensor

    NO

  • Current Sensor

    NO

  • BLU Sensor

    NO

  • Humidity Sensor

    NO

  • Acceleration(Gyro) Sensor

    NO

  • Power Indicator

    NO

  • Local Key Operation

    NO

  • FAN (Built-in)

    NO

FEATURE - SOFTWARE

  • OS Ver. (webOS)

    webOS 7.5

  • Local Contents Scheduling

    YES

  • Group Manager

    YES

  • USB Plug & Play

    YES

  • Fail over

    YES

  • Booting Logo Image

    NO

  • No Signal Image

    NO

  • RS232C Sync

    YES

  • Local Network Sync

    YES

  • Backlight Sync

    NO

  • PIP

    NO

  • PBP

    NO

  • Screen Share

    NO

  • Video Tag

    YES (4 Video Tag)

  • Play via URL

    NO

  • Screen Rotation

    YES

  • External Input Rotation

    NO

  • Gapless Playback

    YES

  • Tile Mode Setting

    NO

  • Setting Data Cloning

    YES

  • SNMP

    YES

  • ISM Method

    YES

  • Auto Set ID

    NO

  • Status Mailing

    YES

  • Control Manager

    YES

  • Cisco Certification

    NO

  • Crestron Connected

    NO

  • Smart Energy Saving

    NO

  • PM mode

    YES

  • Wake on LAN

    YES

  • Network Ready

    NO

  • Beacon

    NO

  • HDMI-CEC

    YES

  • SI Server Setting

    YES

  • webRTC

    NO

  • Pro:Idiom

    NO

  • Brightness Compensation

    NO

  • W/B Setting by Grey scale

    NO

  • Scan Inversion

    NO

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 °C to 40 °C

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-in Power

POWER CONSUMPTION

  • BTU (British Thermal Unit)

    154 BTU/Hr(Typ.), 294 BTU/Hr(Max.)

  • Smart Energy Saving (70%)

    N/A

  • DPM

    0.5W

  • Power off

    0.5W

  • Max.

    86W

  • Typ.

    45W (IEC 62087)

SOUND

  • Speaker (Built-in)

    NO

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE / KC

  • ERP / Energy Star

    YES / NO

  • ePEAT(US only)

    NO

OPS COMPATIBILITY

  • OPS Type compatible

    N/A

  • OPS Power Built-in

    N/A

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    YES

  • SuperSign Control+

    YES

  • SuperSign WB

    NO

  • SuperSign Cloud

    YES

  • Promota

    NO

  • Mobile CMS

    YES

  • Connected Care

    YES

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Polski, Türkçe, Arabic

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, MCX/Harness Cables(3Mx4ea/3Mx2ea for connection between panel and Signage Box), HDMI Cable(3M), Micro to A type USB cable(3M, for connection between Touch and Signage Box), A to B type USB cable(Touch out), Screw(M4xL22,12ea / M4 Nut 12ea / M3xL5.5(Silver),M3xL5.5(Black) 8ea), Shield Cover Assy', Rubber Damper 4ea, Touch Cable Holder 2ea, MCX Cable Holder 2ea

  • Optional

    NO

SPECIAL FEATURE

  • Overlay Touch Compatibility

    N/A

  • Smart Calibration

    N/A

  • Tilt (Face up)

    N/A

  • Tilt (Face down)

    N/A

  • IP Rating

    N/A

  • Conformal Coating (Power Board)

    YES

  • Power Protection

    N/A

  • Direct Sunlight

    N/A

DEDICATED FEATURE - TOUCH

  • Available Object Size for Touch

    Ø8 mm ↑

  • Response Time ('Paint' app on Windows 10 PC)

    100ms ↓

  • Accuracy (Typ.)

    2mm

  • Interface

    USB2.0

  • Protection Glass Thickness

    3mm (Anti-Reflective / Anti-Finger print)

  • Protection Glass Transmission

    85% (Typ.)

  • Operating System Support

    Windows 10/11

  • Multi Touch Point

    Max. 10 Points
