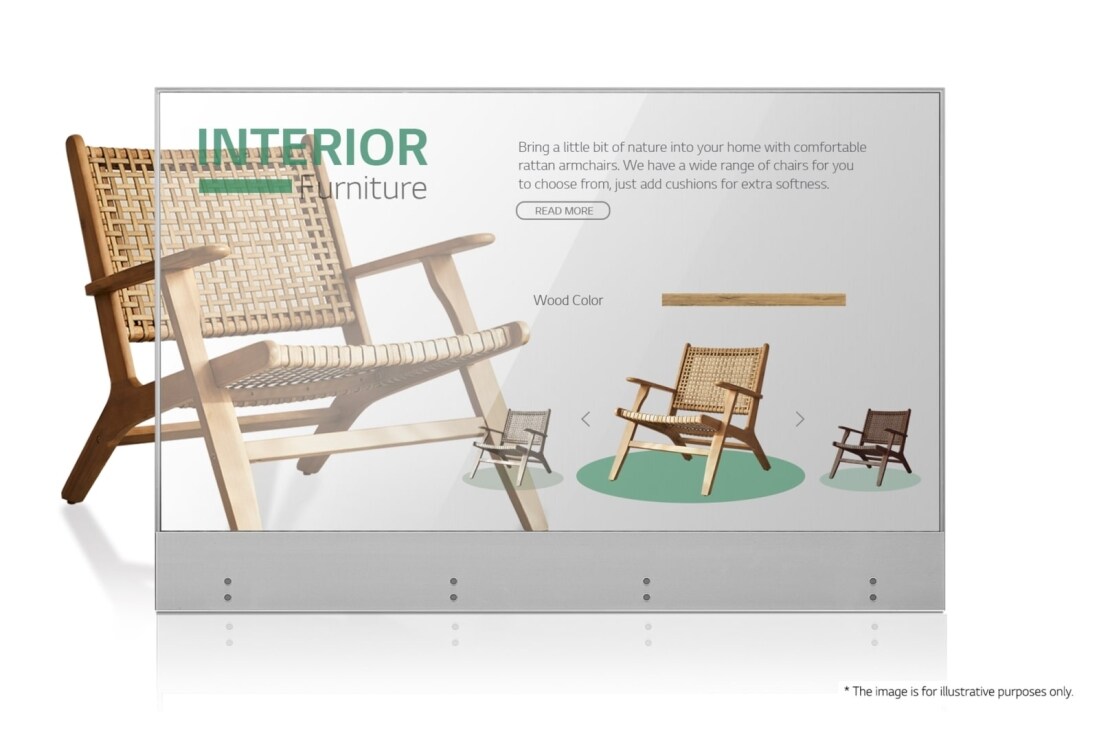

EW5G Series - 55'' Transparent OLED Signage
55EW5G-V
(1) Site inspection is required on selected products,. (2) Extra cost involved on installation service at Discovery Bay. Please refer to FAQ section for details.
Shipping delays may occur due to the delivery company's circumstance., weather and traffic.
Speaker (Built-in)
NO
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ePEAT(US only)
NO
ERP / Energy Star
YES / NO
OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic
Optional
Stand (ACC-S-EW5F, 2 Pole), Tiling (ACC-V-EW5F)
Basic
Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, MCX/Harness Cables(3000mmx4ea/3000mmx2ea for connection between panel and Signage Box), DP Cable(2M), LAN Cable(1.5M), RS232 Cable(4P-4P,1.5M), LC Cable(VLC,3M), Screw(M4xL22,12ea / M4 Nut,12ea / M3xL5.5,8ea / M3xL3.5,20ea), Shield Cover Assy', Rubber Damper 4ea, MCX cable Holder 4ea
Response Time ('Paint' app on Windows 10 PC)
N/A
Accuracy (Typ.)
N/A
Available Object Size for Touch
N/A
Interface
N/A
Multi Touch Point
N/A
Operating System Support
N/A
Protection Glass Thickness
N/A
Protection Glass Transmission
N/A
Operation Humidity
10 % to 80 %
Operation Temperature
0 °C to 40 °C
Bezel Width
T/R/L/B : 7.9/7.9/7.9/121.7mm
Bezel Color
Transparent
Carton Dimensions (W x H x D)
1345 x 920 x 207mm
Handle
NO
Monitor Dimensions (W x H x D)
1225.5 x 810.1 x 6.6mm (Head) 782.8 x 238.4 x 34.7mm (Signage Box)
Monitor Dimension with Stand (W x H x D)
N/A
Packed Weight
23.2Kg
VESA Standard Mount Interface
N/A
Weight (Head)
11.7Kg (Head) 3.4Kg (Signage Box)
Weight (Head+Stand)
N/A
OPS Power Built-in
N/A
OPS Type compatible
N/A
Power Type
Built-in Power
Power Supply
AC 100-240V~, 50/60Hz
Anti-Reflective
YES
Degree of Protection
N/A
Infrared - Resistance (IR)
N/A
Shatter-Proof
YES
Tempered / Chemical strengthening
Chemical strengthening
Thickness
3mm
Power Protection
N/A
Conformal Coating (Power Board)
N/A
Direct Sunlight
N/A
IP Rating
N/A
Overlay Touch Compatibility
N/A
Smart Calibration
N/A
Tilt (Face down)
N/A
Tilt (Face up)
N/A
Connected Care
YES
Mobile CMS
YES
Promota
NO
SuperSign Cloud
NO
SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
YES
Contrast Ratio
150,000:1
Aspect Ratio
16:9
Back Light Type
OLED
Brightness
150/400nit (APL 100%/25%, without Glass)
Color Depth (Number of Colors)
1.07 Billion colors
Color Gamut
BT709 120%
Dynamic CR
NO
Life time
30,000Hrs (Typ.)
Native Resolution
1920 x 1080 (FHD)
Operation Hours (Hours/Day)
18/7 (Moving Content Only)
Panel Technology
OLED
Portait / Landscape
YES / YES
QWP (Quarter Wave Plate)
N/A
Refresh Rate
120Hz
Response Time
1ms (G to G), 8ms (MPRT)
Screen Size (Inch)
55
Surface Treatment (Haze)
Haze 3% (SET)
Transparency
38% (SET)
Viewing Angle (H x V)
178º x 178º
Local Key Operation
NO
Acceleration(Gyro) Sensor
NO
Auto Brightness Sensor
NO
BLU Sensor
NO
Current Sensor
NO
FAN (Built-in)
NO
Humidity Sensor
NO
Internal Memory (eMMC)
16GB
Pixel Sensor
NO
Power Indicator
NO
Proximity Sensor
NO
Temperature Sensor
YES
Wi-Fi/BT (Built-in)
NO
Daisy Chain
Input : HDMI, DP / Output : DP
Audio In
NO
Audio Out
YES
DP In
YES (HDCP 1.3)
DP Out
YES
DVI-D In
NO
External Speaker Out
NO
HDMI In
YES (1ea)
HDMI In (HDCP Ver.)
1.4
HDMI Out
NO
IR In
YES
IR Out
YES (Sharing RS232C Out)
RGB In
NO
RJ45(LAN) In
YES (1ea)
RJ45(LAN) Out
YES
RS232C In
YES
RS232C Out
YES
Touch USB
NO
USB In
USB2.0 Type A (2ea)
Pro:Idiom
YES
Auto Set ID
YES
Backlight Sync
NO
Beacon
NO
Booting Logo Image
NO
Brightness Compensation
NO
Cisco Certification
NO
Control Manager
YES
Crestron Connected
YES
External Input Rotation
YES
Fail over
YES
Gapless Playback
YES
Group Manager
YES
HDMI-CEC
YES
ISM Method
YES
Local Contents Scheduling
YES
Local Network Sync
YES
Network Ready
NO
No Signal Image
NO
OS Ver. (webOS)
webOS 4.0
PBP
NO
PIP
NO
Play via URL
NO
PM mode
YES
RS232C Sync
YES
Scan Inversion
NO
Screen Rotation
YES
Screen Share
NO
Setting Data Cloning
YES
SI Server Setting
YES
Smart Energy Saving
NO
SNMP
YES
Status Mailing
YES
Tile Mode Setting
YES
USB Plug & Play
YES
Video Tag
YES (4 Video Tag)
Wake on LAN
YES
webRTC
NO
W/B Setting by Grey scale
NO
BTU (British Thermal Unit)
853.03 BTU/Hr(Typ.), 955.39 BTU/Hr(Max.)
DPM
0.5W
Power off
0.5W
Smart Energy Saving (70%)
N/A
Max.
280W
Typ.
171W (IEC 62087)
