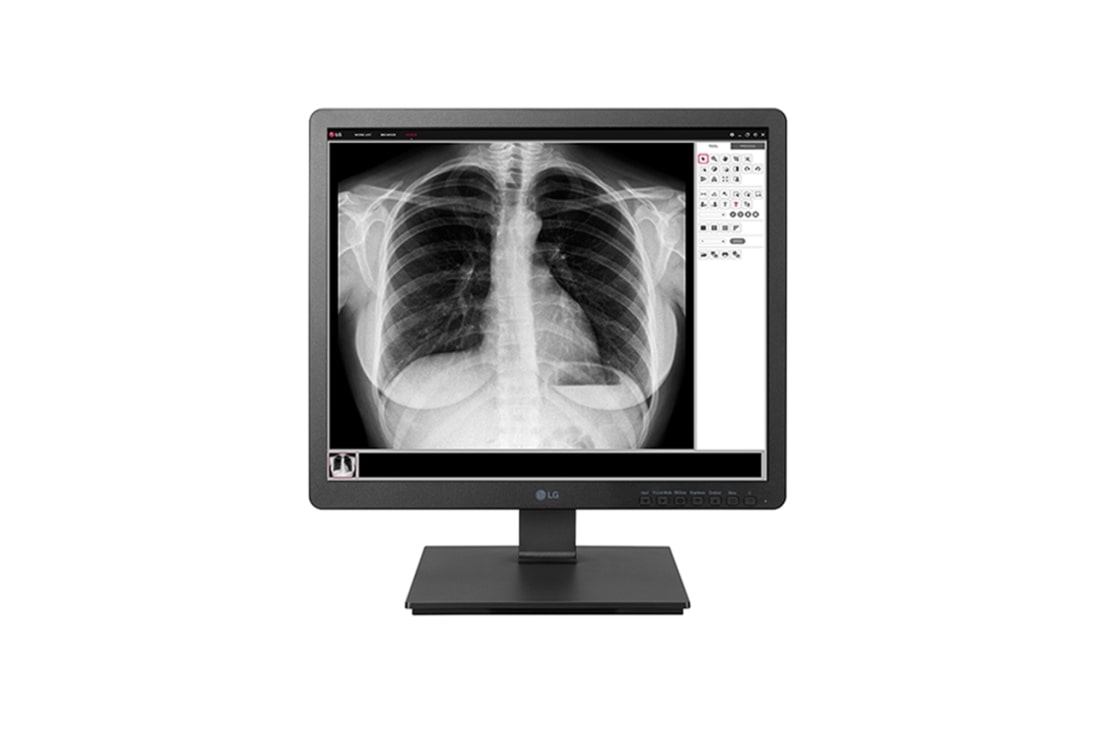

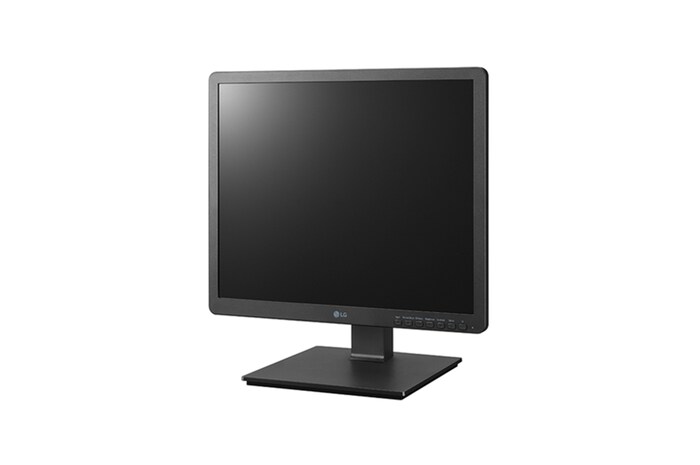

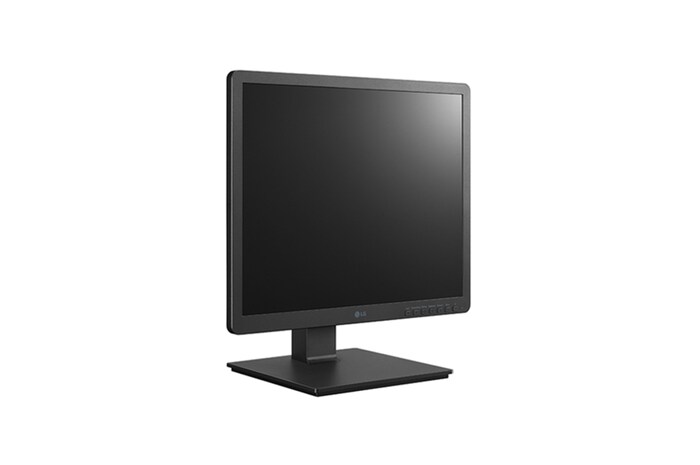

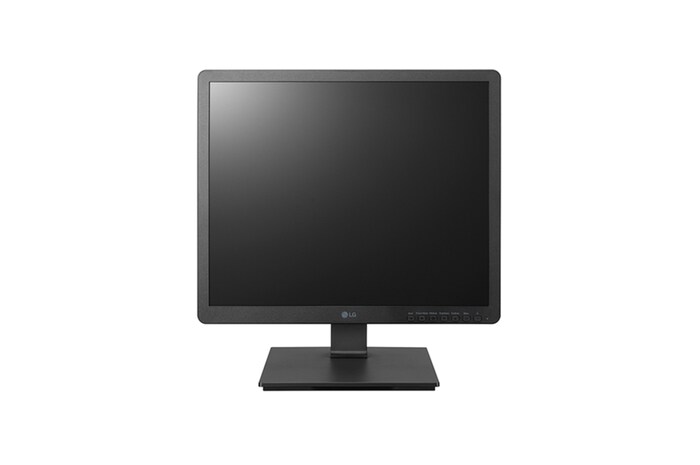

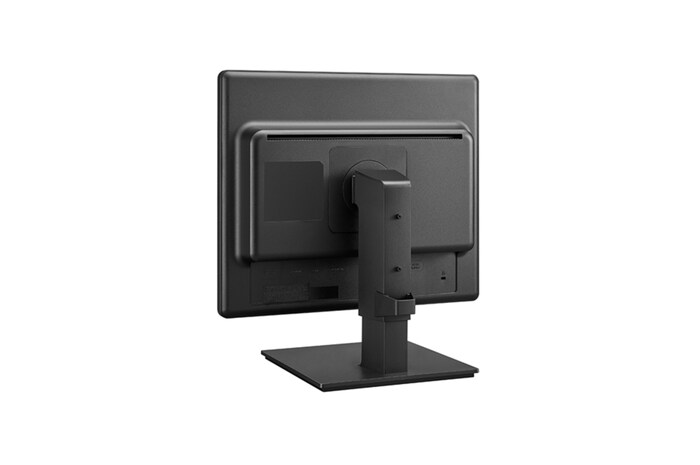

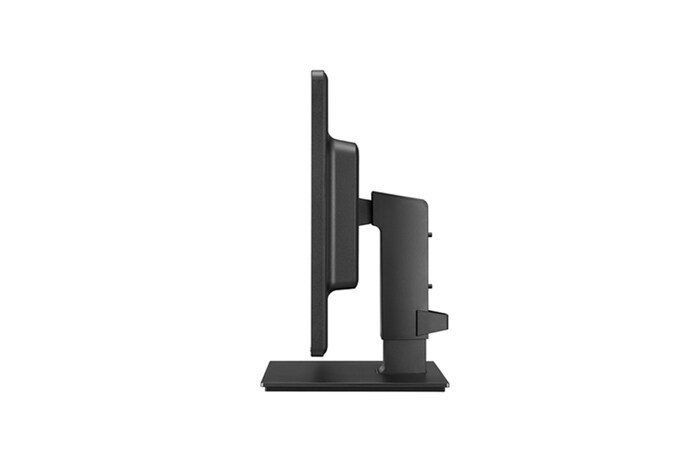

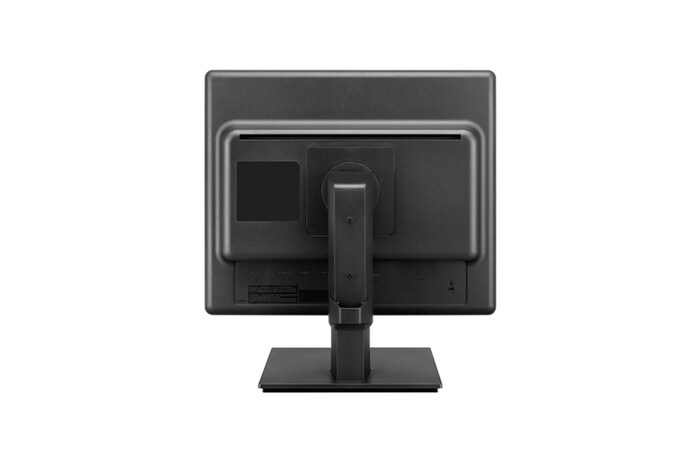

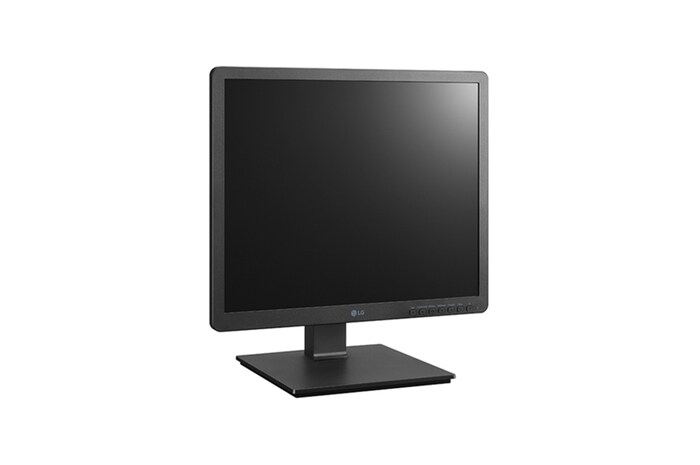

19” 1.3 MP Clinical Review Medical Monitor
19HK312C-B
(1) Site inspection is required on selected products,. (2) Extra cost involved on installation service at Discovery Bay. Please refer to FAQ section for details.
Shipping delays may occur due to the delivery company's circumstance., weather and traffic.
Size
19" class (19" Diag.)
Panel Type
IPS
Color Gamut (CIE1931)
NTSC 72%
Color Depth (Number of Colors)
16.7M (8bit)
Pixel Pitch (mm)
0.294mm x 0.294mm
Aspect Ratio
5:4
Resolution
1280 x 1024
Brightness (Typ.)
330 cd/m2
Contrast Ratio (Original)
900:1
(DFC)
Mega
Response Time (on/off)
14ms (Typ)
(GTG)
5ms (Faster)
Viewing Angle (CR≥10)
178/178
Surface Treatment
Anti-Glare 3H
HDMI
x1 (1.4)
DisplayPort
x1 (1.2)
D-Sub
x1
DVI-D
x1
USB
USB3.0 1up 2down

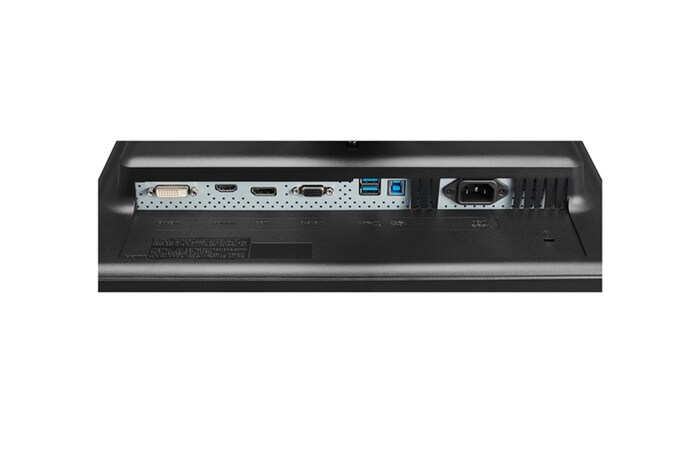

[ Jack Location ]
Rear
Type
PSU (Internal Power)
Input
100-240Vac, 50/60Hz
Output
24V 2.1A
Normal On (Max) (Brightness100 + USB Load)
50W
Sleep Mode (Max)
0.5W
DC Off(Max)
0.5W
H-Frequency (D-Sub)
30~83 kHz
V-Frequency (D-Sub)
56~75 Hz
H-Frequency (DVI-D)
30~83 kHz
V-Frequency (DVI-D)
56~75 Hz
D-Sub
30~83 kHz
DVI-D
56~75 Hz
HDMI
30~83 kHz
DisplayPort
56~75 Hz
Digital (HDMI)
1280 x 1024
Digital (DVI-D)
1280 x 1024
HDMI
1280 x 1024
D-sub
1280 x 1024
Key Number (Power Key Included)
7
Key Type
Tact
LED Color (On mode)
Green
LED Color (Power save mode)
Green Blinking
[Key Location]
Front
Country
Worldwide
Number of Language
17
Picture Mode
Yes
ORIGINAL RATIO
Yes
Super Resolution+
Yes
Gamma
Gamma 1.8, Gamma 2.0, Gamma 2.2,Gamma 2.4, Gamma 2.6, DICOM Gamma curve
Color Temperature
6500K / 7500K / 9300K, Manual (5000K ~ 10000K)
DICOM Mode
Yes (Kδ <= 10%)
Factory Calibration
Yes (Delta E≤5, Gamma 1.8 ~ 2.6 / DICOM curve)
H/W Calibration
Yes (Calibration 1-2 Mode)
Dynamic Sync Mode (Thru Mode)
Yes
Flicker Safe
Yes
Reader Mode
Yes
Brightness Stabilization
Yes
Uniformity Compensation
Yes
DDC/CI
Yes
HDCP
Yes
Key Lock
Yes
Plug & Play
Yes
Response Time Control
Yes
DPM
Yes
Color Calibrated
Yes
User Preset
Yes
Dual Controller
Yes
Automatic Standby
Yes
Six Axis Control
Yes
Smart Energy Saving
Yes
True Color Pro
Yes
4 screen split
Yes
On Screen Control
Yes
Front
Black
Back Cover
Black
Stand
Black
Base
Black
Base Detachable
Yes
One Click stand set-up
Yes
Tilt (Angle)
Yes (-5°~35°)
Swivel
Yes (-177.5° ~ +177.5°)

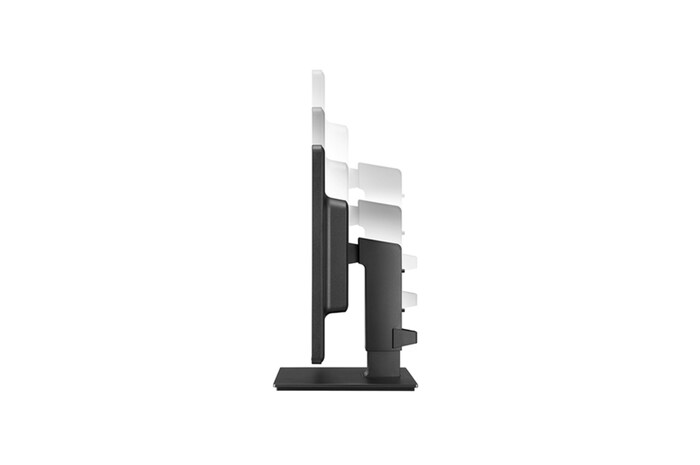

Height(mm)
Yes (range 130mm)
Pivot
Yes ( -90~0~+90)
Monitor (with Stand)
16.1" x 9.8" x 15.3"
Monitor (without Stand)
16.1" x 2.3" x 13.5"
Box
47.5" x 50.4" x 19.9"
VESA® Wall Mount
100 x 100
Weight (With Stand)
11.2 lbs
Weight (without Stand)
6.4 lbs
Weight (Box)
16.3 Ibs.
FDA(US)
FDA Class I
CE (EU)
Yes
CMDR (Canada)
CMDR (Canada)
cUL (US/Canada)
ANSI/AAMI ES 60601-1 CSA CAN/CSA-C22.2 NO. 60601-1
IEC (Global)
IEC60601-1
FCC
FCC part 15 Class A
RoHS / REACH / WEEE
Yes
EN (EU) and CB (EU)
EN60601-1
CE MDD (EU)
CE (MDD) Class I
CCC (China) / CISPR (Global) /
ICES-003 / CE (EU) / RCM (Aus)
Yes
Others
DICOM part 14
Windows 10
Yes
Power Cord
Yes (5.9 ft)
D-Sub
Yes
DVI-D
Yes
HDMI
Yes
USB
Yes (USB3.0)
Display Port (1.2)
Yes
Factory Calibration Report
Yes
Warranty Card
Yes
CD-ROM
Yes (User Manual/True Color Pro/Dual Controller/On Screen Control 2.0)
Others
Adapter
UPC
7 19192 61760 5
Warranty
3-Year Limited Warranty Parts/Labor/Backlight
