31-inch 12MP IPS Diagnostic Monitor for Mammography

Features

Gallery

Specs

Support

31-inch 12MP IPS Diagnostic Monitor for Mammography

31-inch 12MP IPS Diagnostic Monitor for Mammography

31HN713D-B
()
  • front view of 31HN713D
  • -15 degree side view of 31HN713D
  • +15 degree side view of 31HN713D
  • perspective view of 31HN713D
  • side view of 31HN713D
  • rear view of 31HN713D
  • -15 degree rear view of 31HN713D
  • ports close-up view of 31HN713D
  • side view of 31HN713D with monitor height moving downwards
  • front view of 31HN713D with mammography imaging results on the screen
  • front view of 31HN713D with mammography imaging results viewed in a software program on the screen

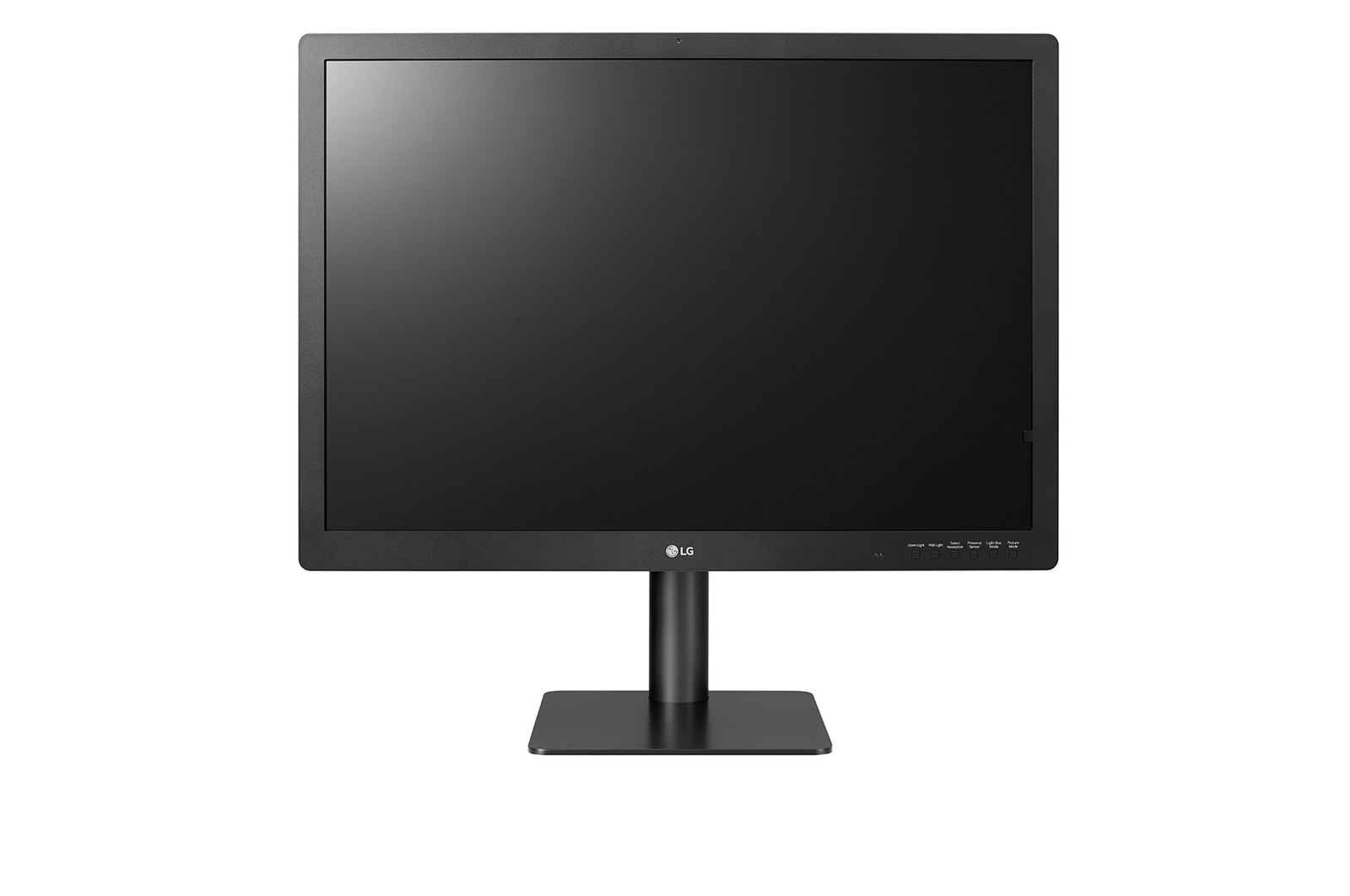

front view of 31HN713D

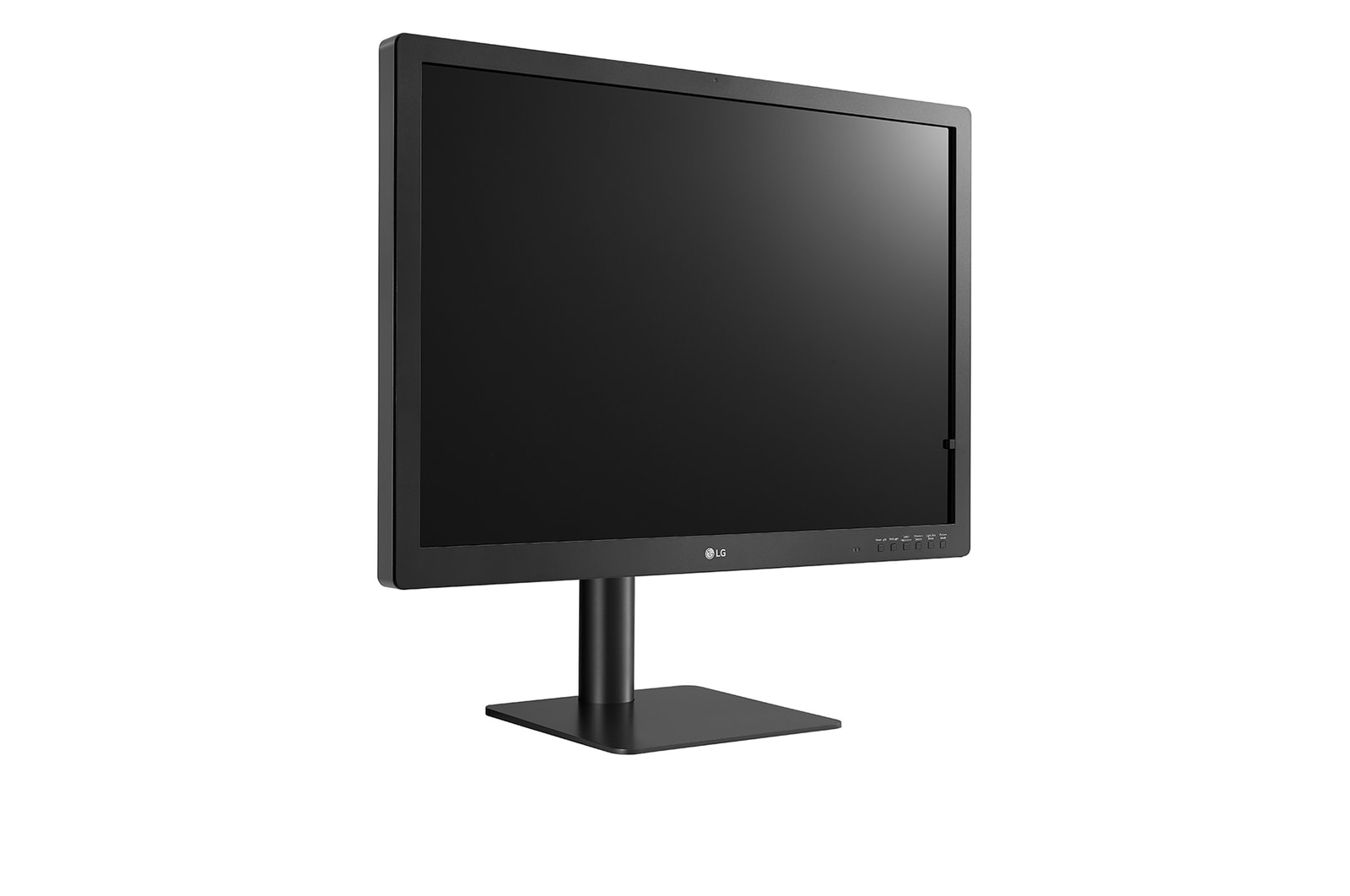

-15 degree side view of 31HN713D
+15 degree side view of 31HN713D

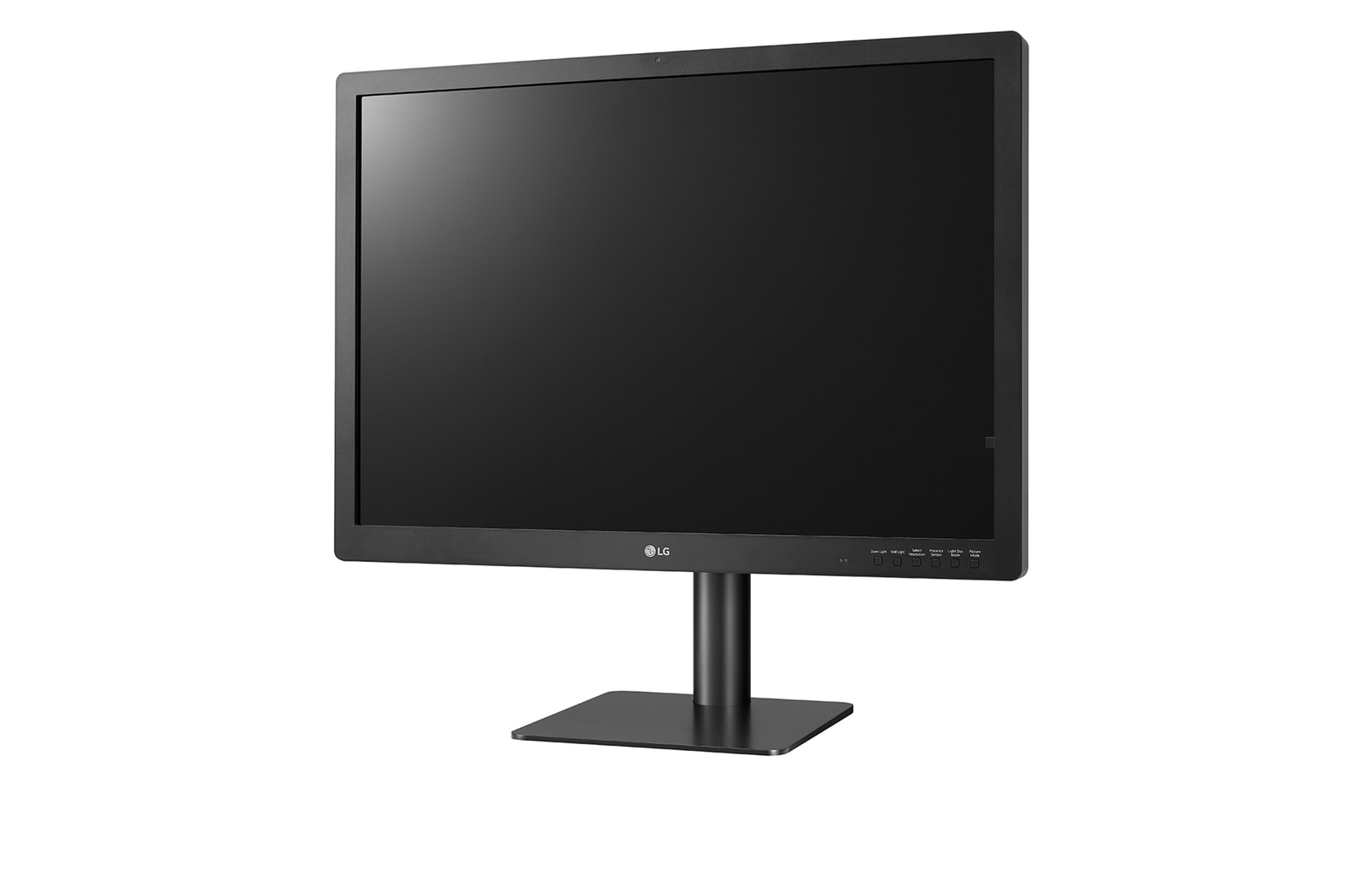

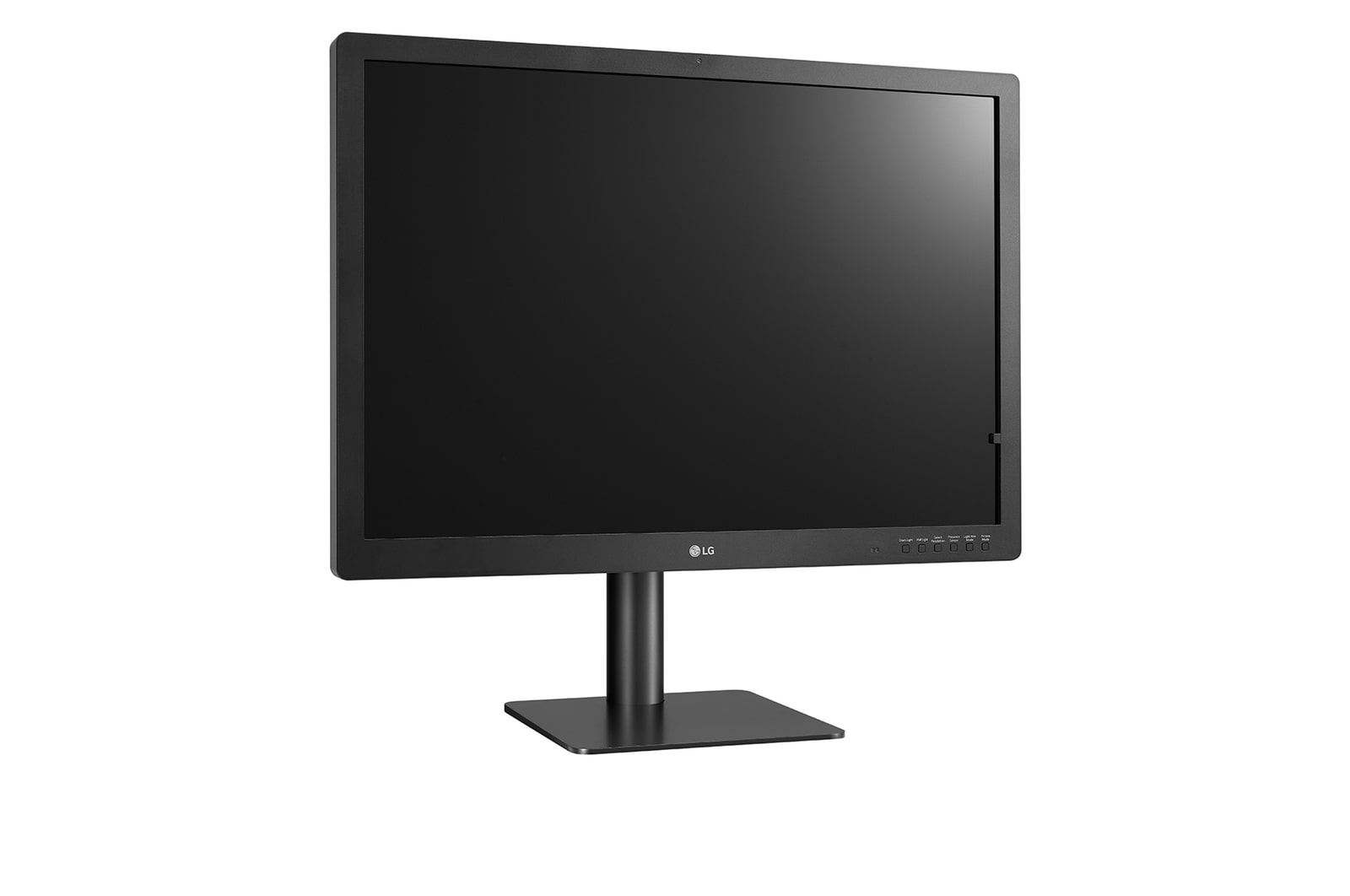

perspective view of 31HN713D

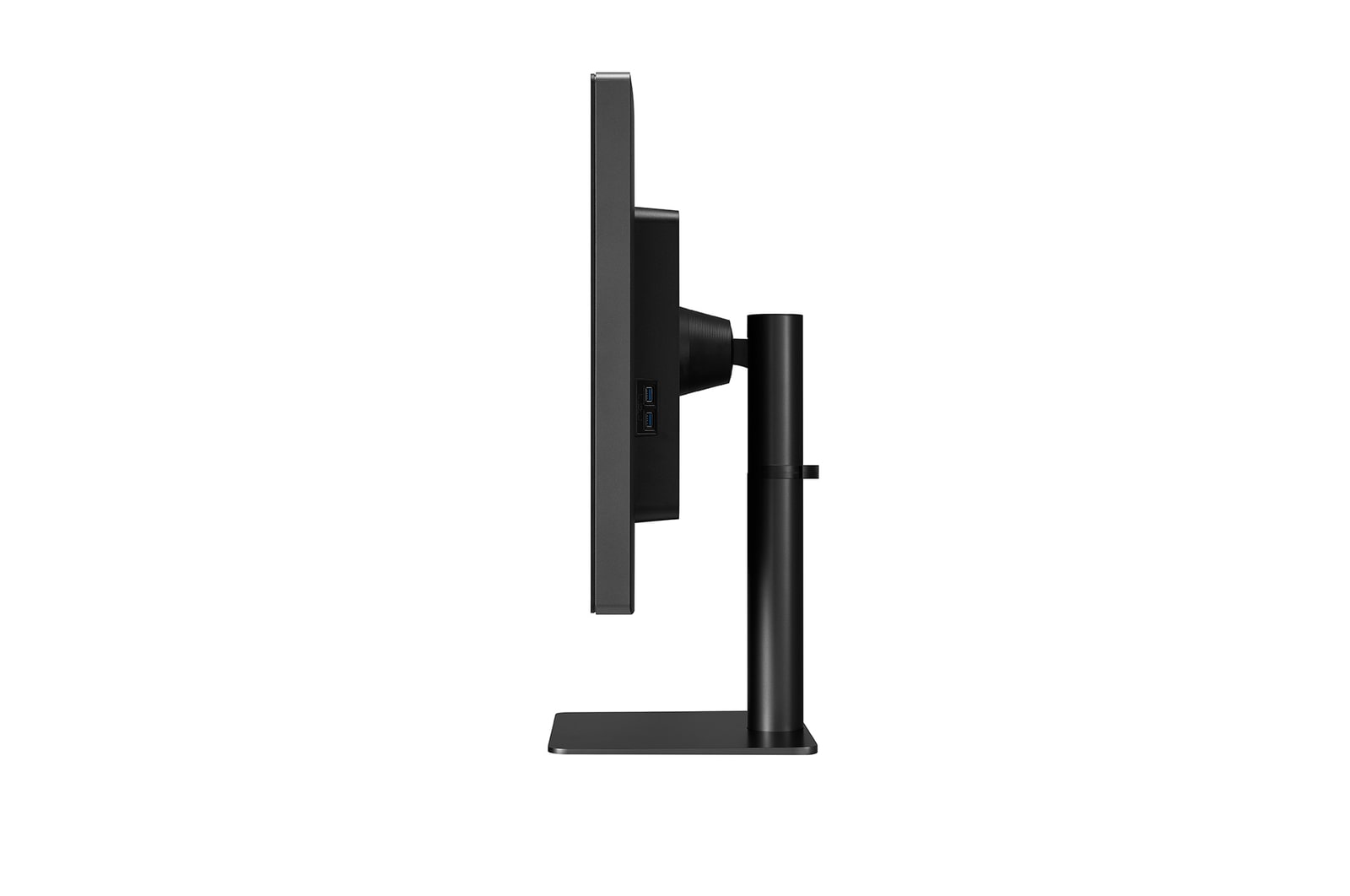

side view of 31HN713D

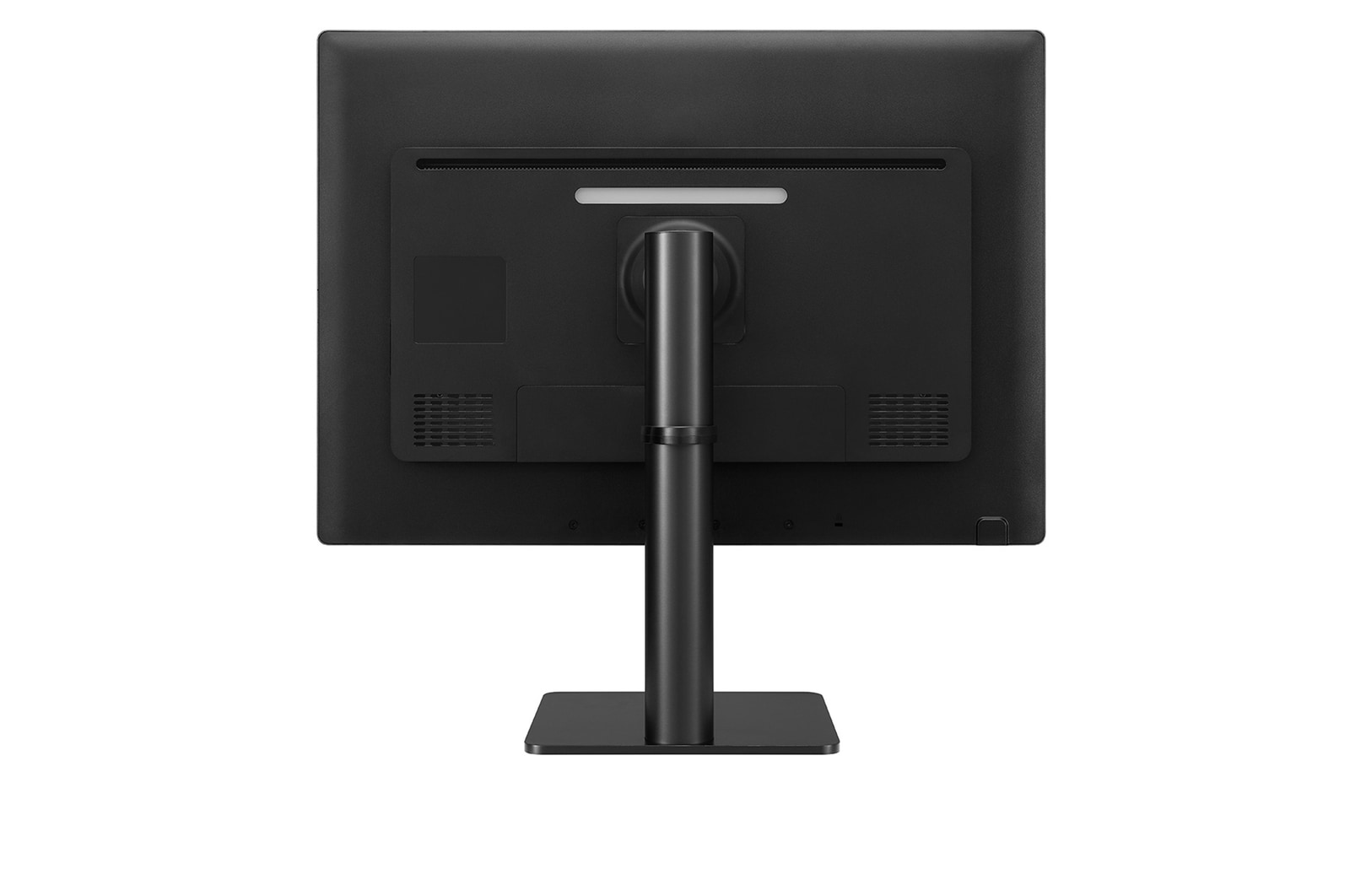

rear view of 31HN713D

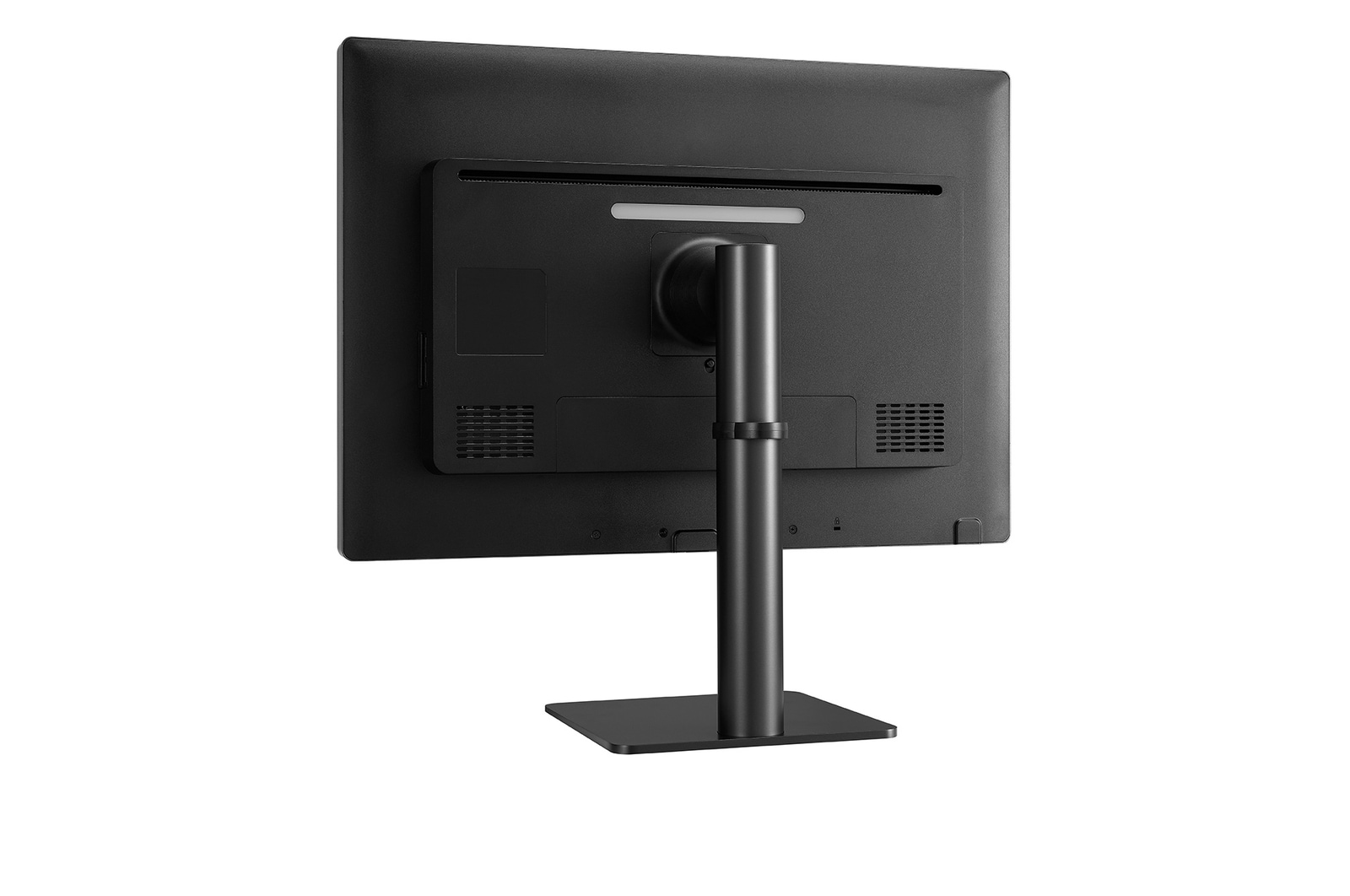

-15 degree rear view of 31HN713D

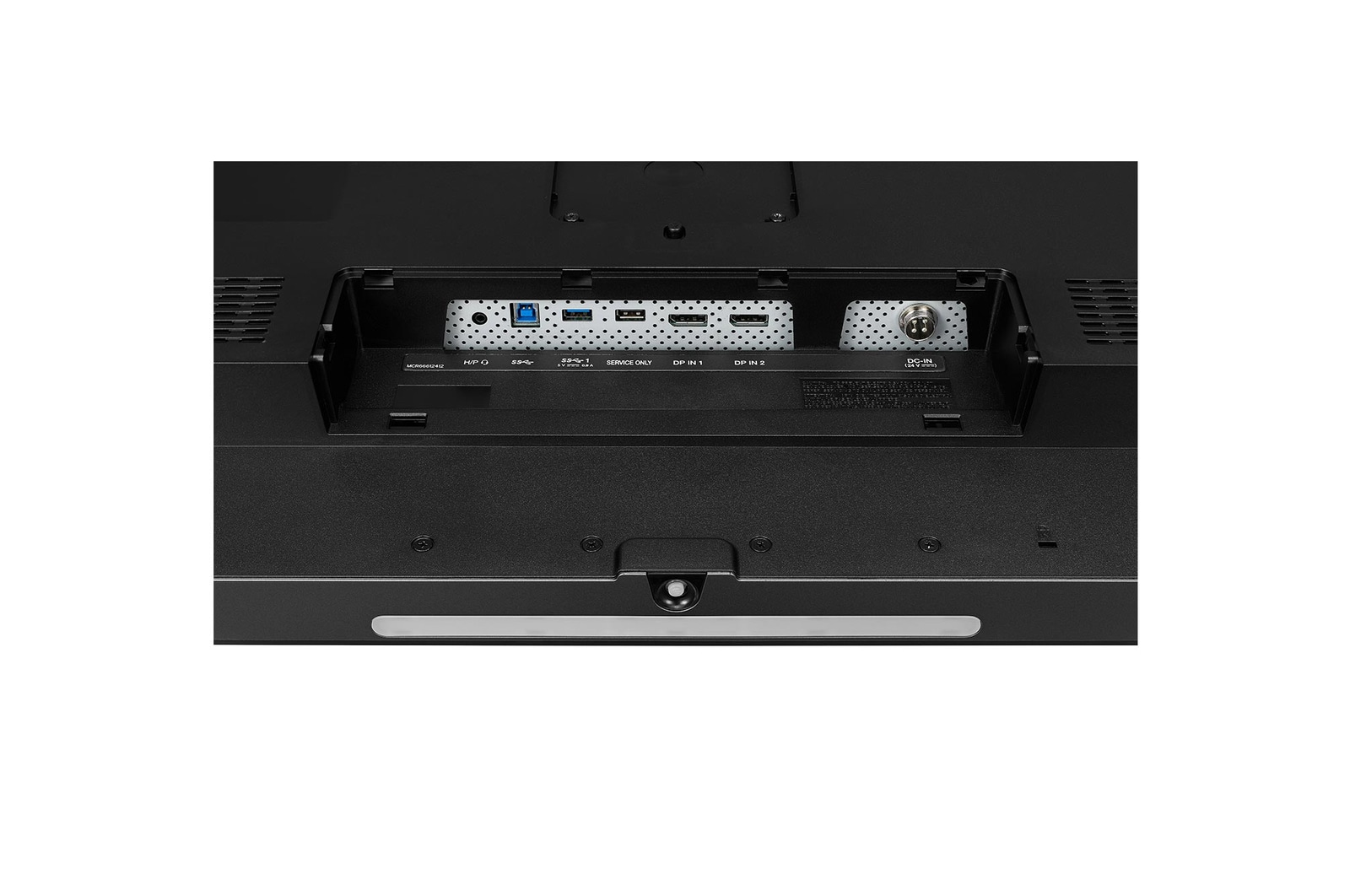

ports close-up view of 31HN713D

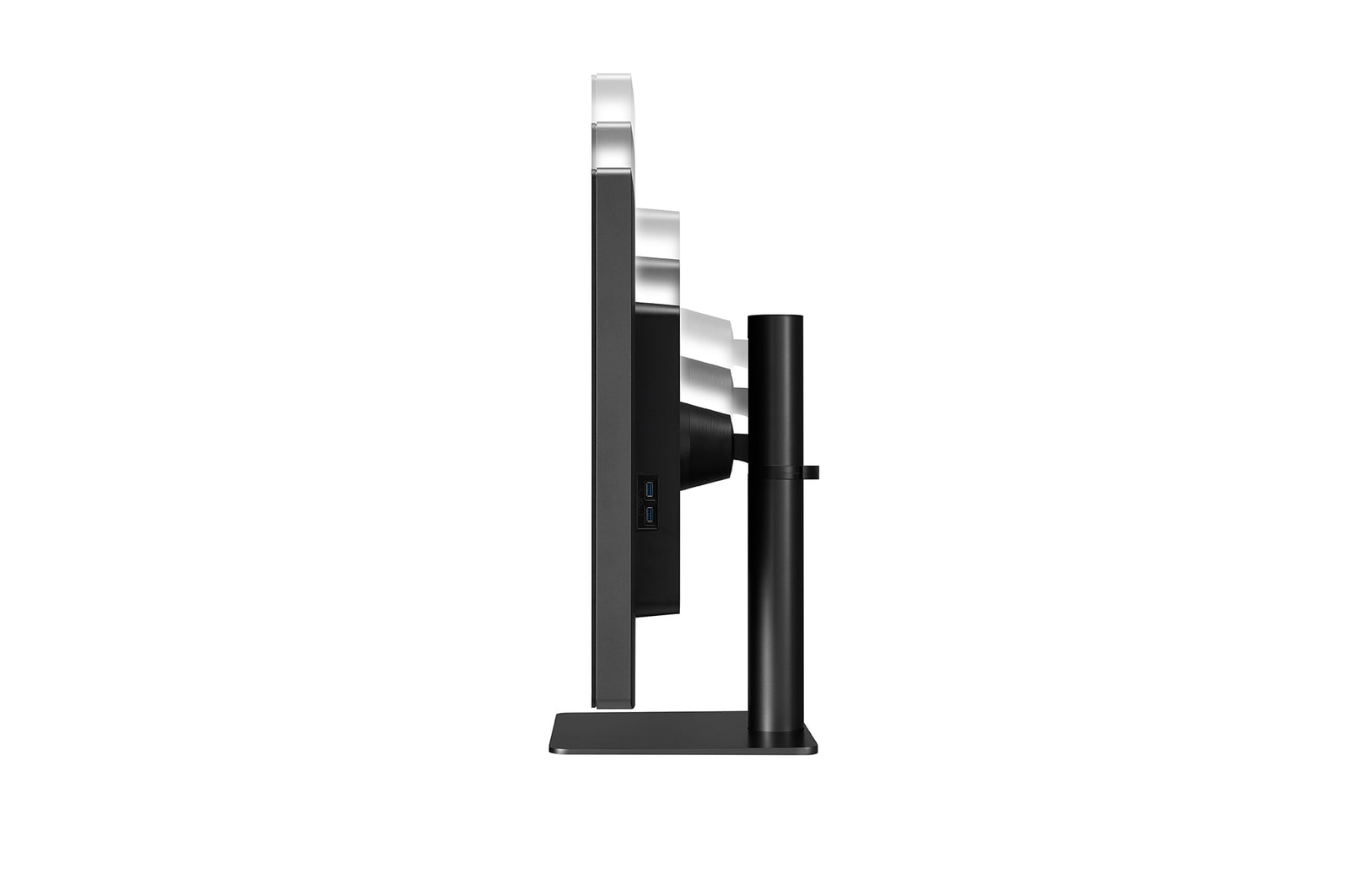

side view of 31HN713D with monitor height moving downwards

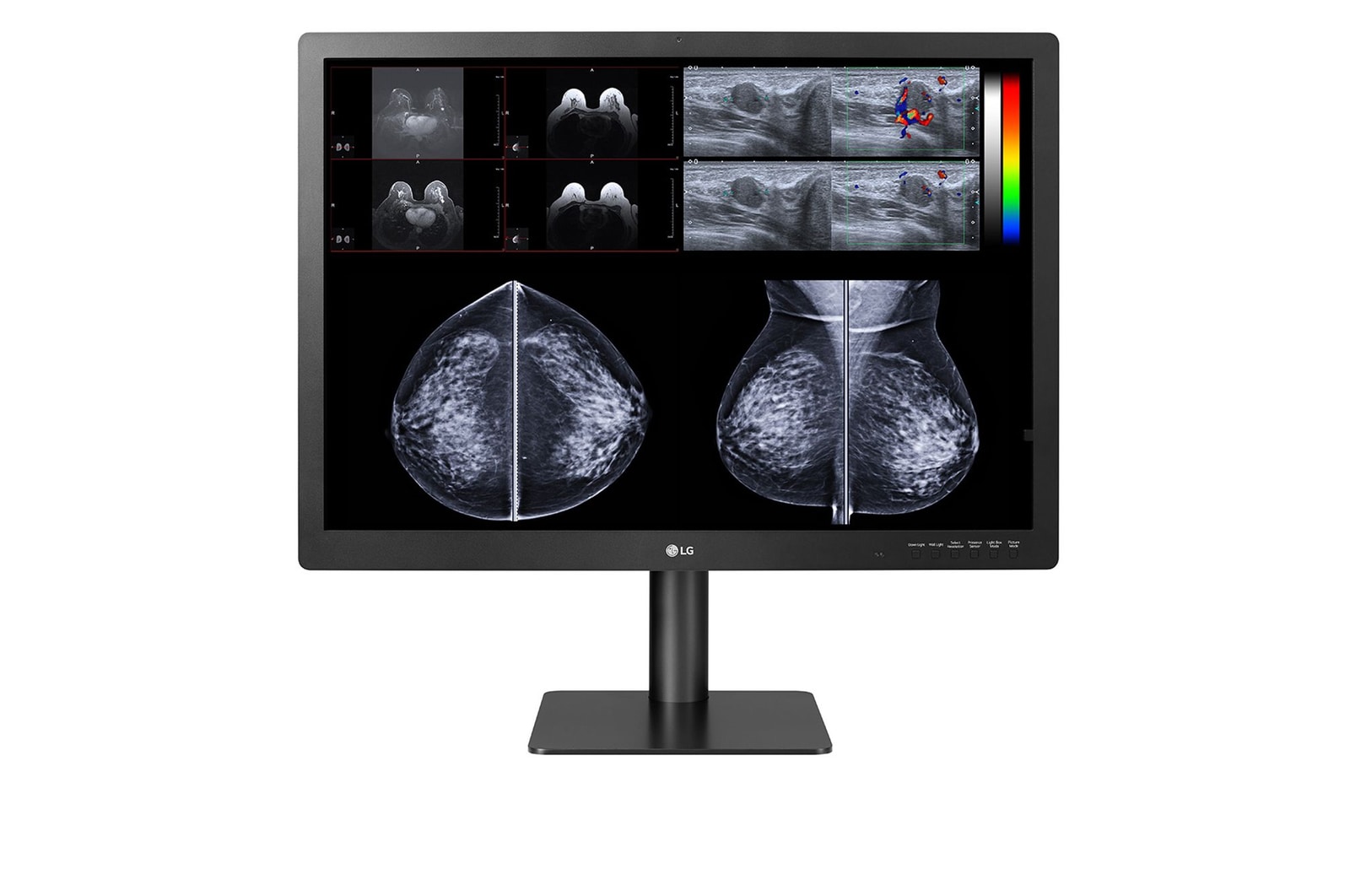

front view of 31HN713D with mammography imaging results on the screen

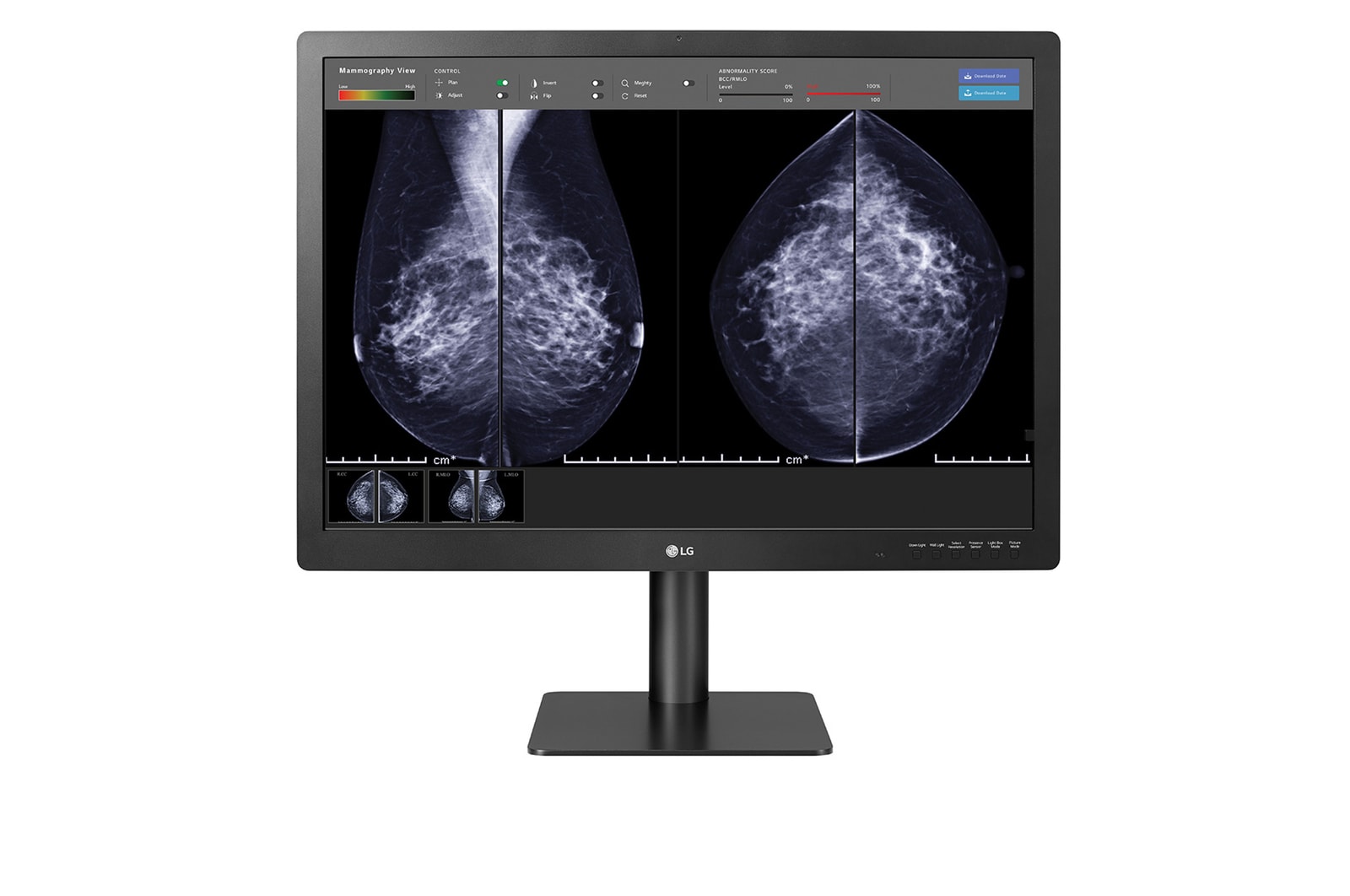

front view of 31HN713D with mammography imaging results viewed in a software program on the screen

Key Features

  • 31-inch 12MP (4200x2800) IPS Display
  • Multi-resolution Mode (12/6MP)
  • 1200cd/m² Brightness
  • Pathology Mode, Focus View Mode
  • Down light & Wall light
More

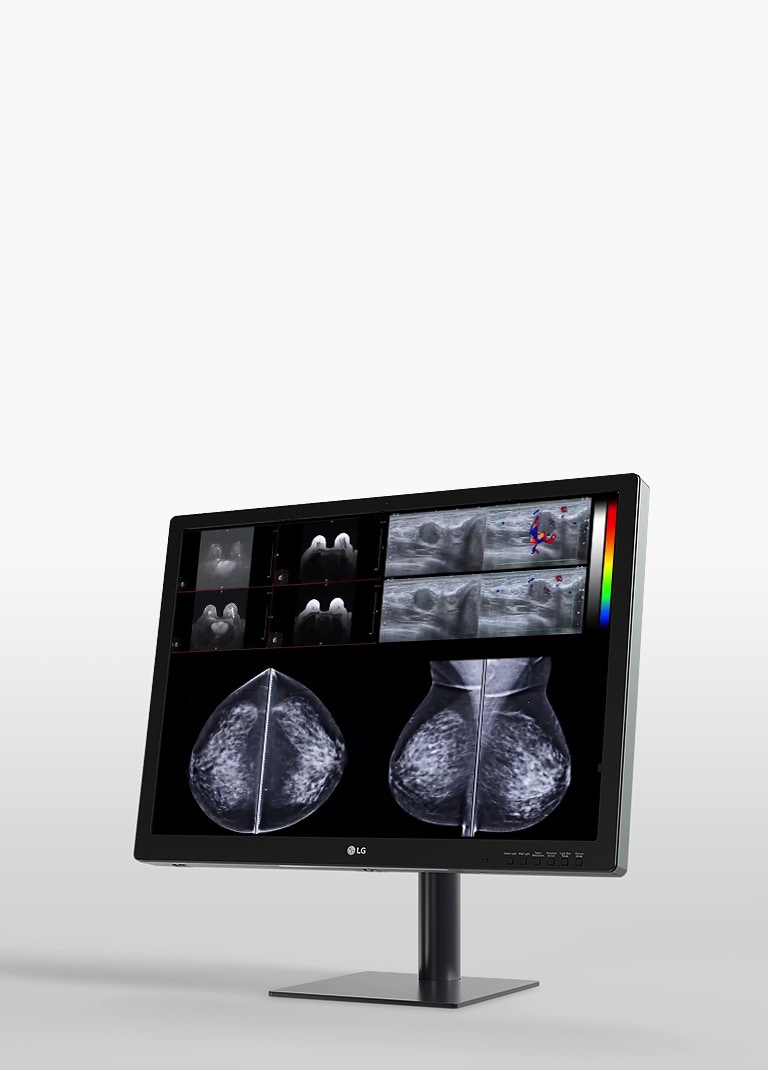

lg 31 inch 12mp ips display designed for breast imaging offering streamlined workflow, and improved comfort

31-inch 12MP IPS Display

Designed for Mammography

Accuracy

31-inch 12MP IPS Display

Self-calibration with Front Sensor

Efficiency

Focus View

PBP & Dual Controller

Convenience

6 Hot Key

Ergonomic Design

Accurate Imaging

multi-resolution mode offering for users to select resolution between input of 12mp and of 6mp

Multi-resolution Mode

Compatible with Every Device

Diagnostic monitors often need to be connected to various modalities, all with differing resolutions. Thanks to 31HN73D’s Multi-resolution Mode, you can adjust the resolution of monitor to optimize to the connected device.

pathology mode offering imaging results as detailed and accurately colored as seen under a microscope

Pathology Mode

True-to-Life Color Reproduction

In Pathology Mode, the 31HN713D reproduces the same level of detail and color accuracy as seen directly under a microscope, to help healthcare professionals make more accurate diagnoses.

the monitor equipped with the front-sense offering for automatic self-calibration

Self-calibration

Consistency in Medical Images

The front-sensor allows for automatic, self-calibration without the need for additional measuring equipment. It improves the quality and consistency of medical images that are displayed by maintaining accurate values.

Streamlined and Efficient Workflow

presence sensor detecting the motion of the user and having the screen turned off automatically when no motion

Presence Sensor

Hassle-free Savings & Stronger Security

Thanks to the Presence Sensor of 31HN713D which automatically turns off the display when no motion is detected, you can save energy and be more secure against exposing patient information and other sensitive data.

auto luminance sensor offering automatic adjustment of screen brightness at the optimal level under ambient lighting conditions

Auto Luminance Sensor

Reducing Eye Strain

LG 31HN713D features an Auto Luminance Sensor which automatically adjusts screen brightness according to the ambient lighting conditions. As a result, eye strain is reduced by ensuring screen brightness is always set to the optimal level.

focus view offering for users to review a specific part of imaging
Focus view mode

Fully Focus on the Important part

LG 31HN713D includes the Focus View Mode which allows you to review a specific part of the medical image more closely. This allows professionals to focus fully on the important part of the image for a more accurate and efficient diagnosis.

More Ergonomic and Comfortable to Review

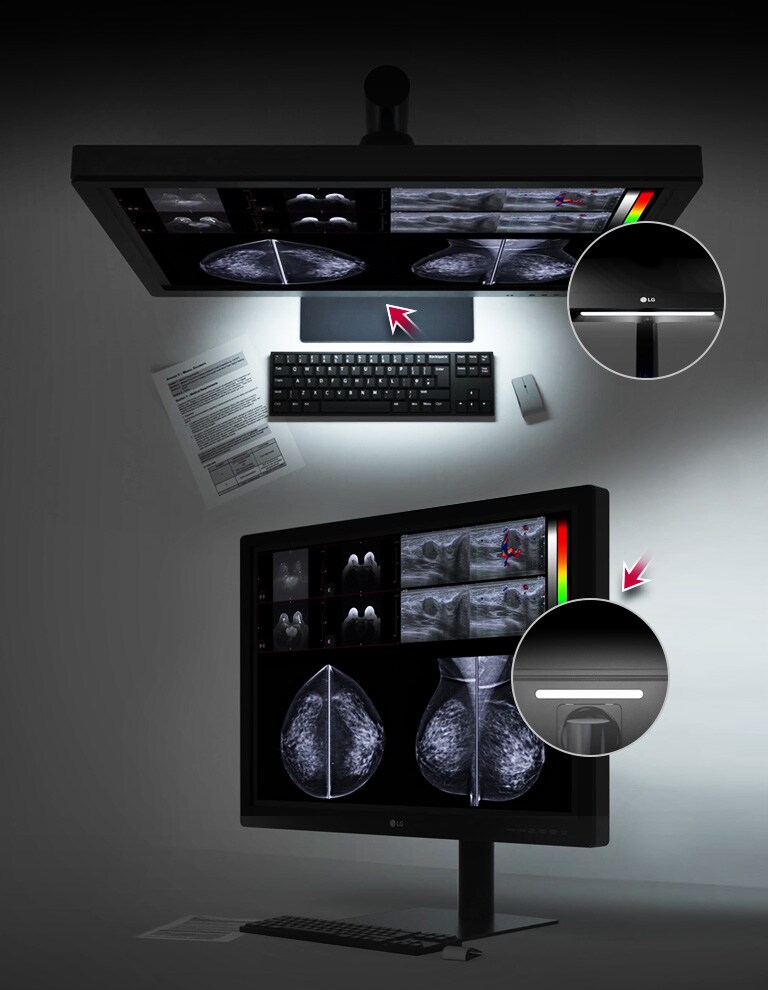

Down Lighting & Wall Lighting

Optimal Reading Condition

Down and Wall Lighting Modes reduce the contrast between the monitor brightness and ambient lighting conditions, allowing you to work comfortably without having to adjust the lighting to view paper documents in the darkroom.

down lighting, and wall lighting offering users to view imaging results on the screen comfortably in the darkroom

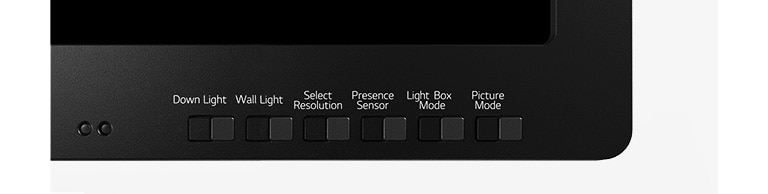

6 Hot Keys

Intuitive Control

The 31HN713D's 6 Hot Keys make changing between screen modes easier and more intuitive than operation through an OnScreen menu. The 6 Hot Keys are much faster and easier to operate while working, allowing you to change mode, screen resolution, and lighting settings all without disrupting your workflow.

6 hot keys offering user's intuitive control consisting of down light, wall light, select resolution, presence sensor, light box mode, and picture mode

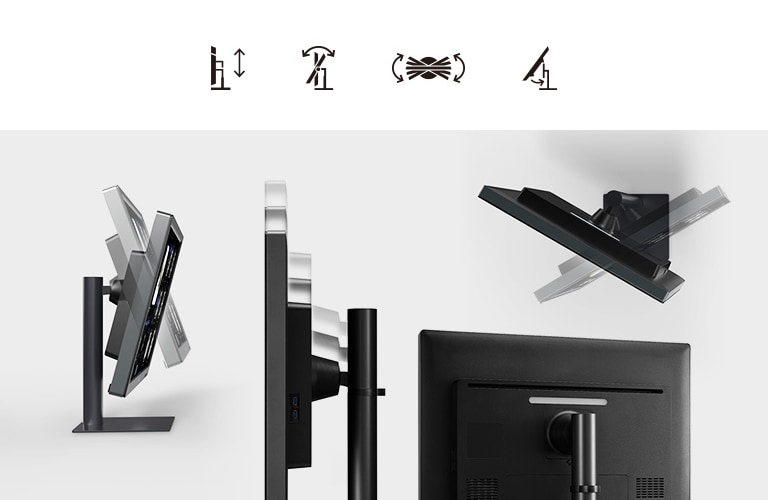

Ergonomic Design

Easy and Comfort

The One-Click Stand and ultra-lightweight body make installing the 31HN713D simple. The ergonomically designed stand allows users to freely adjust the tilt, height, and swivel, reducing chronic pain caused by long hours of work.

one-click stand with ultra-lightweight body making installation easy, and the stand offering adjustment of tilt, height, and swivel

Print

All Spec

DIMENSIONS/WEIGHTS

  • Dimension with Stand (W x H x D) [mm]

    704.7x662.6x280

  • Dimension without Stand (W x H x D) [mm]

    704.7x499.5x83.2

  • Dimension in Shiping (W x H x D) [mm]

    999x337x644

  • Weight with Stand [kg]

    14

  • Weight without Stand [kg]

    10.7

  • Weight in Shipping [kg]

    21.5

FEATURES

  • DICOM Compliant

    YES

  • Hot Key

    YES(6keys)

  • HW Calibration

    YES(PerfectLum)

  • Auto Brightness

    YES

  • Brightness stabilization

    YES

  • Flicker Safe

    YES

  • Presence Sensor

    YES

  • Front Sensor

    YES

  • Reader Mode

    YES(Text Mode)

  • Color Temperature

    6500K/7500K/9300K
    Manual (5000K ~ 10000K)

  • Pathology Mode

    YES

  • Super Resolution+

    YES

  • Focus View

    YES

  • Light Box Mode

    YES

  • Lighting

    YES(Down/ Wall)

  • Black Stabilizer

    YES

  • PBP

    YES(2PBP)

  • Smart Energy Saving

    YES

CONNECTIVITY

  • DisplayPort

    YES(2ea)

  • USB Upstream Port

    YES(1ea/ver3.0)

  • USB Downstream Port

    YES(3ea/ver3.0)

  • Headphone out

    YES

POWER

  • Type

    External Power(Adapter)

  • DC Output

    24V , 7.5A

  • AC Input

    100-240Vac, 50/60Hz

  • Power Consumption (DC Off)

    Less than 0.3W

STANDARD

  • RoHS

    YES

  • REACH

    YES

  • WEEE

    YES

  • MFDS

    YES

  • UL (cUL)

    YES

  • IEC (IEC 60601-1 / IEC 60601-1-2)

    YES

  • EN (EN 60601-1 / EN 60601-1-2)

    YES

  • IEC (IEC 60950-1 / IEC 55032, 55024)

    YES

  • EN (EN 60950-1 / EN 55032, 55024)

    YES

  • CE

    MDR

  • FDA

    510(k) (Class II)

  • ISO13485

    YES

  • GMP

    YES

ACCESSORY

  • Power Cord

    YES

  • Adapter

    YES

  • Calibration Report (Paper)

    YES

  • Display Port

    YES

  • USB A to B

    YES

DISPLAY

  • Size [Inch]

    31

  • Resolution

    4200x2800

  • Aspect Ratio

    3:2

  • Pixel Pitch [mm]

    0.1554x0.1554

  • Brightness (Typ.) [cd/m²]

    1200

  • Color Gamut (Typ.)

    sRGB 97%

  • Color Bit

    10bit

  • Contrast Ratio (Typ.)

    1500:1

  • Surface Treatment

    Anti-glare, 3H

  • Response Time

    14ms(Off-setting), 5ms(Faster-setting)

  • Viewing Angle (CR≥10)

    178°(Right/Left), 178°(Up/Down)

SW APPLICATION

  • Dual Controller

    YES

MECHANICAL

  • Borderless Design

    Normal

  • Machanical Power Switch

    YES

  • OneClick Stand

    YES

  • Display Position Adjustments

    Tilt/Height/swivel

  • Wall Mountable [mm]

    100x100
