LSAA012
LSAA Optimum Cable-less LED Series
  • Pixel Pitch: 1.25mm
  • Brightness: 600 cd/m²
  • Wireless Data Transfer and Cable-less Power Docking

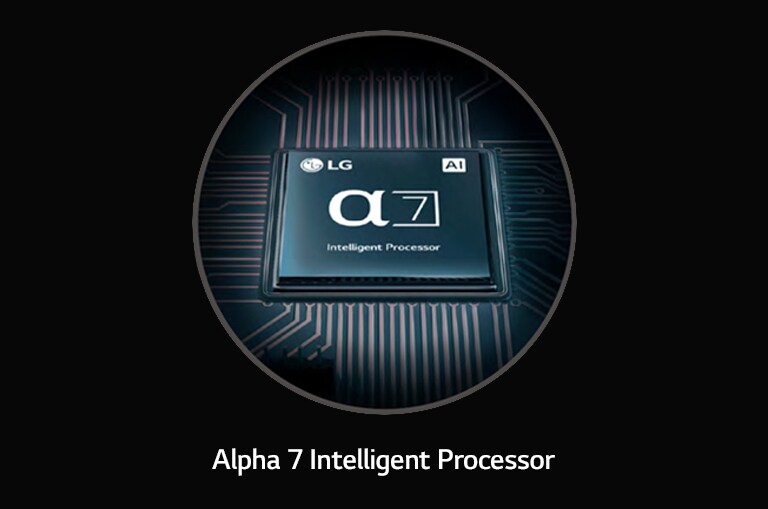

  • AI-powered Image Processor, support HDR
LSAA Optimum Cable-less LED Series
MSRP $

True Innovation Behind Simplicity

With unrivaled picture quality and optimum cable-less design,
Expand the Possibilities of Business Space Itself.
True Innovation Behind Simplicity True Innovation Behind Simplicity

Why “Optimum Cable-less” LED

The LSAA series is the innovative LED signage applying the wireless transmission technology.
For up to UHD resolution with the 16:9 ratio,
it does not require a cable connection between the cabinets to supply signal & power.
Its block assembly design makes the LSAA series easier to be installed than ever before.
Why “Optimum Cable-less” LED Why “Optimum Cable-less” LED
Wireless Data Transfer & Cable-less Power Docking Wireless Data Transfer & Cable-less Power Docking
* Based on P1.2, 16:9, UHD Resolution (8 x 8 Cabinets)
Wireless Data Transfer & Cable-less Power Docking Wireless Data Transfer & Cable-less Power Docking

Vivid Color Expression Powered by HDR

With HDR (HDR10, HDR10 Pro*) support, content becomes vivid with great visual impact.
The wider color spectrum and greater contrast ratio allow viewers to fully enjoy lively content.
Vivid Color Expression Powered by HDR Vivid Color Expression Powered by HDR
* HDR10 Pro is LG's own HDR solution for processing HDR signal by using enhanced dynamic tone mapping.

EMC Class B Certified

The LG LSAA Series is certified as EMC Class B, which requires electronic equipment made for use in residential environments as well as commercial, industrial, or business environments.
Therefore, it is suitable for up-close uses such as corporate meeting rooms, board rooms, etc.
EMC Class B Certified EMC Class B Certified

4-in-1 LED Package

Unlike LG's conventional LED signage in which one light source constitutes one small LED package, the LSAA series has applied four light sources at once to its wider LED package. So the attached area of 4-in-1 LED package can be wider than the conventional single LED package, making the LED signage surface smoother and suitable for up-close uses such as corporate meeting rooms etc.
4-in-1 LED Package 4-in-1 LED Package

Standby Mode

When there is no input signal for a period of time, the screen turns off and the main circuit parts inside the LED cabinet go to a standby mode. This saves additional power consumption and enables the product to be reactivated simply by using a remote control.
Standby Mode Standby Mode

Power / Signal Redundancy Support

The LSAA series is designed to support redundancy of signal and power, providing users with comfort. With an optional embedded back-up power supply unit, customers can assure the continuous operation of the screen without power failure, while the dual controllers minimize screen failure with a bi-directional signal input.
Power / Signal Redundancy Support Power / Signal Redundancy Support
* The "Conventional" shown above refers to LED displays which do not support the power/signal redundancy mode.
** The power/signal redundancy features are available from the third quarter of 2020.
*** The embedded back-up PSU model is optional.

PHYSICAL PARAMETERS

  • Pixel Configuration
    SMD, 4 Pixels in 1 PKG
    Pixel Pitch (mm)
    1.25
  • Module Resolution (W x H)
    240 × 90
    Module Dimensions (W x H, mm)
    300 ×112.5
  • Weight per Module (kg)
    0.20
    No. of Modules per Cabinet (W × H)
    2 × 3
  • Cabinet Resolution (W × H)
    480 × 270
    Cabinet Dimensions (W × H × D)
    600 × 337.5 × 44.9
  • Cabinet Surface Area (m²)
    0.259
    Weight per Cabinet (kg/cabinet)
    6.9
  • Weight per Square Meter (kg/m²)
    34.1
    Physical Pixel Density (pixels/m²)
    640,000
  • Flatness of Cabinet
    ±0.5 mm
    Cabinet Material
    Die-cast Aluminum
  • Service Access
    Front and Rear
    * Module can be accessed only from the front.

OPTICAL PARAMETER

  • Brightness
    600nit (Typ.) 1,200nit (Peak)
    Color Temperature (Default/Adjustable)
    6,500K / 2,800~10,000K
    * Adjustable via LED Assistant on PC
  • Visual Viewing Angle (Horizontal/Vertical)
    160 / 160
    Brightness Uniformity
    97%
  • Color Uniformity
    ±0.015Cx,Cy
    Contrast Ratio
    Peak. 9,000:1
    Typ. 5,000:1
  • Processing Depth (bit)
    20
    HDR Compatibility
    HDR10, HDR10 Pro
    * LG's own HDR solution to process HDR signal by using enhanced dynamic tone mapping

ELECTRICAL PARAMETER

  • Power Consumption (W/cabinet, Max.)
    107
    Power Consumption (W/cabinet, Avg.)
    64
  • Power Consumption (W/m², Max.)
    534
    Power Supply (V)
    100 to 240
  • Frame Rate (Hz)
    50 / 60
    Refresh Rate (Hz)
    3,840

CONTROLLER

  • Controller
    CSAA-012X

OPERATION CONDITIONS

  • Lifetime (Half Brightness)
    100,000
    Operating Temperature (°C)
    0℃ to +40℃
  • Operating Humidity
    10-80% RH
    IP rating Front / Rear
    IP20 / IP20

CERTIFICATION

  • Certification
    Safety 60950-1, EMC Class B

ENVIRONMENT

  • Environment
    RoHS

ACCESSORY

  • Optional
    Wall Mount Kit (WM-L1080)
    Frame Kit (KT-BZ1080)
