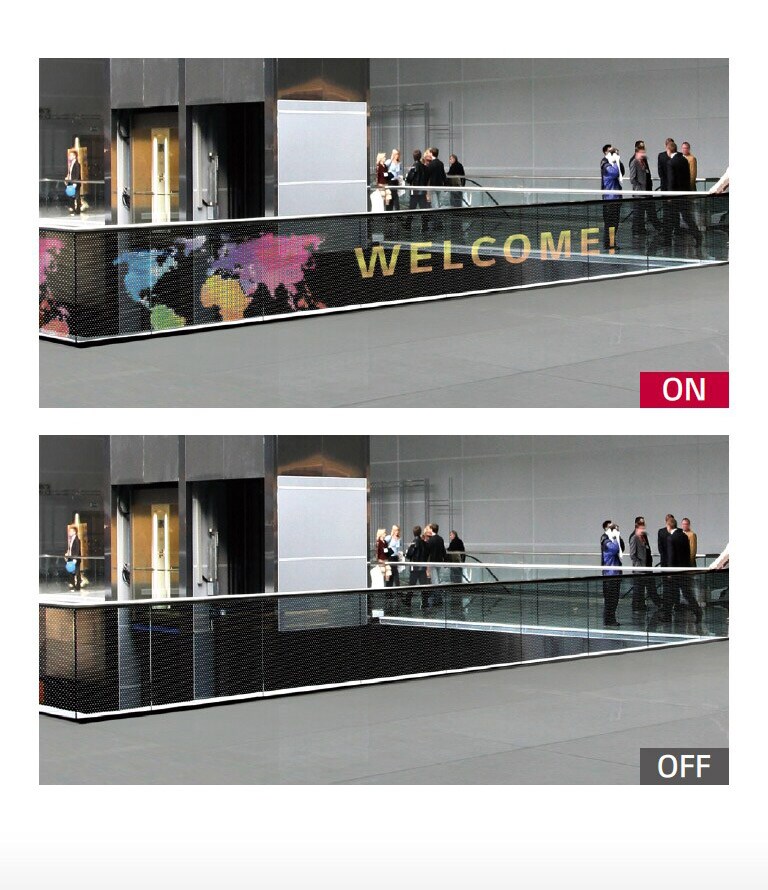

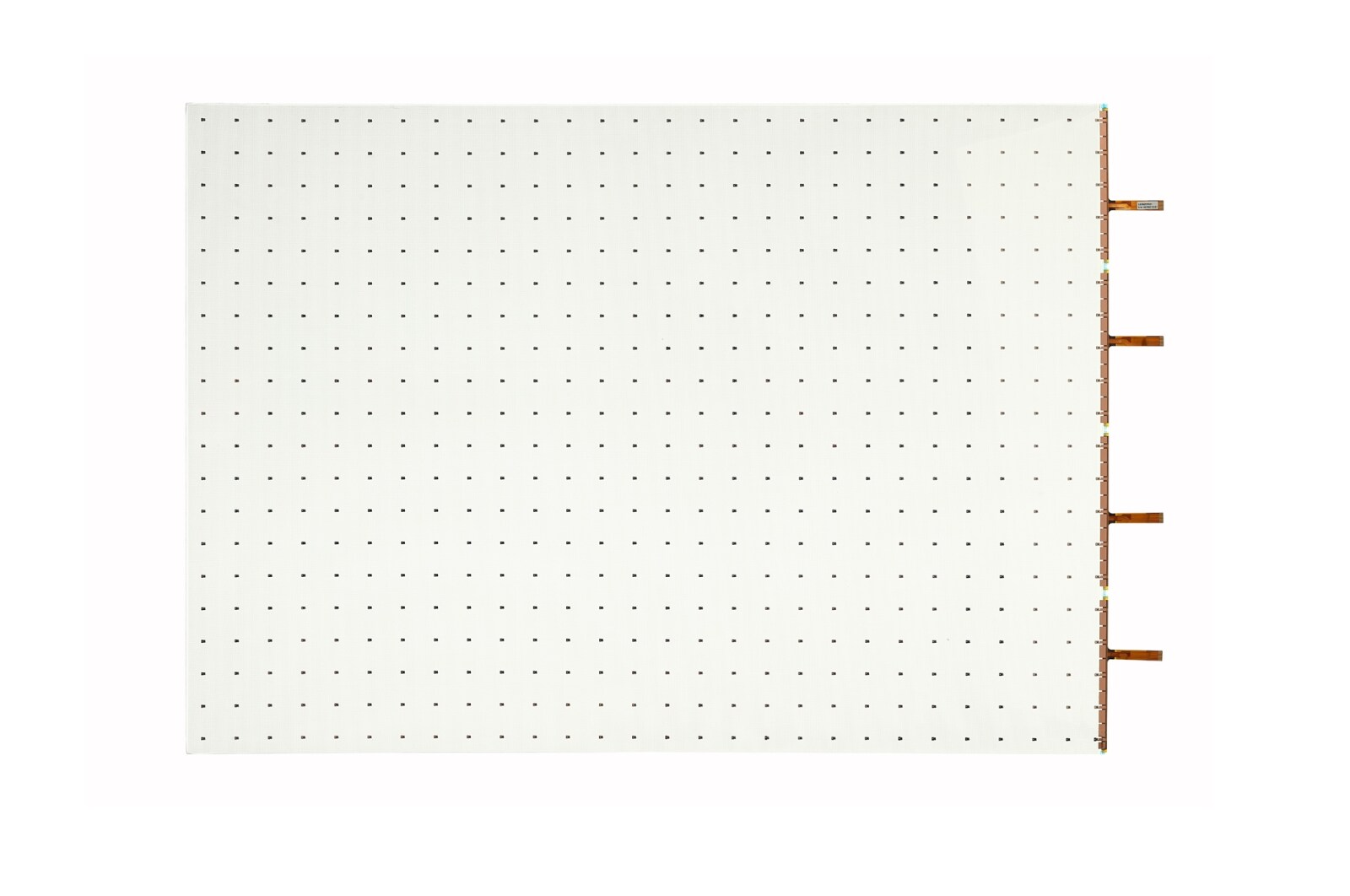

高透明度
* 薄膜必須與邊框平行裁切 1 個像素
系統連接
※ 實際系統結構可能因以上範例的變更而不同

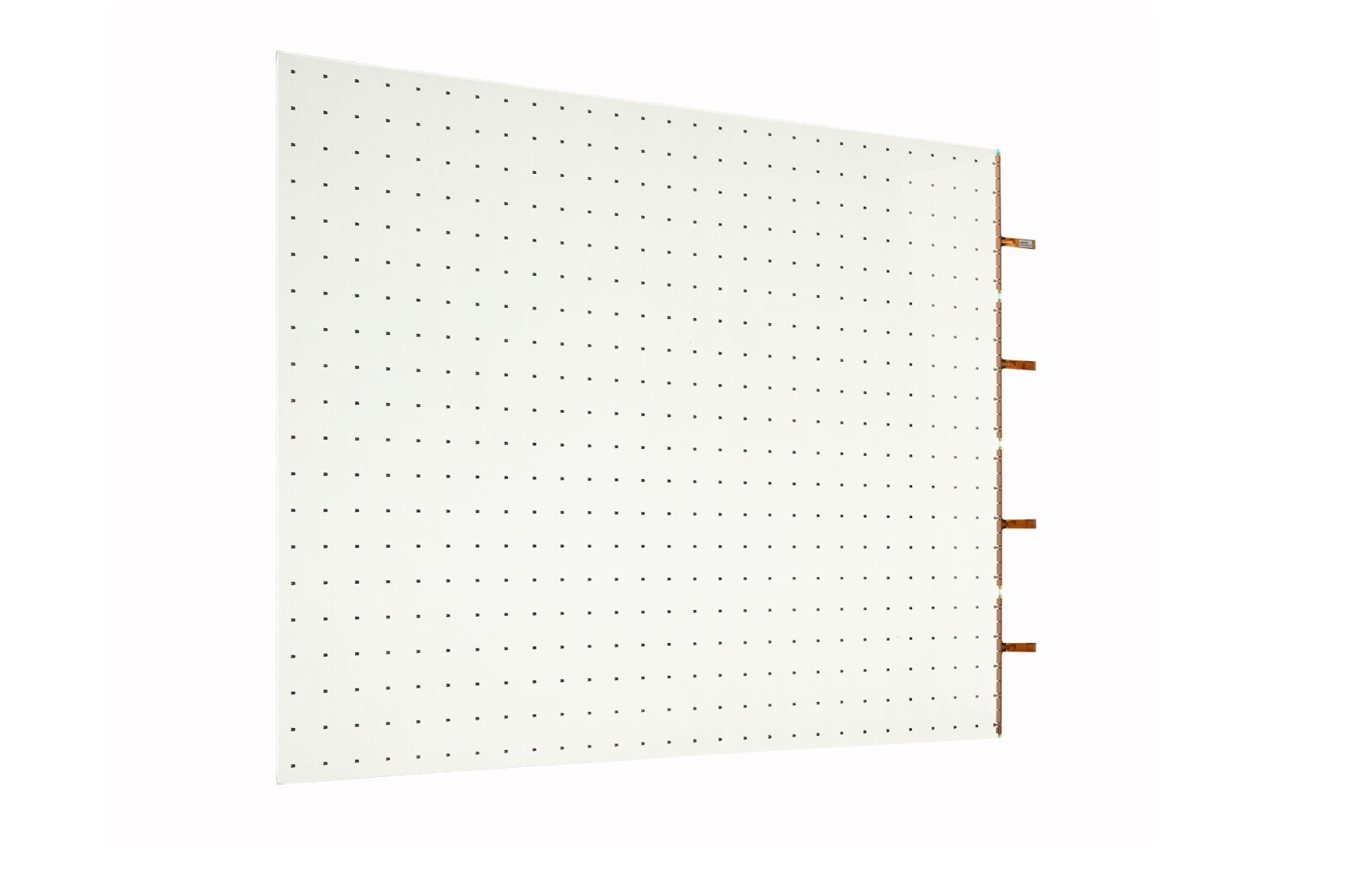

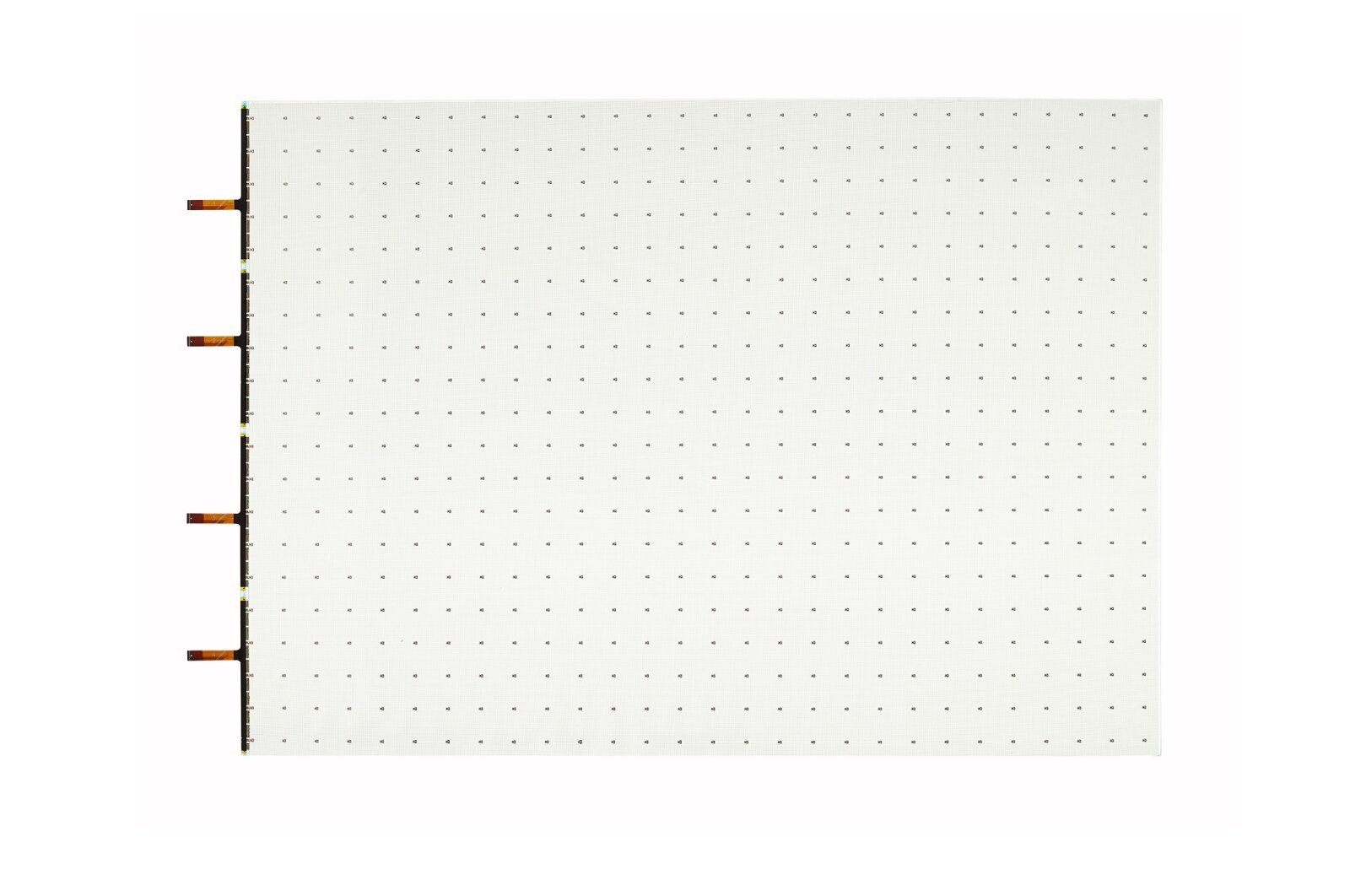

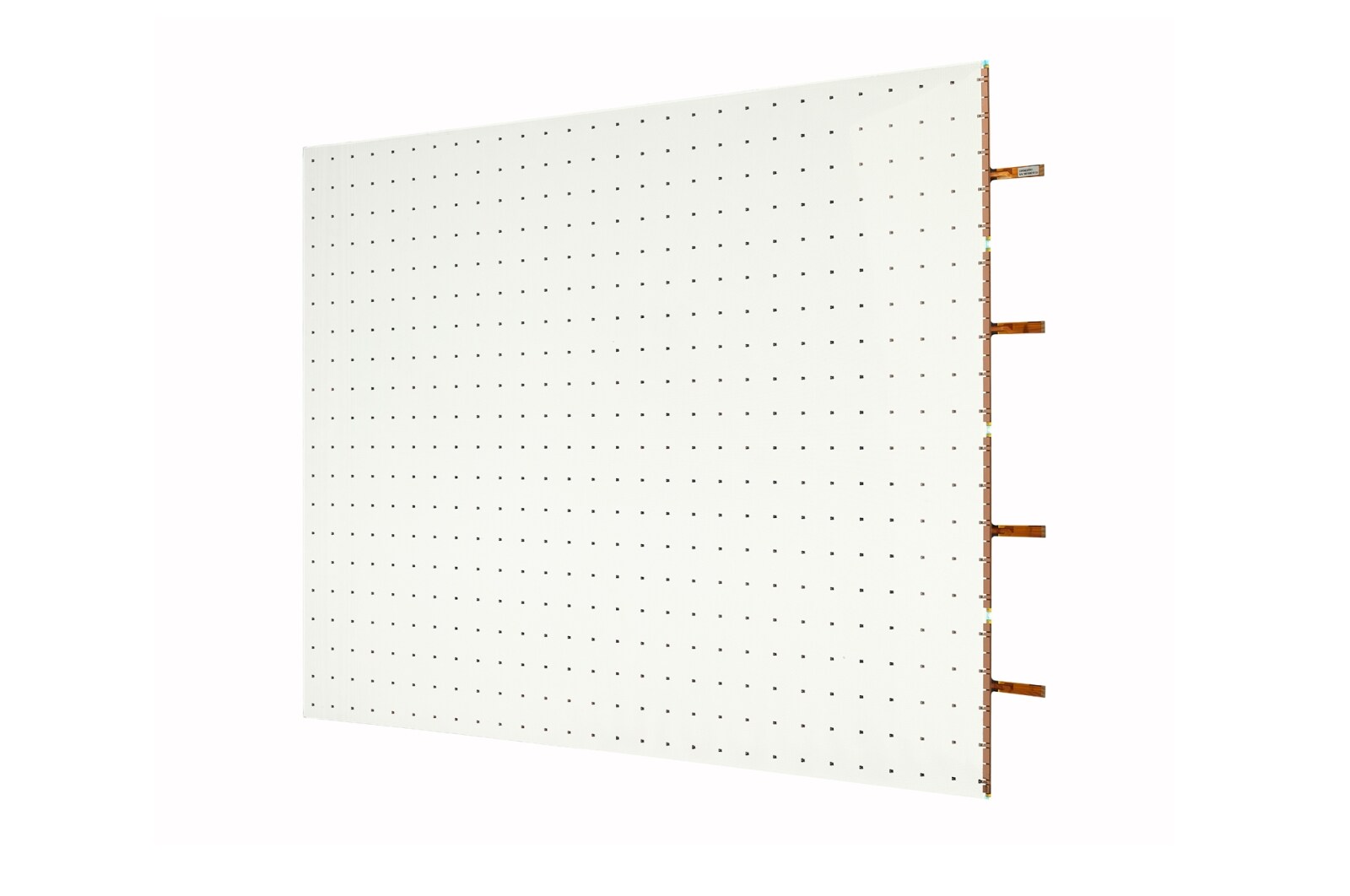

Pitch
24±0.2mm
LED Type
R, G, B 3in1 Color Package (SMD1818)
Resolution
28 x 20
Pixels per Panel
560
Pixel Density [point/m²]
1,736
Brightness (After Calibration)
>1,000nit
Contrast Ratio
≥ 100,000:1
Luminance Uniformity
≥ 70%
Chromaticity Uniformity
Δu’v’≤0.015
Viewing Angle (H x V)
120 x 120
Lifetime (Duration of Half Brightness in Hours)
50,000
Daily Usage
24 Hrs / 7 Days
Warranty
2 Years
Transmittance
73%
Operating Temperature
0℃ ~ 45℃ (Indoor Glass Installation Only)
Curved Installation
1,100R (Convex and Concave)
Film Trimming
Yes (Parallel to the Bezel Side Only)
Film Surface Color Distortion
No
Color Processing
130/120/110 Level (R, G, B)
Colors
1,716,000 Colors
Color Chromaticity
Cx: 0.28±0.03, Cy: 0.28±0.03
Dimension (W x H x D)
668 x 480 x 2.0 mm (with Front & Back Protection Film)
Weight
0.73 kg
Power Consumption
37W (Transparent panel 1EA + Bezel kit 1EA)

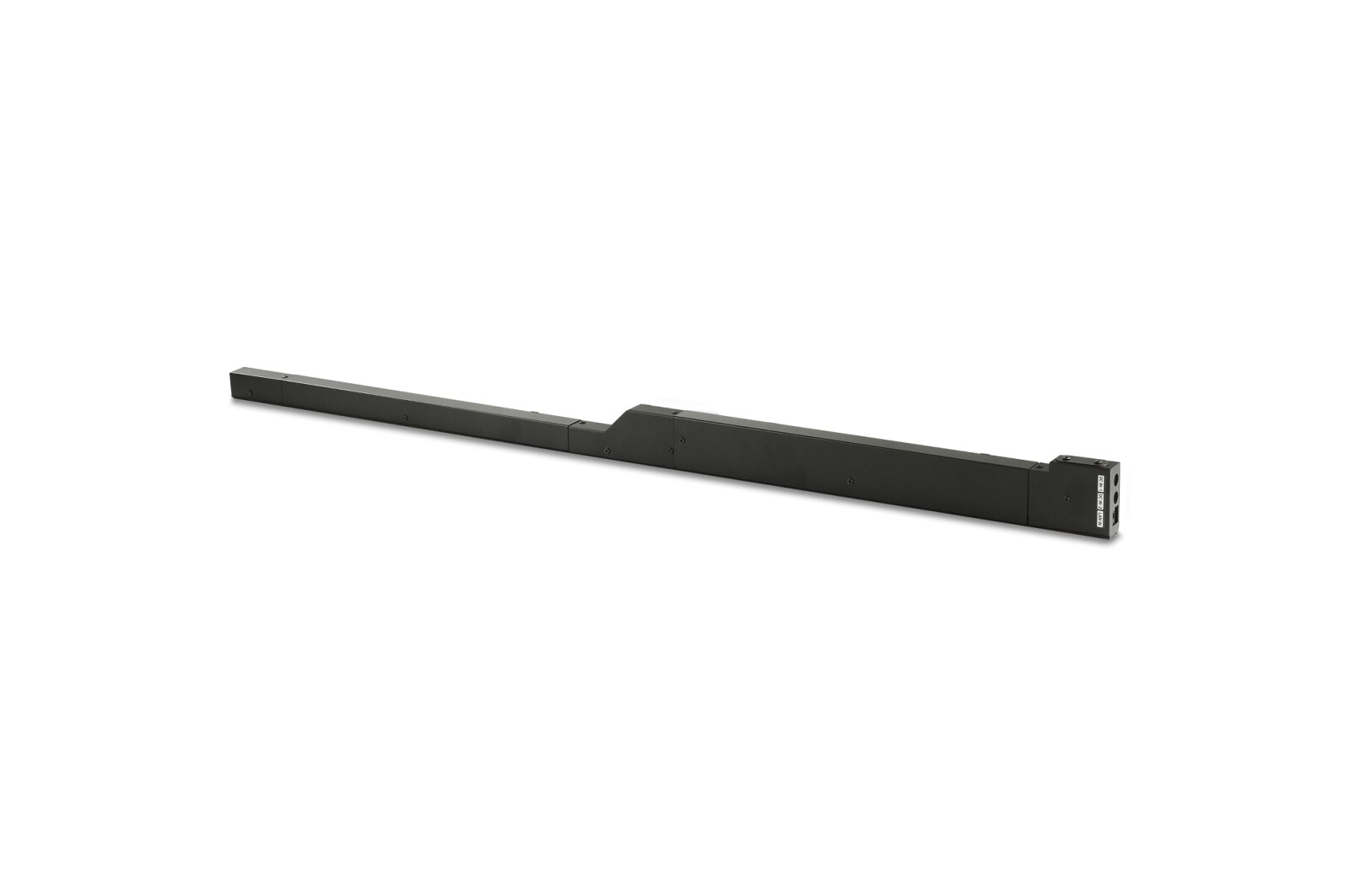

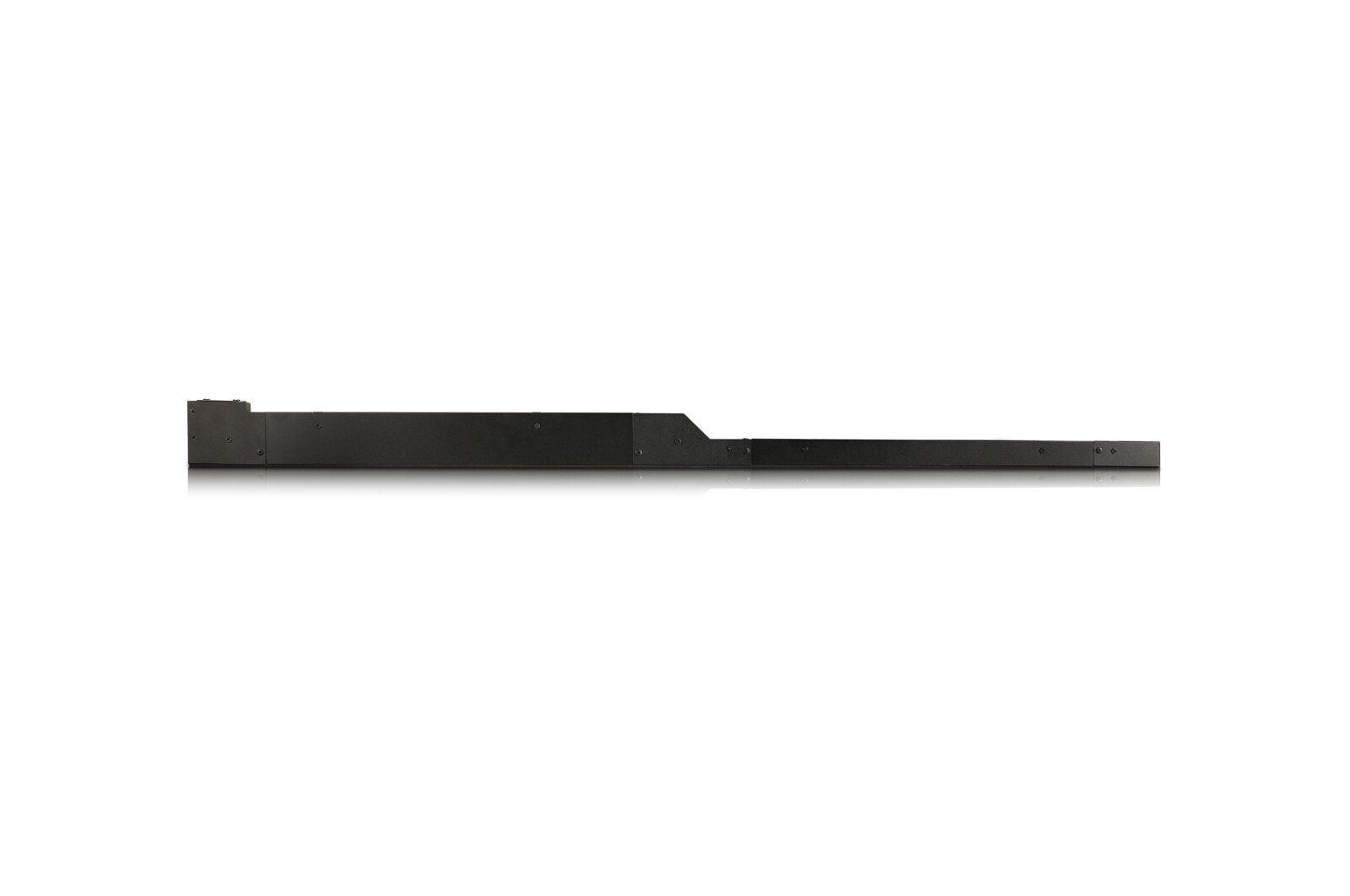

Dimension (W x H x D)
547.3 x 63 x 24 mm
Weight
0.45 kg

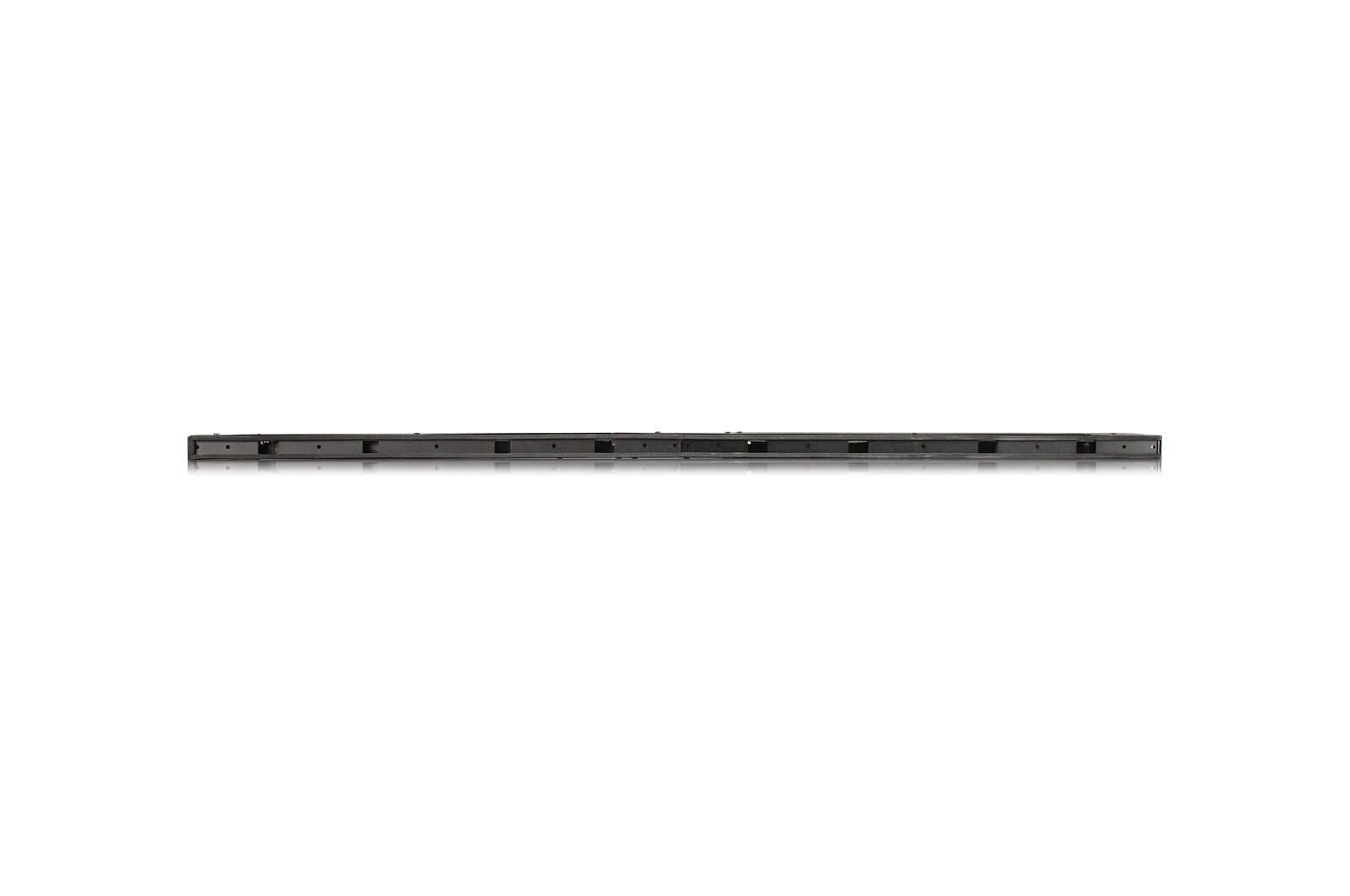

Dimension (W x H x D)
479.5 x 28.1 x 24 mm
Weight
0.26 kg
Resolution
960 x 540 (4 Unit Controllers Needed for FHD)
Interface
Input : LVDS
Output : RJ45 x4EA
Maximum Transmission Length
100 m
Dimension (W x H x D)
293 x 37 x 188.7mm
Weight
1.5 kg
Temperature Sensor
Yes
Power Consumption
20 W
Video (Max. Input Resolution)
DP: 3,840 x 2,160 @30Hz
HDMI: 3,840 x 2,160 @30Hz
DVI-D: 1,920 x 1,080 @60Hz
Input
HDMI, DP, DVI-D, RS232C, RJ45 (w/o LED Indicator), IR Receiver (for Installation), USB 3.0
Output
LVDS, DP, RS232C, RJ45 (w/o LED Indicator)
Dimension (W x H x D)
293 x 40.1 x 193.3 mm
Weight (Head)
1.6 kg
Temperature Sensor
O
Light Sensor
O
Source Selection
HDMI, DVI-D, DP
TPC (Temporal Peak luminance Control)
Yes
Power Consumption
17W
CMS S/W
Yes
Accessories
Power cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book, Warranty Card
Dimension (W x H x D)
183 × 86 × 28 mm
Weight
0.769 kg
Input
100~240V, 50~60Hz
Output
19.5V/10.8A (210W)
Color
White
DC Output Cable
14AWG, 1.5m
Type
L Type
