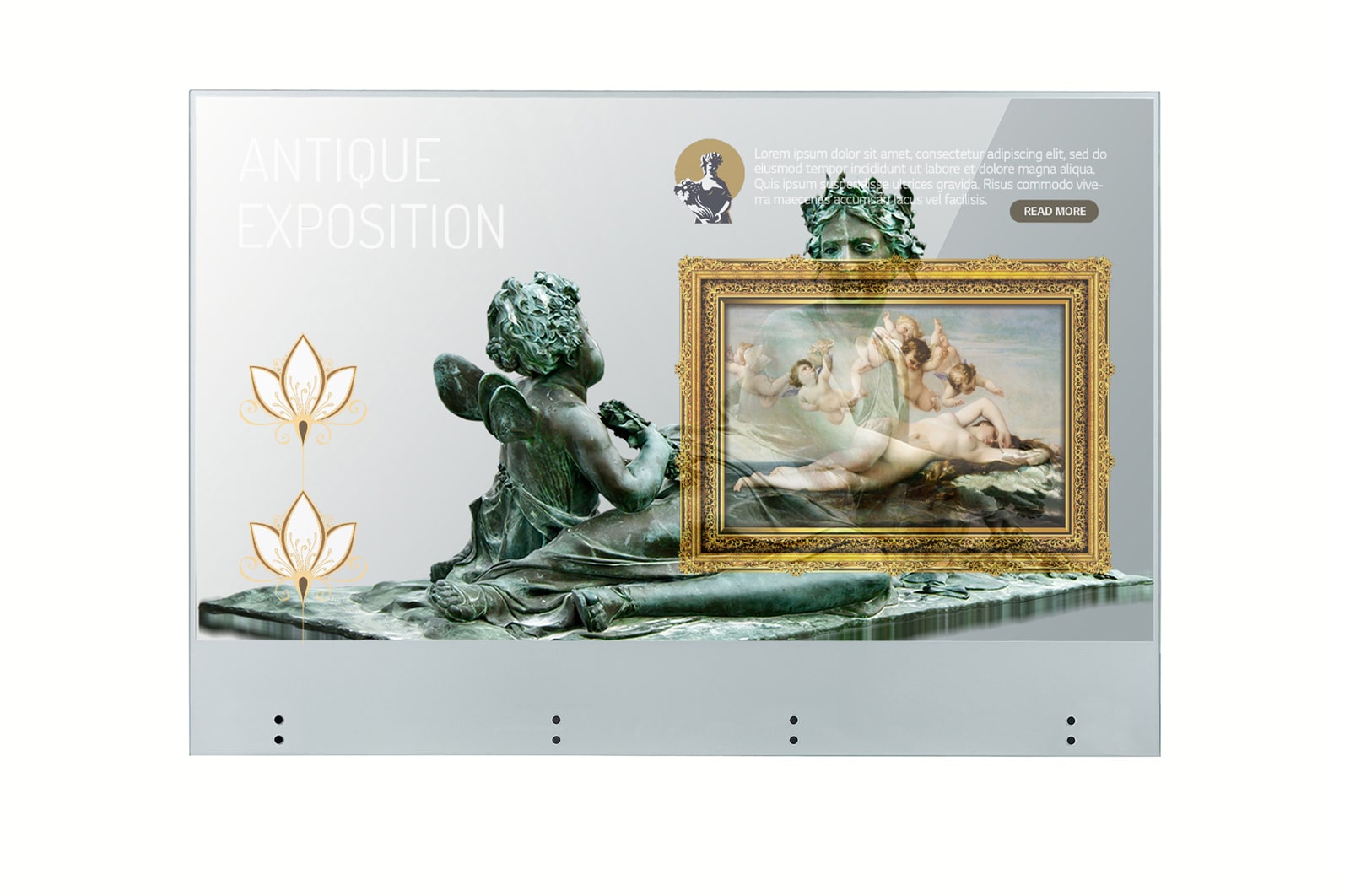

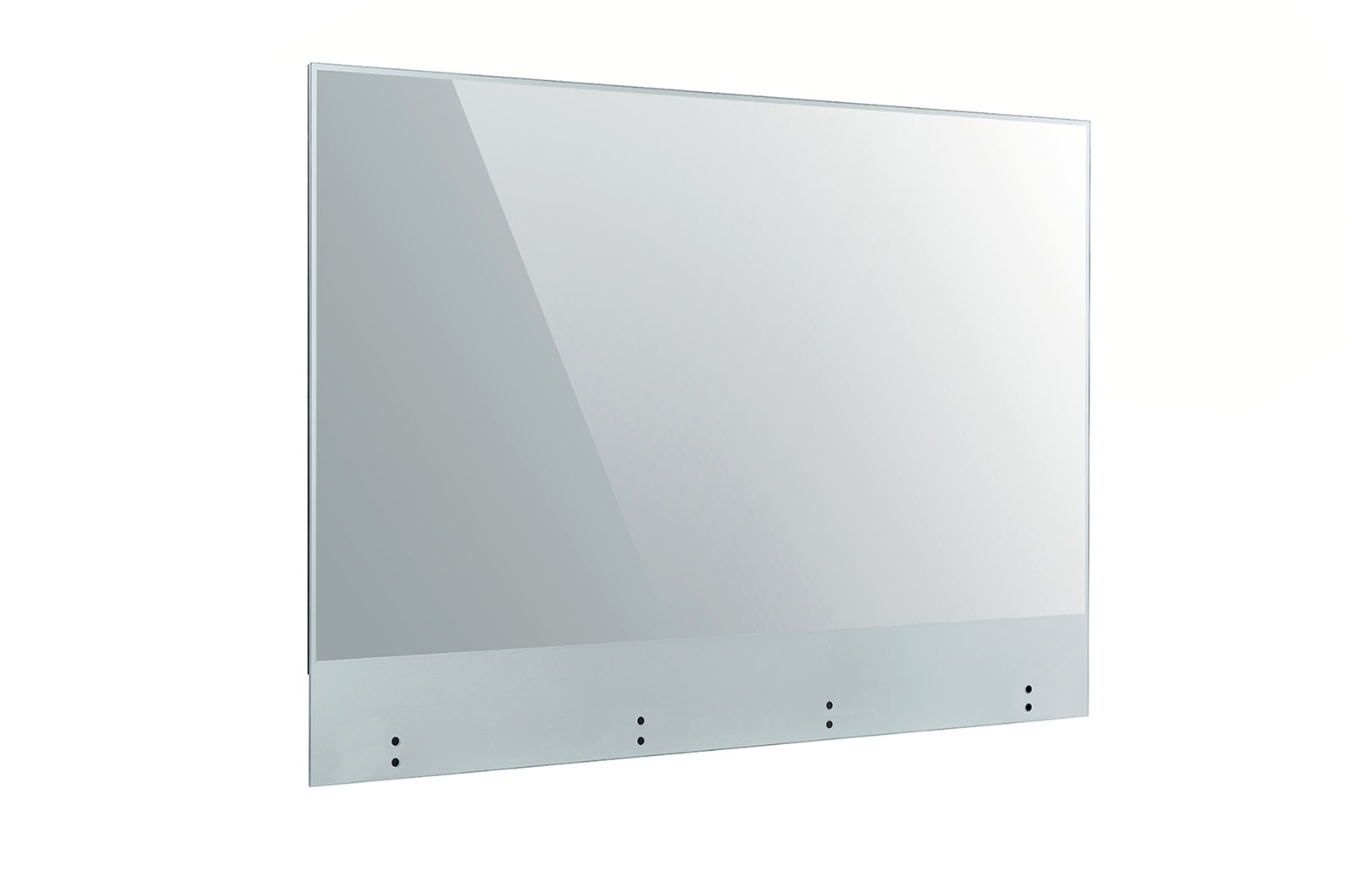

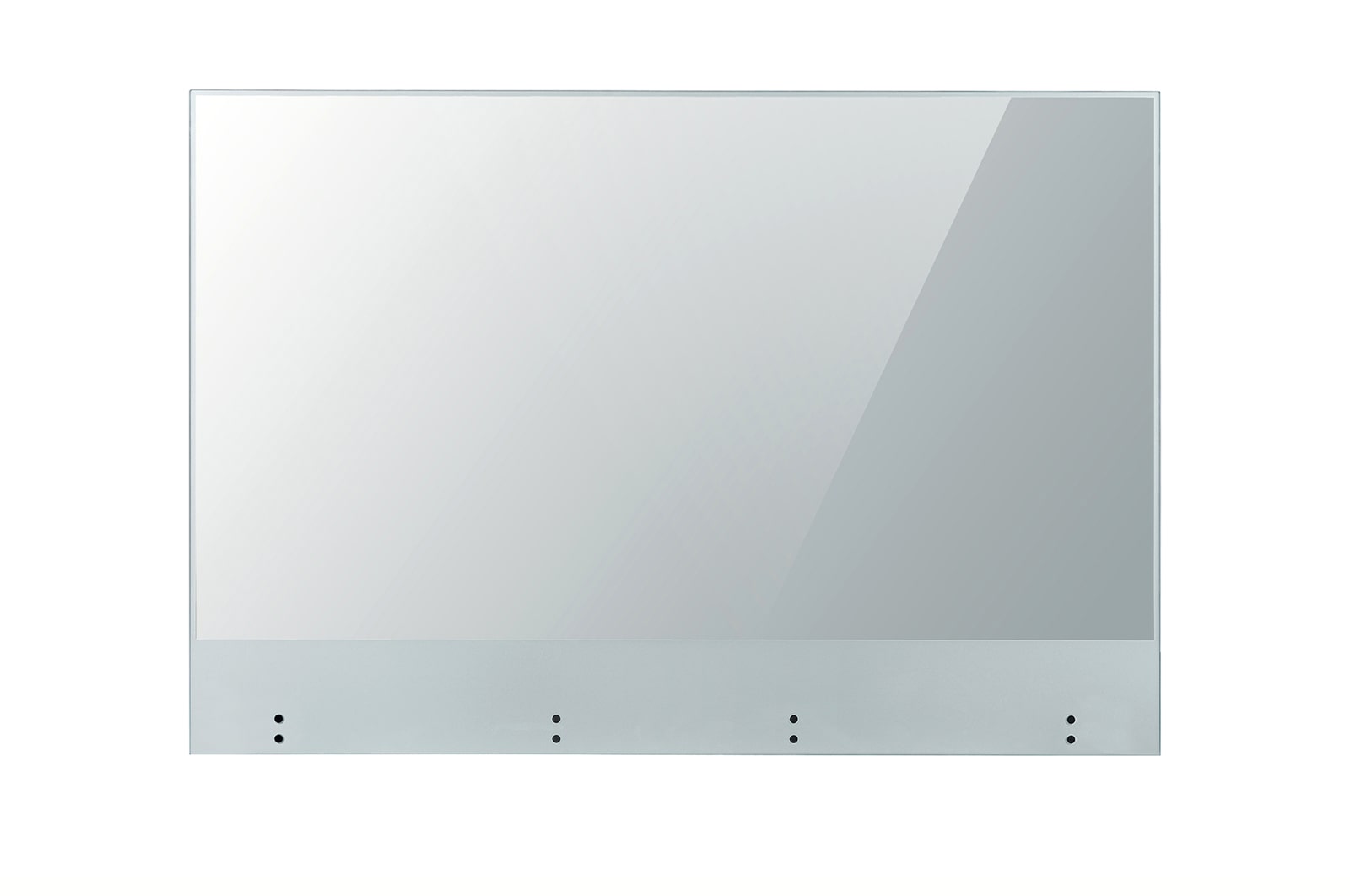

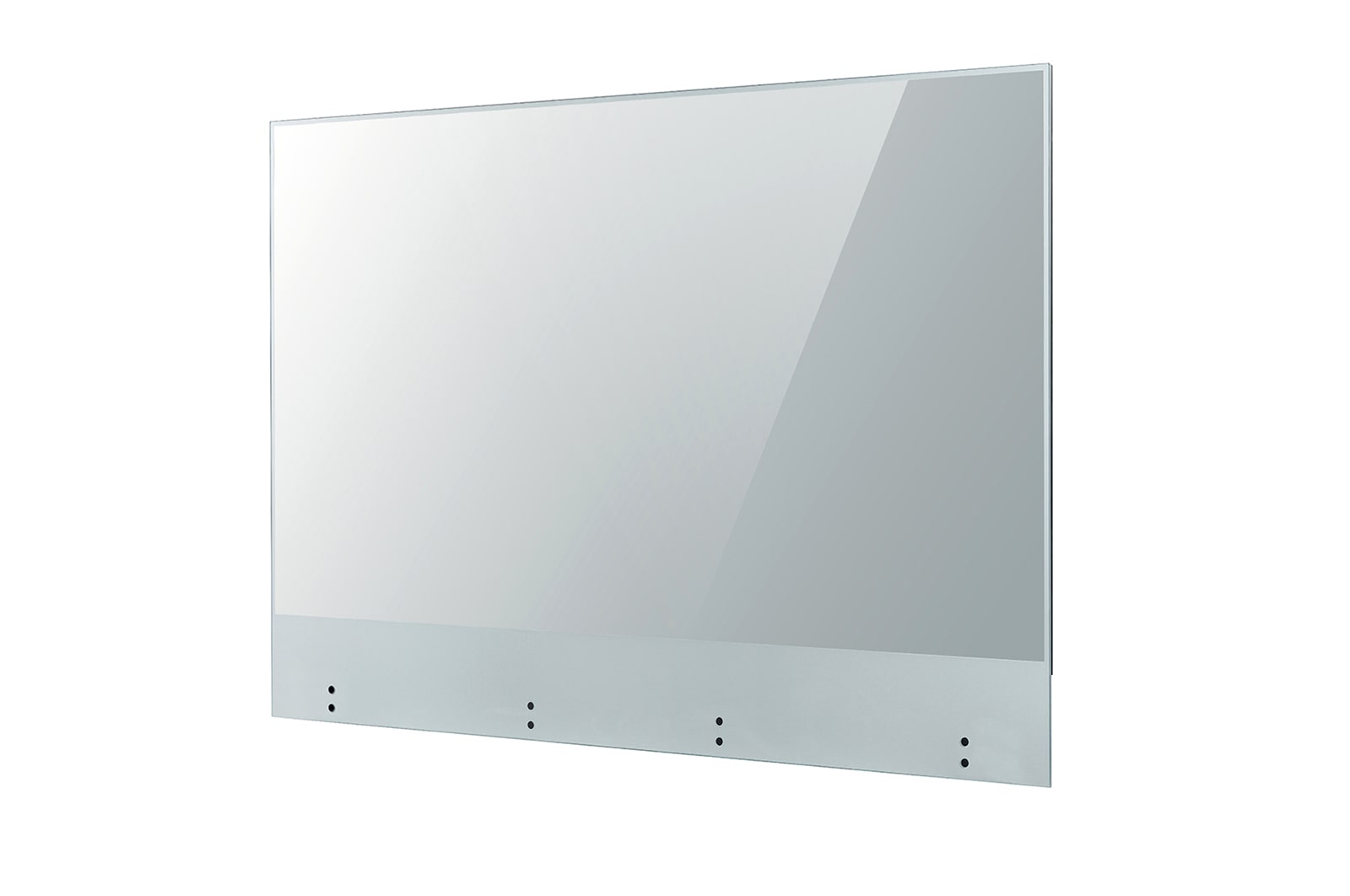

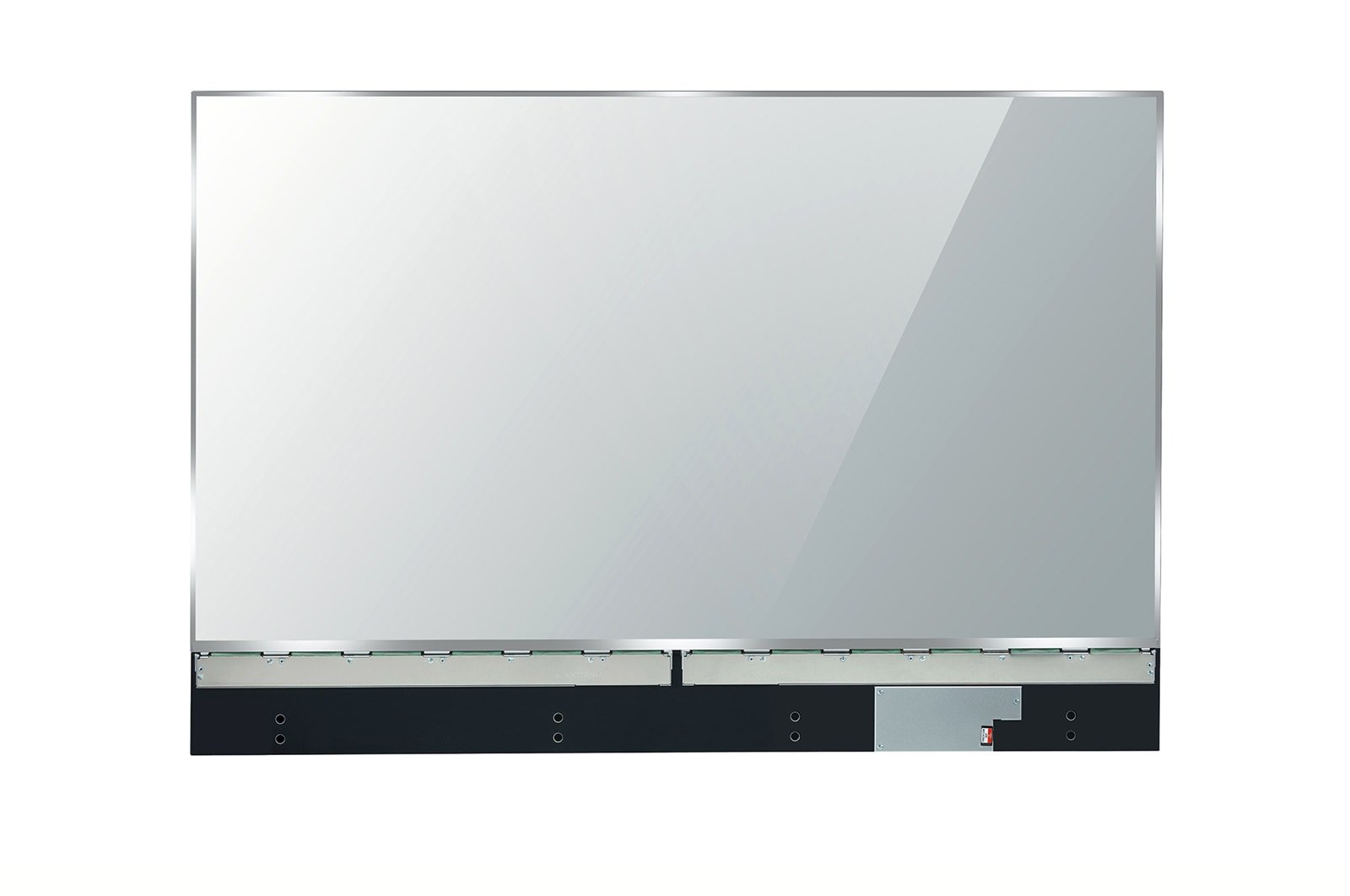

Transparent OLED Touch Signage
Screen Size (Inch)
55
Panel Technology
OLED
Back Light Type
OLED
Aspect Ratio
16:9
Native Resolution
1920 x 1080 (FHD)
Refresh Rate
120Hz
Brightness
150/400nit (APL 100%/25%, without Glass)
Contrast Ratio
150,000:1
Dynamic CR
NO
Color Gamut
BT709 120%
Viewing Angle (H x V)
178º x 178º
Color Depth (Number of Colors)
1.07 Billion colors
Response Time
1ms (G to G), 8ms (MPRT)
Surface Treatment (Haze)
Haze 3% (SET)
Life time
30,000Hrs (Typ.)
Operation Hours (Hours/Day)
18/7 (Moving Content Only)
Portait / Landscape
YES / YES
Transparency
33% (SET)
QWP (Quarter Wave Plate)
N/A
HDMI In
YES (1ea)
HDMI In (HDCP Ver.)
1.4
DP In
YES (HDCP 1.3)
DVI-D In
NO
RGB In
NO
Audio In
NO
RS232C In
YES
RJ45(LAN) In
YES (1ea)
IR In
YES
USB In
USB2.0 Type A (2ea)
HDMI Out
NO
DP Out
YES
Audio Out
YES
Touch USB
USB2.0 Type B (1ea)
External Speaker Out
NO
RS232C Out
YES
RJ45(LAN) Out
YES
IR Out
YES (Sharing RS232C Out)
Daisy Chain
NO
Bezel Color
Matt Silver
Bezel Width
T/R/L/B : 7.9/7.9/7.9/144.5mm
Weight (Head)
12.9Kg (Head) 3.4Kg (Signage Box)
Packed Weight
24.5Kg
Monitor Dimensions (W x H x D)
1225.5 x 832.9 x 7.4mm (Head) 782.8 x 238.4 x 34.7mm (Signage Box)
Monitor Dimension with Stand (W x H x D)
N/A
Handle
NO
VESA Standard Mount Interface
N/A
Carton Dimensions (W x H x D)
1345 x 945 x 207mm
Weight (Head+Stand)
N/A

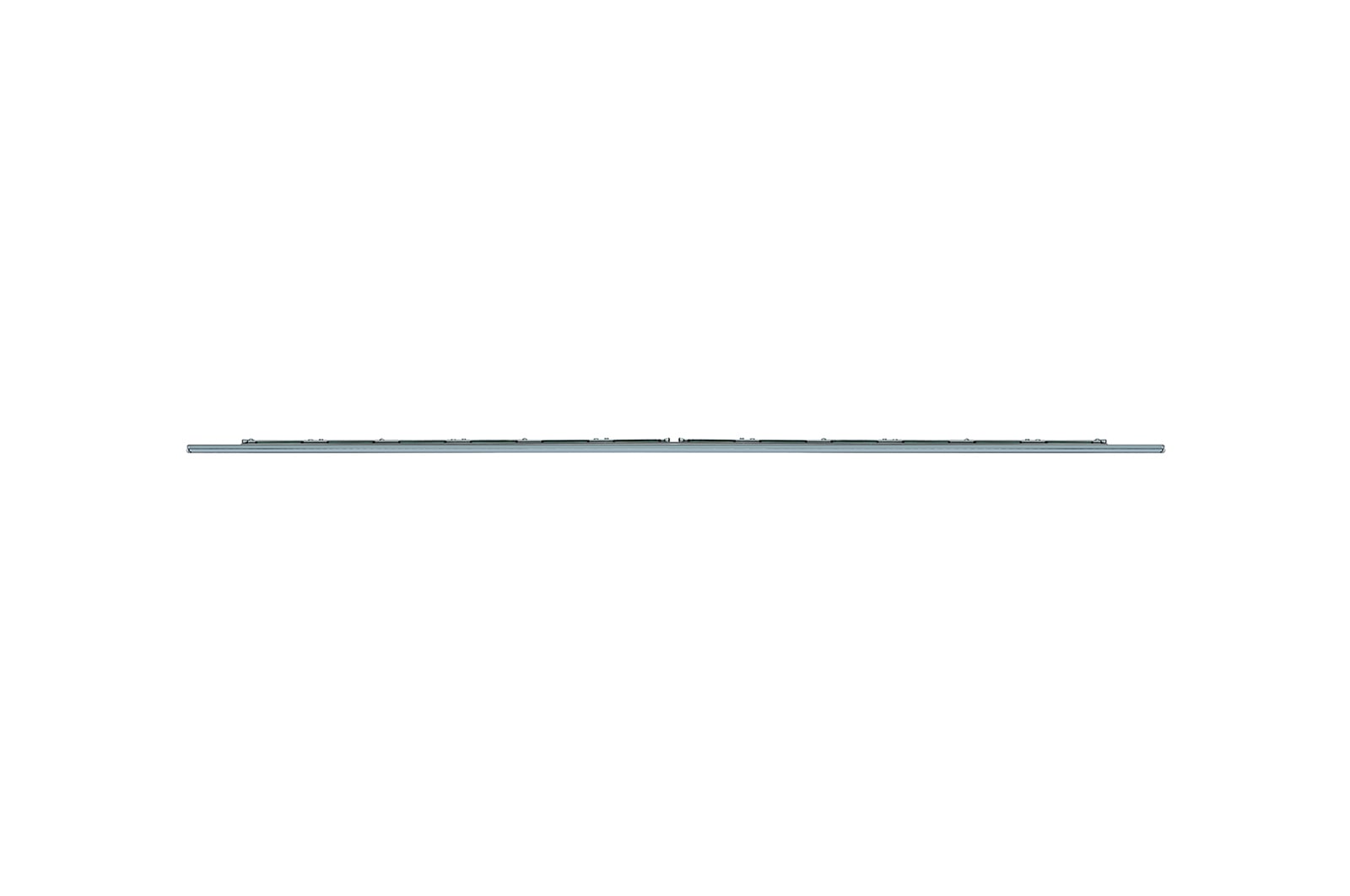

Thickness
3mm
Degree of Protection
N/A
Tempered / Chemical strengthening
Chemical strengthening
Anti-Reflective
YES
Infrared - Resistance (IR)
N/A
Shatter-Proof
YES
Internal Memory (eMMC)
16GB
Wi-Fi/BT (Built-in)
NO
Temperature Sensor
YES
Auto Brightness Sensor
NO
Pixel Sensor
NO
Proximity Sensor
NO
Current Sensor
NO
BLU Sensor
NO
Humidity Sensor
NO
Acceleration(Gyro) Sensor
NO
Power Indicator
NO
Local Key Operation
NO
FAN (Built-in)
NO
OS Ver. (webOS)
webOS 4.0
Local Contents Scheduling
YES
Group Manager
YES
USB Plug & Play
YES
Fail over
YES
Booting Logo Image
NO
No Signal Image
NO
RS232C Sync
NO
Local Network Sync
NO
Backlight Sync
NO
PIP
NO
PBP
NO
Screen Share
NO
Video Tag
YES (4 Video Tag)
Play via URL
NO
Screen Rotation
YES
External Input Rotation
NO
Gapless Playback
YES
Tile Mode Setting
NO
Setting Data Cloning
YES
SNMP
YES
ISM Method
YES
Auto Set ID
YES
Status Mailing
YES
Control Manager
YES
Cisco Certification
NO
Crestron Connected
YES
Smart Energy Saving
NO
PM mode
YES
Wake on LAN
YES
Network Ready
NO
Beacon
NO
HDMI-CEC
YES
SI Server Setting
YES
webRTC
NO
Pro:Idiom
YES
Brightness Compensation
NO
W/B Setting by Grey scale
NO
Scan Inversion
NO
The security update is supported for
5 years from the product launch date stated at https://lgsecurity.lge.com/bulletins/idproducts
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power
Typ.
280W
Max.
300W
BTU (British Thermal Unit)
955 BTU/Hr(Typ.), 1023 BTU/Hr(Max.)
DPM
0.5W
Power off
0.5W
Smart Enegy Saving(~70%)
N/A
Speaker (Built-in)
NO
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ERP / Energy Star
YES / NO
ePEAT(US only)
NO
OPS Type compatible
N/A
OPS Power Built-in
N/A
SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
NO
SuperSign Cloud
NO
Promota
NO
Mobile CMS
YES
Connected Care
YES
OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic
Basic
Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, MCX/Harness Cables(3000mmx4ea/3000mmx2ea for connection between panel and Signage Box), HDMI Cable(3M), Micro to A type USB cable(3M, for connection between Touch and Signage box), A to B type USB cable(Touch out), Screw(M4xL22,12ea / M4 Nut,12ea / M3xL5.5,8ea / M3xL3.5,20ea), Shield Cover Assy', Rubber Damper 4ea, Touch Cable Holder 2ea, MCX Cable Holder 4ea
Optional
NO
Overlay Touch Compatibility
N/A
Smart Calibration
N/A
Tilt (Face up)
N/A
Tilt (Face down)
N/A
IP Rating
N/A
Conformal Coating (Power Board)
N/A
Power Protection
N/A
Direct Sunlight
N/A
Available Object Size for Touch
Ø12 mm ↑
Response Time ('Paint' app on Windows 10 PC)
120ms ↓
Accuracy (Typ.)
3.5mm
Interface
USB2.0

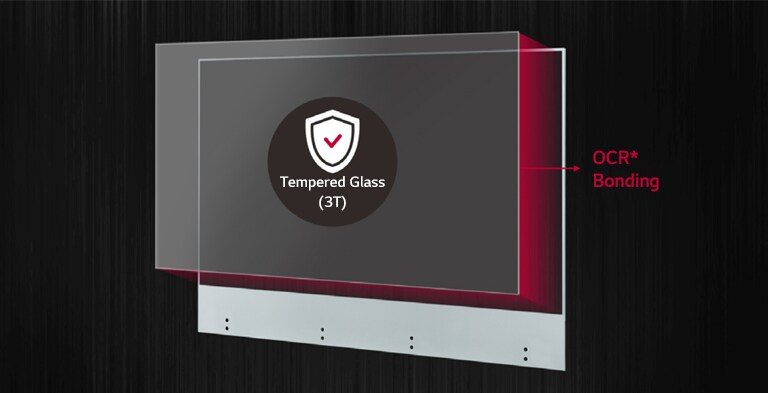

Protection Glass Thickness
3mm (Anti-Glare / Anti-Finger print)
Protection Glass Transmission
84% (Typ.)
Operating System Support
Windows 8.1, Windows 10
Multi Touch Point
Max. 10 Points
