130" All-in-one LED Screen

130" All-in-one LED Screen

130" All-in-one LED Screen

LAA015F

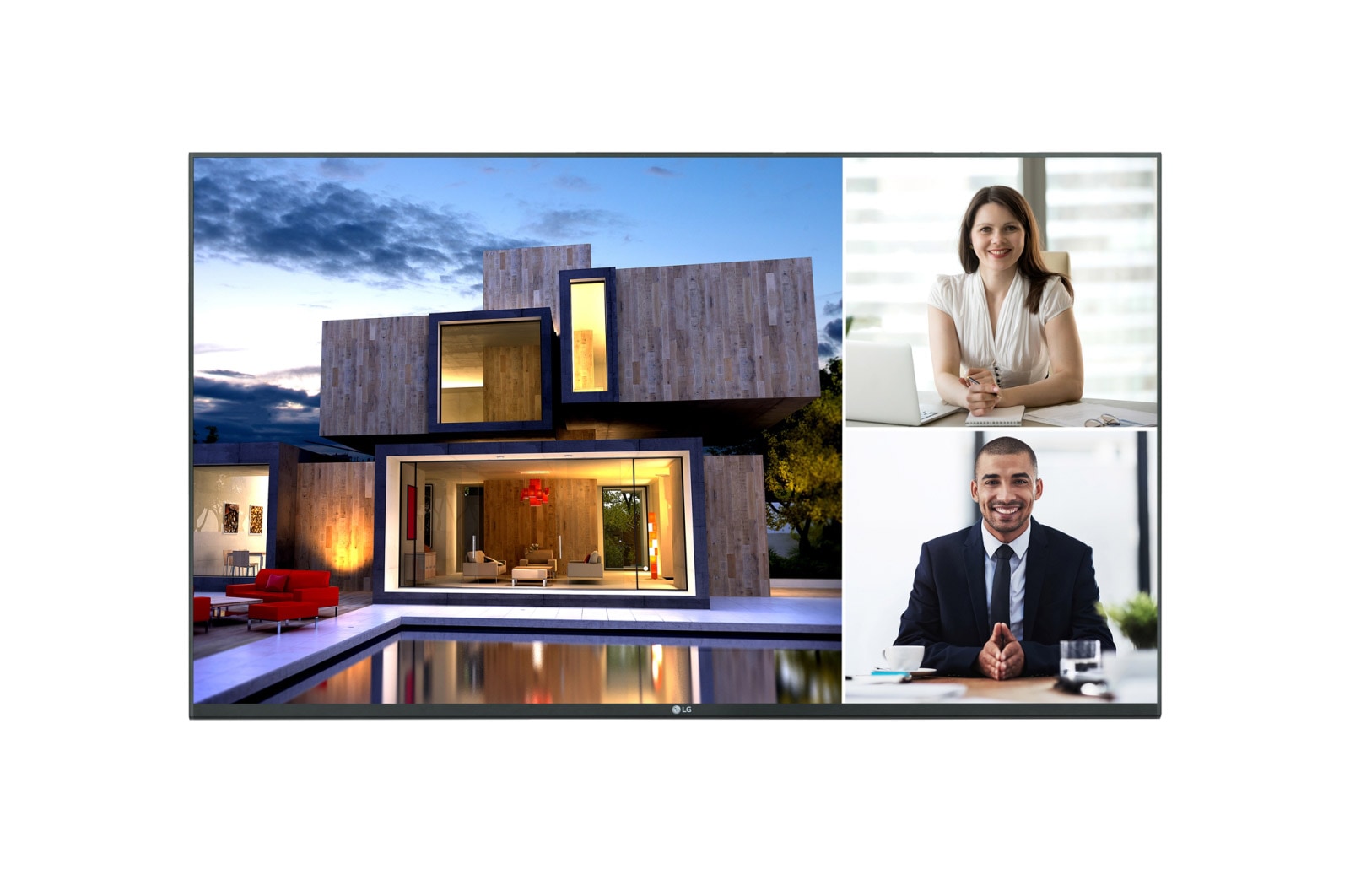

Front view of 130" All-in-one LED Screen LAA015F

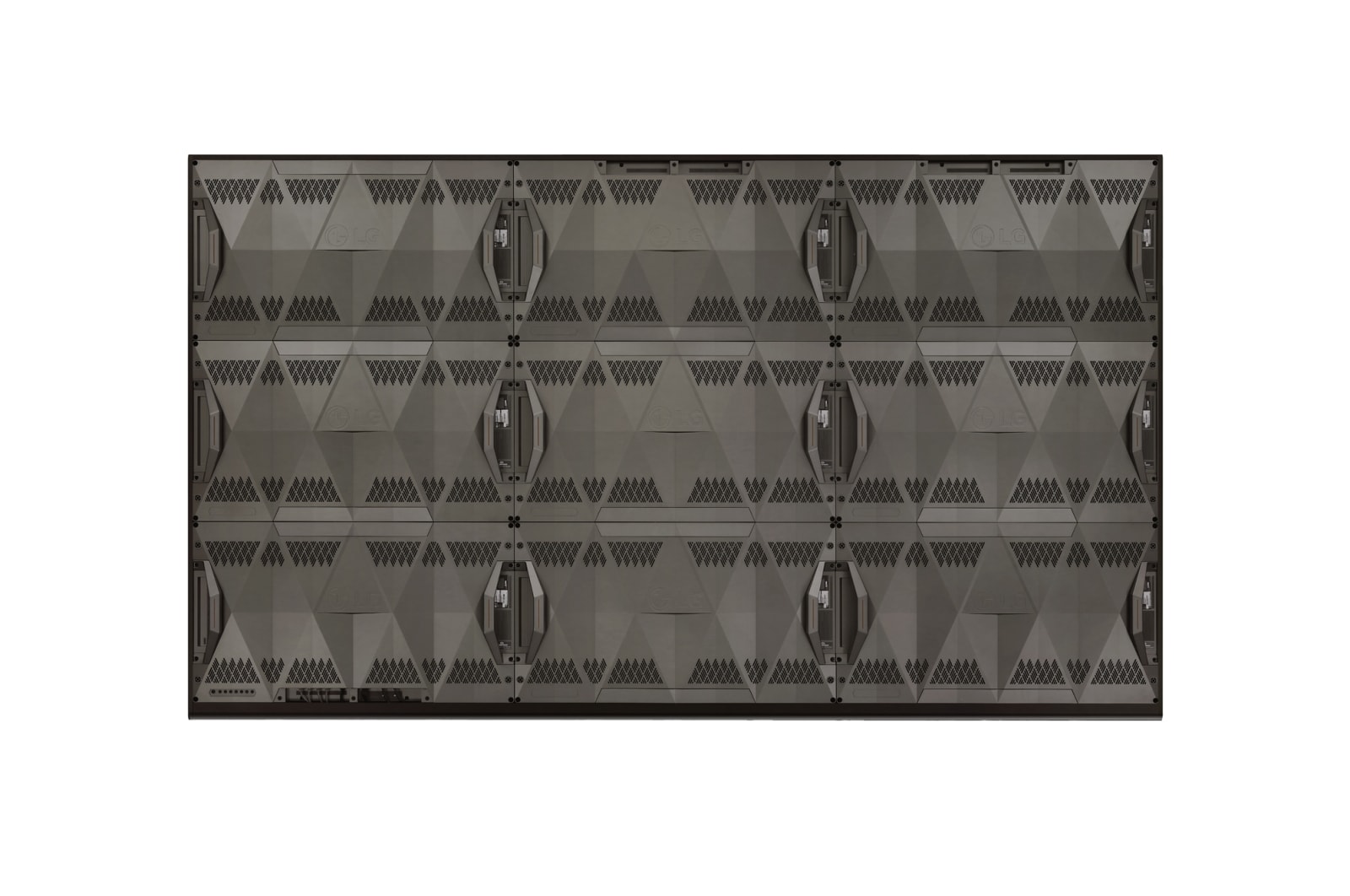

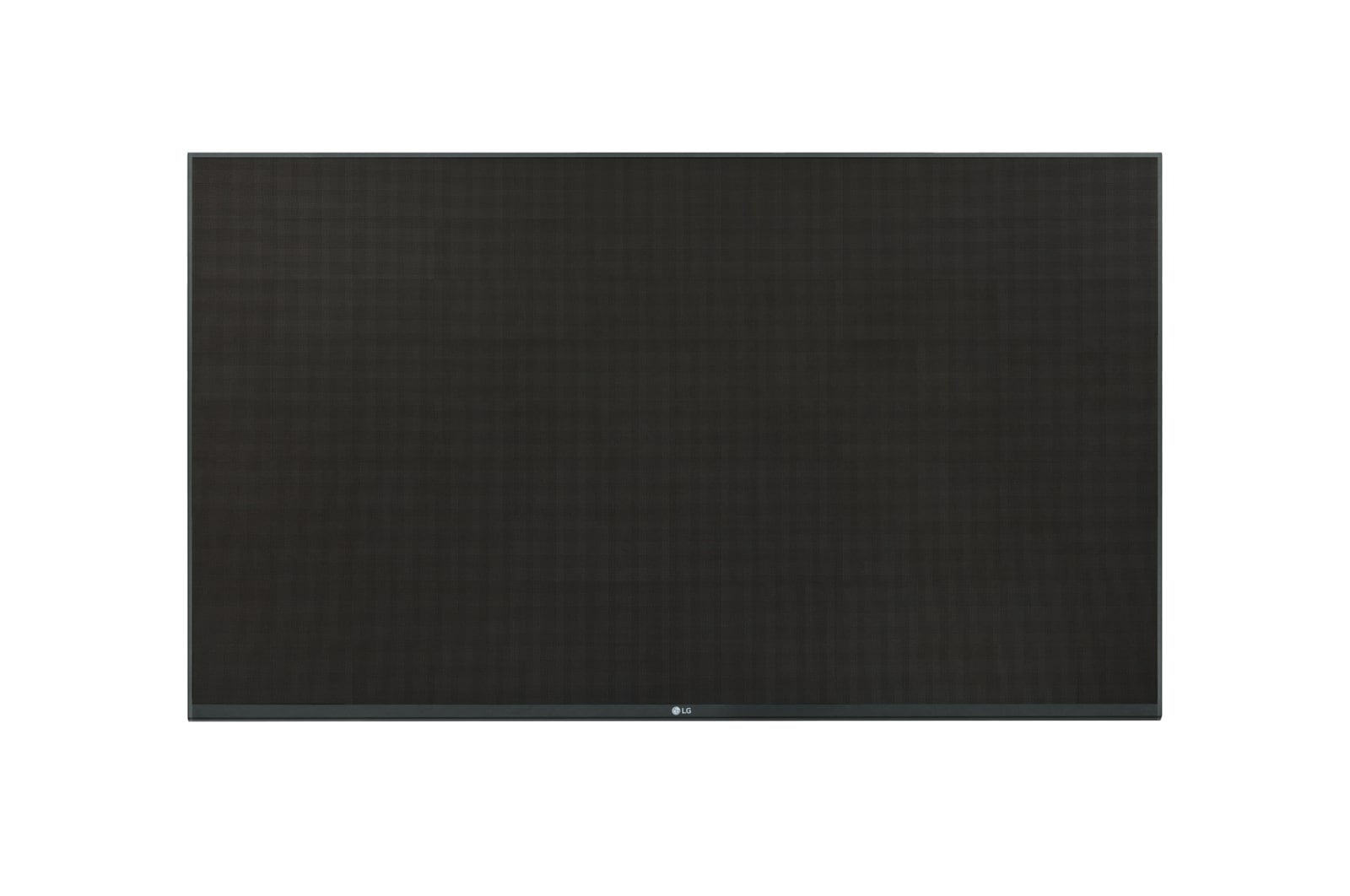

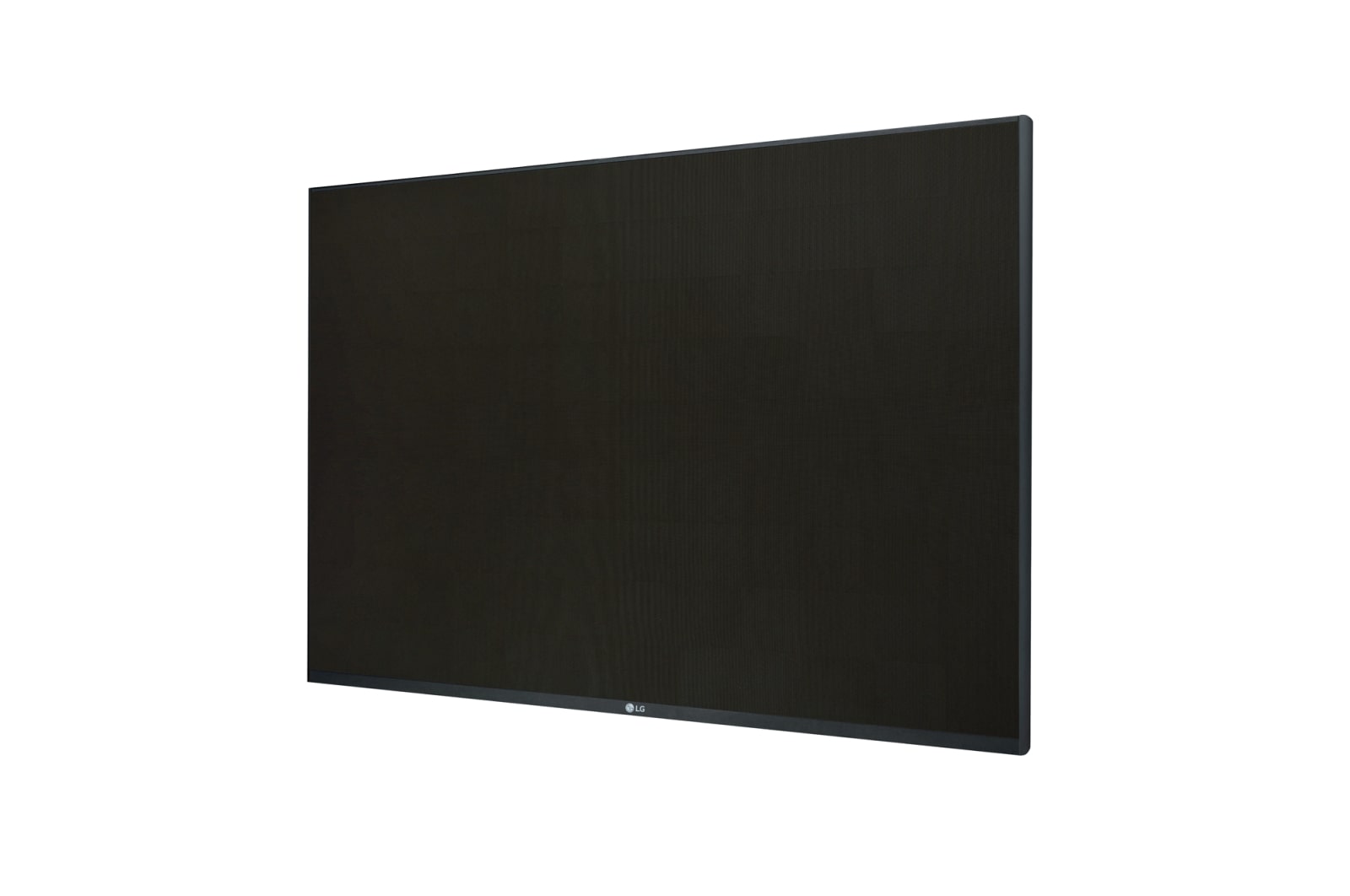

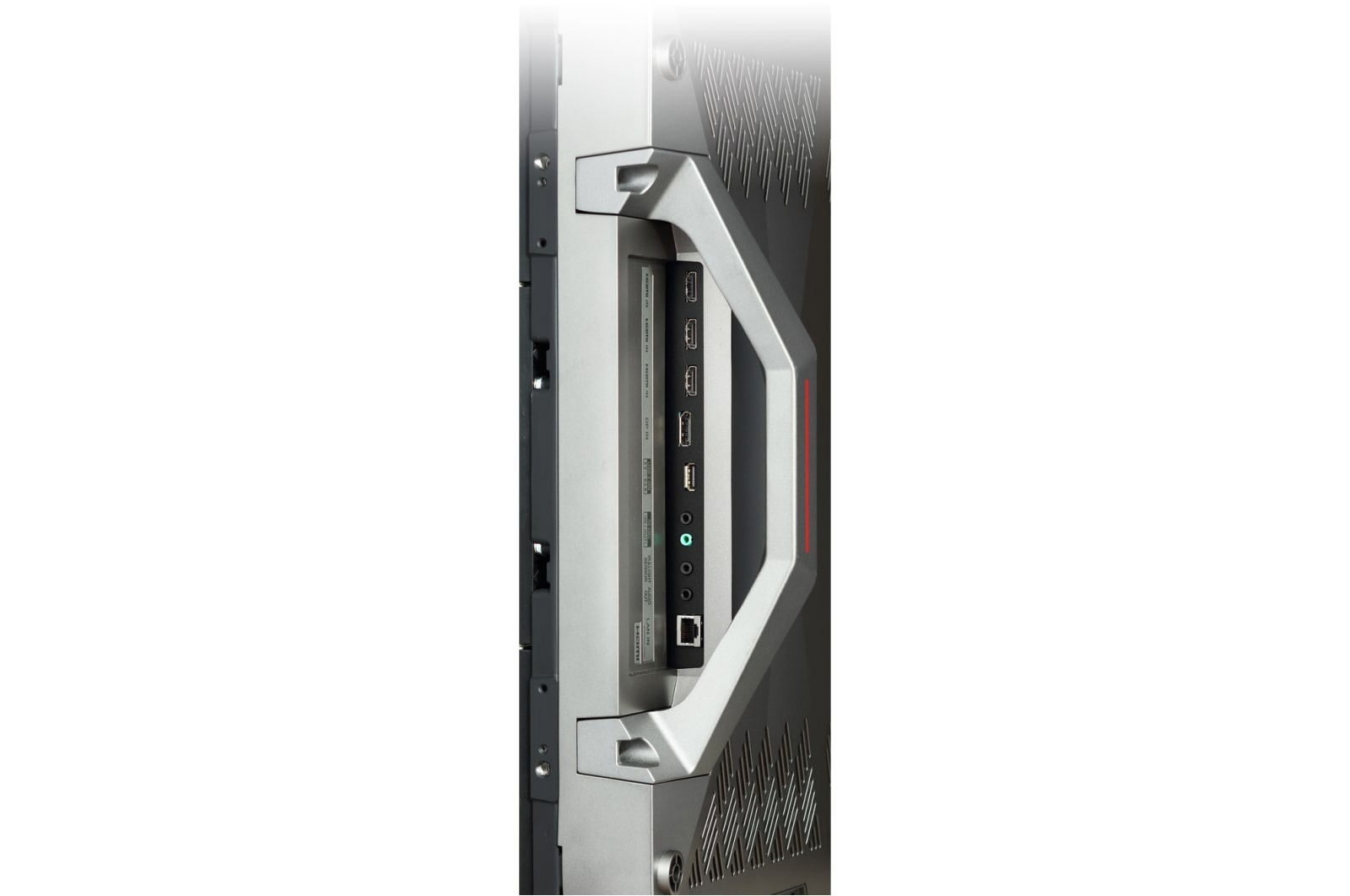

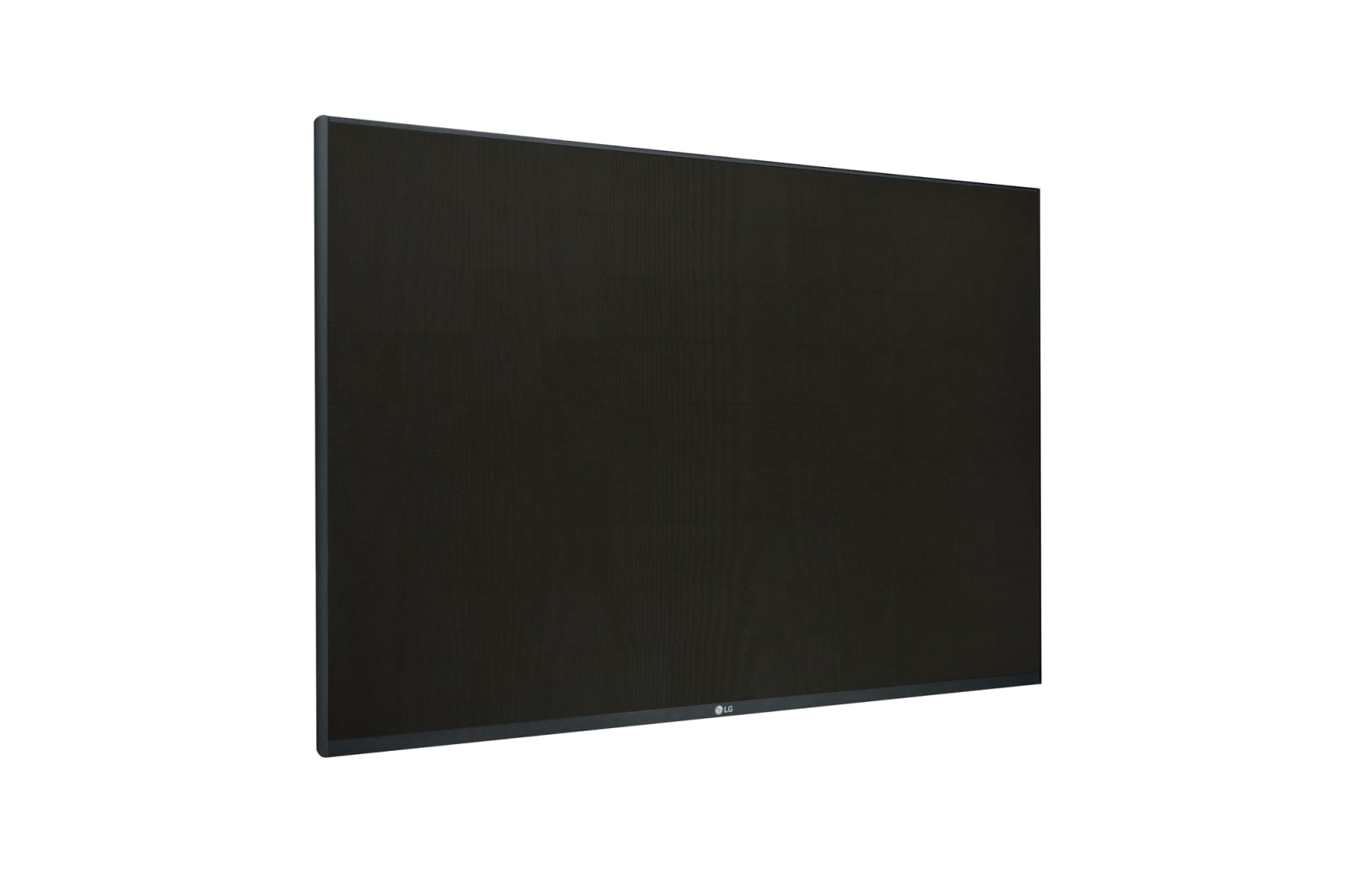

LG 130" All-in-one LED Screen, LAA015F
LG 130" All-in-one LED Screen, LAA015F
LG 130" All-in-one LED Screen, LAA015F
LG 130" All-in-one LED Screen, LAA015F
LG 130" All-in-one LED Screen, LAA015F
LG 130" All-in-one LED Screen, LAA015F
Front view of 130" All-in-one LED Screen LAA015F
LG 130" All-in-one LED Screen, LAA015F
LG 130" All-in-one LED Screen, LAA015F
LG 130" All-in-one LED Screen, LAA015F
LG 130" All-in-one LED Screen, LAA015F
LG 130" All-in-one LED Screen, LAA015F
LG 130" All-in-one LED Screen, LAA015F

Key Features

  • Pixel Pitch: 1.5mm
  • Screen Size: 130"
  • Brightness: 500 cd/m²
  • HDR10 Pro / Surface Sound
  • Embedded System Controller
More
Print

All Spec

PHYSICAL PARAMETERS

  • Pitch Name

    P1.5

  • Pixel Configuration

    3 in 1 SMD

  • Pixel Pitch (mm)

    1.50

  • Screen Resolution (WxH)

    1,920x1,080

  • Screen Dimension (W x H x D,mm)

    2,880 x 1,620 x 128.5 (w/o Screen Frame)

  • Screen Weight (kg)

    175 (w/o Screen Frame)

  • No. of Modules per Unit Case (W x H)

    4x3

  • Unit Case Resolution (W x H)

    640x360

  • Unit Case Dimensions (W x H x D, mm)

    960x540x128.5

  • Unit Case Surface Area (㎡)

    0.518

  • Weight per Unit Case (kg/unit)

    Master: 20.85Slave: 19.24

  • Weight per Square Meter (kg/㎡)

    37.6

  • Physical Pixel Density (pixels/㎡)

    444,444

  • Flatness of Unit Case (mm)

    ±0.2

  • Unit Case material

    Front : Die Casting AluminumRear : PC+ABS

  • Service access

    Front and Rear

OPTICAL PARAMETER

  • Max. Brightness (cd/m²)

    500

  • Color Temperature

    6,500

  • Visual Viewing Angle (Horizontal)

    160

  • Visual Viewing Angle (Vertical)

    140

  • Brightness Uniformity

    95%

  • Color Uniformity

    ±0.015Cx,Cy

  • Contrast Ratio

    5,000

  • Processing Depth (bit)

    16(HDR10, HDR10 Pro)

ELECTRICAL PARAMETER

  • Power Consumption (W/Screen, Max.)

    2,900

  • Power Consumption (W/Screen, Avg.)

    980

  • Power Consumption (W/m², Max.)

    622

  • Power Supply (V)

    100 to 240

  • Frame Rate (Hz)

    50 / 60

  • Refresh Rate (Hz)

    3,840

  • Sound Output (Max.)

    162W

OPERATION CONDITIONS

  • Lifetime (Half Brightness, hrs)

    100,000 (It is subject to LED package spec.)

  • Operating Temperature (°C)

    0°C to 40°C

  • Operating Humidity

    10-80% RH

CERTIFICATION

  • Safety

    IEC 60950-1 / EN 60950-1 / UL 60950-1

  • EMC

    FCC Class A / CE / KC

  • Environment

    RoHS

CONNECTIVITY(EMBEDDED CONTROLLER)

  • Video Inputs

    HDMI In(3), DP In, USB

  • Control

    RJ45 In, RS232C In/out

  • Special Features

    Temperature Sensor, IR & Ambient Light Sensor, Audio Out, Crestron Connected(Network based control)

BASIC ACCESSORY

  • Basic Accessory

    Data Cable, LAN Cable, Power Cord, RS232C Gender (9pin to Phone Jack), Remote Controller, IR Receiver, Manual

COMPLIANCE INFORMATION

MORE COMPLIANCE INFORMATION
The safety information for accessories is included with the safety information for the product and is not provided separately.
