LG LED Indoor Signage 2.50 Pixel Pitch - LSBE025-GD

LG LED Indoor Signage 2.50 Pixel Pitch - LSBE025-GD

LG LED Indoor Signage 2.50 Pixel Pitch - LSBE025-GD

LSBE025-GD

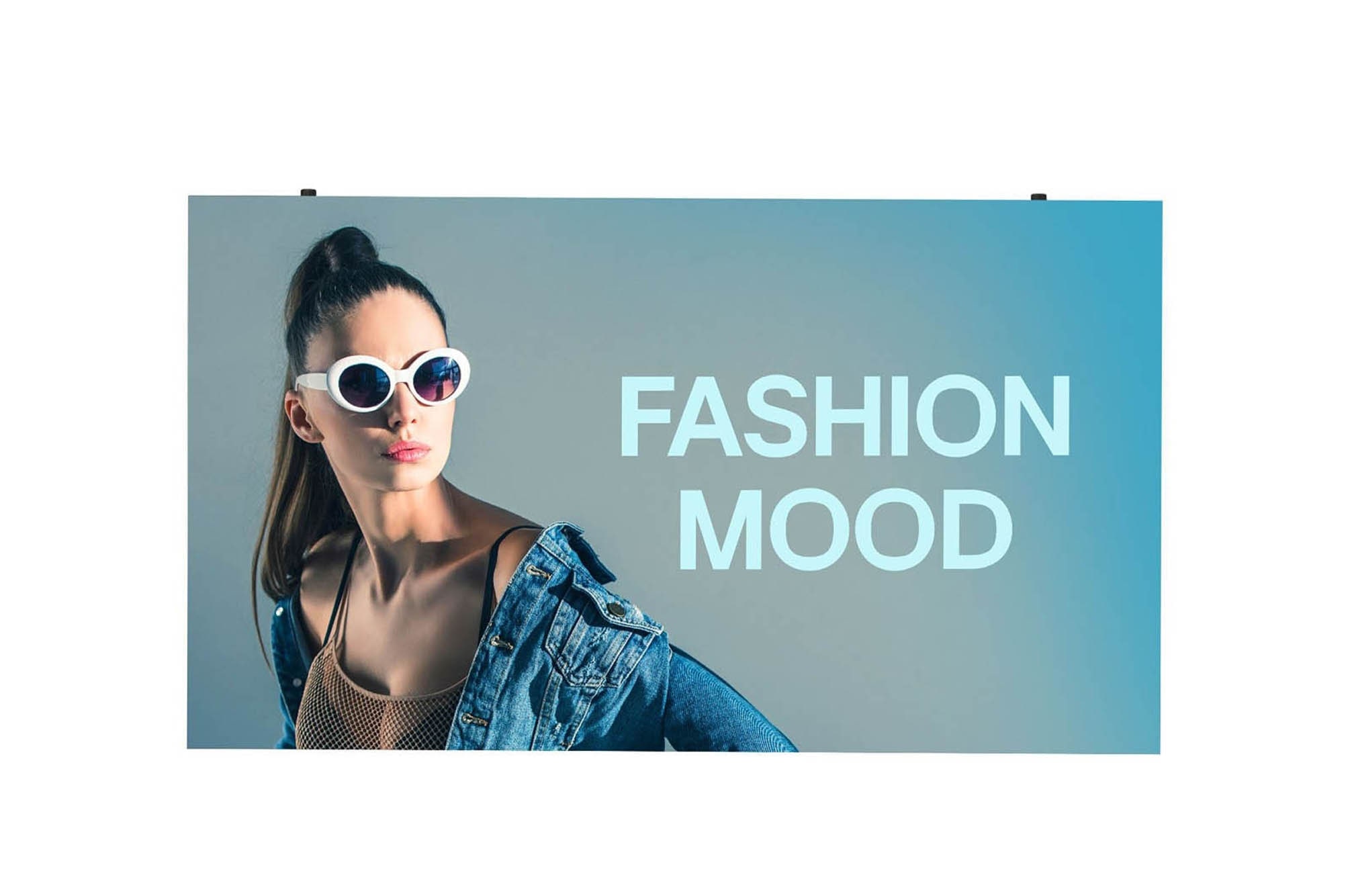

Front view of LG LED Indoor Signage 2.50 Pixel Pitch - LSBE025-GD LSBE025-GD
LG LED Indoor Signage 2.50 Pixel Pitch - LSBE025-GD , LSBE025-GD
LG LED Indoor Signage 2.50 Pixel Pitch - LSBE025-GD , LSBE025-GD
LG LED Indoor Signage 2.50 Pixel Pitch - LSBE025-GD , LSBE025-GD
LG LED Indoor Signage 2.50 Pixel Pitch - LSBE025-GD , LSBE025-GD
LG LED Indoor Signage 2.50 Pixel Pitch - LSBE025-GD , LSBE025-GD
LG LED Indoor Signage 2.50 Pixel Pitch - LSBE025-GD , LSBE025-GD
LG LED Indoor Signage 2.50 Pixel Pitch - LSBE025-GD , LSBE025-GD
Front view of LG LED Indoor Signage 2.50 Pixel Pitch - LSBE025-GD LSBE025-GD
LG LED Indoor Signage 2.50 Pixel Pitch - LSBE025-GD , LSBE025-GD
LG LED Indoor Signage 2.50 Pixel Pitch - LSBE025-GD , LSBE025-GD
LG LED Indoor Signage 2.50 Pixel Pitch - LSBE025-GD , LSBE025-GD
LG LED Indoor Signage 2.50 Pixel Pitch - LSBE025-GD , LSBE025-GD
LG LED Indoor Signage 2.50 Pixel Pitch - LSBE025-GD , LSBE025-GD
LG LED Indoor Signage 2.50 Pixel Pitch - LSBE025-GD , LSBE025-GD
LG LED Indoor Signage 2.50 Pixel Pitch - LSBE025-GD , LSBE025-GD

Key Features

  • Pixel Pitch : 2.50 mm
  • Brightness : 600 nit
  • Easy Installation and Maintenance
  • Durable Frame Design
  • Compatibility with LG Software Solutions
  • IP Rating : IP50 / IP50 (Front / Rear)
More
Print

All Spec

INFORMATION

  • Model name

    LSBE025-GD

PHYSICAL PARAMETERS

  • Pixel Configuration

    Single SMD

  • Pixel Pitch (mm)

    2.50

  • Module Resolution (WxH)

    120x135

  • Module Dimensions(WxH,mm)

    300x337.5x13

  • Weight per Module (kg)

    0.95

  • No. of Modules per Cabinet (WxH)

    2x1

  • Cabinet Resolution (WxH)

    240x135

  • Cabinet Dimensions (W x H x D, mm)

    600x337.5x72

  • Cabinet Surface Area (㎡)

    0.203

  • Weight per Cabinet (kg/unit)

    6.5

  • Weight per Square Meter (kg/㎡)

    32.0

  • Physical Pixel Density (pixels/㎡)

    160,000

  • Flatness of Cabinet (mm)

    ±0.3

  • Cabinet material

    Die-casting Aluminum

  • Service access

    Front

OPTICAL SPECIFICATIONS

  • Max Brightness (After Calibration, nit)

    600

  • Color Temperature (K)

    3,200~9,300

  • Visual Viewing Angle (Horizontal)

    160

  • Visual Viewing Angle (Vertical)

    150

  • Brightness Uniformity(%)

    97%

  • Color Uniformity

    ±0.003Cx,Cy

  • Contrast Ratio

    5,000:1

  • Processing Depth (bit)

    14

ELECTRICAL SPECIFICATIONS

  • Power Consumption (W/Cabinet, Max.)

    93

  • Power Consumption (W/Cabinet, Avg.)

    36

  • Power Consumption (W/㎡, Max.)

    460

  • Heat Dissipation (BTU/h/Cabinet, Max.)

    317

  • Heat Dissipation (BTU/h/Cabinet, Avg.)

    122

  • Heat Dissipation (BTU/h/㎡, Max.)

    1,570

  • Power Supply (V)

    100 to 240

  • Frame Rate (Hz)

    50 / 60

  • Refresh Rate (Hz)

    3,840

OPERATION SPECIFICATIONS

  • LED Lifetime (Half brightness)

    100,000

  • Operating Temperature(℃)

    -20℃ to +40℃

  • Operating Humidity

    10~80%RH

  • IP rating Front

    IP50

  • IP rating Rear

    IP50

STANDARD

  • Certification

    CE, FCC, cTUVus, CB, KC, CCC

ENVIRONMENT

  • Environment

    RoHS, REACH

CONTROLLER

  • Controller

    CVBA

90 DEGREE CORNER CUT

  • 90 degree corner cut

    Yes
