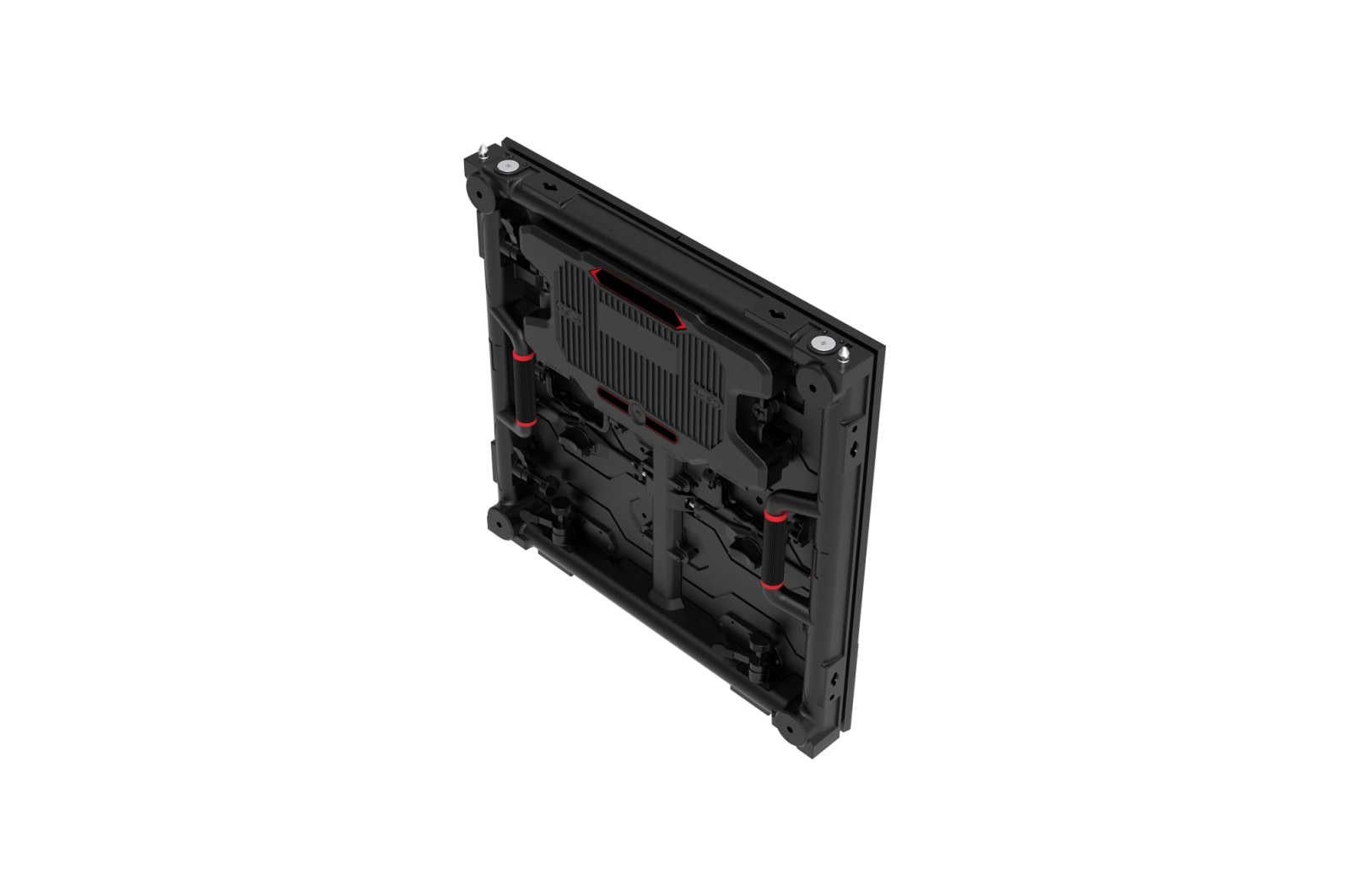

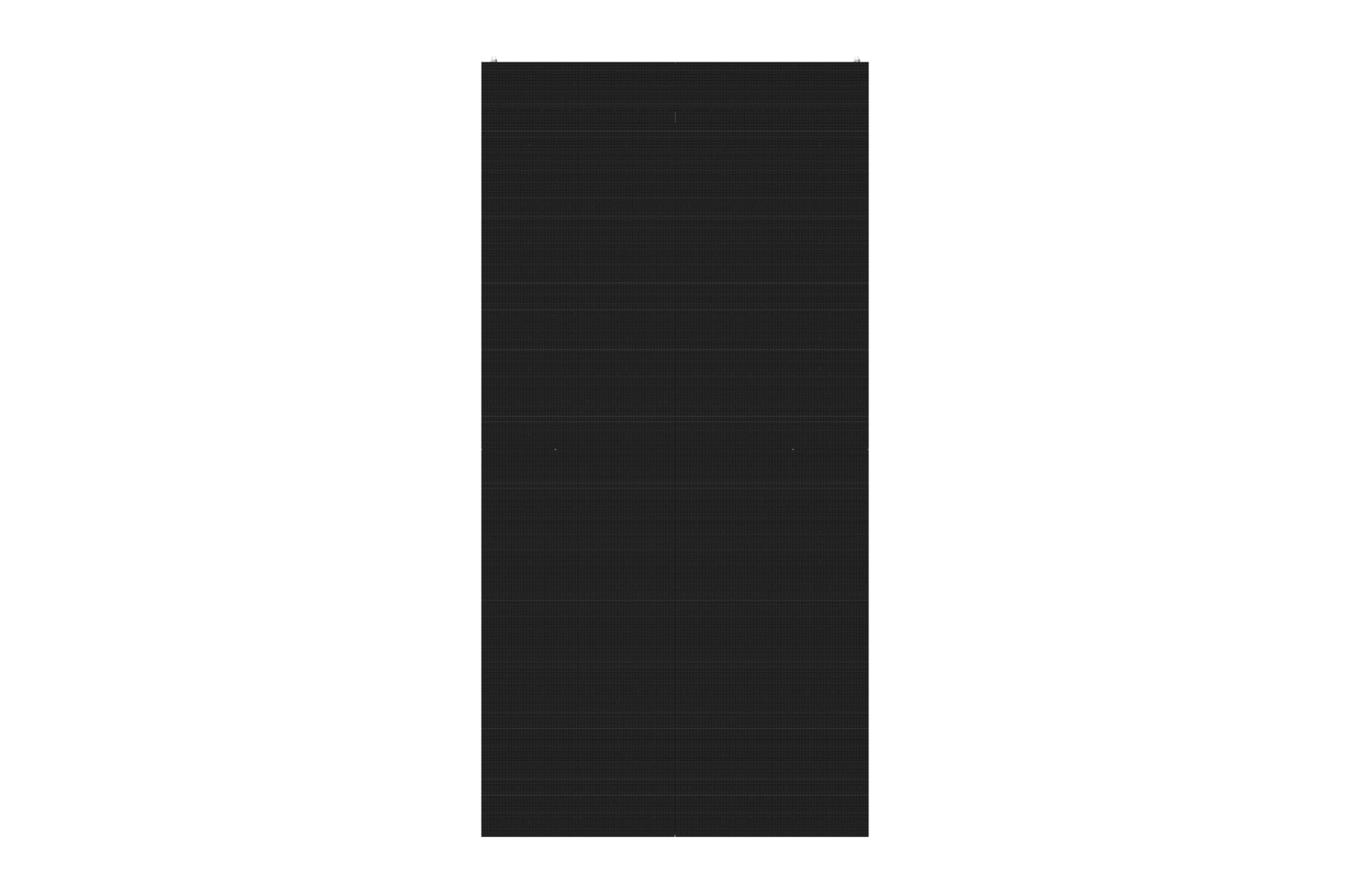

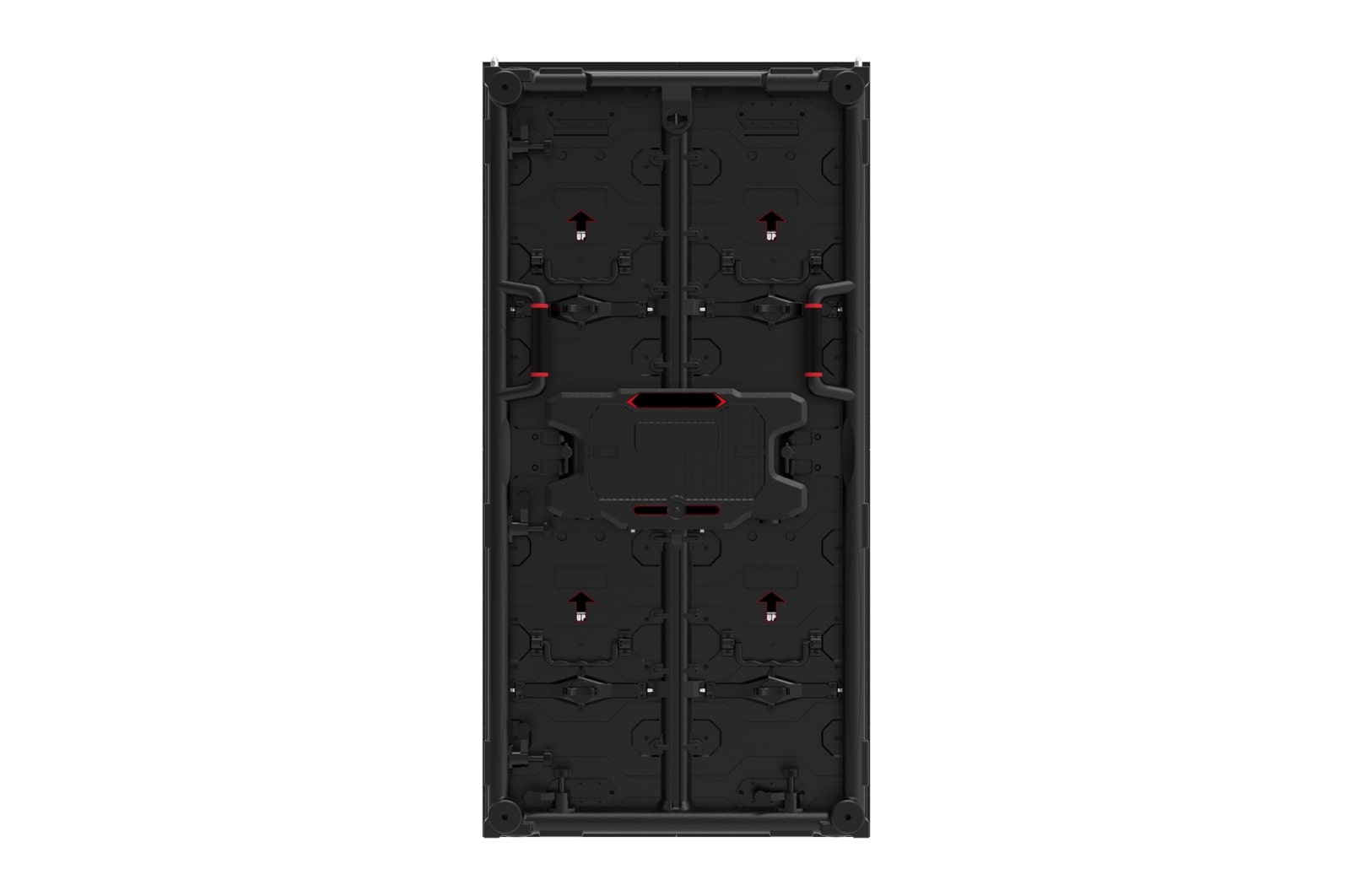

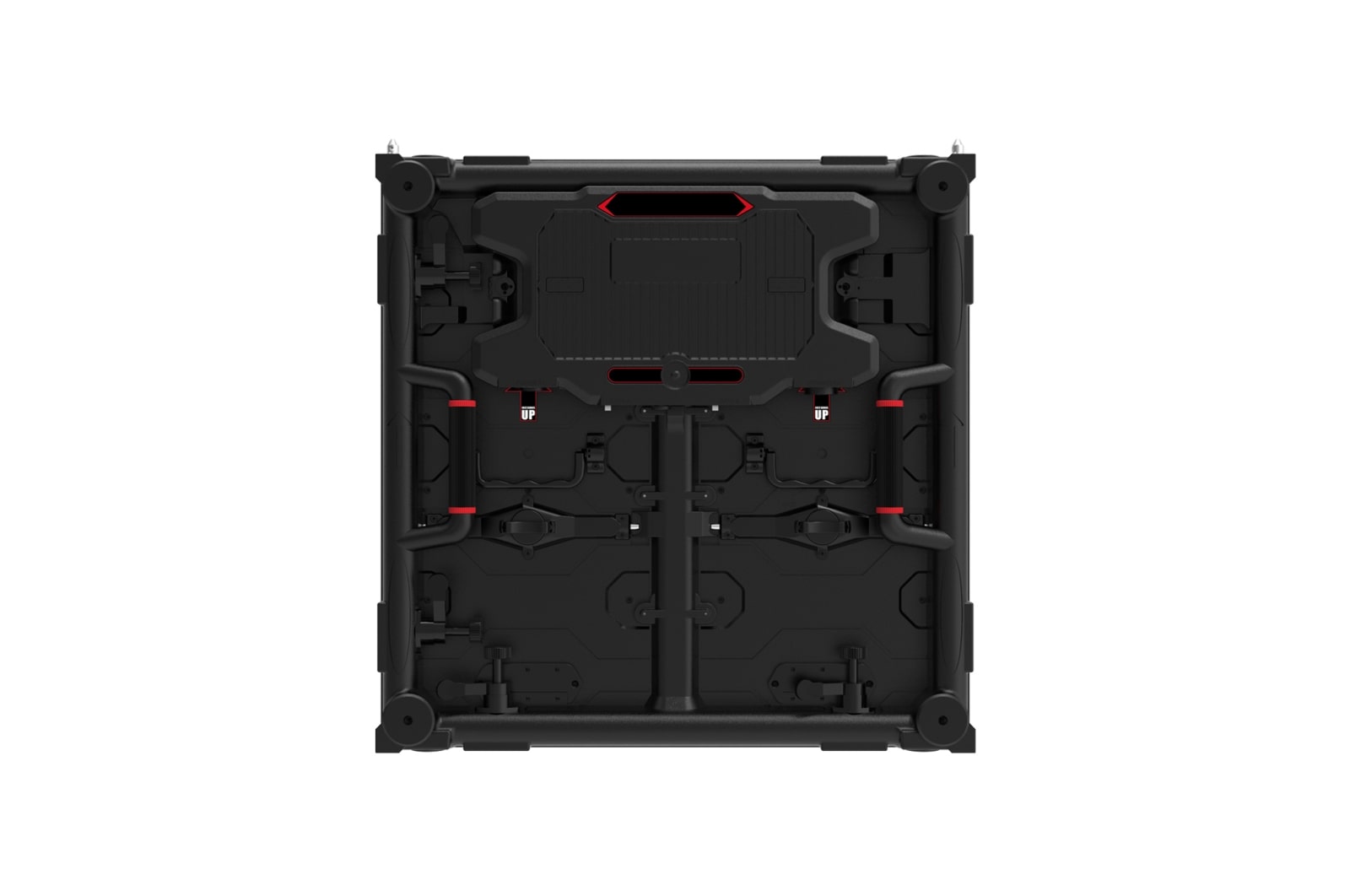

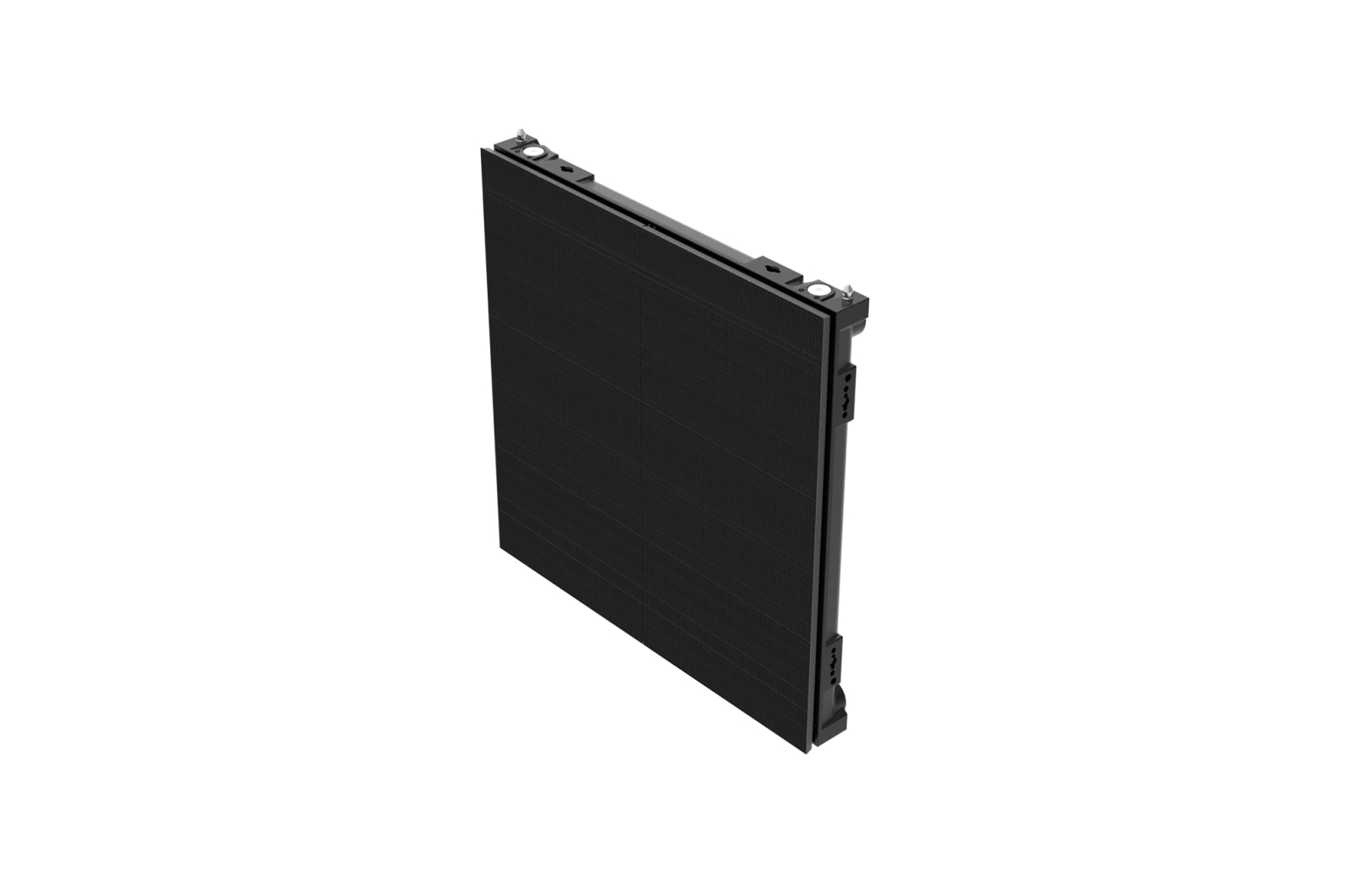

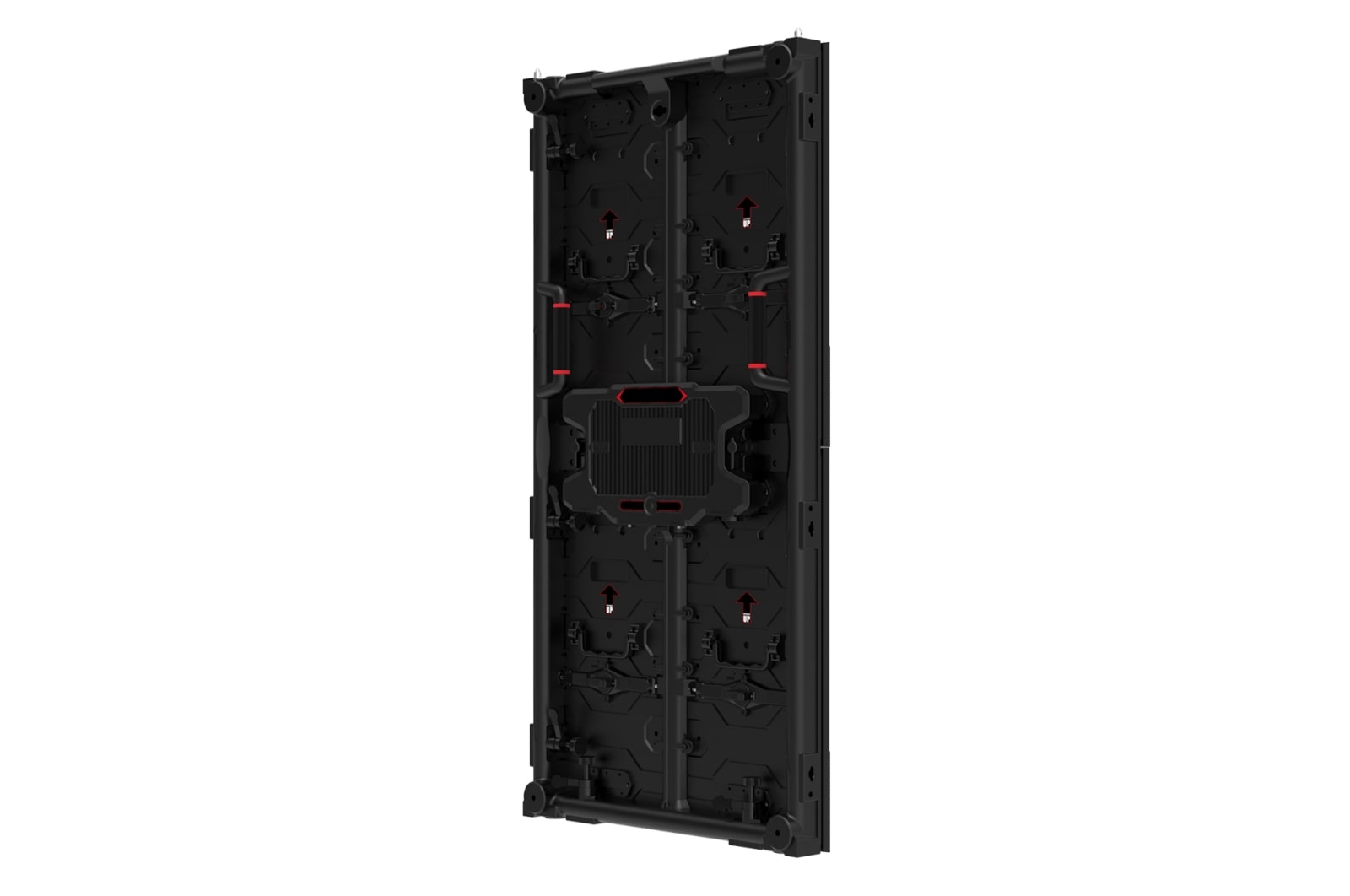

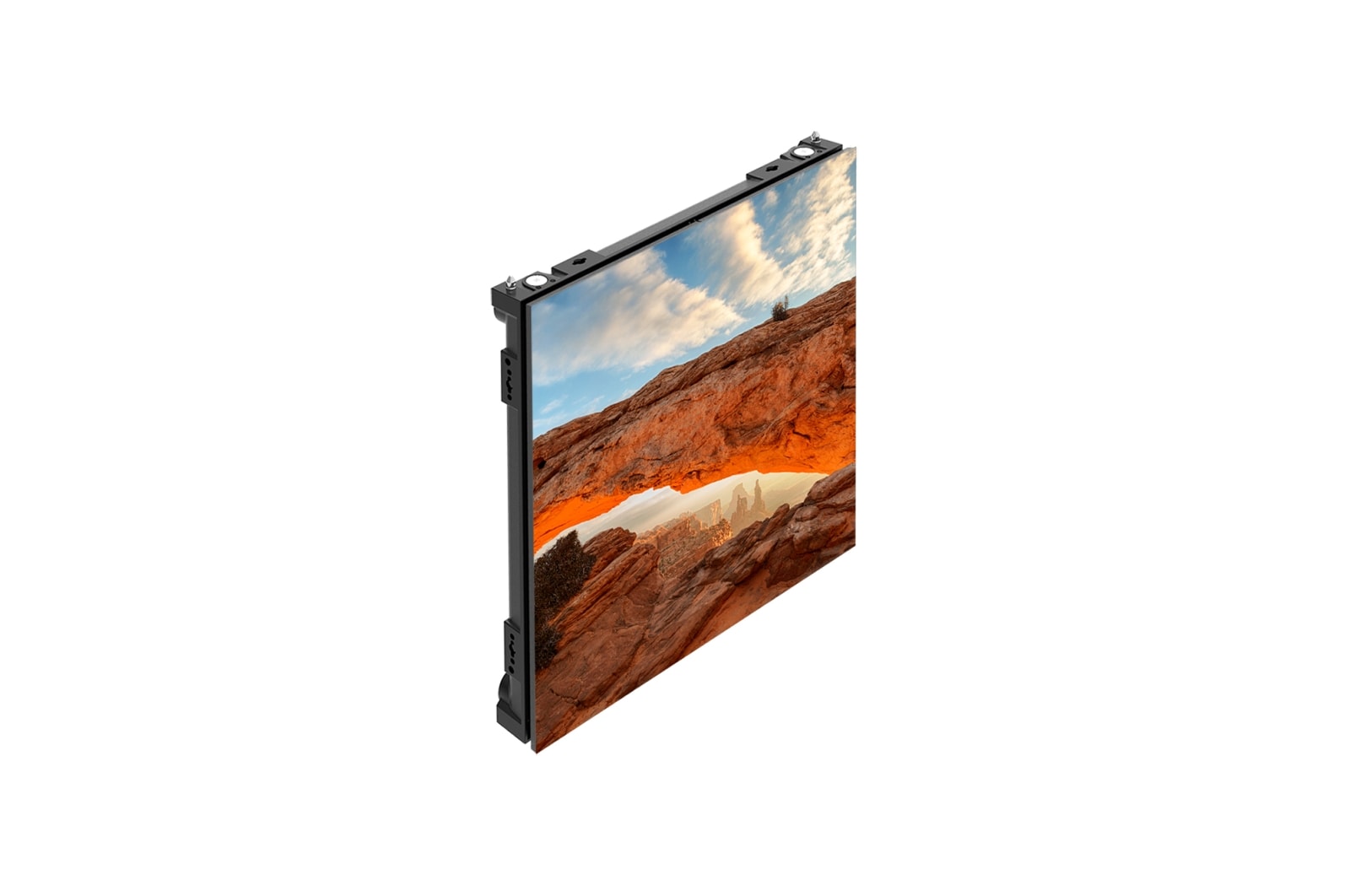

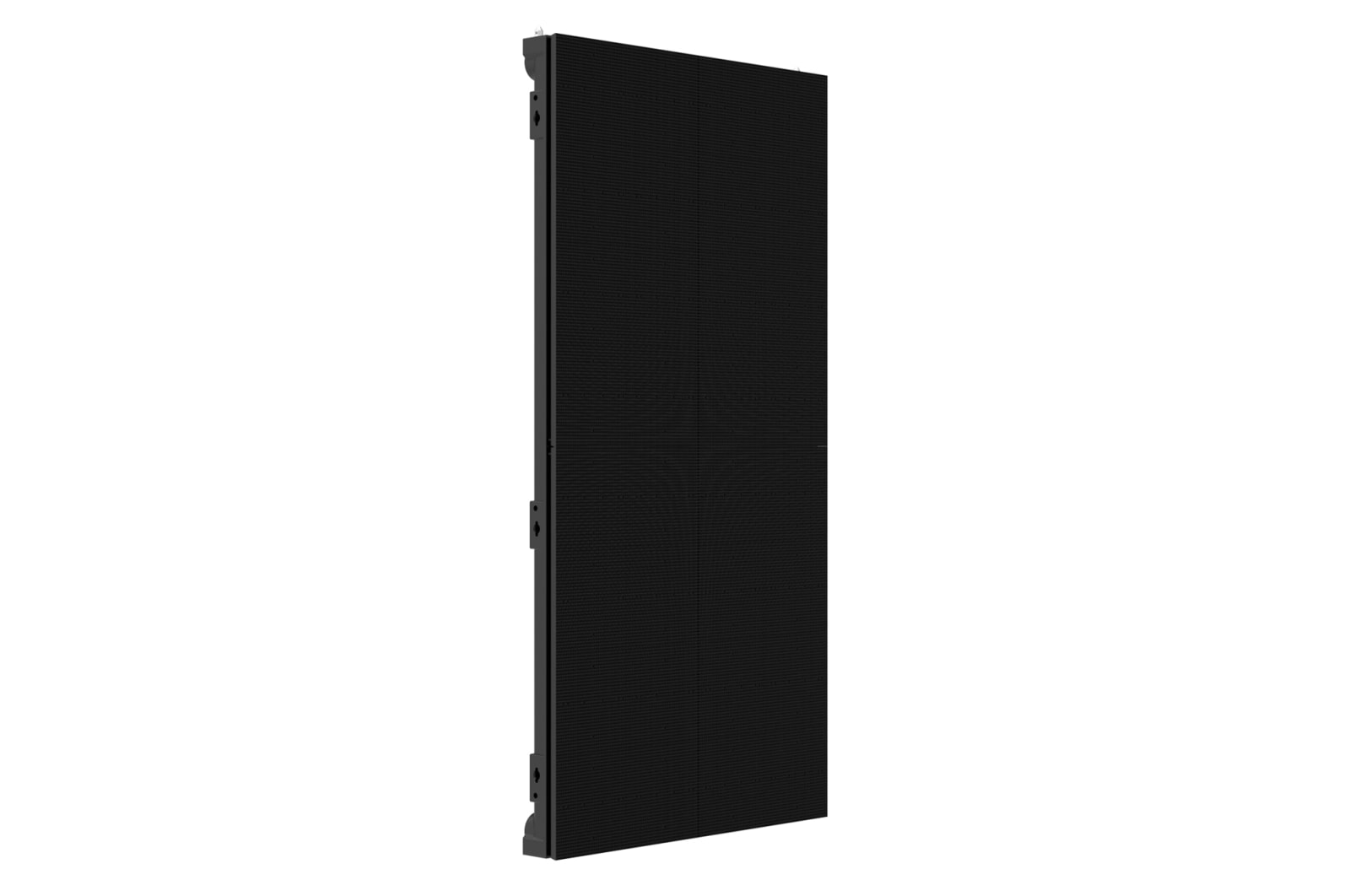

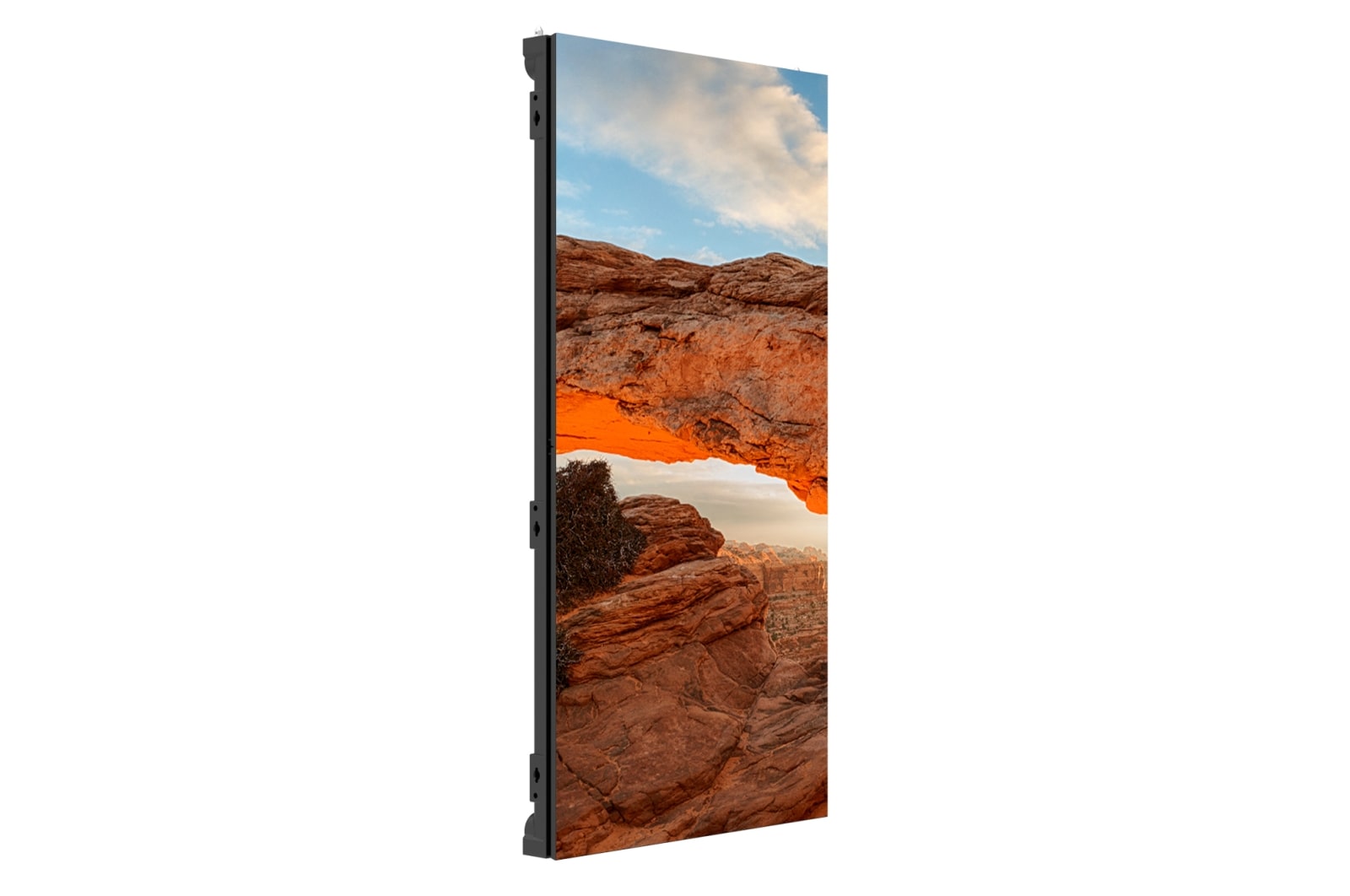

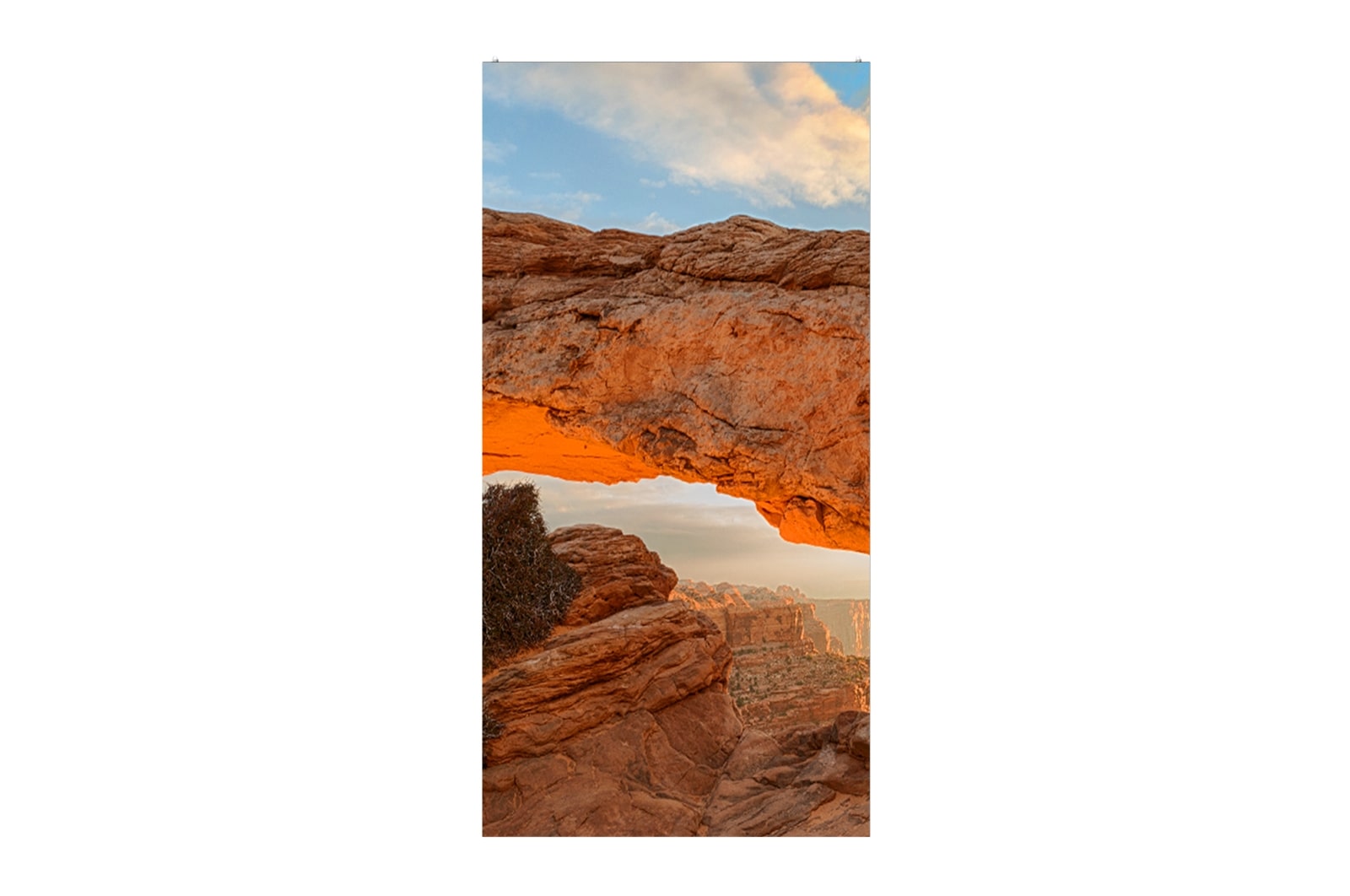

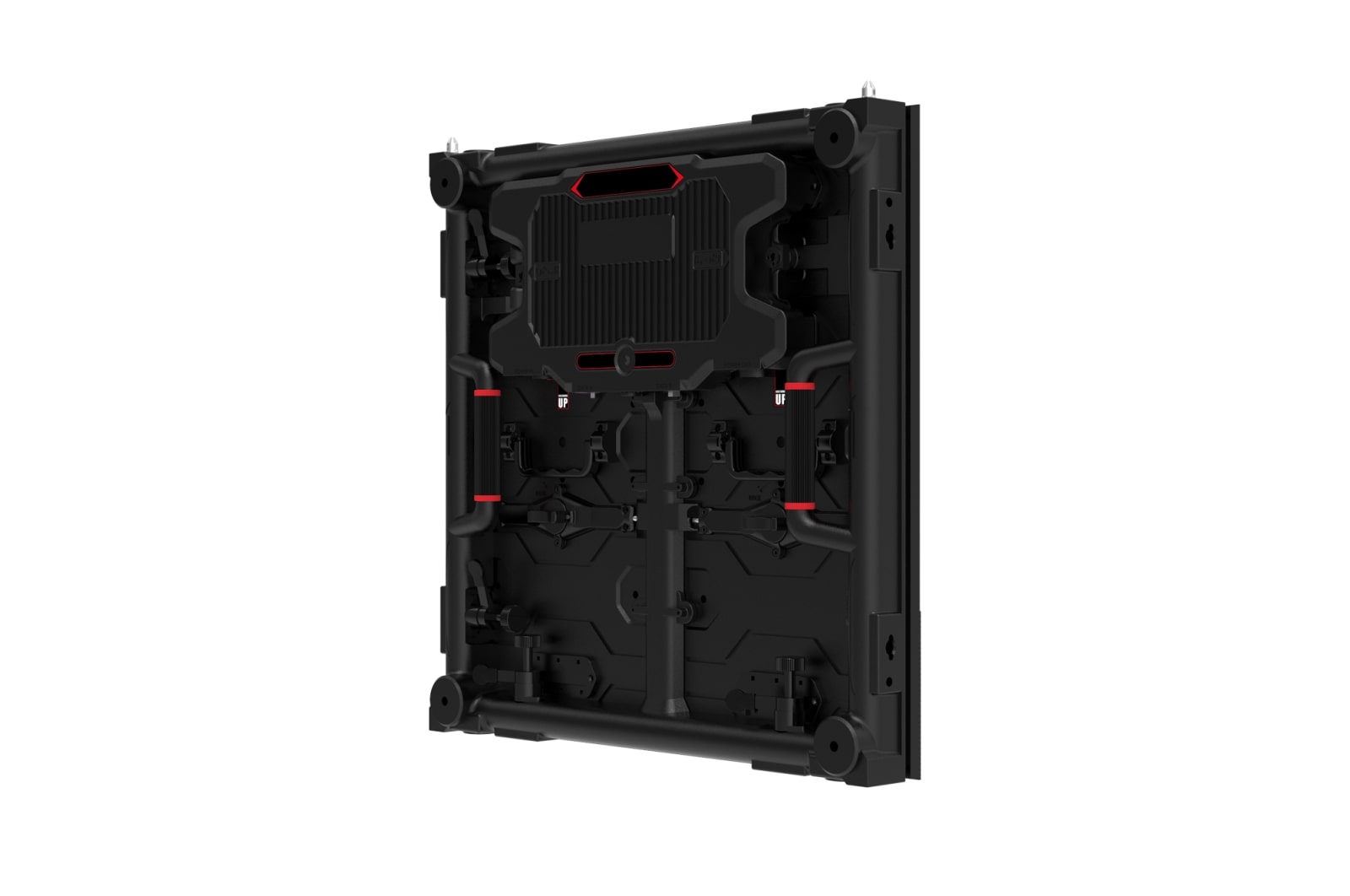

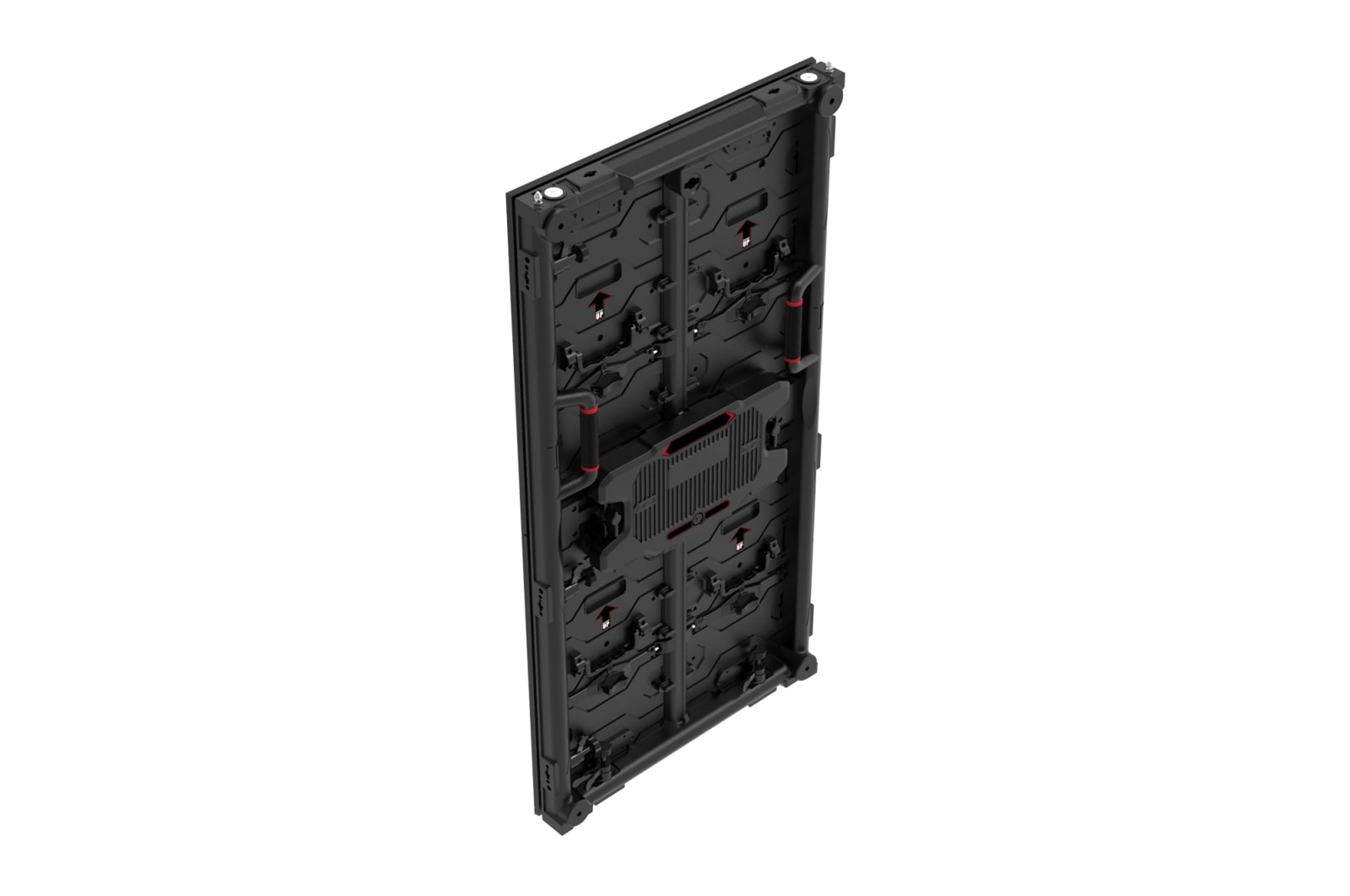

GSCA Versatile Series
Model name
GSCA046-GN
Pixel Configuration
Single SMD
Pixel Pitch (mm)
4.63
Module Resolution (WxH)
54x108
Module Dimensions(WxH,mm)
250x500
Weight per Module (kg)
1.4
No. of Modules per Cabinet (WxH)
2x2
Cabinet Resolution (WxH)
108x216
Cabinet Dimensions (W x H x D, mm)
500x1,000x67.2
Cabinet Surface Area (㎡)
0.5
Weight per Cabinet (kg/unit)
12.7
Weight per Square Meter (kg/㎡)
25.4
Physical Pixel Density (pixels/㎡)
46,656
Flatness of Cabinet (mm)
±0.3
Cabinet material
Die-casting Magnesium
Service access
Front or Rear (select one only)
Max Brightness (After Calibration, nit)
5,000
Color Temperature (K)
3,200~9,300
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
135
Brightness Uniformity(%)
0.97
Color Uniformity
±0.003Cx,Cy
Contrast Ratio
11,000:1
Processing Depth (bit)
14 (HDR10, HDR10 Pro)
Power Consumption (W/Cabinet, Max.)
300
Power Consumption (W/Cabinet, Avg.)
100
Power Consumption (W/㎡, Max.)
600
Heat Dissipation (BTU/h/Cabinet, Max.)
1,023.6
Heat Dissipation (BTU/h/Cabinet, Avg.)
341.2
Heat Dissipation (BTU/h/㎡, Max.)
2,047.2
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
LED Lifetime (Half brightness)
100,000
Operating Temperature(℃)
-30℃ to +45℃
Operating Humidity
10~99%RH
IP rating Front
IP65
IP rating Rear
IP65
Certification
CE, FCC, ETL
Environment
RoHS
Controller
CVCA
90 degree corner cut
O
