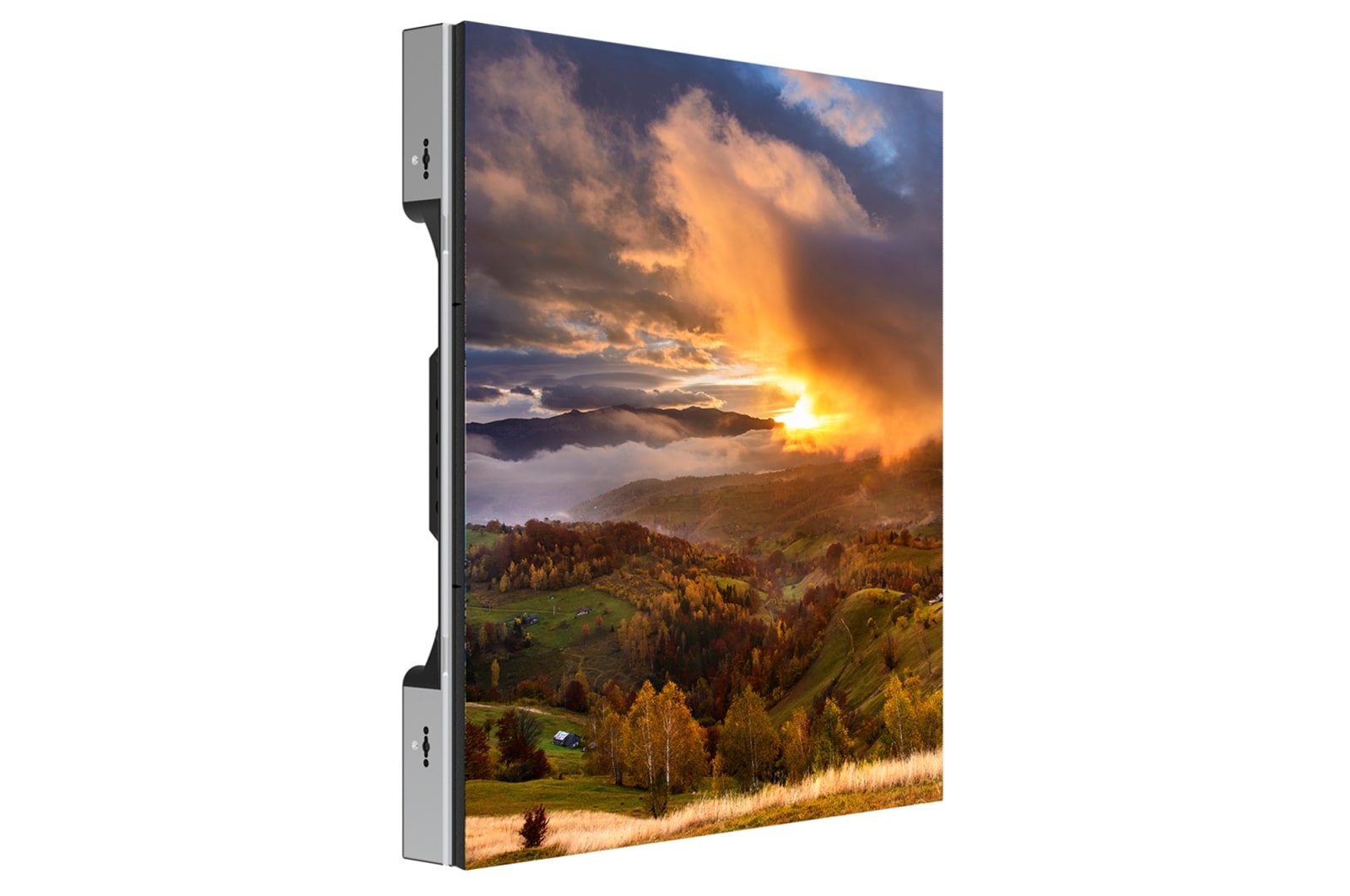

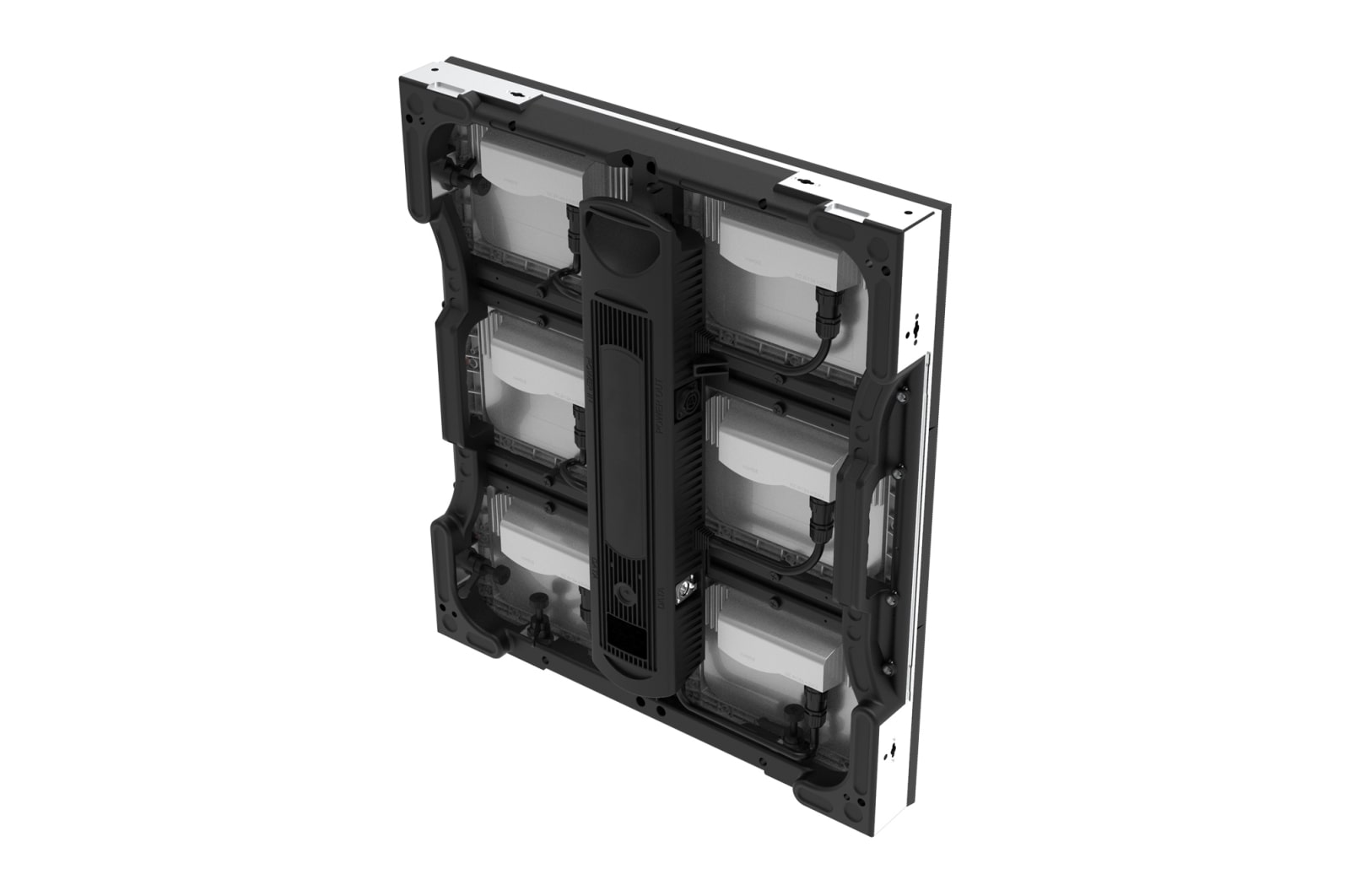

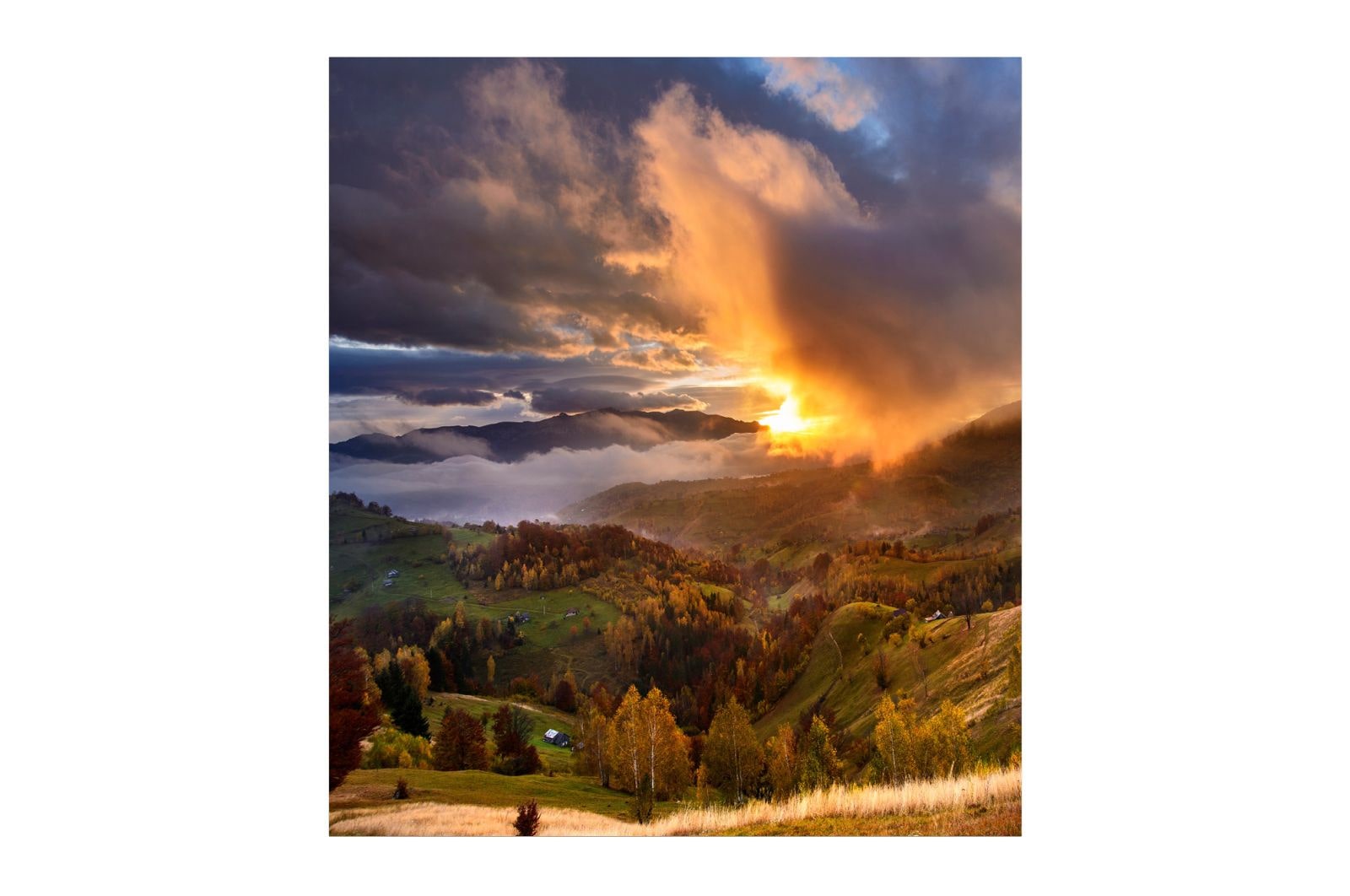

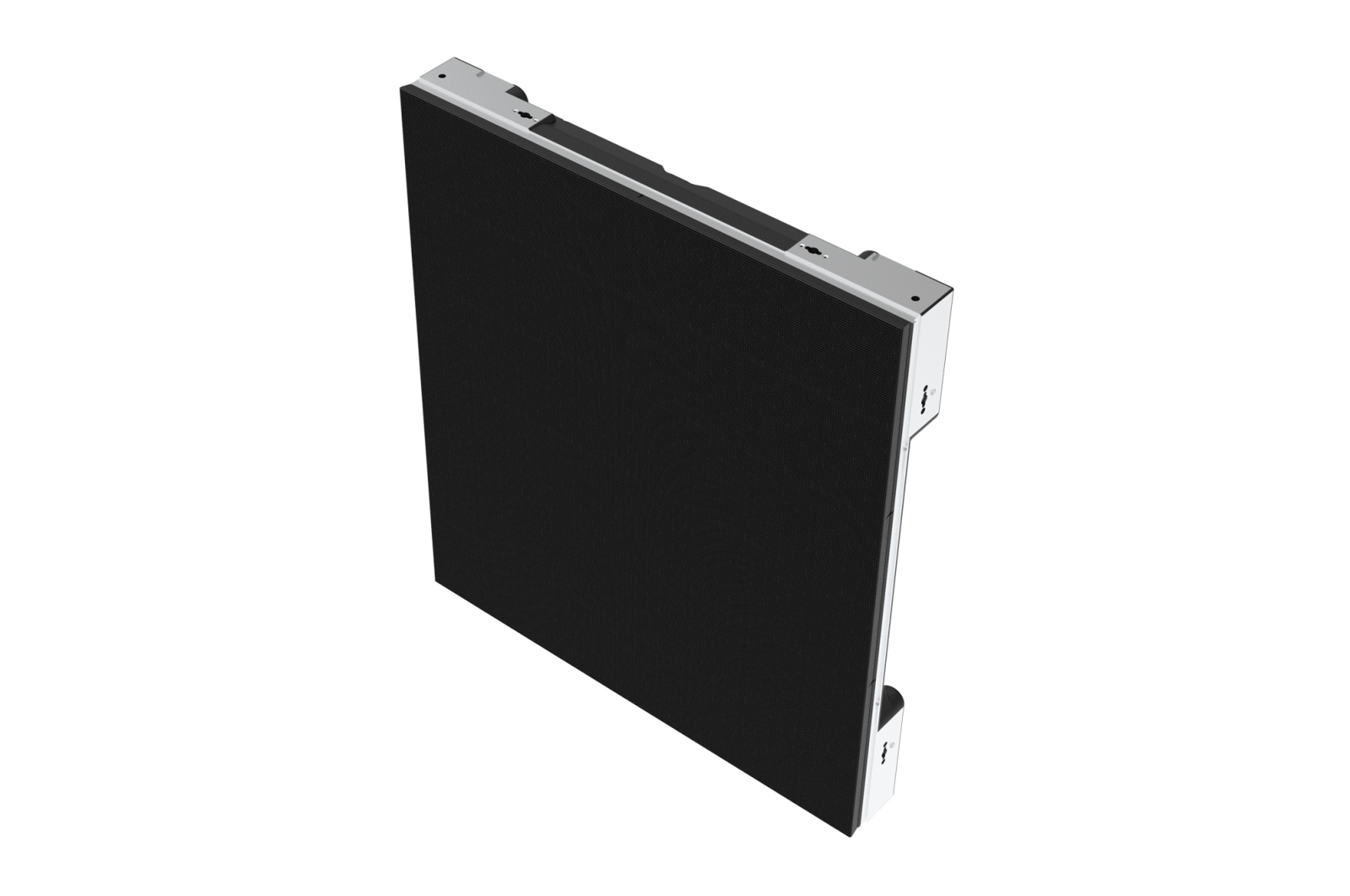

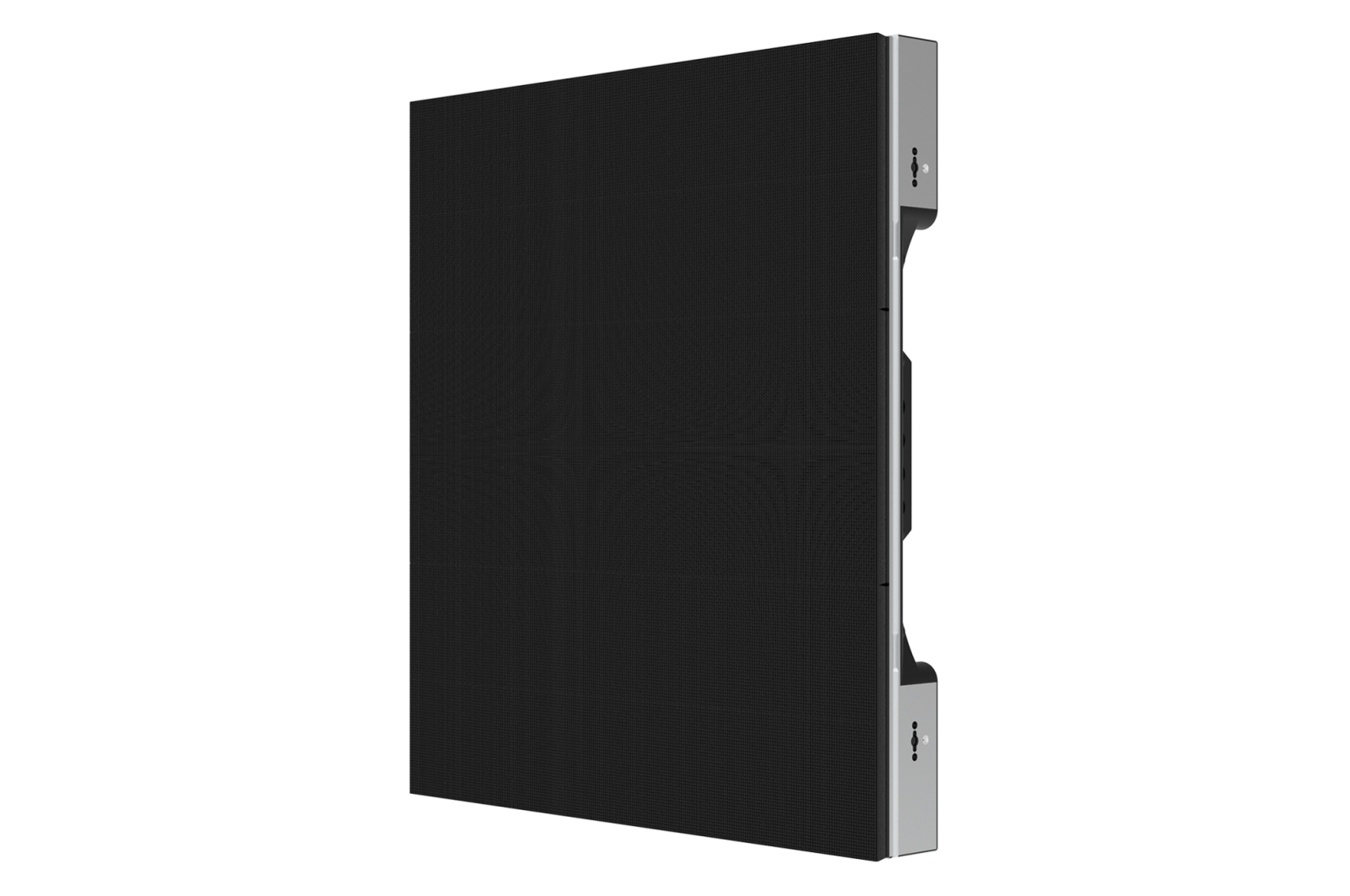

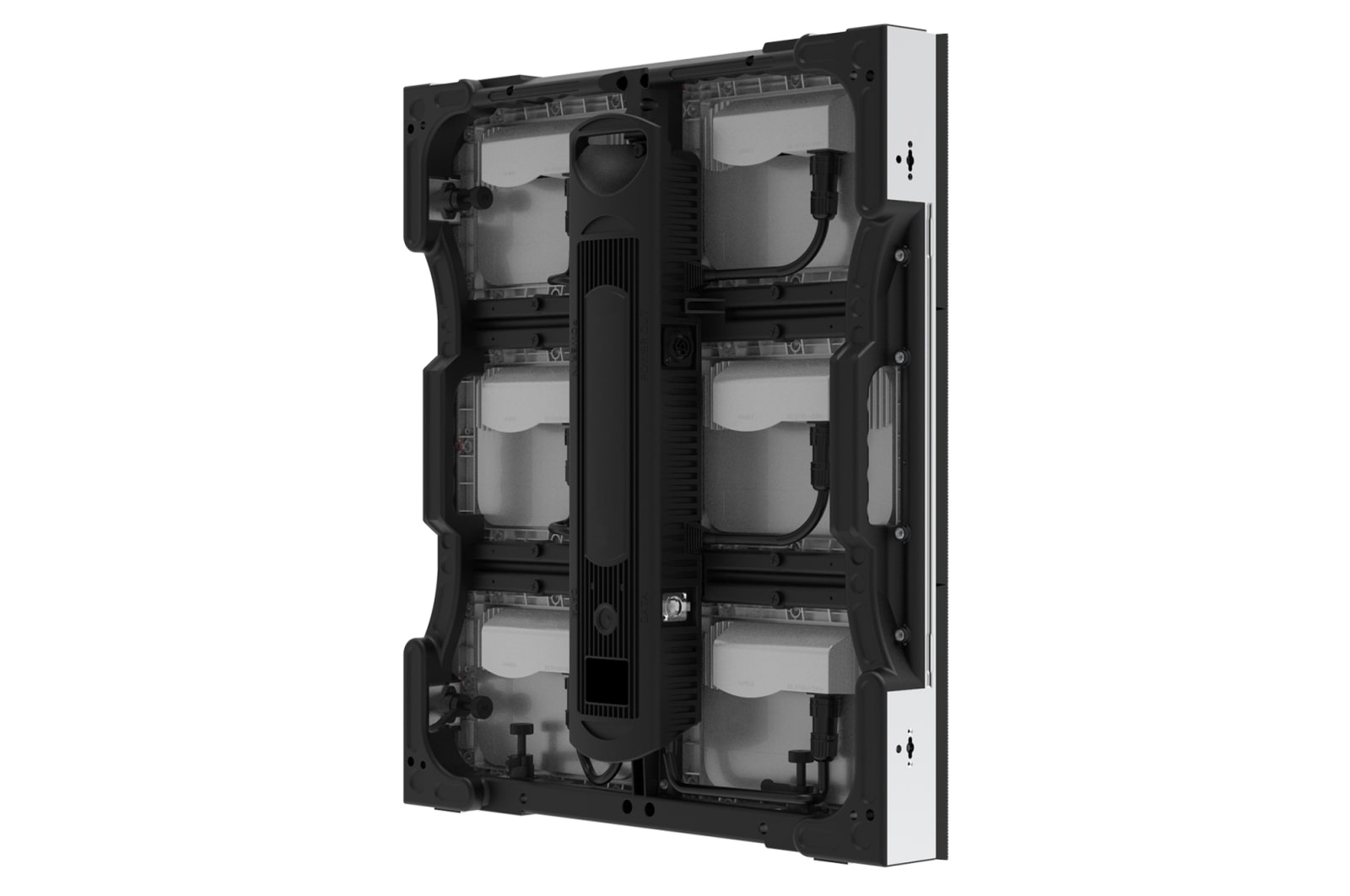

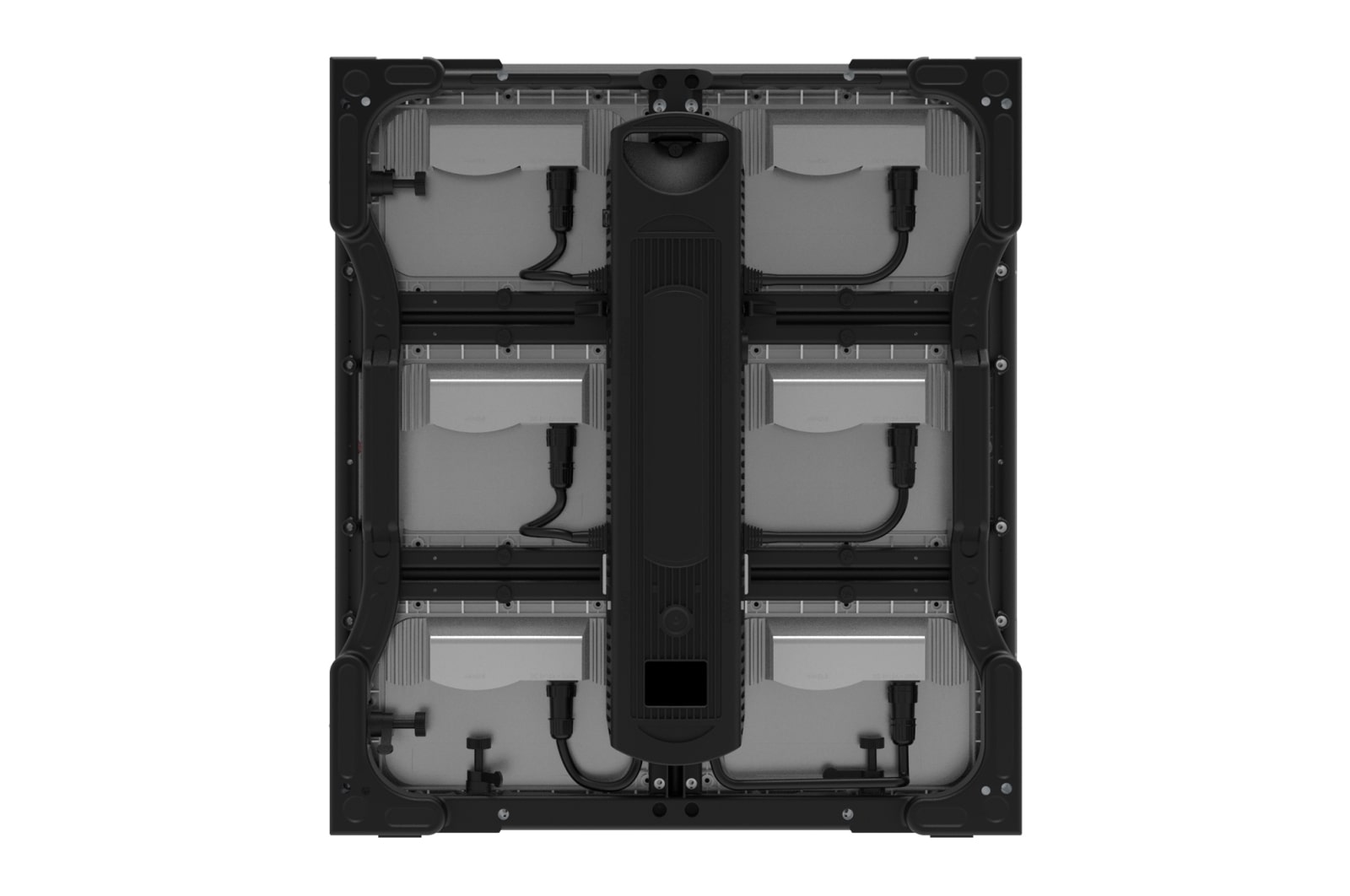

GSCC Essential Series
Model name
GSCC160-GM
Pixel Configuration
DIP
Pixel Pitch (mm)
16
Module Resolution (WxH)
20x15
Module Dimensions(WxH,mm)
320x240
Weight per Module (kg)
1.5
No. of Modules per Cabinet (WxH)
2x3
Cabinet Resolution (WxH)
40x45
Cabinet Dimensions (W x H x D, mm)
640x720x124
Cabinet Surface Area (㎡)
0.46
Weight per Cabinet (kg/unit)
18.5
Weight per Square Meter (kg/㎡)
40.15
Physical Pixel Density (pixels/㎡)
3,906
Flatness of Cabinet (mm)
±0.5
Cabinet material
Die-casting Aluminum
Service access
Front or Rear (select one only)
Max Brightness (After Calibration, nit)
8,000
Color Temperature (K)
3,200~9,300
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
125
Brightness Uniformity(%)
0.97
Color Uniformity
±0.003Cx,Cy
Contrast Ratio
20,000:1
Processing Depth (bit)
14 (HDR10, HDR10 Pro)
Power Consumption (W/Cabinet, Max.)
330
Power Consumption (W/Cabinet, Avg.)
110
Power Consumption (W/㎡, Max.)
720
Heat Dissipation (BTU/h/Cabinet, Max.)
1,125.96
Heat Dissipation (BTU/h/Cabinet, Avg.)
375.32
Heat Dissipation (BTU/h/㎡, Max.)
2,456.64
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
LED Lifetime (Half brightness)
100,000
Operating Temperature(℃)
-30℃ to +50℃
Operating Humidity
10-99%RH
IP rating Front
IP65
IP rating Rear
IP65
Certification
CE, FCC, ETL
Environment
RoHS
Controller
CVCA
90 degree corner cut
O
