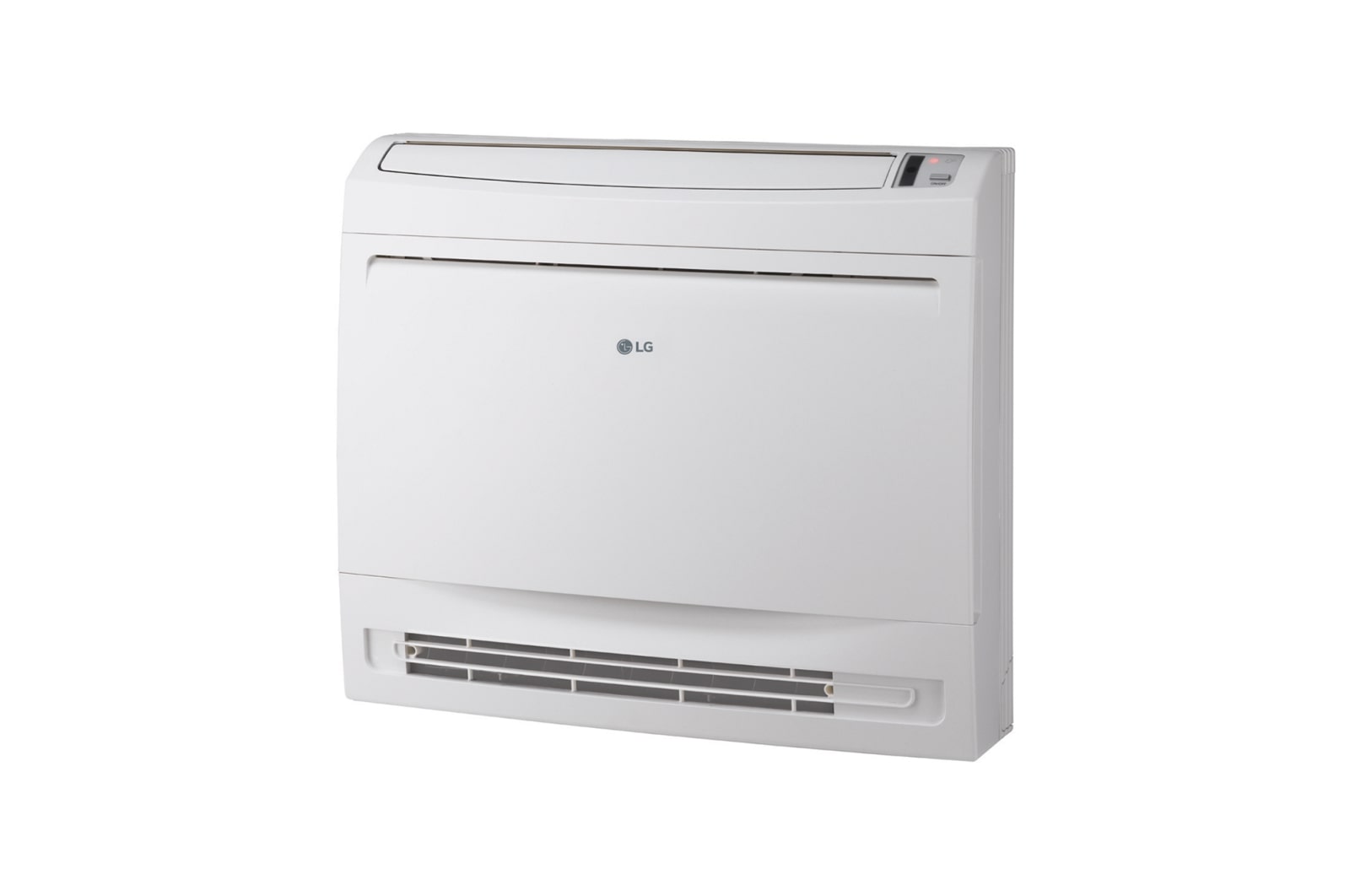

Console, Indoor Unit, 12kBTU

Console, Indoor Unit, 12kBTU

5-Step Vane Control

There are 5 different stages to control air flow direction.

Cold Draft Window Protection

The console protects cold air from drafting through the windows, maintaining a comfortable environment.

Wi-Fi Control with ThinQ

Access your air conditioner anytime and anywhere with the ThinQ app.

6 Way Flexible Piping

Install the outdoor unit up to 6 different ways thanks to the flexible piping options.

(Right Side, Right Back, Right Floor, Left Side, Left Back, Left Floor)

Key Feature

  • 5-Step Vane Control
  • Cold draft window protection
  • Wi-Fi Control with ThinQ
  • 6 Way Flexible Piping

All Spec

POWER SUPPLY

  • #1

    50 Hz 220-240 V~

  • #2

    60 Hz 220 V~

INDOOR FAN

  • Air Flow Rate(Cooling,(SH)/H/M/L) (m³/min)

    - / 7.5 / 5.9 / 4.8

SOUND PRESSURE LEVEL (INDOOR UNIT)

  • Cooling((SH)/H/M/L) (dB(A))

    - / 39 / 34 / 28

  • Heating((SH)/H/M/L) (dB(A))

    - / 39 / 34 / 28

SOUND POWER LEVEL (INDOOR UNIT)

  • Cooling((SH)/H/M/L) (dB(A))

    - / 56 / 50 / 44

  • Heating((SH)/H/M/L) (dB(A))

    - / 56 / 50 / 44

PRODUCT

  • Type

    Console

DIMENSIONS

  • Net(W x H x D) (mm)

    700 x 600 x 210

WEIGHT

  • Net (kg)

    14.0

CONNECTING PIPE

  • Liquid (mm(inch))

    Φ6.35 (1/4)

  • Gas (mm(inch))

    Φ12.7 (1/2)

COOLING CAPACITY

  • Nominal (kW)

    3.60

HEATING CAPACITY

  • Nominal (kW)

    4.00

COMPLIANCE INFORMATION

The safety information for accessories is included with the safety information for the product and is not provided separately.
