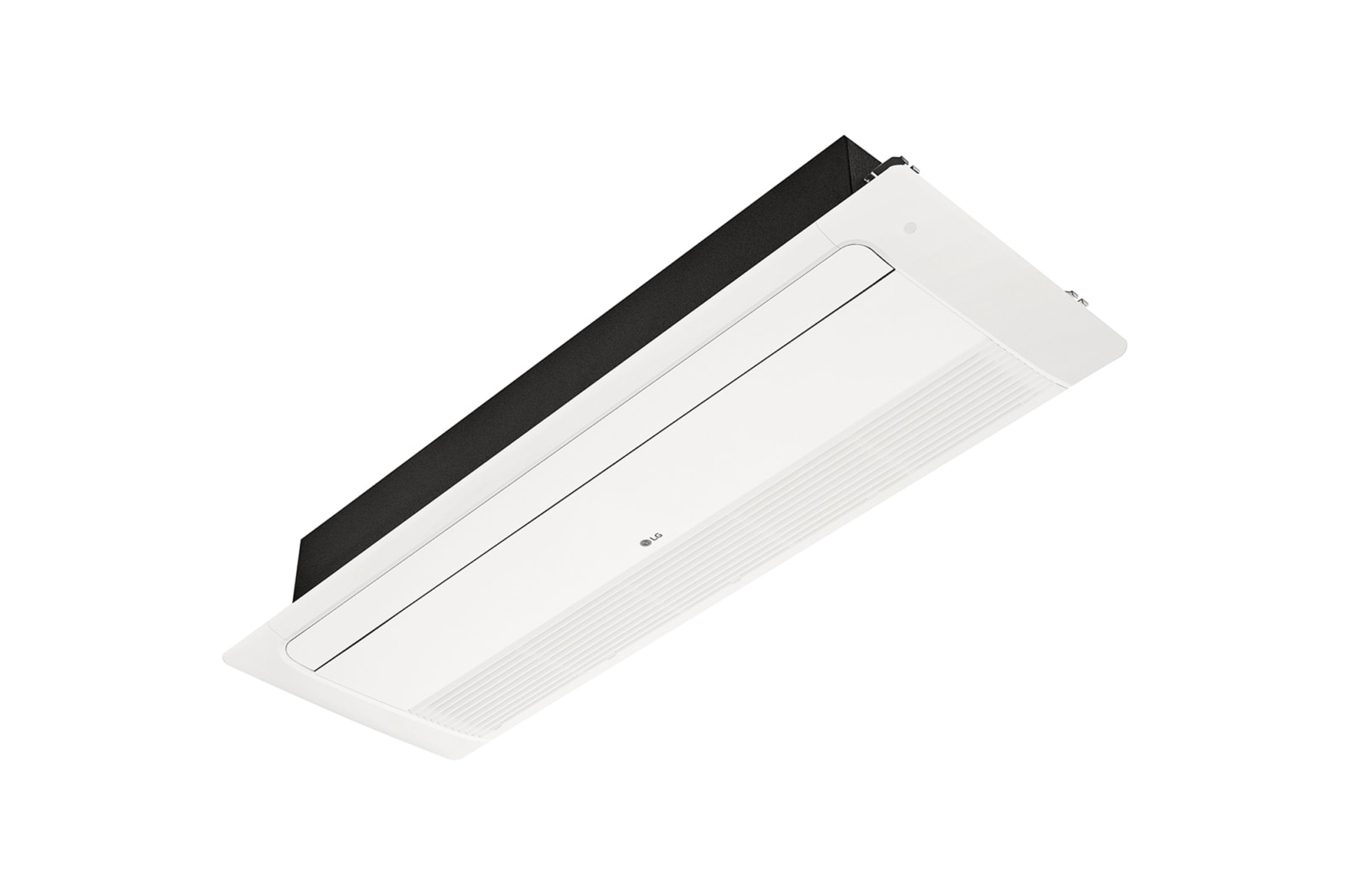

The height of 1 Way Cassette is 132mm, making it the ideal solution for installation in limited space. And The access for inspection at 1 Way Cassette does not require additional ducted space making the installation environment uncomplicated.
A powerful air purification* removes odor, germs, and invisible PM 1.0 fine dust. This filter can easily be cleaned with water, allowing semi-permanent usage.
*The Air Purification Kit can be purchased as an option.
#1
50 Hz 220-240 V~
#2
60 Hz 220 V~
Air Flow Rate(Cooling,(SH)/H/M/L) (m³/min)
- / 14.6 / 13.3 / 11.5
O.D / I.D (mm(inch))
25(1)
Cooling((SH)/H/M/L) (dB(A))
- / 43 / 40 / 36
Heating((SH)/H/M/L) (dB(A))
- / 43 / 40 / 36
Cooling((SH)/H/M/L) (dB(A))
- / 58 / 53 / 49
Heating((SH)/H/M/L) (dB(A))
- / 58 / 53 / 49
Model Name
PT-UTC(Grill), PT-UTD(Panel)
Type
Ceiling Cassette
Net(W x H x D) (mm)
1180 x 132 x 450
Net (kg)
15.3
Liquid (mm(inch))
Φ9.52 (3/8)
Gas (mm(inch))
Φ15.88 (5/8)
Nominal (kW)
7.10
Nominal (kW)
7.10
