5-step Air Purification (Optional)
A powerful air purification* removes odor, germs, and invisible PM 1.0 fine dust. This filter can easily be cleaned with water, allowing semi-permanent usage.
Smart Function (Optional)
Monitor and control your unit via your mobile device. In addition, the special sensor, Airflow, is increased until the desired temperature is reached at ground level. The Human Detection function adjusts the airflow and turns off automatically when the space is not occupied.
Key Feature
- 4 Way Air Flow with New Design (Dual Vane)
- High Efficiency Heat Exchanger
- Convenient & Powerful 5-Step Air Purification (Optional)
- Smart Function (Optional_Human Detection, Floor Temperature Sensing, ThinQ Connectivity)
All Spec
POWER SUPPLY
#1
50 Hz 220-240 V~
#2
60 Hz 220 V~
INDOOR FAN
Air Flow Rate(Cooling,(SH)/H/M/L) (m³/min)
- / 29 / 26 / 22
DRAIN PIPE(USING DRAIN PUMP)
O.D / I.D (mm(inch))
32 / 25
SOUND PRESSURE LEVEL (INDOOR UNIT)
Cooling((SH)/H/M/L) (dB(A))
- / 43 / 40 / 37
Heating((SH)/H/M/L) (dB(A))
- / 43 / 40 / 37
SOUND POWER LEVEL (INDOOR UNIT)
Cooling((SH)/H/M/L) (dB(A))
- / 54 / 51 / 47
Heating((SH)/H/M/L) (dB(A))
- / 54 / 51 / 47
DECORATION PANEL
Model Name
PT-AAGW0
PRODUCT
Type

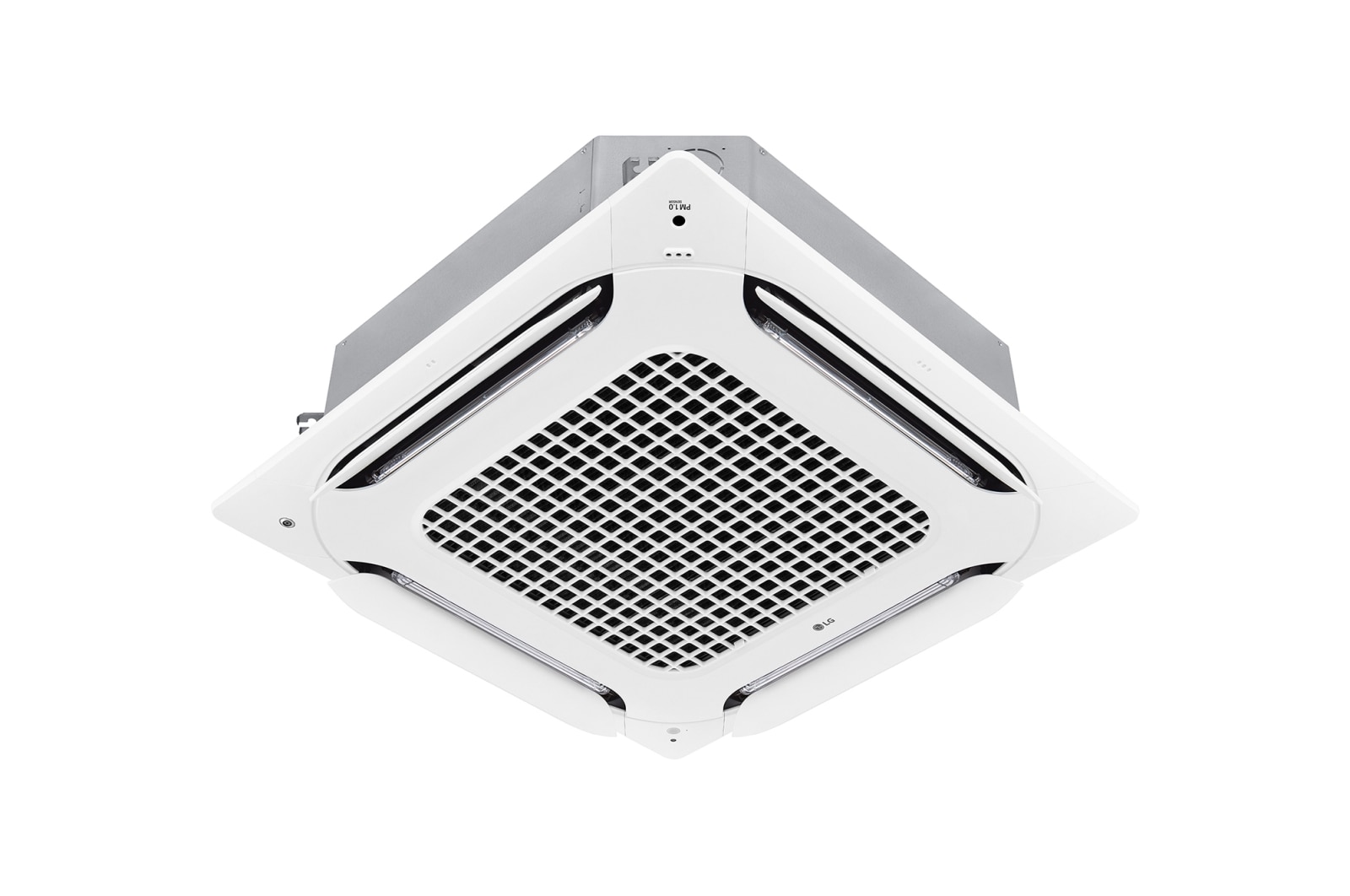

Dual Vane Cassette
DIMENSIONS
Net(W x H x D) (mm)
840 x 288 x 840
WEIGHT
Net (kg)
26
CONNECTING PIPE
Liquid (mm(inch))
Φ9.52 (3/8)
Gas (mm(inch))
Φ15.88 (5/8)
HEATING CAPACITY
Nominal (kW)
11.9
COOLING CAPACITY
Nominal (kW)
10.60
