Key Features

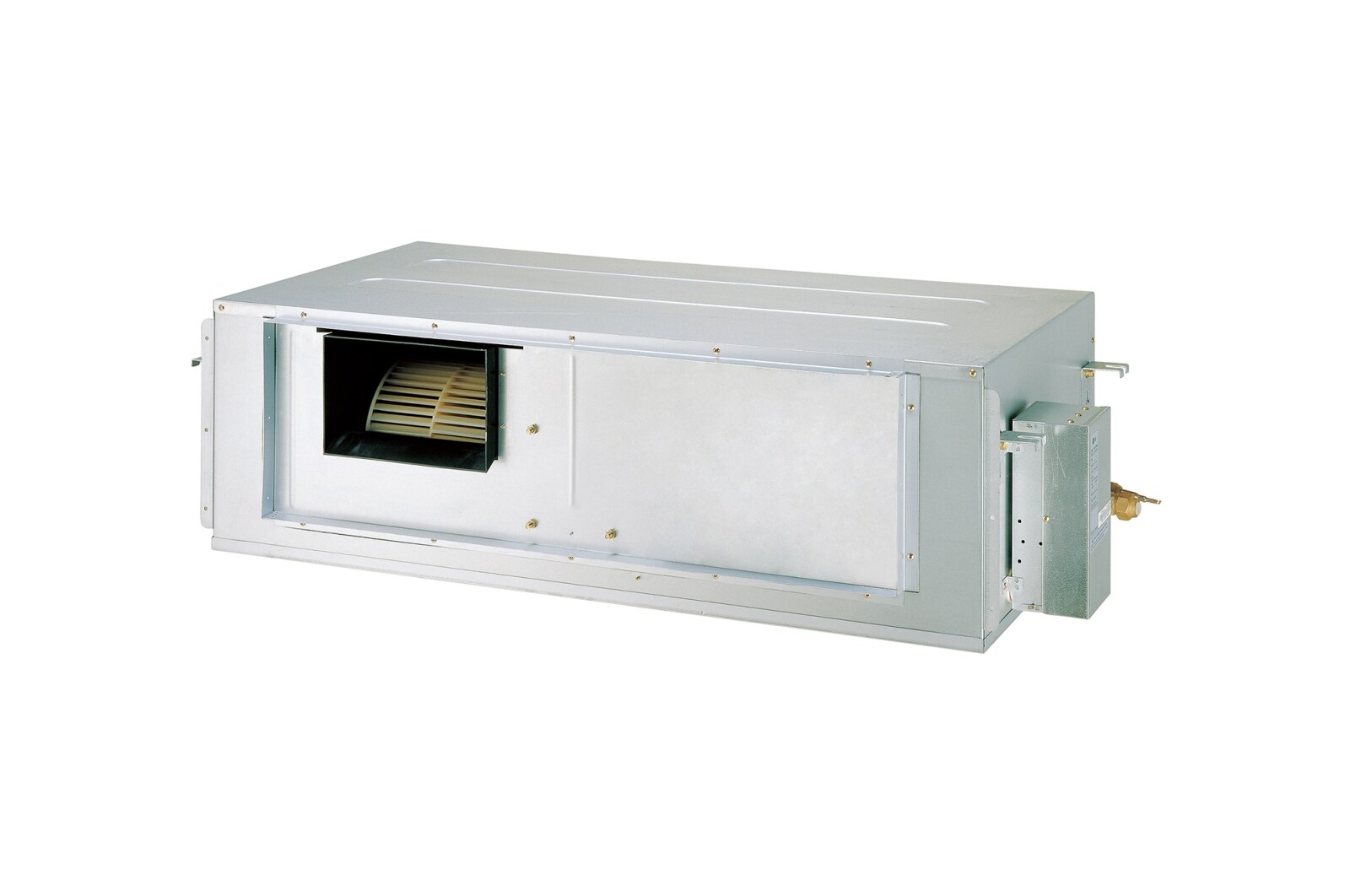

The LG Fresh Air Intake Unit (FAU) is an alternative solution for ventilation that supplies fresh air from the outdoors. By doing so, it simultaneously cools and heats the air inside. With the FAU, indoor spaces benefit from consistent air pressure, which blocks unwanted cold or hot from seeping in from outside.
The unit utilises fresh air from the outside as the seasons change to remain cost-efficient.
#1
50 Hz 220-240 V~
#2
60 Hz 220 V~
Air Flow Rate(Cooling,(SH)/H/M/L) (m³/min)
- / 23.7 / 13.2 / 13.2
External Static Pressure(Factory Set) (Pa)
216
O.D / I.D (mm(inch))
25(1)
Cooling((SH)/H/M/L) (dB(A))
- / 45 / 43 / 43
Heating((SH)/H/M/L) (dB(A))
- / 45 / 43 / 43
Cooling((SH)/H/M/L) (dB(A))
- / 70 / 67 / 67
Heating((SH)/H/M/L) (dB(A))
- / 70 / 67 / 67
Type
Concealed Duct
Net(W x H x D) (mm)
1562 x 460 x 688
Net (kg)
73
Liquid (mm(inch))
Φ9.52 (3/8)
Gas (mm(inch))
Φ19.05 (3/4)
Nominal (kW)
21.4
Nominal (kW)
22.40
