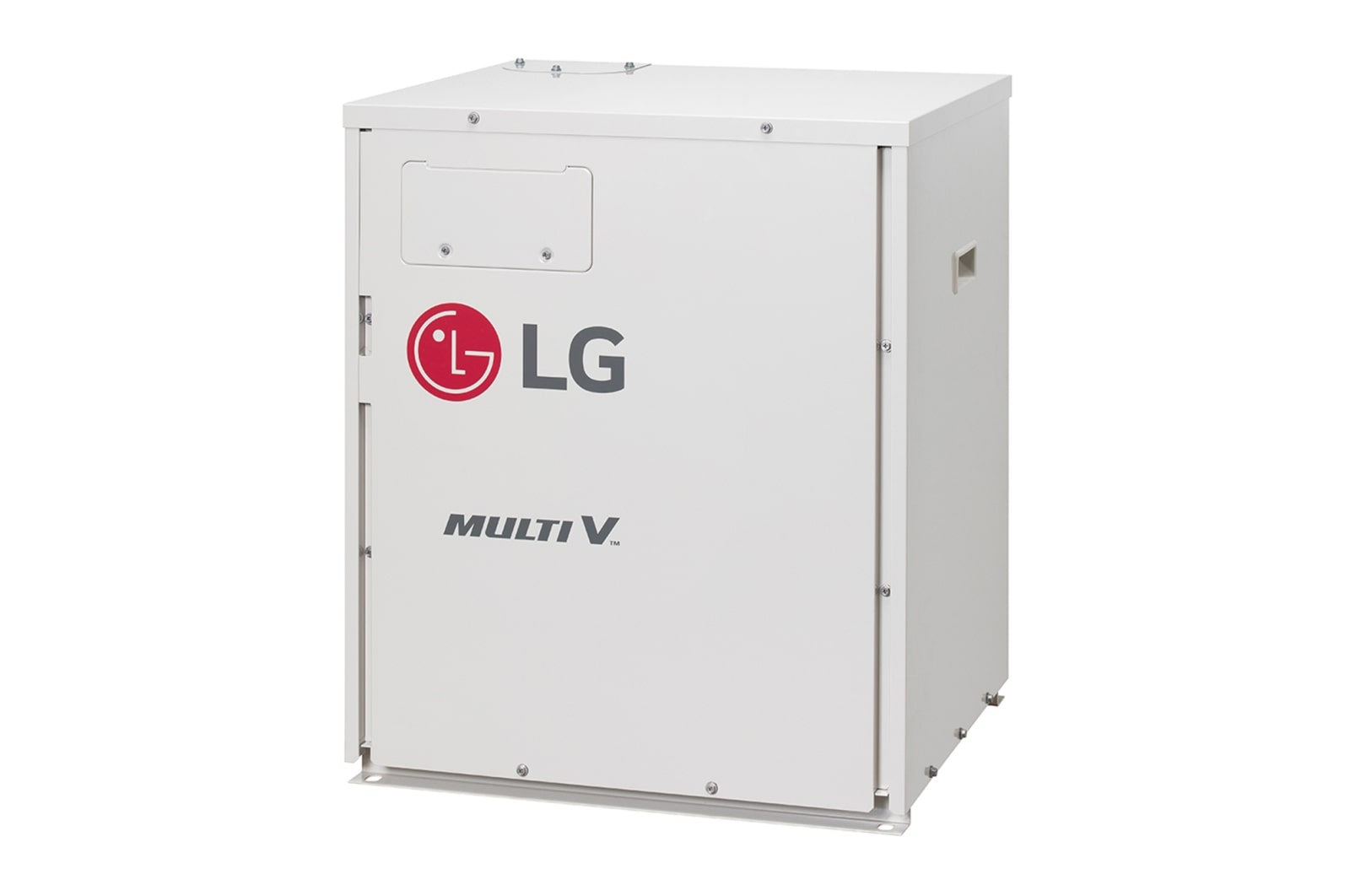

MULTI V M, Compressor Unit, Outdoor Unit, 5HP, R410A
In order to save operation energy consumption, it automatically controls the refrigerant temperature according to the outdoor temperature.
Wide Louver Plus Fin is applied for strong protection from various corrosive external conditions such as salt contamination and air pollution.
Installation is tidy and simple with flexible piping installation. Multi V M is an applicable solution for small offices, retail shops and hospitals.
Thanks to a compressor module and heat exchanger module, outdoor units are able to be installed and operated inside, with low volume operation.
#1
50 Hz 380-415 V 3N~
Rated (kW)
14
Rated (kW)
14
Max (kW)
16
Max (Btu/h)
54600
Rated (kW)
5.07
Type
Scroll
Motor Output (W x No.)
3200 x 1
Starting Method
DC Inverter Starting
Oil Type
FW68D(PVE)
Piston Displacement (cm³/rev)
31.6
Rated (kW)
3.71
EER(Rated) (W/W)
2.76
COP(Rated) (W/W)
3.77
SEER (Wh/Wh)
5.26
SCOP (Wh/Wh)
3.85
Pdesign(@-10℃, Heating) (kW)
9.8
Type
Sirocco Fan
Air Flow Rate(High) (m³/min x No.)
60
Drive
Direct
Output (W x No.)
400 x 2
Net(W x H x D) (mm)
580 x 700 x 500
Shipping(W x H x D) (mm)
618 x 833 x 564
Net (kg)
69
Shipping (kg)
76
Color
Morning Gray
Type
R410A
Precharged amount (kg)
2.0
GWP(Global Warming Potential)
2087.5
t-CO₂ eq.
4.175
Control Type
Electronic Expansion Valve
Liquid (mm(inch))
Φ9.52 (3/8)
Gas (mm(inch))
Φ15.88 (5/8)
Cooling / Heating (dB(A))
45 / 45
Cooling / Heating (dB(A))
68 / 68
Max. (Conditional) (EA)
10
Communication Cable(VCTF-SB) (mm² × cores)
2C x 1.0 ~ 1.5
Fin Type
Wide Louver Plus
